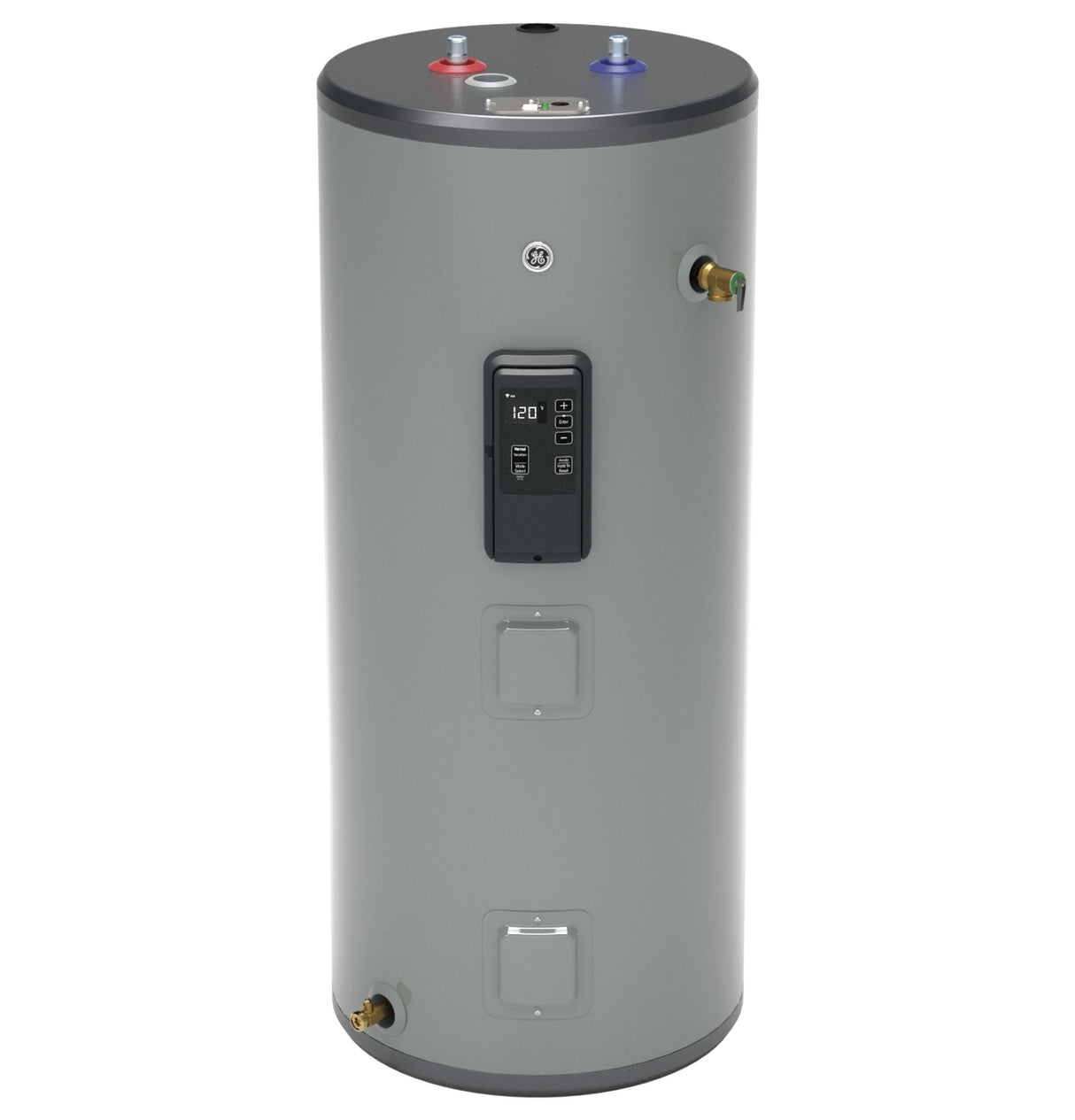

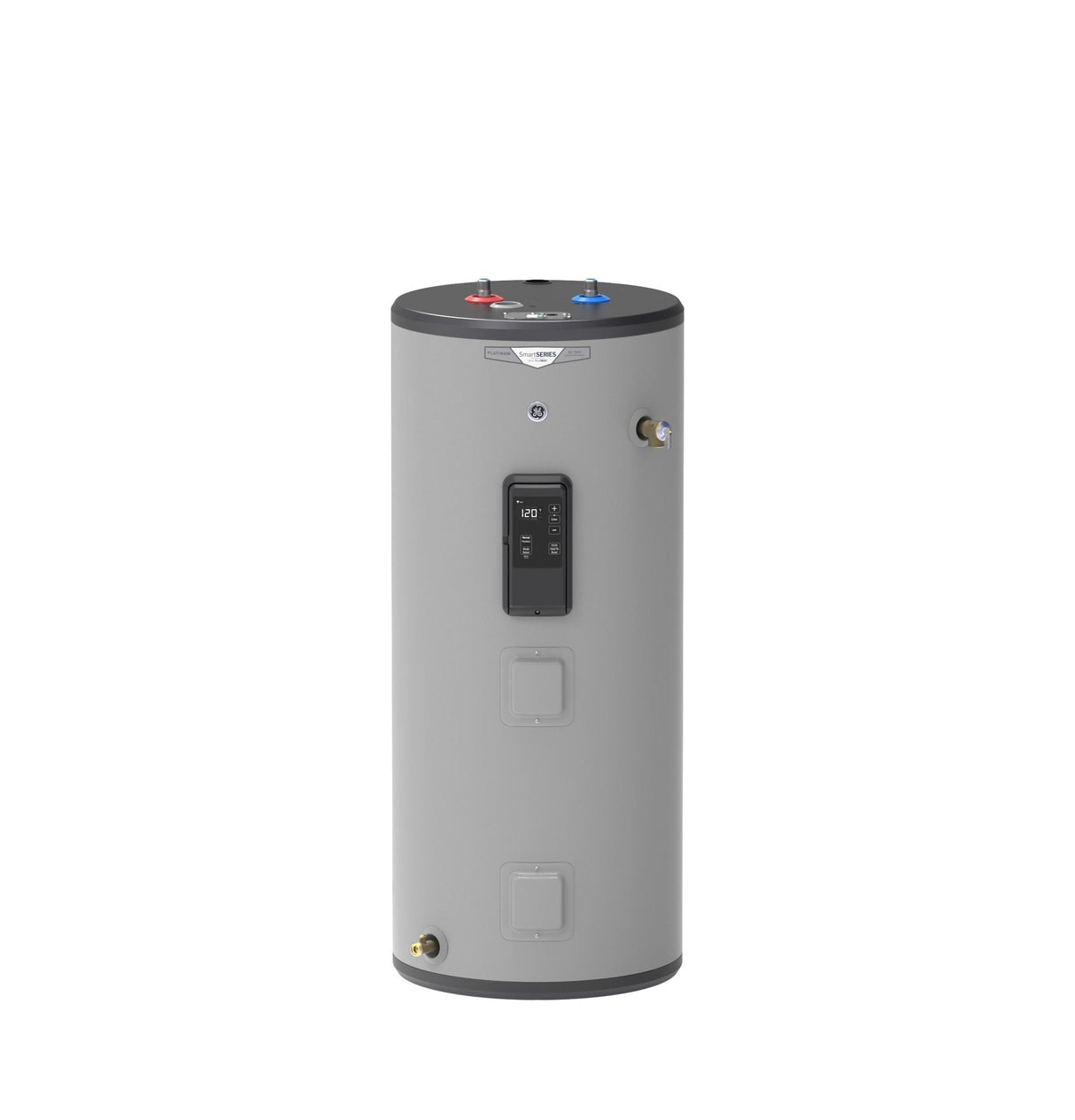

GE® Smart 40 Gallon Short Electric Water Heater
Model GE40S12BLM
GE® Smart 40 Gallon Short Electric Water Heater
Model GE40S12BLMQuick Specs
GE® Smart 40 Gallon Short Electric Water Heater is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs

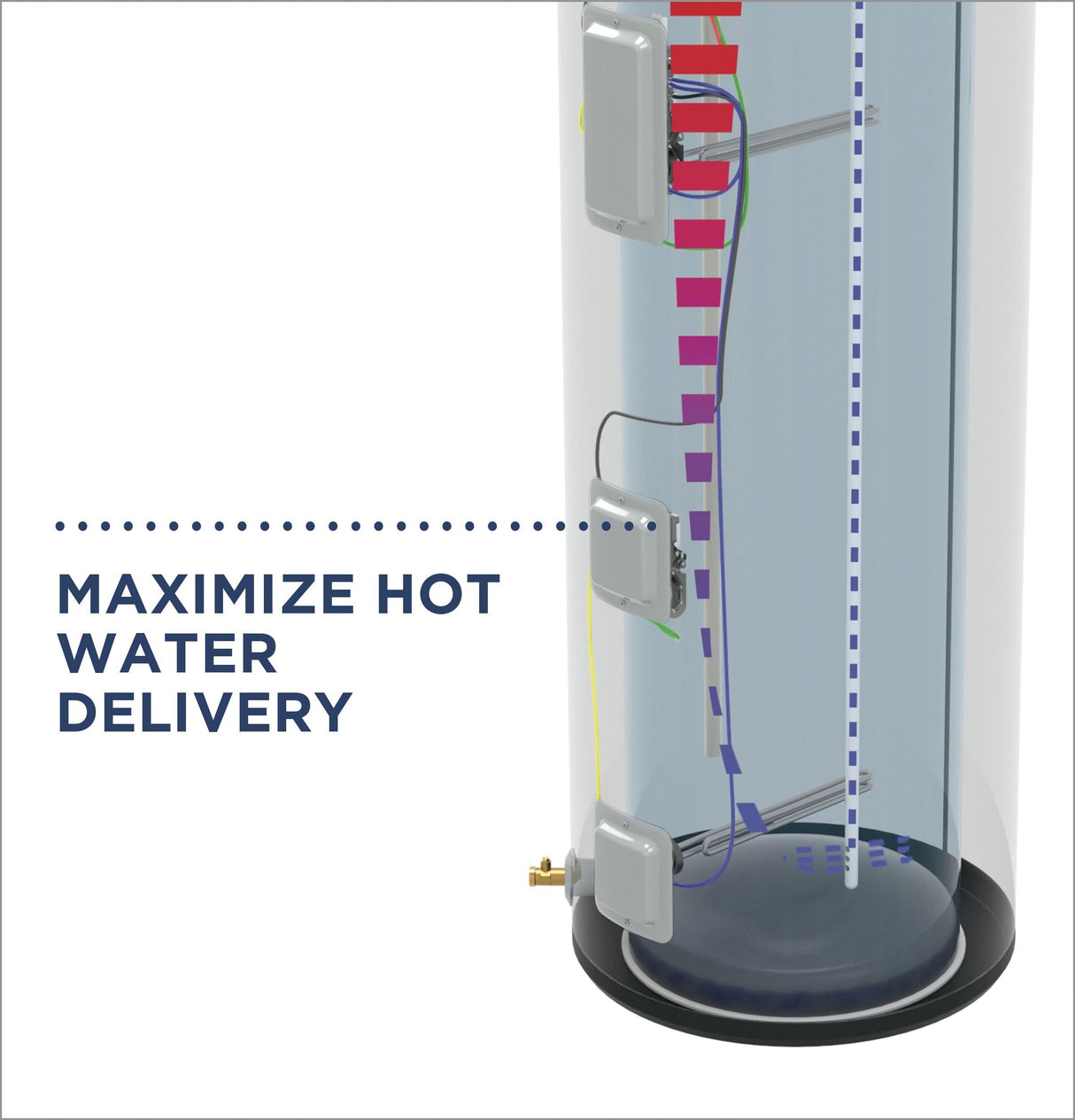

Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery

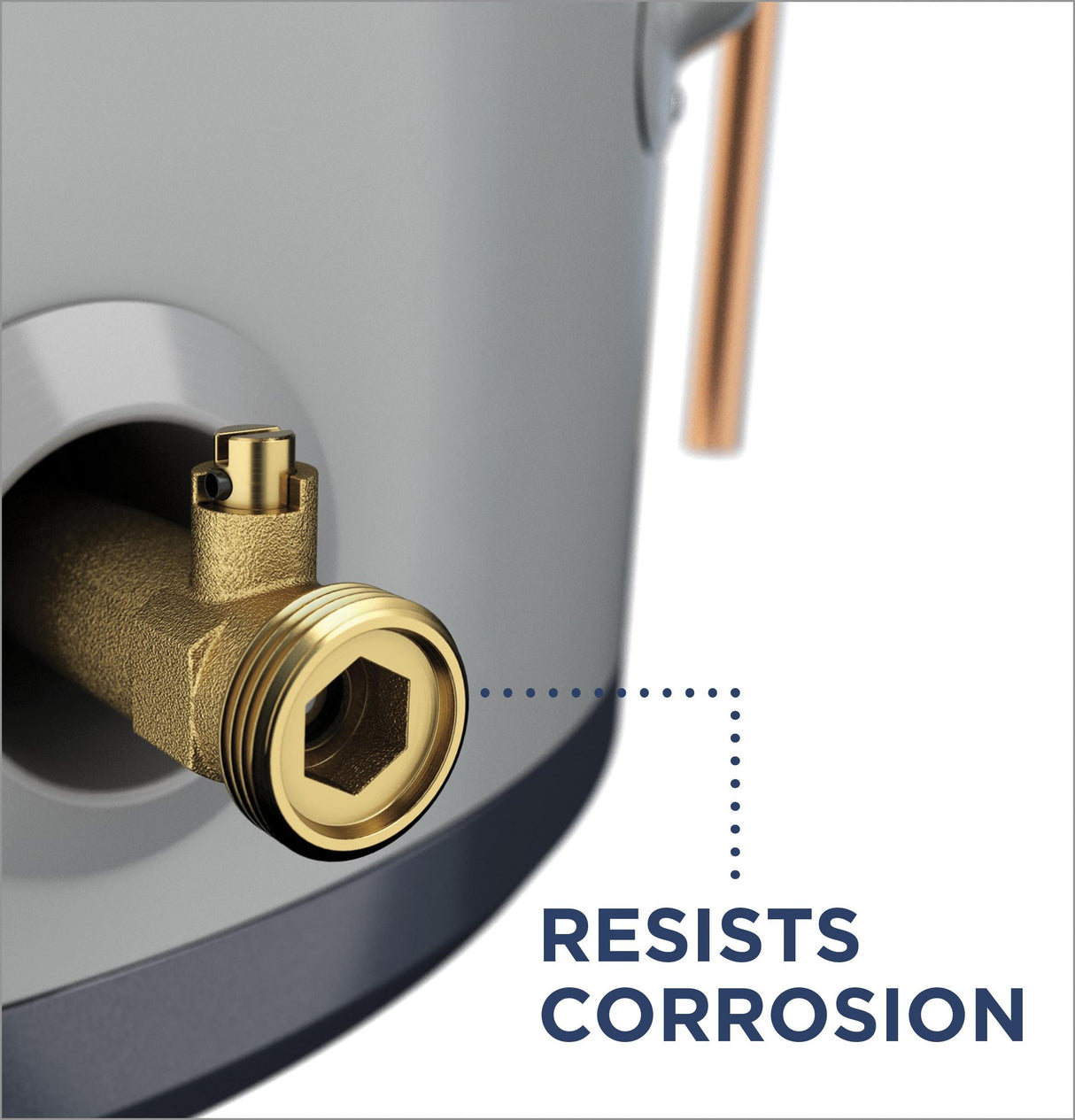

Brass Drain Valve
Rust-proof construction can be counted on to provide long-lasting service

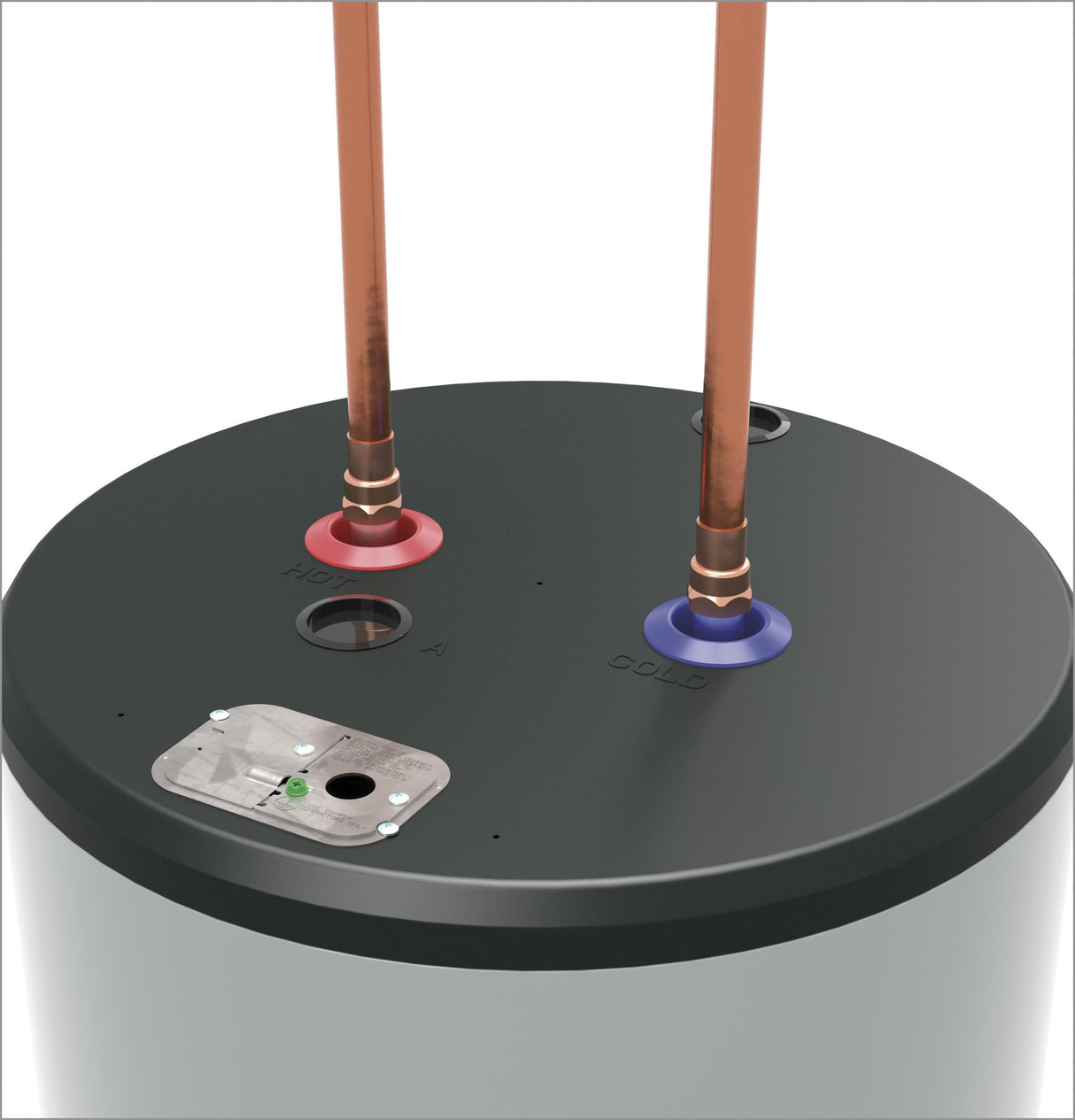

Easy Set Up
Replace your old water heater quickly and easily using standard water and electrical connections
Real Capacity
Get the most hot showers from the only water heater that holds a true 40 gallons of water (Compared to 40 gallon electric steel tank water heaters per DOE rated gallon capacity)
Household Size
Provide hot water for the whole family of 2 to 4 persons
Leading Performance
Live comfortably with this best in class unit that delivers 65 gallons of hot water in the first hour (Measured through DOE First Hour Rating)

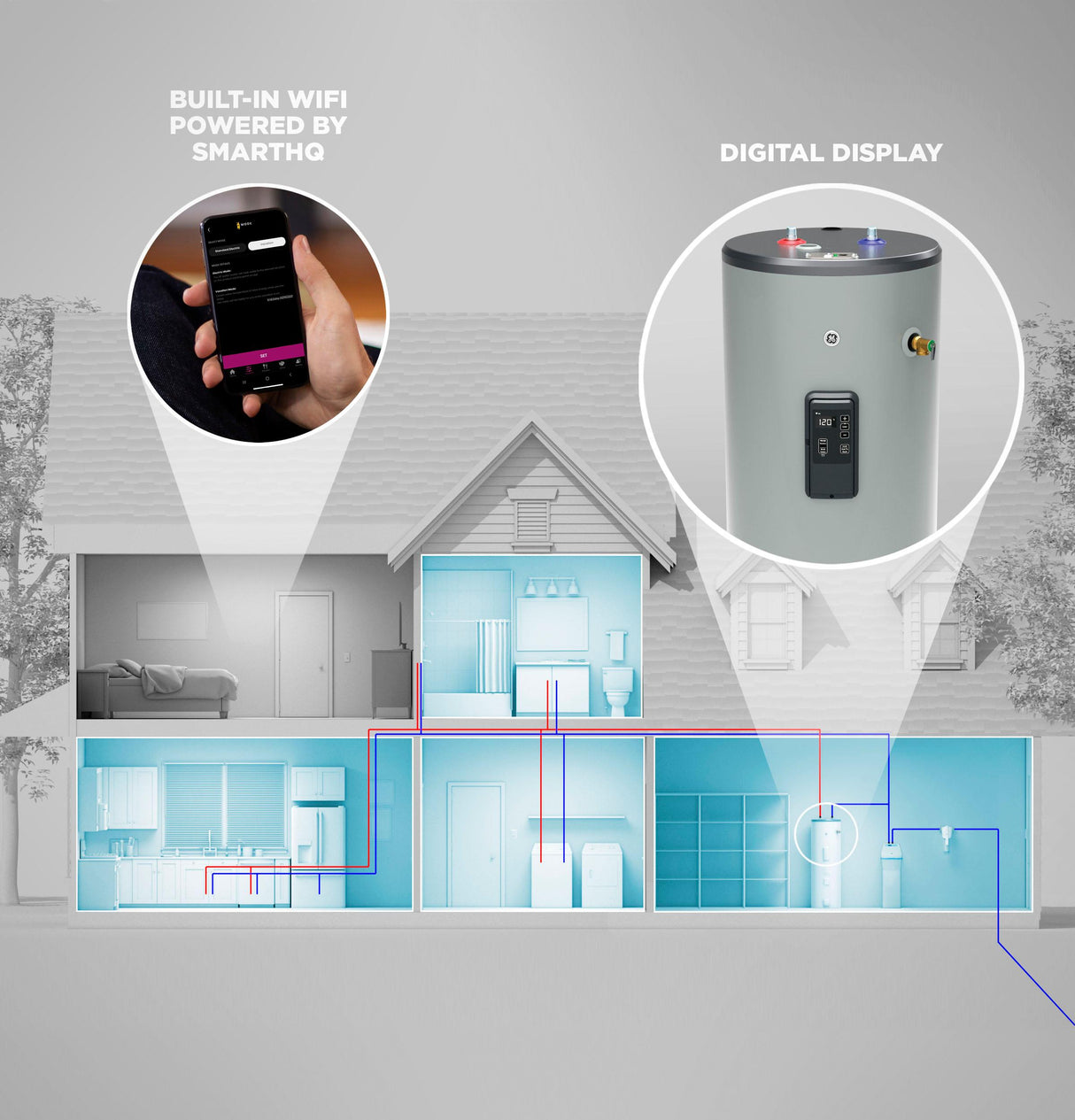

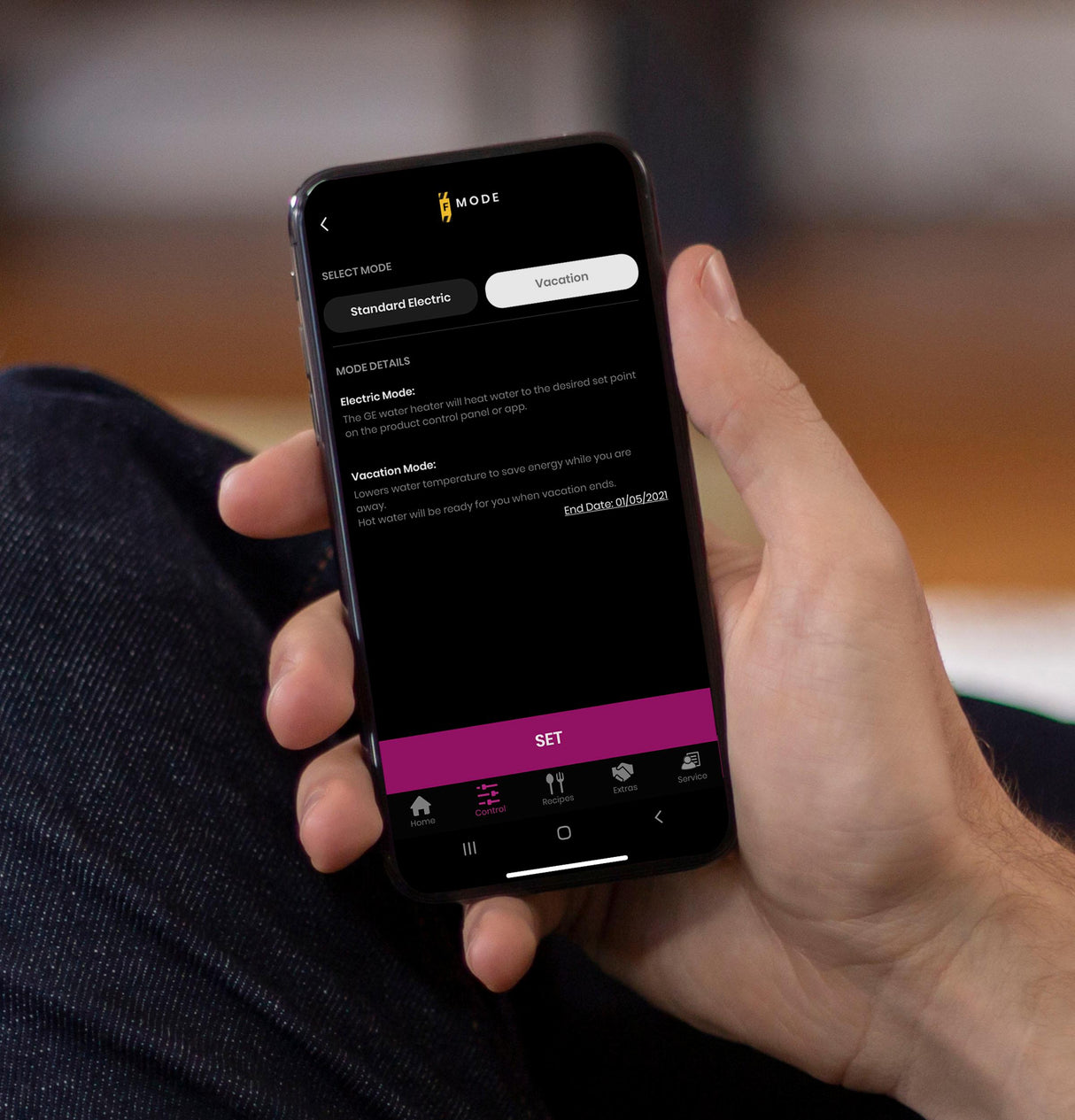

Built-in WiFi
Easily adjust temperatures, set vacation mode schedules and receive notifications with Built-in WiFi powered by SmartHQ

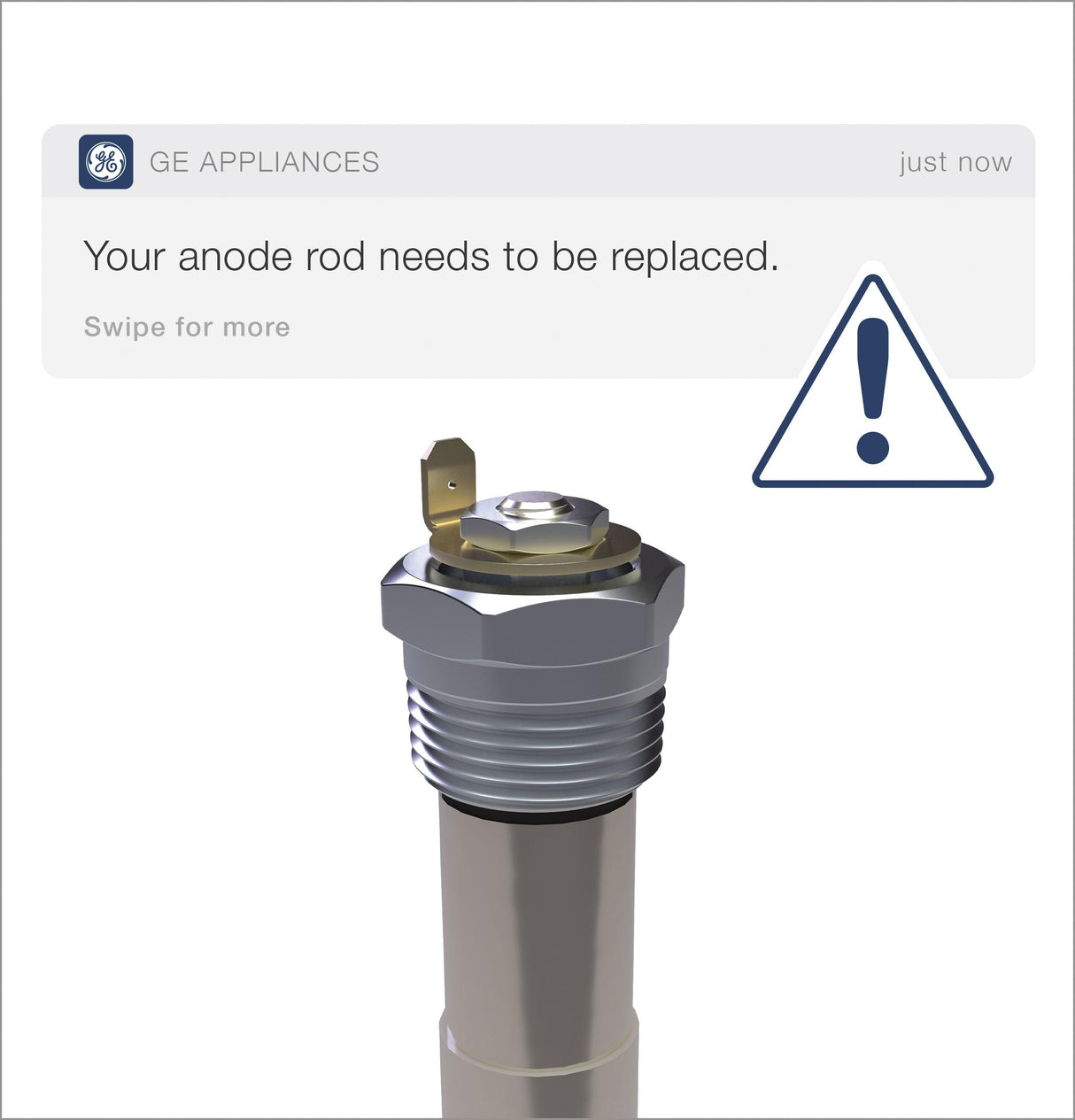

Anode Sensing
Notifies you when your anode rod needs replacing to help extend the life of your tank

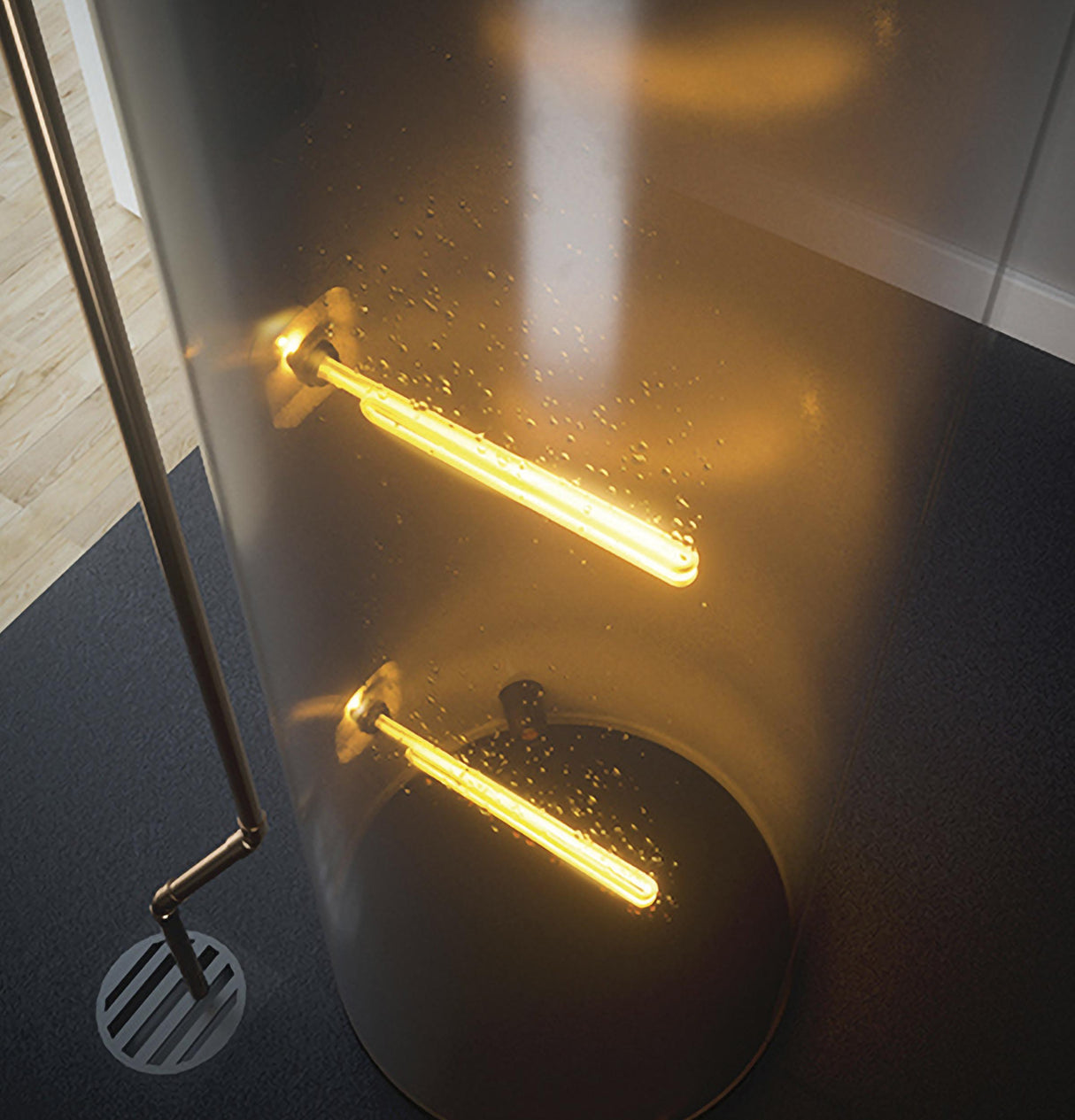

Quick Recovery
Two 5500W heating elements quickly increase water temperature for hot water when you need it

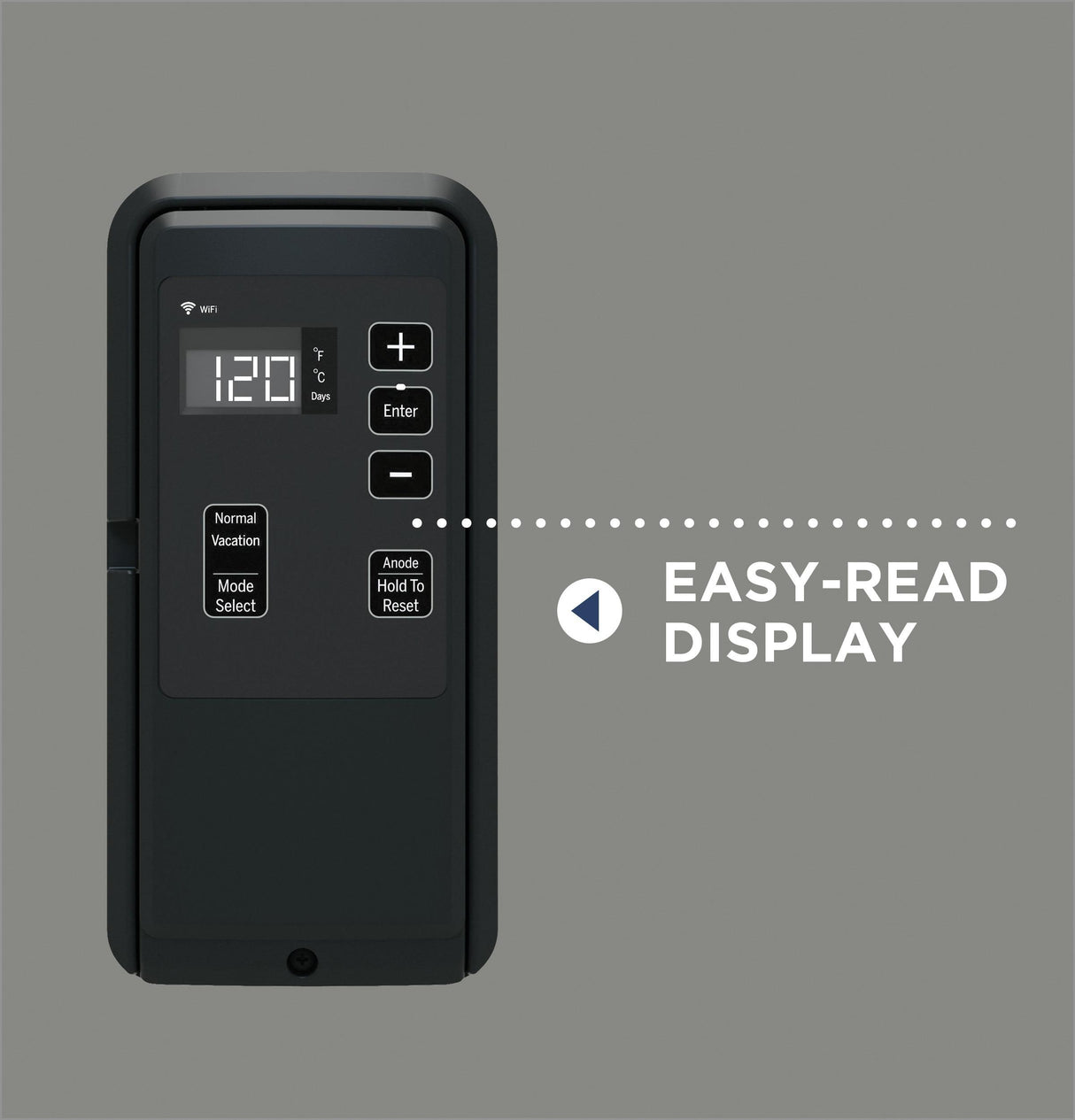

Digital Display
Make easy, accurate adjustments at the touch of a button

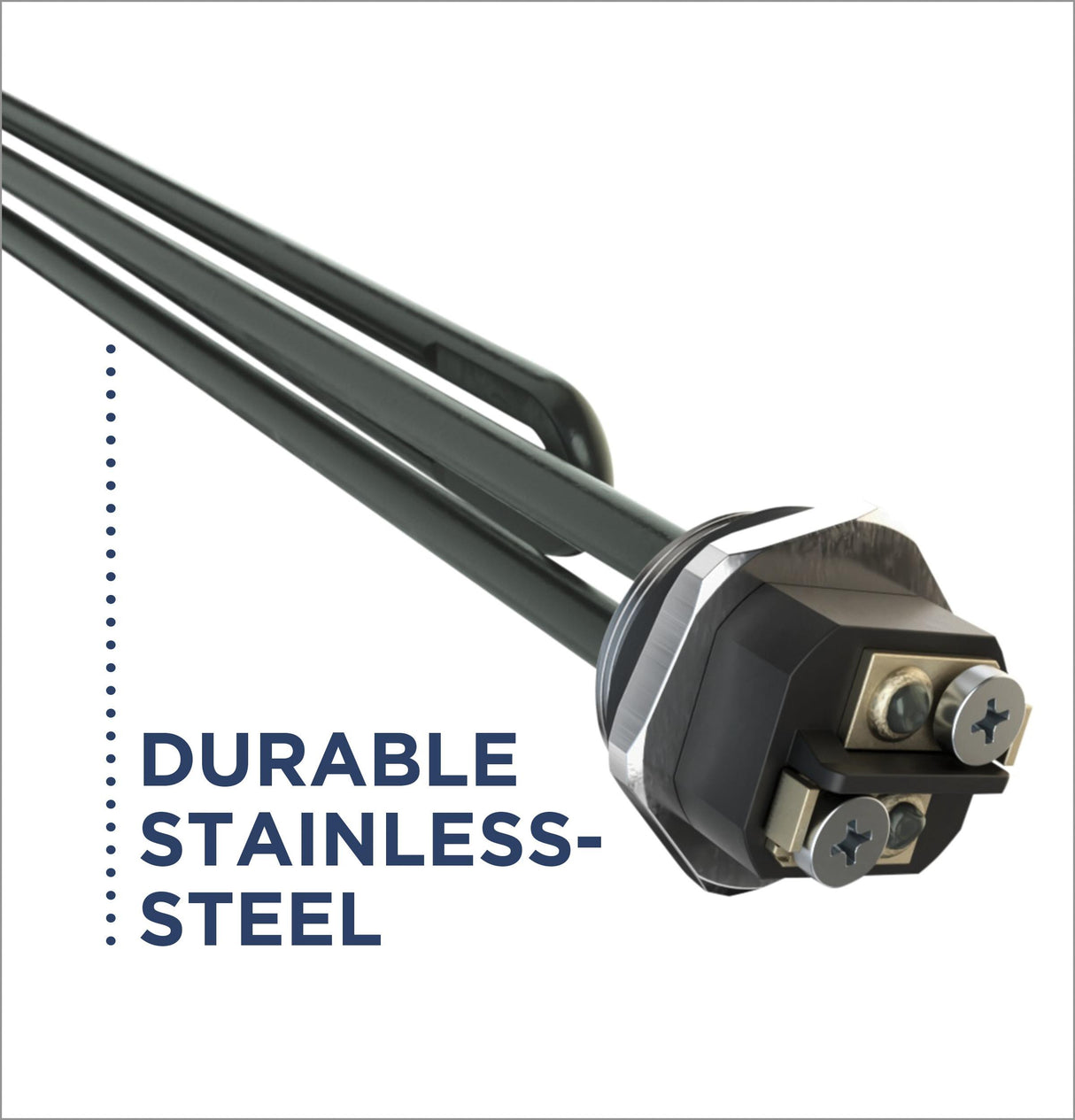

Stainless Steel Heating Elements
Ultra-durable stainless-steel heating elements resist rust and corrosion
- Real Capacity
- Get the most hot showers from the only water heater that holds a true 40 gallons of water (Compared to 40 gallon electric steel tank water heaters per DOE rated gallon capacity)
- Built-in WiFi
- Easily adjust temperatures, set vacation mode schedules and receive notifications with Built-in WiFi powered by SmartHQ
- Leading Performance
- Live comfortably with this best in class unit that delivers 65 gallons of hot water in the first hour (Measured through DOE First Hour Rating)
- Quick Recovery
- Two 5500W heating elements quickly increase water temperature for hot water when you need it
- Household Size
- Provide hot water for the whole family of 2 to 4 persons
- Anode Sensing
- Notifies you when your anode rod needs replacing to help extend the life of your tank
- Stainless Steel Heating Elements
- Ultra-durable stainless-steel heating elements resist rust and corrosion
- Inlet Tube
- Replenishes water from the bottom of the tank to maximize hot water delivery
- Brass Drain Valve
- Rust-proof construction can be counted on to provide long-lasting service
- Easy Set Up
- Replace your old water heater quickly and easily using standard water and electrical connections
- Digital Display
- Make easy, accurate adjustments at the touch of a button
- Real Capacity
- Built-in WiFi
- Digital Display
- Leading Performance
- Quick Recovery
- Household Size
- Anode Sensing
- Stainless Steel Heating Elements
- Inlet Tube
- Brass Drain Valve
- Easy Set Up
| CAPACITY | |
| Unit Capacity | 40 Gallons |
| FILTER | |
| App Filter - WiFi Connect | Built-In |
| App Filter - Product Type | Water Heaters Electric Standard |
| App Filter - Tank Diameter | 18 1/4 in.-21 3/4 in. |
| App Filter - Vacation Mode | Yes |
| App Filter - Capacity | Water Heater 40-49 gallons |
| APPEARANCE | |
| Color Appearance | Gray |
| POWER / RATINGS | |
| Integrated Energy Factor | 0.92 |
| Heating - Electric - Heater Watts | 5500/5500 |
| Electrical Connection | Direct-Wire |
| Operating Water Pressure | 20-125 PSI |
| Volts/Hertz | 240V; 60Hz |
| First Hour Rate (FHR) | 65 Gallons |
| Voltage (MAX) | 240 V |
| Energy Consumption (kWh/year) | 3531 |
| Electrical Circuit Required | Dedicated 30 Amp Min. |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 12-year tank and parts |
| Labor Warranty | Limited 1-year entire appliance |

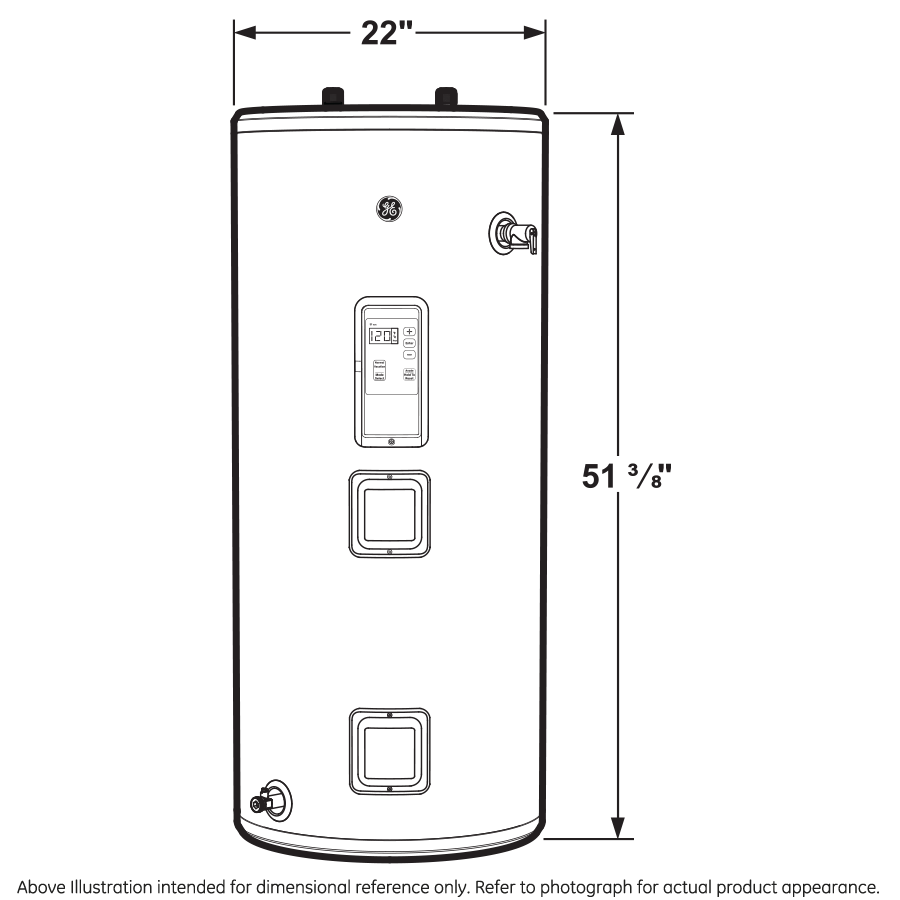

| WEIGHTS & DIMENSIONS | |
| Product Height (to top of water inlet/outlet connections) | 52.875 in |
| Approximate Shipping Weight | 133 lb |
| Overall Width | 22 in |
| Overall Height | 52.875 in |
| Product Height (to top of unit) | 51.375 in |
| Net Weight | 121 lb |
| Product Diameter | 22 in |
| Overall Depth | 22 in |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
| Connection Sizes - Hot Water Outlet (MNPT) | 3/4" |
| FEATURES | |
| Control Type | Electronic with Digital Display |
| Height Description | Short |
| Fuel Type | Electric |
| Configuration | Short |
| Operating Modes | Normal Vacation |
| Drain Valve Type | Brass |
| Temperature Setting Factory Default | 120° F |
| Sensing Anode | Yes |
| Product Type | Electric Electronic |
| WiFi Connect | Built-In |
| Family Size | 2-4 People |
| Water Connection Location | Top |
| Overheat Protection | Yes |
| Vacation Setting | Yes |
| Diagnostic Feedback | Yes |
| Temperature Setting | 100-140° F Range |
| Connected Capabilities | Amazon Alexa Google Home |
