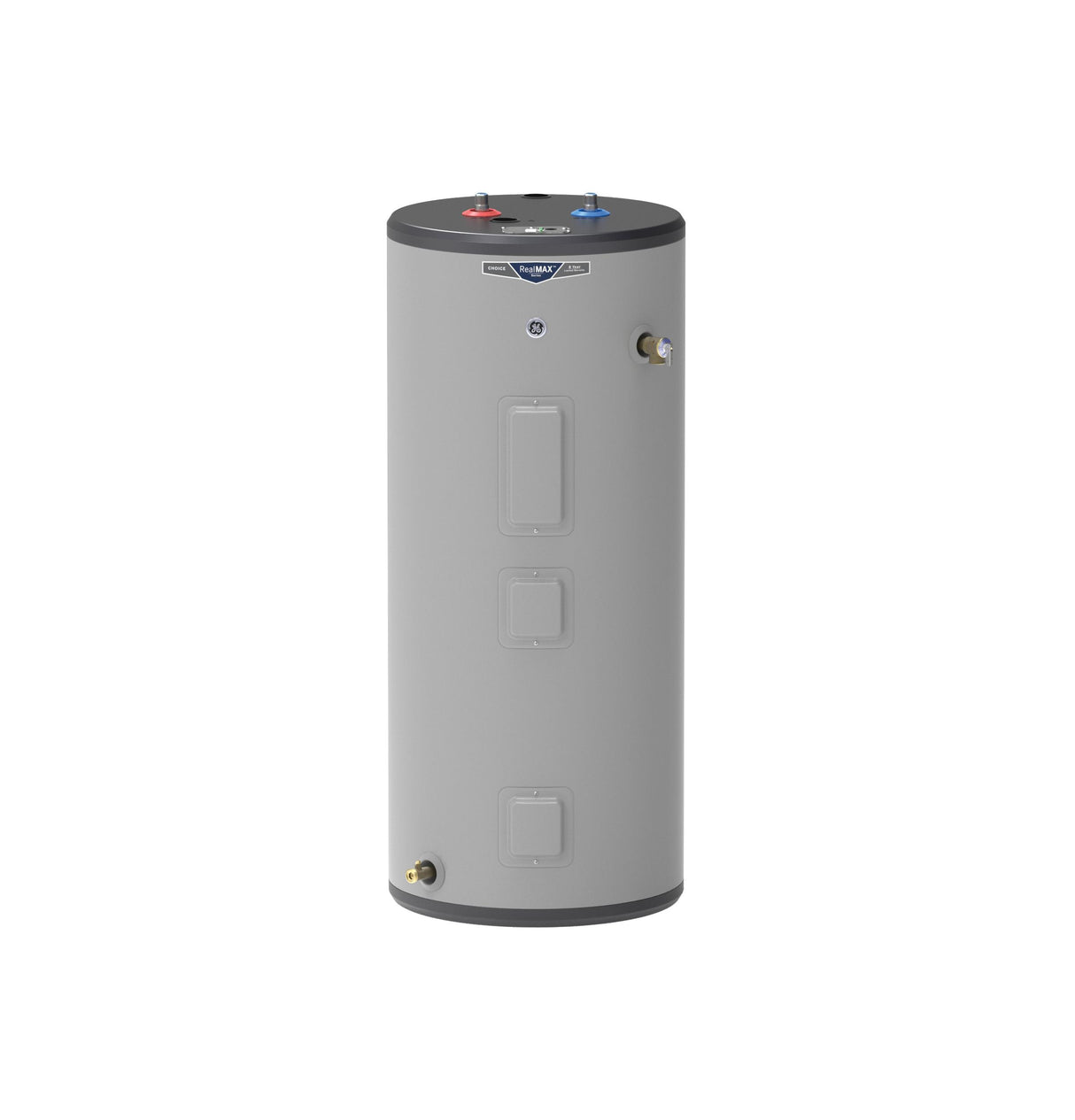

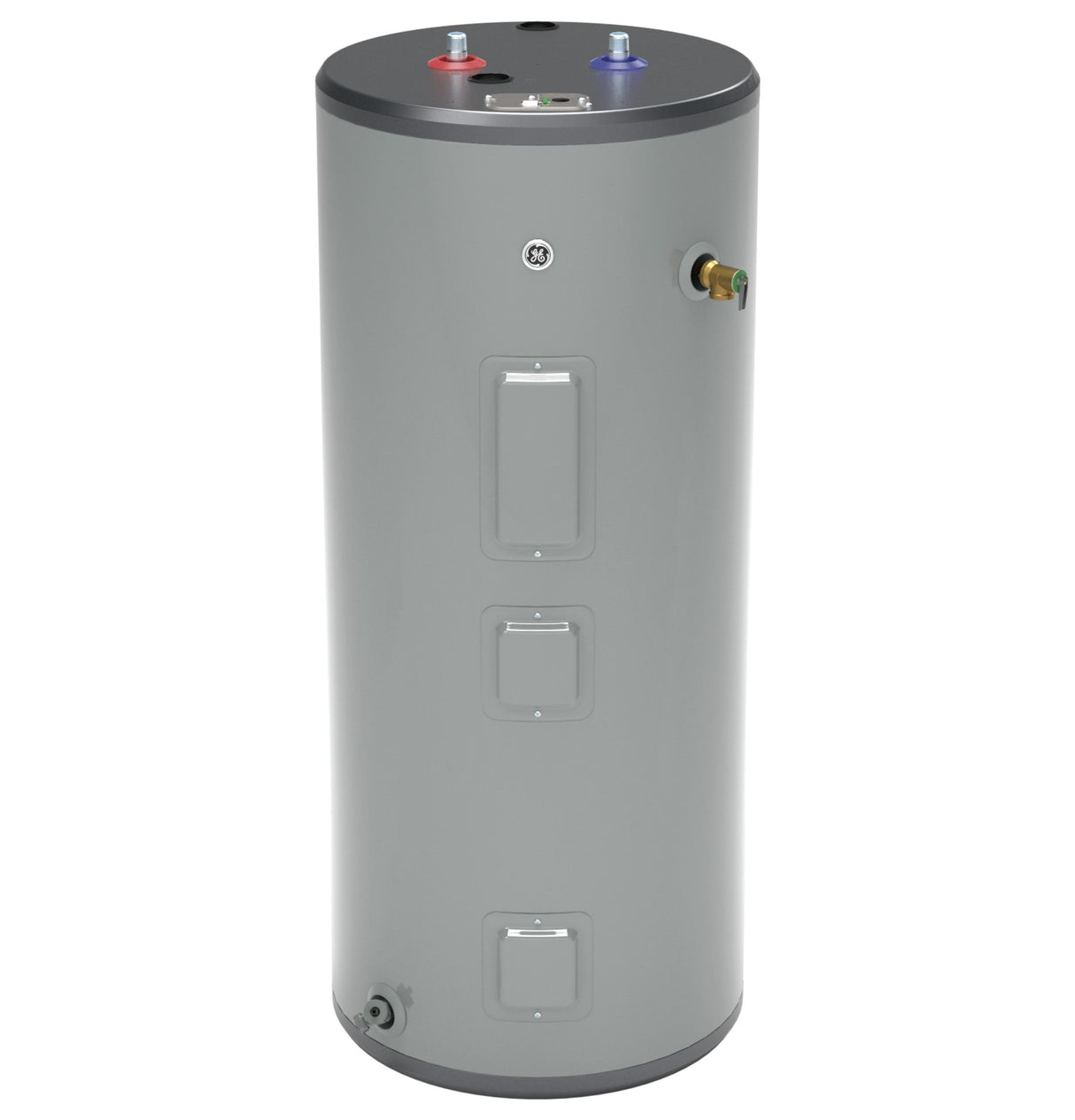

GE® 40 Gallon Short Electric Water Heater
Model GE40S08BAM
GE® 40 Gallon Short Electric Water Heater
Model GE40S08BAMQuick Specs
GE® 40 Gallon Short Electric Water Heater is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs

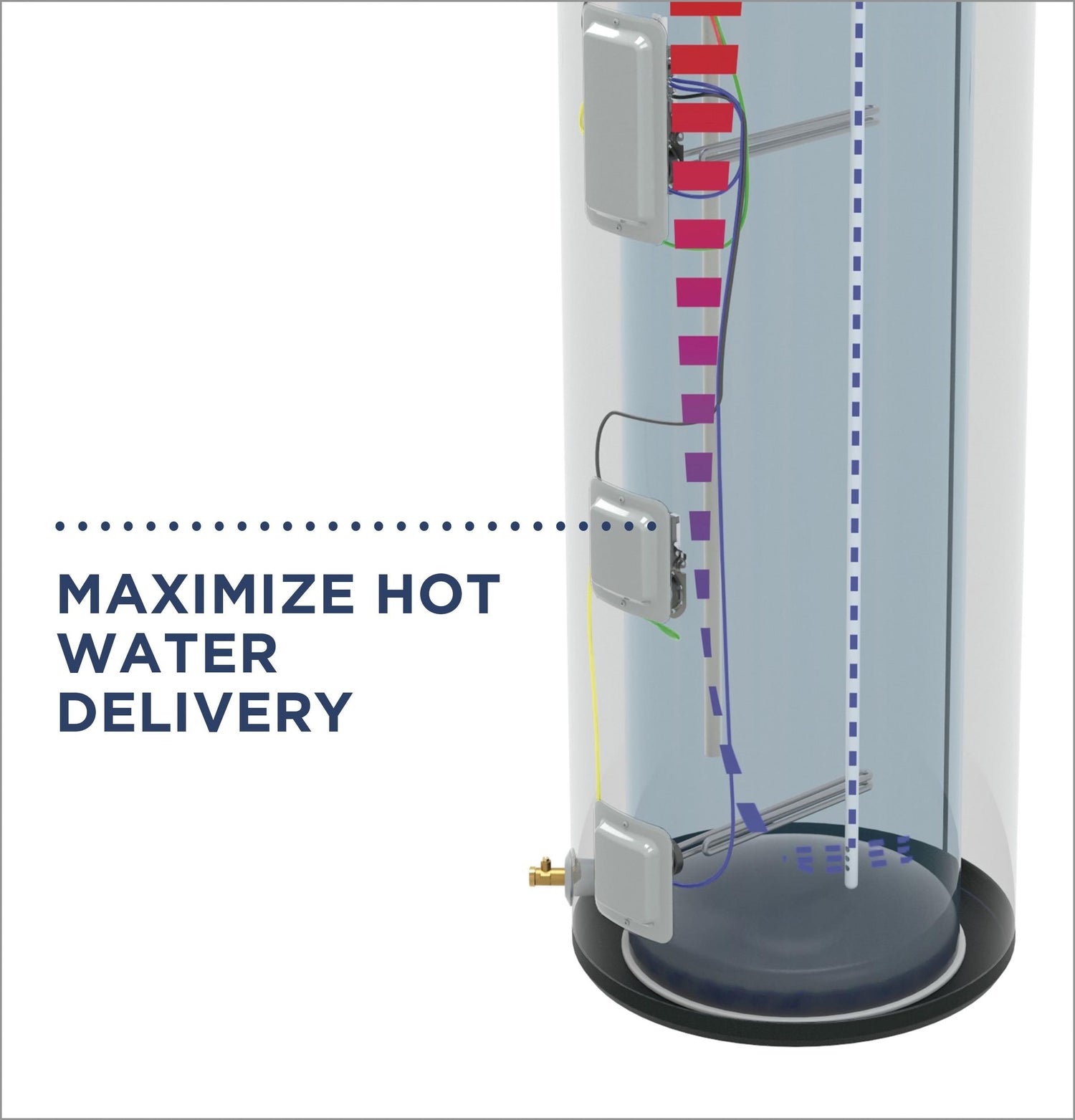

Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery

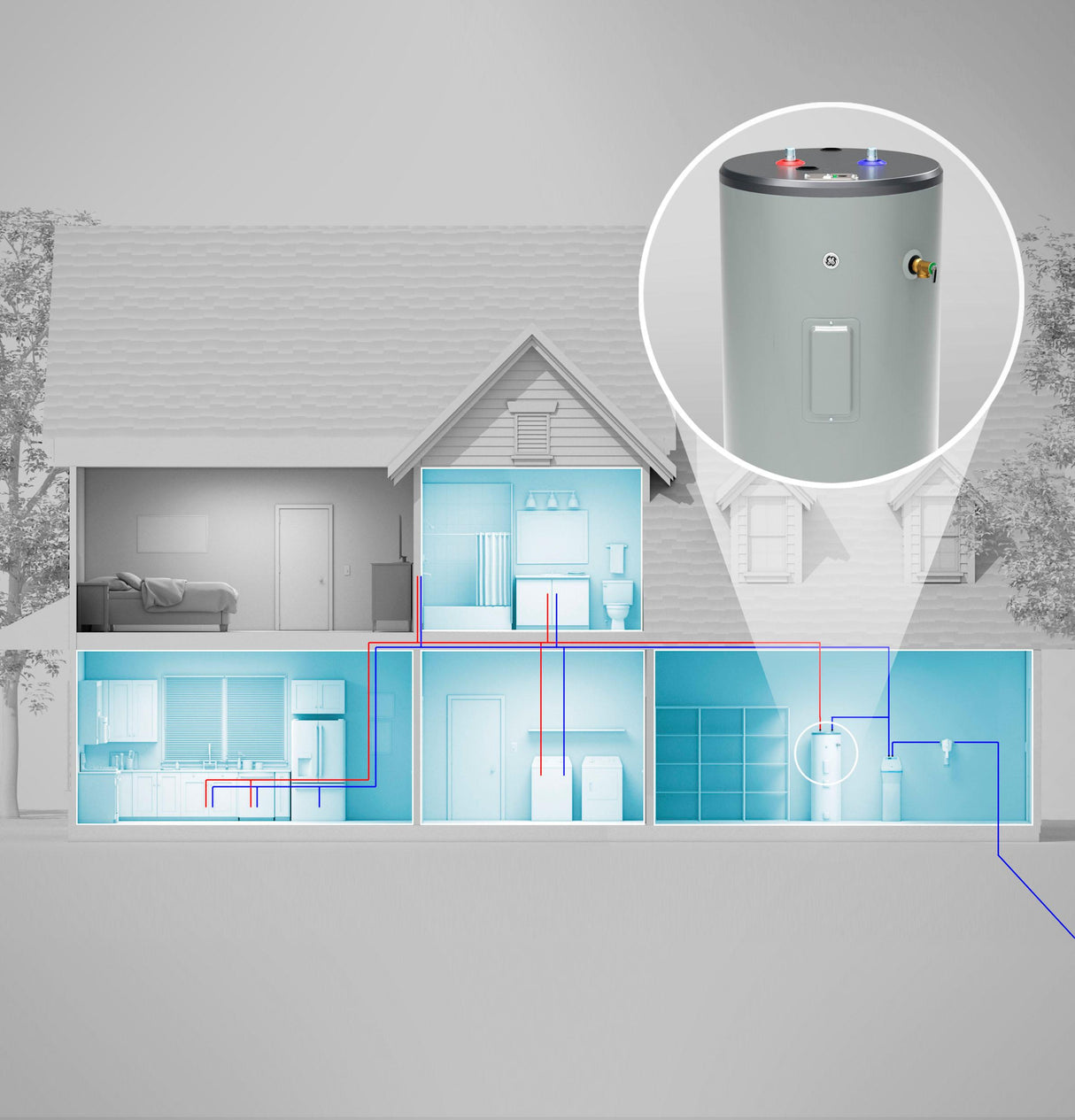

Household Size
Provide hot water for the whole family of 2 to 4 persons
Leading Performance
Live comfortably with this best in class unit that delivers 66 gallons of hot water in the first hour (Measured through DOE First Hour Rating)

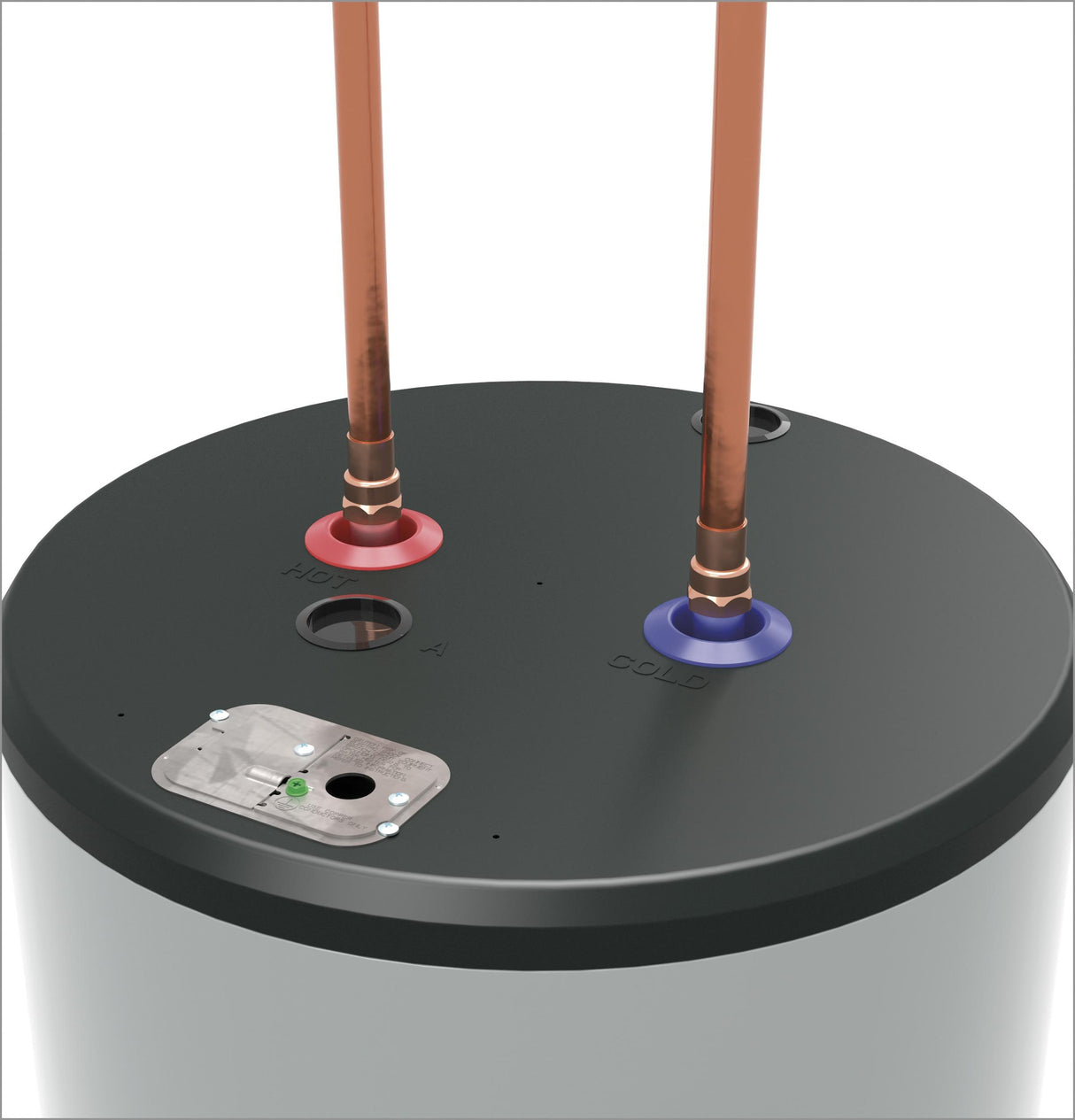

Easy Set Up
Replace your old water heater quickly and easily using standard water and electrical connections

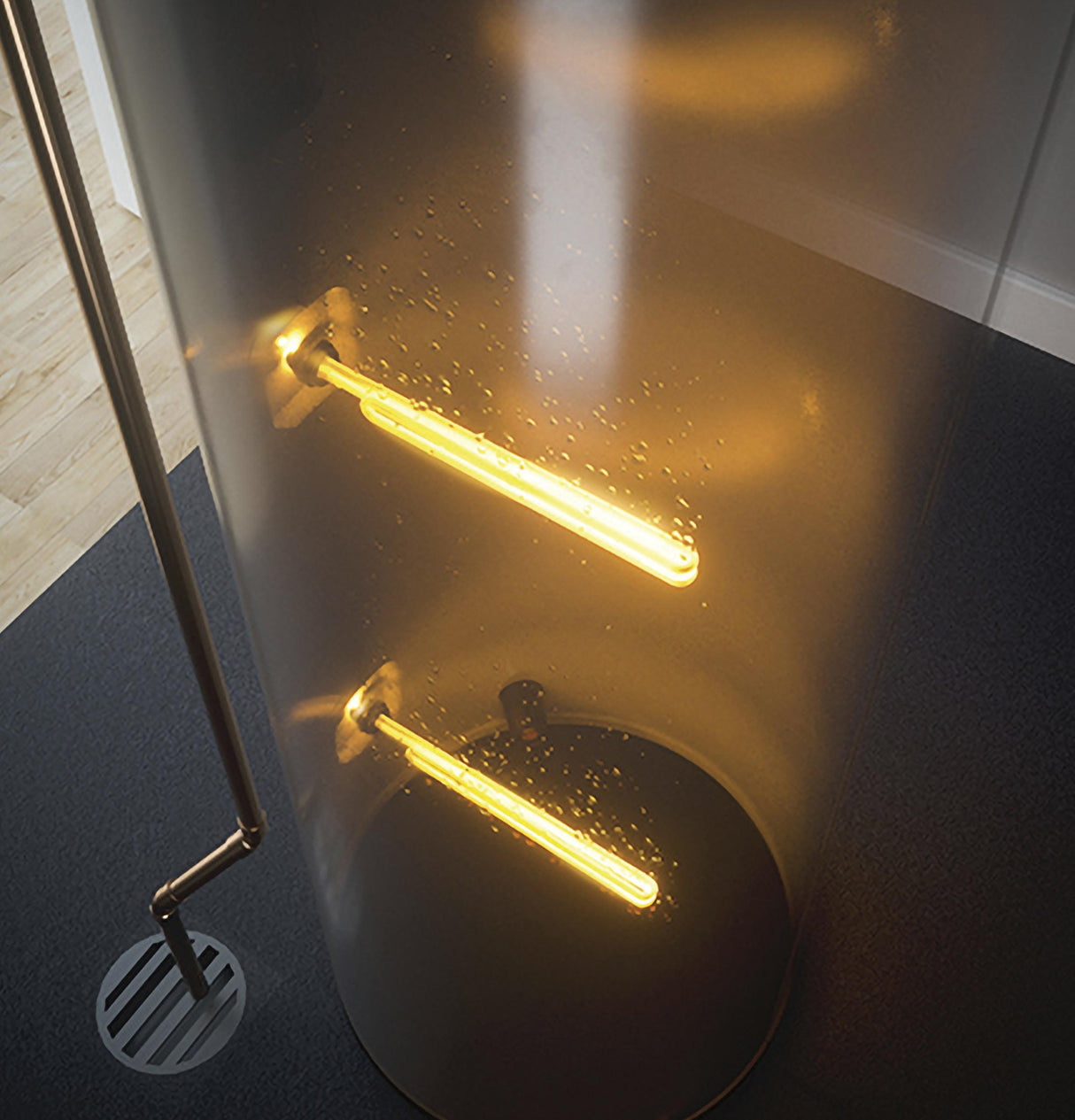

Quick Recovery
Two 5500W heating elements quickly increase water temperature for hot water when you need it

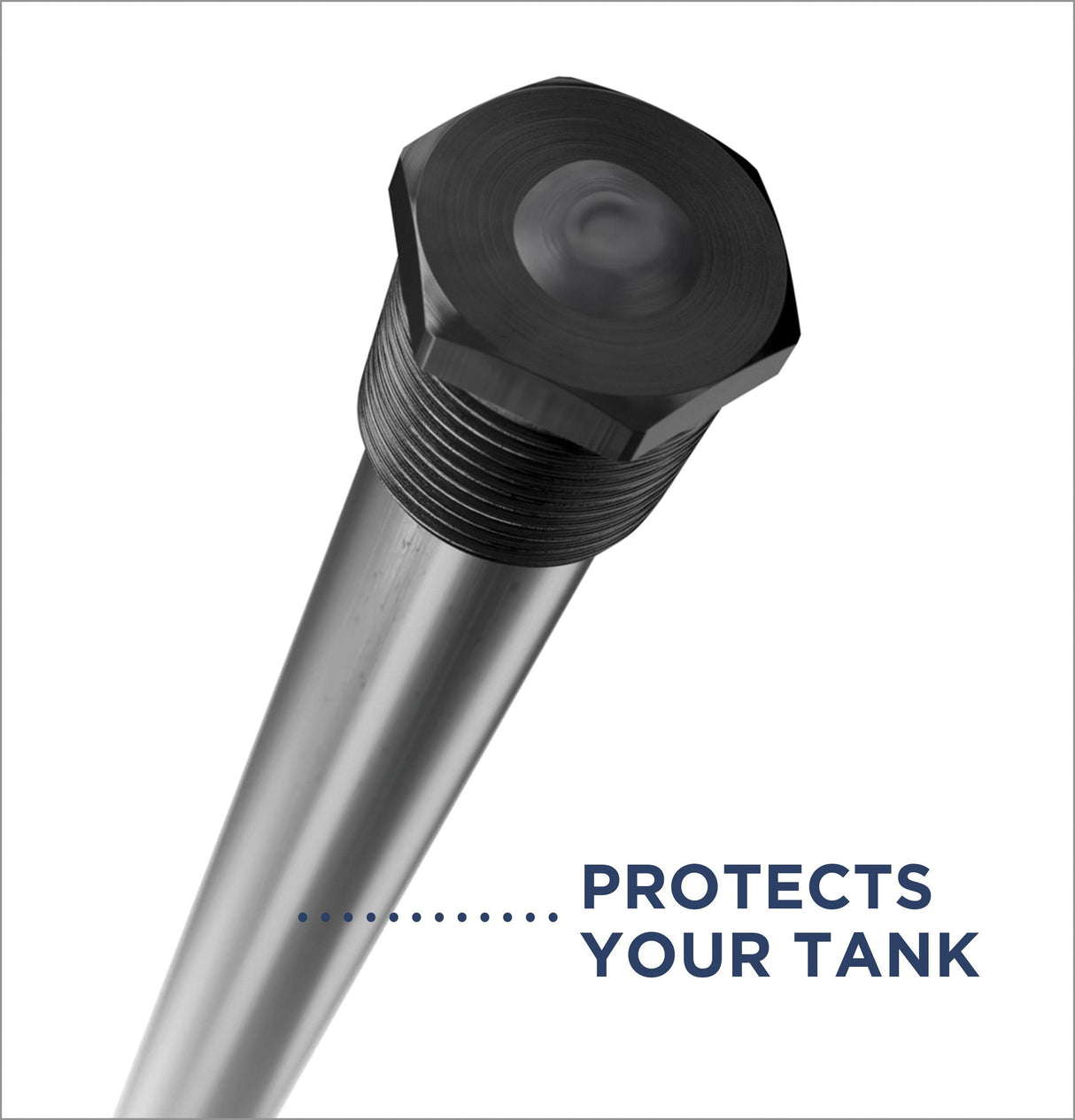

Anode Rod
Durable design offers long-lasting protection against corrosion

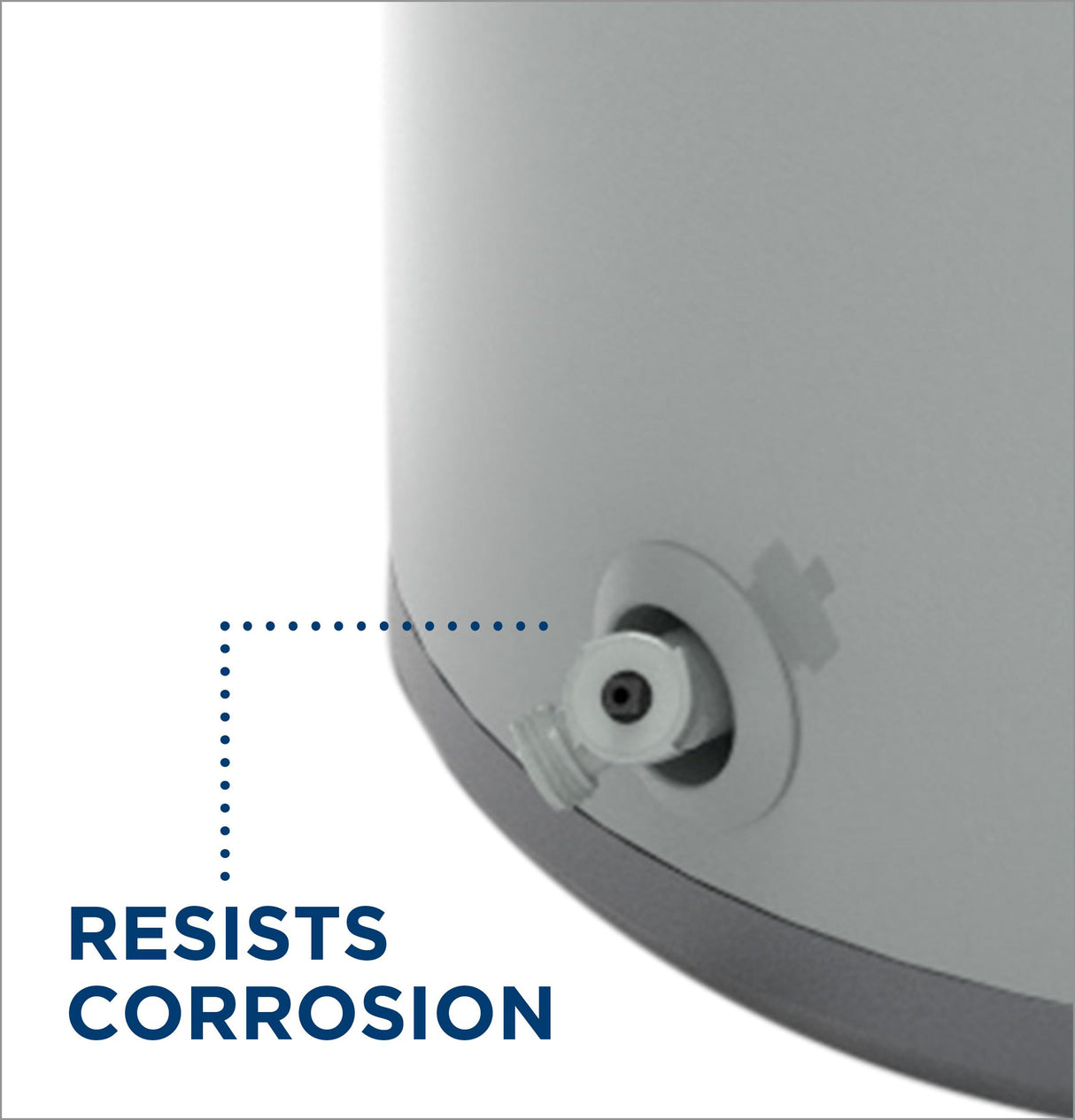

Drain Valve
Rust-proof construction can be counted on to provide long-lasting service

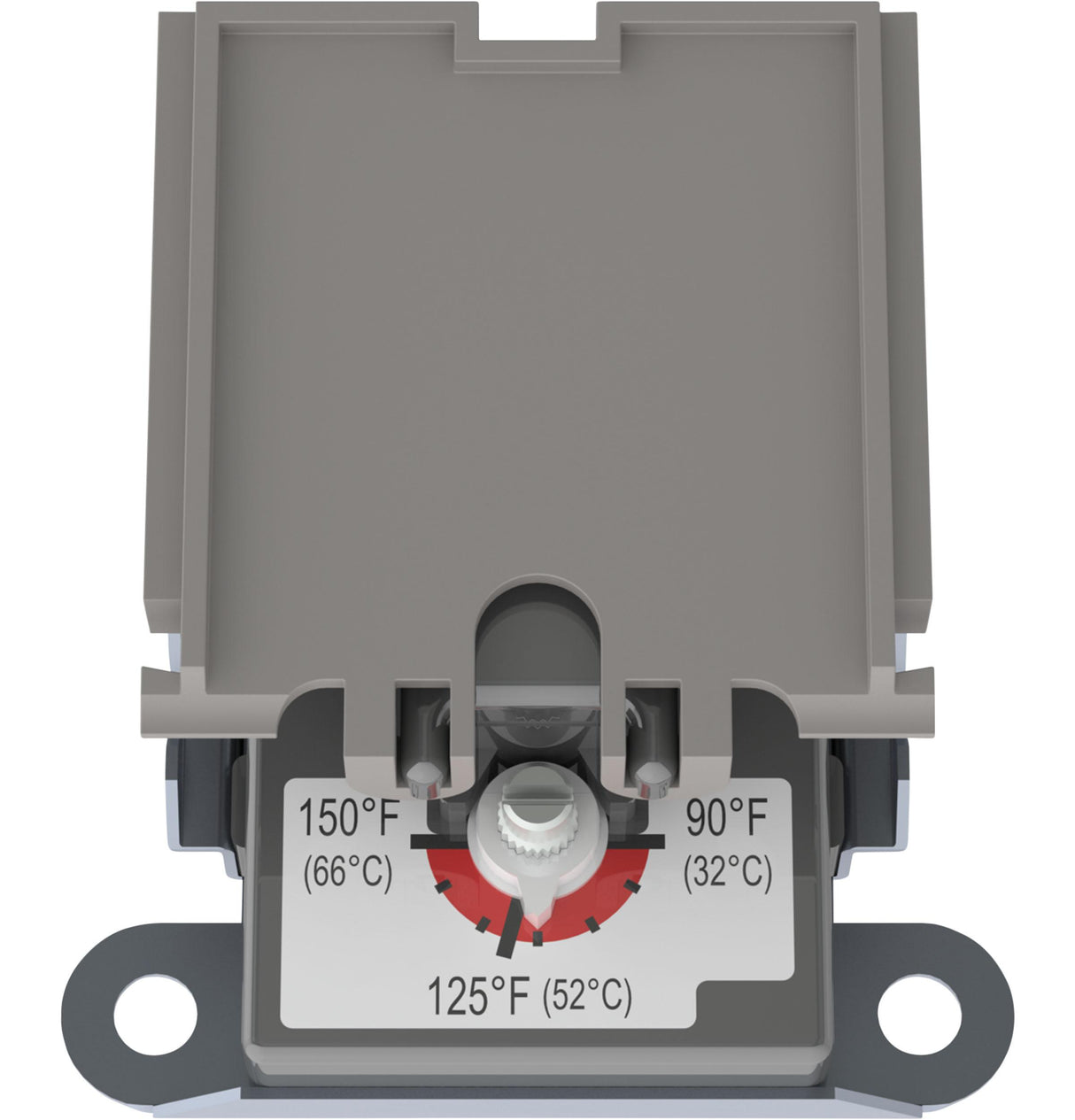

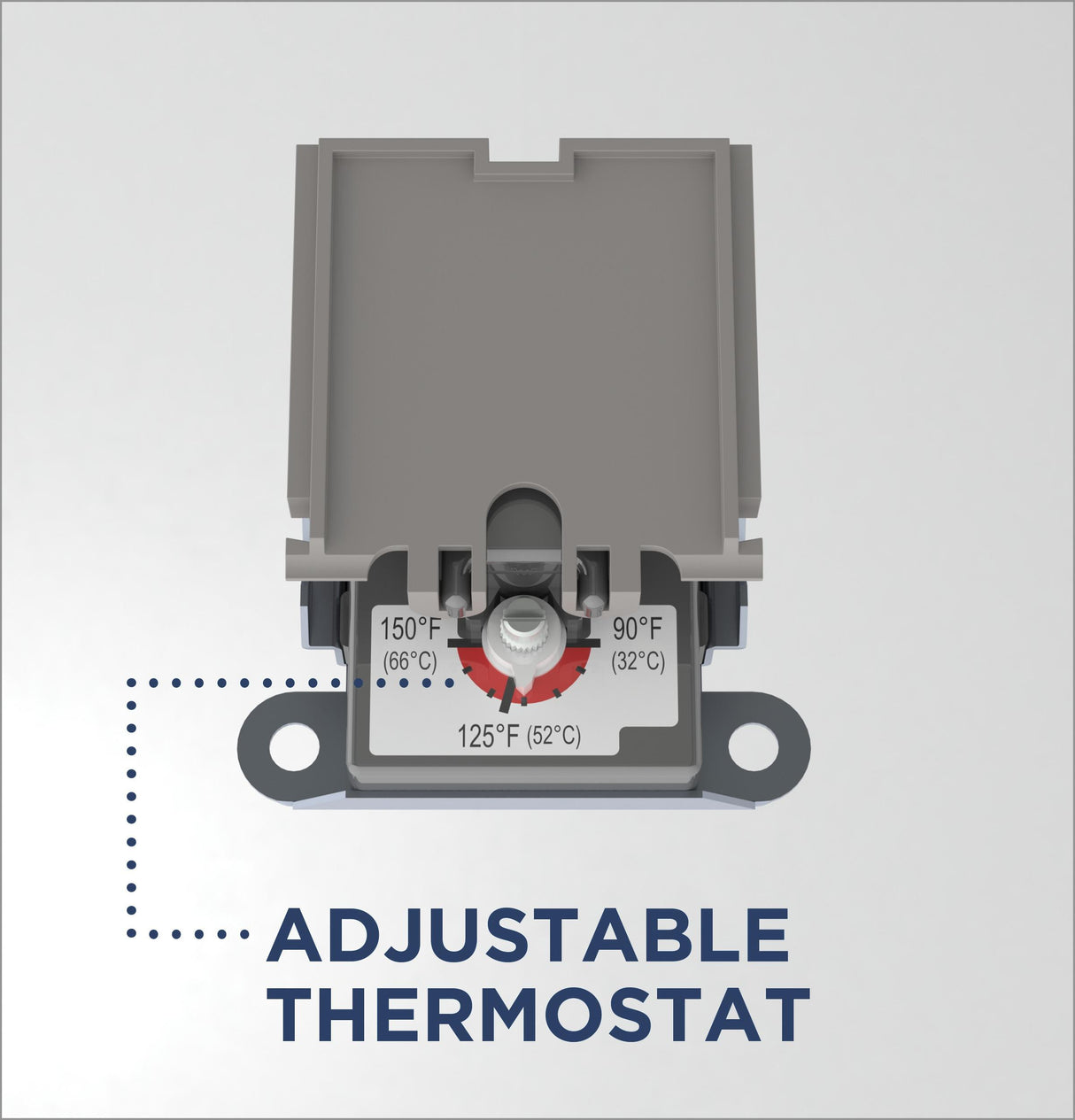

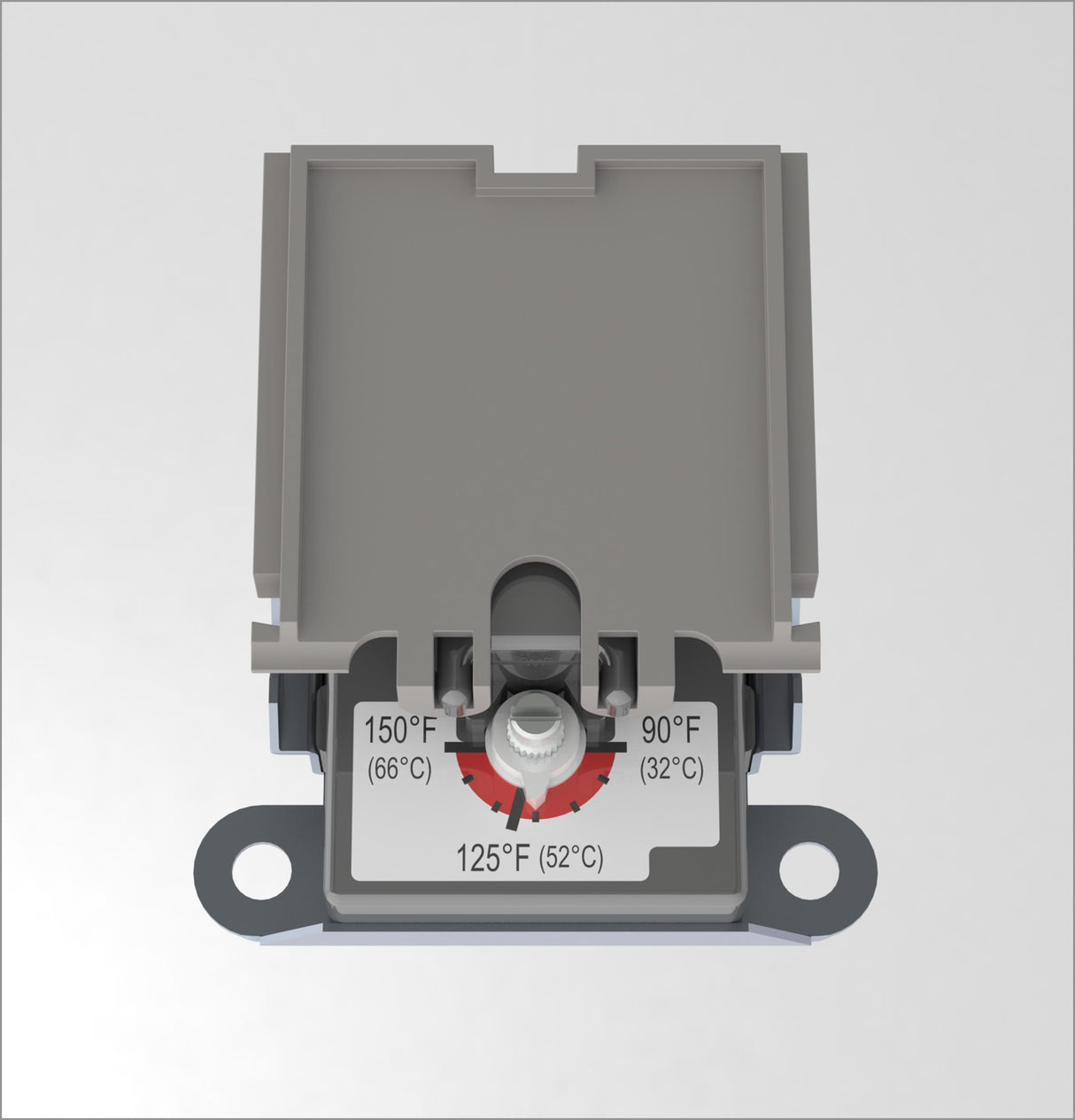

Adjustable Thermostat
Change temperature to your desired setting
Real Capacity
Get the most hot showers from the only water heater that holds a true 40 gallons of water (Compared to 40 gallon electric steel tank water heaters per DOE rated gallon capacity)
- Real Capacity
- Get the most hot showers from the only water heater that holds a true 40 gallons of water (Compared to 40 gallon electric steel tank water heaters per DOE rated gallon capacity)
- Leading Performance
- Live comfortably with this best in class unit that delivers 66 gallons of hot water in the first hour (Measured through DOE First Hour Rating)
- Household Size
- Provide hot water for the whole family of 2 to 4 persons
- Quick Recovery
- Two 5500W heating elements quickly increase water temperature for hot water when you need it
- Inlet Tube
- Replenishes water from the bottom of the tank to maximize hot water delivery
- Easy Set Up
- Replace your old water heater quickly and easily using standard water and electrical connections
- Anode Rod
- Durable design offers long-lasting protection against corrosion
- Drain Valve
- Rust-proof construction can be counted on to provide long-lasting service
- Adjustable Thermostat
- Change temperature to your desired setting
- Real Capacity
- Leading Performance
- Household Size
- Quick Recovery
- Inlet Tube
- Easy Set Up
- Anode Rod
- Drain Valve
- Adjustable Thermostat
| CAPACITY | |
| Unit Capacity | 40 Gallons |
| FILTER | |
| App Filter - Tank Warranty | 8 year limited |
| App Filter - Product Type | Water Heaters Electric Standard |
| App Filter - Tank Diameter | 22 in. and above |
| App Filter - Vacation Mode | No |
| App Filter - Capacity | Water Heater 40-49 gallons |
| APPEARANCE | |
| Color Appearance | Gray |
| POWER / RATINGS | |
| Integrated Energy Factor | 0.92 |
| Heating - Electric - Heater Watts | 5500/5500 |
| Electrical Connection | Direct-Wire |
| Operating Water Pressure | 20-125 PSI |
| Volts/Hertz | 240V; 60Hz |
| First Hour Rate (FHR) | 66 Gallons |
| Voltage (MAX) | 240 V |
| Electrical Circuit Required | 208V/240V 60 Hz Dedicated 30 Amp Min. |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | 8-year limited |
| Labor Warranty | 1-year limited |

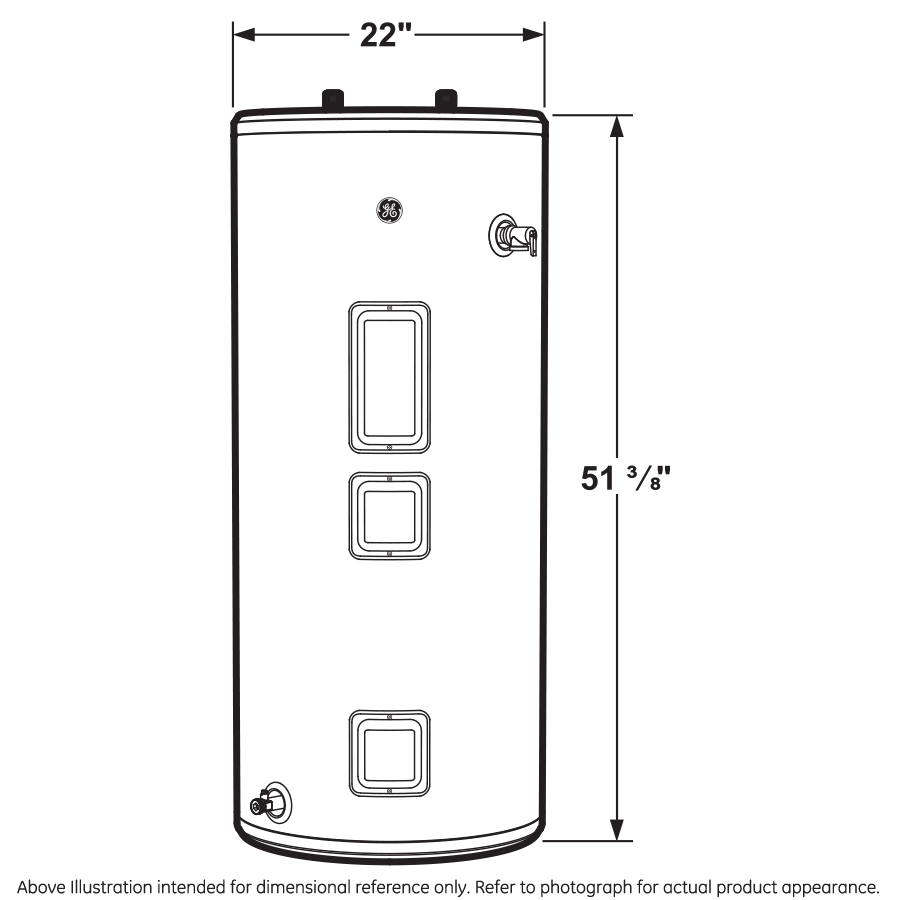

| WEIGHTS & DIMENSIONS | |
| Product Height (to top of water inlet/outlet connections) | 52.875 in |
| Approximate Shipping Weight | 133 lb |
| Overall Width | 22 in |
| Overall Height | 52.875 in |
| Product Height (to top of unit) | 51.375 in |
| Net Weight | 121 lb |
| Product Diameter | 22 in |
| Overall Depth | 22 in |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
| Connection Sizes - Hot Water Outlet (MNPT) | 3/4" |
| FEATURES | |
| Control Type | Thermostat |
| Temp & Pressure Relief Valve | Yes |
| Height Description | Short |
| Heating Element | Copper |
| Fuel Type | Electric |
| Configuration | Short |
| Installation Location | Indoor |
| Operating Modes | Standard Electric |
| Rated Storage Capacity | 40 |
| Drain Valve Type | Plastic |
| GPH Recovery @ 90 Degrees F | 25.1 |
| Mobile Home Compatible | No |
| Temperature Setting Factory Default | 120° F |
| Product Type | Electric Thermostat |
| Family Size | 2-4 People |
| Water Connection Location | Top |
| Foam Insulation | Yes |
| Point of Use | No |
| Temperature Setting | 90-150° F Range |
| Insulation Thickness | 2.75 in |
