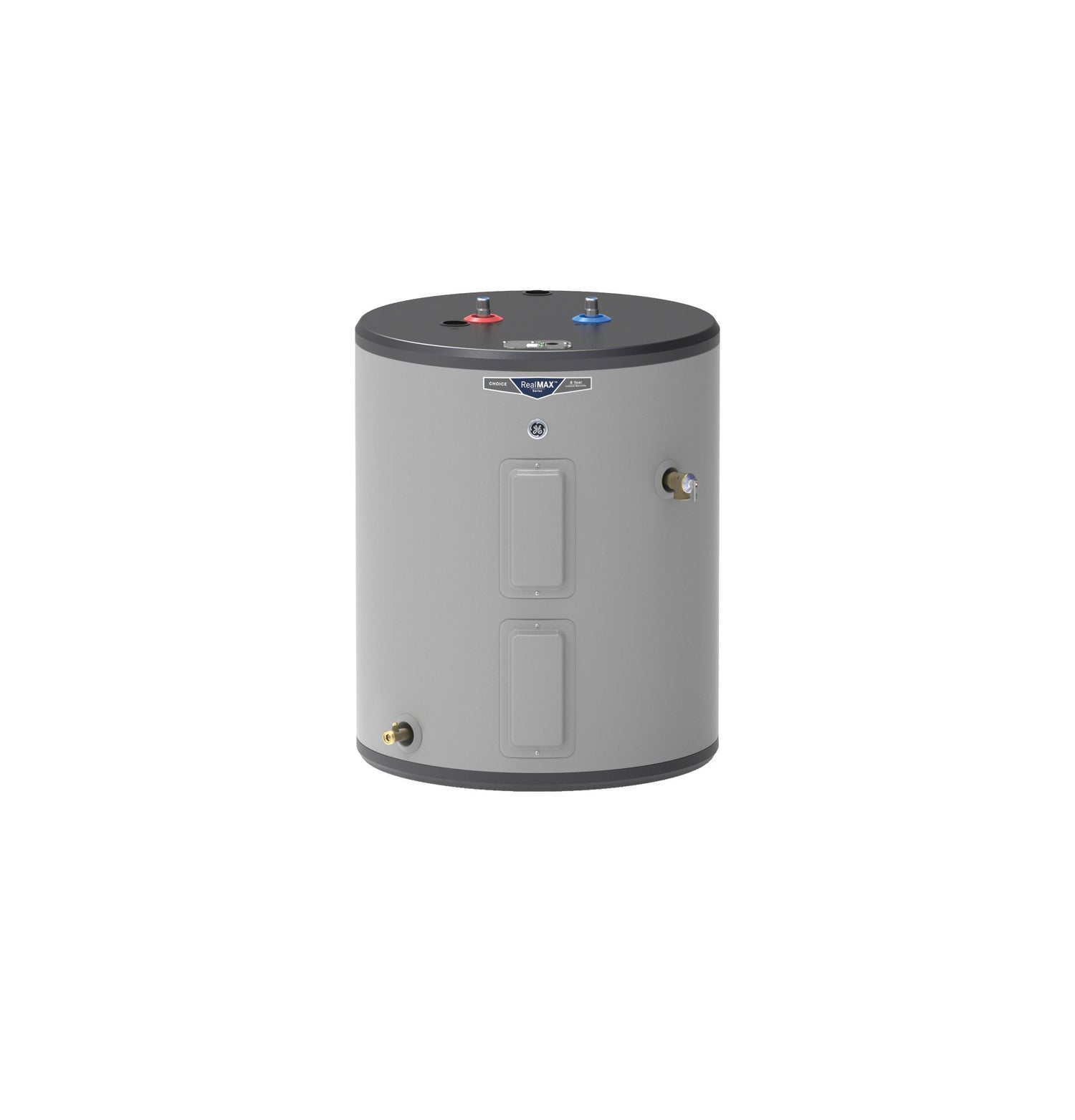

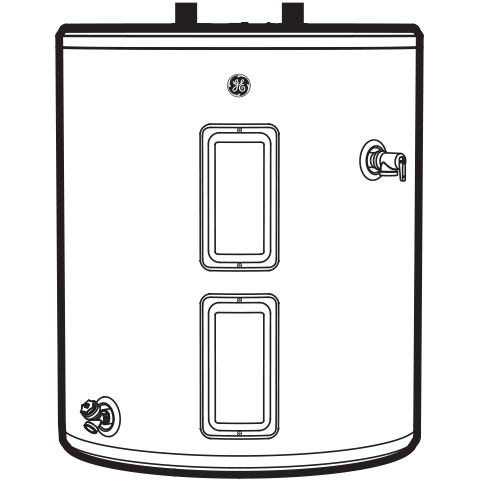

GE® 36 Gallon Top Port Lowboy Electric Water Heater
Model: GE40L08BAM
Authorized Dealer
1
of
16
Loading...
Authorized Dealer
GE® 36 Gallon Top Port Lowboy Electric Water Heater
Model: GE40L08BAMQuick Specs
Depth
27
Height
32 3/4
GE® 36 Gallon Top Port Lowboy Electric Water Heater is backordered and will ship as soon as it is back in stock.
Available to Order
Sale Price
Sale price
$521.00
Regular price
$579.00
Unit price
/
Unavailable
You save 10%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
27
Height
32 3/4

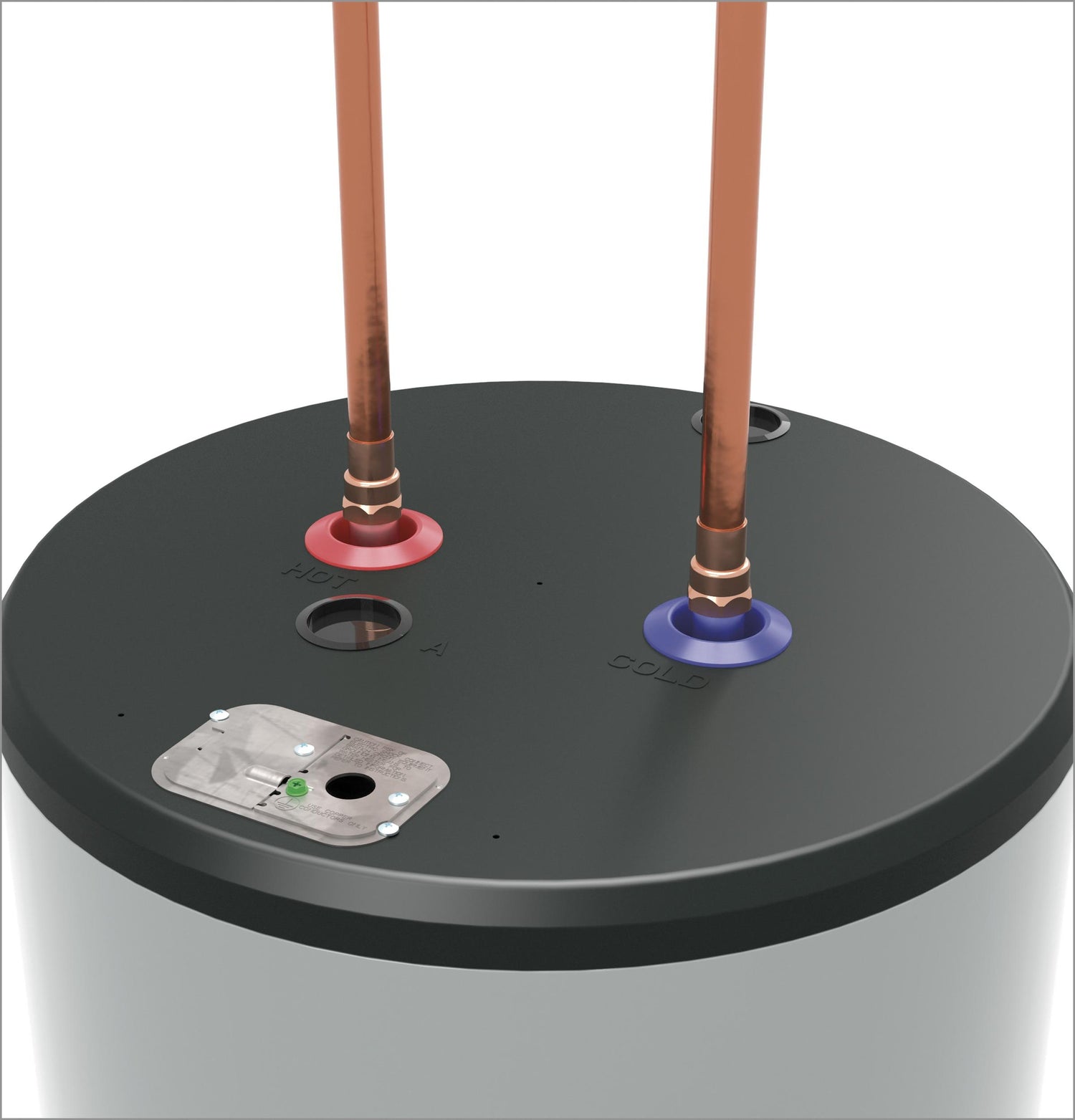

Easy Set Up
Replace your old water heater quickly and easily using standard water and electrical connections

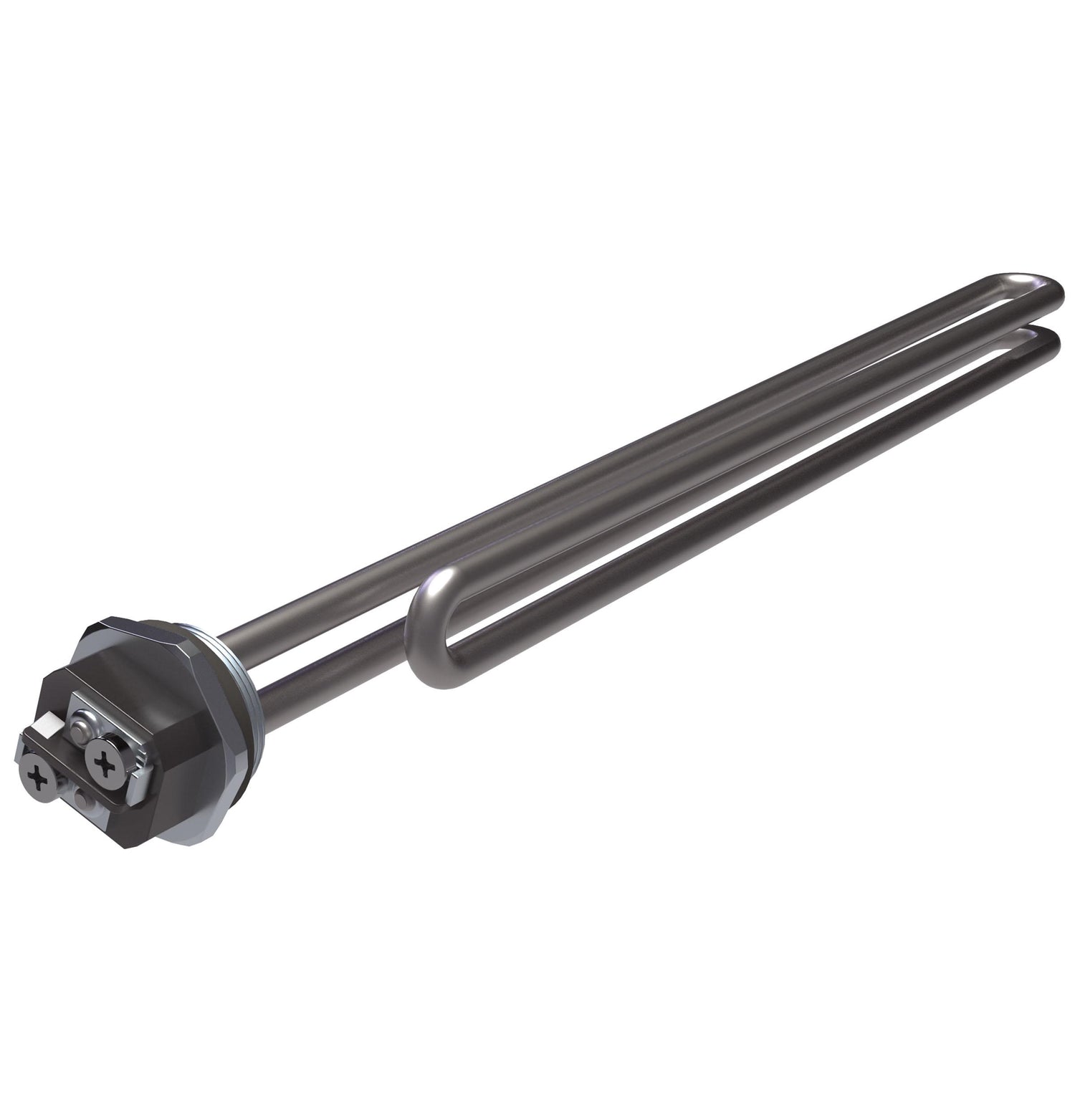

Quick Recovery
Two 5500W heating elements quickly increase water temperature for hot water when you need it
Household Size
Provide hot water for the whole family of 2 to 4 persons

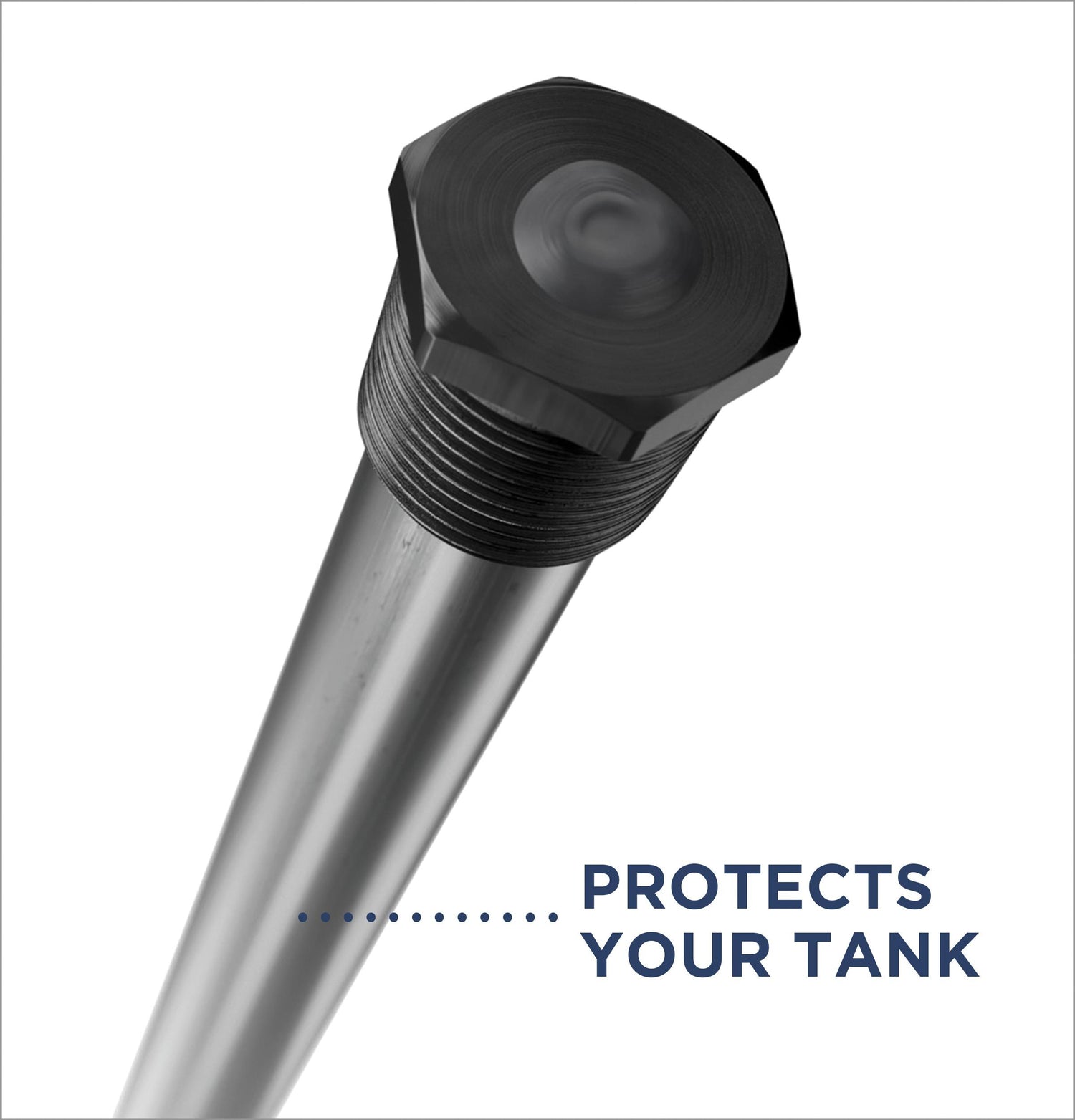

Anode Rod
Durable design offers long-lasting protection against corrosion

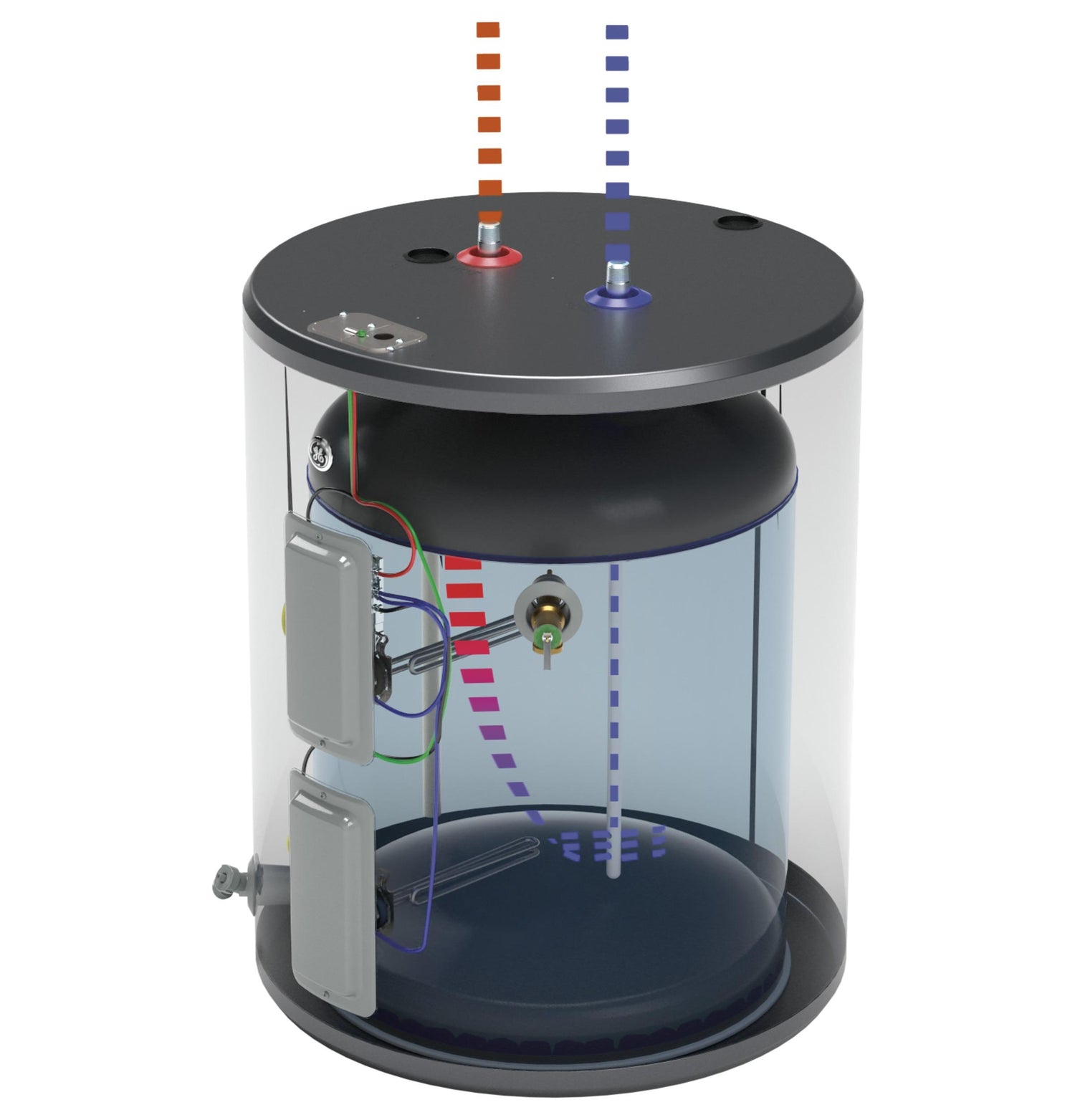

Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery

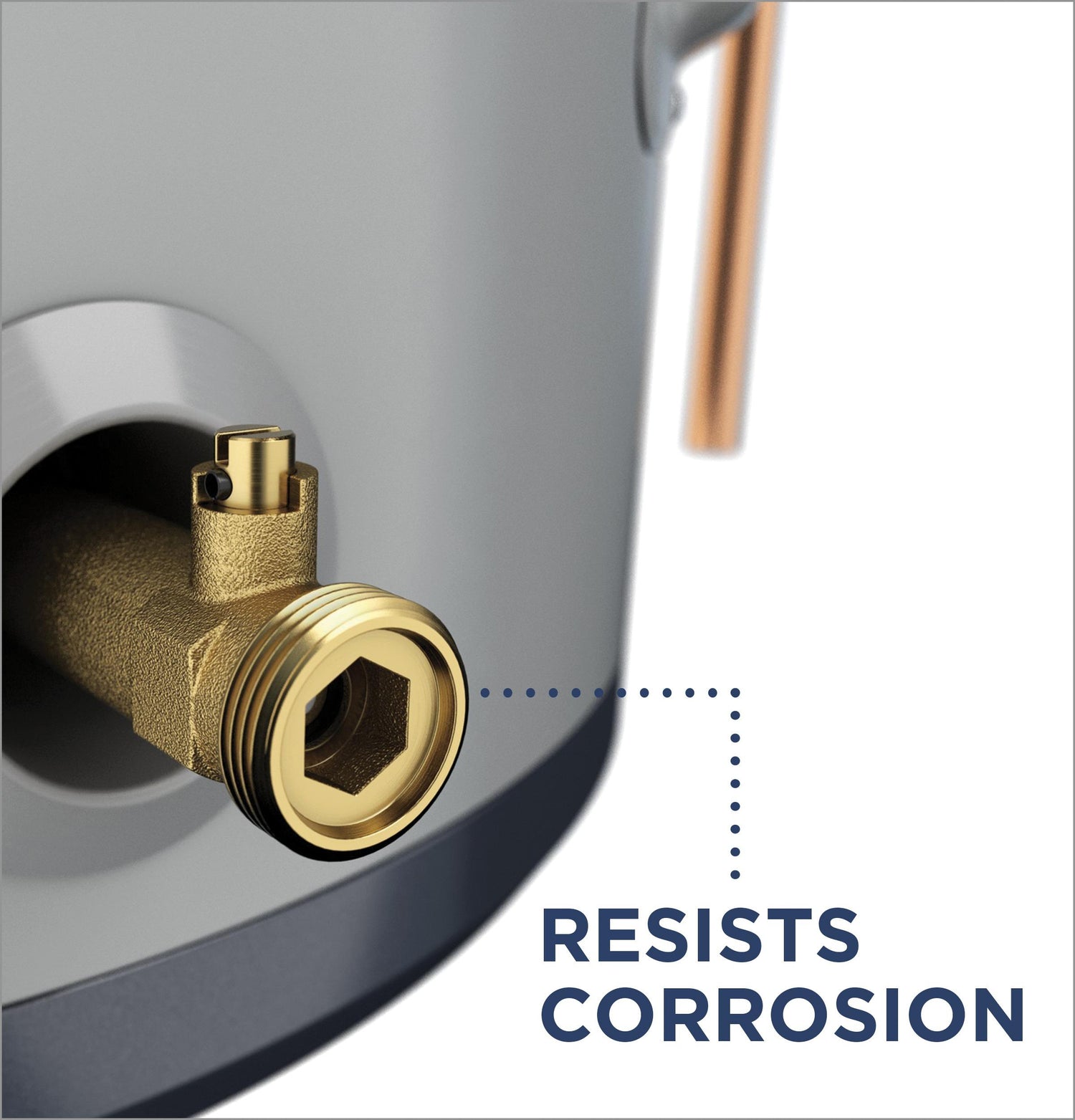

Brass Drain Valve
Rust-proof construction can be counted on to provide long-lasting service

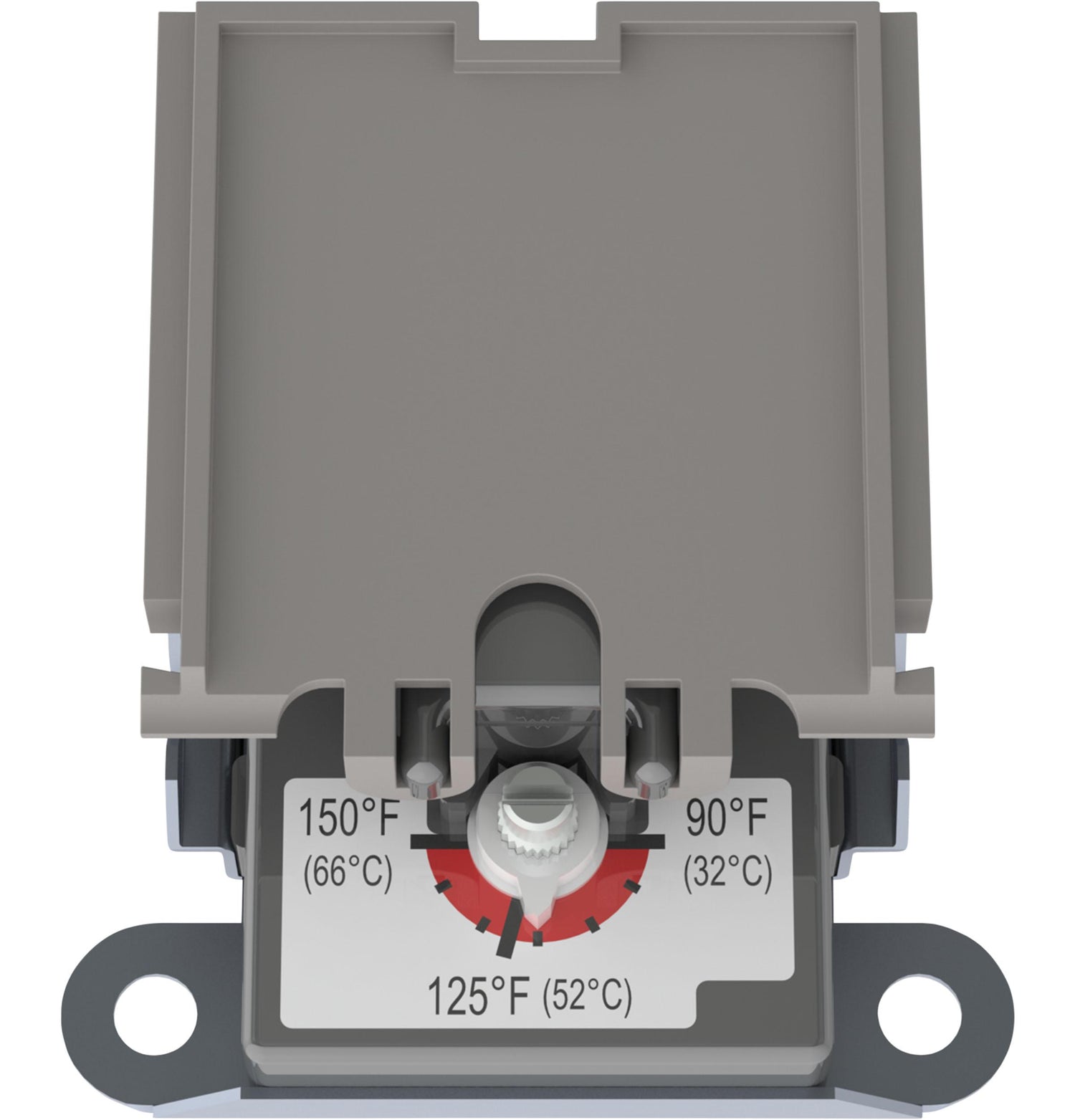

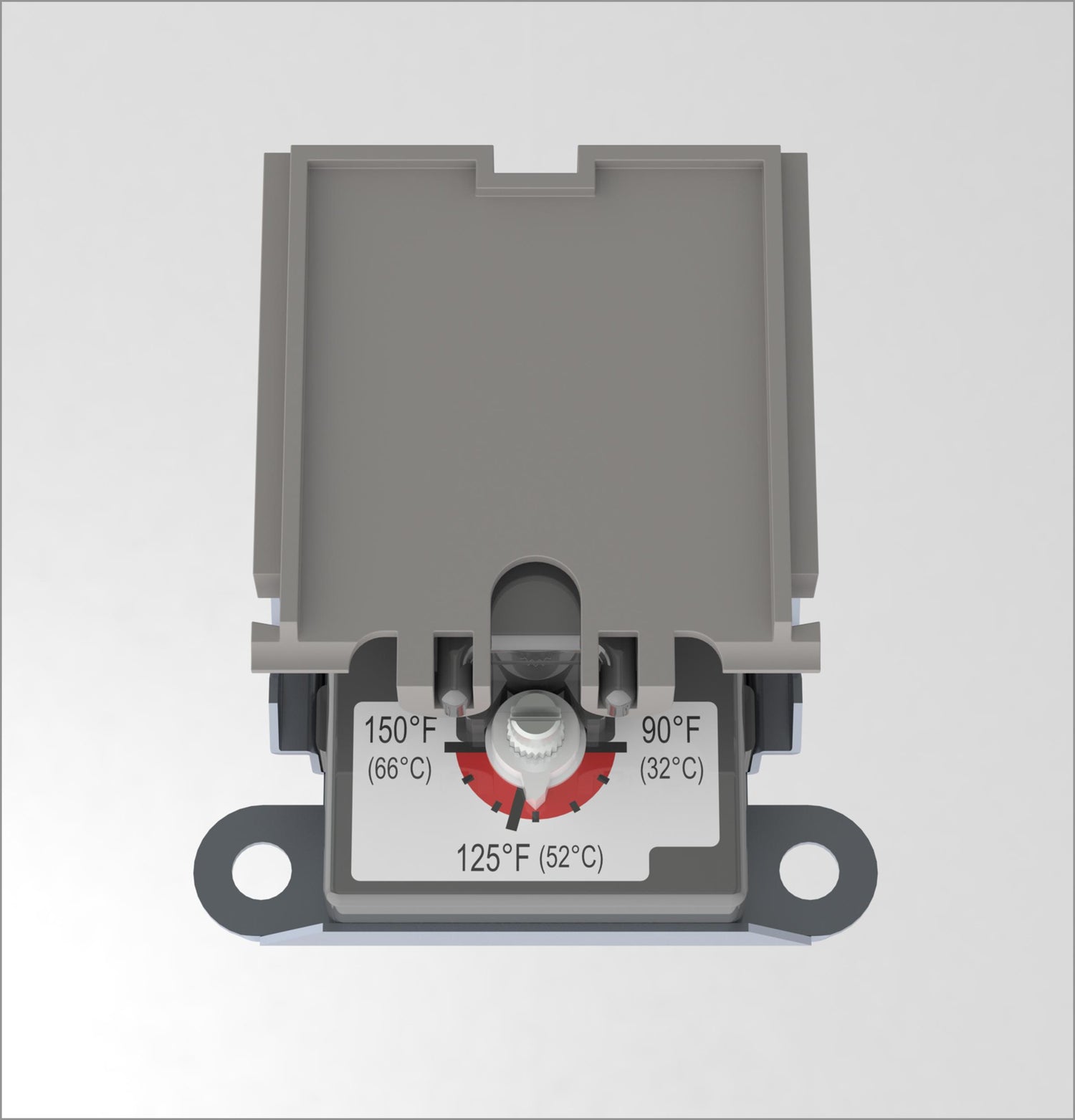

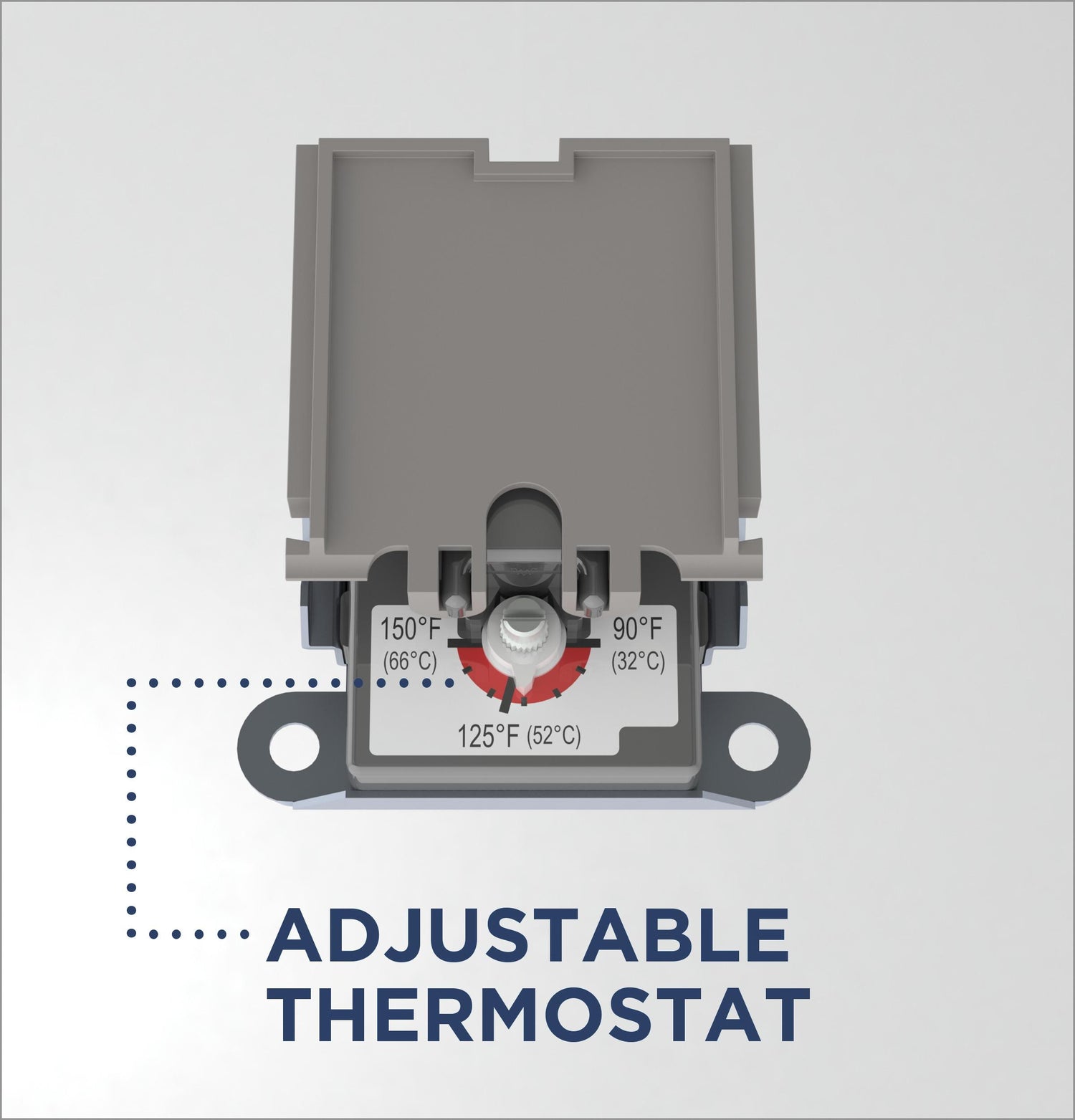

Adjustable Thermostat
Change temperature to your desired setting

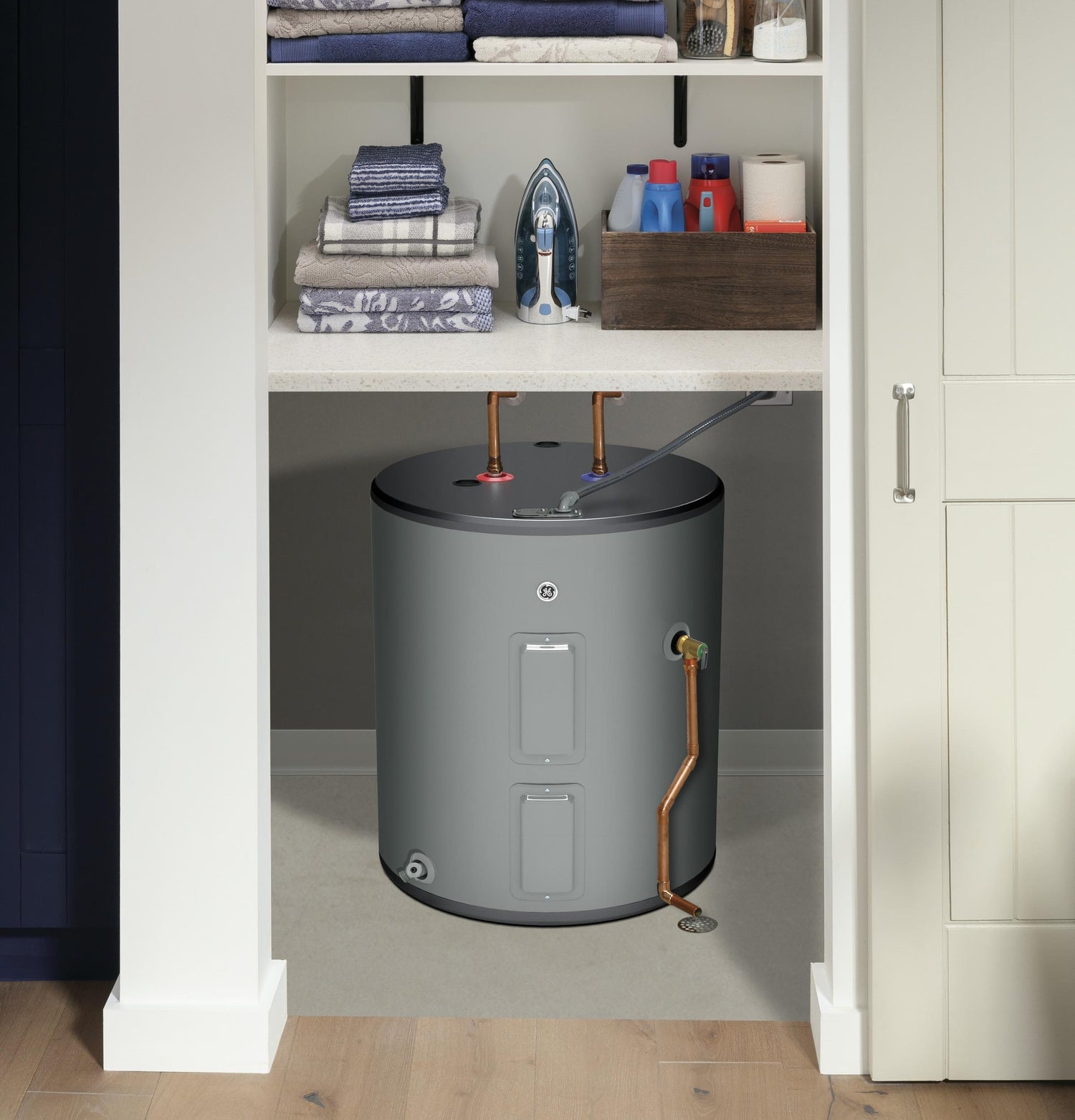

Lowboy
Make the most of tight spaces with a water heater that fits where height is a concern
- Lowboy
- Make the most of tight spaces with a water heater that fits where height is a concern
- Household Size
- Provide hot water for the whole family of 2 to 4 persons
- Quick Recovery
- Two 5500W heating elements quickly increase water temperature for hot water when you need it
- Inlet Tube
- Replenishes water from the bottom of the tank to maximize hot water delivery
- Easy Set Up
- Replace your old water heater quickly and easily using standard water and electrical connections
- Anode Rod
- Durable design offers long-lasting protection against corrosion
- Brass Drain Valve
- Rust-proof construction can be counted on to provide long-lasting service
- Adjustable Thermostat
- Change temperature to your desired setting
- Lowboy
- Household Size
- Quick Recovery
- Inlet Tube
- Easy Set Up
- Anode Rod
- Brass Drain Valve
- Adjustable Thermostat
| CAPACITY | |
| Unit Capacity | 40 Gallons |
| FILTER | |
| App Filter - Tank Warranty | 8 year limited |
| App Filter - Product Type | Water Heaters Electric Standard |
| App Filter - Tank Diameter | 22 in. and above |
| App Filter - Vacation Mode | No |
| App Filter - Capacity | Water Heater 40-49 gallons |
| APPEARANCE | |
| Color Appearance | Gray |
| POWER / RATINGS | |
| Integrated Energy Factor | 0.92 |
| Heating - Electric - Heater Watts | 5500/5500 |
| Electrical Connection | Direct-Wire |
| Operating Water Pressure | 20-125 PSI |
| Volts/Hertz | 240V; 60Hz |
| First Hour Rate (FHR) | 61 Gallons |
| Voltage (MAX) | 240 V |
| Energy Consumption (kWh/year) | 3531 |
| Electrical Circuit Required | 208V/240V 60 Hz Dedicated 30 Amp Min. |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 8-year tank and parts |
| Labor Warranty | Limited 1-year entire appliance |
| WEIGHTS & DIMENSIONS | |
| Product Height (to top of water inlet/outlet connections) | 34.25 in |
| Approximate Shipping Weight | 145 lb |
| Overall Width | 27 in |
| Overall Height | 32.75 in |
| Product Height (to top of unit) | 32.75 in |
| Net Weight | 135 lb |
| Product Diameter | 27 in |
| Overall Depth | 27 in |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
| Connection Sizes - Hot Water Outlet (MNPT) | 3/4" |
| FEATURES | |
| Control Type | Thermostat |
| Temp & Pressure Relief Valve | Yes |
| Rated Capacity | 36 gal |
| Height Description | Low Boy with Top Port |
| Fuel Type | Electric |
| Configuration | Lowboy |
| Installation Location | Indoor |
| Operating Modes | Standard Electric |
| Rated Storage Capacity | 36 |
| Drain Valve Type | Brass |
| GPH Recovery @ 90 Degrees F | 25.1 |
| Mobile Home Compatible | No |
| Product Type | Electric Thermostat |
| Family Size | 2-4 People |
| Water Connection Location | Top |
| Foam Insulation | Yes |
| Point of Use | No |
| Temperature Setting | 90-150° F Range Factory Default 120° F |
| Insulation Thickness | 2.75 in |
