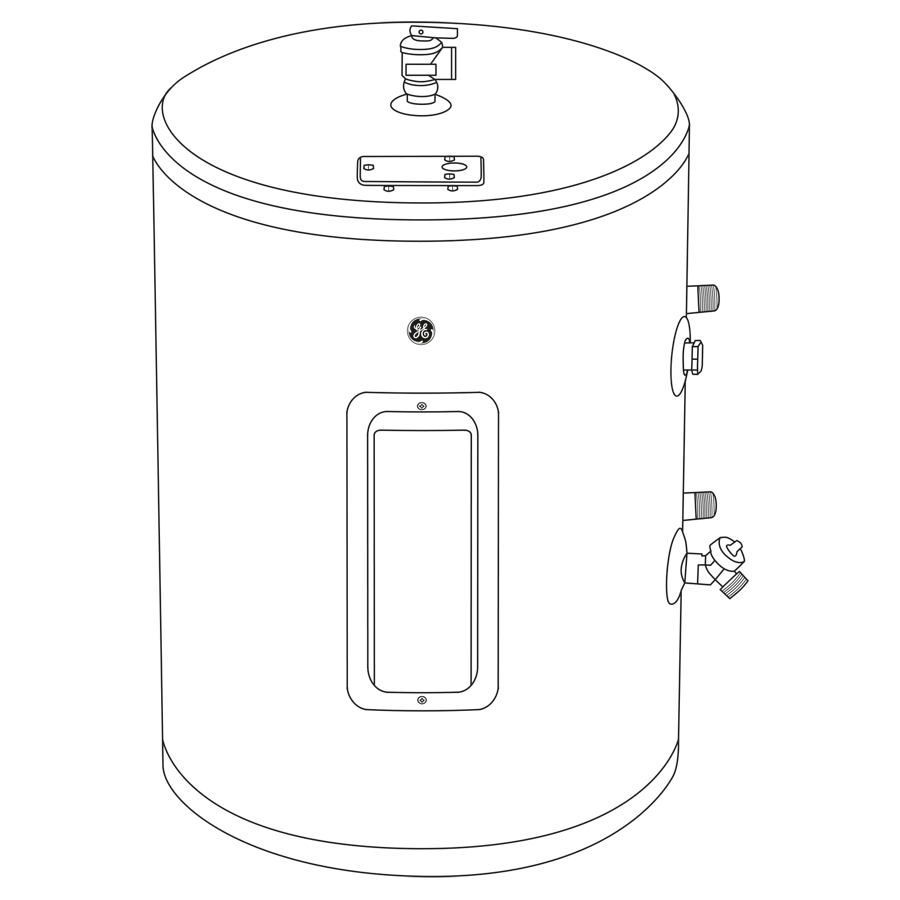

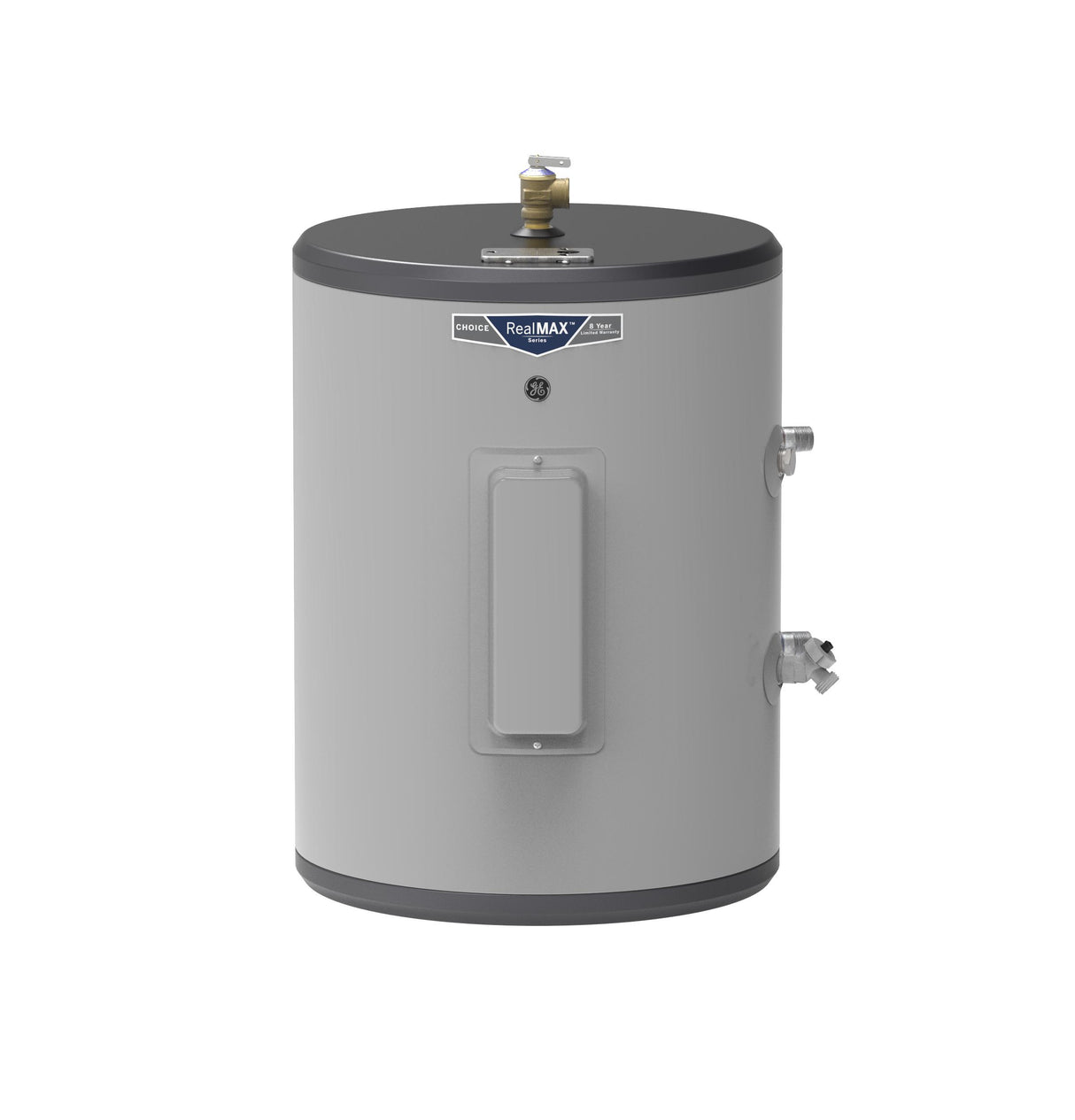

GE® 18 Gallon Electric Point of Use Water Heater
Model: GE20P08BAR
GE® 18 Gallon Electric Point of Use Water Heater
Model: GE20P08BARQuick Specs
GE® 18 Gallon Electric Point of Use Water Heater is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs

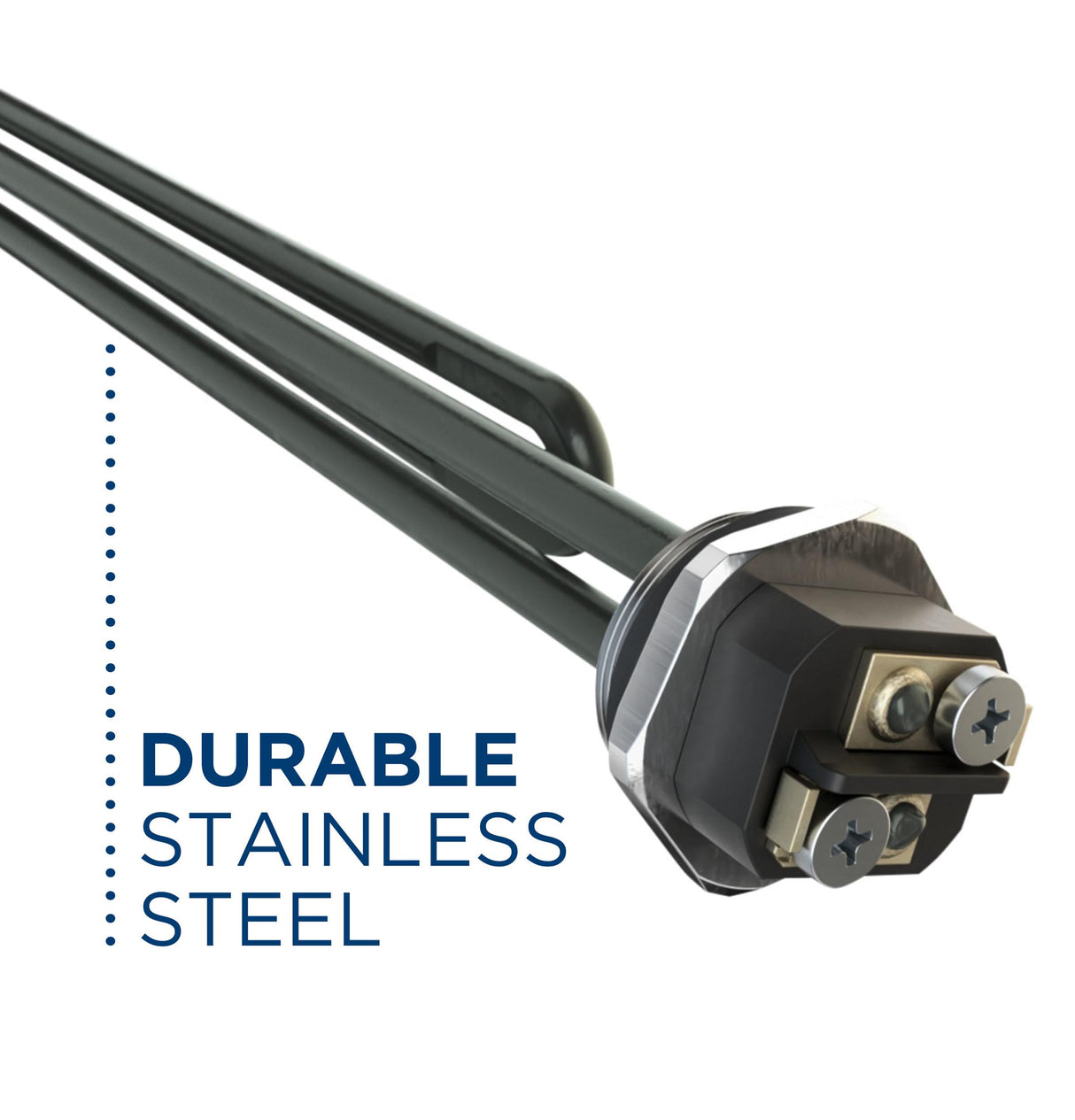

Stainless Steel Heating Element
Provides reliable heat with ultra-durable design that resists rust and corrosion
120 Volt
Connects into any 120-Volt supply

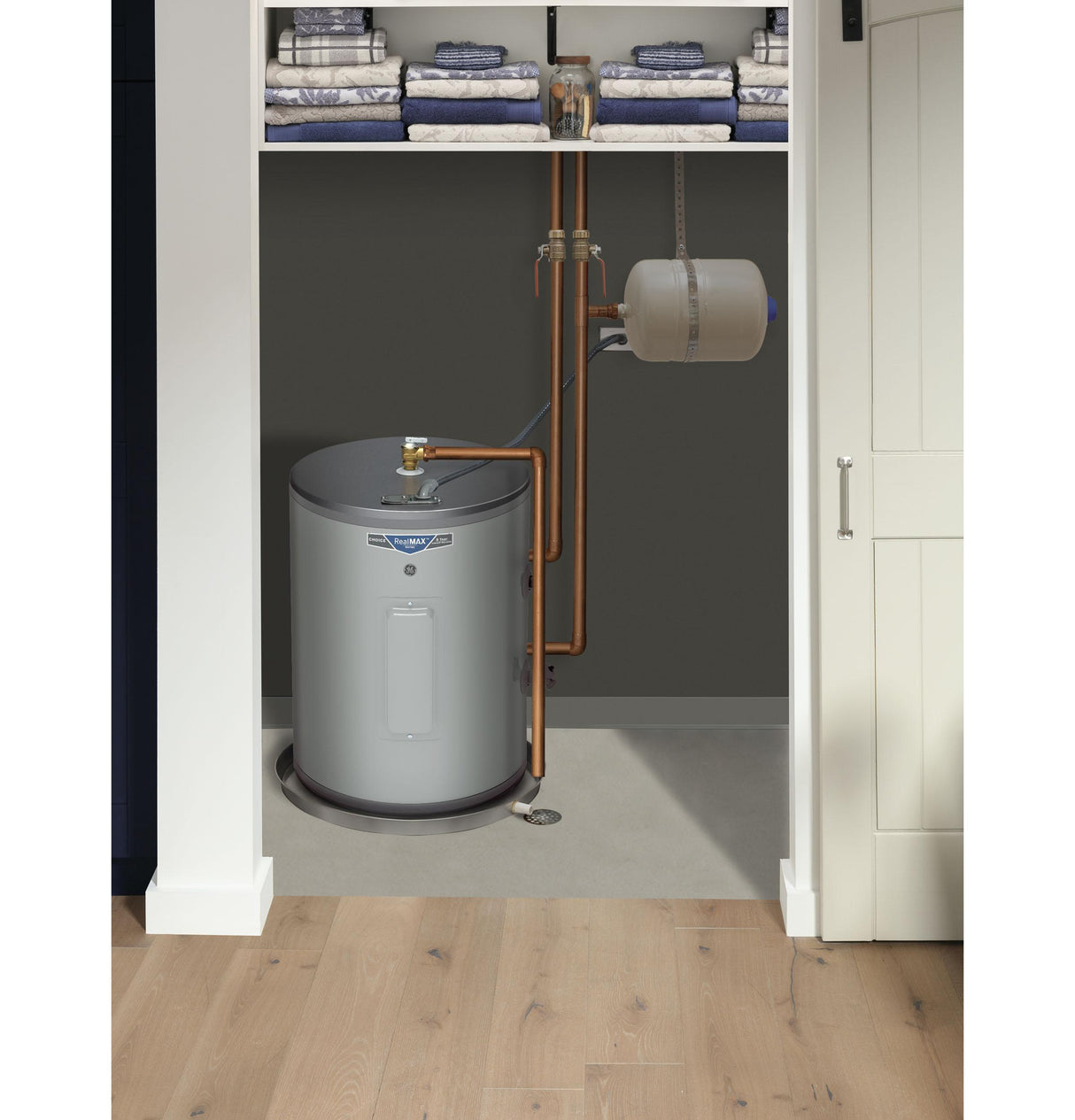

Compact Design
Ideal in limited spaces like kitchens, bathrooms, laundry rooms, cabins, RVs, garages, sheds, etc

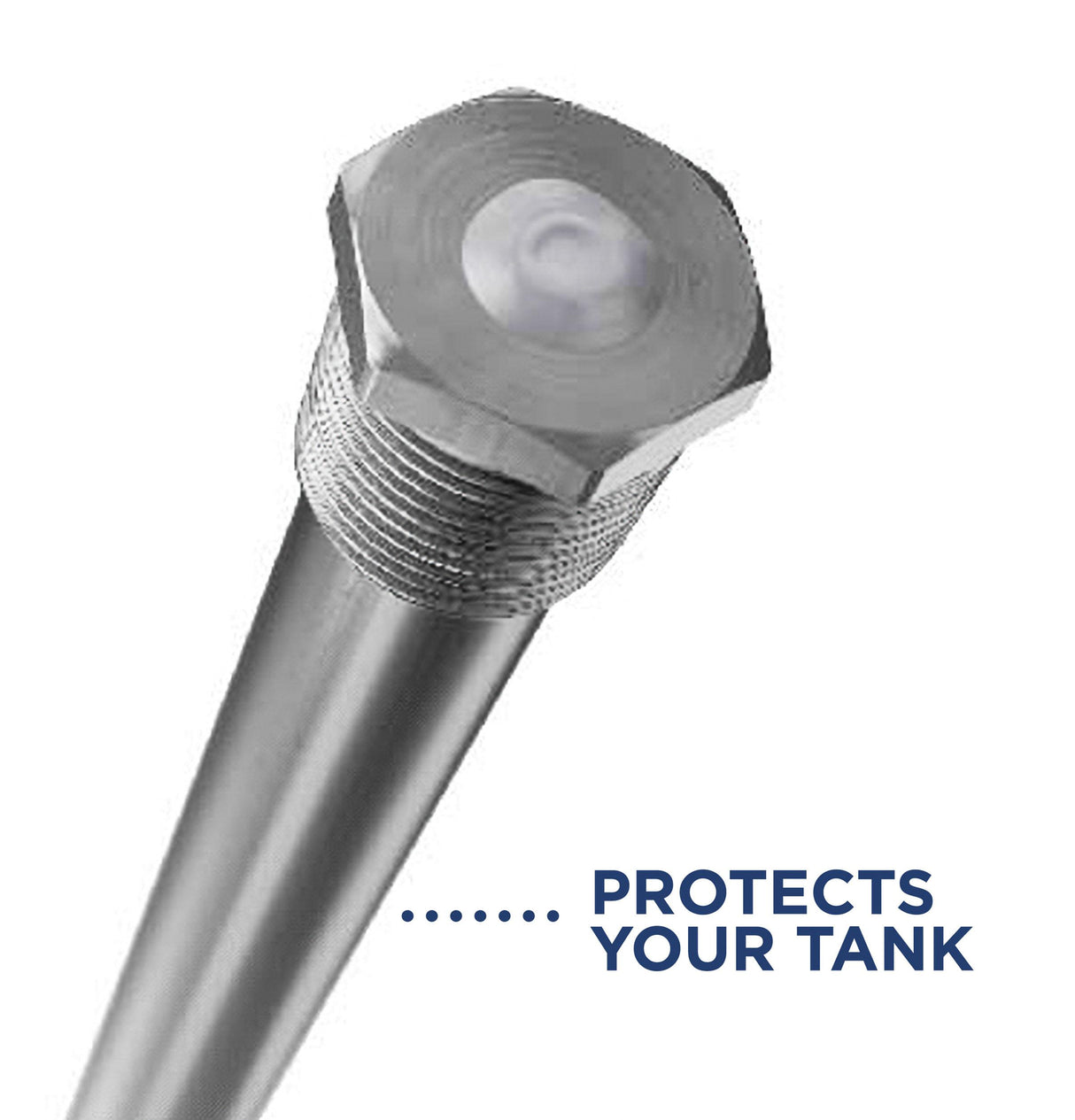

Anode Rod
Durable design extends the life of your water heater with long-lasting protection against corrosion
Hot Water Booster
Works as a standalone unit, or inline with another water heater to boost long pipe runs or washing machines

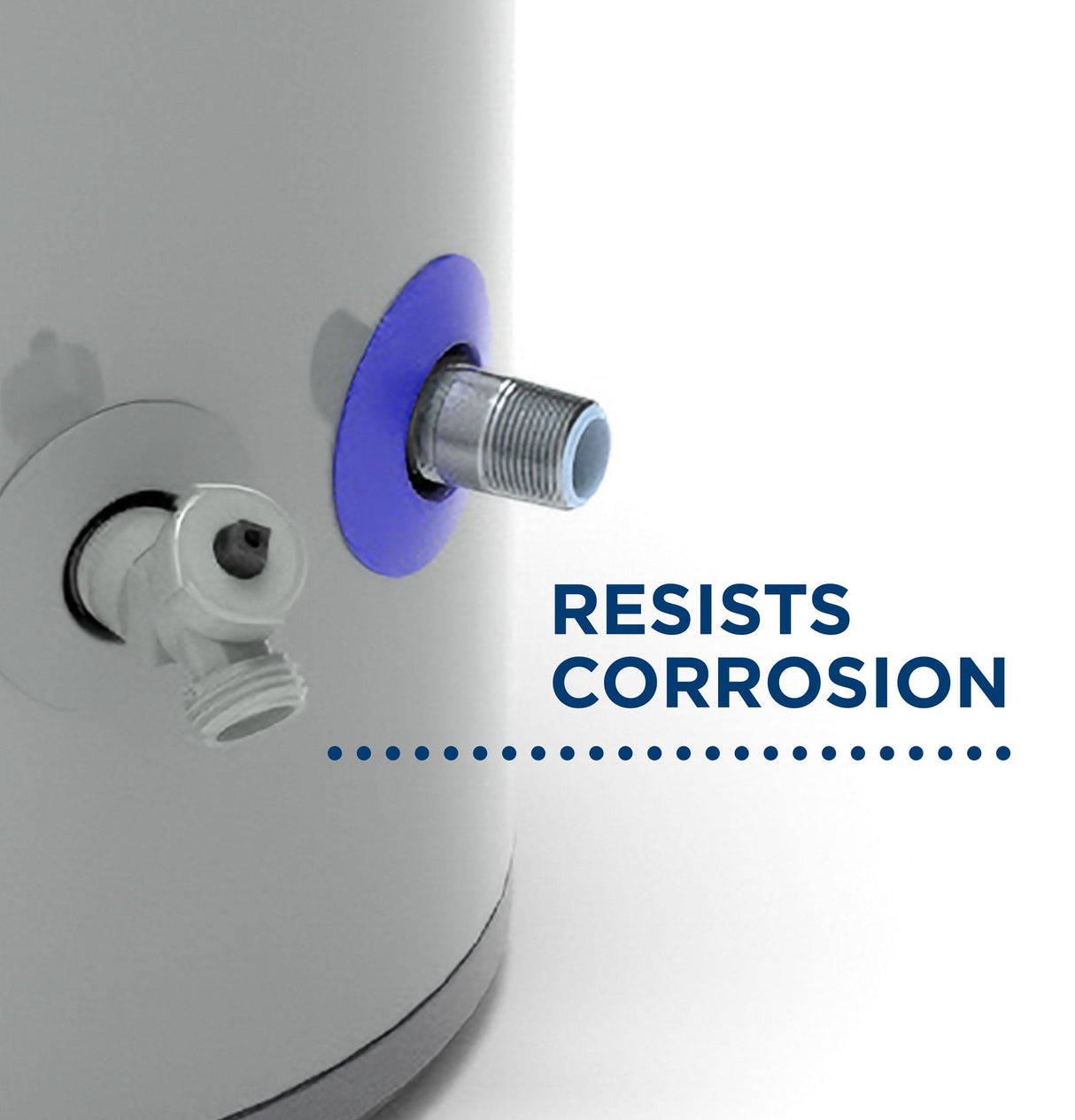

Drain Valve
Rust-proof construction can be counted on to provide long-lasting service

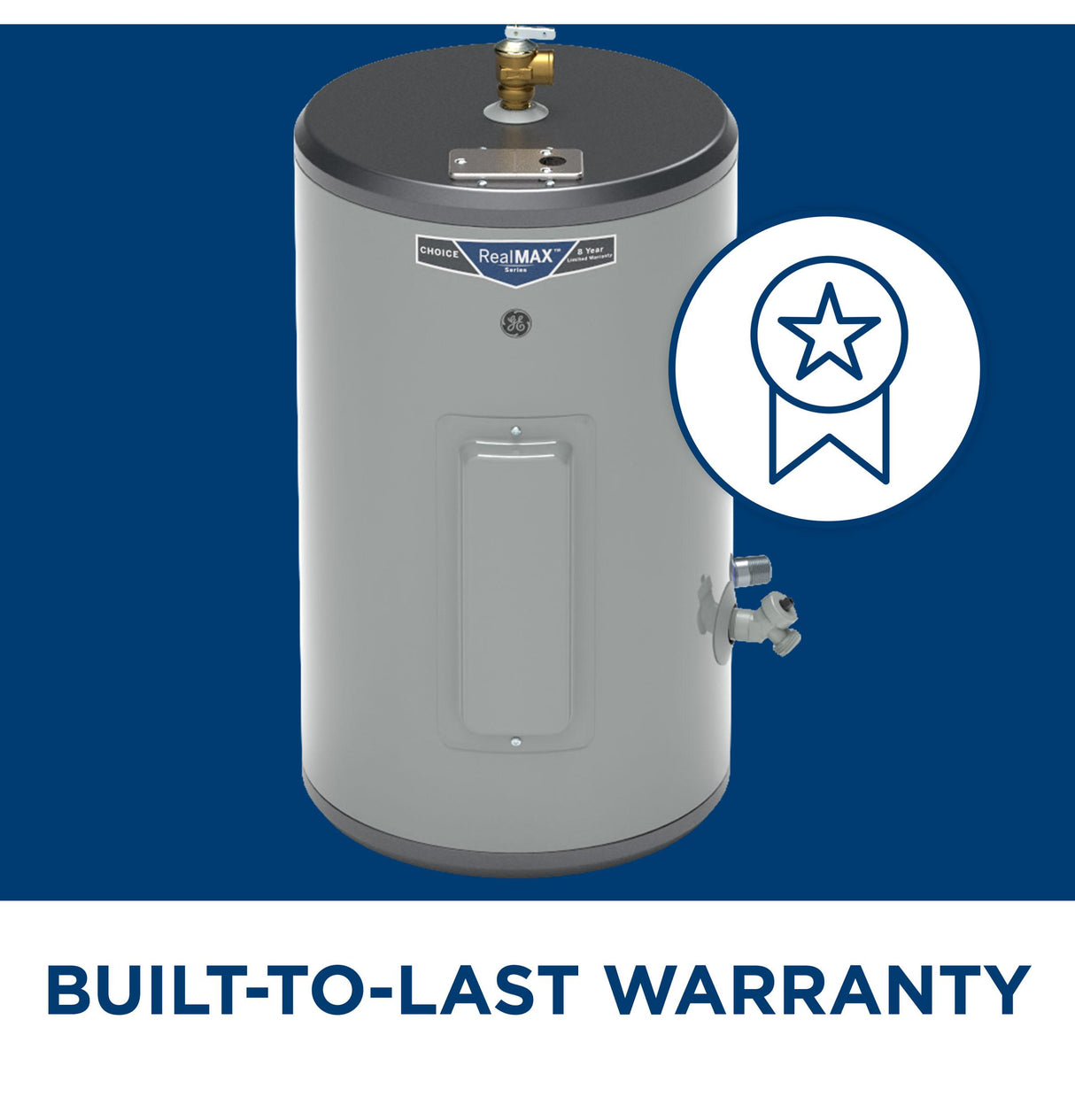

Built-To-Last Warranty
8-year tank and parts/1-yr labor

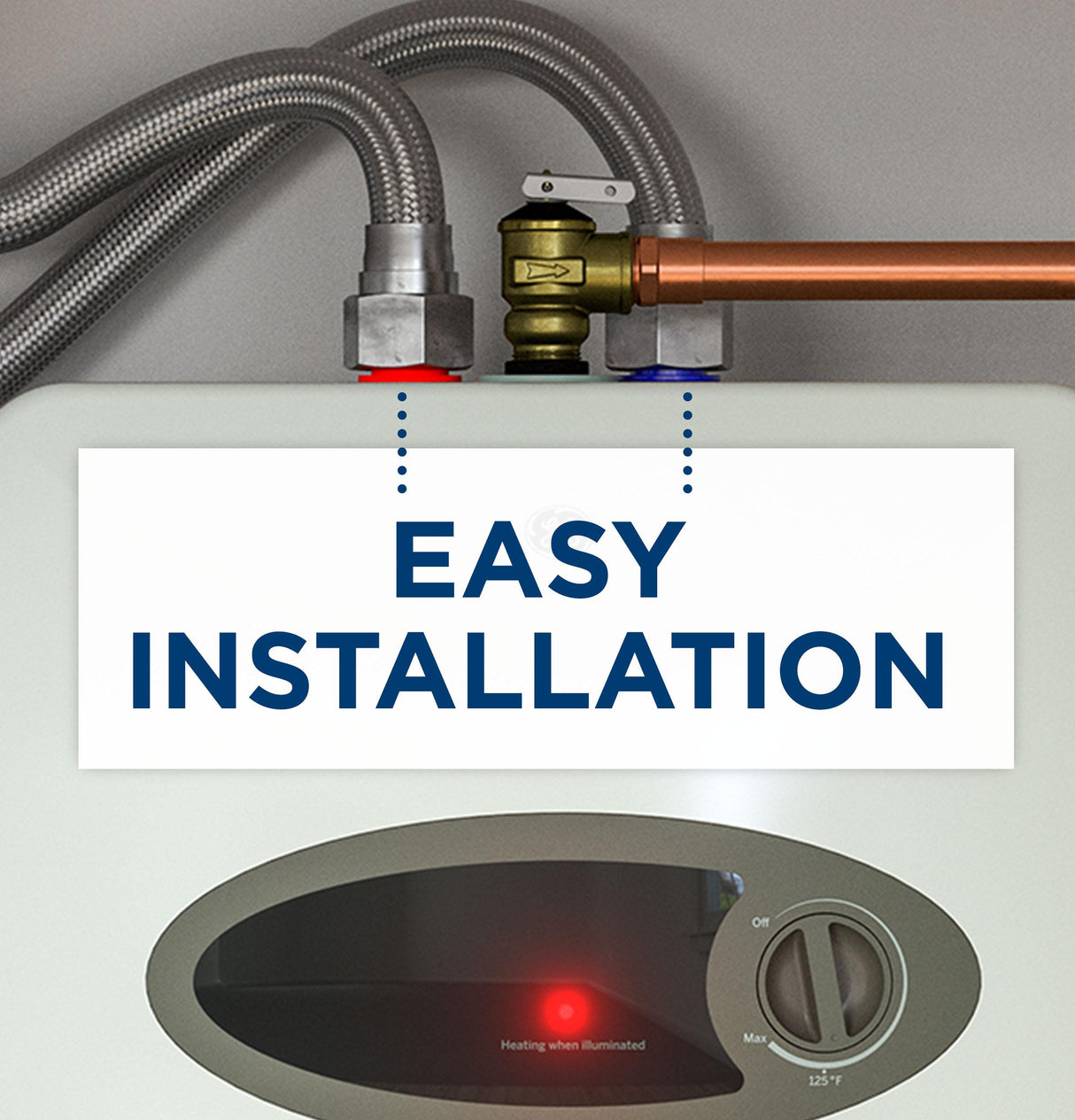

Easy Installation
Uses standard 3/4-in NPT water connections for simple installation

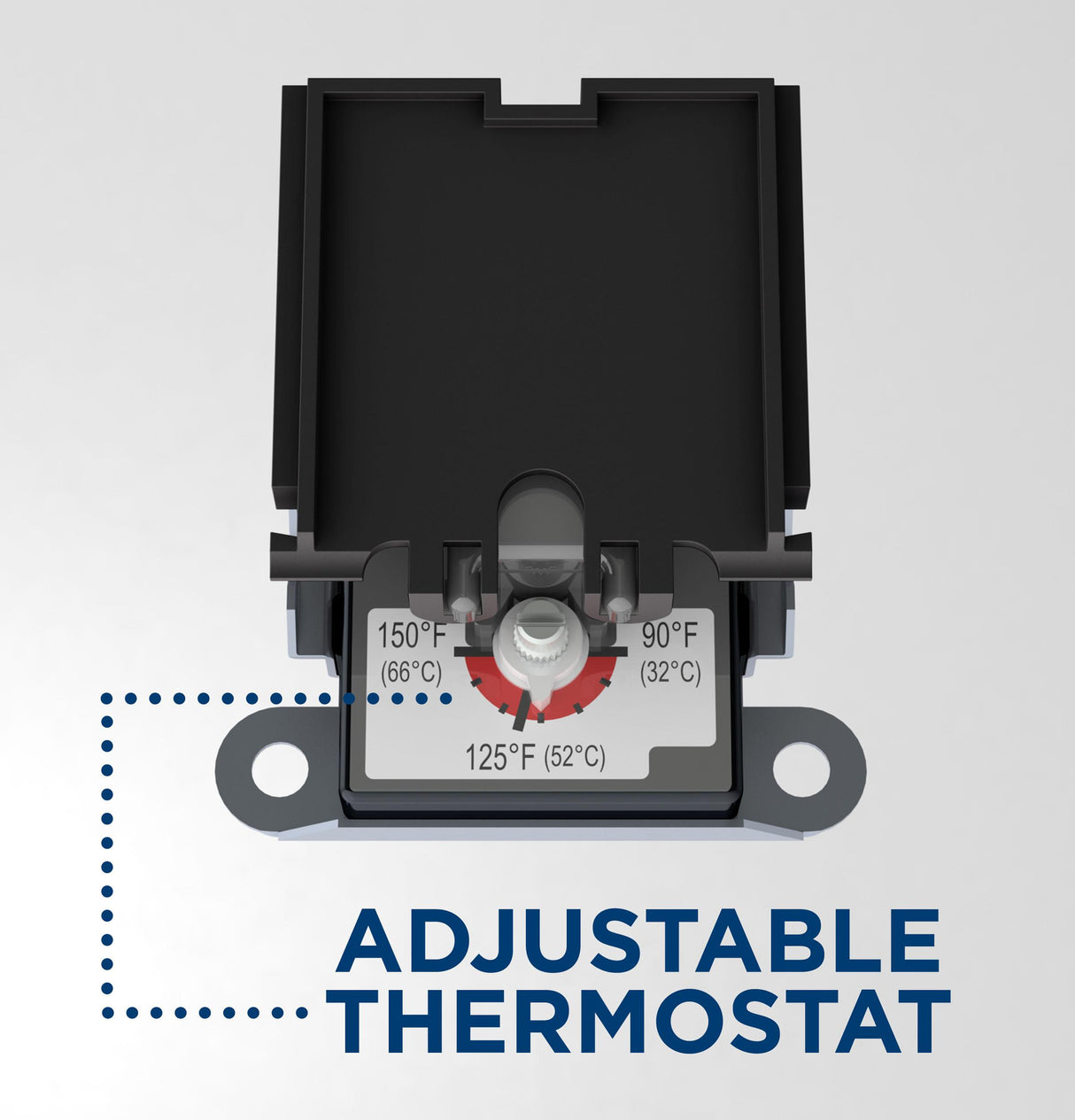

Adjustable Thermostat
Easily change temperatures to your desired settings
Whole Home Flexibility
Can provide hot water to a single hookup, or to a small house, condo, or apartment
- Whole Home Flexibility
- Can provide hot water to a single hookup, or to a small house, condo, or apartment
- Compact Design
- Ideal in limited spaces like kitchens, bathrooms, laundry rooms, cabins, RVs, garages, sheds, etc
- 120 Volt
- Connects into any 120-Volt supply
- Hot Water Booster
- Works as a standalone unit, or inline with another water heater to boost long pipe runs or washing machines
- Stainless Steel Heating Element
- Provides reliable heat with ultra-durable design that resists rust and corrosion
- Anode Rod
- Durable design extends the life of your water heater with long-lasting protection against corrosion
- Drain Valve
- Rust-proof construction can be counted on to provide long-lasting service
- Built-To-Last Warranty
- 8-year tank and parts/1-yr labor
- Easy Installation
- Uses standard 3/4-in NPT water connections for simple installation
- Adjustable Thermostat
- Easily change temperatures to your desired settings
- Whole Home Flexibility
- Compact Design
- 120 Volt
- Hot Water Booster
- Stainless Steel Heating Element
- Anode Rod
- Drain Valve
- Built-To-Last Warranty
- Easy Installation
- Adjustable Thermostat
| CAPACITY | |
| Unit Capacity | 18 Gallons |
| APPEARANCE | |
| Installation | Free-Standing |
| Color Appearance | Gray |
| POWER / RATINGS | |
| Power Rating-kW | 1.5 |
| Amps | 12 |
| Hertz | 60 |
| Voltage (MAX) | 120 V |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | 8-year limited |

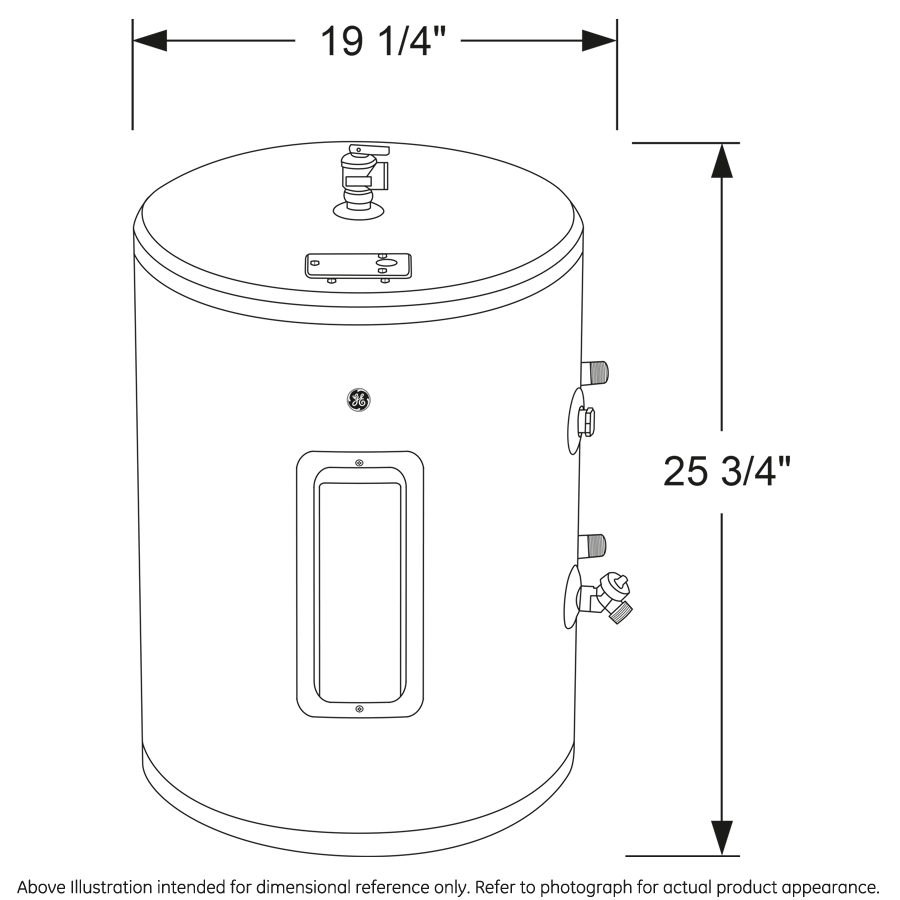

| WEIGHTS & DIMENSIONS | |
| Approximate Shipping Weight | 62 lb |
| Overall Width | 19.3 in |
| Overall Height | 25.75 in |
| Product Height (to top of unit) | 25.75 in |
| Net Weight | 54.2 lb |
| Product Diameter | 19.3 in |
| Overall Depth | 19.25 in |
| Connection Sizes - Water Inlet (MNPT) | 1/2" |
| Connection Sizes - Hot Water Outlet (MNPT) | 1/2" |
| FEATURES | |
| Power Cord Length | 6' Included |
| Controls | Mechanical Temperature Control |
| Max. operating pressure (psi) | 150 |
| Temp & Pressure Relief Valve | Top |
| Rated Capacity | 18 gal |
| Height Description | Point of Use |
| Heating Element | Stainless steel |
| Max: operating pressure (psi) | 150 |
| Fuel Type | Electric |
| Configuration | Space Saver |
| Installation Location | Indoor |
| Drain Valve Type | Plastic |
| Temperature Setting Factory Default | 120° F |
| Product Type | Electric Point Of Use |
| Water Connection Location | Side |
| Point of Use | Yes |
| Anode Rod | Aluminum |
| Temperature Setting | 70-140° F Range |
