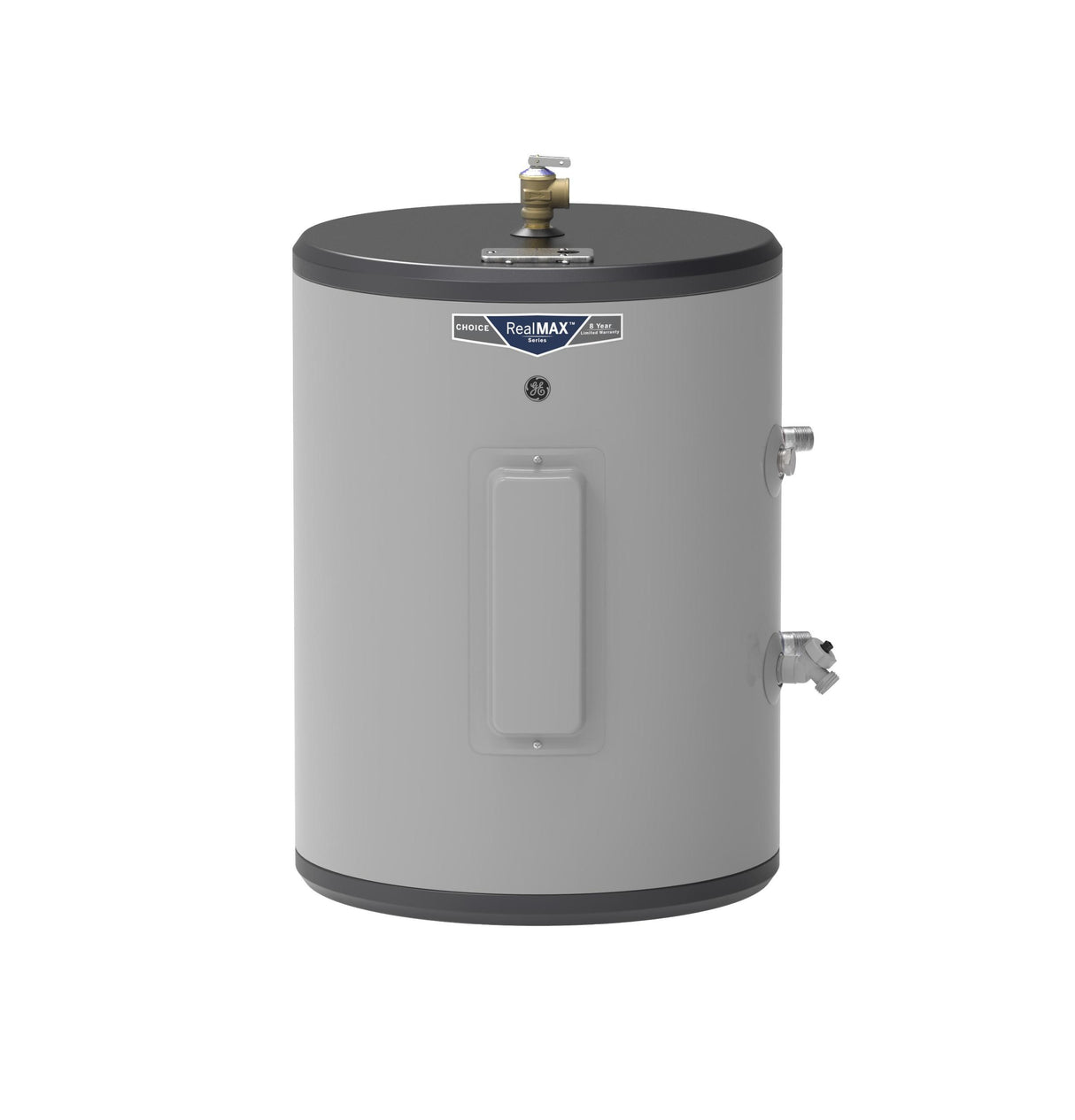

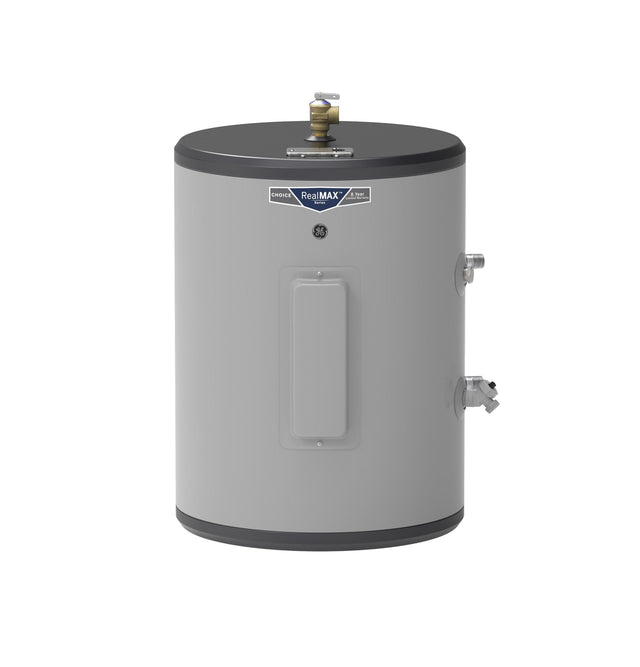

GE® 18 Gallon Side Port Lowboy Electric Water Heater
Model GE20L08BAR
Authorized Dealer
1
of
2
Loading...
Authorized Dealer
GE® 18 Gallon Side Port Lowboy Electric Water Heater
Model GE20L08BARQuick Specs
Depth
19 1/4
Height
25 3/4
Energy
NO
GE® 18 Gallon Side Port Lowboy Electric Water Heater is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 07/01/2026
Regular price
$596.50
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
19 1/4
Height
25 3/4
Energy Star Rated
NO
Lowboy
Make the most of tight spaces with a water heater that fits where height is a concern
Adjustable Thermostat
Change temperature to your desired setting
Anode Rod
Durable design offers long-lasting protection against corrosion
- Lowboy
- Make the most of tight spaces with a water heater that fits where height is a concern
- Quick Recovery
- 3800W heating element quickly increase water temperature for hot water when you need it
- Household Size
- Provide hot water for the whole family of 1 to 2 persons
- Inlet Tube
- Replenishes water from the bottom of the tank to maximize hot water delivery
- Easy Set Up
- Replace your old water heater quickly and easily using standard water and electrical connections
- Anode Rod
- Durable design offers long-lasting protection against corrosion
- Drain Valve
- Rust-proof construction can be counted on to provide long-lasting service
- Adjustable Thermostat
- Change temperature to your desired setting
- Lowboy
- Quick Recovery
- Household Size
- Inlet Tube
- Easy Set Up
- Anode Rod
- Drain Valve
- Adjustable Thermostat
| CAPACITY | |
| Unit Capacity | 18 Gallons |
| APPEARANCE | |
| Color Appearance | Gray |
| POWER / RATINGS | |
| Heating - Electric - Heater Watts | 3800 |
| Electrical Connection | Direct-Wire |
| Operating Water Pressure | 20-125 PSI |
| Volts/Hertz | 240V; 60Hz |
| Voltage (MAX) | 240 V |
| Electrical Circuit Required | 208V/240V 60 Hz Dedicated 30 Amp Min. |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 8-year tank and parts |
| Labor Warranty | Limited 1-year entire appliance |
| WEIGHTS & DIMENSIONS | |
| Product Height (to top of water inlet/outlet connections) | 51.470588 in |
| Approximate Shipping Weight | 62 lb |
| Overall Width | 19.25 in |
| Overall Height | 25.75 in |
| Product Height (to top of unit) | 25.75 in |
| Net Weight | 54.2 lb |
| Product Diameter | 19.25 in |
| Overall Depth | 19.25 in |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
| Connection Sizes - Hot Water Outlet (MNPT) | 3/4" |
| FEATURES | |
| Control Type | Thermostat |
| Controls | Mechanical Temperature Control |
| Max. operating pressure (psi) | 150 |
| Temp & Pressure Relief Valve | Yes |
| Rated Capacity | 18 gal |
| Height Description | Low Boy with Side Port |
| Heating Element | Stainless steel |
| Max: operating pressure (psi) | 150 |
| Fuel Type | Electric |
| Configuration | Lowboy |
| Installation Location | Indoor |
| Operating Modes | Standard Electric |
| Rated Storage Capacity | 18 |
| Drain Valve Type | Plastic |
| GPH Recovery @ 90 Degrees F | 25.1 |
| Mobile Home Compatible | No |
| Product Type | Electric Thermostat |
| Family Size | 1-2 People |
| Water Connection Location | Side |
| Foam Insulation | Yes |
| Point of Use | No |
| Anode Rod | Aluminum |
| Temperature Setting | 90-150° F Range Factory Default 120° F |
