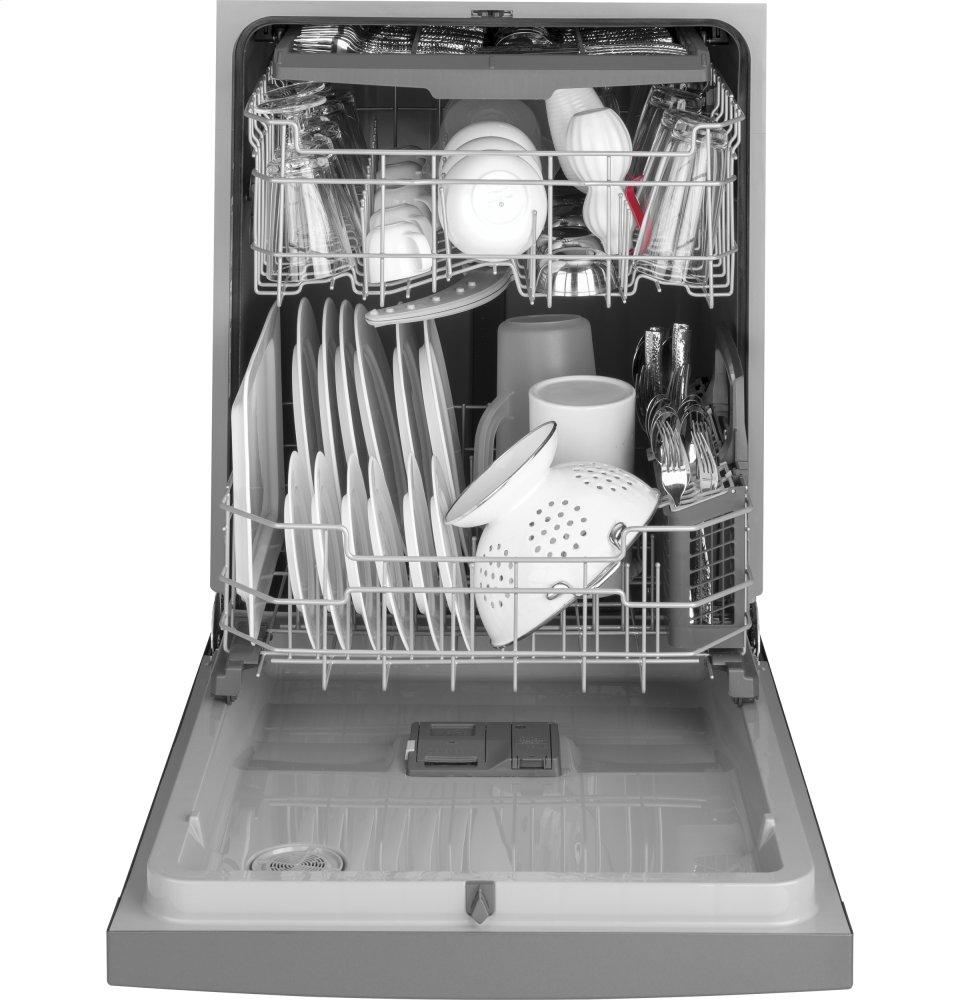

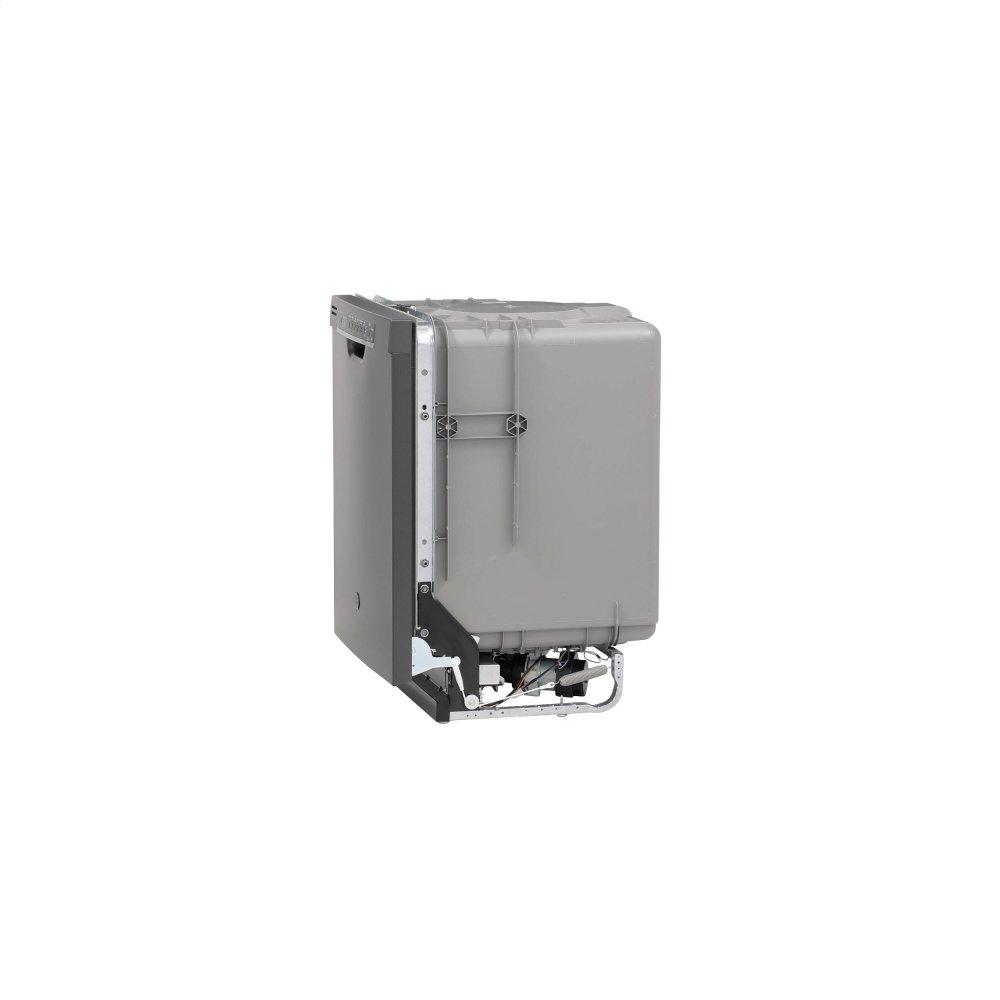

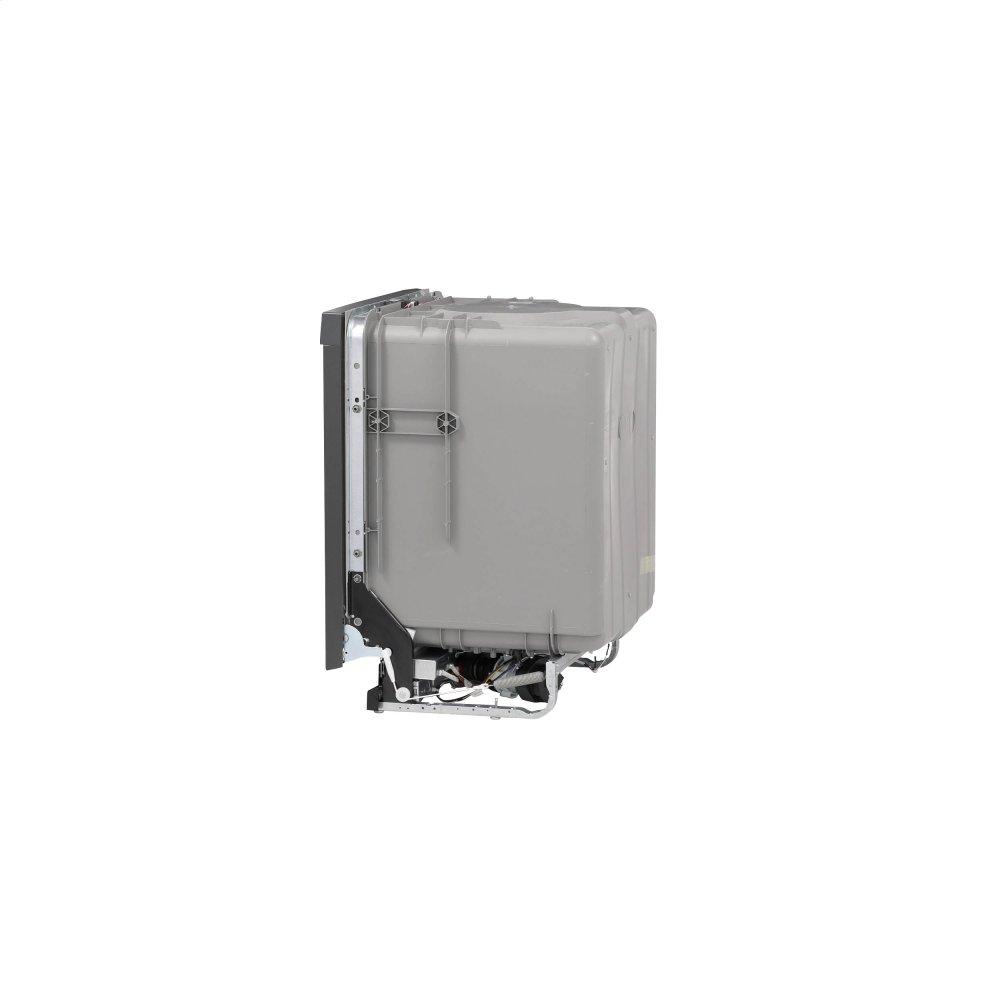

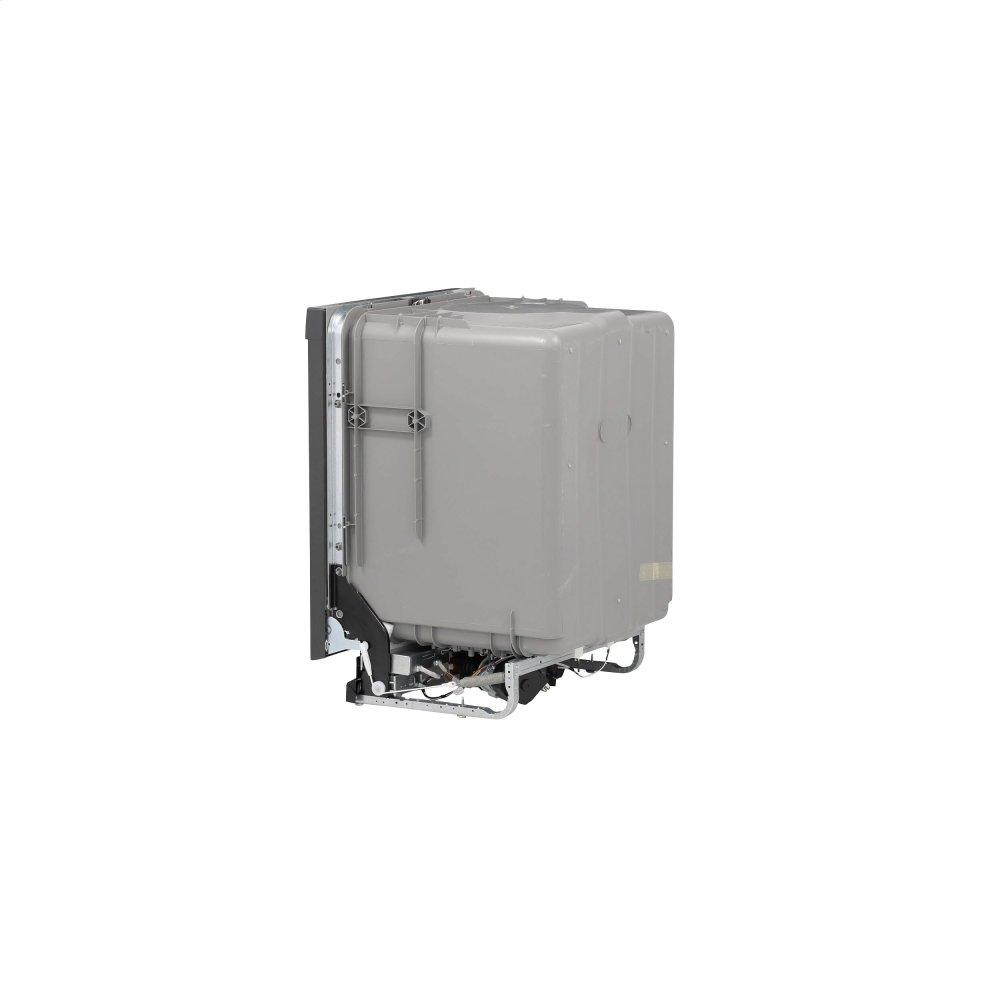

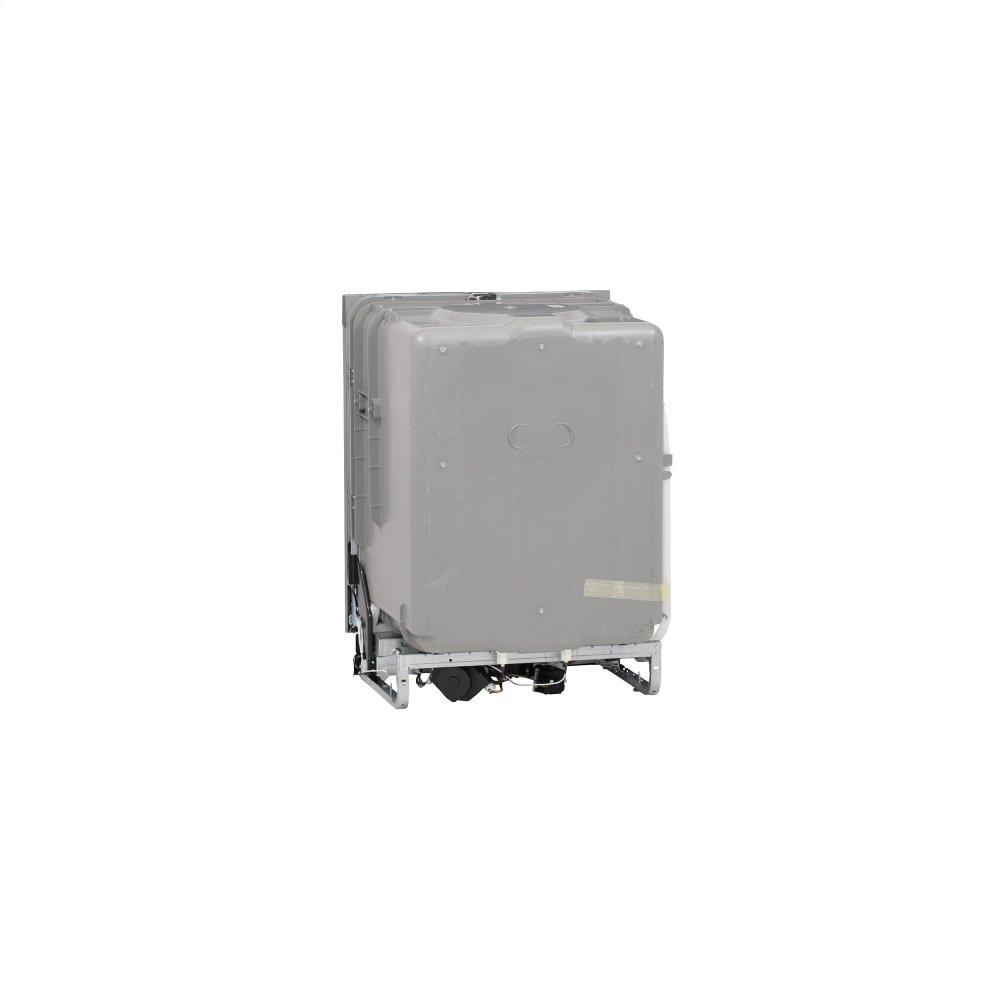

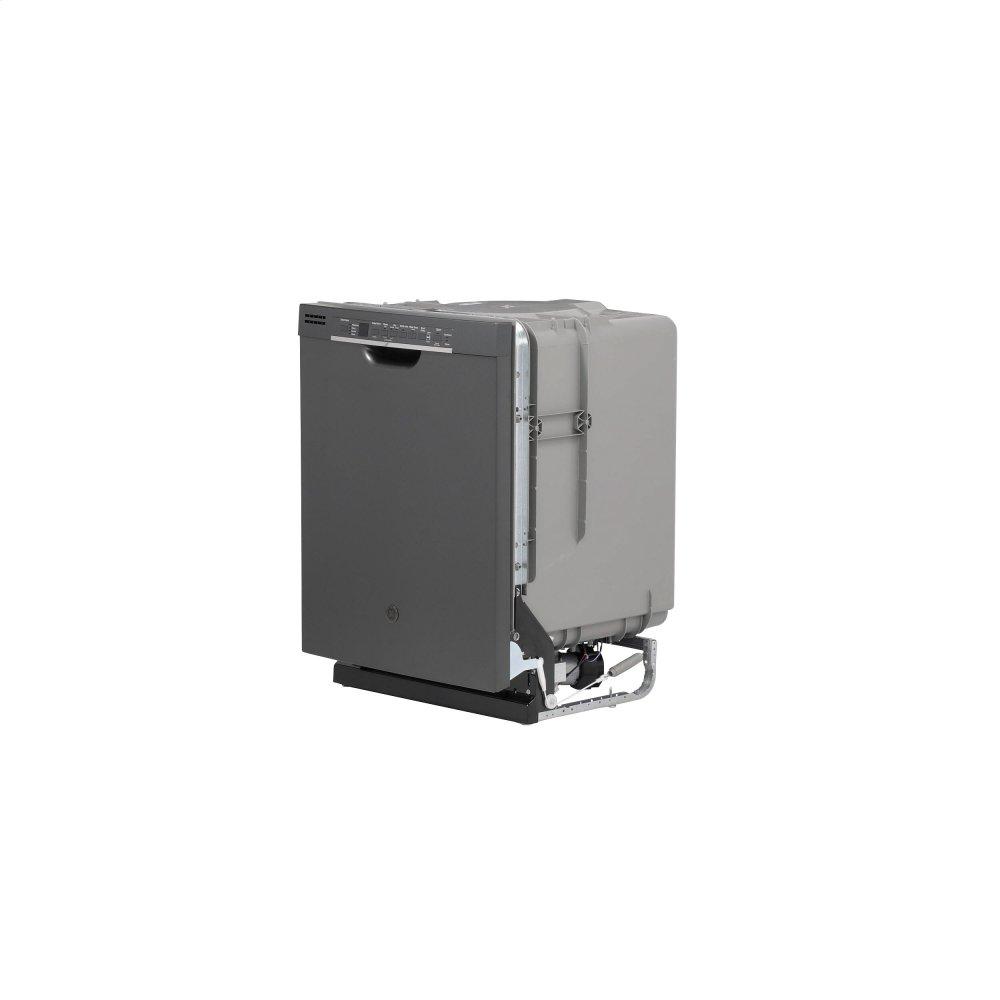

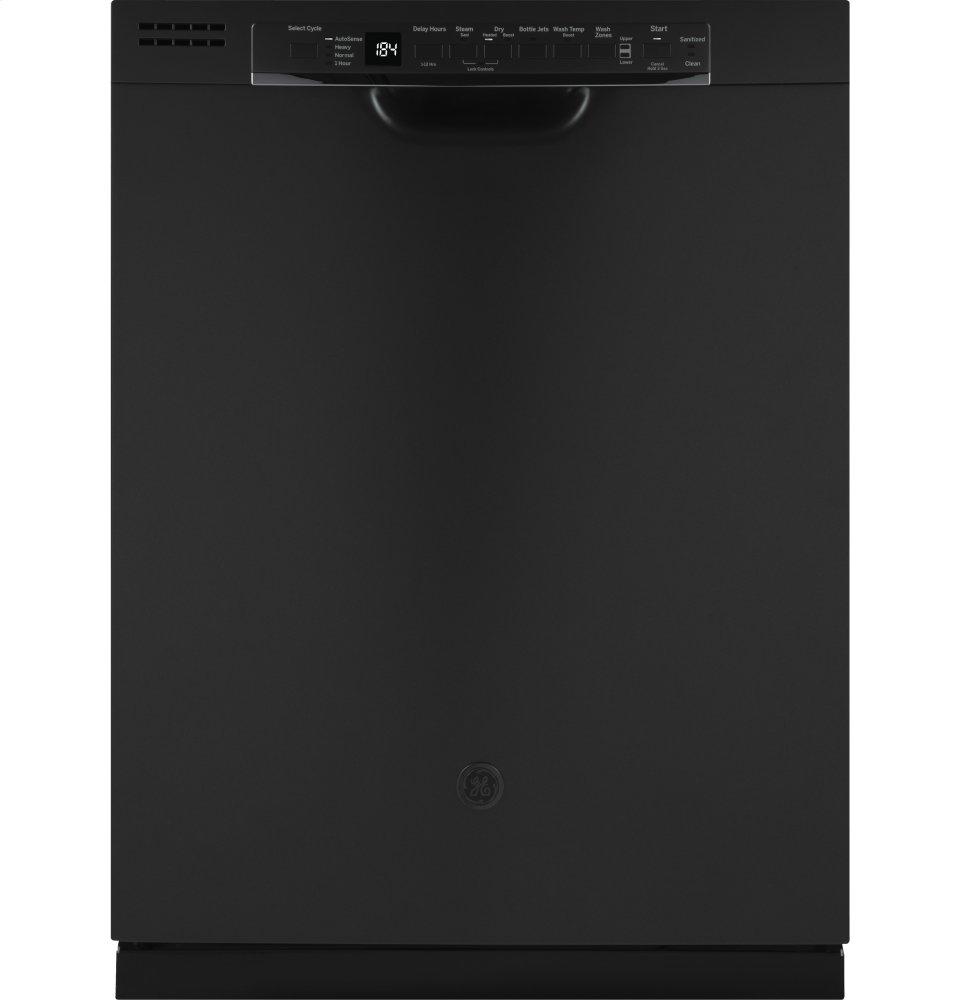

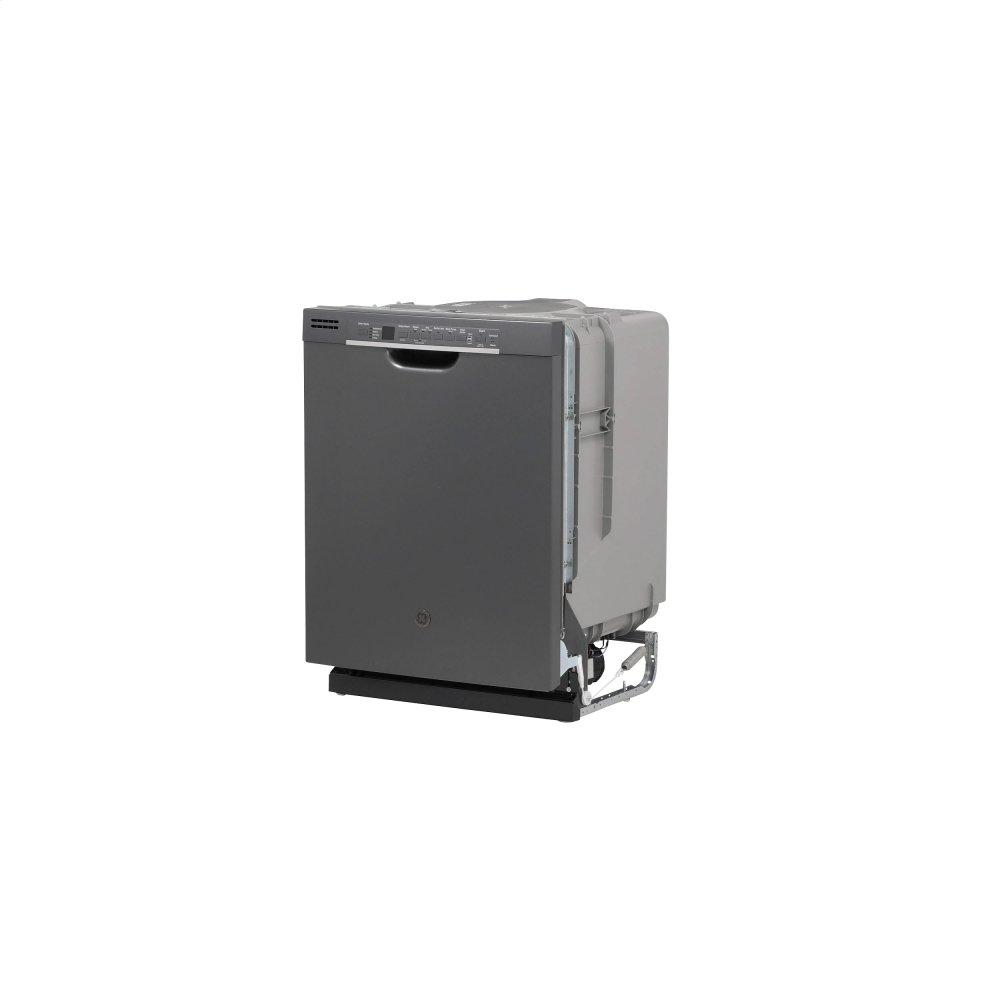

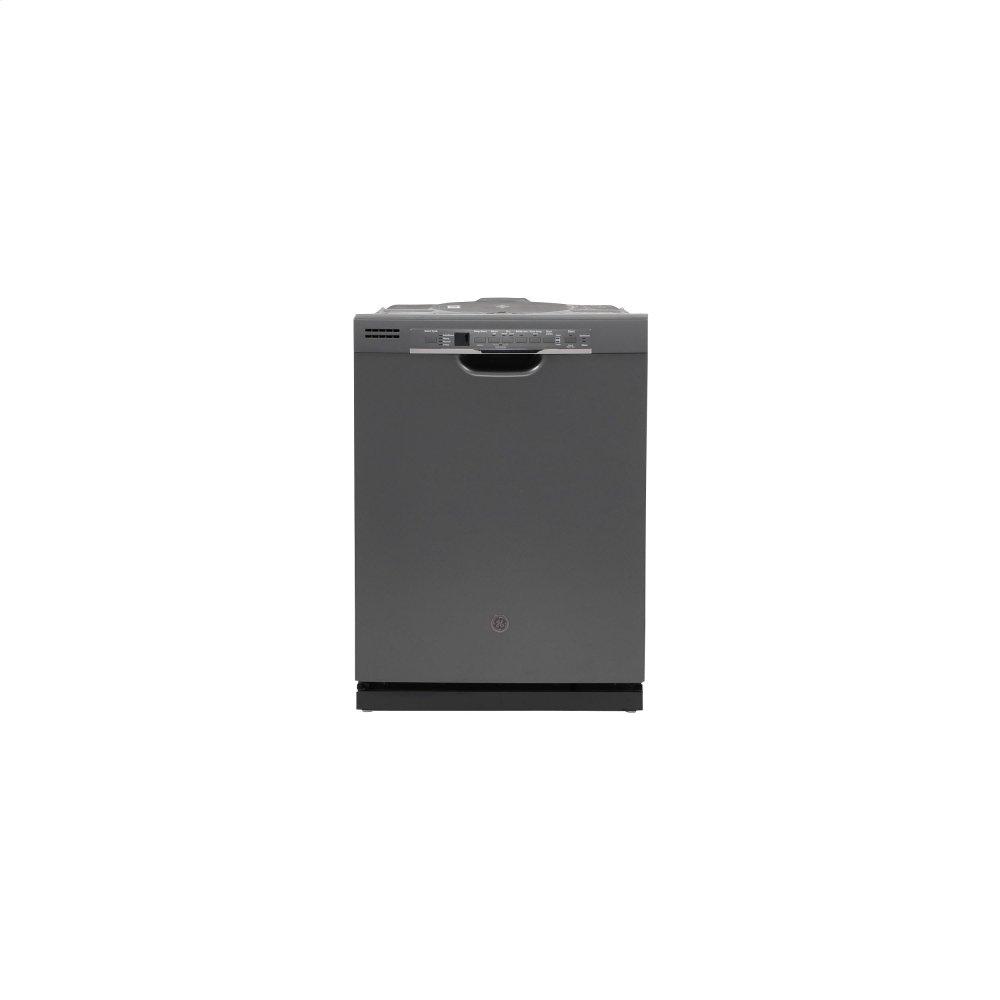

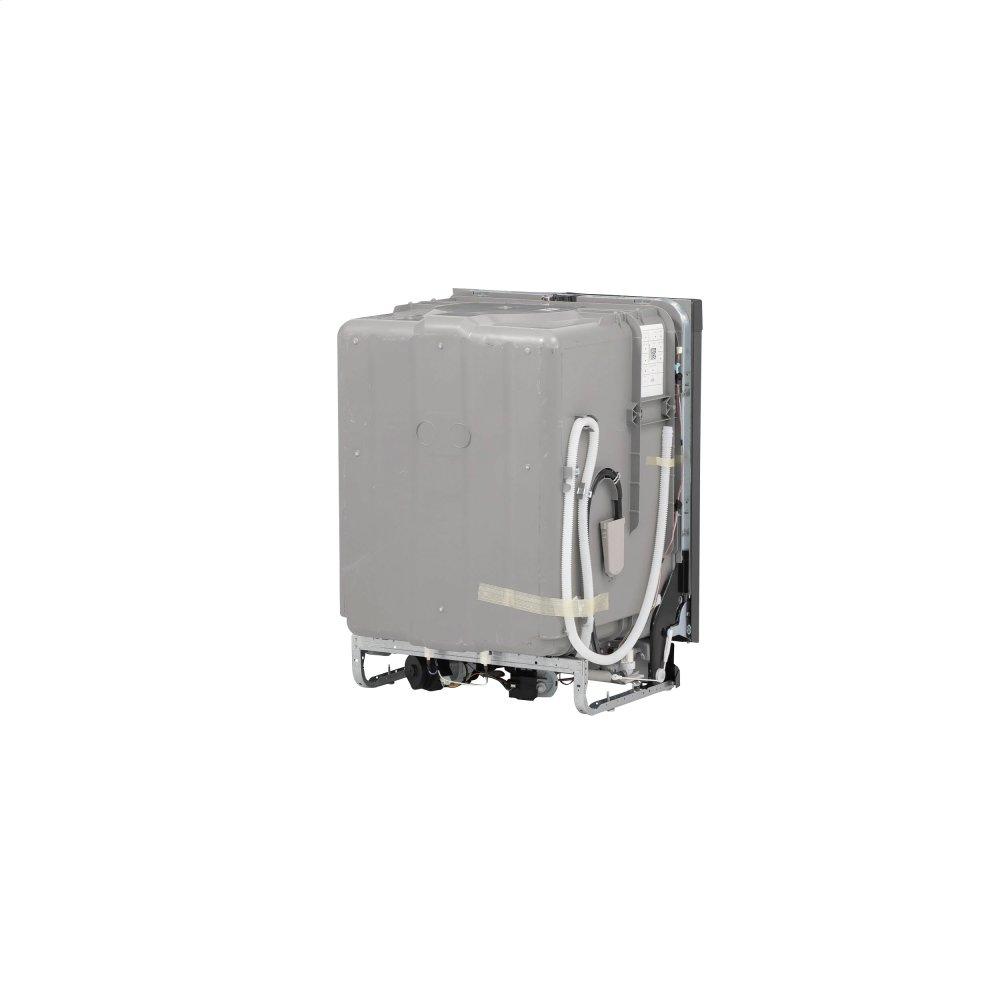

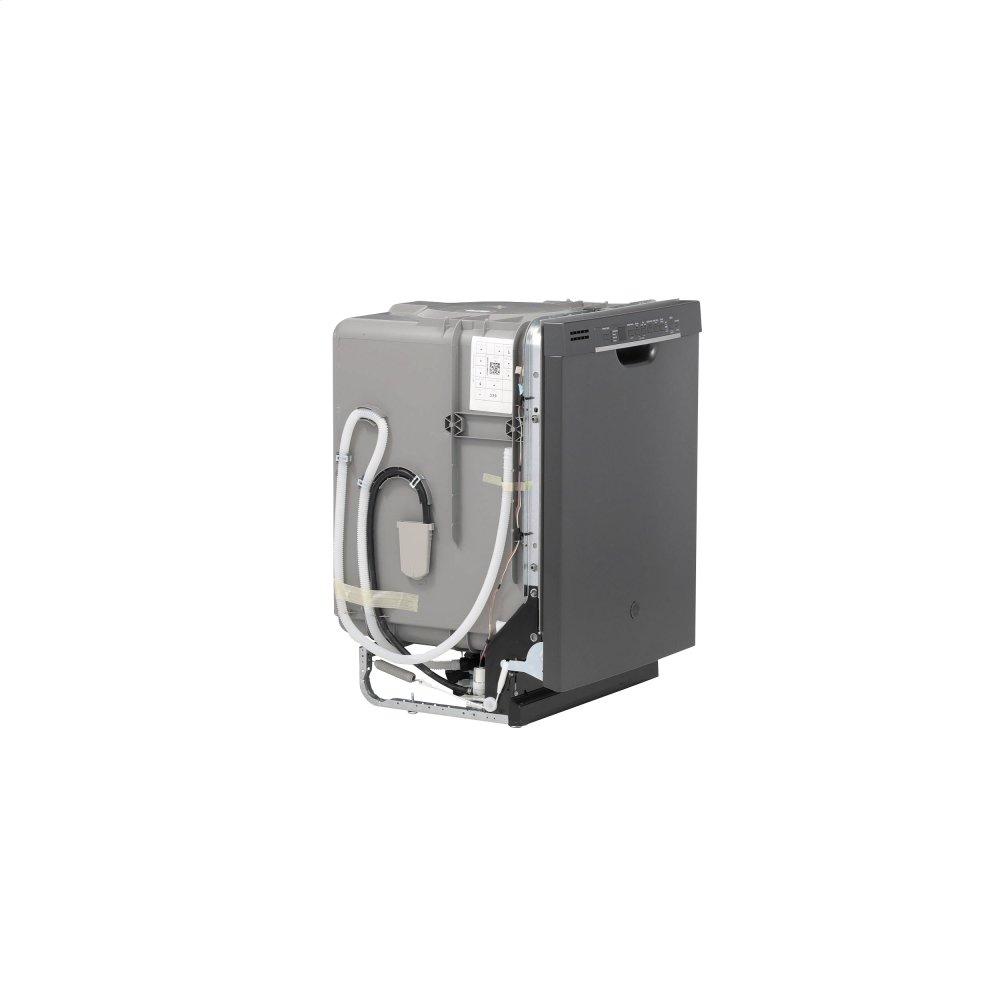

GE® Dishwasher with Front Controls
Model GDF630PFMDS
Authorized Dealer
1
of
42
Loading...
Authorized Dealer
GE® Dishwasher with Front Controls
Model GDF630PFMDSQuick Specs
Depth
24
Height
34
Energy
YES
GE® Dishwasher with Front Controls is backordered and will ship as soon as it is back in stock.
Regular price
$769.58
Unit price
/
Unavailable
Out of stock
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
24
Height
34
Energy Star Rated
YES
1 Hr Wash
Enjoy a quality clean when you're short on time

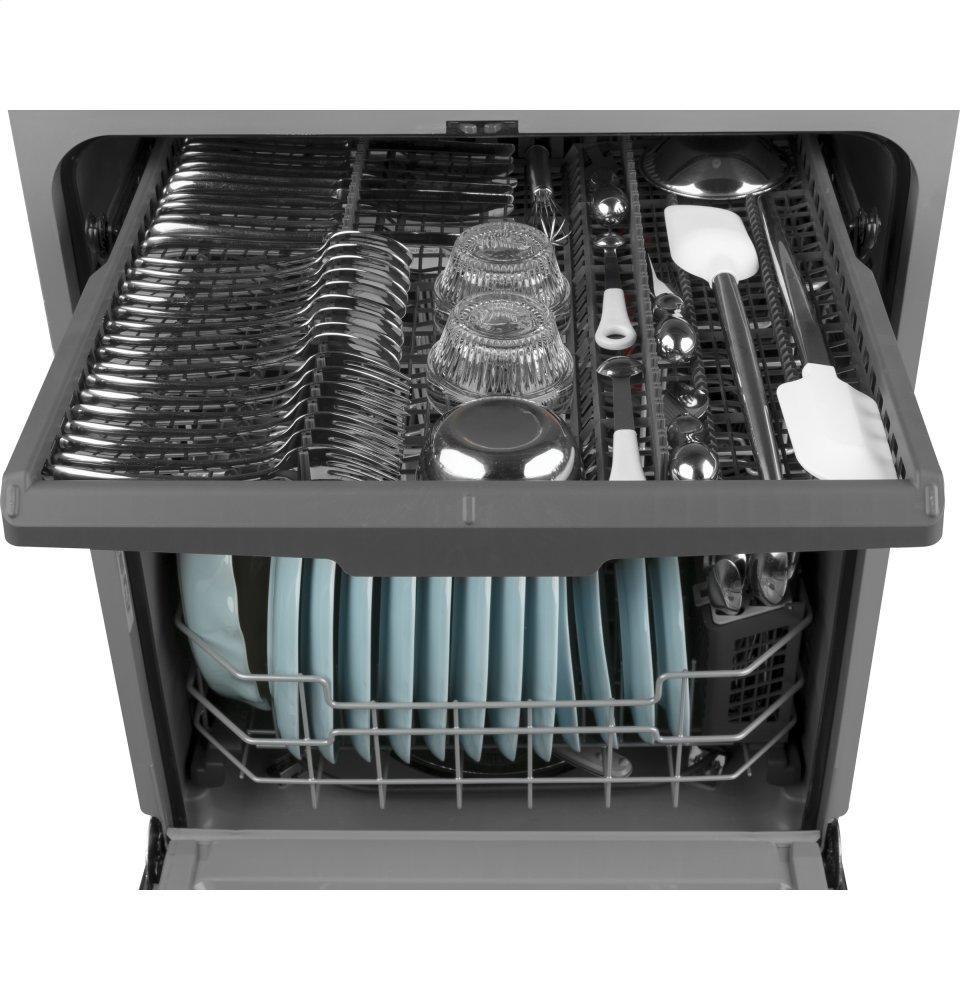

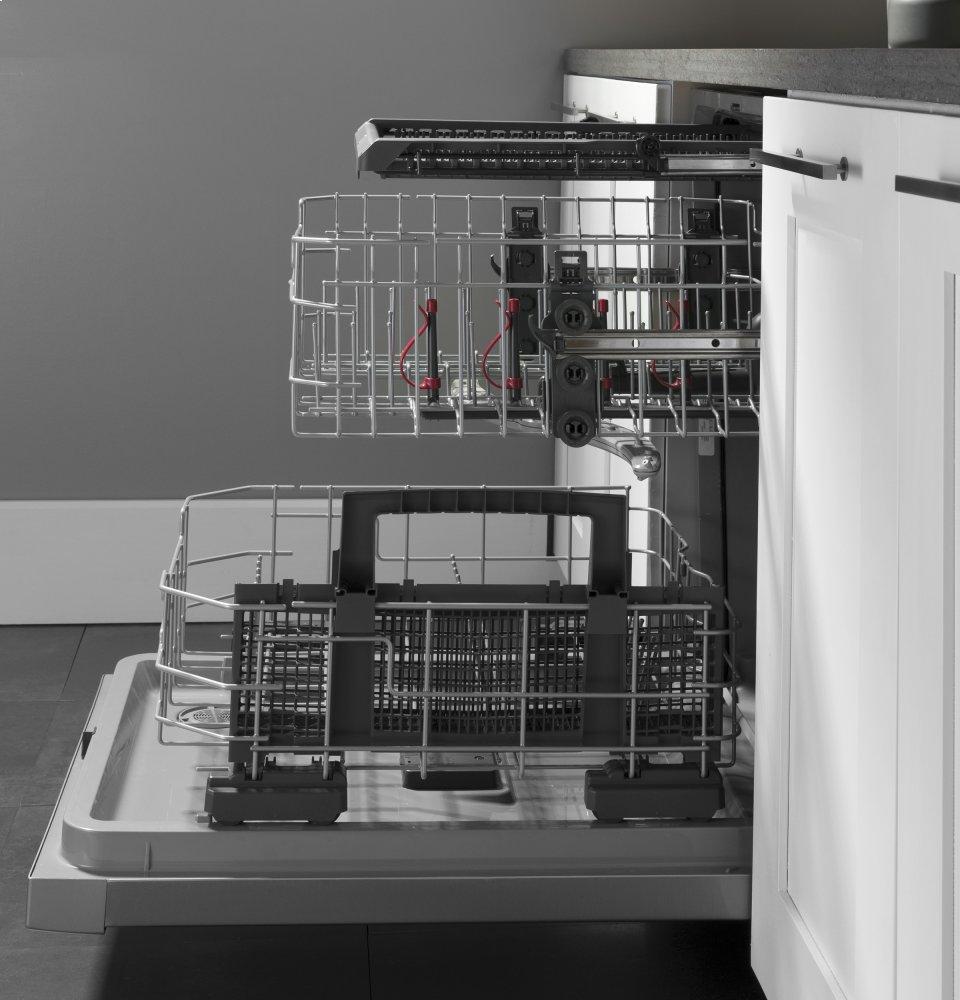

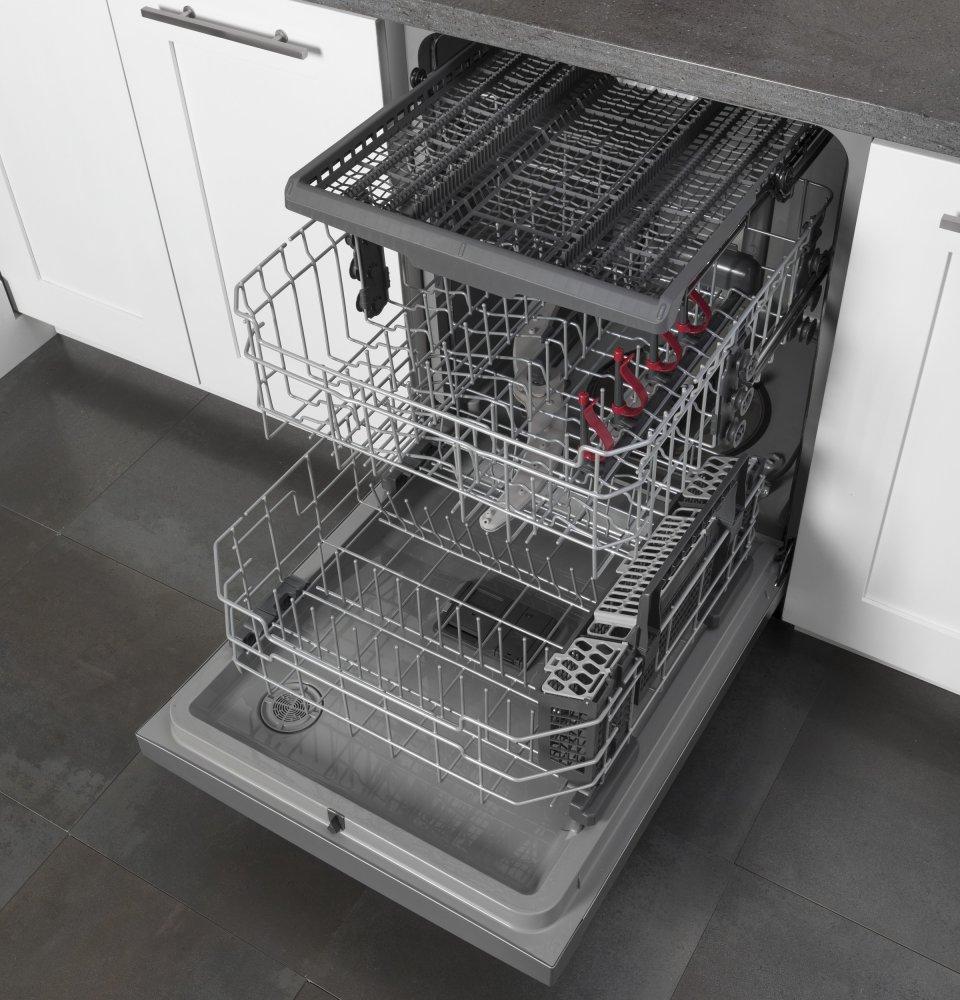

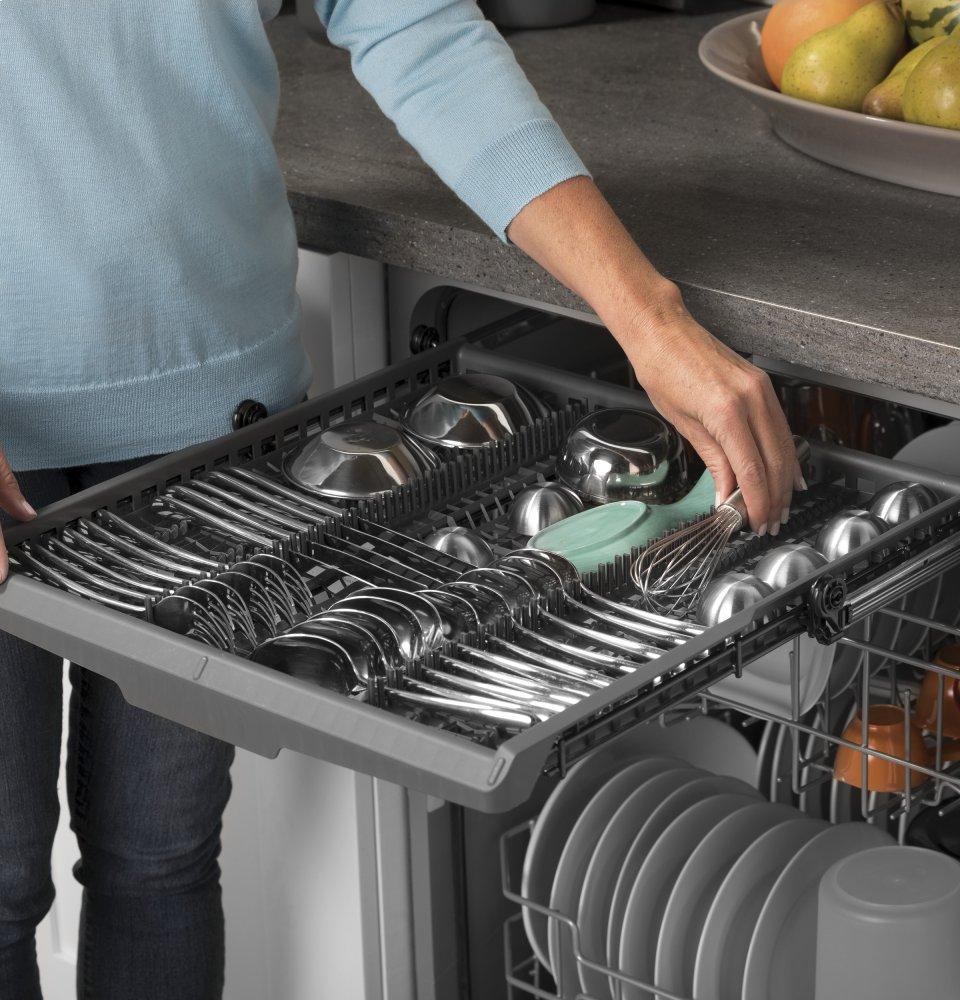

3rd Rack
Easily clean an entire flatware collection, knives and small utensils with an additional rack across the top of the dishwasher

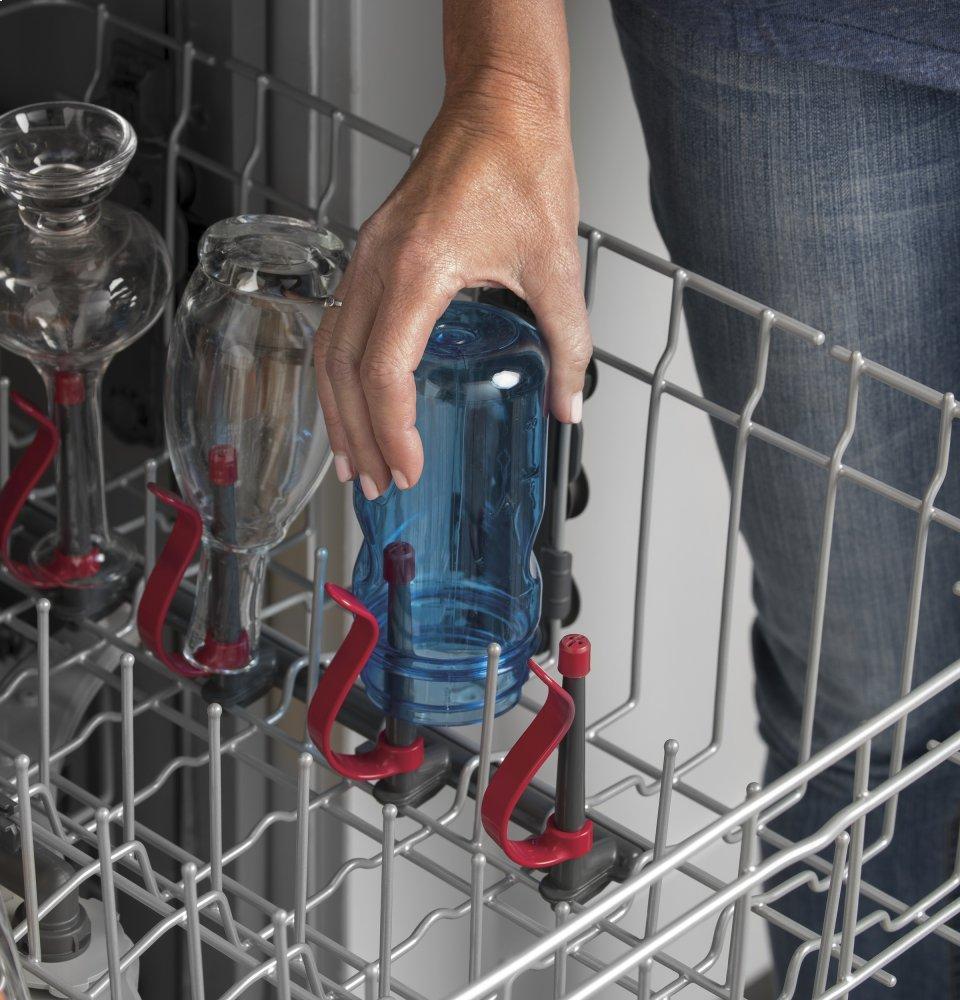

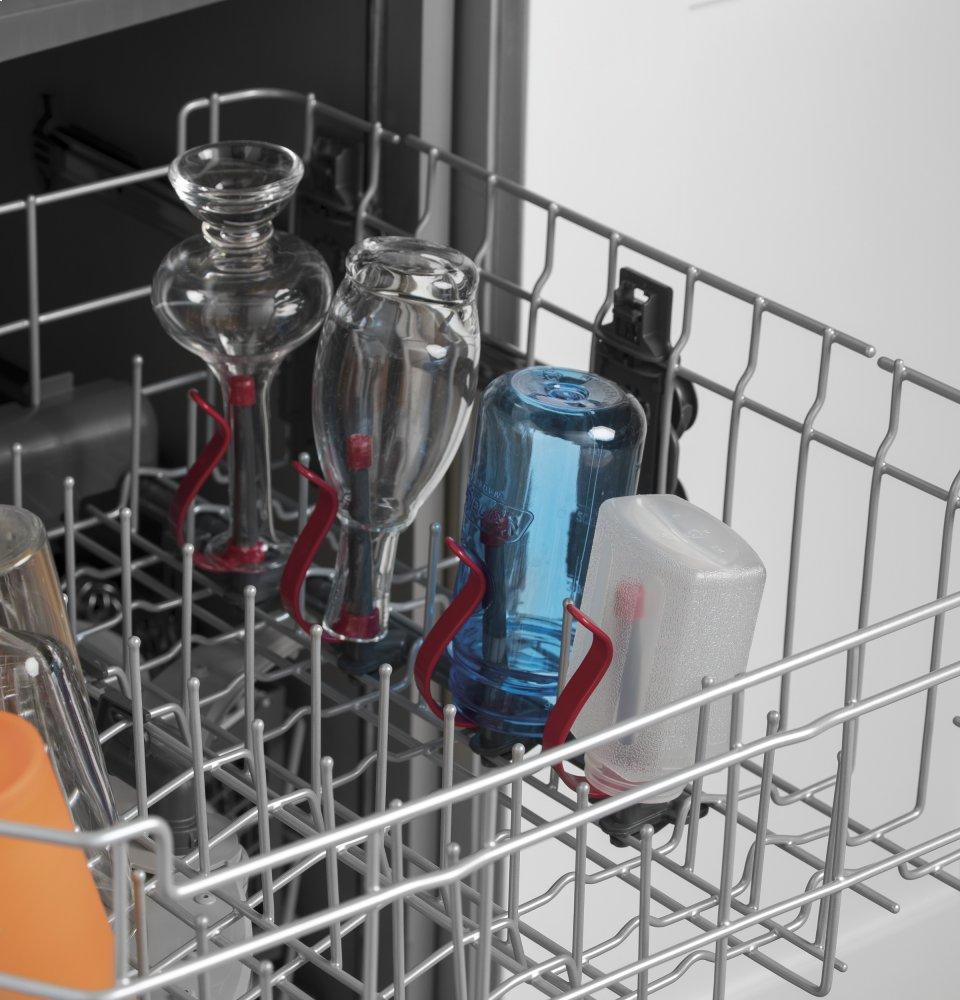

4 Bottle Wash Jets
Clean hard-to-reach areas inside tall items with up to 4 dedicated jets integrated into the upper rack that shower water deep inside for the ultimate clean
Dry Boost(TM)
Gets hard-to-dry items up to 3 times drier than heated dry cycles *Compared to heated dry option

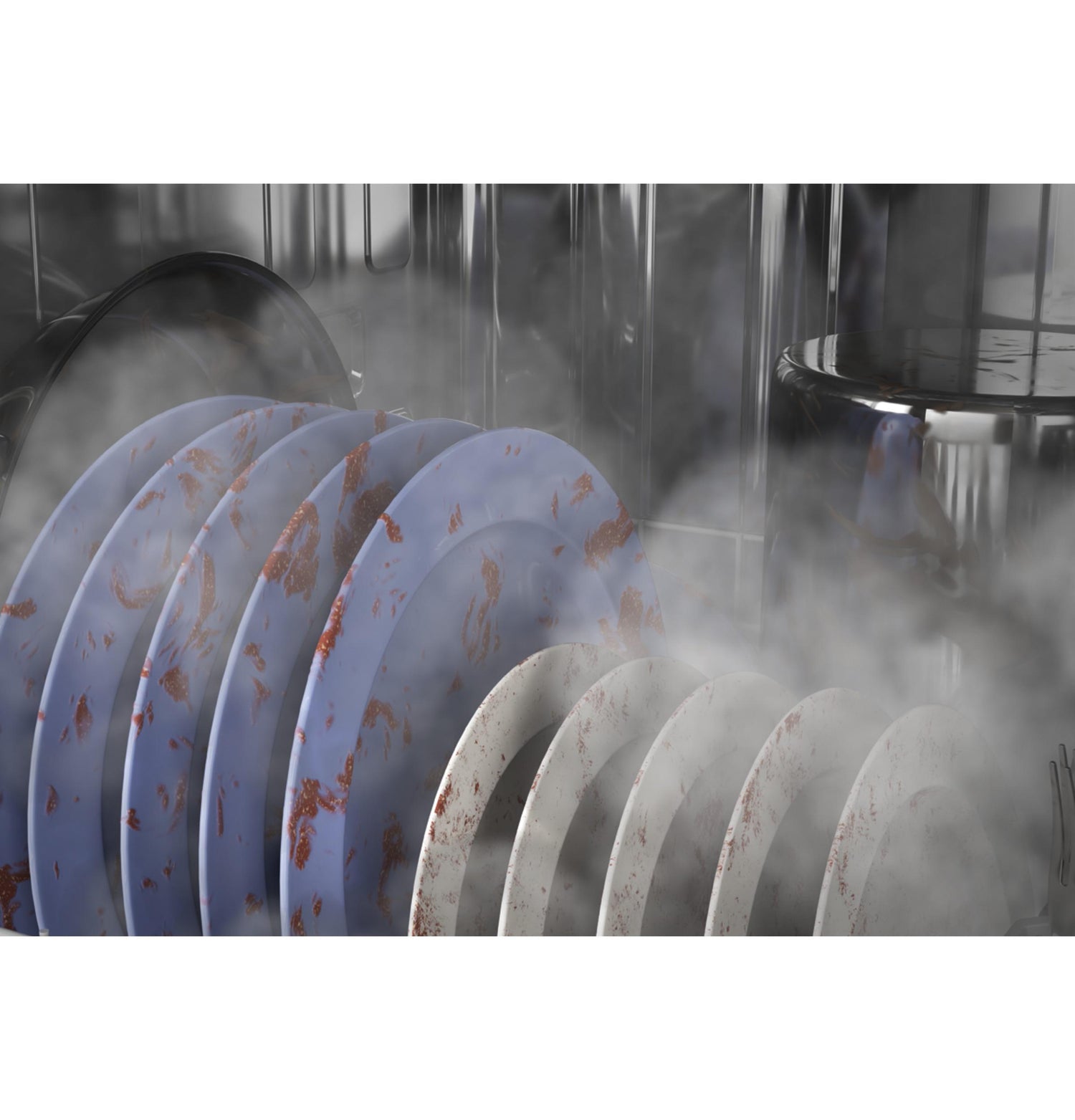

Steam Prewash
Loosens tough soils before any cycle virtually eliminating the need for soaking or pre-rinsing dishes
Wash Zones
Wash a true half-load in either the upper or lower rack without sacrificing cycles and options available on a full wash
Dedicated Silverware Jets
Get table-ready silverware thanks to powerful jets that focus on silverware baskets

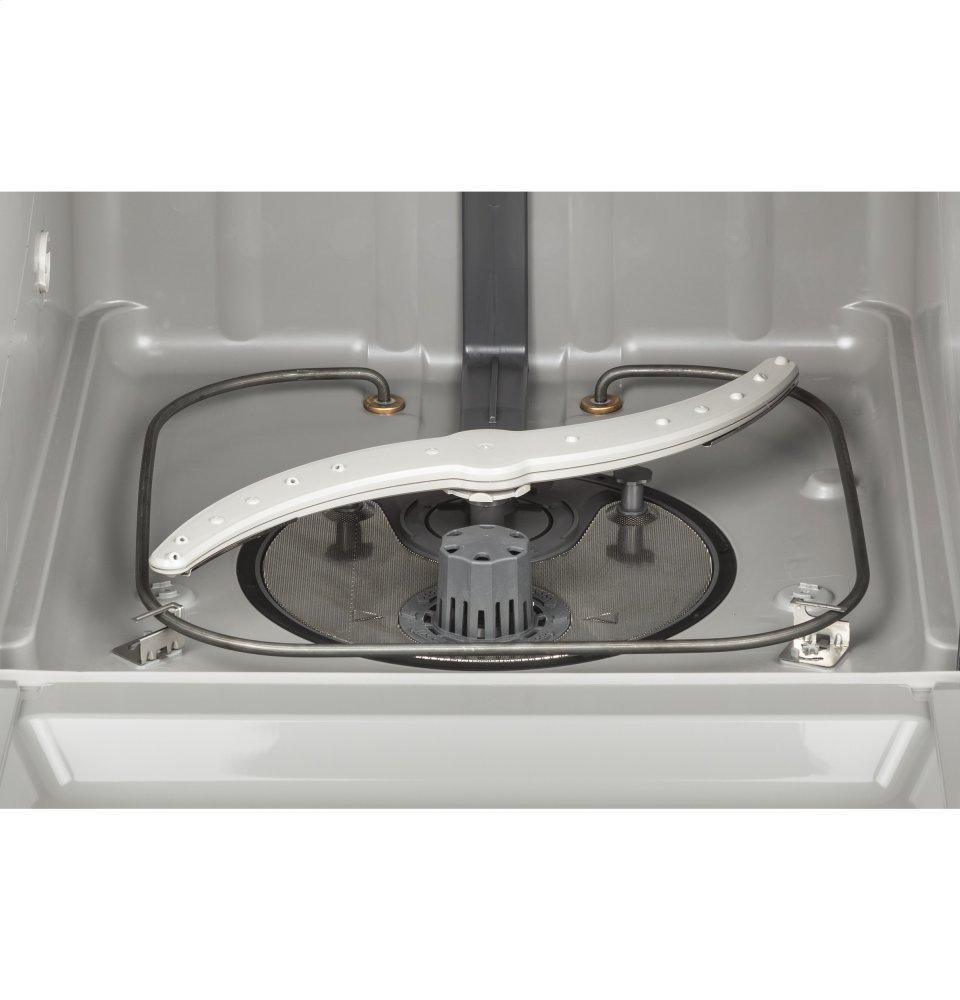

Piranha Hard Food Disposer
To ensure consistently clean items, this stainless steel blade rotates at 3,600 RPM to pulverize food particles and helps to prevent large particles from clogging the wash arms

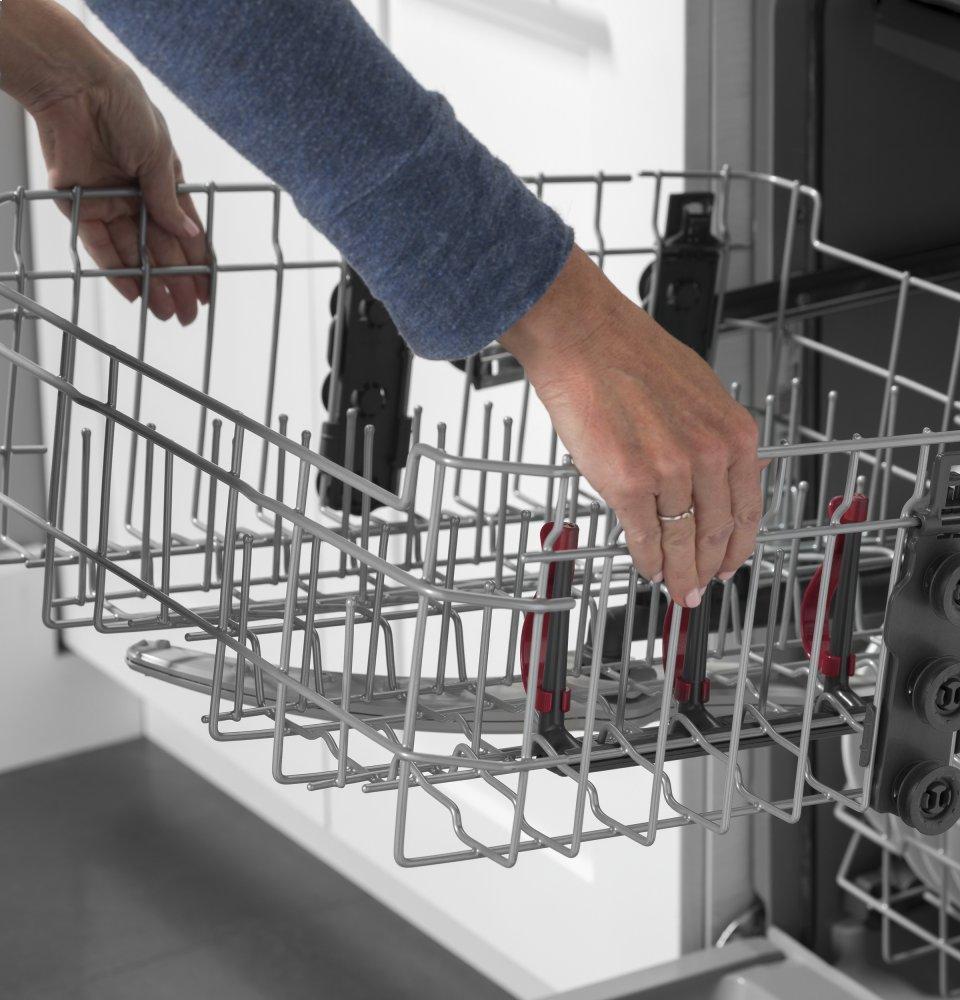

Adjustable Upper Rack
Fitting plates up to 10 1/2" and other tall items in the upper rack is possible with an adjustment
- 3rd Rack
- Easily clean an entire flatware collection, knives and small utensils with an additional rack across the top of the dishwasher
- Dry Boost™
- Gets hard-to-dry items up to 3 times drier than heated dry cycles *Compared to heated dry option
- 4 Bottle Wash Jets
- Clean hard-to-reach areas inside tall items with up to 4 dedicated jets integrated into the upper rack that shower water deep inside for the ultimate clean
- Wash Zones
- Wash a true half-load in either the upper or lower rack without sacrificing cycles and options available on a full wash
- Three-level 600 Series Wash System
- Get full wash coverage from three pressurized wash zones.
- Steam Prewash
- Loosens tough soils before any cycle virtually eliminating the need for soaking or pre-rinsing dishes
- Dedicated Silverware Jets
- Get table-ready silverware thanks to powerful jets that focus on silverware baskets
- Piranha Hard Food Disposer
- To ensure consistently clean items, this stainless steel blade rotates at 3,600 RPM to pulverize food particles and helps to prevent large particles from clogging the wash arms
- Adjustable Upper Rack
- Fitting plates up to 10 1/2" and other tall items in the upper rack is possible with an adjustment
- 1 Hr Wash
- Enjoy a quality clean when you're short on time
- 3rd Rack
- Dry Boost
- 4 Bottle Wash Jets
- Wash Zones
- Three-level 600 Series Wash System
- Steam Prewash
- Dedicated Silverware Jets
- Piranha Hard Food Disposer
- Adjustable Upper Rack
| FILTER | |
| App Filter - Bottle Wash | Yes |
| App Filter - Food Disposer | Yes |
| App Filter - Stainless Steel Interior | No |
| App Filter - Cabinet Width | Dish Traditional 24 in. |
| App Filter - Product Type | Dish Built-In Front Control |
| App Filter - WiFi Connect | Optional |
| APPEARANCE | |
| Installation | Built-Up Floor Capable Flush Cabinet Installation Side or Top Mount Install Brackets Included |
| Handle Color | Color-Matched |
| Handle Design | Recessed |
| Control Panel Color | Color Matched |
| Door Appearance | Contour door |
| Door Style | Long Door |
| Color Appearance | Black Slate |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| POWER / RATINGS | |
| Calrod Heater Watts | 800/500 |
| Power Connection | Optional cord kit (GPFCORD - WX09X70910, WX09X70911) |
| Volts/Hertz/Amps | 120v; 60Hz; 7.1A |
| ECONOMICAL / QUIET | |
| Quiet Features | Quiet Water Valve Sealed Toe Kick Tub Collar Trim |
| Quiet Package | 50 dBA |
| Outer Wrap | Insulation Blanket |
| Motor Type | Single Speed |
| Door Insulation | Insulation Mastic |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 67.0 |
| Overall Depth | 24.0 |
| Height w/Legs Extended - Maximum Height | 34.625 |
| Overall Width | 23.75 |
| Overall Height | 34.0 |
| Approximate Shipping Weight | 82.0 |
| Cabinet Width | 24.0 |
| Height w/ Legs Retracted - Minimum Height | 33.375 |
| FEATURES | |
| Wash System Features | Automatic HotStart Automatic Temperature Control Bottle Jets (4) Dedicated Silverware Jets Drain Pump Dual Pumps and Motors Piranha™ Hard Food Disposer with removable filter |
| Style | Built-In Front Control |
| Upper Rack | Ball-Tip Tines Height Adjustable Removable |
| Door Liner | Clean Design with Plastic |

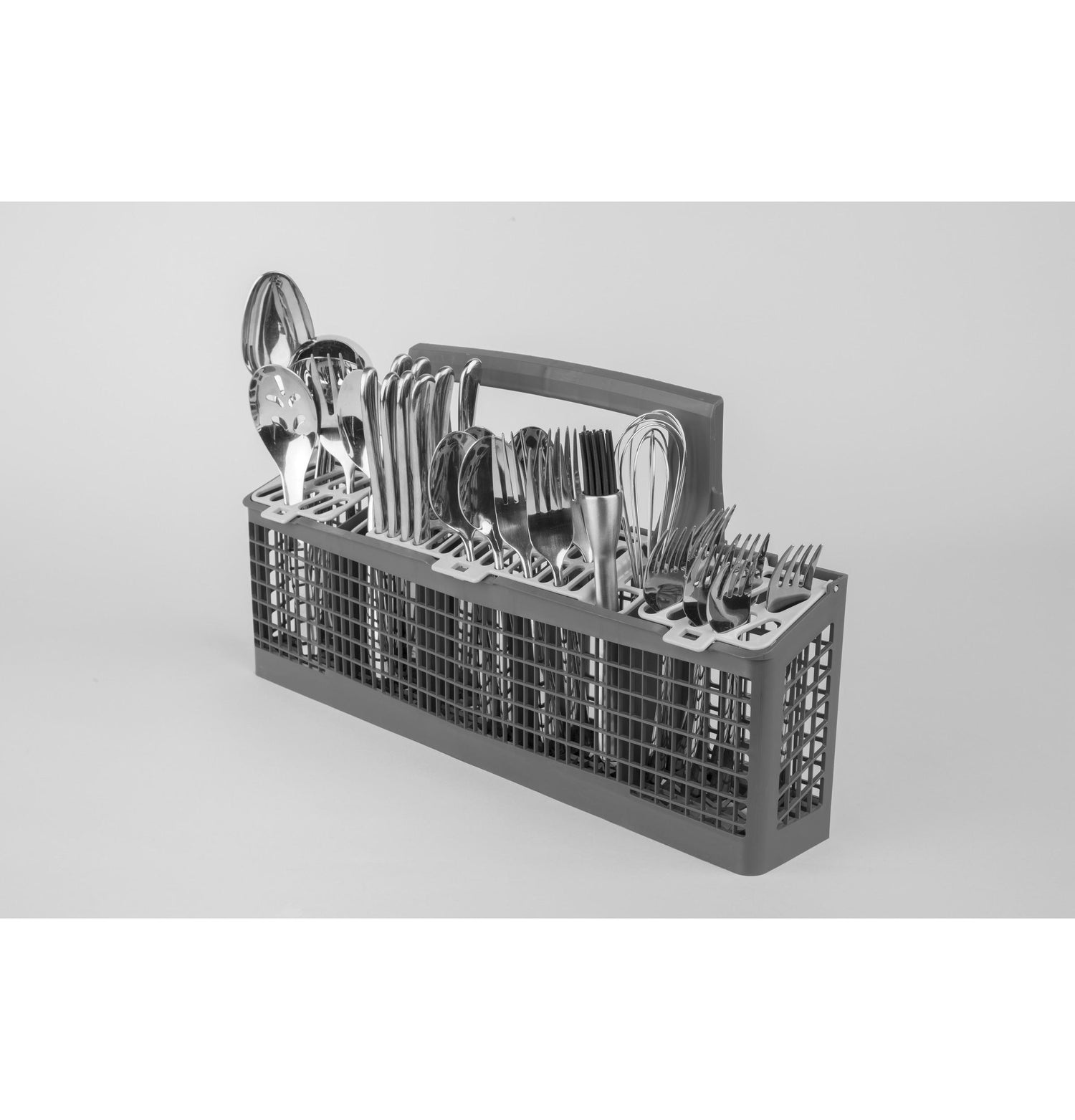

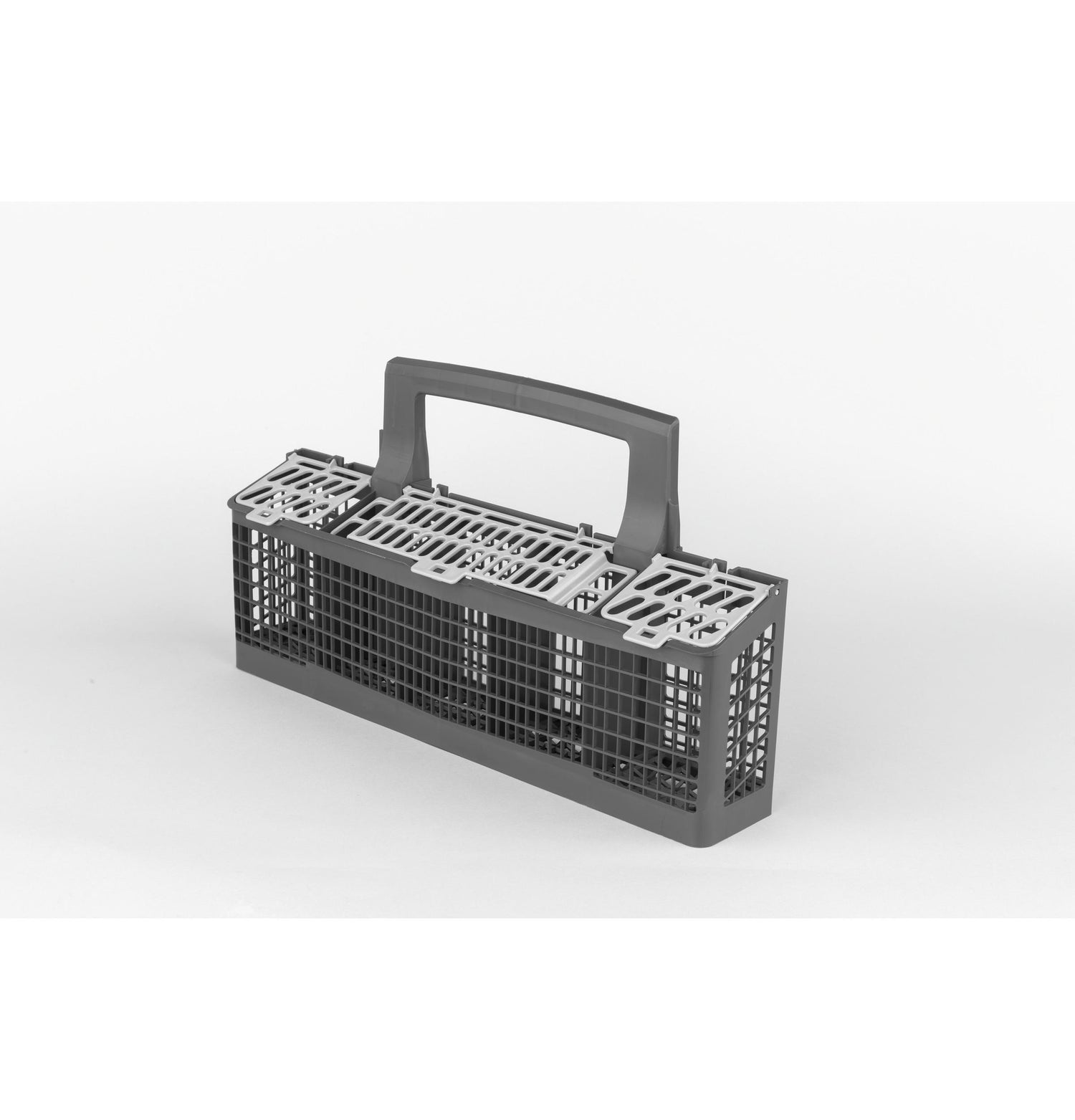

| Rack Features | 1 Piece Silverware Basket with Cell Covers Ball-Tipped Tines Manual Adjustable Upper Rack |

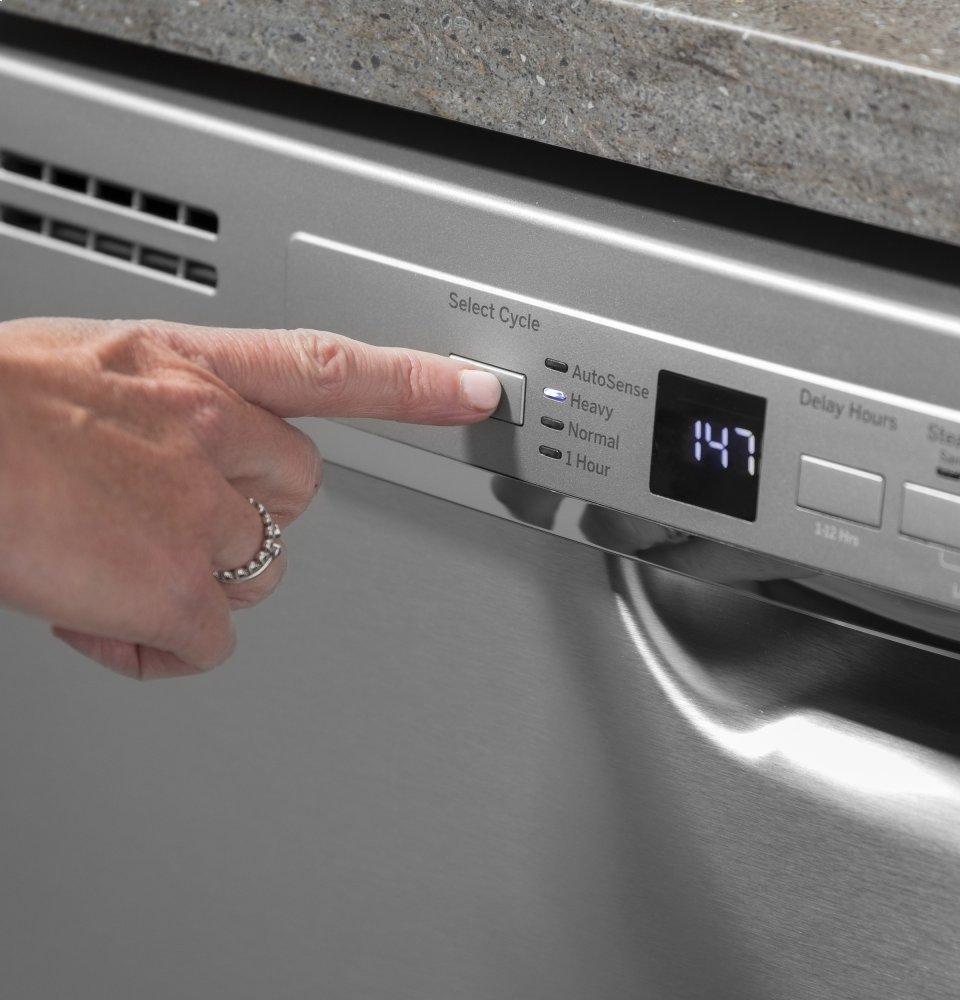

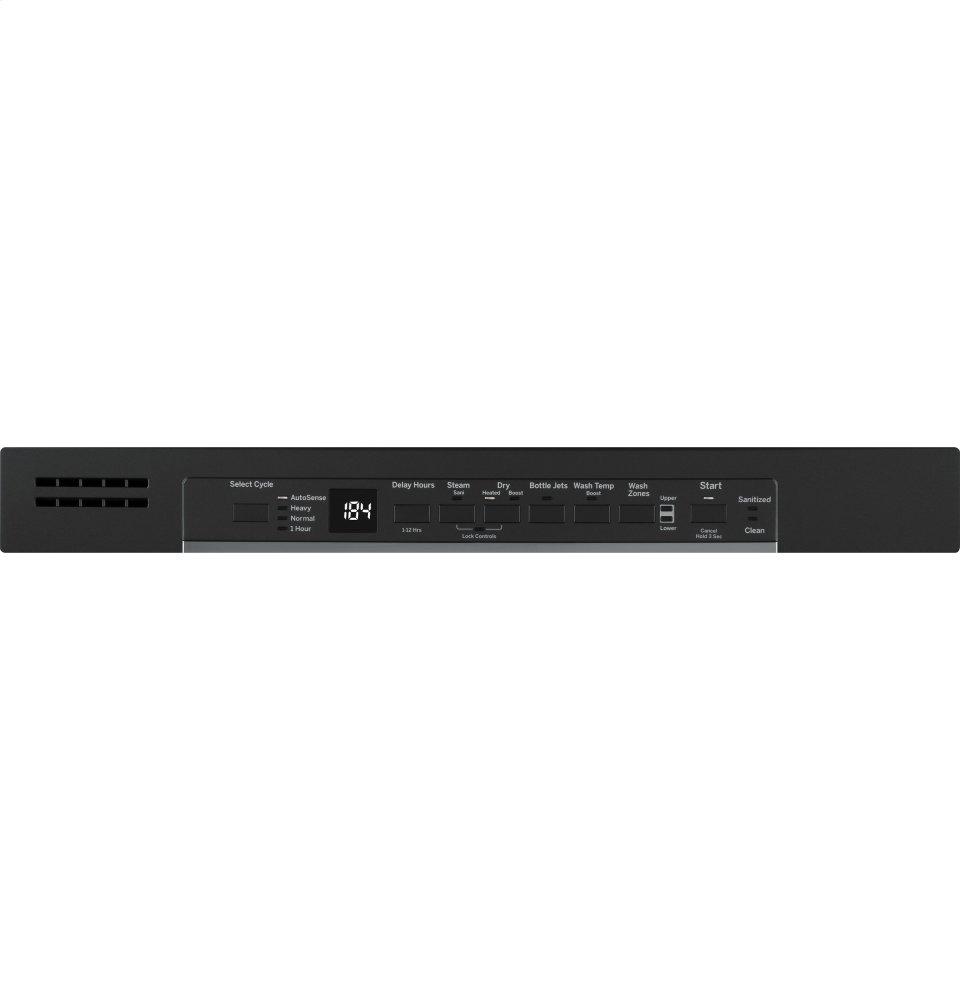

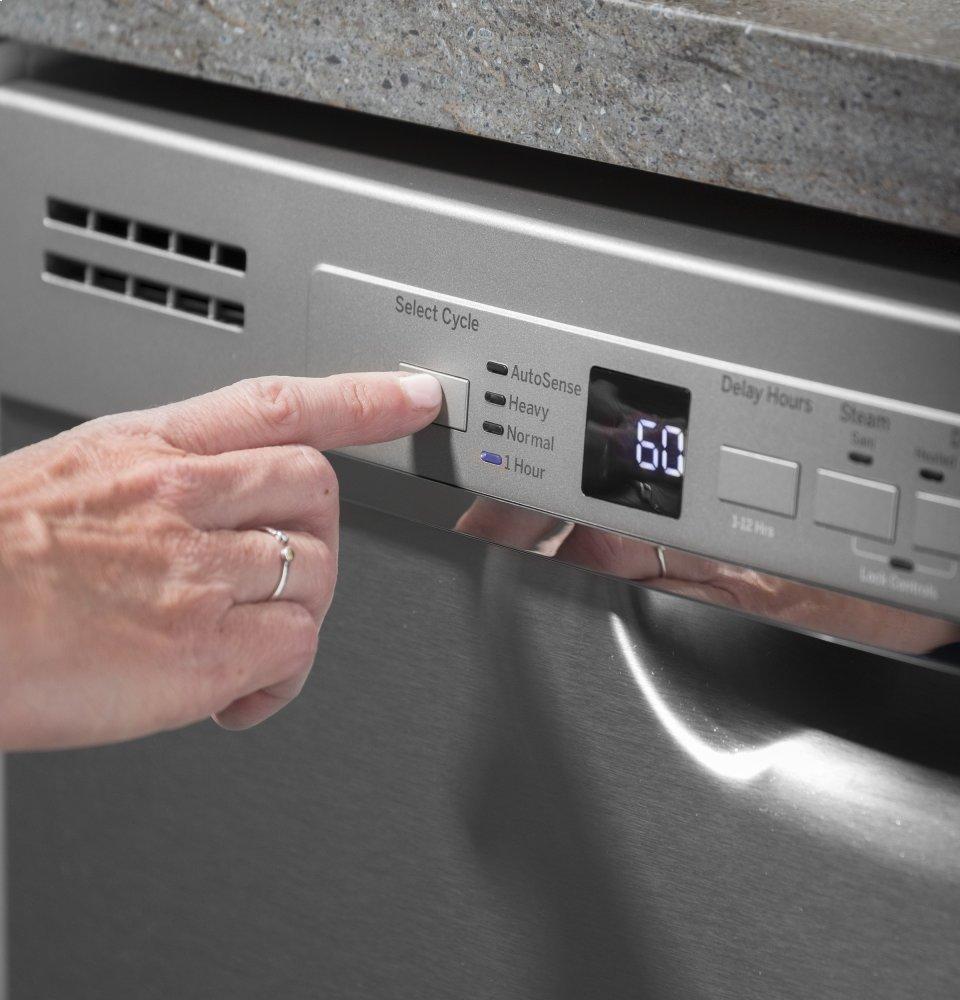

| Dishwasher Control Features | 3 Digit Countdown Display with 1 "Clean" light / 1 "Sanitized" light Cycle Progress Indicators Audible End-of-Cycle Signal Control Lock Last Cycle Memory Start/Reset Pad |
| WiFi Connect | Optional (Requires part no. PBX23W00Y0) |
| Showroom Power Mode | Yes |
| Cutlery Tray | One piece removable 3rd rack |
| Connected Capabilities | Amazon Alexa Amazon Dash Replenishment IFTTT The Google Assistant |
| Dishwasher Drying Features | Dry Boost™ Heated Dry - On/Off |
| Leveling System | 4 Leveling Legs |
| Tub Liner | Plastic |
| HealthCheck | Yes |

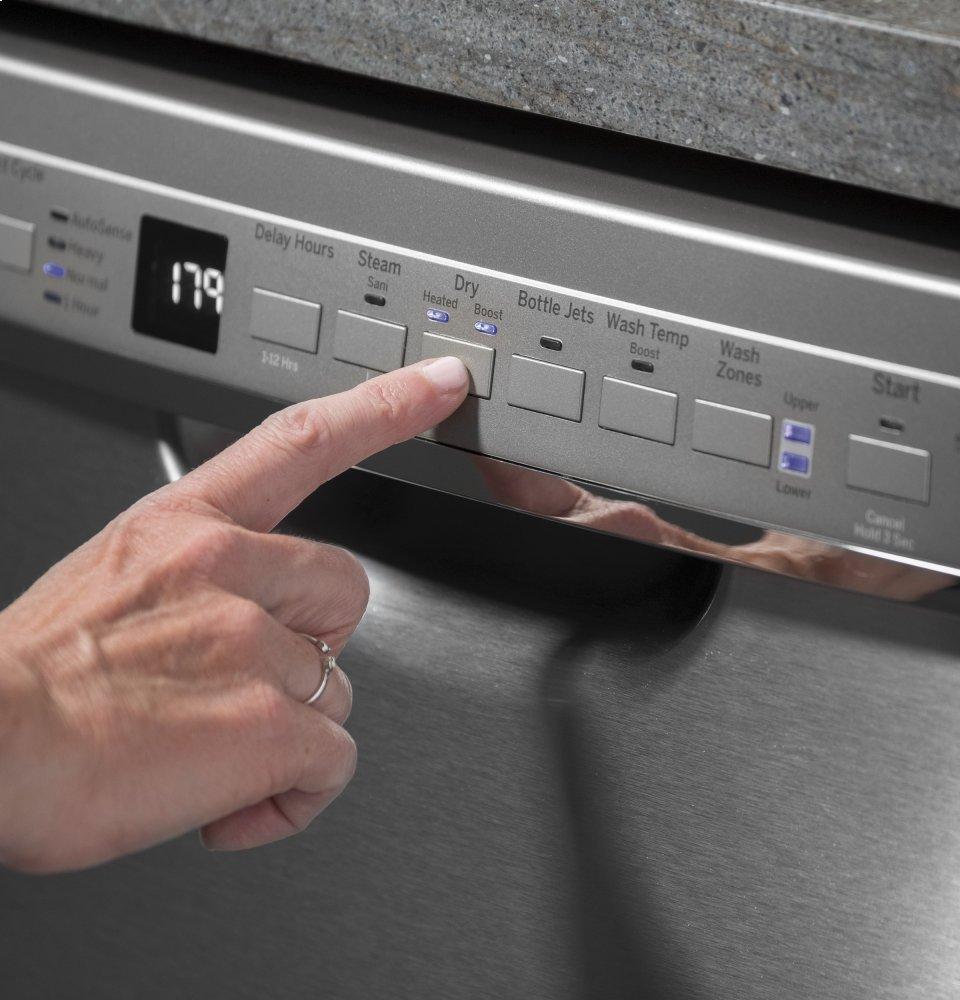

| Control Type | 8 Touchpads Electronic Tactile Buttons Front Controls |
| Number of Place Settings | Up to 16 |
| Tub Type | Tall Tub |
| Rack Color | Silver |
| Exterior Style | Traditional |
| Number of Cycles | 4 |
| Wash System | 600 Series |
| Racking System | Nylon Towerless |
| Dishwasher Cycles | 1 Hour Wash Auto Sense Heavy Wash Normal Wash |
| Number of Options | 11 |
| Dishwasher Options | Bottle Wash Child Lock Delay Start 1-12 Hr. Dry Boost™ Heated Dry Sani (NSF 184 Certified) Start/Reset Steam PreWash Wash TempBoost Wash Zone Lower Only Wash Zone Upper Only |
| Tub and Door Liner | Gray Plastic |
| Latch | Center Pull |
| Wash Arms | 3 Wash Levels Lower Middle Upper |
| Lower Rack | Ball-Tip Tines |
| Water Filtration System | 100% Filtration with Piranha Hard Food Disposer and Removable Filter |
| Sensor | Clean Sensor |
| Dispenser | Rinse Aid with Indicator and Adjustment |
