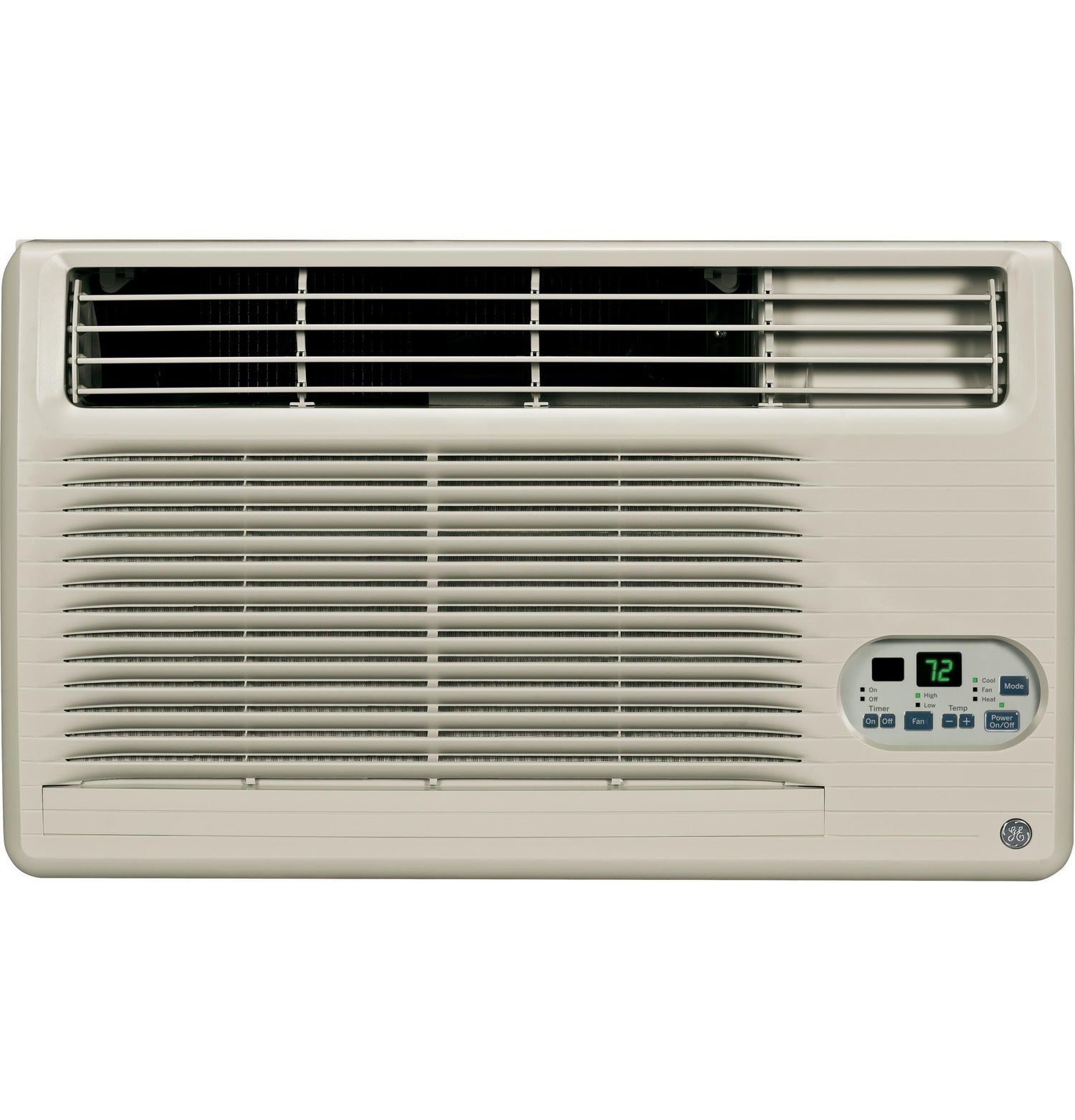

GE® 230/208 Volt Built-In Heat/Cool Room Air Conditioner
Model: AJEM12DCF
Authorized Dealer
1
of
3
Loading...
Authorized Dealer
GE® 230/208 Volt Built-In Heat/Cool Room Air Conditioner
Model: AJEM12DCFQuick Specs
Depth
21 13/16
Height
15 5/8
Cool Cap
12000
Cool Power
12000.0
GE® 230/208 Volt Built-In Heat/Cool Room Air Conditioner is backordered and will ship as soon as it is back in stock.
Discontinued
Regular price
$1,117.00
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
21 13/16
Height
15 5/8
Cooling Capacity
12000
Cooling Power
12000.0
- 12,000 / 11,800 cooling BTU
- 11,200 / 9,200 resistance heat BTU
- 9.6/9.6 CEER
- R-410A refrigerant

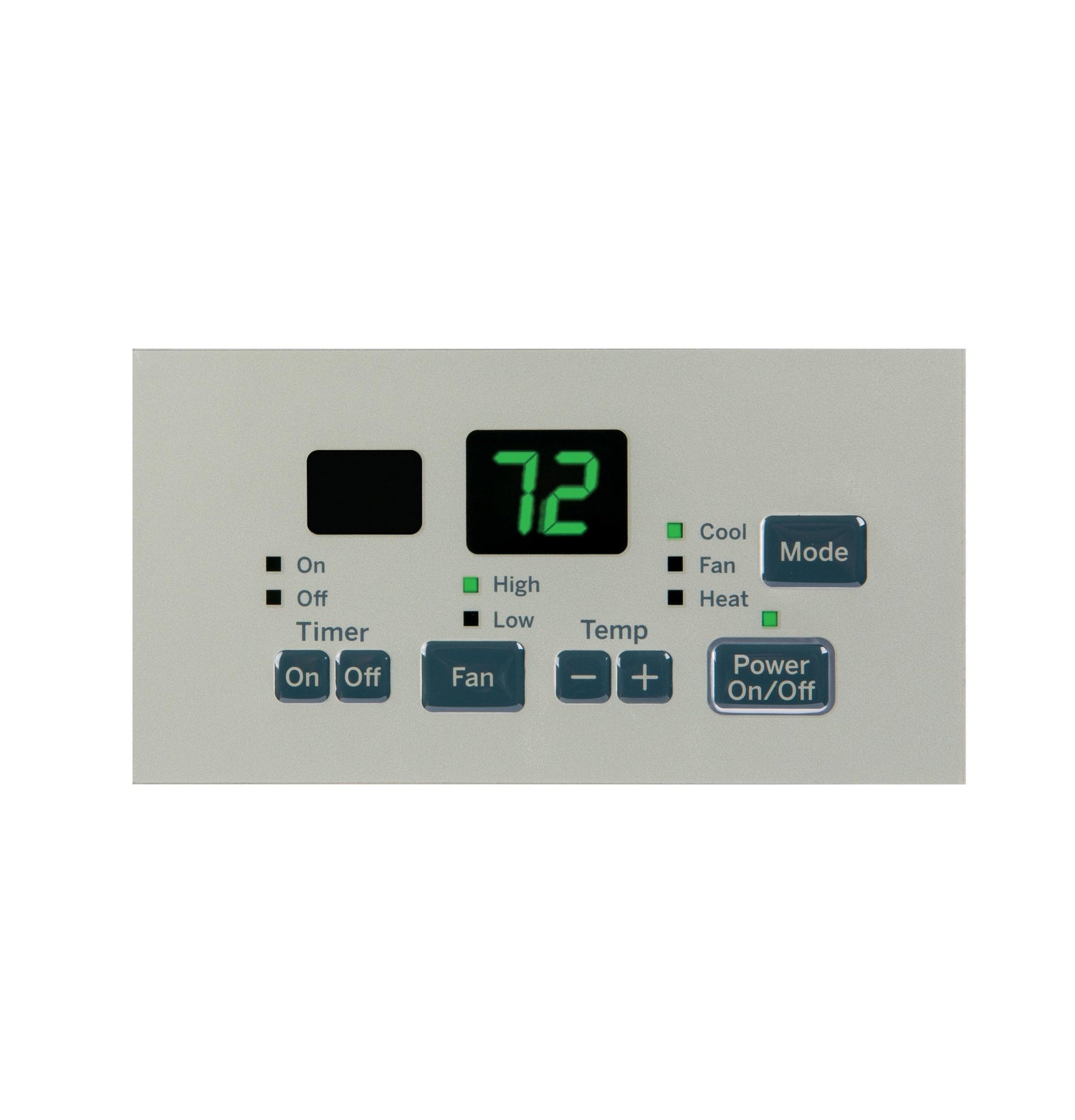

- Electronic controls with remote
- Electronic digital thermostat control
- 4-way air direction
- Upfront, washable air filter
- 2 cooling / 2 heating / 2 fan only speeds
- 1240 / 1220 Watts heat
- Power interruption restart
- Restarts the unit at the setting prior to the loss of power
- 12,000 / 11,800 cooling BTU
- 11,200 / 9,200 resistance heat BTU
- Power interruption restart
- 9.6/9.6 CEER
- R-410A refrigerant
- Electronic controls with remote
- Electronic digital thermostat control
- 4-way air direction
- Upfront, washable air filter
- 2 cooling / 2 heating / 2 fan only speeds
- 1240 / 1220 Watts heat
(BR)(B)12,000 / 11,800 cooling BTU(/B)(BR)(B)11,200 / 9,200 resistance heat BTU(/B)(BR)(B)9.6/9.6 CEER(/B)(BR)(B)R-410A refrigerant(/B)(BR)(B)Electronic controls with remote(/B)(BR)(B)Electronic digital thermostat control(/B)(BR)(B)4-way air direction(/B)(BR)(B)Upfront, washable air filter(/B)(BR)(B)2 cooling / 2 heating / 2 fan only speeds(/B)(BR)(B)1240 / 1220 Watts heat(/B)(BR)(B)Power interruption restart(/B)(P)Restarts the unit at the setting prior to the loss of power(/P)
| CAPACITY | |
| Dehumidification (pts./hr.) | 3.4/3.4 |
| Cooling BTUH (MIN) | 11800.0 |
| Heating - Electric - BTUH - AHAM - 1R | 11200/9200 |
| Cooling BTUH (MAX) | 12000.0 |
| FILTER | |
| App Filter - Programmable | No |
| App Filter - Remote Control | Yes |
| App Filter - Voltage | 230V |
| App Filter - Cooling BTUh | 11000 - 12999 |
| App Filter - Product Type | RAC Built-In |
| App Filter - Installation | Wall Mount |
| App Filter - Heat | Yes |
| APPEARANCE | |
| Installation | High Mount Wall Mounted |
| Color Appearance | Soft Gray |
| POWER / RATINGS | |
| Heating - Electric - Input Watts | 3470/2850 |
| Cooling - Rated Cooling Amps AHAM | 5.6/6.2 |
| CEER | 9.6/9.6 |
| Cooling - Watts | 1240/1220 |
| Voltage (MIN) | 208.0 |
| Hertz | 60 |
| Voltage (MAX) | 230.0 |
| Heating - Electric - Heater Amps | 15.1/14.0 |
| Voltage/Hertz/Phase | 230-208/60/1 |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| ACCESSORIES | |
| Wall Case | RAB46A/RAB48B Required At Additional Cost |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 82.0 |
| Overall Depth | 21.8125 |
| Overall Height (Excludes Sleeve) | 14.875 |
| Overall Width | 26.0 |
| Overall Height | 15.625 |
| Overall Width (Excludes Sleeve) | 24.8125 |
| Approximate Shipping Weight | 95.0 |
| Overall Depth (Excludes Sleeve) | 19.90625 |
| FEATURES | |
| Style | Thru-Wall |
| Cord Length | 68" |
| Refrigerant Type | R-410A |
| Airflow (cfm) Roomside (hi/low) | 285/245, 275/235 |
| Rotary Compressor | Yes |
| Chassis Type | Slide-Out |
| Unit Type | Heat / Cool Unit |
| Fan Speed Selections | 2 Cooling/Heating 2 Fan Only |
| Control Type | Electronic |
| Plug Type | Perpendicular/Right Angle LCDI |
| Thermostat Type | Electronic Digital |
| Filter Type | EZ Slide-Out Rigid Frame Washable |
| Outdoor Vent / Exhaust | Yes |
| Product Type | Built-In |
| Louver Style | 4-Way Air Direction |
| Temperature Range | 60->85 F |
| Air Discharge | Over / Under |
| Room Air Conditioner Features | 24 Hr. Timer Batteries Included Fan Cycle Continuous Improved Corrosion Package Power Interruption Restart Remote Control |
- 12,000 / 11,800 cooling BTU
- 11,200 / 9,200 resistance heat BTU
- Power interruption restart
- 9.6/9.6 CEER
- R-410A refrigerant
- Electronic controls with remote
- Electronic digital thermostat control
- 4-way air direction
- Upfront, washable air filter
- 2 cooling / 2 heating / 2 fan only speeds
- 1240 / 1220 Watts heat
