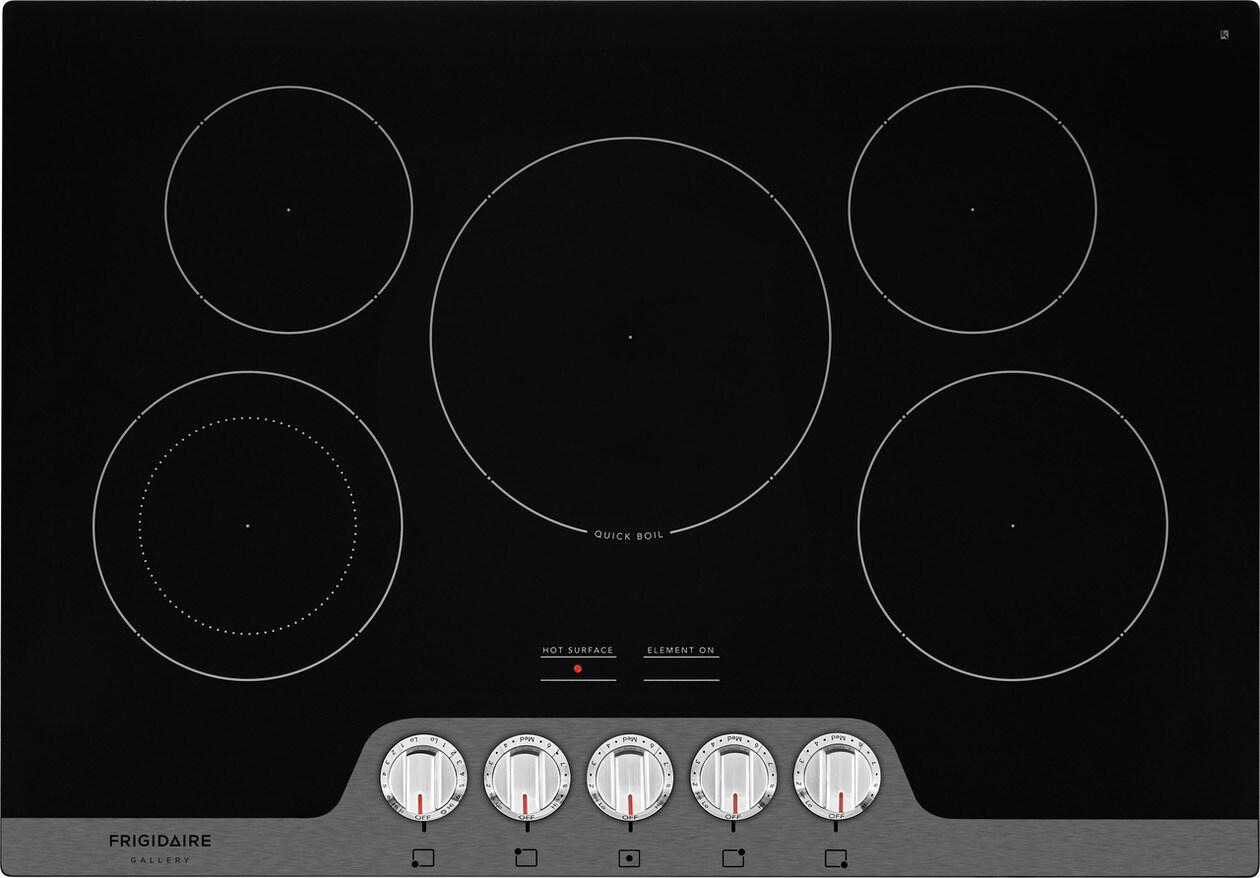

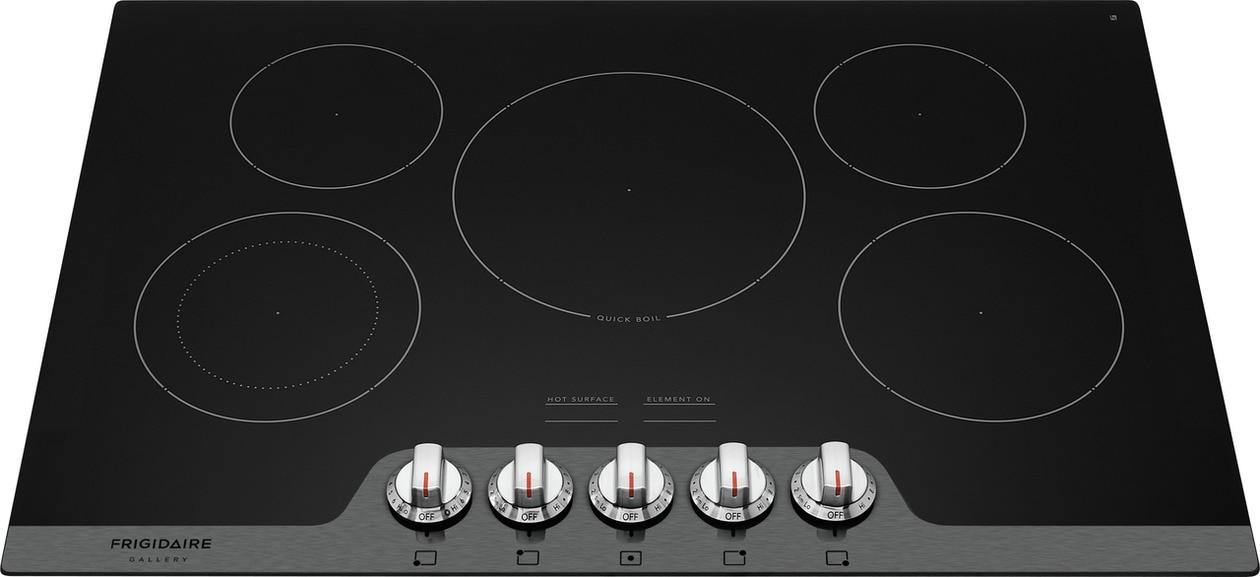

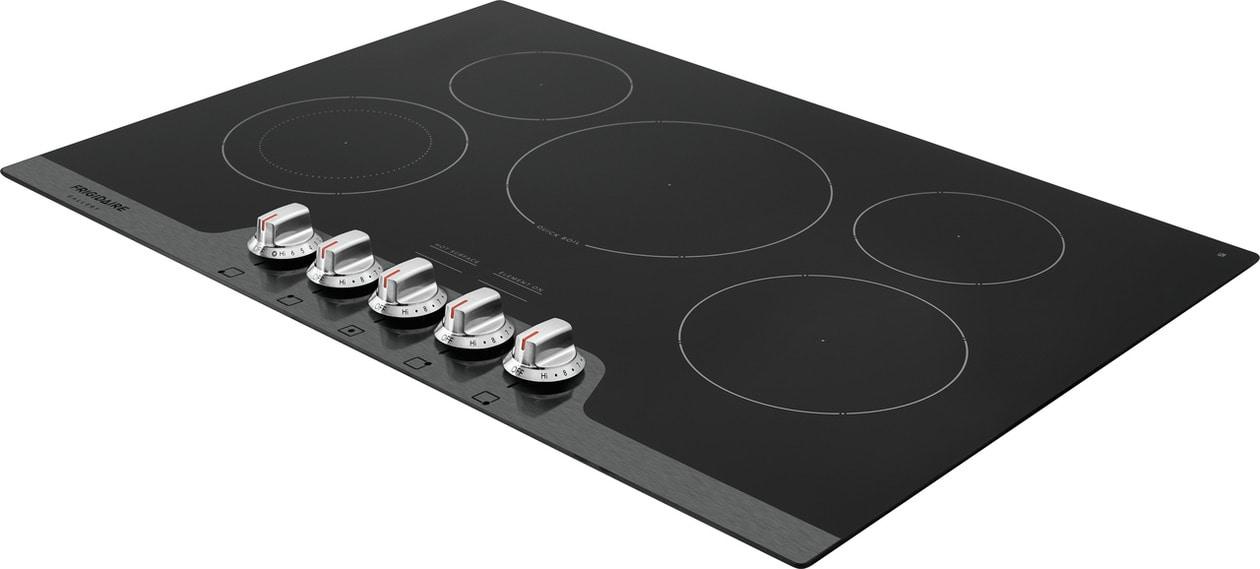

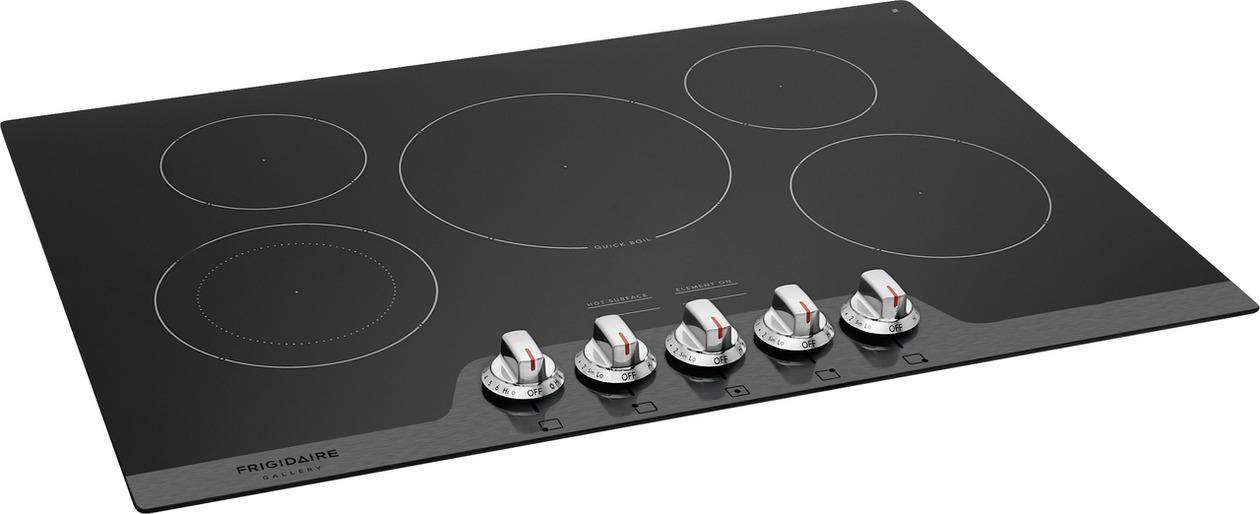

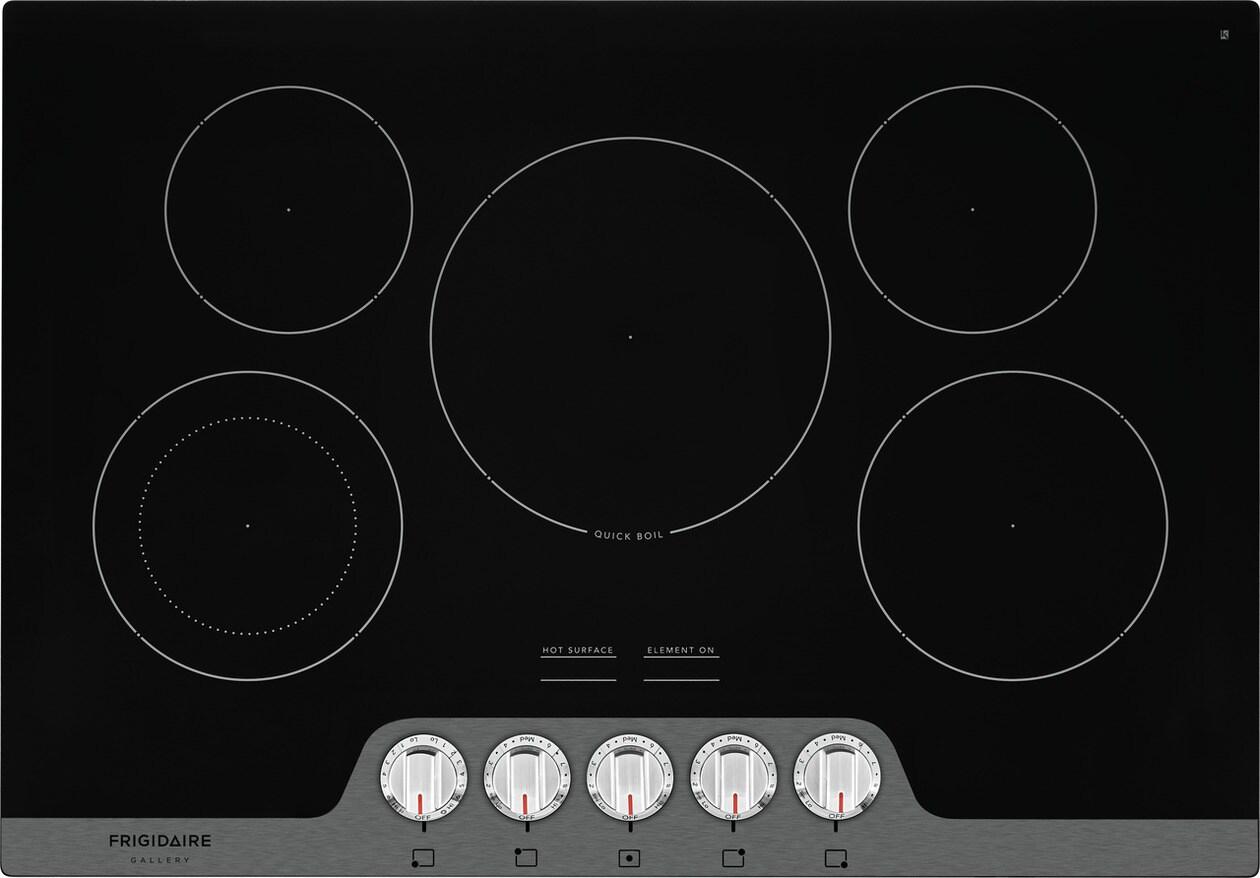

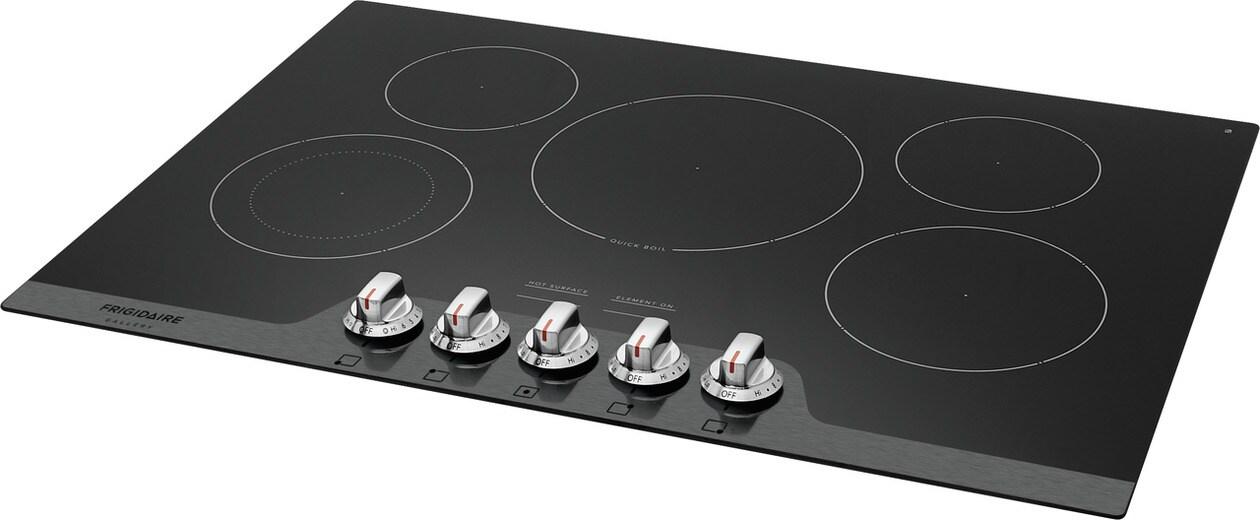

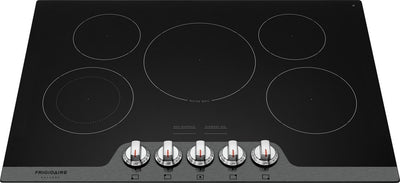

Frigidaire Gallery 30" Electric Cooktop
Model FGEC3068US
Frigidaire Gallery 30" Electric Cooktop
Model FGEC3068USQuick Specs
Frigidaire Gallery 30" Electric Cooktop is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
Fits-More(TM) Cooktop
The Fits-More(TM) cooktop features five elements - allowing you to cook more at once.

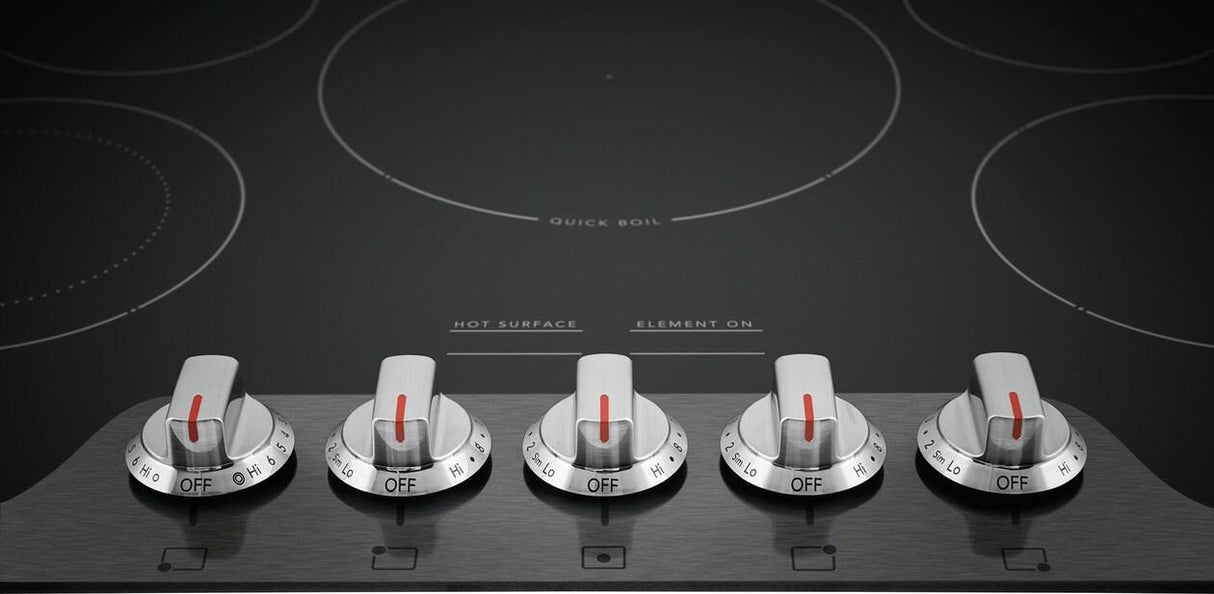

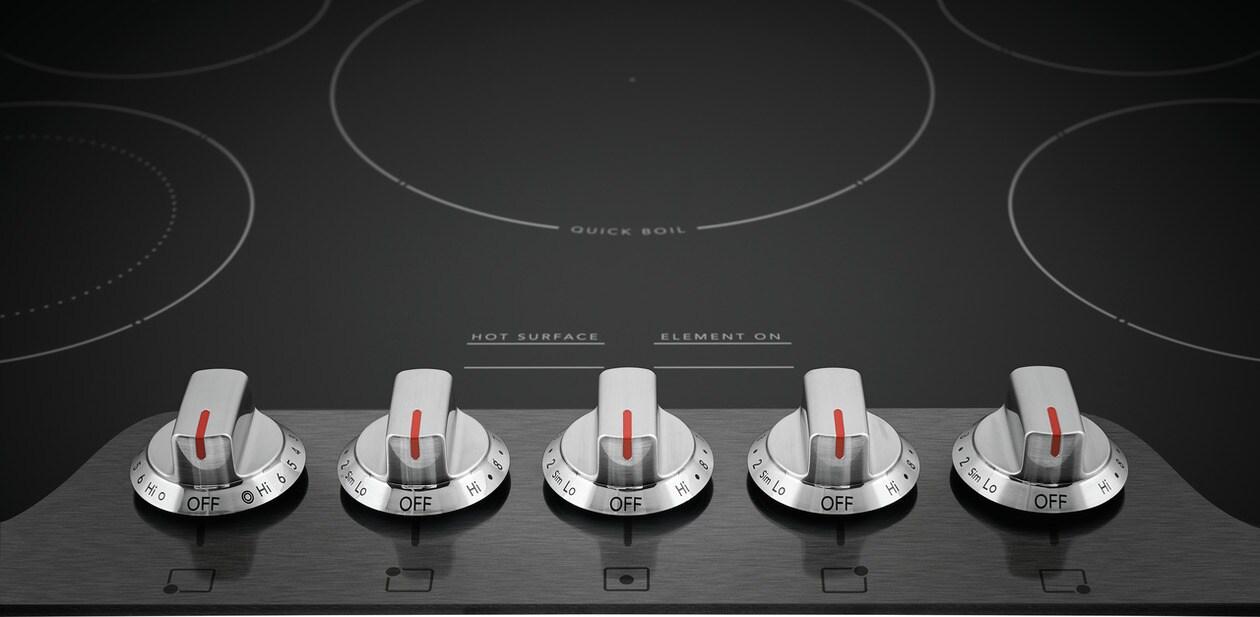

Easy to Use Front Controls
Controls located on the front of the cooktop allows you to adjust the temperature without reaching over hot items.
SpaceWise(R) Expandable Elements
Flexible elements expand to your cooking needs.
Get Cooking Faster with Quick Boil
Our powerful 3,200 watt element allows you to boil water in less than three minutes. * 1 *9" - 3200W left rear element, 6 qt./10" diameter pot, 1 qt. tepid water. 2 *9" - 3200W center middle element, 6 qt./10" diameter pot, 1 qt. tepid water.
Express-Select(R) Controls
Easily go from warm to boil.
Frigidaire(R) Fit Promise
We promise that your new 30" or 36" Frigidaire Gallery(R) brand cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100.
Ceramic Glass Cooktop
For a more beautiful cooktop that s easy to clean.
Hot Surface Indicators
Light on your cooktop informs you when the surface is hot.
Approved Over Frigidaire(R) Electric Wall Ovens
Cooktops are approved for installation above any of our Single Electric Wall Ovens.
- Fits-More™ Cooktop
- The Fits-More™ cooktop features five elements - allowing you to cook more at once.
- Get Cooking Faster with Quick Boil
- Our powerful 3,200 watt element allows you to boil water in less than three minutes. * 1 *9" - 3200W left rear element, 6 qt./10" diameter pot, 1 qt. tepid water. 2 *9" - 3200W center middle element, 6 qt./10" diameter pot, 1 qt. tepid water.
- SpaceWise® Expandable Elements
- Flexible elements expand to your cooking needs.
- Frigidaire® Fit Promise
- We promise that your new 30" or 36" Frigidaire Gallery® brand cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100.
- Easy to Use Front Controls
- Controls located on the front of the cooktop allows you to adjust the temperature without reaching over hot items.
- Express-Select® Controls
- Easily go from warm to boil.
- Ceramic Glass Cooktop
- For a more beautiful cooktop that s easy to clean.
- Hot Surface Indicators
- Light on your cooktop informs you when the surface is hot.
- Approved Over Frigidaire® Electric Wall Ovens
- Cooktops are approved for installation above any of our Single Electric Wall Ovens.
- Fits-More(TM) Cooktop
- Get Cooking Faster with Quick Boil
- SpaceWise(R) Expandable Elements
- Frigidaire(R) Fit Promise
- Easy to Use Front Controls
- Express-Select(R) Controls
- Ceramic Glass Cooktop
- Hot Surface Indicators
- Approved Over Frigidaire(R) Electric Wall Ovens
| Product Line | Electric Cooktop |
| Power Type | Electric 240v |
| Size | 30" |
| Installation Type | Drop-In |
| Factory | Rayong |
| Color | Stainless Steel |
| Installation | |
| Installed Over a Wall Oven | Yes |
| Power Supply Connection Location | Right Center |
| Electrical Specifications | |
| Amps @ 240 Volts | 38.3 Amps |
| Connected Load @ 240V | 9.2 kW |
| Minimum Circuit Required | 40 Amps |
| Voltage Rating | 240 V |
| Certifications and Approvals | |
| ADA Compliant | Yes |
| Cooktop | |
| Cooking Surface Type | Smooth |
| Hot-Surface Indicator Light | Yes |
| Dimensions and Volume | |
| Height | 2 5/8" |
| Width | 30 5/8" |
| Depth | 21 3/8" |
| Safety Certifications and Approvals | |
| UL Listed | Yes |
| Controls | |
| Sabbath Mode | No |
| General Specifications | |
| Frigidaire Fit Promise | Yes |
| Product Weight | 61.75 lbs |
| Prop 65 Label | No |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| Cooktop Performance | |
| Right Front Element Burner Size | 7" |
| Right Rear Element Burner Size | 6" |
| Left Front Element Burner Size (Small) | 5" |
| Left Front Element Burner Size (Large) | 7" |
| Left Rear Element Burner Size | 6" |
| Center Rear Element Burner Size | 9" |
| Right Front Element Burner | 1,800 Watts |
| Right Rear Element Burner | 1,200 Watts |
| Left Front Element Burner (Small) | 750 Watts |
| Left Front Element Burner (Large) | 1,800 Watts |
| Left Rear Element Burner | 1,200 Watts |
| Center Rear Element Burner | 3,200 Watts |
| Display | |
| Control Location | Front |
| Display Type | Mechanical |
