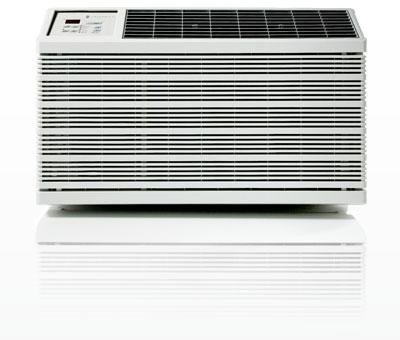

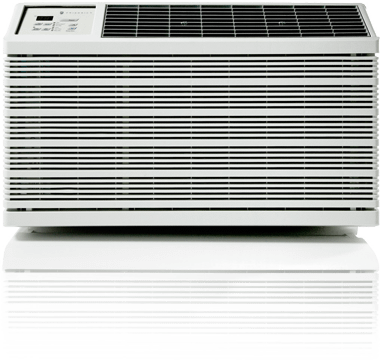

WallMaster WS16C30
Model WS16C30
WallMaster WS16C30
Model WS16C30Quick Specs
WallMaster WS16C30 is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs

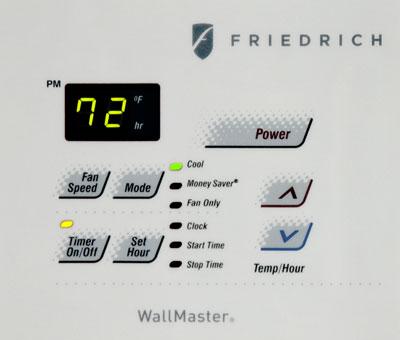

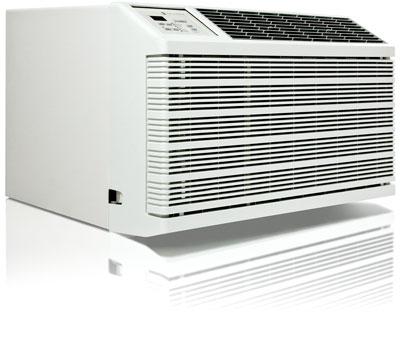

(B)The Perfect fit for a 27" sleeve(/B)(BR) (P)Whether you're replacing an existing 27" air conditioner or just want the ultimate thru-the-wall unit, WallMaster is the perfect fit. Built with the finest commercial-grade materials and components, WallMaster is durable, yet quiet. Its solid-side sleeve assures maximum performance in thicker wall applications and gives you multiple installation options . (/P) (P)Choose from cooling-only, cooling with electric heat or heat pump models. All WallMasters have a wireless remote plus convenient top-mount controls, a 24-hour programmable timer, an energy-efficient Money Saver® setting and other premium features .(/P)(BR)(B)Better Thru-the-Wall Performance with our Solid-Side Sleeve(/B)(BR)(P)Window air conditioners have side vents. Covering these vents can restrict air flow, diminish performance and could even void your warranty. WallMaster's solid-side sleeve has no side vents. You can install it through walls up to 15 5/16" deep without compromising performance.(/P)(B)Which Model is Right for Me?(/B)(BR)(P)WallMaster has cooling-only and cooling-plus-heat models for any climate. (/P)(P)(B)Cooling-only:(/B) Provides air conditioning without supplemental heat. Steel inner and outer weather panels (included with WSD sleeves) block cold winter air.(/P)(P)(B)Cooling with electric heat:(/B) Provides air conditioning and electric heat in a single unit. Ideal in regions with colder winter temperatures. (/P)(P)(B)Heat pump(/B): Provides air conditioning and high-efficiency heating in a single unit. Heat pumps are an excellent choice in regions with more temperate winter conditions(/P)(P)Our sizing guide will help you select the appropriate cooling and/or heating capacity(/P)(B)What's the Difference Between Electric Heat and a Heat Pump?(/B)(BR)(P)There are important operational differences that can impact your energy bill. Consider the average winter temperature in your area and consult your energy supplier about costs before you buy. (/P)(P)(B)Electric heat(/B), also known as electric resistance heat, is created when an element inside the unit is heated by an electric current. A fan sends the heat directly from the unit into the room - your hair dryer works the same way. Electric heat can be more comfortable in climates where the average winter temperature is below 45 F. (/P)(P)(B)A heat pump(/B) is an air conditioner that also can run in reverse to provide heat. In air conditioning mode it removes heat from the indoor air and expels it outside. In heating mode it extracts heat from the outdoor air and uses it to heat your indoor space. At peak efficiency heat pumps use 1/3 of the electricity used by an electric heat unit. However, heat pumps heat most comfortably and efficiently when the average winter temperature stays above 45 degrees F. They are not well suited to, or as energy-efficient in, colder climates.(/P) (B)Available in cooling-only, cooling plus electric heat and heat pump models(/B)(BR)(UL)(LI) 7800-15600 Btu(/LI)(/UL)(UL)(LI)(B)Comfort & Convenience(/B)(BR)(UL)(LI)Easy-to-reach, top mount controls (/LI)(LI)Remote control (/LI)(LI)24-hour programmable timer (/LI)(LI)Smart Fan auto adjusts fan speed to maintain desired temperature (/LI)(LI)3-speed fan (/LI)(LI)Washable, antimicrobial filter (/LI)(LI)Auto restart (/LI)(LI)Electronic defrost control (/LI)(LI)Insect barrier (/LI)(LI)Reversible louver allows a second air flow option(/LI)(/UL)(/LI)(LI)(B)Energy Savings(/B)(BR)(UL)(LI)Money Saver® setting saves money by operating the fan only when needed(/LI)(LI)ENERGY STAR® qualified models(/LI)(/UL)(/LI)(/UL)(UL)(LI)(B)Durability & Quality(/B)(BR)(UL)(LI)Rotary compressors provide quiet, dependable performance (/LI)(LI)Premium stamped exterior grille(/LI)(LI)Dense blower insulation (/LI)(LI)Rifled copper tubing (/LI)(LI)Impact resistant front cover (/LI)(LI)High-tech fins with sine wave lanced louvers increase energy efficiency by increasing surface area for heat exchange(/LI)(LI)AHAM certified performance(/LI)(LI)UL and C-UL-US listed (/LI)(/UL)(/LI)(LI)(B)Installation Features(/B)(BR)(UL)(LI)Mounts flush with the exterior wall for a neat appearance (/LI)(LI)Ideal for thicker wall installations, where side fins don't fit (/LI)(LI)A high-efficiency replacement for 27" sleeves including Fedders A and B * . Sleeve measures 27" W x 16 3/4" H(/LI)(/UL)(/LI)(/UL)(P)* Installation in Fedders B sleeve requires a baffle kit. See BAK under Accessories.(/P)
| Model | WS16C30 |
| Cooling Capacity (Btu/hr) | 15600/15000 |
| Heating Capacity (Btu/hr) | n/a |
| EER | 8.5/8.5 |
| Energy Star Qualified | |
| Unit Height | 15 3/4" |
| Unit Width | 26 1/2" |
| Unit Dimensions | |
| Height | 15 3/4" |
| Width | 26 1/2" |
| Depth | 21" |
| In-Wall Installation | |
| Opening height | 17 1/4" |
| Opening width | 27 1/4" |
| Max. wall depth | 15 5/16" |
| Additional Measurement Information | |
| Depth with Front | 22" |
| Min. Extension Into Room | 7 1/2" |
| Min. Extension Outside | 9/16" |
| Sleeve | WSD |
| Detailed Electrical Information | |
| Volts Rated | 230/208 |
| Cooling Amps | 8.3/8.9 |
| Cooling Watts | 1835/1765 |
| Heating Amps | n/a |
| Heating Watts | n/a |
| Plug Face (NEMA #) | 6-15P |
| Power Cord Length | 4 ft. |
| Air Circulation | 290 cubic feet per minute |
| Est. Yearly Operating Costs | $144 |
| Moisture Removal | 4.2 pints/24 hours |
| Net Weight | 119 lbs |
| Shipping Weight | 123 lbs |
