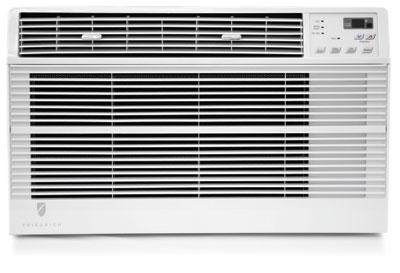

Uni-Fit US10D30A
Model US10D30A
Uni-Fit US10D30A
Model US10D30AQuick Specs
Uni-Fit US10D30A is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
(B)Universal fit for existing thru-the-wall sleeves(/B)(BR) (P)Uni-Fit® makes it easy to replace air conditioners for existing 24.5", 26" or 27 1/2" sleeves without complicated, time-consuming retrofits. This small unit is specifically designed to replace virtually any thru-the-wall air conditioner quickly and cost-effectively.(/P) (P)Depending on the existing sleeve's size, Uni-Fit's smaller dimensions may require the use of the included trim ring to bridge a small gap between the unit and the existing sleeve. The trim ring will fit gaps up to 1" on the sides and 1/2" on the top of the unit for a neat, finished appearance. All models include a remote control.(/P) (BR)(B)Energy-efficient operation(/B)(BR)(P)Many Uni-Fit cooling-only models are ENERGY STAR® qualified. See our sizing guide and model specifications for details on cooling and/or heating capacity.(/P)(B)Universal-Fit Trim Ring(/B)(BR)(P)Uni-Fit's smaller dimensions are designed to fit a range of sleeve sizes. The included Universal-Fit trim ring will bridge a small gap between the unit and the existing sleeve. The trim ring will fill gaps up to 1" on the sides and 1/2" on the top of the unit, to provide a finished and neat appearance.(/P)(B)Solid-side sleeves for installations in thicker walls(/B)(BR)(P)Covering an air conditioner's side vents can restrict air flow, diminish performance and potentially void the warranty. Our solid-side sleeve has no side vents and can be installed through walls up to 16 1/4" without compromising performance.(/P)(P)A flush mount provides a clean exterior appearance; for a slimmer interior profile, adjust the positioning of the unit accordingly during installation.(/P) (B)Available in cooling-only and cooling plus electric heat models(/B)(BR)(UL)(LI)(B)Cooling from(/B): 8000-13000 Btu(/LI)(LI)(B)Heating(/B): 3850-11200 Btu(/LI)(/UL)(P) Detailed specifications by model (/P)(UL)(LI)(B)Comfort and Convenience(/B)(BR)(UL)(LI)Six-way air-flow control(/LI)(LI)Stale-air exhaust(/LI)(LI)Remote control(/LI)(LI)24-hour programmable timer(/LI)(LI)Three-speed fan(/LI)(LI)Auto restart(/LI)(LI)Washable antimicrobial filter(/LI)(LI)Defrost control(/LI)(/UL)(/LI)(LI)(B)Energy Management(/B)(BR)(UL)(LI)MoneySaver® setting saves money by conserving energy(/LI)(LI)ENERGY STAR® qualified models(/LI)(/UL)(/LI)(/UL)(UL)(LI)(B)Durability & Quality(/B)(BR)(UL)(LI)Rotary compressors provide quiet, dependable performance(/LI)(LI)Seacoast protection for corrosion resistance in harsh environments(/LI)(LI)AHAM-certified performance(/LI)(LI)UL and C-UL-US listed(/LI)(/UL)(/LI)(LI)(B)Installation Features(/B)(BR)(UL)(LI)Uni-Fit chassis is 24" wide for installations from 24.5" to 27"(/LI)(LI)Universal fit trim ring for a neat, installed appearance with larger sleeves(/LI)(LI)USC sleeve designed to fit a standard 26" opening. Sleeve is required for new installations. USC sleeve is sold separately.(/LI)(LI)Optional replacement exterior grille available for use with existing sleeve(/LI)(/UL)(P)Note: New installations require a USC sleeve, which is sold and shipped separately (see Accessories for details)(/P)(/LI)(/UL)(P) (/P)
| Model | US10D30A |
| Cooling Capacity (Btu/hr) | 10000/9800 |
| Heating Capacity (Btu/hr) | n/a |
| EER | 9.4/9.4 |
| Energy Star Qualified | |
| Unit Height | 14 3/8" |
| Unit Width | 24" |
| Unit Dimensions | |
| Height | 14 3/8" |
| Width | 24" |
| Depth | 18 1/2" |
| In-Wall Installation | |
| Opening height | 15 3/4" |
| Opening width | 26 1/8" |
| Max. wall depth | 16 1/4" |
| Additional Measurement Information | |
| Depth with Front | 20 1/8" |
| Min. Extension Into Room | 3 3/4" |
| Min. Extension Outside | 1/2" |
| Sleeve | USC |
| Detailed Electrical Information | |
| Volts Rated | 230/208 |
| Cooling Amps | 4.7/5.2 |
| Cooling Watts | 1060/1040 |
| Heating Amps | n/a |
| Heating Watts | n/a |
| Plug Face (NEMA #) | 6-15P |
| Power Cord Length | 4 ft. |
| Air Circulation | 285 cubic feet per minute |
| Est. Yearly Operating Costs | $85 |
| Moisture Removal | 3.2 pints/24 hours |
| Net Weight | 78 lbs |
| Shipping Weight | 86 lbs |
