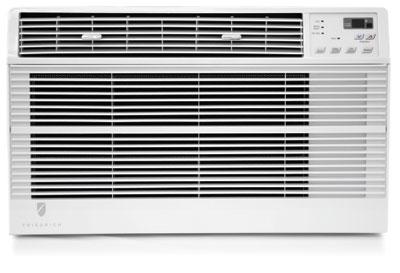

Uni-Fit UE12D33C
Model: UE12D33C
Uni-Fit UE12D33C
Model: UE12D33CQuick Specs
Uni-Fit UE12D33C is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
(BR)(B) Universal fit for existing thru-the-wall sleeves (/B)(BR) Uni-Fit makes it easy to replace air conditioners for existing 24.5", 26" or 27 1/2" sleeves without complicated, time-consuming retrofits. This small unit is specifically designed to replace virtually any thru-the-wall air conditioner quickly and cost-effectively. (BR) Depending on the existing sleeve's size, Uni-Fit's smaller dimensions may require the use of the included trim ring to bridge a small gap between the unit and the existing sleeve. The trim ring will fit gaps up to 1" on the sides and 1/2" on the top of the unit for a neat, finished appearance. All models include a remote control. (BR)(B)Energy-efficient operation(/B)(BR) Many Uni-Fit cooling-only models are ENERGY STAR qualified. (BR)(B) Solid-side sleeves for installations in thicker walls (/B)(BR) Covering an air conditioner's side vents can restrict air flow, diminish performance and potentially void the warranty. Our solid-side sleeve has no side vents and can be installed through walls up to 16 1/4" without compromising performance. (BR) A flush mount provides a clean exterior appearance; for a slimmer interior profile, adjust the positioning of the unit accordingly during installation. (BR)(B)Available in cooling-only, cooling plus electric heat and heat pump models(/B)(BR) (UL)(LI)(B)Cooling:(/B) 8000 to 13000 Btu/h(/LI)(LI)(B)Heating:(/B) 3850 to 11200 Btu/h(/LI)(/UL) (BR)(B) Comfort and Durability(/B)(BR) (UL)(LI)Six-way air-flow control(/LI)(LI)Stale-air exhaust(/LI)(LI)Remote control(/LI)(LI)24-hour programmable timer(/LI)(LI)Three-speed fan on cool only models(/LI)(LI)Two-speed fan on heat/cool models(/LI)(LI)Auto restart(/LI)(LI)Washable antimicrobial filter(/LI)(LI)Defrost control(/LI)(/UL) (BR)(B) Energy Management(/B)(BR) (UL)(LI)MoneySaver setting saves money by conserving energy(/LI)(LI)ENERGY STAR qualified models(/LI)(/UL) (BR)(B) Safety and Security(/B)(BR) (UL)(LI)Rotary compressors provide quiet, dependable performance(/LI)(LI)Seacoast protection for corrosion resistance in harsh environments(/LI)(LI)AHAM-certified performance(/LI)(LI)UL and C-UL-US listed(/LI)(/UL) (BR)(B) Maintenance and Installation(/B)(BR) (UL)(LI)Uni-Fit chassis is 24" wide for installations from 24.5" to 27"(/LI)(LI)Universal fit trim ring for a neat, installed appearance with larger sleeves(/LI)(LI)USC sleeve designed to fit a standard 26" opening. Sleeve is required for new installations. USC sleeve is sold separately.(/LI)(LI)Optional replacement exterior grille available for use with existing sleeve(/LI)(/UL) Note: New installations require a USC sleeve, which is sold and shipped separately (see Accessories for details) (BR)(B) Accessories (/B)(BR)
| Model | UE12D33C |
| Cooling Btu | 11200/ 9200 |
| Heating Btu | 11200/ 9200 |
| EER | 9.8/ 9.9 |
| CEER | 9.7/ 9.7 |
| Volts Rated | 230/ 208v |
| ENERGY STAR® Qualified | n/a |
| Chassis Height | 14 1/2" |
| Chassis Width | 24 3/16" |
| Chassis Depth | 20 5/16" |
| Unit Dimensions | |
| Height | 14 1/2" |
| Width | 24 3/16" |
| Depth | 20 5/16" |
| Window Dimensions | |
| Height | 14 1/2" |
| Width | n/a |
| Depth | n/a |
| Additional Measurement Information | |
| Depth to Louvers | 16 1/4" |
| Sleeve Size | USC |
| Detailed Electrical Information | |
| Voltage | 230/208 |
| Cooling Amps | 5.2/5.6 |
| Heating Amps | 15.3/14 |
| Air Circulation | 290 cubic feet per minute |
| Moisture Removal | 3.8 pints per hour |
| Net Weight | 80 lbs |
| Shipping Weight | 87 lbs |
