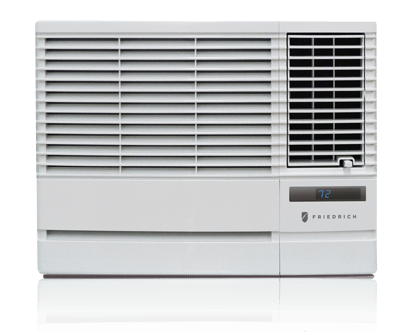

Chill CP05G10B
Model: CP05G10B
Chill CP05G10B
Model: CP05G10BQuick Specs
Chill CP05G10B is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
(BR)(B) Energy-efficient & lightweight residential grade units (/B)(BR) Chill is energy efficient and easy-to-handle. Almost every model is ENERGY STAR qualified, and the programmable timer plus the MoneySaver setting help manage energy use and reduce costs. (BR) With capacities from 5450 to 23500 Btu/h and the Auto Air Sweep feature, Chill can evenly cool a single room or a large open space. All models include a remote control. To determine the appropriate cooling capacity, see our sizing guide and model specifications. (BR)Watch the Chill Product Video (BR)(B) Easy installation and maintenance (/B)(BR) Chill is flexible: Install models CP06-CP24 thru-the-wall* or in a window using the included hardware. Up to 29% lighter than K hl models of comparable capacity, Chill units are easy to maneuver. Plus, the slide-out chassis, which greatly simplifies installation and maintenance, is available starting with the 6000 Btu/h CP06. (BR)(B) Auto Air Sweep Feature (/B)(BR) The Auto Air Sweep* swing louvers provide consistent air distribution, for even cooling throughout the room or in large, open spaces. (BR) * CP05 must be installed in a window. (BR)(B) Available in cooling-only models (/B)(BR) (UL)(LI)Cooling from: 5450 - 23500 Btu/h(/LI)(/UL) (BR)(B) Comfort and Durability(/B)(BR) (UL)(LI)24-hour timer lets you program on/off times(/LI)(LI)Auto Air Sweep swing louvers* provide more even air distribution(/LI)(LI)Side Air Discharge*(/LI)(LI)3 cooling and fan speeds**(/LI)(LI)Ultra-quiet operation(/LI)(LI)4-way air-flow control(/LI)(LI)Auto restart saves settings if power is interrupted(/LI)(LI)Digital remote control that adjusts mode, fan speed, temperature and sets the timer***.(/LI)(/UL) (BR)(B) Energy Management and Compliance(/B)(BR) (UL)(LI)ENERGY STAR qualified models(/LI)(LI)MoneySaver* setting saves money by conserving energy(/LI)(/UL) (BR)(B) Health and IAQ(/B)(BR) (UL)(LI)Washable, antimicrobial air filter(/LI)(LI)Stale air exhaust*(/LI)(/UL) (BR)(B) Maintenance and Installation(/B)(BR) (UL)(LI)Slide-out chassis*(/LI)(LI)Install in window or thru-the-wall*(/LI)(LI)Standard installation hardware(/LI)(LI)Expandable side curtains(/LI)(LI)Power cord can run either left or right out of the unit front(/LI)(/UL) (BR)(B) Safety and Security(/B)(BR) (UL)(LI)EntryGard anti-intrusion protection(/LI)(/UL) (BR) * Not available on CP05 (BR) ** models with heat have 2 speeds (BR) *** CP15-CP24 remotes do not have digital readout. (BR)(B) Chill + (/B)(BR)(B)Available in cooling plus electric heat models(/B)(BR) (UL)(LI)Cooling from: 8000 to 23500 Btu/h(/LI)(LI)Heating: 3850 to 12000 Btu/h(/LI)(/UL) (BR)(B)Air Conditioner / Heater(/B)(BR) For spaces needing heat in addition to cooling, we've added models with electric heat. Chill+ will heat and cool spaces from 300-1500 sq ft, depending on unit capacity. 2-speed settings each for fan, cooling and heating modes. (BR)
| Model | CP05G10B |
| Cooling Btu | 5200 |
| Heating Btu | n/a |
| EER | 11.2 |
| CEER | 11 |
| Volts Rated | 115v |
| ENERGY STAR® Qualified | No |
| Unit Height | 12 5/16" |
| Unit Width | 18 9/16" |
| Unit Depth | 15 7/16" |
| Unit Dimensions | |
| Height | 12 5/16" |
| Width | 18 9/16" |
| Depth | 15 7/16" |
| Window Dimensions | |
| Height | 12 5/16" |
| Width | 20 1/8" |
| Depth | 36" |
| In-Wall Dimensions | |
| Height | n/a |
| Width | n/a |
| Depth | n/a |
| Additional Measurement Information | |
| Depth to Louvers | n/a |
| Sleeve Size | P1 |
| Detailed Electrical Information | |
| Voltage | 115 |
| Cooling Amps | 4.3 |
| Heating Amps | n/a |
| Air Circulation | 140 cubic feet per minute |
| Moisture Removal | 1.5 pints per hour |
| Net Weight | 46 lbs |
| Shipping Weight | 50 lbs |
