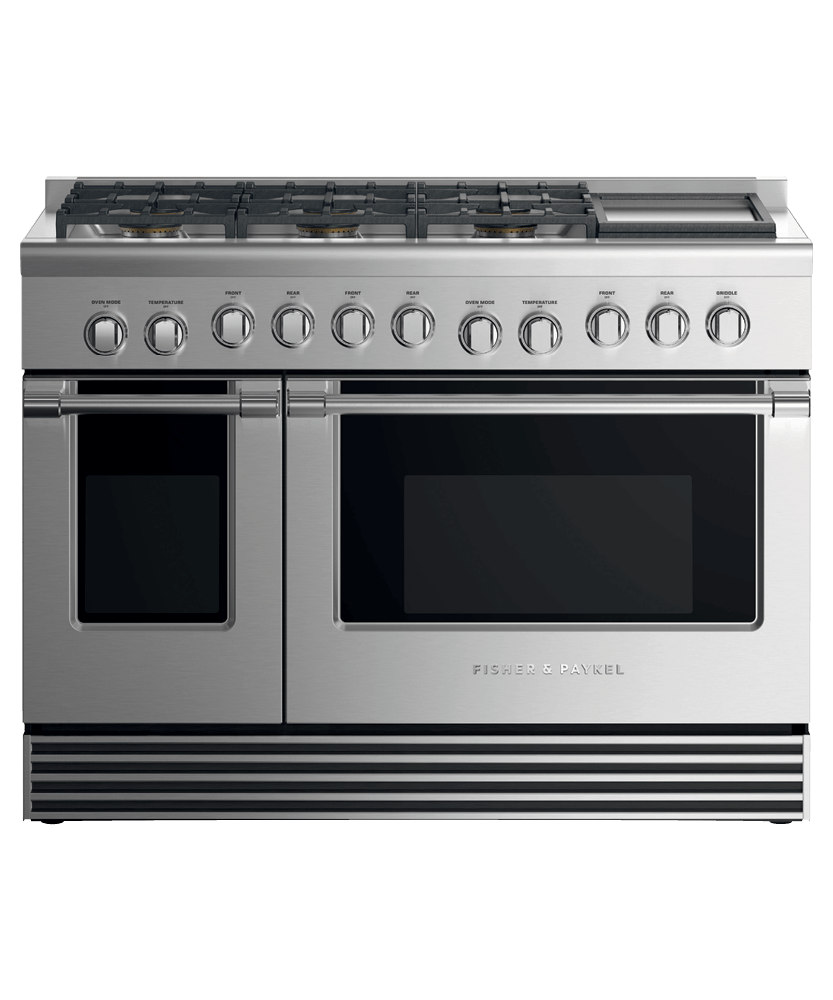

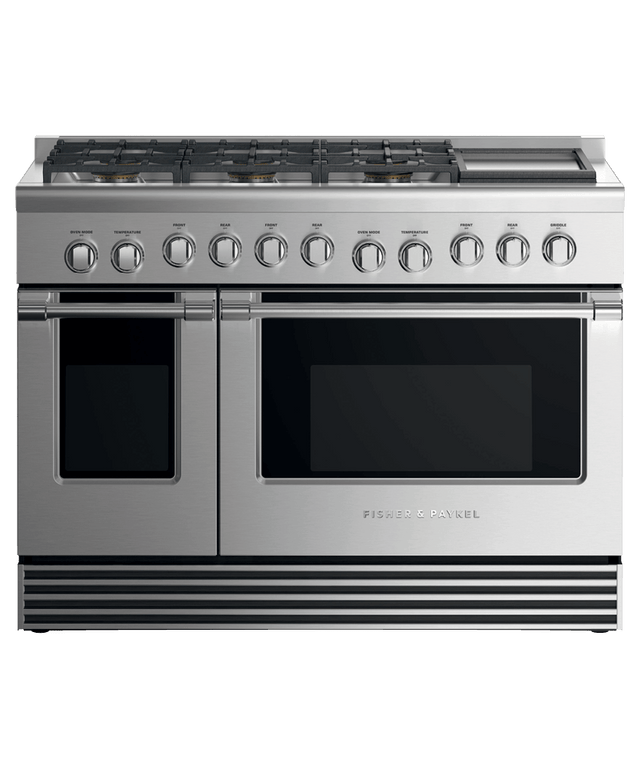

Gas Range 48", 6 Burners with Griddle
Model: RGV2486GDNN
Gas Range 48", 6 Burners with Griddle
Model: RGV2486GDNNQuick Specs
Gas Range 48", 6 Burners with Griddle is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
Cooktop power
BEAUTIFUL TO USE Cooktop power Sealed Dual Flow Burners? deliver cooktop power up to 23,500 BTU (NG models) for seriously fast boiling right down to a precise 140 F full surface simmer with the gentlest of flames.
Cooking flexibility
BEAUTIFUL TO USE Cooking flexibility The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full size baking sheets.
Easy to clean
BEAUTIFUL TO USE Easy to clean A sealed cooktop surface coupled with a commercial-style stainless steel finish means your cooktop simply needs a quick wipe to keep it looking good as new.
Total control
PERFECT RESULTS Total control Precise control across high and low settings is delivered through the halo-illuminated cooktop dials. The ovens have true convection and electronic oven control for precise and consistent temperatures.
Design quality
BUILT TO LAST Design quality This range has been carefully crafted in every detail from performance to durability using quality materials.
Instant visibility
BEAUTIFUL TO USE Instant visibility Control dials have halo-illumination glowing white ? heating up; orange ? temperature reached; red ? self-cleaning mode. The oven is illuminated by two powerful incandescent lights.
- Cooktop power
- Sealed Dual Flow Burners? deliver cooktop power up to 23,500 BTU (NG models) for seriously fast boiling right down to a precise 140 F full surface simmer with the gentlest of flames.
- Total control
- Precise control across high and low settings is delivered through the halo-illuminated cooktop dials. The ovens have true convection and electronic oven control for precise and consistent temperatures.
- Easy to clean
- A sealed cooktop surface coupled with a commercial-style stainless steel finish means your cooktop simply needs a quick wipe to keep it looking good as new.
- Instant visibility
- Control dials have halo-illumination glowing white ? heating up; orange ? temperature reached; red ? self-cleaning mode. The oven is illuminated by two powerful incandescent lights.
- Cooking flexibility
- The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full size baking sheets.
- Design quality
- This range has been carefully crafted in every detail from performance to durability using quality materials.
- Top burner heat of 23,500 BTU, for seriously fast boiling
- Expansive 7.7 cu ft total oven capacity across two oven cavities
- Non-tip full-extension shelves in main cavity for safe removal of hot dishes
| Accessories | |
| Square handle option | AH-R48 |
| Controls | |
| Metal illuminated dials | Yes |
| Gas requirements | |
| Fitting and pipe | 1/2 NPT, min. ⅝" flex line |
| Supply Pressure (natural gas) | 6" to 9" W.C |
| Main oven features | |
| Broil pan | Yes |
| Capacity total (AHAM) | 5.3 cu ft |
| Capacity usable (AHAM) | 3.9 cu ft |
| Electronic oven control | Yes |
| Full extension telescopic racks | 3 |
| Infrared Broiler | Yes |
| Internal Light | Yes |
| Shelf positions | 5 |
| Main oven functions | |
| Bake | Yes |
| Broil | Yes |
| Number of main oven functions | 3 |
| Oven performance | |
| Main oven - Bake power | 28,000 BTU |
| Main oven - Broil power | 19,000 BTU |
| Secondary oven - Bake power | 18,000 BTU |
| Power requirements | |
| Amperage | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Product dimensions | |
| Depth | 29 1 ⁄ 8 " |
| Height | 35 3 ⁄ 4 - 36 3 ⁄ 4 " |
| Width | 47 7 ⁄ 8 " |

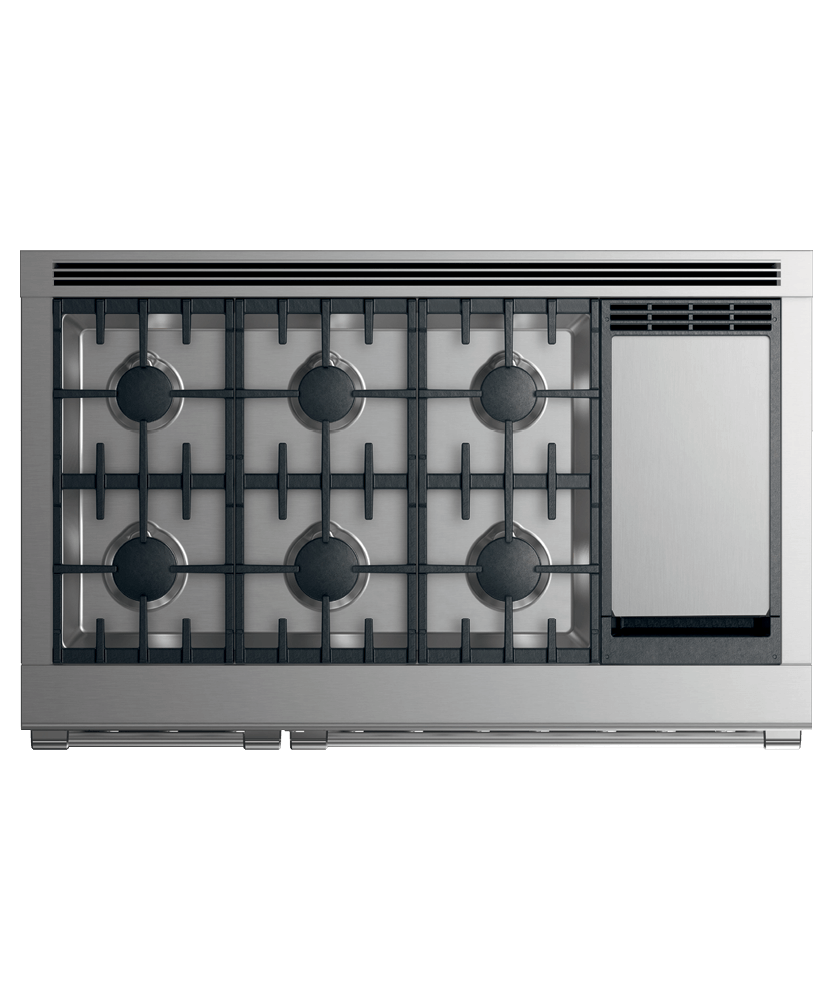

| Rangetop features | |
| Dishwasher safe trivets | Yes |
| Sealed Dual Flow Burners™ | 6 |
| Sealed range top | Yes |
| Simmer on all burners | 140°F |
| Vent trim included | Flat vent trim |
| Rangetop Performance | |
| Max burner power | 23,500 BTU |
| Power back centre | 18,500 BTU |
| Power back left | 18,500 BTU |
| Power back right | 18,500 BTU |
| Power front centre | 18,500 BTU |
| Power front left | 23,500 BTU |
| Power front right | 18,500 BTU |
| Power griddle | 16,500 BTU |
| Total cooktop power | 132,500 BTU |
| Recommended back guards and ventilation | |
| Combustible situation | BGRV2-3048H |
| Minimum CFM | 1,200 |
| Non combustible situation | BGRV2-3048 / BGRV2-1248 |
| Recommended hood | HCB48-12_N (48" Professional Range Hood, Dual Blower) |
| Safety | |
| Full extension telescopic sliding shelves | Yes |
| Secondary oven features | |
| 3/4 Extension racks | 2 |
| Capacity total (AHAM) | 2.4 cu ft |
| Capacity usable (AHAM) | 1.7 cu ft |
| Electronic oven control | Yes |
| Internal light | Yes |
| Shelf positions | 5 |
| Secondary oven functions | |
| Number of secondary oven functions | 2 |
| Proof | Yes |
| Warranty | |
| Parts and labor | Limited 2 years |
- Top burner heat of 23,500 BTU, for seriously fast boiling
- Expansive 7.7 cu ft total oven capacity across two oven cavities
- Non-tip full-extension shelves in main cavity for safe removal of hot dishes
