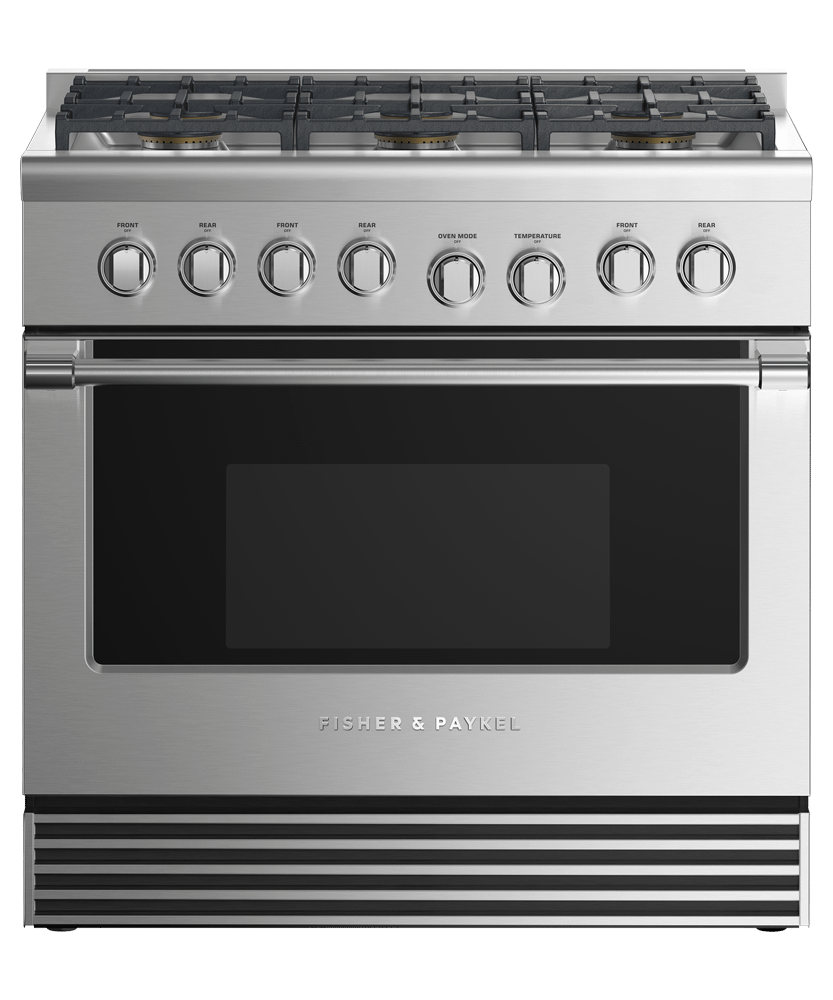

Gas Range, 36", 6 Burners
Model: RGV2366LN
Gas Range, 36", 6 Burners
Model: RGV2366LNQuick Specs
Gas Range, 36", 6 Burners is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
Cooktop power
BEAUTIFUL TO USE Cooktop power Sealed Dual Flow Burners%E2%84%A2 deliver cooktop power up to 23,500 BTU (NG models) for seriously fast boiling right down to a precise 140(degree)F full surface simmer with the gentlest of flames.
Cooking flexibility
BEAUTIFUL TO USE Cooking flexibility The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full size baking sheets.
Easy to clean
BEAUTIFUL TO USE Easy to clean A sealed cooktop surface coupled with a commercial-style stainless steel finish means your cooktop simply needs a quick wipe to keep it looking good as new.
Total control
PERFECT RESULTS Total control Precise control across high and low settings is delivered through the halo-illuminated cooktop dials. The ovens have true convection and electronic oven control for precise and consistent temperatures.
Design quality
DESIGNED TO FIT Design quality This range has been carefully crafted in every detail from performance to durability using quality materials.
Instant visibility
BEAUTIFUL TO USE Instant visibility Control dials have halo-illumination glowing white - heating up; orange - temperature reached; red - self-cleaning mode. The oven is illuminated by two powerful incandescent lights.
- Cooktop power
- Sealed Dual Flow Burners%E2%84%A2 deliver cooktop power up to 23,500 BTU (NG models) for seriously fast boiling right down to a precise 140(degree)F full surface simmer with the gentlest of flames.
- Total control
- Precise control across high and low settings is delivered through the halo-illuminated cooktop dials. The ovens have true convection and electronic oven control for precise and consistent temperatures.
- Easy to clean
- A sealed cooktop surface coupled with a commercial-style stainless steel finish means your cooktop simply needs a quick wipe to keep it looking good as new.
- Instant visibility
- Control dials have halo-illumination glowing white - heating up; orange - temperature reached; red - self-cleaning mode. The oven is illuminated by two powerful incandescent lights.
- Cooking flexibility
- The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full size baking sheets.
- Design quality
- This range has been carefully crafted in every detail from performance to durability using quality materials.
- Top burner heat of 19,000 BTU, for seriously fast boiling
- Convection oven with 5.3 cu ft total capacity
- Non-tip full-extension shelves for safe removal of hot dishes
| Accessories | |
| Square handle option | AH-R36 |
| Capacity | |
| Capacity total (AHAM) | 5.3cu ft |
| Capacity usable (AHAM) | 4cu ft |
| Shelf positions | 5 |
| Total capacity | 5.3cu ft |
| Usable capacity | 4cu ft |
| Cleaning | |
| Dishwasher proof trivets | Yes |
| Controls | |
| Electric circuit | 3 wire |
| Metal illuminated dials | Yes |
| Gas Requirements | |
| Fitting and pipe | 1/2 NPT, min. 5/8" flex line |
| Supply Pressure (LPG) | 11" to 14" W.C |
| Supply Pressure (natural gas) | 6" to 9" W.C |
| Installation Dimensions | |
| Height (excluding vent trim) | 35 - 36 " |
| Oven features | |
| Broil pan | Yes |
| Electronic oven control | Yes |
| Full extension telescopic sliding shelves | Yes |
| Infrared Broiler | Yes |
| Internal light | Yes |
| Oven functions | |
| Bake | Yes |
| Broil | Yes |
| Convection bake | Yes |
| Number of functions | 3 |
| Oven performance | |
| Bake | 28000 BTU |
| Bake power | 22,000 BTU |
| Broil | 19000 BTU |
| Power requirements | |
| Amperage | 15A |
| Rated current | 15A |
| Supply frequency | 60Hz |
| Product dimensions | |
| Depth | 29 " |
| Width | 35 " |
| Rangetop features | |
| Sealed Dual Flow Burners™ | 6 |
| Sealed range top | Yes |
| Vent trim included | Yes |
| Rangetop Performance | |
| Max burner power | 19,000 BTU |
| Power back centre | 13,000 BTU |
| Power back left | 13,000 BTU |
| Power back right | 13,000 BTU |
| Power front centre | 15,000 BTU |
| Power front left | 19,000 BTU |
| Power front right | 19,000 BTU |
| Total cooktop power | 92,000 BTU |
| Recommended Back Guards Ventilation | |
| Combustible situation | BGRV2-3036H |
| Minimum CFM | 600-1200 |
| Non combustible situation | BGRV2-3036 / BGRV2-1236 |
| Recommended hood | HCB36-6_N (36"" Professional Range Hood) / HCB36-12_N (36"" Professional Range Hood, Dual Blower) |
| Safety | |
| Full extension telescopic sliding shelves | Yes |
- Top burner heat of 19,000 BTU, for seriously fast boiling
- Convection oven with 5.3 cu ft total capacity
- Non-tip full-extension shelves for safe removal of hot dishes
