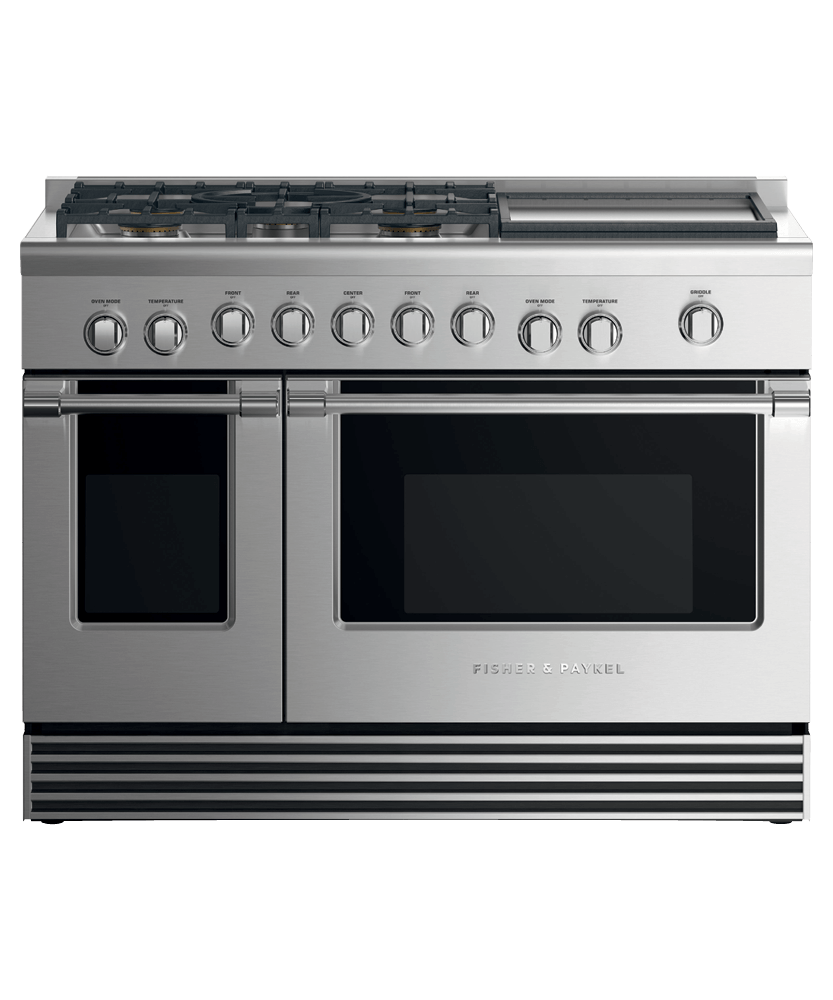

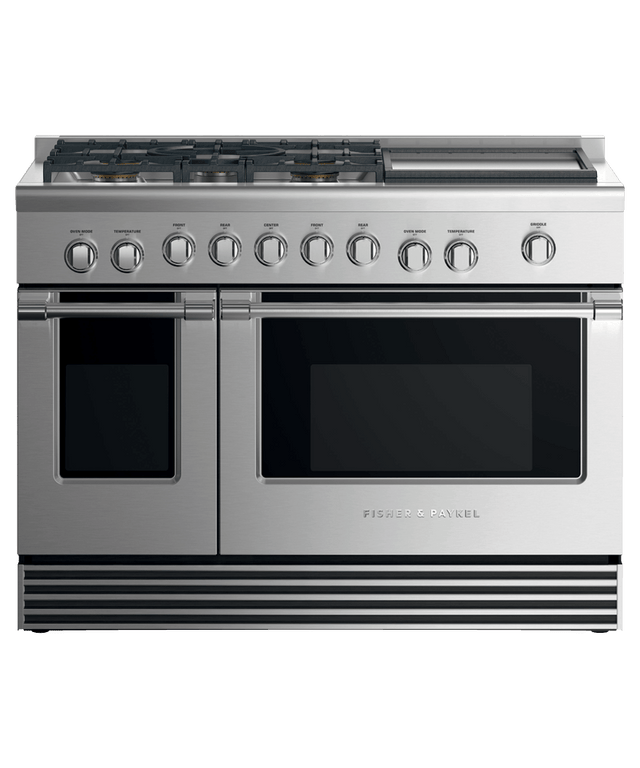

Dual Fuel Range, 48", 5 Burners with Griddle, LPG
Model RDV2485GDLN
Dual Fuel Range, 48", 5 Burners with Griddle, LPG
Model RDV2485GDLNQuick Specs
Dual Fuel Range, 48", 5 Burners with Griddle, LPG is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
Cooktop power
BEAUTIFUL TO USE Cooktop power Sealed Dual Flow Burners? deliver cooktop power up to 23,500 BTU (NG models) for seriously fast boiling right down to a precise 140 F full surface simmer with the gentlest of flames.
Instant visibility
BEAUTIFUL TO USE Instant visibility Control dials have halo-illumination glowing white ? heating up; orange ? temperature reached; red ? self-cleaning mode. The oven is illuminated by two powerful incandescent lights.

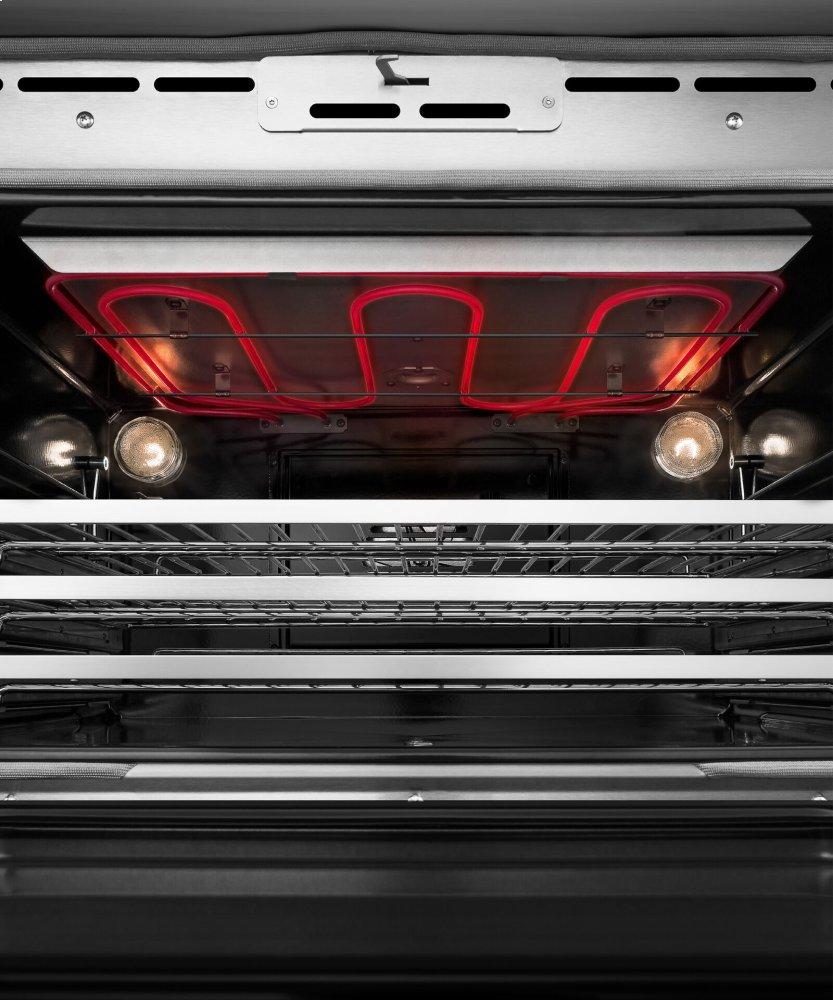

Consistent broiling
PERFECT RESULTS Consistent broiling The Dual Fuel Range broiler provides an even heat that covers a very large surface area ? perfect for browning a fully loaded oven tray.

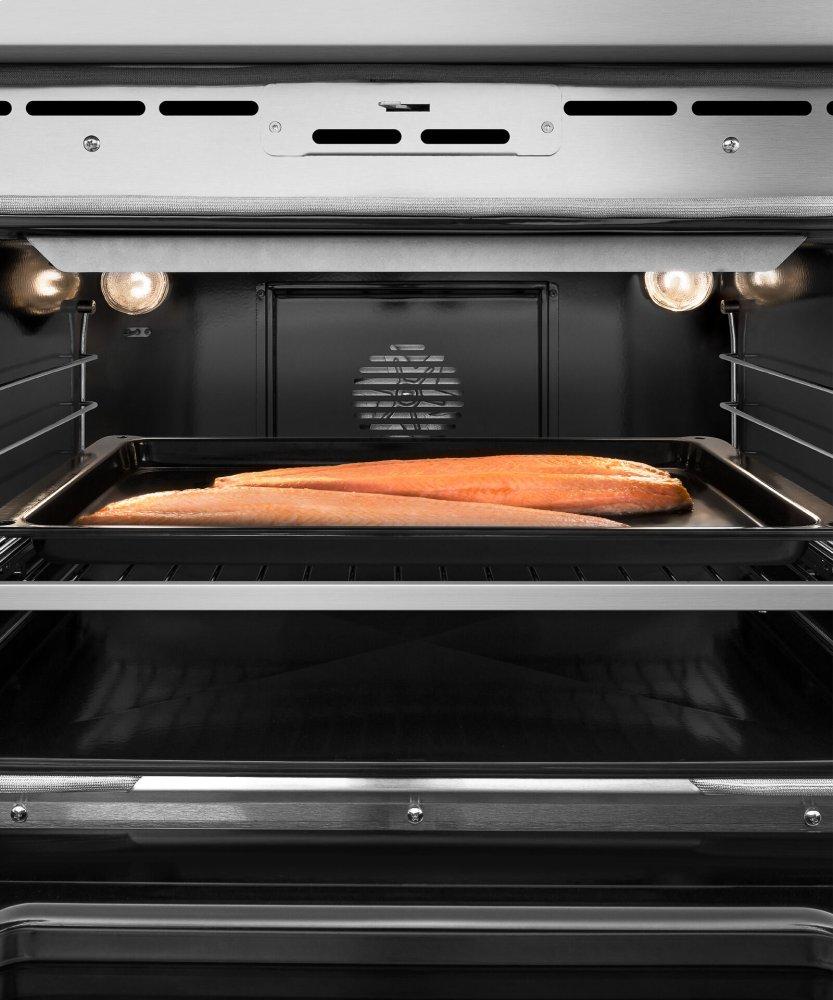

Total control
PERFECT RESULTS Total control Precise control across high and low settings is delivered through the halo-illuminated cooktop dials. The ovens have true convection and electronic oven control for precise and consistent temperatures.

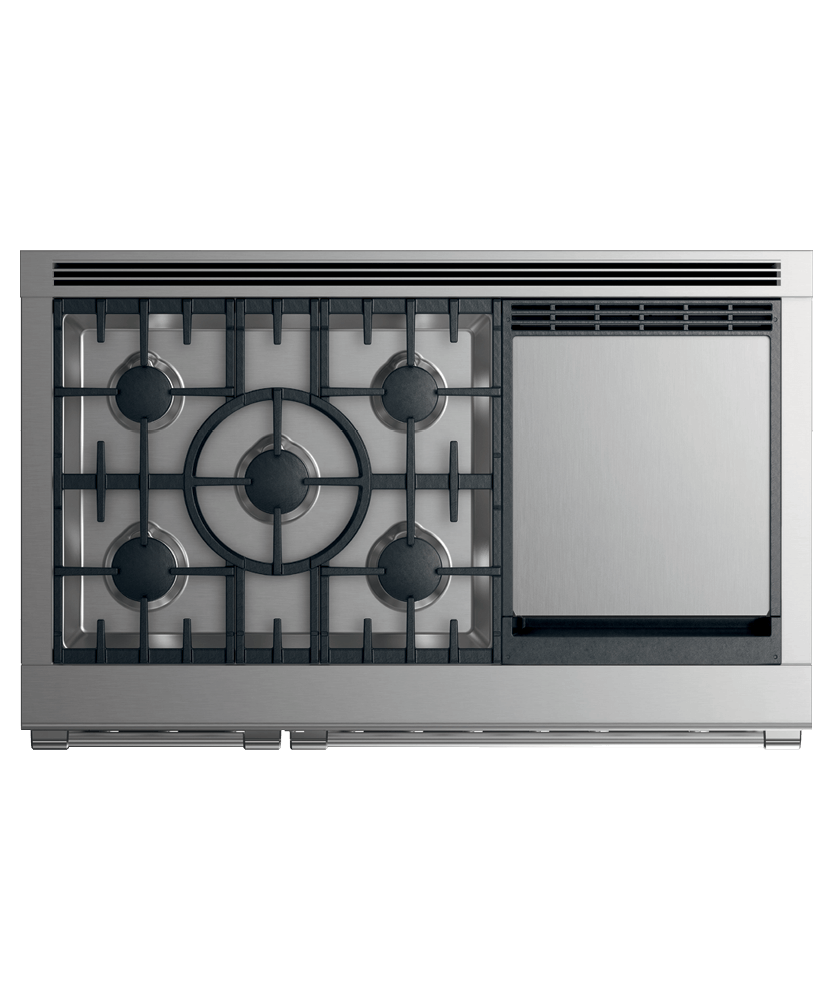

Cooking flexibility
BEAUTIFUL TO USE Cooking flexibility The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full size baking sheets.
Easy to clean
BEAUTIFUL TO USE Easy to clean The Dual Fuel Range oven has a self-cleaning function and removable side racks. The cooktop has sealed burners and an encapsulated cooking surface with a commercial-style stainless steel finish.
- Cooktop power
- Sealed Dual Flow Burners? deliver cooktop power up to 23,500 BTU (NG models) for seriously fast boiling right down to a precise 140 F full surface simmer with the gentlest of flames.
- Total control
- Precise control across high and low settings is delivered through the halo-illuminated cooktop dials. The ovens have true convection and electronic oven control for precise and consistent temperatures.
- Consistent broiling
- The Dual Fuel Range broiler provides an even heat that covers a very large surface area ? perfect for browning a fully loaded oven tray.
- Easy to clean
- The Dual Fuel Range oven has a self-cleaning function and removable side racks. The cooktop has sealed burners and an encapsulated cooking surface with a commercial-style stainless steel finish.
- Instant visibility
- Control dials have halo-illumination glowing white ? heating up; orange ? temperature reached; red ? self-cleaning mode. The oven is illuminated by two powerful incandescent lights.
- Cooking flexibility
- The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full size baking sheets.
- Top burner heat of 19,000 BTU, for seriously fast boiling
- 6.9 cu ft total oven capacity across two oven cavities
- Non-tip full-extension shelves in main cavity for safe removal of hot dishes
| Accessories | |
| Square handle option | AH-R48 |
| Cleaning | |
| Pyrolytic self-clean | Yes |
| Controls | |
| Metal illuminated dials | Yes |
| Gas requirements | |
| Fitting and pipe | 1/2 NPT, min. ⅝" flex line |
| Main oven features | |
| Capacity total (AHAM) | 4.8cu ft |
| Capacity usable (AHAM) | 3.8cu ft |
| Concealed Element | Yes |
| Electronic oven control | Yes |
| Internal Light | Yes |
| Large broil pan | Yes |
| Self cleaning | Yes |
| Shelf positions | 5 |
| True convection | Yes |
| Main oven functions | |
| Bake | 4600W |
| Broil | 4000W |
| Clean | Yes |
| Convection broil | Yes |
| Number of main oven functions | 6 |
| Oven features | |
| Full extension telescopic sliding shelves | 3 |
| Pyrolytic self-clean | Yes |
| True convection | 2500W |
| Oven performance | |
| Main oven - True convection power | 2500W |
| Power requirements | |
| Supply frequency | 60 |
| Supply voltage | 120 - 240 |
| Product dimensions | |
| Depth | 29 1 ⁄ 8 " |
| Height | 35 3 ⁄ 4 - 36 3 ⁄ 4 " |
| Width | 47 7 ⁄ 8 " |
| Rangetop features | |
| Sealed Dual Flow Burners™ | 5 |
| Sealed range top | Yes |
| Simmer on all burners | 140°F |
| Vent trim included | Flat vent trim |
| Rangetop Performance | |
| Max burner power | 23500BTU |
| Power back left | 18500BTU |
| Power back right | 18500BTU |
| Power centre | 23500BTU |
| Power front left | 18500BTU |
| Power front right | 18500BTU |
| Power griddle | 24000BTU |
| Total cooktop power | 121500BTU |
| Safety | |
| Full extension telescopic sliding shelves | Yes |
| Secondary oven features | |
| Capacity total (AHAM) | 2.1cu ft |
| Capacity usable (AHAM) | 1.8cu ft |
| Concealed element | Yes |
| Electronic oven control | Yes |
| Internal light | Yes |
| Shelf positions | 5 |
| Secondary oven functions | |
| Bake | 2450W |
| Broil | 3600W |
| Number of secondary oven functions | 3 |
| Proof | Yes |
- Top burner heat of 19,000 BTU, for seriously fast boiling
- 6.9 cu ft total oven capacity across two oven cavities
- Non-tip full-extension shelves in main cavity for safe removal of hot dishes
