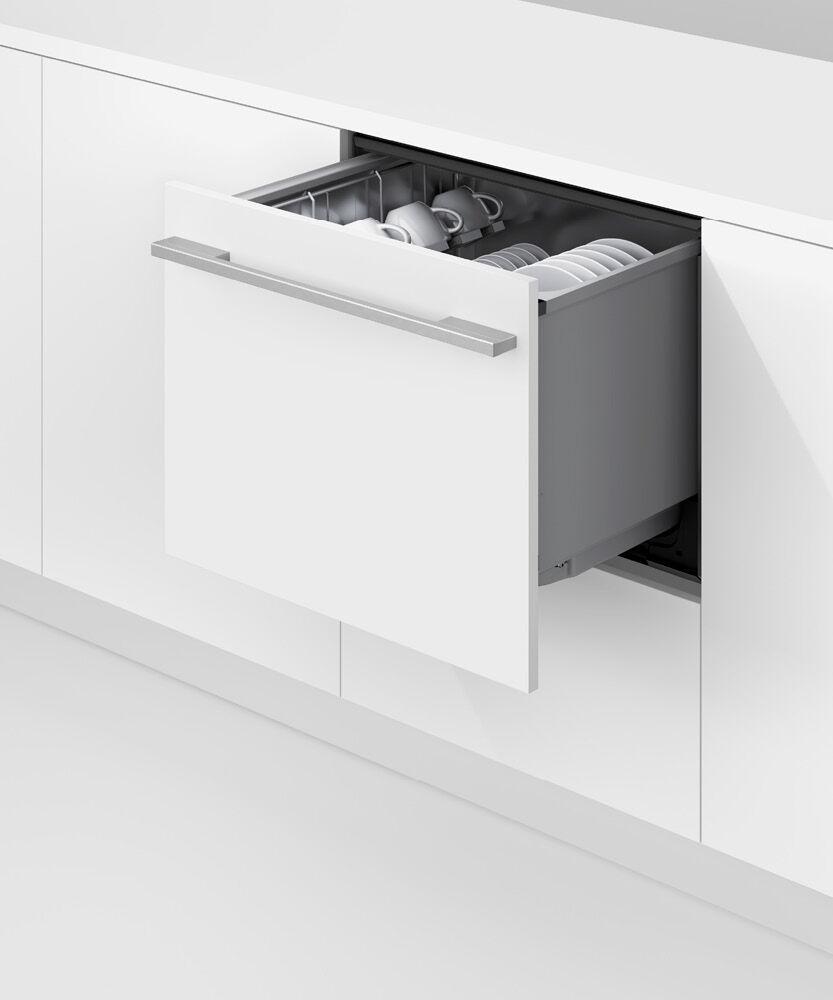

Series 11 Integrated Tall Single DishDrawer™ Dishwasher
Add to Cart to See Actual Price
Series 11 Integrated Tall Single DishDrawer™ Dishwasher is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Quick Specifications
Quick Specifications
- Type : DISHWASHERS
- Style : BUILT IN DISHWASHER
- Width : 23.56"
- Height : 17.875"
- Depth : 21.75"
- Energy Star Rated : NO
- Wifi Connected : YES
- Sabbath Mode : NO
Documents
Documents
- Wash Program Data Sheet
- Installation Guide EN
- User Guide DishDrawer%E2%84%A2 Dishwasher EN
- Installation Guide FR
- Planning Guide Professional Style Dial/Handle Accessories
- Installation Guide DishDrawer%E2%84%A2 Dishwasher Venting Kit EN
- Planning Guide Integrated Single DishDrawer%E2%84%A2
- Quick Reference guide
- Energy Label Integrated Single DishDrawer%E2%84%A2 Dishwasher
- Wash Program Data Sheet EN
- Guide d'utilisation FR
- Service & Warranty
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.

Knock To Pause
BEAUTIFUL TO USE Knock To Pause For ease-of-use, these DishDrawer(TM) Dishwashers have a knock to pause function. A knock on the front panel will pause the dishwasher, which can be restarted by using the start button.

Flexible Wash Options
PERFECT RESULTS Flexible Wash Options Eight wash programs including Auto, 60min and Glassware,while modifiers such as Sanitize, Dry+ and Quiet provide added wash flexibility. The Quiet wash modifier reduces the noise on some cycles while maintaining performance - perfect for late night washing.

Ease Of Use
BEAUTIFUL TO USE Ease Of Use DishDrawer(TM) Dishwashers are beautiful to use with soft-close drawers, and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking includes height-adjustable cup racks and wine glass supports.

Quiet Performer
BEAUTIFUL TO USE Quiet Performer Running at a low decibel rating of 43dBA, these DishDrawer(TM) Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.

Design Quality
BUILT TO LAST Design Quality Every detail has been carefully crafted using quality materials, from the easy-to-clean stainless steel interior to the spray arm sensor that detects jams for increased wash confidence.

Efficient Performance
RESPECT FOR THE PLANET Efficient Performance Our Energy Star rated DishDrawer(TM) Dishwashers use the energy they need without compromising on wash performance.

Seamless Integration
DESIGNED TO FIT Seamless Integration With the flexibility of ergonomic placement and function, singleDishDrawer(TM) Dishwashers can be distributed throughout the kitchen to support patterns of use. The touch-sensitive control panel is located inside this Integrated model, leaving an uninterrupted exterior that blends seamlessly with surrounding cabinetry.
- Seamless Integration
- With the flexibility of ergonomic placement and function, singleDishDrawer™ Dishwashers can be distributed throughout the kitchen to support patterns of use. The touch-sensitive control panel is located inside this Integrated model, leaving an uninterrupted exterior that blends seamlessly with surrounding cabinetry.
- Ease Of Use
- DishDrawer™ Dishwashers are beautiful to use with soft-close drawers, and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking includes height-adjustable cup racks and wine glass supports.
- Flexible Wash Options
- Eight wash programs including Auto, 60min and Glassware,while modifiers such as Sanitize, Dry+ and Quiet provide added wash flexibility. The Quiet wash modifier reduces the noise on some cycles while maintaining performance - perfect for late night washing.
- Design Quality
- Every detail has been carefully crafted using quality materials, from the easy-to-clean stainless steel interior to the spray arm sensor that detects jams for increased wash confidence.
- Knock To Pause
- For ease-of-use, these DishDrawer™ Dishwashers have a knock to pause function. A knock on the front panel will pause the dishwasher, which can be restarted by using the start button.
- Quiet Performer
- Running at a low decibel rating of 43dBA, these DishDrawer™ Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
- Efficient Performance
- Our Energy Star rated DishDrawer™ Dishwashers use the energy they need without compromising on wash performance.
- Eight wash cycles from Heavy to Light, including Auto, 60min and Glassware
- Fits full-size dinner plates up to 12 1/4 inches, with flexible racking for large cookware
- With a soft-close drawer, and knock to pause convenience
- Wi-Fi capability and a SmartHQ(TM) app for remote control and notifications
Accessories (included) | |
Accessories (sold separately) | |
Door panel recessed handle matte black glass | ADDD24STZB |
Door panel recessed handle stainless steel | ADDD24STNX |
Door panel stainless steel | ADDD24STPX |
Handle kit Classic | AHCL-DDDW-24X |
Handle kit Contemporary round, aluminium | AHS-OBDD-60S |
Handle kit Contemporary square fine, aluminium | AHD5-OBDD-60SX |
Handle kit Contemporary square fine, black | AHD5-OBDD-60SB |
Handle kit Contemporary square, aluminium | AHD3-OBDD-60S |
Handle kit Professional round flush | AHP3-DWDD-SX |
Handle kit Professional round flush, Brass off-stands | AHP3DDDW24BA |
Handle kit Professional round flush, Dark Copper off-stands | AHP3DDDW24DC |
Capacity and loading | |
Accommodates round plates up to | 12.25 " |
Place settings | 7 |
Consumption | |
Energy usage | 154kWh/year |
In-use energy carbon emissions estimate Carbon Emissions Info | 54.3kgCO2e/year |
Water usage (per wash cycle) | 1.8 gal |
Controls | |
Features | |
Internal tub material | Stainless Steel |
Motor type | BLDC |
Performance | |
Noise emissions | 43dBA |
Power requirements | |
Amperage | 5A |
Rated current | 15A |
Supply frequency | 60Hz |
Supply voltage | 100 - 120V |
Product dimensions | |
Depth | 21 3 / 4 " |
Height | 17 7 / 8 " |
Width | 23 9 / 16 " |
Safety and compliance | |
Warranty | |
Parts and labor | Limited 2 years |
Wash Program Modifiers | |
Wash modifiers | 3 |
Wash Programs | |
Wash programs | 8 |
Water connection | |
Inlet water temperature | max 140°F |
Water pressure | 100kPa - 1000kPa |
Water supply | 3 / 8 " to suit Male Compression Fitting |
