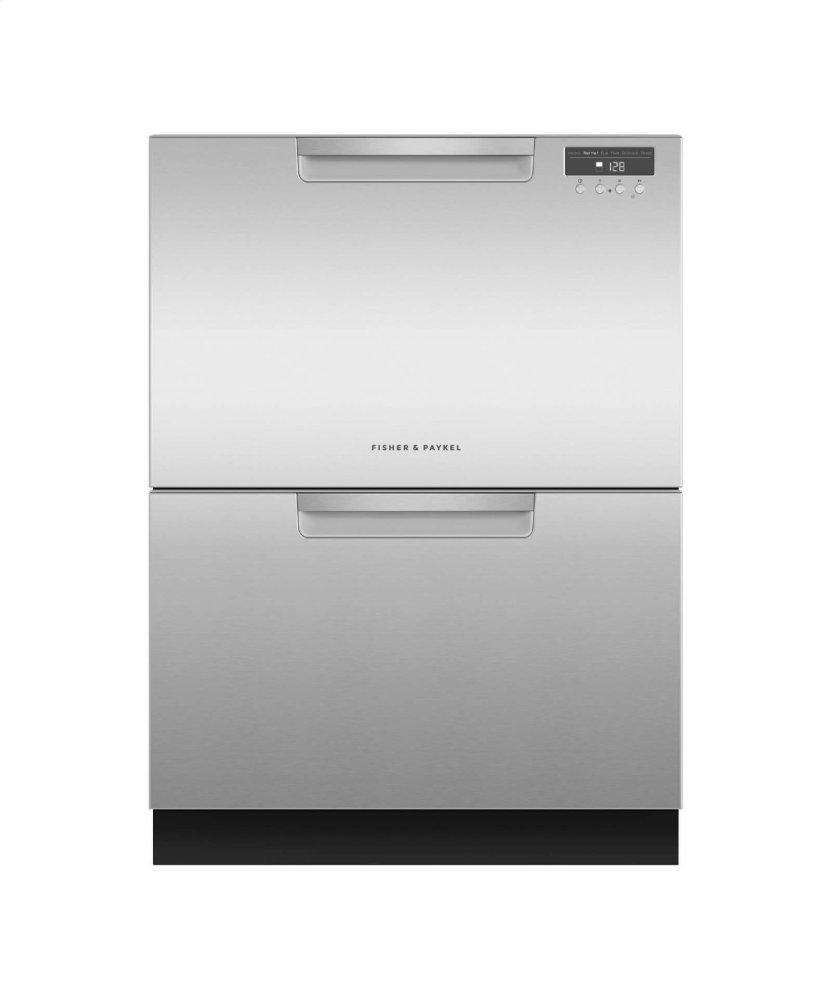

Double DishDrawer Dishwasher, 14 Place Settings
Model: DD24DAX9
Double DishDrawer Dishwasher, 14 Place Settings
Model: DD24DAX9Quick Specs
Double DishDrawer Dishwasher, 14 Place Settings is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- Ease of use
- Independent wash
- True half load
- Easy to load
(P)This Fisher & Paykel Double DishDrawer Dishwasher allows you to wash one drawer and stack the other or wash both at once using different programs.(/P)(B)Ease of use(/B)(P)DishDrawer Dishwashers are as easy to open and close as kitchen drawers and can be conveniently positioned at bench height for ease of loading and minimal bending.(/P)(B)Independent wash(/B)(P)With the ability to use both drawers independently and select different wash programs the DishDrawer Dishwasher can wash everything from fine glass and crystal to heavily soiled pots and pans.(/P)(B)True half load(/B)(P)Each drawer holds a true half load for guilt-free small washes and fast turnaround of your dishes. Both drawers operate independently so different wash cycles can run simultaneously to accommodate a variety of loads.(/P)(B)Easy to load(/B)(P)Running at a very low decibel rating, these DishDrawer Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.(/P)
| Dimensions | |
| Depth | 22 9/16" |
| Height | 32 5/16 - 34 5/8" |
| Width | 23 9/16" |
| Accessories | |
| Cutlery basket | 2 |
| Kick strip | |
| Capacity and loading | |
| Accommodates plates up to | 11 1/2" |
| Fixed height, foldable cupracks | |
| Fold down tines | |
| Place settings | 14 |
| Control | |
| Electronic fault/Diagnostic indicator | |
| End of cycle beeps | |
| Energy saving delay start option up to 12 hrs | |
| Rinse aid indicator light | |
| Features | |
| Fan assisted drying | |
| Flow through detergent dispenser | |
| Quiet operation | |
| SmartDrive technology | |
| Power requirements | |
| AMP draw | 9.6A |
| Rated current | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Wire | 3 |
| Warranty | |
| Warranty | Limited 2 Year Parts & Labor |
| Wash programs | |
| Delicate | |
| Fast | |
| Heavy | |
| Normal | |
| Normal eco | |
| Rinse | |
| Wash programs | 6 |
| Measurements | |
| ADA compliant | |
| Depth of toekick recess (to back of front panel) | 1 1/2" - 4" |
| Dimensions (excl handle) | H32 5/16" - 34 5/8" x W23 9/16" x D22 9/16" |
| Height of toekick panel (adjustable) | 2 13/16" - 5" |
| Performance | |
| Energy star | |
| Energy usage | 265kWh/year |
| Noise (dBa) on gentle cycle top drawer | 45 |
| Water usage | 3.44 |
