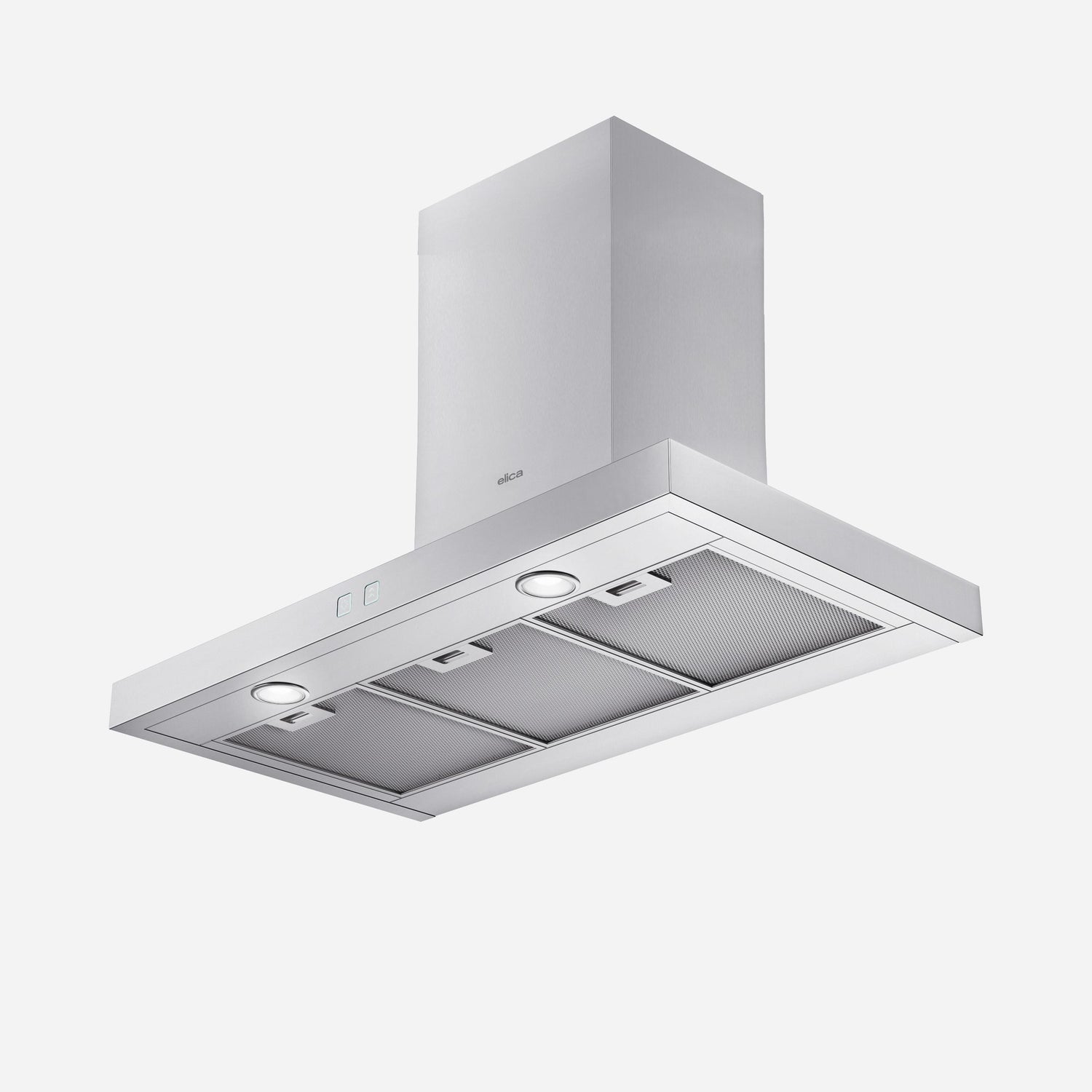

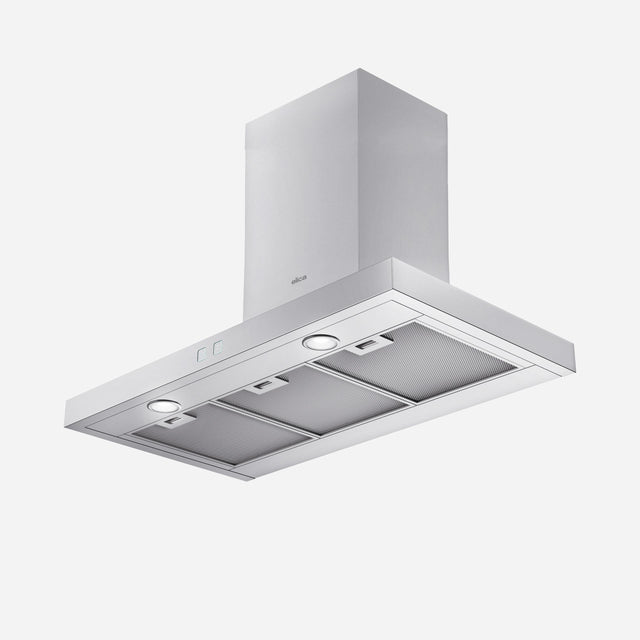

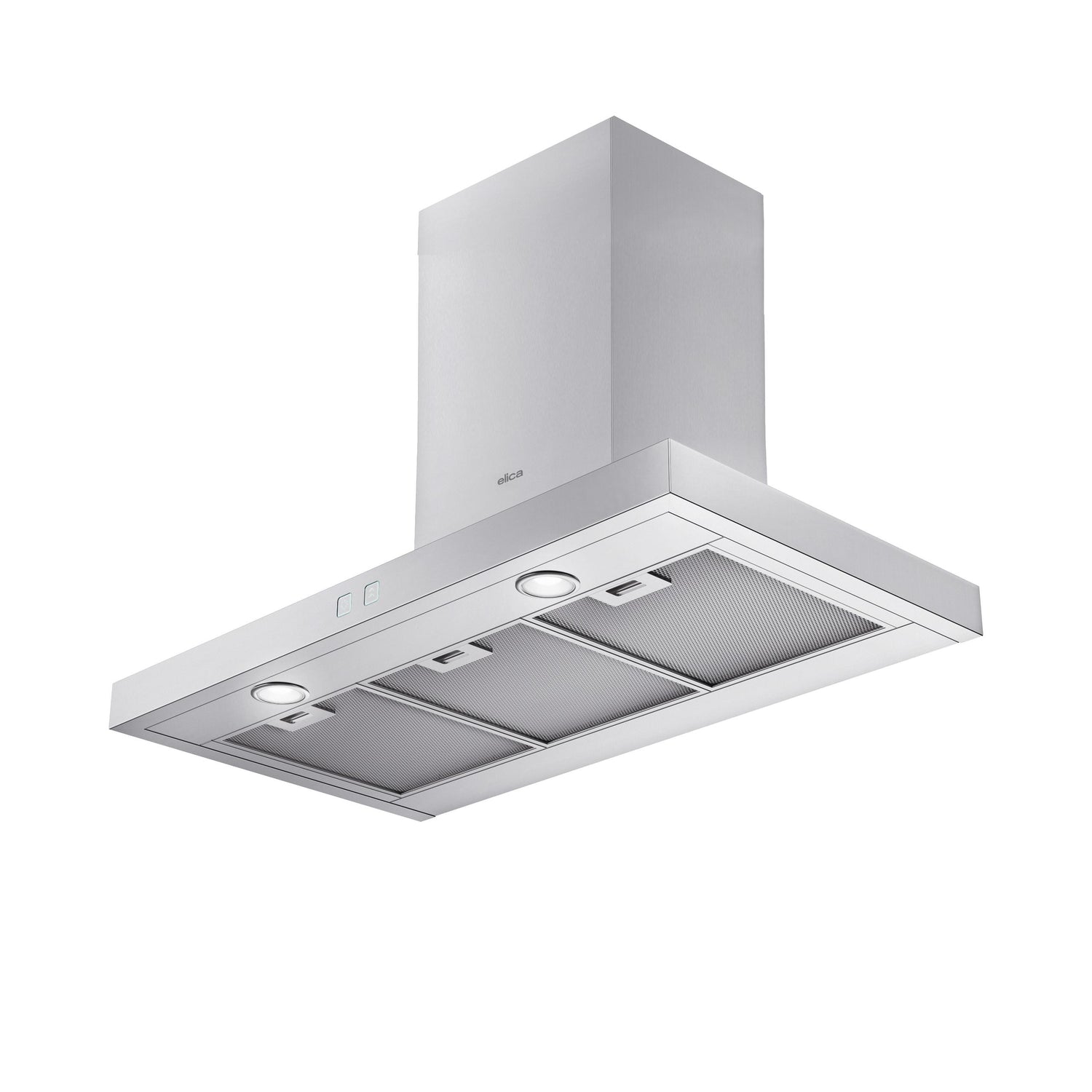

TOBLINO Wall Mount Range Hood 36" wide - 400CFM
Model: ETB436S2
Authorized Dealer
1
of
3
Loading...
Authorized Dealer
TOBLINO Wall Mount Range Hood 36" wide - 400CFM
Model: ETB436S2Quick Specs
Depth
19.625
Height
19
TOBLINO Wall Mount Range Hood 36" wide - 400CFM is backordered and will ship as soon as it is back in stock.
Discontinued
Regular price
$639.00
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
19.625
Height
19
- Ambient light
- Elica studies on hood lighting leaves no stone unturned. Here we have thought about products not only able to light the cooktop, but the entire kitchen space. And so the hood is transformed: from a kitchen appliance to a true lighting element. Considering the design of Elica hoods, it is not hard to imagine how this option is quite unique, and represents one extraordinary point of strength for us.
- Hush System
- An exclusive sound deadening technology that effectively reduces sound levels up to 35%, compared to typical range hoods.
- LED Light
- LED lighting is undoubtedly the smartest solution in terms of energy saving. Expected life time of over 20.000 hours, represents the most remarkable advantage of LED light bulbs.
- Touch Control
- Enjoy the modern design and convenience of multi-function electronic touch controls, which are discreetly hidden behind sleek black glass, and will illuminate a soft blue when activated.
- Top Performance
- Excellent performance for models equipped with this plus. High fume capturing capacity with an average aspiration range of 600 CFM's. with low noise levels, 1.2 - 1.7 sones at working speed.
- 3x layer mesh
- Led light
Toblino, with its super sleek hood design that s only 2 high, is the perfect complement for modern kitchen designs featuring sharp, futuristic architectural lines. Available in 30 and 36 widths, Toblino features multiple backlight color touch controls that illuminate in elegant white, green, blue, or red, operating the LED lights and 4-speed blower. Multiple clicking sound options are also available. Designed for standard ducted installation, Toblino can also be installed as a recirculating system using the optional kit.
| Warranty | 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com |
| SHIPPING WEIGHT (kg) | 23.80 |
| NET WEIGHT (kg) | 18.40 |
| CARTON LENGHT (mm) | 1020.00 |
| CARTON HEIGHT (mm) | 673.00 |
| CARTON WIDTH (mm) | 458.00 |
| VOLUMEN (M3) | 0.31 |
| SHIPPING WEIGHT | 52.47 |
| NET WEIGHT | 40.57 |
| CARTON LENGHT | 40.16 |
| CARTON HEIGHT | 26.50 |
| CARTON WIDTH | 18.03 |
| COUNTRY OF MANUFACTURE | MX |
| QTY PACKAGE | 1.00 |
| INTENDED APPROVED USE | Residential use |
| Finish | Stainless Steel |
| Color | inox |
| Type of Ventilation | Convertible |
| HOODS FEATURES | 3x layer mesh, Led light |
| WIDTH (IN) | 36" |
| WIDTH (CM) | 90.00 |
| AIRFLOW (M3/H) | 680.00 |
| CFM (MAX) | 400.00 |
| db (min) | 14.70 |
| db (max) | 53.00 |
| SONES | 0.4 - 5.9 |
| EXHAUST VERSION | Convertible with Kit |
| EXHAUST SIZE | Round 6" |
| DUCT SHAPE | Round |
| EXHAUST LOCATION | Top Only |
| RECTANGULAR DUCTH HEIGHT | NA |
| RECTANGULAR DUCT WIDTH | NA |
| Round duct diameter | 6" |
| ELECTRIC (VOLTS) | 120 V/60 Hz |
| AMPERAGE | 2.5 A |
| HERTZ | 60.00 |
| WATTS | 265.00 |
| LIGHTING | LED 2 x 2.1 ww 3000 KK |
| BULB TYPE | LED |
| BULB INCLUDED | YES |
| NUMBER OF LIGHTS | 2.00 |
| BULB WATTS | 2.10 |
| KELVINS | 3000.00 |
| GREASE FILTER TYPE | Dishwasher-Safe, Anodized Aluminum Mesh Filter |
| DISHWASHERSAFE FILTER | YES |
| FILTER MATERIAL | Aluminum Mesh |
| BLOWER TYPE | Interior Unit |
| CONTROL TYPE | Mechanical Push Button |
| SPEED CONTROL | YES |
| NUMBER OF SPEEDS | 4.00 |
| REMOTE CONTROL | NO |
| POWER SOURCE | Hardwired |
| OUTDOOR USE | NO |
| SMUDGE RESISTANT | NO |
| RECIRCULATION KIT NEEDED | YES |
| CFM REDUCTION | YES |
| DIMENSIONS | 91 cm x 69 cm x76 |
| DIMENSIONS inches | 36" x 19 11/16" x 20 3/4" |
| ADJUSTABLE HEIGHT | YES |
| Minimum Overall Height - Top to Bottom | 20 3/4" |
| Maximum Overall Height - Top to Bottom | 35" |
| Overall Height - Top to Bottom | 20 3/4"-35" |
| Overall Width - Side to Side2 | 36" |
| Overall Depth - Front to Back | 19 11/16" |
| Hood Height | 1 5/8" |
| Minimum Compatible Ceiling Height | 6'11" |
| Maximum Compatible Ceiling Height | 8'11" |
| Minimum Height Above Cooktop (ELECTRIC) | 24 |
| Minimum Height Above Cooktop (GAS) | 30 |
| Maximum Height Above Cooktop | 36" |
| Chimney Width - Side to Side | 13" |
| Chimney Depth - Front to Back | 10 3/4" |
| Chimney Height - Top to Bottom | 33 3/8 |
| RECIRCULATION KIT NUMBER | KIT0184663 |
| CHIMNEY EXTENSION NUMBER | KIT02785/KIT01935 |
| TELESCOPIC DUCT COVER | - |
| DUCT TRANSITION | - |
| TRANSITION REDUCER KIT | - |
| BACKDRAFT DAMPER | - |
| NON RETURN VALVE | - |
| UPGRADE FILTER | GF04YB |
| CFM REDUCTION KIT | - |
| BACKSPLASH KIT | - |
| INTERNAL BLOWER | - |
| INLINE BLOWER | - |
| EXTERNAL BLOWER | - |
| INLINE BLOWER SHELL KIT | - |
| EXTERNAL BLOWER SHELL KIT | - |
| HEAT LAMPS | - |
| SPACER/LINER | - |
| WALL MOUNT BRACKET | - |
| HIGH CEILING EXTENSION KIT | - |
| REMOTE CONTROL KIT | - |
| cUL listed | YES |
| UL listed | YES |
| AHAM verified | YES |
| TITLE 24 | YES |
| Prop65 Disclosure | YES |
| ENERGY STAR | NO |
| WIFI CAPABLE | NO |
| COMERCIAL USE APPROVED | NO |
| ADA COMPLIANT | NO |
| APP CAPABLE | NO |
| VENTILATION DIRECTION | HORIZONTAL |
| SMART COMPATIBLE | NO |
| FITLER INDICATOR LIGHT | NO |
| HEAT SENSOR | NO |
| CHAROCAL FILTER | YES |
| CERTIFICADO NOM | NA |
