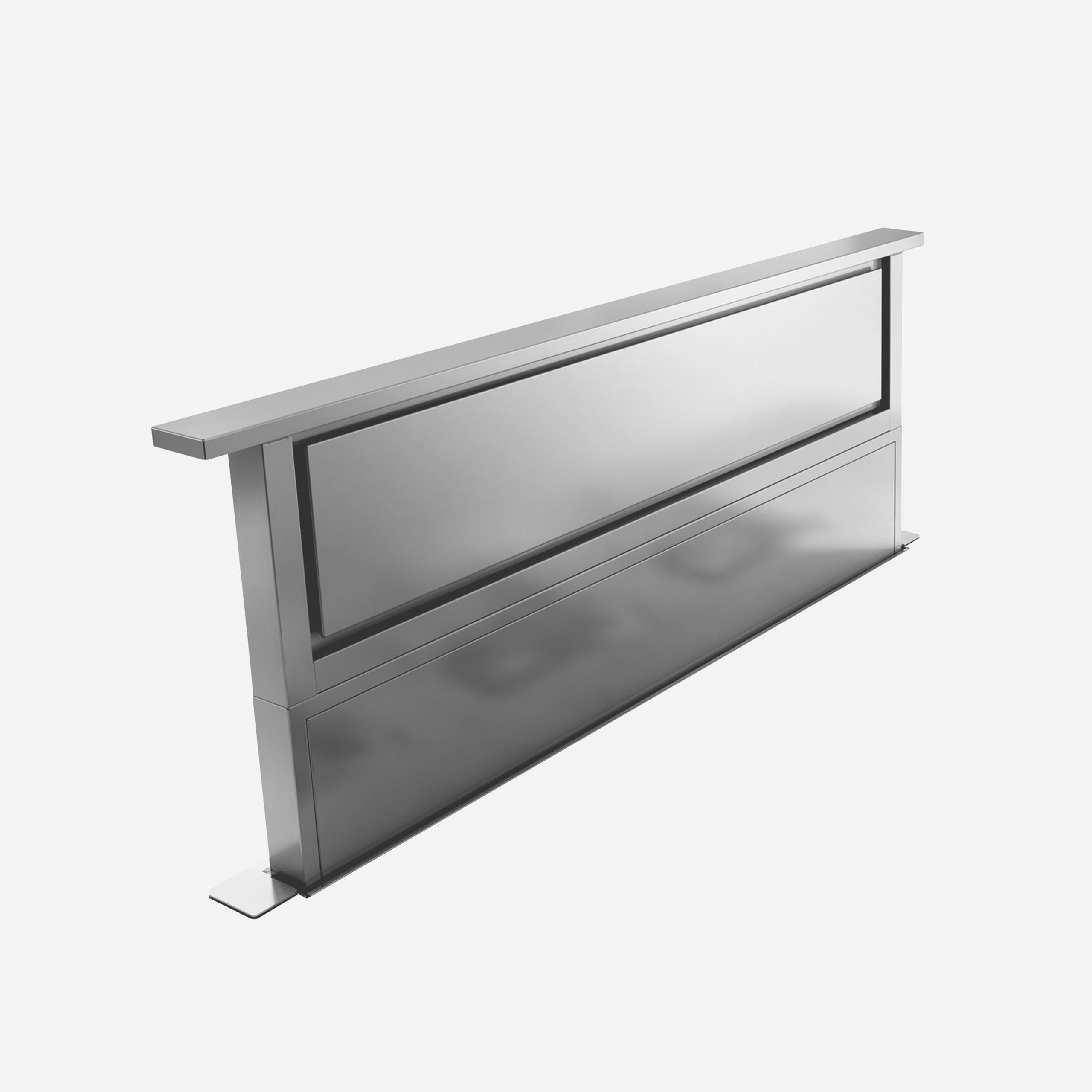

RISE Downdraft Range Hood 36" wide - 600CFM
Model ERS636S1
RISE Downdraft Range Hood 36" wide - 600CFM
Model ERS636S1RISE Downdraft Range Hood 36" wide - 600CFM is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- Perimeter Aspiration
- First developed by Elica, this technology literally turned the market 180 degrees and opened the door to hoods that could be mounted on the wall like picture frames. The technology draws air through a narrowed channel around a face plate, which increases suction, without increasing blower speed or energy consumption.
- Perimeter aspiration
- Top performance

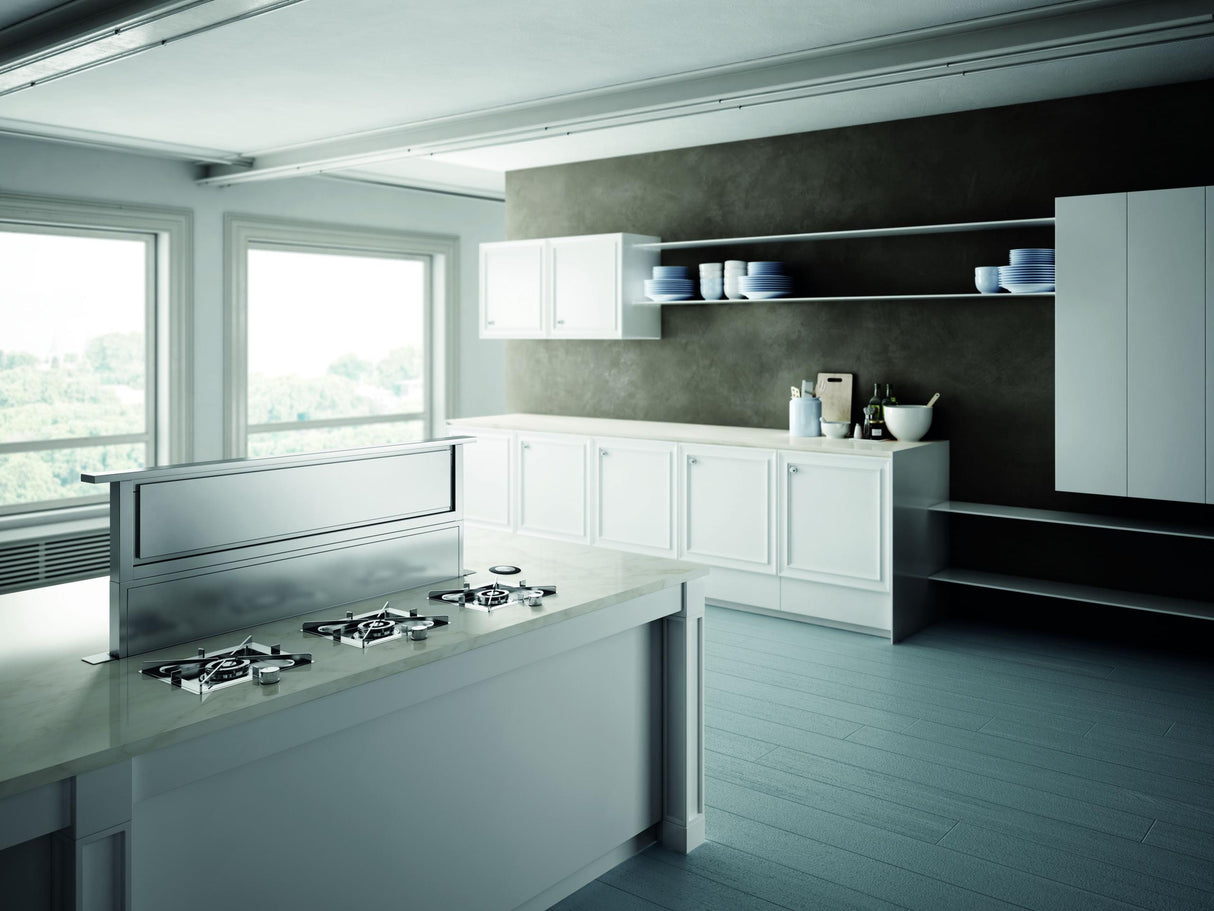

When the view out your kitchen window is too spectacular to disrupt with a range hood, Elica s Rise is the perfect solution. Rise recesses completely out of sight into the countertop when not in use, but when it s time to cook, it elevates a full 14 above the countertop-almost twice the height of competitors-for added ventilating efficiency. Additionally, Elica's Perimeter Aspiration Technology increases suction by 35%, effectively drawing air from the front burner to create the best functioning downdraft on the market. Rise comes equipped with a powerful 600 CFM internal blower, operated by an electronic rotating control mounted into the countertop or cabinet face. For maximum flexibility, the blower can be rotated to the opposite side to make room for a floor-mounted range.
| Warranty | 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com |
| SHIPPING WEIGHT (kg) | 57.00 |
| NET WEIGHT (kg) | 43.00 |
| CARTON LENGHT (mm) | 1010.50 |
| CARTON HEIGHT (mm) | 409.00 |
| CARTON WIDTH (mm) | 889.00 |
| VOLUMEN (M3) | 0.40 |
| SHIPPING WEIGHT | 125.66 |
| NET WEIGHT | 94.80 |
| CARTON LENGHT | 39.78 |
| CARTON HEIGHT | 16.10 |
| CARTON WIDTH | 35.00 |
| COUNTRY OF MANUFACTURE | MX |
| QTY PACKAGE | 1.00 |
| INTENDED APPROVED USE | Residential use |
| Finish | Stainless Steel |
| Color | inox |
| Type of Ventilation | Non-Vented |
| HOODS FEATURES | Perimeter aspiration, Top performance |
| WIDTH (IN) | 36" |
| WIDTH (CM) | 90.00 |
| AIRFLOW (M3/H) | 1020.00 |
| CFM (MAX) | 600.00 |
| db (min) | 36.00 |
| db (max) | 55.00 |
| SONES | 1.7 - 6.8 |
| EXHAUST VERSION | Ducted Only |
| EXHAUST SIZE | Round 6" |
| DUCT SHAPE | Round |
| EXHAUST LOCATION | Side |
| RECTANGULAR DUCTH HEIGHT | NA |
| RECTANGULAR DUCT WIDTH | NA |
| Round duct diameter | 6" |
| ELECTRIC (VOLTS) | 120 V/60 Hz |
| AMPERAGE | 3.6 A |
| HERTZ | 60.00 |
| WATTS | 550.00 |
| LIGHTING | NA |
| BULB TYPE | NA |
| BULB INCLUDED | NA |
| NUMBER OF LIGHTS | NA |
| BULB WATTS | NA |
| KELVINS | NA |
| GREASE FILTER TYPE | Dishwasher-Safe, Anodized Aluminum Mesh Filter + Perimeter Aspiration |
| DISHWASHERSAFE FILTER | YES |
| FILTER MATERIAL | Aluminum Mesh |
| BLOWER TYPE | Interior Unit |
| CONTROL TYPE | Electronic Rotating Disc |
| SPEED CONTROL | YES |
| NUMBER OF SPEEDS | 3 + booster |
| REMOTE CONTROL | NO |
| POWER SOURCE | Hardwired |
| OUTDOOR USE | NO |
| SMUDGE RESISTANT | NO |
| RECIRCULATION KIT NEEDED | NO |
| CFM REDUCTION | No |
| DIMENSIONS | 76 x 32 x 35 |
| DIMENSIONS inches | 36" x 12 1/2 x 14" |
| ADJUSTABLE HEIGHT | NO |
| Minimum Overall Height - Top to Bottom | 14" |
| Maximum Overall Height - Top to Bottom | 14" |
| Overall Height - Top to Bottom | 14" |
| Overall Width - Side to Side2 | 36" |
| Overall Depth - Front to Back | 12 1/2 |
| Hood Height | 14" |
| Minimum Compatible Ceiling Height | NA |
| Maximum Compatible Ceiling Height | NA |
| Minimum Height Above Cooktop (ELECTRIC) | = 24 |
| Minimum Height Above Cooktop (GAS) | = 30 |
| Maximum Height Above Cooktop | 36" |
| Chimney Width - Side to Side | NA |
| Chimney Depth - Front to Back | NA |
| Chimney Height - Top to Bottom | NA |
| RECIRCULATION KIT NUMBER | KIT02728 |
| CHIMNEY EXTENSION NUMBER | NA |
| TELESCOPIC DUCT COVER | - |
| DUCT TRANSITION | - |
| TRANSITION REDUCER KIT | - |
| BACKDRAFT DAMPER | - |
| NON RETURN VALVE | - |
| UPGRADE FILTER | - |
| CFM REDUCTION KIT | - |
| BACKSPLASH KIT | - |
| INTERNAL BLOWER | - |
| INLINE BLOWER | - |
| EXTERNAL BLOWER | - |
| INLINE BLOWER SHELL KIT | - |
| EXTERNAL BLOWER SHELL KIT | - |
| HEAT LAMPS | - |
| SPACER/LINER | - |
| WALL MOUNT BRACKET | - |
| HIGH CEILING EXTENSION KIT | - |
| REMOTE CONTROL KIT | - |
| cUL listed | YES |
| UL listed | YES |
| AHAM verified | YES |
| TITLE 24 | YES |
| Prop65 Disclosure | YES |
| ENERGY STAR | NO |
| WIFI CAPABLE | NO |
| COMERCIAL USE APPROVED | NO |
| ADA COMPLIANT | NO |
| APP CAPABLE | NO |
| VENTILATION DIRECTION | DOWNDRAFT |
| SMART COMPATIBLE | NO |
| FITLER INDICATOR LIGHT | NO |
| HEAT SENSOR | NO |
| CHAROCAL FILTER | NO |
| CERTIFICADO NOM | NA |
