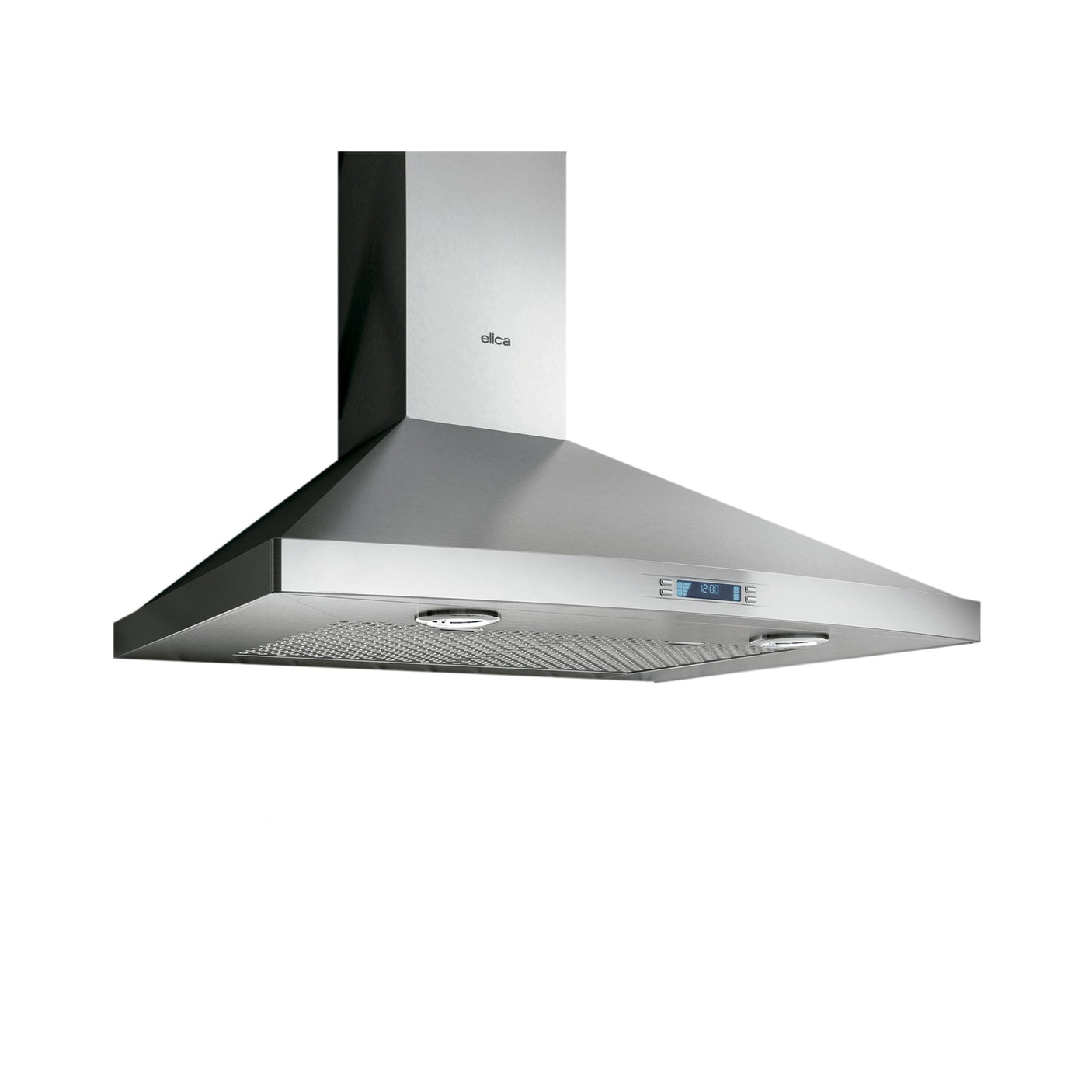

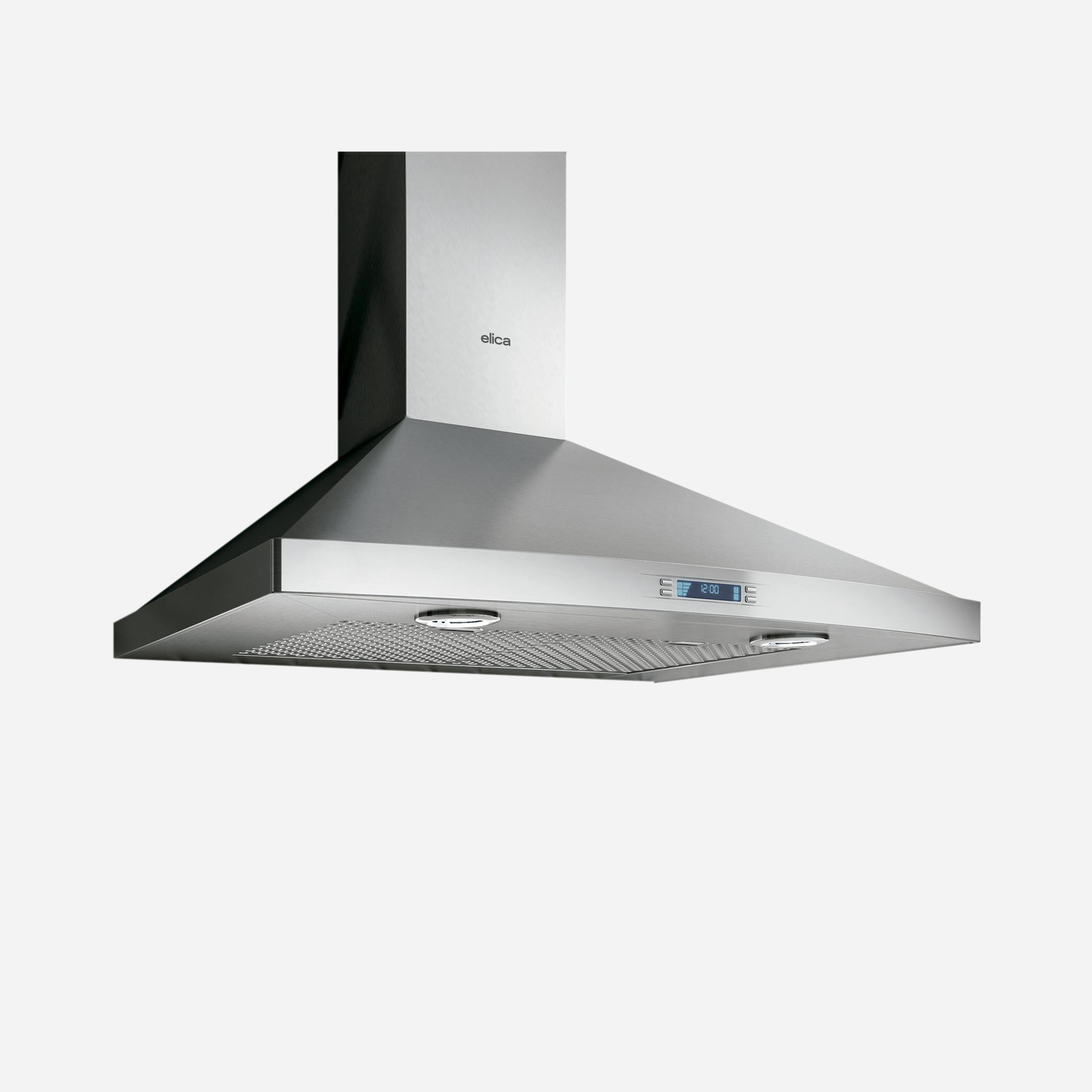

PILATO Wall Mount Range Hood 30" wide - 600CFM
Model EPL630S2
Authorized Dealer
1
of
3
Loading...
Authorized Dealer
PILATO Wall Mount Range Hood 30" wide - 600CFM
Model EPL630S2Quick Specs
Energy
NO
PILATO Wall Mount Range Hood 30" wide - 600CFM is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 07/01/2026
Sale Price
Sale price
$611.61
Regular price
$899.00
Unit price
/
Unavailable
You save 31%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Energy Star Rated
NO
- LED Light
- LED lighting is undoubtedly the smartest solution in terms of energy saving. Expected life time of over 20.000 hours, represents the most remarkable advantage of LED light bulbs.
- Led light
- Dim light
- Top performance
- CFM reduction system
- Hush system
(P)The rounded front, beautifully sloping angles and stainless steel finish of Pilato make a striking visual statement. (/P)(BR)(B)Technical features(/B)(P)Available in 30 or 36 widths, Pilato features include a (B)powerful 600 CFM(/B) blower, LED lighting with (B)2 light intensities(/B), dishwasher-safe stainless steel (B)microhole filters(/B) and (B)multi-function electronic controls(/B) with LCD display that deliver convenience and safety.(BR) Designed for standard ducted installation, Pilato can also be installed as a recirculating system using the Recirculating Kit, available as an accessory.(/P)
| Warranty | 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com |
| SHIPPING WEIGHT (kg) | 19.20 |
| NET WEIGHT (kg) | 15.00 |
| CARTON LENGHT (mm) | 877.00 |
| CARTON HEIGHT (mm) | 675.00 |
| CARTON WIDTH (mm) | 369.00 |
| VOLUMEN (M3) | 0.20 |
| SHIPPING WEIGHT | 42.33 |
| NET WEIGHT | 33.07 |
| CARTON LENGHT | 34.53 |
| CARTON HEIGHT | 26.57 |
| CARTON WIDTH | 14.53 |
| COUNTRY OF MANUFACTURE | MX |
| QTY PACKAGE | 1.00 |
| INTENDED APPROVED USE | Residential use |
| Finish | Stainless Steel |
| Color | inox |
| Type of Ventilation | Convertible |
| HOODS FEATURES | Led light, Dim light, Top performance, CFM reduction system, Hush system |
| WIDTH (IN) | 30" |
| WIDTH (CM) | 76.00 |
| AIRFLOW (M3/H) | 1020.00 |
| CFM (MAX) | 600.00 |
| db (min) | 36.00 |
| db (max) | 57.00 |
| SONES | 1.7 - 7.5 |
| EXHAUST VERSION | Convertible with Kit |
| EXHAUST SIZE | Round 6" |
| DUCT SHAPE | Round |
| EXHAUST LOCATION | Top Only |
| RECTANGULAR DUCTH HEIGHT | NA |
| RECTANGULAR DUCT WIDTH | NA |
| Round duct diameter | 6" |
| ELECTRIC (VOLTS) | 120 V/60 Hz |
| AMPERAGE | 3.9 A |
| HERTZ | 60.00 |
| WATTS | 0.00 |
| LIGHTING | LED 2 x 6.5 ww 4000 KK |
| BULB TYPE | LED |
| BULB INCLUDED | YES |
| NUMBER OF LIGHTS | 2.00 |
| BULB WATTS | 6.50 |
| KELVINS | 4000.00 |
| GREASE FILTER TYPE | Dishwasher-Safe, Stainless Steel Microhole Filter |
| DISHWASHERSAFE FILTER | YES |
| FILTER MATERIAL | Stainless Steel |
| BLOWER TYPE | Interior Unit |
| CONTROL TYPE | Multi-function Electronic with LCD Display |
| SPEED CONTROL | YES |
| NUMBER OF SPEEDS | 3 + booster |
| REMOTE CONTROL | NO |
| POWER SOURCE | Hardwired |
| OUTDOOR USE | NO |
| SMUDGE RESISTANT | NO |
| RECIRCULATION KIT NEEDED | YES |
| CFM REDUCTION | Yes |
| DIMENSIONS | 76 x 55 x 73 |
| DIMENSIONS inches | 30" x 21 1/2" x 28 3/8" |
| ADJUSTABLE HEIGHT | YES |
| Minimum Overall Height - Top to Bottom | 28 3/8" |
| Maximum Overall Height - Top to Bottom | 42 1/16" |
| Overall Height - Top to Bottom | 28 3/8"-42 1/16 |
| Overall Width - Side to Side2 | 30" |
| Overall Depth - Front to Back | 21 1/2" |
| Hood Height | 10" |
| Minimum Compatible Ceiling Height | 7'5" |
| Maximum Compatible Ceiling Height | 9'5" |
| Minimum Height Above Cooktop (ELECTRIC) | = 24 |
| Minimum Height Above Cooktop (GAS) | = 30 |
| Maximum Height Above Cooktop | 36" |
| Chimney Width - Side to Side | 8 1/8" |
| Chimney Depth - Front to Back | 7 1/4" |
| Chimney Height - Top to Bottom | 32 1/9 |
| RECIRCULATION KIT NUMBER | KIT02766 |
| CHIMNEY EXTENSION NUMBER | KIT02762 |
| TELESCOPIC DUCT COVER | - |
| DUCT TRANSITION | - |
| TRANSITION REDUCER KIT | - |
| BACKDRAFT DAMPER | - |
| NON RETURN VALVE | - |
| UPGRADE FILTER | - |
| CFM REDUCTION KIT | - |
| BACKSPLASH KIT | - |
| INTERNAL BLOWER | - |
| INLINE BLOWER | - |
| EXTERNAL BLOWER | - |
| INLINE BLOWER SHELL KIT | - |
| EXTERNAL BLOWER SHELL KIT | - |
| HEAT LAMPS | - |
| SPACER/LINER | - |
| WALL MOUNT BRACKET | - |
| HIGH CEILING EXTENSION KIT | - |
| REMOTE CONTROL KIT | - |
| cUL listed | YES |
| UL listed | YES |
| AHAM verified | YES |
| TITLE 24 | YES |
| Prop65 Disclosure | YES |
| ENERGY STAR | NO |
| WIFI CAPABLE | NO |
| COMERCIAL USE APPROVED | NO |
| ADA COMPLIANT | NO |
| APP CAPABLE | NO |
| VENTILATION DIRECTION | HORIZONTAL |
| SMART COMPATIBLE | NO |
| FITLER INDICATOR LIGHT | NO |
| HEAT SENSOR | NO |
| CHAROCAL FILTER | YES |
| CERTIFICADO NOM | NA |
