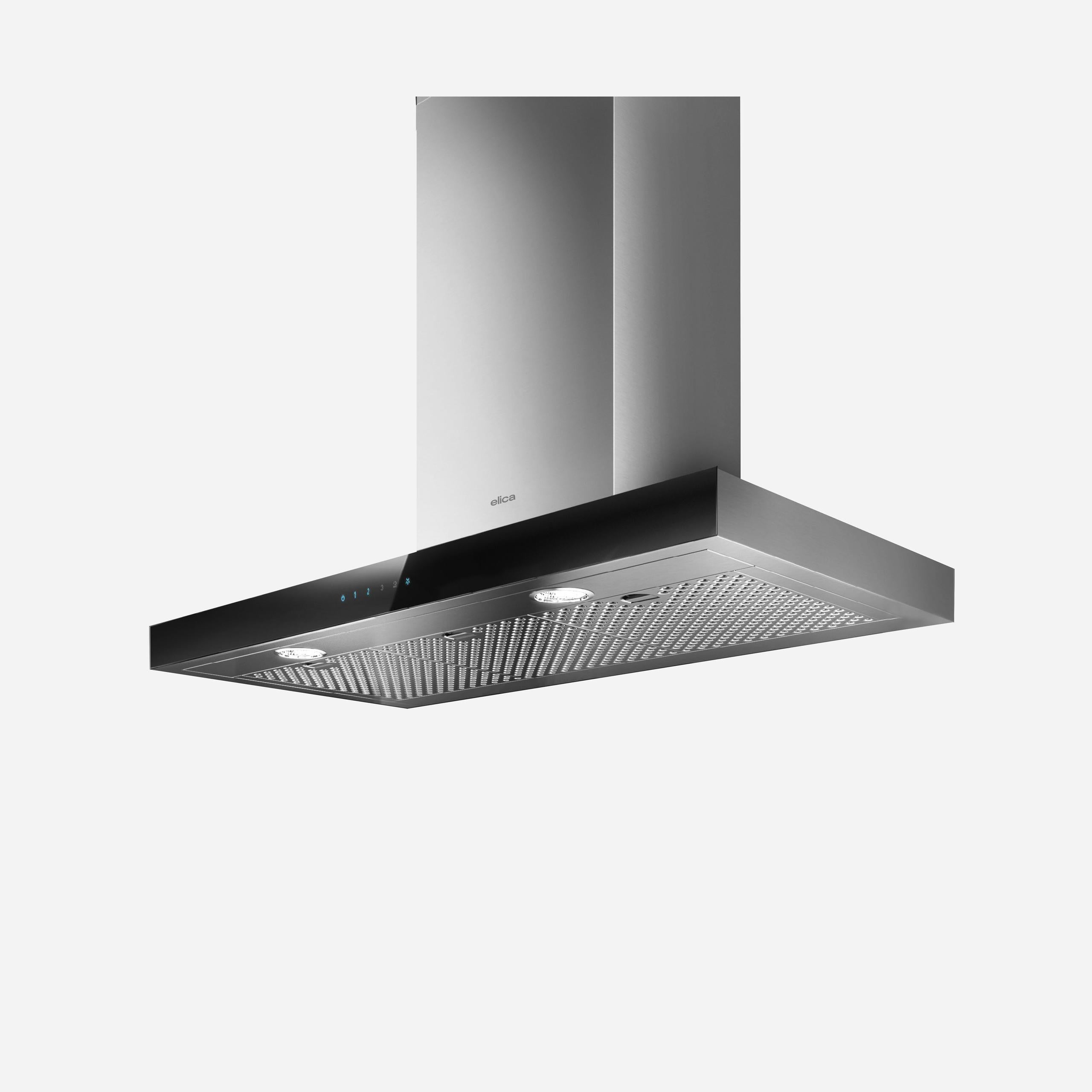

MEZZANO Wall Mount Range Hood 30" wide - 600CFM
Model EMZ630S3
Authorized Dealer
1
of
3
Loading...
Authorized Dealer
MEZZANO Wall Mount Range Hood 30" wide - 600CFM
Model EMZ630S3Quick Specs
Width
30
Energy
NO
MEZZANO Wall Mount Range Hood 30" wide - 600CFM is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 07/01/2026
Sale Price
Sale price
$937.88
Regular price
$1,419.00
Unit price
/
Unavailable
You save 33%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
30
Energy Star Rated
NO
- CFM Reduction
- CFM Reduction System (CRS), is an exclusive feature to Elica hoods, which enables the user to reduce directly in the glass touch control the maximum blower CFM, to meet local code requirements.
- Hush System
- An exclusive sound deadening technology that effectively reduces sound levels up to 35%, compared to typical range hoods.
- LED Light
- LED lighting is undoubtedly the smartest solution in terms of energy saving. Expected life time of over 20.000 hours, represents the most remarkable advantage of LED light bulbs.
- Touch Control
- Enjoy the modern design and convenience of multi-function electronic touch controls, which are discreetly hidden behind sleek black glass, and will illuminate a soft blue when activated.
- Top Performance
- Excellent performance for models equipped with this plus. High fume capturing capacity with an average aspiration range of 600 CFM's. with low noise levels, 1.2 - 1.7 sones at working speed.
- Led light
- Dim light
- Top performance
- CFM reduction system
- Touch controls
- Hush system
With a minimalist design and strong stainless steel construction, Mezzano complements avant-garde appliances where clear, architectural lines take precedence. Mezzano features a powerful 600 CFM blower, dimmable LED lighting, stainless steel microhole filters, and high-tech multi-function touch controls for convenience and safety. Designed for standard ducted installation, Mezzano can also be installed using the optional Recirculating Kit.
| Warranty | 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com |
| SHIPPING WEIGHT (kg) | 14.30 |
| NET WEIGHT (kg) | 10.50 |
| CARTON LENGHT (mm) | 870.00 |
| CARTON HEIGHT (mm) | 673.00 |
| CARTON WIDTH (mm) | 458.00 |
| VOLUMEN (M3) | 0.30 |
| SHIPPING WEIGHT | 31.53 |
| NET WEIGHT | 23.15 |
| CARTON LENGHT | 34.25 |
| CARTON HEIGHT | 26.50 |
| CARTON WIDTH | 18.03 |
| COUNTRY OF MANUFACTURE | MX |
| QTY PACKAGE | 1.00 |
| INTENDED APPROVED USE | Residential use |
| Finish | Stainless Steel + Black Glass |
| Color | inox + glass |
| Type of Ventilation | Convertible |
| HOODS FEATURES | Led light, Dim light, Top performance, CFM reduction system, Touch controls, Hush system |
| WIDTH (IN) | 30" |
| WIDTH (CM) | 76.00 |
| AIRFLOW (M3/H) | 1020.00 |
| CFM (MAX) | 600.00 |
| db (min) | 36.00 |
| db (max) | 55.00 |
| SONES | 1.7 - 6.8 |
| EXHAUST VERSION | Convertible with Kit |
| EXHAUST SIZE | Round 6" |
| DUCT SHAPE | Round |
| EXHAUST LOCATION | Top Only |
| RECTANGULAR DUCTH HEIGHT | NA |
| RECTANGULAR DUCT WIDTH | NA |
| Round duct diameter | 6" |
| ELECTRIC (VOLTS) | 120 V/60 Hz |
| AMPERAGE | 3.8 A |
| HERTZ | 60.00 |
| WATTS | 455.00 |
| LIGHTING | Premium Dimmable LED 2 x 2.1 ww 4000 KK |
| BULB TYPE | LED |
| BULB INCLUDED | YES |
| NUMBER OF LIGHTS | 2.00 |
| BULB WATTS | 2.10 |
| KELVINS | 4000.00 |
| GREASE FILTER TYPE | Dishwasher-Safe, Stainless Steel Microhole Filter |
| DISHWASHERSAFE FILTER | YES |
| FILTER MATERIAL | Stainless Steel |
| BLOWER TYPE | Interior Unit |
| CONTROL TYPE | Multi-function Electronic with black glass touch display |
| SPEED CONTROL | YES |
| NUMBER OF SPEEDS | 3 + booster |
| REMOTE CONTROL | NO |
| POWER SOURCE | Hardwired |
| OUTDOOR USE | NO |
| SMUDGE RESISTANT | NO |
| RECIRCULATION KIT NEEDED | YES |
| CFM REDUCTION | Yes |
| DIMENSIONS | 76 x 50 x 77 |
| DIMENSIONS inches | 30" x 19 11/16 x 29 11/16 |
| ADJUSTABLE HEIGHT | YES |
| Minimum Overall Height - Top to Bottom | 29 11/16" |
| Maximum Overall Height - Top to Bottom | 54 1/6" |
| Overall Height - Top to Bottom | 29 11/16 |
| Overall Width - Side to Side2 | 30" |
| Overall Depth - Front to Back | 9 11/16 |
| Hood Height | 2 6/16" |
| Minimum Compatible Ceiling Height | 7'6" |
| Maximum Compatible Ceiling Height | 10'6" |
| Minimum Height Above Cooktop (ELECTRIC) | = 24 |
| Minimum Height Above Cooktop (GAS) | = 30 |
| Maximum Height Above Cooktop | 36" |
| Chimney Width - Side to Side | 13" |
| Chimney Depth - Front to Back | 10 3/4" |
| Chimney Height - Top to Bottom | 52 11/16 |
| RECIRCULATION KIT NUMBER | KIT0184663 |
| CHIMNEY EXTENSION NUMBER | KIT02785 |
| TELESCOPIC DUCT COVER | - |
| DUCT TRANSITION | - |
| TRANSITION REDUCER KIT | - |
| BACKDRAFT DAMPER | - |
| NON RETURN VALVE | - |
| UPGRADE FILTER | - |
| CFM REDUCTION KIT | - |
| BACKSPLASH KIT | - |
| INTERNAL BLOWER | - |
| INLINE BLOWER | - |
| EXTERNAL BLOWER | - |
| INLINE BLOWER SHELL KIT | - |
| EXTERNAL BLOWER SHELL KIT | - |
| HEAT LAMPS | - |
| SPACER/LINER | - |
| WALL MOUNT BRACKET | - |
| HIGH CEILING EXTENSION KIT | - |
| REMOTE CONTROL KIT | - |
| cUL listed | YES |
| UL listed | YES |
| AHAM verified | YES |
| TITLE 24 | YES |
| Prop65 Disclosure | YES |
| ENERGY STAR | NO |
| WIFI CAPABLE | NO |
| COMERCIAL USE APPROVED | NO |
| ADA COMPLIANT | NO |
| APP CAPABLE | NO |
| VENTILATION DIRECTION | HORIZONTAL |
| SMART COMPATIBLE | NO |
| FITLER INDICATOR LIGHT | NO |
| HEAT SENSOR | NO |
| CHAROCAL FILTER | YES |
| CERTIFICADO NOM | NA |
