Features

Led light
Dim light
Top performance
CFM reduction system

Model: EMD536S3

MODENA Undercabinet Range Hood 36" wide - 600CFM

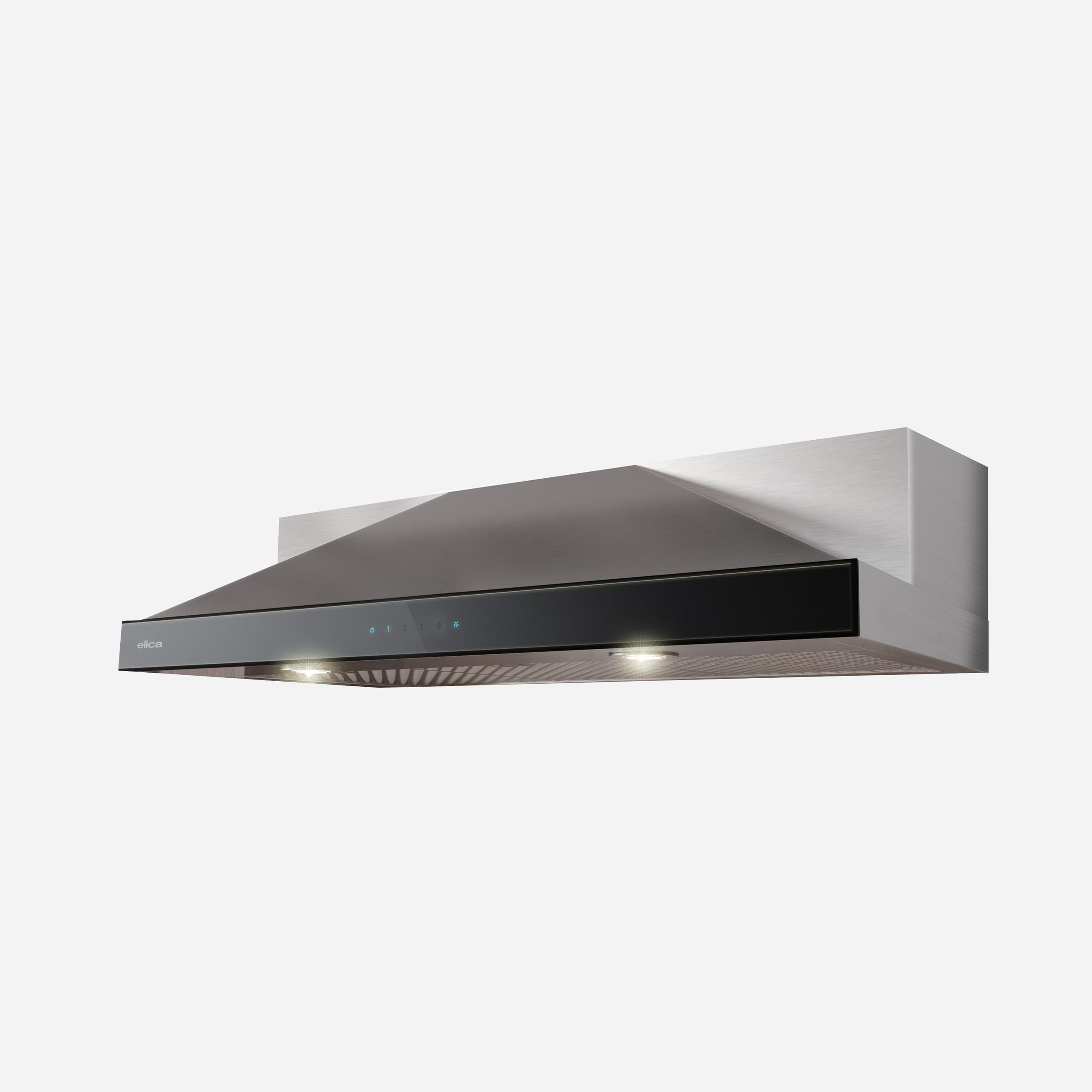

Name: MODENA Undercabinet Range Hood 36" wide - 600CFM
Brand: ELICA
SKU: EMD536S3
Price: 863.0 USD
Availability: InStock

Actual Price$863 Regular Price$1,049

$853.00 ~~$1,049.00~~

MODENA Undercabinet Range Hood 36" wide - 600CFM is backordered and will ship as soon as it is back in stock.

AUTHORIZED DEALER

Features

Led light
Dim light
Top performance
CFM reduction system

Quick Specifications

Type : HOODS
Style : DUCTLESS HOOD
Width : 36
Height : 9
Depth : 20
Energy Star Rated : NO

Documents

Delivery

Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.

Warranty

Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.

Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.

Dim Light

The light in the kitchen, as in any room, is a key design feature for improving the home living experience. Achieving the right intensity becomes fundamental in creating the desired atmosphere. Which is why Elica has designed the Dim light function which allows you to adjust the intensity of your extraction hood light with a simple control. Maximum light for the best visibility on the worktop or dimmed when relaxing.

CFM Reduction

CFM Reduction System (CRS), is an exclusive feature to Elica hoods, which enables the user to reduce directly in the glass touch control the maximum blower CFM, to meet local code requirements.

Hush System

An exclusive sound deadening technology that effectively reduces sound levels up to 35%, compared to typical range hoods.

LED Light

LED lighting is undoubtedly the smartest solution in terms of energy saving. Expected life time of over 20.000 hours, represents the most remarkable advantage of LED light bulbs.

Touch Control

Enjoy the modern design and convenience of multi-function electronic touch controls, which are discreetly hidden behind sleek black glass, and will illuminate a soft blue when activated.

Led light
Dim light
Top performance
CFM reduction system
Touch controls
Hush system

Warranty	3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg)	22.80
NET WEIGHT (kg)	17.20
CARTON LENGHT (mm)	999.00
CARTON HEIGHT (mm)	618.00
CARTON WIDTH (mm)	349.00
VOLUMEN (M3)	0.21
SHIPPING WEIGHT	50.27
NET WEIGHT	37.92
CARTON LENGHT	39.33
CARTON HEIGHT	24.33
CARTON WIDTH	13.74
COUNTRY OF MANUFACTURE	MX
QTY PACKAGE	1.00
INTENDED APPROVED USE	Residential use
Finish	Stainless Steel + Black Glass
Color	inox + glass
Type of Ventilation	Convertible
HOODS FEATURES	Led light, Dim light, Top performance, CFM reduction system, Touch controls, Hush system
WIDTH (IN)	36"
WIDTH (CM)	90.00
AIRFLOW (M3/H)	1020.00
CFM (MAX)	600.00
db (min)	32.00
db (max)	55.00
SONES	1.3 - 6.8
EXHAUST VERSION	Convertible with Kit
EXHAUST SIZE	Rectangular 10 x3 1/4" or round 6" (sold separately)
DUCT SHAPE	Rectangular or round (sold separately)
EXHAUST LOCATION	Top or Rear
RECTANGULAR DUCTH HEIGHT	10"
RECTANGULAR DUCT WIDTH	3.25
Round duct diameter	6"
ELECTRIC (VOLTS)	120 V/60 Hz
AMPERAGE	3.8 A
HERTZ	60.00
WATTS	445.00
LIGHTING	Premium Dimmable LED 2 x 2.1 ww 4000 KK
BULB TYPE	LED
BULB INCLUDED	YES
NUMBER OF LIGHTS	2.00
BULB WATTS	2.10
KELVINS	4000.00
GREASE FILTER TYPE	Dishwasher-Safe, Stainless Steel Microhole Filter
DISHWASHERSAFE FILTER	YES
FILTER MATERIAL	Stainless Steel
BLOWER TYPE	Interior Unit
CONTROL TYPE	Multi-function Electronic with black glass touch display
SPEED CONTROL	YES
NUMBER OF SPEEDS	3 + booster
REMOTE CONTROL	NO
POWER SOURCE	Hardwired
OUTDOOR USE	NO
SMUDGE RESISTANT	NO
RECIRCULATION KIT NEEDED	YES
CFM REDUCTION	Yes
DIMENSIONS	91 x 50 x 25
DIMENSIONS inches	36" x 19 5/8" x 9 3/4"
ADJUSTABLE HEIGHT	NO
Minimum Overall Height - Top to Bottom	9 3/4"
Maximum Overall Height - Top to Bottom	9 3/4"
Overall Height - Top to Bottom	9 3/4"
Overall Width - Side to Side2	36"
Overall Depth - Front to Back	19 5/8"
Hood Height	9 3/4"
Minimum Compatible Ceiling Height	NA
Maximum Compatible Ceiling Height	NA
Minimum Height Above Cooktop	30"
Maximum Height Above Cooktop	36"
Chimney Width - Side to Side	NA
Chimney Depth - Front to Back	NA
Chimney Height - Top to Bottom	NA
STYLE	Modern
RECIRCULATION KIT NUMBER	KIT02667
CHIMNEY EXTENSION NUMBER	NA
TELESCOPIC DUCT COVER	-
DUCT TRANSITION	-
TRANSITION REDUCER KIT	-
BACKDRAFT DAMPER	-
NON RETURN VALVE	-
UPGRADE FILTER	-
CFM REDUCTION KIT	-
BACKSPLASH KIT	-
INTERNAL BLOWER	-
INLINE BLOWER	-
EXTERNAL BLOWER	-
INLINE BLOWER SHELL KIT	-
EXTERNAL BLOWER SHELL KIT	-
HEAT LAMPS	-
SPACER/LINER	-
WALL MOUNT BRACKET	-
HIGH CEILING EXTENSION KIT	-
REMOTE CONTROL KIT	-
cUL listed	YES
UL listed	YES
AHAM verified	YES
TITLE 24	YES
Prop65 Disclosure	YES
ENERGY STAR	NO
WIFI CAPABLE	NO
COMERCIAL USE APPROVED	NO
ADA COMPLIANT	NO
APP CAPABLE	NO
VENTILATION DIRECTION	HORIZONTAL
SMART COMPATIBLE	NO
FITLER INDICATOR LIGHT	NO
HEAT SENSOR	NO
CHAROCAL FILTER	YES
CERTIFICADO NOM	No
