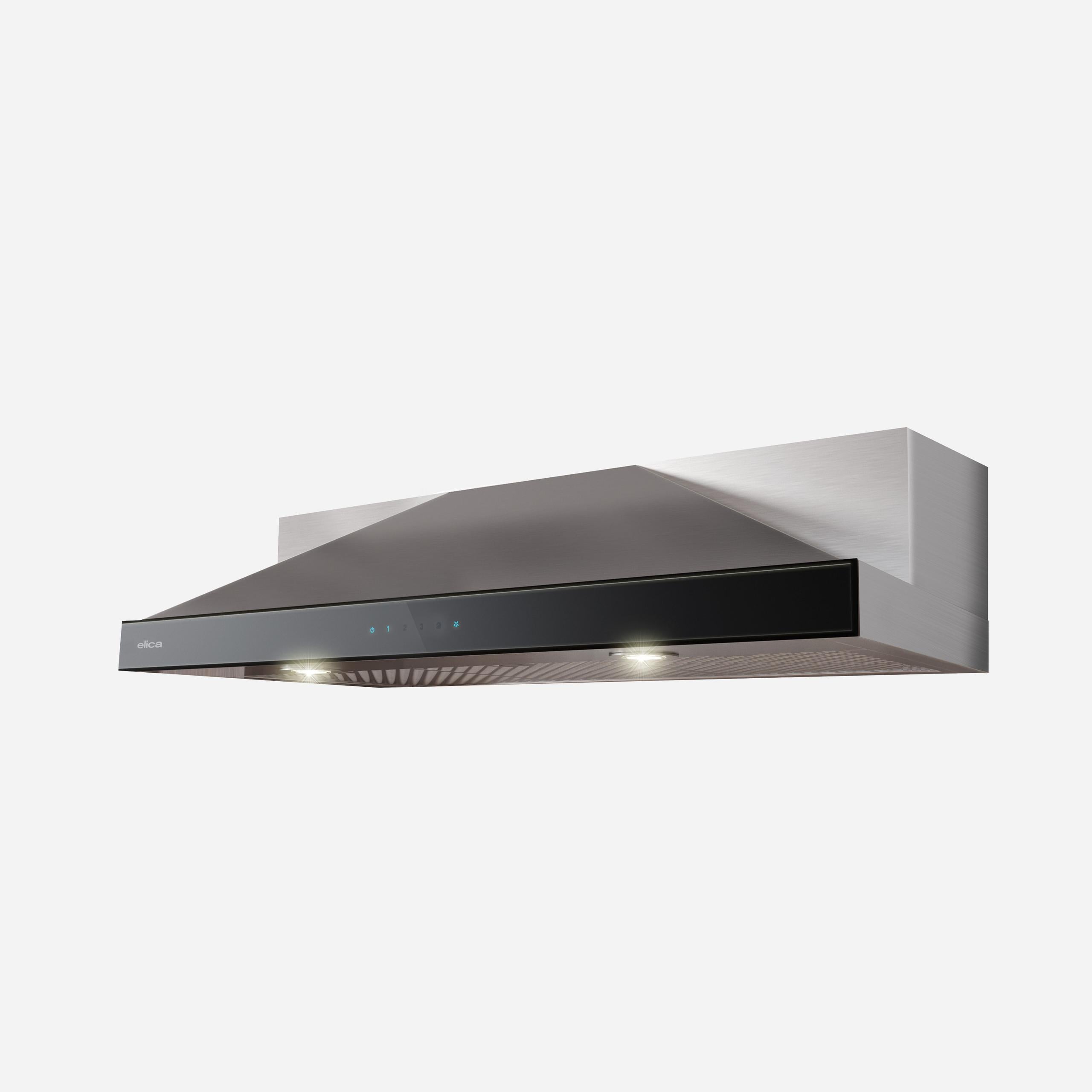

MODENA Undercabinet Range Hood 30" wide - 600CFM
Model EMD530S3
Authorized Dealer
1
of
3
Loading...
Authorized Dealer
MODENA Undercabinet Range Hood 30" wide - 600CFM
Model EMD530S3Quick Specs
Width
30
Depth
20
Height
9
ADA
NO
Wifi
NO
Energy
NO
MODENA Undercabinet Range Hood 30" wide - 600CFM is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 07/06/2026
Sale Price
Sale price
$679.62
Regular price
$999.00
Unit price
/
Unavailable
You save 31%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
30
Depth
20
Height
9
ADA
NO
Wifi Connected
NO
Energy Star Rated
NO
- Dim Light
- The light in the kitchen, as in any room, is a key design feature for improving the home living experience. Achieving the right intensity becomes fundamental in creating the desired atmosphere. Which is why Elica has designed the Dim light function which allows you to adjust the intensity of your extraction hood light with a simple control. Maximum light for the best visibility on the worktop or dimmed when relaxing.
- CFM Reduction
- CFM Reduction System (CRS), is an exclusive feature to Elica hoods, which enables the user to reduce directly in the glass touch control the maximum blower CFM, to meet local code requirements.
- Hush System
- An exclusive sound deadening technology that effectively reduces sound levels up to 35%, compared to typical range hoods.
- LED Light
- LED lighting is undoubtedly the smartest solution in terms of energy saving. Expected life time of over 20.000 hours, represents the most remarkable advantage of LED light bulbs.
- Touch Control
- Enjoy the modern design and convenience of multi-function electronic touch controls, which are discreetly hidden behind sleek black glass, and will illuminate a soft blue when activated.
- Led light
- Dim light
- Top performance
- CFM reduction system
- Touch controls
- Hush system

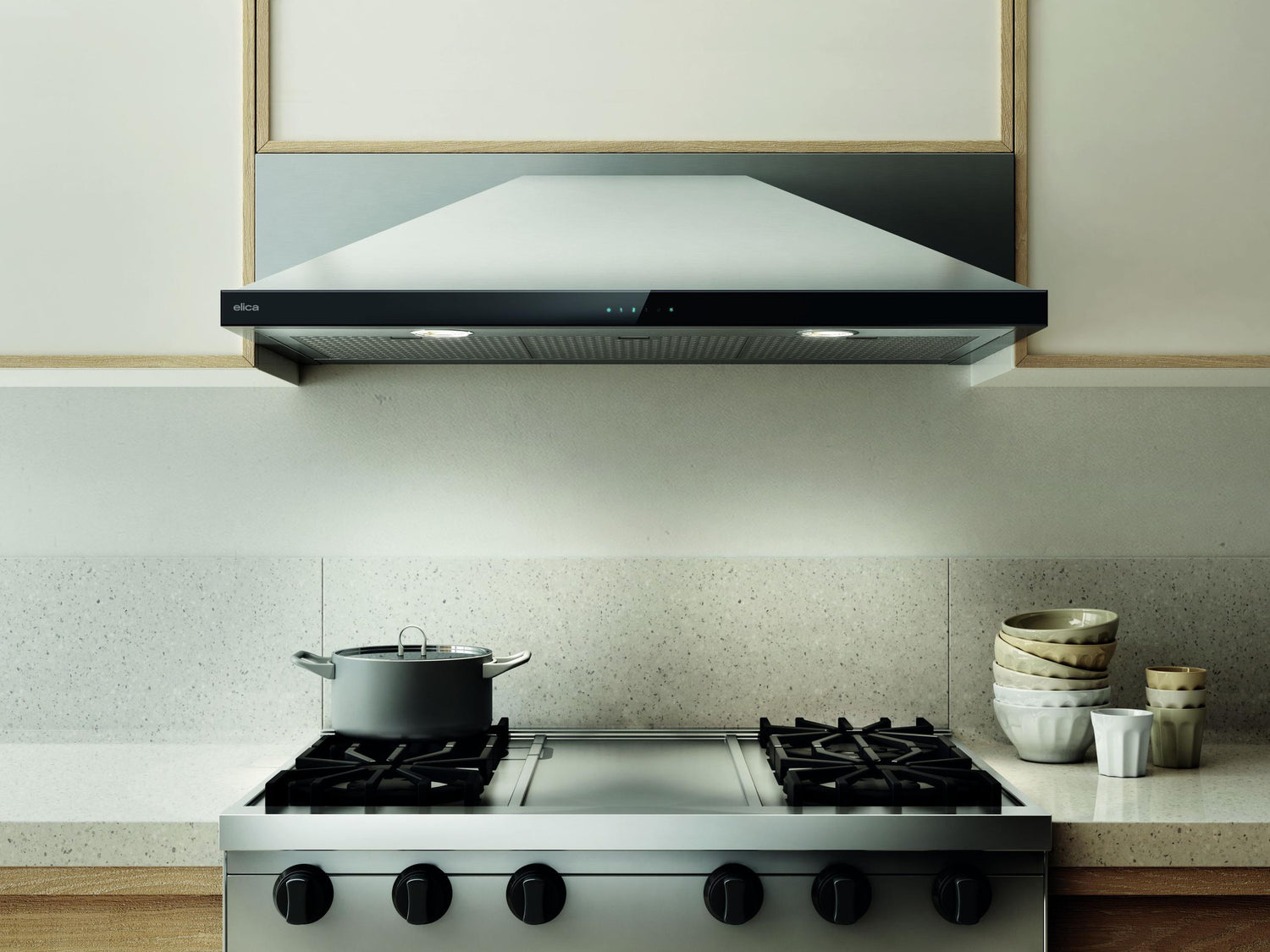

Modena off ers a classic designer chimney appearance for under-cabinet installations, with a striking 9" high pyramid shape. Modena also provides high-end features not commonly found in under-cabinet hoods, including a 600 CFM blower, dimmable LED lighting, stainless steel micro hole filters, and easy-to-use glass capacitive touch controls for convenience and safety. Available in 30" and 36" widths, and designed for standard ducted installation, Modena can also be installed as a recirculating system using the optional kit. Its design versatility suits almost any kitchen.
| Warranty | 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com |
| SHIPPING WEIGHT (kg) | 19.90 |
| NET WEIGHT (kg) | 15.00 |
| CARTON LENGHT (mm) | 849.00 |
| CARTON HEIGHT (mm) | 618.00 |
| CARTON WIDTH (mm) | 349.00 |
| VOLUMEN (M3) | 0.20 |
| SHIPPING WEIGHT | 43.87 |
| NET WEIGHT | 33.07 |
| CARTON LENGHT | 33.43 |
| CARTON HEIGHT | 24.33 |
| CARTON WIDTH | 13.74 |
| COUNTRY OF MANUFACTURE | MX |
| QTY PACKAGE | 1.00 |
| INTENDED APPROVED USE | Residential use |
| Finish | Stainless Steel + Black Glass |
| Color | inox + glass |
| Type of Ventilation | Convertible |
| HOODS FEATURES | Led light, Dim light, Top performance, CFM reduction system, Touch controls, Hush system |
| WIDTH (IN) | 30" |
| WIDTH (CM) | 76.00 |
| AIRFLOW (M3/H) | 1020.00 |
| CFM (MAX) | 600.00 |
| db (min) | 32.00 |
| db (max) | 55.00 |
| SONES | 1.3 - 6.8 |
| EXHAUST VERSION | Convertible with Kit |
| EXHAUST SIZE | Rectangular 10 x3 1/4" or round 6" (sold separately) |
| DUCT SHAPE | Rectangular or round (sold separately) |
| EXHAUST LOCATION | Top or Rear |
| RECTANGULAR DUCTH HEIGHT | 10" |
| RECTANGULAR DUCT WIDTH | 3.25 |
| Round duct diameter | 6" |
| ELECTRIC (VOLTS) | 120 V/60 Hz |
| AMPERAGE | 3.8 A |
| HERTZ | 60.00 |
| WATTS | 445.00 |
| LIGHTING | Premium Dimmable LED 2 x 2.1 ww 4000 KK |
| BULB TYPE | LED |
| BULB INCLUDED | YES |
| NUMBER OF LIGHTS | 2.00 |
| BULB WATTS | 2.10 |
| KELVINS | 4000.00 |
| GREASE FILTER TYPE | Dishwasher-Safe, Stainless Steel Microhole Filter |
| DISHWASHERSAFE FILTER | YES |
| FILTER MATERIAL | Stainless Steel |
| BLOWER TYPE | Interior Unit |
| CONTROL TYPE | Multi-function Electronic with black glass touch display |
| SPEED CONTROL | YES |
| NUMBER OF SPEEDS | 3 + booster |
| REMOTE CONTROL | NO |
| POWER SOURCE | Hardwired |
| OUTDOOR USE | NO |
| SMUDGE RESISTANT | NO |
| RECIRCULATION KIT NEEDED | YES |
| CFM REDUCTION | Yes |
| DIMENSIONS | 76 x 50 x 25 |
| DIMENSIONS inches | 30" x 19 5/8" x 9 3/4" |
| ADJUSTABLE HEIGHT | NO |
| Minimum Overall Height - Top to Bottom | 9 3/4" |
| Maximum Overall Height - Top to Bottom | 9 3/4" |
| Overall Height - Top to Bottom | 9 3/4" |
| Overall Width - Side to Side2 | 30" |
| Overall Depth - Front to Back | 19 5/8" |
| Hood Height | 9 3/4" |
| Minimum Compatible Ceiling Height | NA |
| Maximum Compatible Ceiling Height | NA |
| Minimum Height Above Cooktop (ELECTRIC) | = 24 |
| Minimum Height Above Cooktop (GAS) | = 30 |
| Maximum Height Above Cooktop | 36" |
| Chimney Width - Side to Side | NA |
| Chimney Depth - Front to Back | NA |
| Chimney Height - Top to Bottom | NA |
| RECIRCULATION KIT NUMBER | KIT02667 |
| CHIMNEY EXTENSION NUMBER | NA |
| TELESCOPIC DUCT COVER | - |
| DUCT TRANSITION | - |
| TRANSITION REDUCER KIT | - |
| BACKDRAFT DAMPER | - |
| NON RETURN VALVE | - |
| UPGRADE FILTER | - |
| CFM REDUCTION KIT | - |
| BACKSPLASH KIT | - |
| INTERNAL BLOWER | - |
| INLINE BLOWER | - |
| EXTERNAL BLOWER | - |
| INLINE BLOWER SHELL KIT | - |
| EXTERNAL BLOWER SHELL KIT | - |
| HEAT LAMPS | - |
| SPACER/LINER | - |
| WALL MOUNT BRACKET | - |
| HIGH CEILING EXTENSION KIT | - |
| REMOTE CONTROL KIT | - |
| cUL listed | YES |
| UL listed | YES |
| AHAM verified | YES |
| TITLE 24 | YES |
| Prop65 Disclosure | YES |
| ENERGY STAR | NO |
| WIFI CAPABLE | NO |
| COMERCIAL USE APPROVED | NO |
| ADA COMPLIANT | NO |
| APP CAPABLE | NO |
| VENTILATION DIRECTION | HORIZONTAL |
| SMART COMPATIBLE | NO |
| FITLER INDICATOR LIGHT | NO |
| HEAT SENSOR | NO |
| CHAROCAL FILTER | YES |
| CERTIFICADO NOM | NA |
- Led light
- Dim light
- Top performance
- CFM reduction system
- Touch controls
- Hush system
 | |
|---|---|
