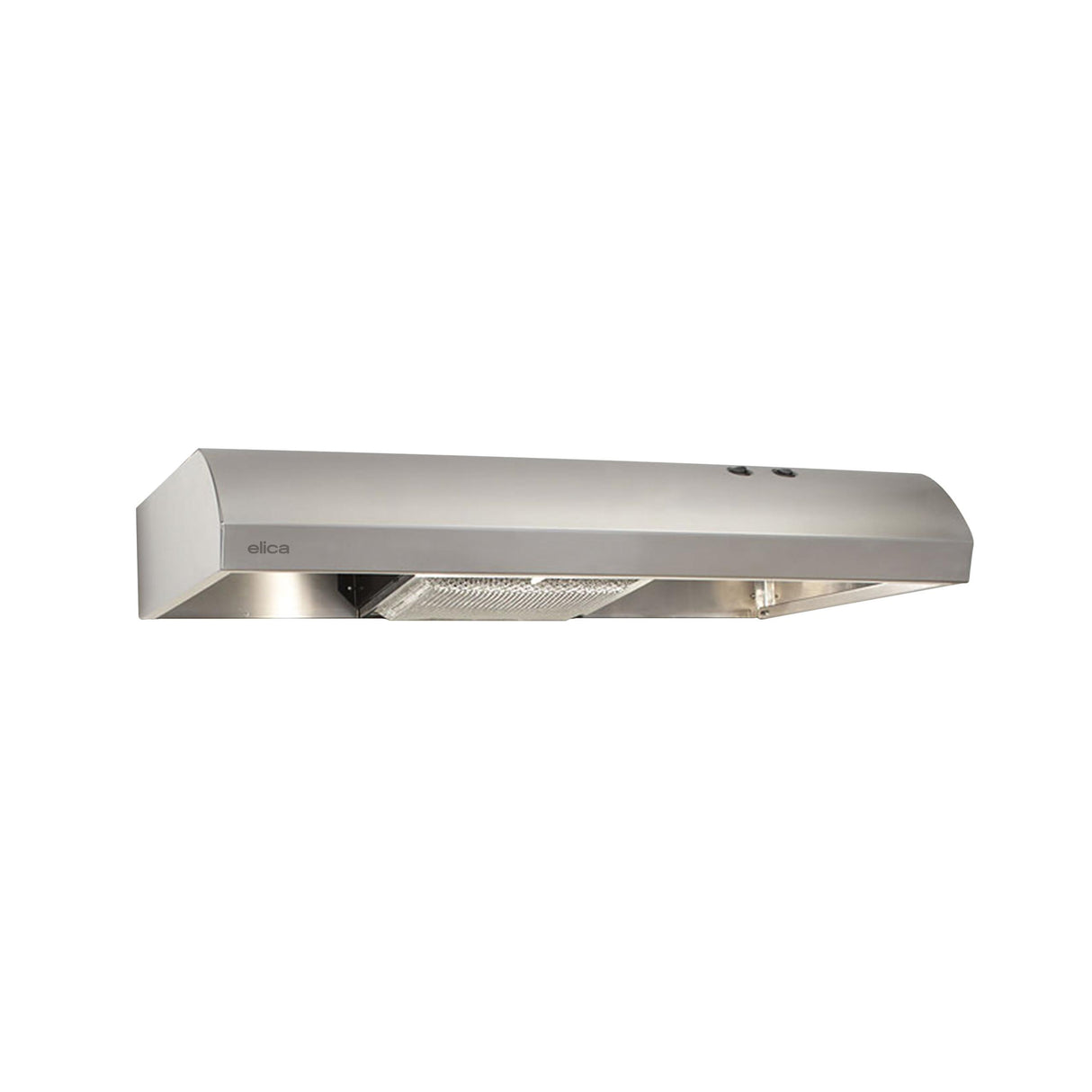

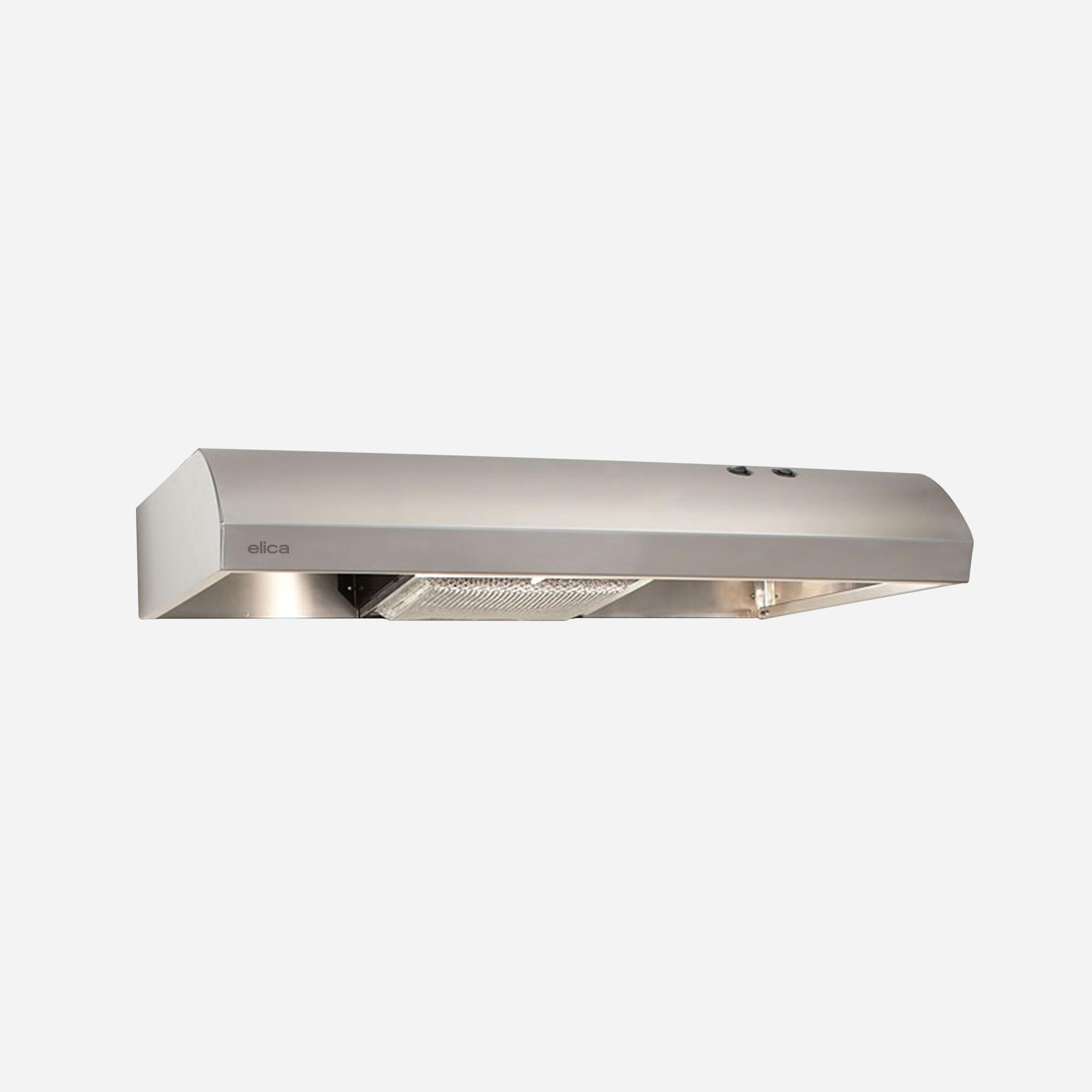

FUSARO Undercabinet Range Hood 30" wide - 190CFM
Quick Specifications
Quick Specifications
- Type : HOODS
- Style : DUCTED HOOD
- Energy Star Rated : NO
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.
- 3x layer mesh
| Warranty | 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com |
| SHIPPING WEIGHT (kg) | 5.80 |
| NET WEIGHT (kg) | 4.90 |
| CARTON LENGHT (mm) | 173.00 |
| CARTON HEIGHT (mm) | 536.00 |
| CARTON WIDTH (mm) | 803.00 |
| VOLUMEN (M3) | 0.10 |
| SHIPPING WEIGHT | 12.79 |
| NET WEIGHT | 10.80 |
| CARTON LENGHT | 6.81 |
| CARTON HEIGHT | 21.10 |
| CARTON WIDTH | 31.61 |
| COUNTRY OF MANUFACTURE | MX |
| QTY PACKAGE | 1.00 |
| INTENDED APPROVED USE | Residential use |
| Finish | Stainless Steel |
| Color | inox |
| Type of Ventilation | Vented |
| HOODS FEATURES | 3x layer mesh |
| WIDTH (IN) | 30" |
| WIDTH (CM) | 76.00 |
| AIRFLOW (M3/H) | 322.00 |
| CFM (MAX) | 190.00 |
| db (min) | 11.00 |
| db (max) | 48.00 |
| SONES | 0.3 - 4.0 |
| EXHAUST VERSION | Convertible |
| EXHAUST SIZE | Rectangular 10 x 3 1/4" or round 7" (sold separately) |
| DUCT SHAPE | Rectangular or round (sold separately) |
| EXHAUST LOCATION | Top or Rear |
| RECTANGULAR DUCTH HEIGHT | 10" |
| RECTANGULAR DUCT WIDTH | 3.25 |
| Round duct diameter | 7" |
| ELECTRIC (VOLTS) | 120 V/60 Hz |
| AMPERAGE | 1.1 A |
| HERTZ | 60.00 |
| WATTS | 110.00 |
| LIGHTING | Incandescent lamp 1 x 1.75 ww |
| BULB TYPE | Incandescent lamp |
| BULB INCLUDED | NO |
| NUMBER OF LIGHTS | 1.00 |
| BULB WATTS | 1.80 |
| KELVINS | NA |
| GREASE FILTER TYPE | Dishwasher-Safe, Anodized Aluminum Mesh Filter |
| DISHWASHERSAFE FILTER | YES |
| FILTER MATERIAL | Aluminum Mesh |
| BLOWER TYPE | Interior Unit |
| CONTROL TYPE | Rocker Switches |
| SPEED CONTROL | YES |
| NUMBER OF SPEEDS | 2.00 |
| REMOTE CONTROL | NO |
| POWER SOURCE | Hardwired |
| OUTDOOR USE | NO |
| SMUDGE RESISTANT | NO |
| RECIRCULATION KIT NEEDED | NO |
| CFM REDUCTION | NA |
| DIMENSIONS | 76 x 47 x 12.5 |
| DIMENSIONSinches | 30" x 18 5/8" x 5" |
| ADJUSTABLE HEIGHT | NO |
| Minimum Overall Height - Top to Bottom | 4 15/16 |
| Maximum Overall Height - Top to Bottom | 4 15/16 |
| Overall Height - Top to Bottom | 4 15/16 |
| Overall Width - Side to Side2 | 30" |
| Overall Depth - Front to Back | 18 5/8" |
| Hood Height | 4 15/16 |
| Minimum Compatible Ceiling Height | NA |
| Maximum Compatible Ceiling Height | NA |
| Minimum Height Above Cooktop (ELECTRIC) | = 24 |
| Minimum Height Above Cooktop (GAS) | = 30 |
| Maximum Height Above Cooktop | 36" |
| Chimney Width - Side to Side | NA |
| Chimney Depth - Front to Back | NA |
| Chimney Height - Top to Bottom | NA |
| RECIRCULATION KIT NUMBER | NA |
| CHIMNEY EXTENSION NUMBER | NA |
| TELESCOPIC DUCT COVER | - |
| DUCT TRANSITION | KIT02722 |
| TRANSITION REDUCER KIT | - |
| BACKDRAFT DAMPER | KIT02723 |
| NON RETURN VALVE | - |
| UPGRADE FILTER | - |
| CFM REDUCTION KIT | - |
| BACKSPLASH KIT | - |
| INTERNAL BLOWER | - |
| INLINE BLOWER | - |
| EXTERNAL BLOWER | - |
| INLINE BLOWER SHELL KIT | - |
| EXTERNAL BLOWER SHELL KIT | - |
| HEAT LAMPS | - |
| SPACER/LINER | - |
| WALL MOUNT BRACKET | - |
| HIGH CEILING EXTENSION KIT | - |
| REMOTE CONTROL KIT | - |
| cUL listed | YES |
| UL listed | YES |
| AHAM verified | YES |
| TITLE 24 | YES |
| Prop65Disclosure | YES |
| ENERGY STAR | NO |
| WIFI CAPABLE | NO |
| COMERCIAL USE APPROVED | NO |
| ADA COMPLIANT | NO |
| APP CAPABLE | NO |
| VENTILATION DIRECTION | HORIZONTAL |
| SMART COMPATIBLE | NO |
| FITLER INDICATOR LIGHT | NO |
| HEAT SENSOR | NO |
| CHAROCAL FILTER | YES |
| CERTIFICADO NOM | NA |
