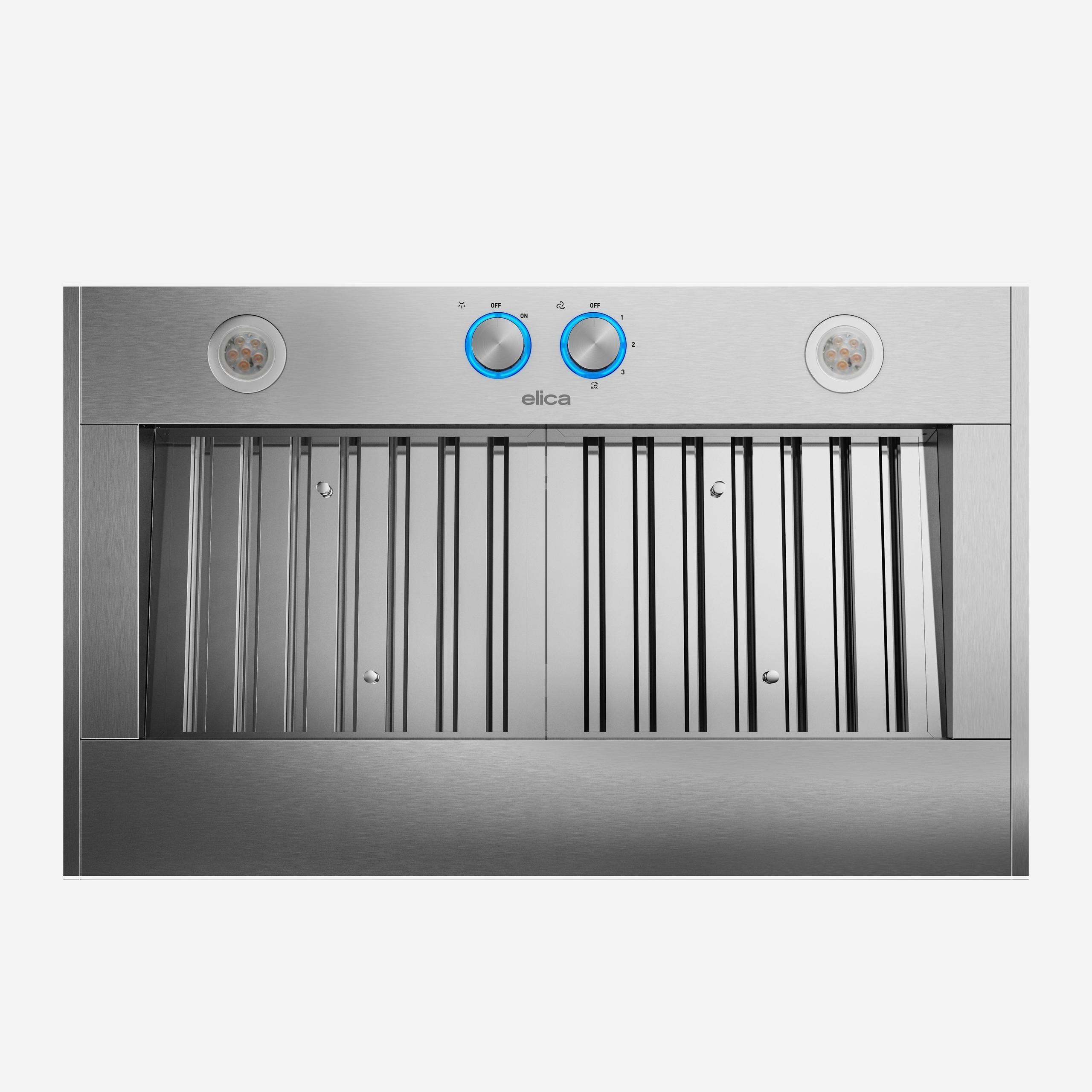

AREZZO Insert Range Hood 34 1/2 wide - 1200CFM
Model EAR134S4
Authorized Dealer
1
of
3
Loading...
Authorized Dealer
AREZZO Insert Range Hood 34 1/2 wide - 1200CFM
Model EAR134S4Quick Specs
Depth
22
Height
11.87
ADA
NO
Wifi
NO
Energy
NO
AREZZO Insert Range Hood 34 1/2 wide - 1200CFM is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 07/06/2026
Sale Price
Sale price
$1,115.78
Regular price
$1,669.00
Unit price
/
Unavailable
You save 33%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
22
Height
11.87
ADA
NO
Wifi Connected
NO
Energy Star Rated
NO
- Grease Collector
- Professional grade, heavy gauge stainless steel baffle filters are the perfect choice for those with top chef dreams. Designed for high airflow cooking, the S shape design traps volumes of grease (for a cleaner kitchen), which is collected in trays for easy removal and cleaning.
- Heat Guard
- A safety feature that protects the hood and cabinetry from excessive heat, by sensing extreme temperatures (>158 degrees) and will automatically adjusts the blower speed to HIGH. Blower speed will automatically adjust back once temperatures drop to a safe level.
- Hush System
- An exclusive sound deadening technology that effectively reduces sound levels up to 35%, compared to typical range hoods.
- Professional Performance
- Special features and very high performances for models with aspiration capacity between 600 and 1200 CFM's, and noise level between 65 and 75 db(A) at maximum speed. The Ideal complement of PRO ranges.
- Seamless Look
- Elica Professional grade hoods feature heavy gauge stainless steel Seamless construction that delivers refined elegance and reflects the superior quality and Italian craftsmanship invested into each range hood.
- Hush system
- Heat guard
- Grease collectors
- Professional performance
- Seamless look

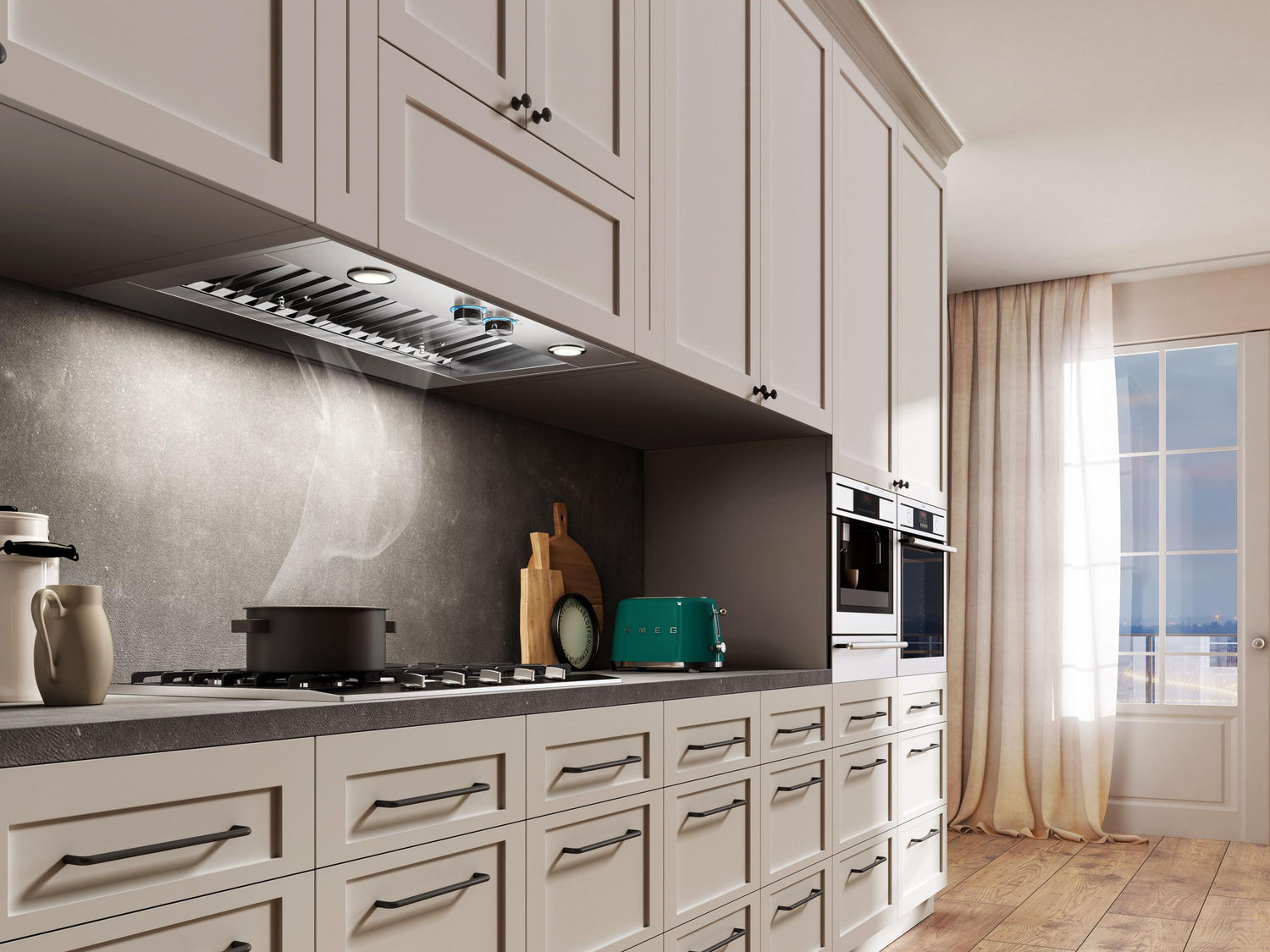

Arezzo provides professional grade performance, while being discreetly mounted inside the cabinetry. Available in 28 1/ and 34 1/ width with a 600 CFM blower, and equipped with a 1200 CFM blower for widths of 34 1/ , 40 1/ and 46 1/ for extraordinary ventilating power. The extra depth (22 ) is ideal for supporting powerful professional ranges. Plus the All-In-One design avoids the need to purchase a stainless liner. Hidden metallic in/out knob controls operate the 4-speed blower and LED lighting. *Damp-location approved
| Warranty | 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com |
| SHIPPING WEIGHT (kg) | 31.70 |
| NET WEIGHT (kg) | 22.70 |
| CARTON LENGHT (mm) | 1050.00 |
| CARTON HEIGHT (mm) | 421.00 |
| CARTON WIDTH (mm) | 699.00 |
| VOLUMEN (M3) | 0.30 |
| SHIPPING WEIGHT | 69.89 |
| NET WEIGHT | 50.04 |
| CARTON LENGHT | 41.34 |
| CARTON HEIGHT | 16.57 |
| CARTON WIDTH | 27.52 |
| COUNTRY OF MANUFACTURE | MX |
| QTY PACKAGE | 1.00 |
| INTENDED APPROVED USE | Residential use |
| Finish | Stainless Steel |
| Color | inox |
| Type of Ventilation | Vented |
| HOODS FEATURES | Hush system, Heat guard, Grease collectors, Professional performance, Seamless look |
| WIDTH (IN) | 34 |
| WIDTH (CM) | 86.00 |
| AIRFLOW (M3/H) | 1020.00 |
| CFM (MAX) | 1200.00 |
| db (min) | 36.00 |
| db (max) | 59.00 |
| SONES | 1.7 - 8.5 |
| EXHAUST VERSION | Convertible with Kit |
| EXHAUST SIZE | Round 8" |
| DUCT SHAPE | Round |
| EXHAUST LOCATION | Top Only |
| RECTANGULAR DUCTH HEIGHT | NA |
| RECTANGULAR DUCT WIDTH | NA |
| Round duct diameter | 10" |
| ELECTRIC (VOLTS) | 120 V/60 Hz |
| AMPERAGE | 7.6 A |
| HERTZ | 60.00 |
| WATTS | 913.00 |
| LIGHTING | Premium LED 2 x 6.5 ww 3000 KK |
| BULB TYPE | LED |
| BULB INCLUDED | YES |
| NUMBER OF LIGHTS | 2.00 |
| BULB WATTS | 6.50 |
| KELVINS | 3000.00 |
| GREASE FILTER TYPE | Dishwasher-Safe, Professional Stainless Steel Angled Baffle Filter |
| DISHWASHERSAFE FILTER | YES |
| FILTER MATERIAL | Stainless Steel |
| BLOWER TYPE | Interior Unit |
| CONTROL TYPE | Fully Retractable Rotating Knobs w/ Blue Backlighting |
| SPEED CONTROL | YES |
| NUMBER OF SPEEDS | 4.00 |
| REMOTE CONTROL | NO |
| POWER SOURCE | Hardwired |
| OUTDOOR USE | NO |
| SMUDGE RESISTANT | NO |
| RECIRCULATION KIT NEEDED | NO |
| CFM REDUCTION | Yes w/kit |
| DIMENSIONS | 88 x 56 x 30 |
| DIMENSIONS inches | 34 1/2 x 22" x 11 7/8 |
| ADJUSTABLE HEIGHT | NO |
| Minimum Overall Height - Top to Bottom | 11 7/8 |
| Maximum Overall Height - Top to Bottom | 17 /16 |
| Overall Height - Top to Bottom | 11 7/8 |
| Overall Width - Side to Side2 | 34 1/2 |
| Overall Depth - Front to Back | 22" |
| Hood Height | 11 7/8 |
| Minimum Compatible Ceiling Height | NA |
| Maximum Compatible Ceiling Height | NA |
| Minimum Height Above Cooktop (ELECTRIC) | = 24 |
| Minimum Height Above Cooktop (GAS) | = 30 |
| Maximum Height Above Cooktop | 36" |
| Chimney Width - Side to Side | NA |
| Chimney Depth - Front to Back | NA |
| Chimney Height - Top to Bottom | NA |
| RECIRCULATION KIT NUMBER | KIT0192765 + KIT0192763 |
| CHIMNEY EXTENSION NUMBER | NA |
| TELESCOPIC DUCT COVER | - |
| DUCT TRANSITION | - |
| TRANSITION REDUCER KIT | - |
| BACKDRAFT DAMPER | - |
| NON RETURN VALVE | - |
| UPGRADE FILTER | - |
| CFM REDUCTION KIT | KIT0185099 |
| BACKSPLASH KIT | - |
| INTERNAL BLOWER | - |
| INLINE BLOWER | - |
| EXTERNAL BLOWER | - |
| INLINE BLOWER SHELL KIT | KIT0179549 |
| EXTERNAL BLOWER SHELL KIT | KIT0179547 |
| HEAT LAMPS | - |
| SPACER/LINER | - |
| WALL MOUNT BRACKET | - |
| HIGH CEILING EXTENSION KIT | - |
| REMOTE CONTROL KIT | - |
| cUL listed | YES |
| UL listed | YES |
| AHAM verified | YES |
| TITLE 24 | YES |
| Prop65 Disclosure | YES |
| ENERGY STAR | NO |
| WIFI CAPABLE | NO |
| COMERCIAL USE APPROVED | NO |
| ADA COMPLIANT | NO |
| APP CAPABLE | NO |
| VENTILATION DIRECTION | HORIZONTAL |
| SMART COMPATIBLE | NO |
| FITLER INDICATOR LIGHT | NO |
| HEAT SENSOR | YES |
| CHAROCAL FILTER | NO |
| CERTIFICADO NOM | NA |
- Hush system
- Heat guard
- Grease collectors
- Professional performance
- Seamless look
 | |
|---|---|
