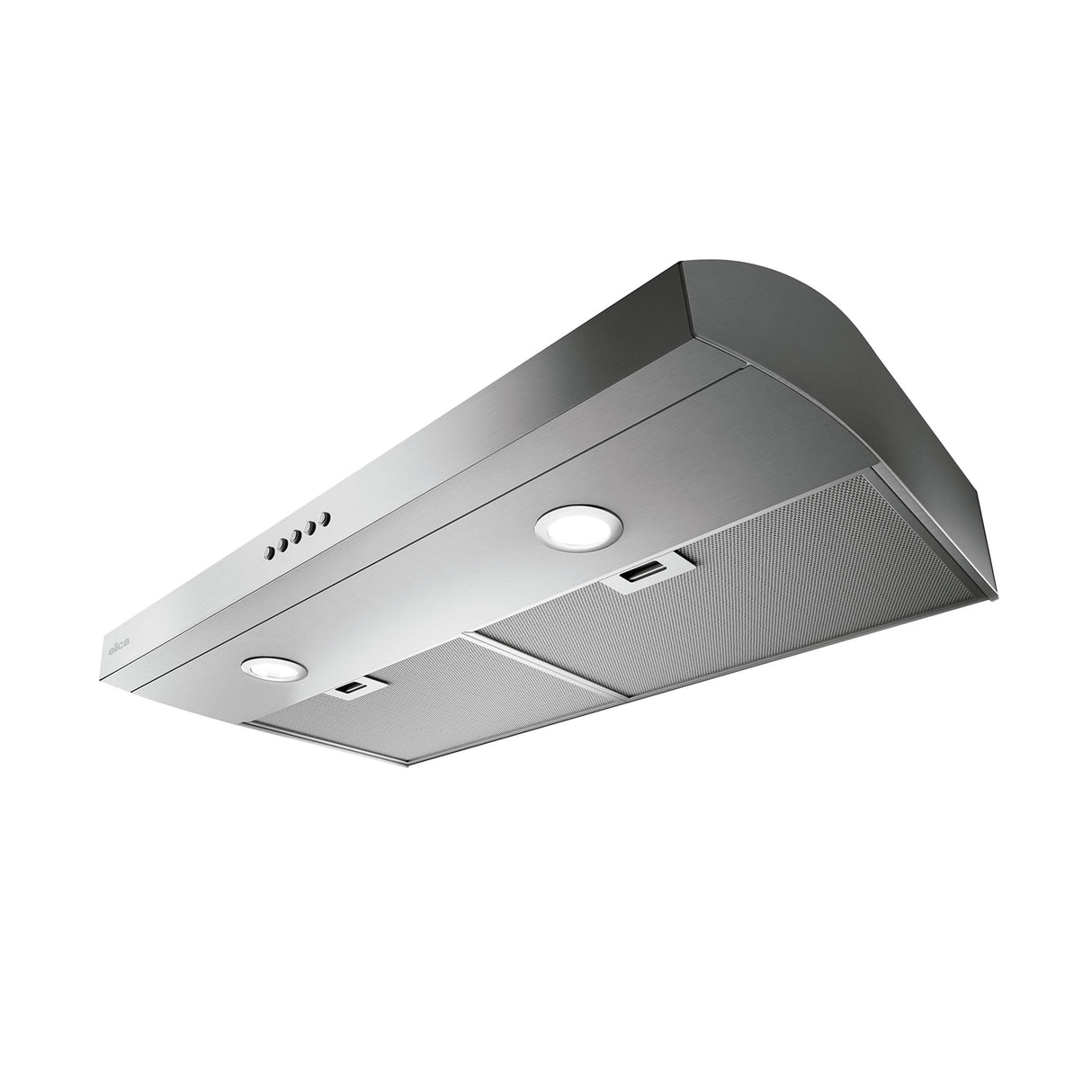

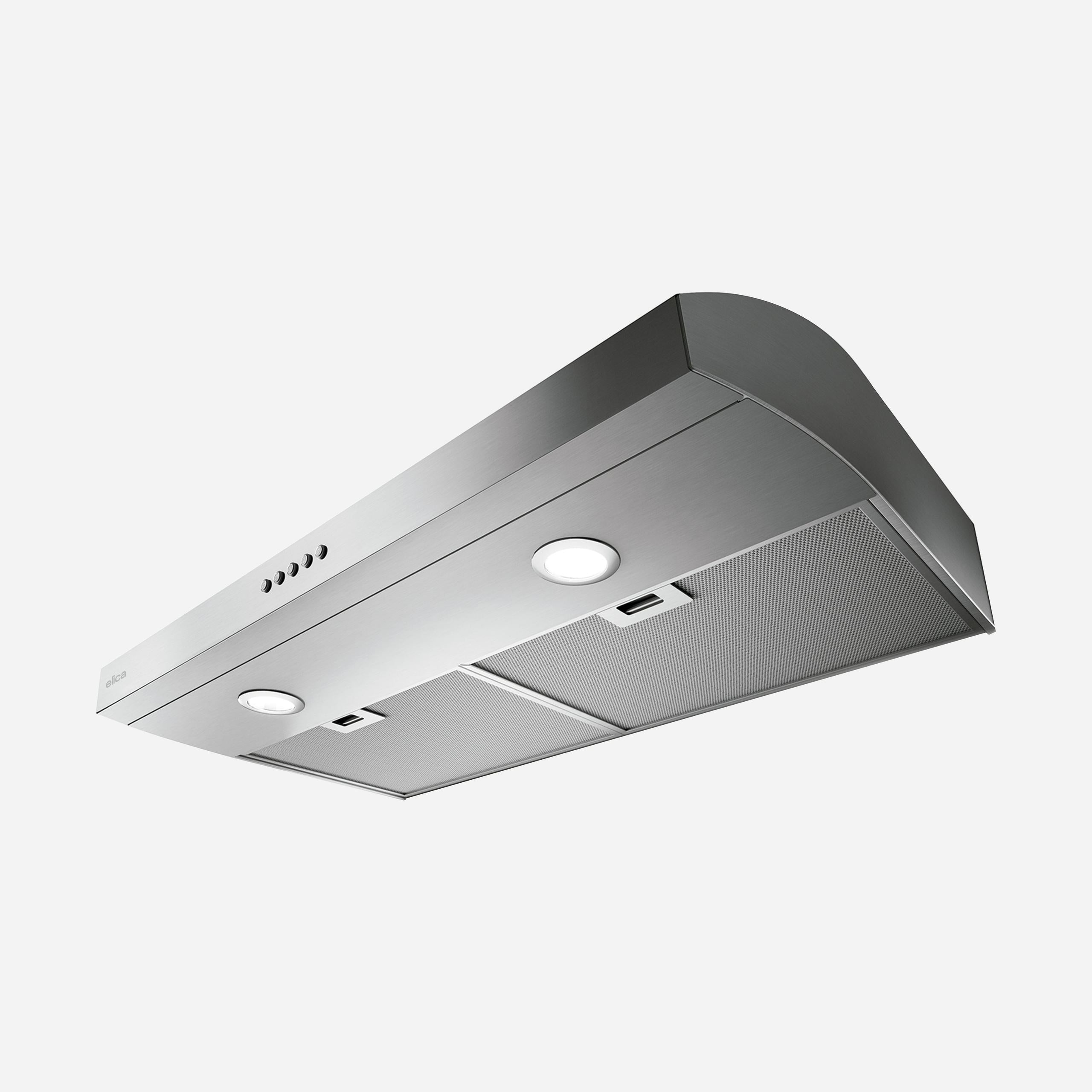

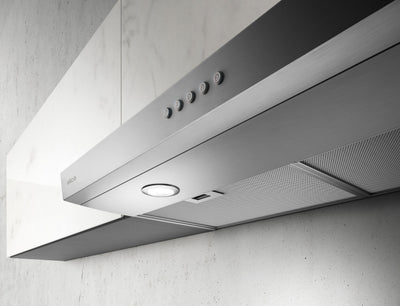

ALLASIO Undercabinet Range Hood 36" wide - 300CFM
Model: EAL336S1
Authorized Dealer
1
of
3
Loading...
Authorized Dealer
ALLASIO Undercabinet Range Hood 36" wide - 300CFM
Model: EAL336S1Quick Specs
Width
36"
Depth
20"
Height
4.75"
ADA
NO
Wifi
NO
CFM
300 CFM
Energy
NO
ALLASIO Undercabinet Range Hood 36" wide - 300CFM is backordered and will ship as soon as it is back in stock.
Available to Order
Sale Price
Sale price
$469.00
Regular price
$519.00
Unit price
/
Unavailable
You save 9%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
36"
Depth
20"
Height
4.75"
ADA
NO
Wifi Connected
NO
Vent CFM
300 CFM
Energy Star Rated
NO
- 3X Layer Mesh Filter
- Elica aluminum mesh filters are a step above competition, featuring triple layered, anodized aluminum that is woven into a highly dense mesh. The thick mesh captures more grease, anodization helps resist staining and provides durability to repeated cleanings in the dishwasher.
- LED Light
- LED lighting is undoubtedly the smartest solution in terms of energy saving. Expected life time of over 20.000 hours, represents the most remarkable advantage of LED light bulbs.
- 3x layer mesh
- Led light

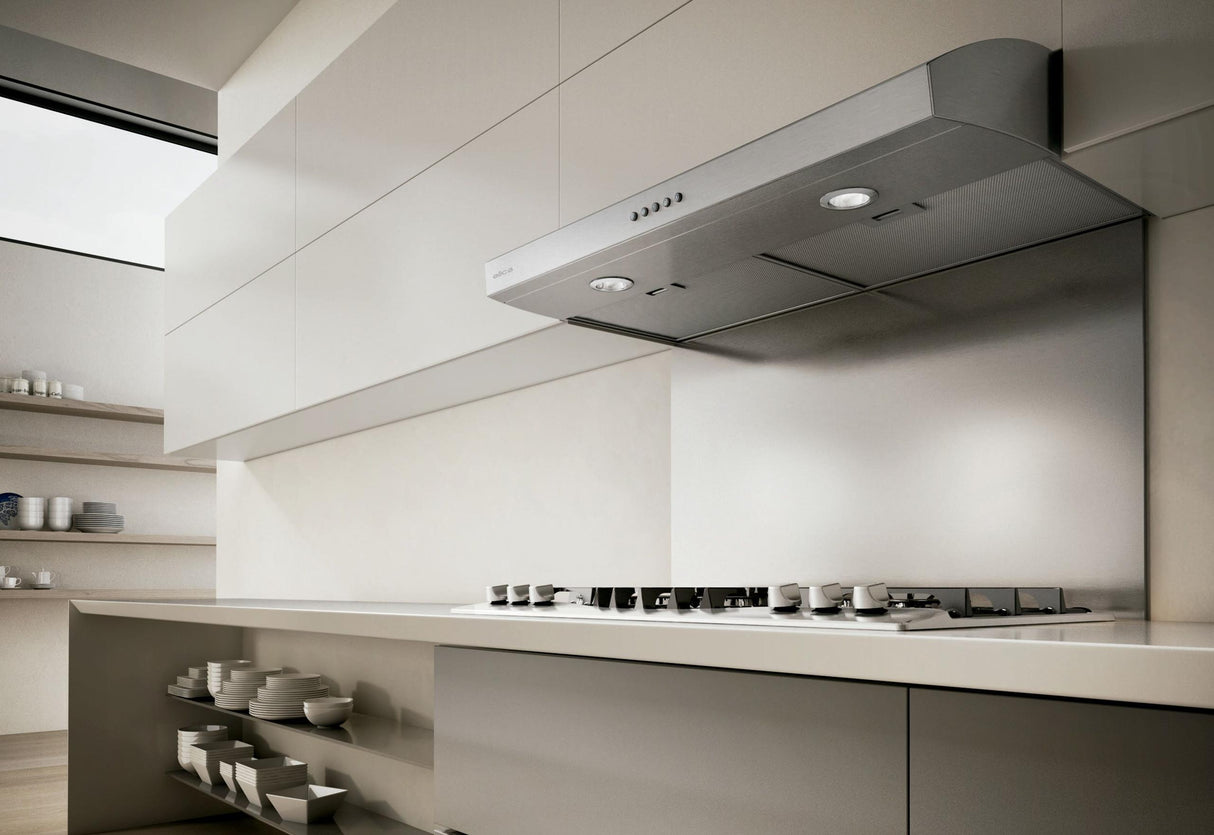

The slim Allasio with 4 3/ height is ideal where under-cabinet space is limited, plus the contemporary styling and gleaming colors will compliment other appliances and most cabinetry. Allasio features a 3-speed, 300 CFM internal blower, which provides sufficient ventilating power for most kitchens. The attractive Soft-touch, Blue Illuminated Control allows the user to manage easily the blower speeds and lights. Dishwasher-safe anodized aluminum mesh filters are easy to clean and a snap to remove and replace. Available in 36 width and Black & White colors, Allasio is designed for standard ducted installation and can be installed as a recirculating system, using the Recirculating Kit
| Warranty | 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com |
| SHIPPING WEIGHT (kg) | 13.70 |
| NET WEIGHT (kg) | 11.20 |
| CARTON LENGHT (mm) | 1016.00 |
| CARTON HEIGHT (mm) | 618.00 |
| CARTON WIDTH (mm) | 249.00 |
| VOLUMEN (M3) | 0.20 |
| SHIPPING WEIGHT | 30.20 |
| NET WEIGHT | 24.69 |
| CARTON LENGHT | 40.00 |
| CARTON HEIGHT | 24.33 |
| CARTON WIDTH | 9.80 |
| COUNTRY OF MANUFACTURE | MX |
| QTY PACKAGE | 1.00 |
| INTENDED APPROVED USE | Residential use |

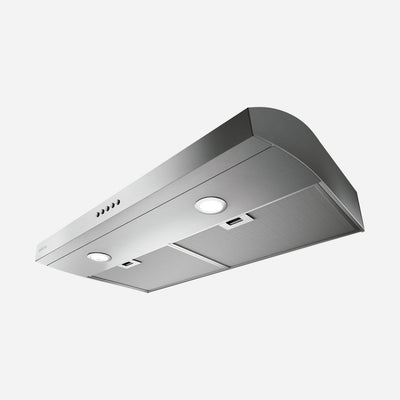

| Finish | Stainless Steel |
| Color | inox |
| Type of Ventilation | Convertible |
| HOODS FEATURES | 3x layer mesh, Led light |
| WIDTH (IN) | 36" |
| WIDTH (CM) | 90.00 |
| AIRFLOW (M3/H) | 510.00 |
| CFM (MAX) | 300.00 |
| db (min) | 36.00 |
| db (max) | 51.00 |
| SONES | 1.7 - 5.0 |
| EXHAUST VERSION | Convertible with Kit |
| EXHAUST SIZE | Rectangular 10 x 3 1/4" or round 7" (sold separately) |
| DUCT SHAPE | Rectangular or round (sold separately) |
| EXHAUST LOCATION | Top or Rear |
| RECTANGULAR DUCTH HEIGHT | 10" |
| RECTANGULAR DUCT WIDTH | 3.25 |
| Round duct diameter | 7" |
| ELECTRIC (VOLTS) | 120 V/60 Hz |
| AMPERAGE | 2.3 A |
| HERTZ | 60.00 |
| WATTS | 255.00 |
| LIGHTING | LED 2 x 2.1 ww 3000 KK |
| BULB TYPE | LED |
| BULB INCLUDED | YES |
| NUMBER OF LIGHTS | 2.00 |
| BULB WATTS | 2.10 |
| KELVINS | 3000.00 |
| GREASE FILTER TYPE | Dishwasher-Safe, Anodized Aluminum Mesh Filter |
| DISHWASHERSAFE FILTER | YES |
| FILTER MATERIAL | Aluminum Mesh |
| BLOWER TYPE | Interior Unit |
| CONTROL TYPE | Backlit Electronic Push Button |
| SPEED CONTROL | YES |
| NUMBER OF SPEEDS | 3.00 |
| REMOTE CONTROL | NO |
| POWER SOURCE | Hardwired |
| OUTDOOR USE | NO |
| SMUDGE RESISTANT | NO |
| RECIRCULATION KIT NEEDED | YES |
| CFM REDUCTION | NA |
| DIMENSIONS | 91 x 51 x 12 |
| DIMENSIONS inches | 36" x 20" x 4 3/4" |
| ADJUSTABLE HEIGHT | NO |
| Minimum Overall Height - Top to Bottom | 4 3/4" |
| Maximum Overall Height - Top to Bottom | 4 3/4" |
| Overall Height - Top to Bottom | 4 3/4" |
| Overall Width - Side to Side2 | 36" |
| Overall Depth - Front to Back | 20" |
| Hood Height | 4 3/4" |
| Minimum Compatible Ceiling Height | NA |
| Maximum Compatible Ceiling Height | NA |
| Minimum Height Above Cooktop (ELECTRIC) | = 24 |
| Minimum Height Above Cooktop (GAS) | = 30 |
| Maximum Height Above Cooktop | 36" |
| Chimney Width - Side to Side | NA |
| Chimney Depth - Front to Back | NA |
| Chimney Height - Top to Bottom | NA |
| RECIRCULATION KIT NUMBER | KIT02179 |
| CHIMNEY EXTENSION NUMBER | NA |
| TELESCOPIC DUCT COVER | - |
| DUCT TRANSITION | - |
| TRANSITION REDUCER KIT | - |
| BACKDRAFT DAMPER | KIT02723 |
| NON RETURN VALVE | - |
| UPGRADE FILTER | GRI0131087A |
| CFM REDUCTION KIT | - |
| BACKSPLASH KIT | - |
| INTERNAL BLOWER | - |
| INLINE BLOWER | - |
| EXTERNAL BLOWER | - |
| INLINE BLOWER SHELL KIT | - |
| EXTERNAL BLOWER SHELL KIT | - |
| HEAT LAMPS | - |
| SPACER/LINER | - |
| WALL MOUNT BRACKET | - |
| HIGH CEILING EXTENSION KIT | - |
| REMOTE CONTROL KIT | - |
| cUL listed | YES |
| UL listed | YES |
| AHAM verified | YES |
| TITLE 24 | YES |
| Prop65 Disclosure | YES |
| ENERGY STAR | NO |
| WIFI CAPABLE | NO |
| COMERCIAL USE APPROVED | NO |
| ADA COMPLIANT | NO |
| APP CAPABLE | NO |
| VENTILATION DIRECTION | HORIZONTAL |
| SMART COMPATIBLE | NO |
| FITLER INDICATOR LIGHT | NO |
| HEAT SENSOR | NO |
| CHAROCAL FILTER | YES |
| CERTIFICADO NOM | NA |
