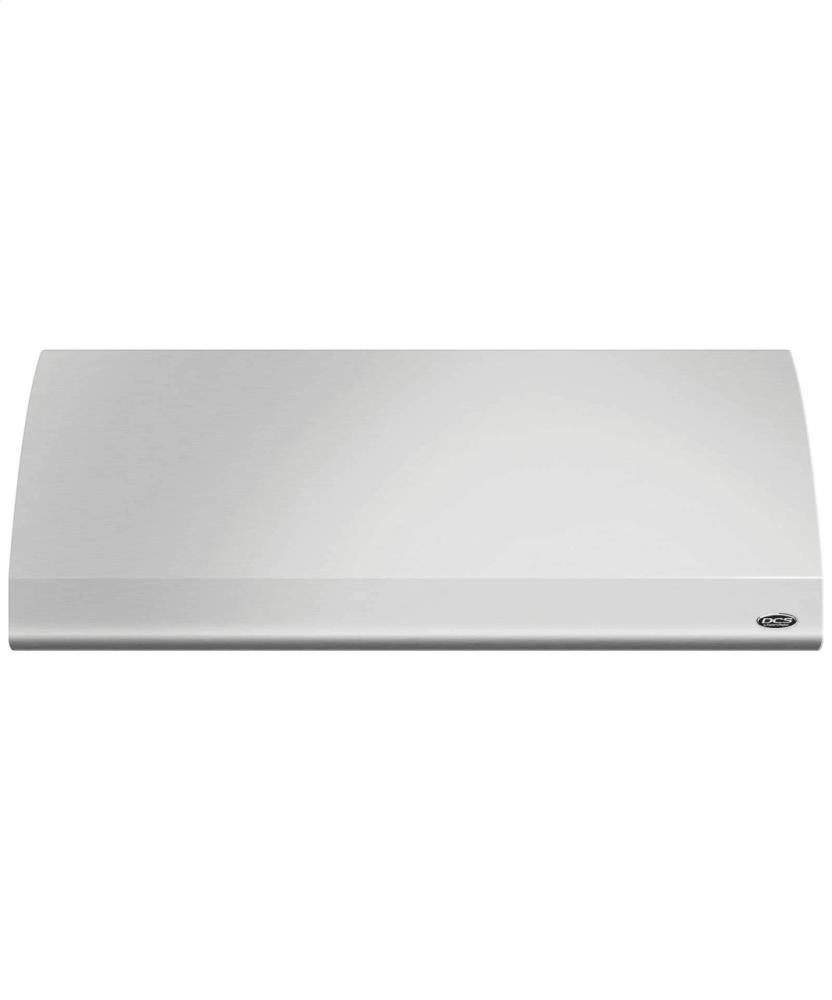

48" Pro Hood
Model: VS48
Authorized Dealer
Loading...
Authorized Dealer
48" Pro Hood
Model: VS48Quick Specs
Depth
U_25
Height
U_18
48" Pro Hood is backordered and will ship as soon as it is back in stock.
Discontinued
Regular price
$2,716.00
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
U_25
Height
U_18
- Brushed Stainless Steel
- 2 level halogen lighting (50 watts)
- 120V 60Hz, 15 amp circuit
- 4 level exhaust control
- Available in 30" 36" 48" widths
- CFM Rating : 1200
- Maximum Duct Length : 40 ft
- Required duct size (diameter) : 10 in
- SS baffle filters and grease trays
- Vertical Discharge Only
- Wall mount or cabinet mount installation
All professional chefs know where there is smoke there is flavor. But there is also grease, steam and odors you do not want your guest to smell, or to become part of your drapes. The DCS range hoods and downdraft guarantee a much more enjoyable cooking experience.
| Dimensions | |
| Depth | 25" |
| Height | 18" |
| Width | 47 7/8" |
| Installation | |
| Vertical discharge only | |
| Wall mount or cabinet mount installation | |
| Measurements | |
| Available in 30" 36" 48" widths | |
| Maximum duct length | 40 ft |
| Required duct size (diameter) | 10" |
| Performance | |
| CFM Rating | 1200 |
| Exhaust control | 4 level |
| Lighting | 2 level 50-watts halogen |
| SS baffle filters and grease trays | |
| Power requirements | |
| Circuit supply current | 15A |
| Supply Frequency | 60Hz |
| Supply Voltage | 120V |
| Wire | 3 |
| Warranty | |
| Warranty | 2 years parts & labor (bulbs excluded) |
- Brushed Stainless Steel
- 2 level halogen lighting (50 watts)
- 120V 60Hz, 15 amp circuit
- 4 level exhaust control
- Available in 30" 36" 48" widths
- CFM Rating : 1200
- Maximum Duct Length : 40 ft
- Required duct size (diameter) : 10 in
- SS baffle filters and grease trays
- Vertical Discharge Only
- Wall mount or cabinet mount installation
