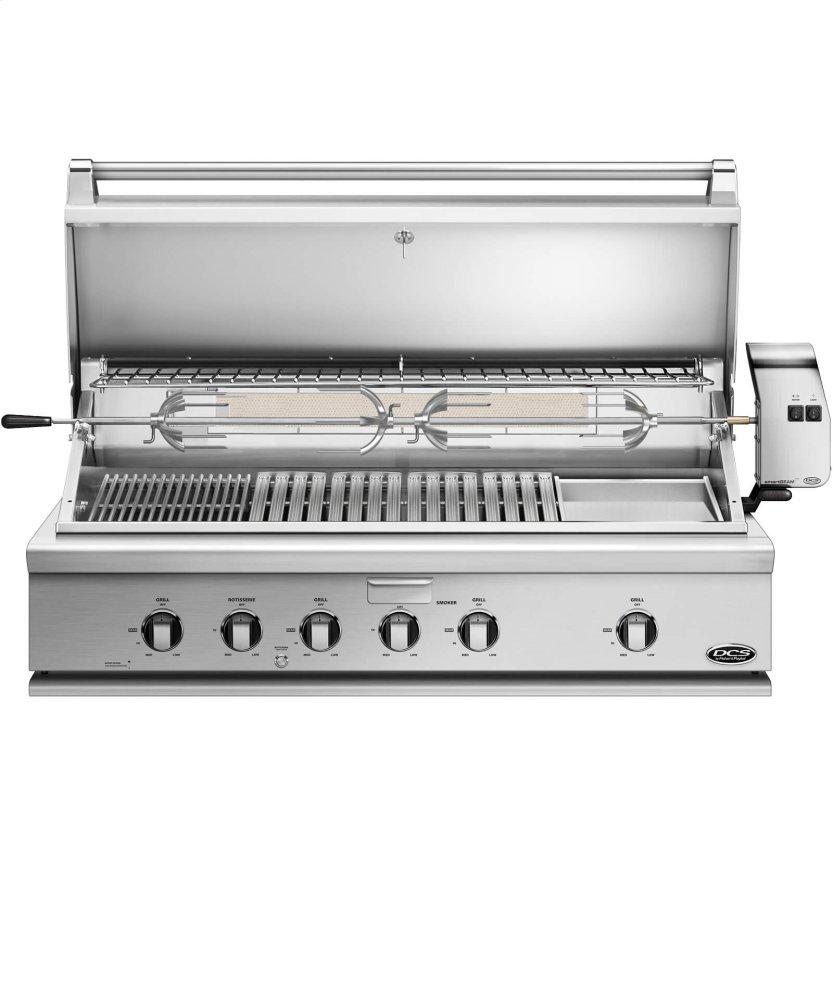

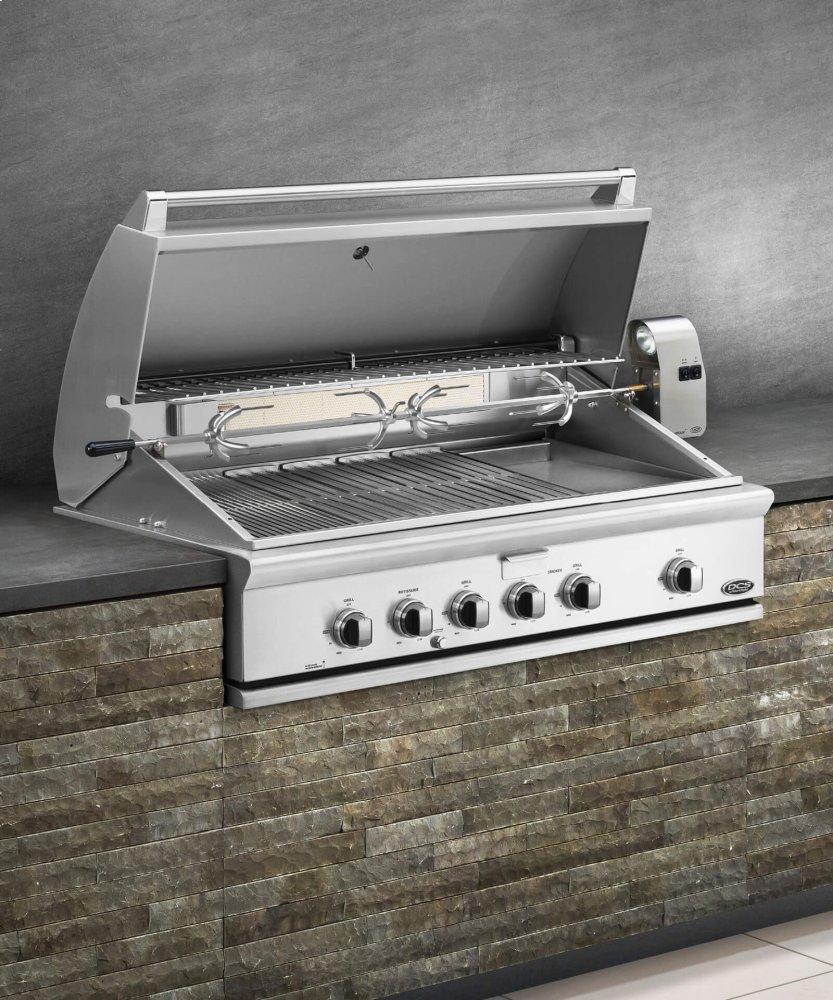

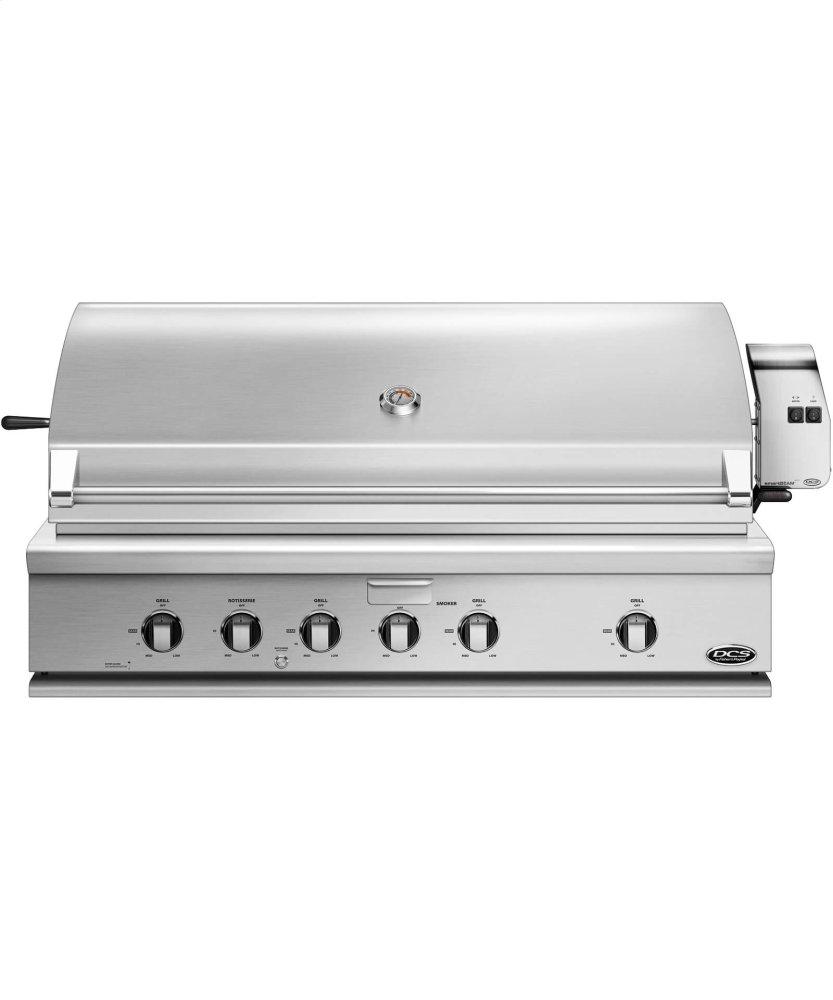

48" Traditional Grill With Rotisserie, Griddle and Hybrid Ir Burner
Model BH148RGIN
48" Traditional Grill With Rotisserie, Griddle and Hybrid Ir Burner
Model BH148RGINQuick Specs
48" Traditional Grill With Rotisserie, Griddle and Hybrid Ir Burner is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
Precision heat and control
A DCS Grill puts you in control of up to a massive 121,500 BTU per hour total power. That power lets you choose the precise heat you need from a low and slow 300(degree) up to an intense 1100(degree). DCS Grills do more than help you grill an incredible steak, you can infuse smoke into your favorite meal using the built in smoker, or close the specially designed hood and use the power of convection to cook the perfect pizza. DCS Grills put you in control, giving you the versatility to cook what you want.
Hybrid Infrared Burner
Natural infrared heat penetrates food without drying it out, retaining juices and flavors. Widely used by professional chefs, convenient Infrared Burner Technology is provided in DCS Grills. The DCS Infrared Hybrid Burner delivers rapid heat- up with precise control of the heat turn- down allowing great flexibility in what foods you are able to cook on the grill. The infrared burner also provides traditional sear lines on food, for the authentic grill experience.
Grease Management System Grease Channeling Technology
This patented technology reduces flare- ups by directing grease and oils away from the burner flames during grilling.
Double- sided Cast Stainless Steel Grates
One side has a gentle radius for handling delicate foods. The other side is W- shaped for perfect sear lines while channeling oil away to an easily removable drip tray.
Griddle Plate
Designed for more delicate food items, the griddle plate allows any meal of the day to be cooked on the DCS Grill; from pancakes to pork fillets - anything you'd use a skillet for. The griddle is made of commercial quality plated stainless steel that ensures a level cooking surface and even heat distribution.
Smart Beam Grill Light
A halogen light is designed to illuminate the entire cooking surface for perfect night grilling.
- Precision heat and control
- Double- sided Cast Stainless Steel Grates
- Grease Management System Grease Channeling Technology
- Smart Beam Grill Light
- Hybrid Infrared Burner
- Griddle Plate
| Dimensions | |
| Depth | 27 5/16" |
| Height | 24 1/4" |
| Width | 56 3/8" |
| Accessories sold separately | |
| Optional cart-mount | CAD1-48 |
| Gas Requirements | |
| 1/2" in NPT male with 3/8" in flare adapter | |
| Gas requirements | NG |
| Operational Pressure | 4" W.C. |
| Supply Pressure | 6" to 9" W.C. |
| Measurements | |
| Overall Depth | 27 5/16" |
| Overall Height | 24 1/4" |
| Overall Width | 56 3/8" |
| Shipping weight | 344 LBS |
| Width excluding rotisserie | 48" |
| Performance | |
| Max weight rotisserie | 50 LBS |
| Number of U-burners | 4 |
| Rotisserie burner power in BTU | 18,000 |
| Smoker burner power in BTU | 3,500 |
| Total power in BTU | 121,500 |
| U-burner power in BTU | 25,000 |
| Warranty | |
| Warranty | Limited 2 years part & labor |
| Cooking surface area | |
| Cooking surface area | 1182sq. in. |
| Primary cooking area (grill) | 855sq. in. |
| Warming rack area | 327sq. in. |
| Grill Features | |
| Double sided stainless steel grilling grates (36" & 48" models only) | |
| Full surface searing | |
| Grease Management System | |
| Griddle plate | |
| Hood temperature gauge | |
| Hybrid IR burner | |
| Metal dials | |
| One-step direct burner ignition | |
| Rotisserie | |
| Smoker | |
| Warming rack | |
| Power Requirements | |
| Power Requirements | 9V battery for ignition |
| Rotisserie power supply | 120V 60Hz |
| Finish | |
| Built in | |
| Finish | 304 grade stainless steel |
| Optional cart-mount | CAD1-48 |
| Weather resistant | |
