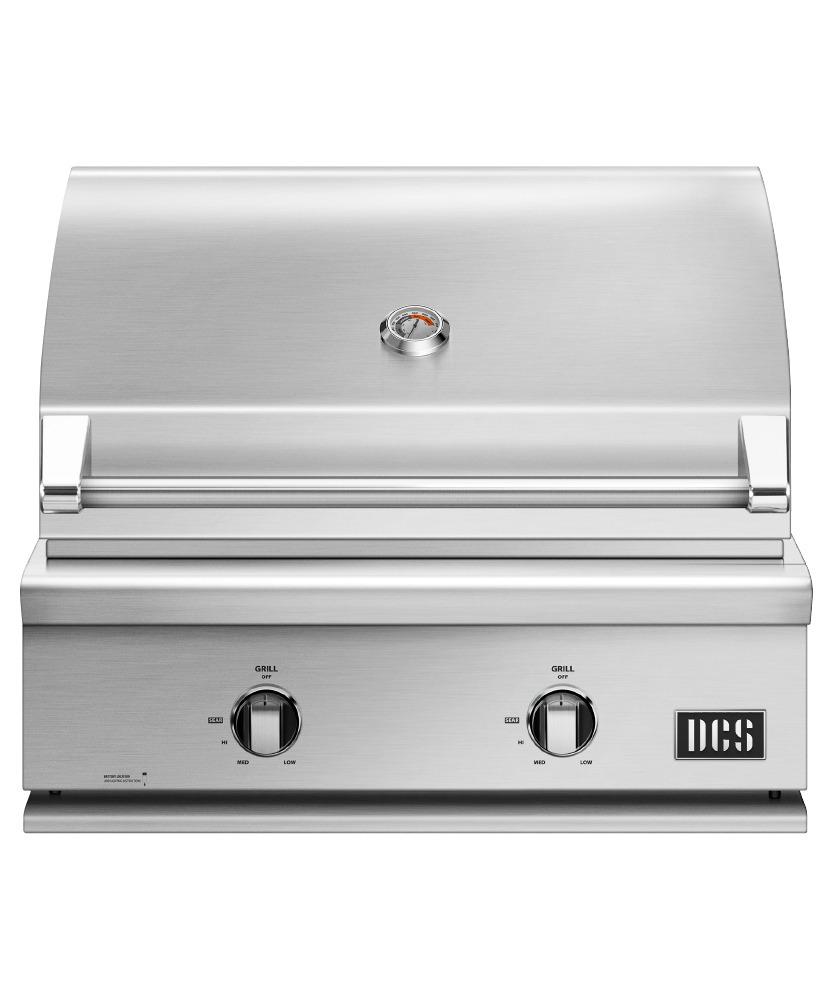

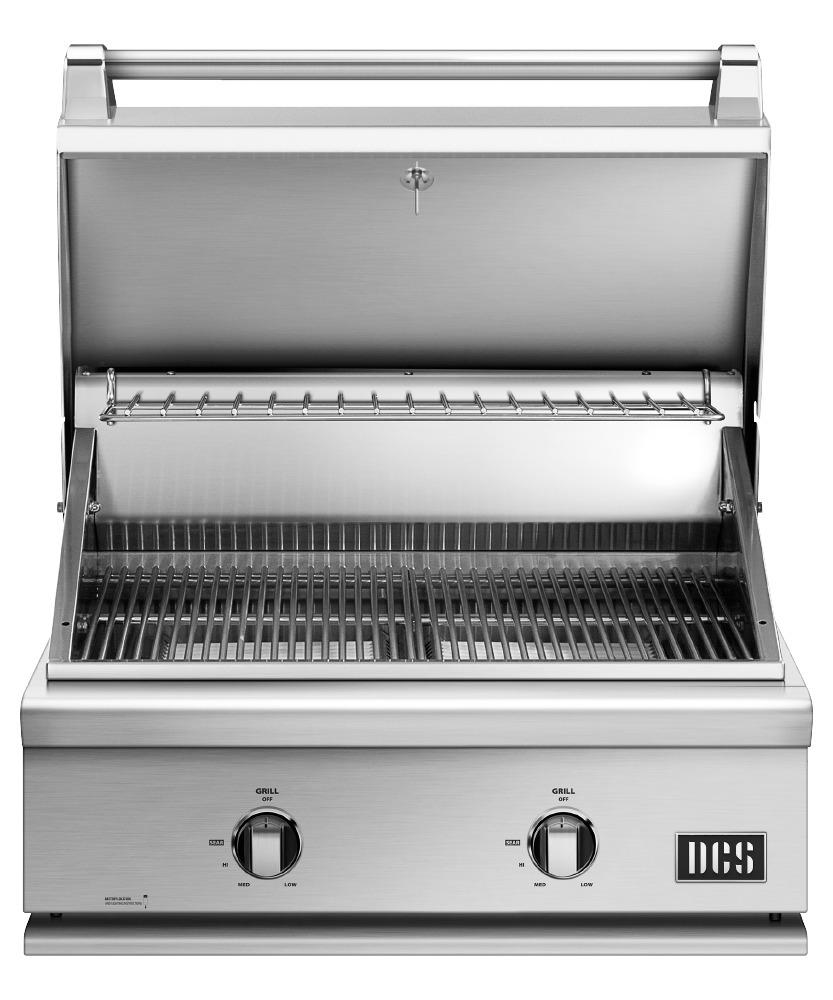

30" Series 7 Grill
Model: BH130LQuick Specs
Width
30"
Depth
26.625"
Height
24.25"
ADA
NO
Wifi
NO
30" Series 7 Grill is backordered and will ship as soon as it is back in stock.
Regular price
$3,539.40
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
30"
Depth
26.625"
Height
24.25"
ADA
NO
Wifi Connected
NO
Direct Burner Ignition
An ergonomic ignition solution, where burners are lit directly from the corresponding knobs.
Ceramic Radiant Technology
A layer of ceramic rods provides intense yet even heat. It gives a consistent grilling surface, with controlled heat rather than direct fire.
Temperature Gauge - Zero To Sear
Go from zero to sear with DCS Grills new built-in temperature gauge. It lets you know exactly how hot the grill is, even when the hood is down.
Stainless Steel Burners
The precision ported U-shaped stainless steel burners are rated at a massive 25,000BTU each, offering premium quality and performance. A heat shield directs heat upwards maximizing heating efficiency.
| Accessories (sold separately) | |
| Built-in grill cover | ACBI-30 |
| Insulated jacket | BGB30-IJS (optional) |
| On cart grill cover | ACC-30 |
| Optional cart mount | CAD1-30 / BGB30-CSS |
| Burners | |
| Number of U-burners | 2 |
| Cooking Surface Area | |
| Primary cooking area | 553sq.in. |
| Total cooking area | 748sq.in. |
| Warming rack area | 195sq.in. |
| Features | |
| Full surface searing | |
| Hood temperature gauge | |
| Ignition system | Spark |
| Metal dials | |
| Warming rack | |
| Finish | |
| Material | 304 grade stainless steel |
| Weather resistant | |
| Gas Requirements | |
| 1/2" NPT male with 3/8" in flare adapter | |
| Gas type | LPG |
| LP hose with regulator and Type 1 connector | |
| Operational pressure | 11 " W.C. |
| Supply Pressure | 12 " to 14" W.C. |
| Installation Dimensions | |
| Cutout depth (proud) | 22 3 4 " |
| Cutout height (proud) | 10 1 8 " |
| Cutout width (proud) | 28 1 2 " |
| Insulated jacket for proud cut-out | Varies - check manual |
| Performance | |
| Total Power | 50000 BTU |
| U-burner power | 25000 BTU |
| Power requirements | |
| Grill power supply | 9V Battery for Ignition |
| Product dimensions | |
| Depth | 26 5 8 " |
| Height | 24 1 4 " |
| Width | 30 " |
