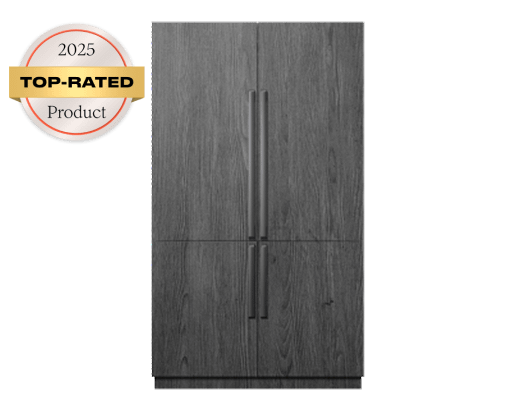

48 Inch French Door Refrigerator, Panel Ready
Model DRF485300AP
48 Inch French Door Refrigerator, Panel Ready
Model DRF485300APQuick Specs
48 Inch French Door Refrigerator, Panel Ready is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs

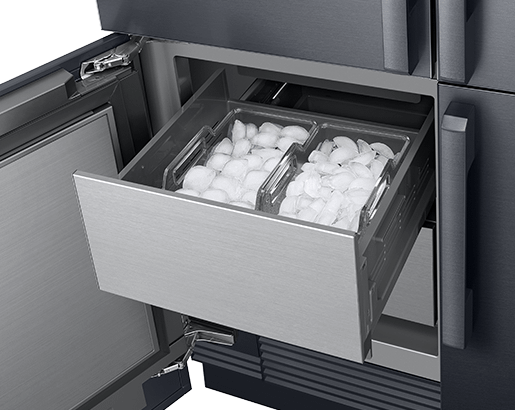

ICEMAKER
Creates crescent shaped ice.

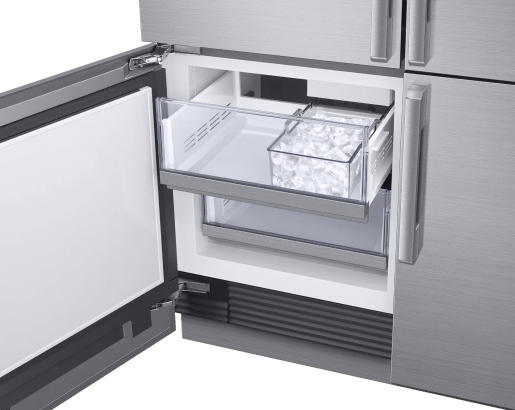

FRESHZONE+(TM) COMPARTMENT
Convert from freezer to refrigerator for flexibility that fits your needs.
HIDDEN TOUCH CONTROL PANEL
Touch to reveal a display that regulates temperature to preserve freshness.

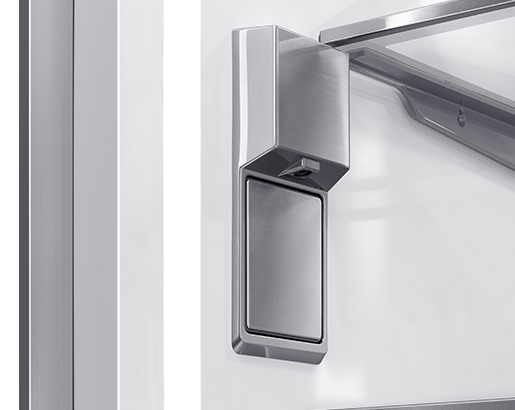

INTERNAL WATER DISPENSER
Serves fresh, filtered water and easily fill cups or pitchers.

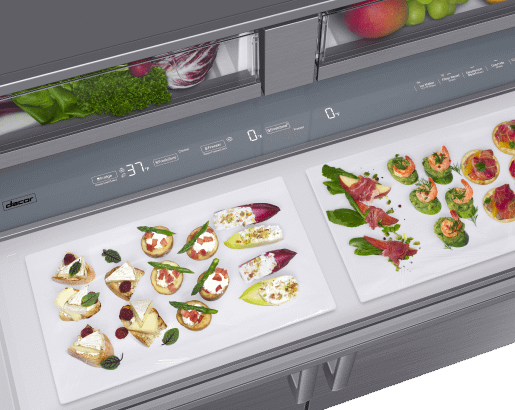

FRESHZONE(TM)
Full-width storage drawer provides optimal temperature control for storing everything from meat and fish, to chilled drinks or deli. Adjustable temperature settings includes the option of safely defrosting items within a controlled space.
METAL COOLING
The stainless steel paneling helps maintain consistent temperature throughout the refrigerator.
SMART CONNECTIVITY
Whether you're near the kitchen or away from home, iQ Control(TM) with SmartThings(R) integration makes controlling your refrigerator effortless. Monitor everything from temperature and water filter status to care diagnostics. Never be caught without ice for a party by enabling ice-making functions all from the convenience of your mobile device.
PRECISE COOLING TECHNOLOGY
Our Digital Inverter Technology maintains consistent performance with minimal temperature fluctuation. Our Digital Compressor offers superior performance compared to a standard A/C compressor.
- PRECISE COOLING TECHNOLOGY
- Our Digital Inverter Technology maintains consistent performance with minimal temperature fluctuation. Our Digital Compressor offers superior performance compared to a standard A/C compressor.
- HIDDEN TOUCH CONTROL PANEL
- Touch to reveal a display that regulates temperature to preserve freshness.
- FRESHZONE+™ COMPARTMENT
- Convert from freezer to refrigerator for flexibility that fits your needs.
- FRESHZONE™
- Full-width storage drawer provides optimal temperature control for storing everything from meat and fish, to chilled drinks or deli. Adjustable temperature settings includes the option of safely defrosting items within a controlled space.
- ICEMAKER
- Creates crescent shaped ice.
- INTERNAL WATER DISPENSER
- Serves fresh, filtered water and easily fill cups or pitchers.
- METAL COOLING
- The stainless steel paneling helps maintain consistent temperature throughout the refrigerator.
- SMART CONNECTIVITY
- Whether you're near the kitchen or away from home, iQ Control™ with SmartThings® integration makes controlling your refrigerator effortless. Monitor everything from temperature and water filter status to care diagnostics. Never be caught without ice for a party by enabling ice-making functions all from the convenience of your mobile device.
- PRECISE COOLING TECHNOLOGY
- HIDDEN TOUCH CONTROL PANEL
- FRESHZONE+(TM) COMPARTMENT
- FRESHZONE(TM)
- ICEMAKER
- INTERNAL WATER DISPENSER
- METAL COOLING
- SMART CONNECTIVITY
| OVERALL DIMENSIONS | Width : 47-1/4" Height : 83-3/8" Depth : 23-13/16" Please refer to the Installation Instructions for more detailed dimensions. |
| INTERIOR CAPACITY | Total Unit Gross Capacity - AHAM : 27.7 cu. ft. Refrigerator Gross Capacity : 19.7 cu. ft. Freezer Gross Capacity : 8 cu. ft. |

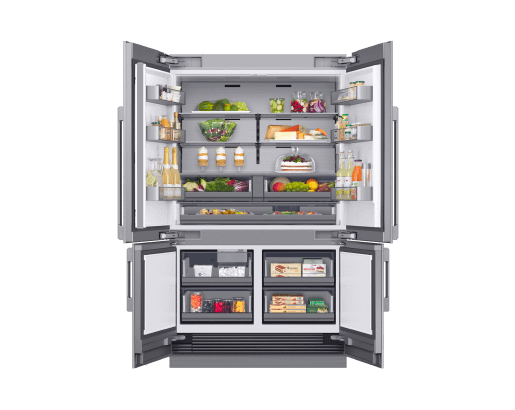

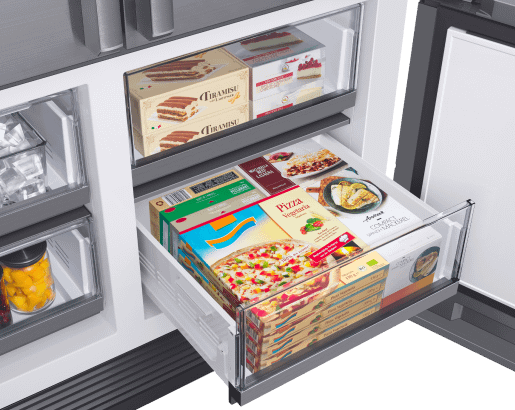

| INTERIOR CONFIGURATION | Full Width Shelves - Refrigerator : 1 ea. Adjustable Shelves - Refrigerator : 4 ea. Shelf Material - Refrigerator : Tempered Glass Shelves w/Metal Trim Full Extension Drawers at 90° Door Opening Angle : Yes FreshZone Drawer : Yes - Cheese (37°F) / ColdDrinks (33°F) / Mea.t (29°F) Crisper Drawers : 2 ea. Door Bins -Refrigerator : 6 ea. Freezer Drawers : 4 ea. |
| TEMPERATURE RANGES | Refrigerator : 34°F (1°C) to 44°F (7°C) Refrigerator - Power Cool : 34°F (1°C) FreshZone™ Drawer : 37°F (3°C) / 33°F (1°C) / 29°F (-1°C) FreshZone™ Plus Compartment : -8°F (-23 °C) to 33°F (1 °C) Freezer : -8°F (-23°C) to 5°F (-15°C) Freezer - Power Freeze : -8°F (-23°C) |
| REQUIREMENTS | Electrical: 115V, 60Hz, 6A |
| ACCESSORIES | RAT48AMAASR/DA - French Door Refrigerator Panel Kit: Silver Stainless RAT48AMAAMS/DA - French Door Refrigerator Panel Kit: Graphite Stainless |
| EFFICIENCY | ENERGY STAR Qualified : Yes Annual Energy Consumption : 629 kWh |
| CONFIGURATIONS | DRF485300AP/DA : 48 Inch French Door Refrigerator, Panel Ready DRF485300AP/DA RAT48AMAASR/DA : 48 Inch French Door Refrigerator, Silver Stainless (Panel Kit) DRF485300AP/DA RAT48AMAAMS/DA : 48 Inch French Door Refrigerator, Graphite Stainless (Panel Kit) |
- PRECISE COOLING TECHNOLOGY
- HIDDEN TOUCH CONTROL PANEL
- FRESHZONE+(TM) COMPARTMENT
- FRESHZONE(TM)
- ICEMAKER
- INTERNAL WATER DISPENSER
- METAL COOLING
- SMART CONNECTIVITY
