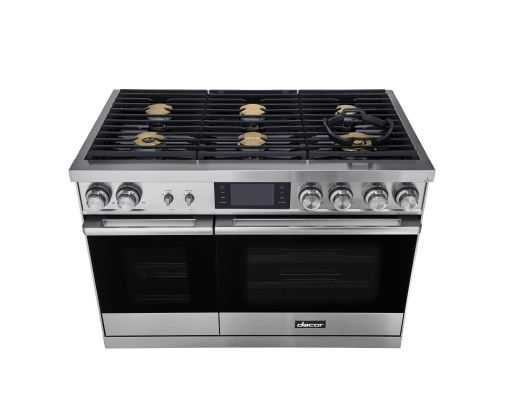

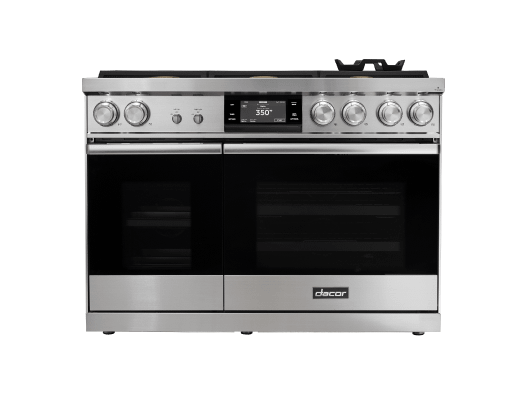

48" Range, Stainless Steel, Liquid Propane
Quick Specifications
Quick Specifications
- Type : GAS RANGES
- Style : 36" AND LARGER FREE STANDING GAS RANGE
- Width : 47 7/8
- Height : 36
- Depth : 27 1/2
- Energy Star Rated : NO
- Wifi Connected : YES
- Downdraft Ventilation : NO
- Dual Fuel : YES
- Burner Type : Sealed
- Self Clean : YES
- Convection : YES
- Drawer Proof Mode : NO
- Continuous Grate : YES
- Sabbath Mode : YES
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.
SMARTTHINGS INTEGRATION
Seamlessly integrate into the SmartThings connected platform, providing an exceptional foundation for an ever growing ecosystem of smart connectivity. Preheat, check the oven temperature, the cooking status and remaining time, all from the comfort of your smartphone.
WI-FI-ENABLED 7 INCH LCD CONTROL PANEL
Automatically tilting, 7inch smooth touch glass panel provides a full-touch culinary command center for pre-programmed settings and step-by-step recipes.
CHEF MODE
Receive expert cooking advice straight from the 7inch screen, guiding the user on the optimum rack setting, temperatures and timing.

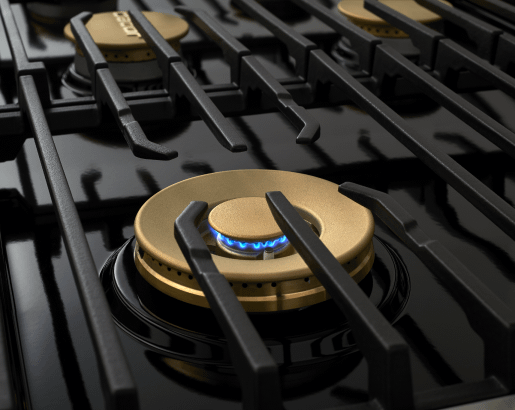

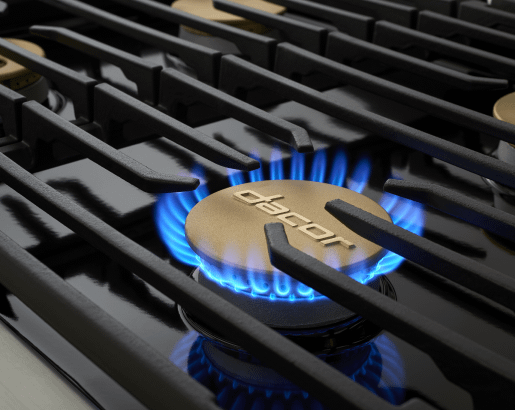

SIMMERSEAR BURNERS
Quickly boil water with 22K BTU of power or maintain a gentle simmer at 750 BTU with the all brass, Dual Valve, Dual Ring Burner.
REALSTEAM OVEN
For meats that are juicy on the inside, yet brown and crispy on the outside. Bake artisan bread with a light, fluffy center with a flaky crust. Healthier, faster cooking with the power of pure steam.

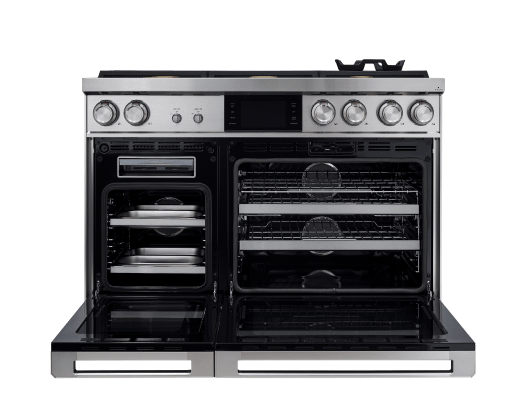

DUAL FOUR-PART PURE CONVECTION
Superior consistency and zero flavor transfer with Dual Four-Part Pure Convection, reducing cooking time by distributing heat evenly across the entire oven.
ILLUMINA KNOBS
Warm, sophisticated and welcoming. The glowing knobs entice participation, inspire the imagination and accentuates the beauty of the product.
LUXURIOUS FINISHES
Dacor exclusive Graphite and Silver Stainless Steel finishes bring beauty and style to match any kitchen design or concept.
- WI-FI-ENABLED 7 INCH LCD CONTROL PANEL
- Automatically tilting, 7inch smooth touch glass panel provides a full-touch culinary command center for pre-programmed settings and step-by-step recipes.
- REALSTEAM OVEN
- For meats that are juicy on the inside, yet brown and crispy on the outside. Bake artisan bread with a light, fluffy center with a flaky crust. Healthier, faster cooking with the power of pure steam.
- CHEF MODE
- Receive expert cooking advice straight from the 7inch screen, guiding the user on the optimum rack setting, temperatures and timing.
- DUAL FOUR-PART PURE CONVECTION
- Superior consistency and zero flavor transfer with Dual Four-Part Pure Convection, reducing cooking time by distributing heat evenly across the entire oven.
- SIMMERSEAR BURNERS
- Quickly boil water with 22K BTU of power or maintain a gentle simmer at 750 BTU with the all brass, Dual Valve, Dual Ring Burner.
- ILLUMINA KNOBS
- Warm, sophisticated and welcoming. The glowing knobs entice participation, inspire the imagination and accentuates the beauty of the product.
- LUXURIOUS FINISHES
- Dacor exclusive Graphite and Silver Stainless Steel finishes bring beauty and style to match any kitchen design or concept.
- SMARTTHINGS INTEGRATION
- Seamlessly integrate into the SmartThings connected platform, providing an exceptional foundation for an ever growing ecosystem of smart connectivity. Preheat, check the oven temperature, the cooking status and remaining time, all from the comfort of your smartphone.
- WI-FI-ENABLED 7 INCH LCD CONTROL PANEL
- REALSTEAM OVEN
- CHEF MODE
- DUAL FOUR-PART PURE CONVECTION
- SIMMERSEAR BURNERS
- ILLUMINA KNOBS
- LUXURIOUS FINISHES
- SMARTTHINGS INTEGRATION
| OVERALL DIMENSIONS | Width : 47-7/8" Height : 36-1/8" Depth : 27-1/2" Please refer to the Installation Instructions for more detailed dimensions. |

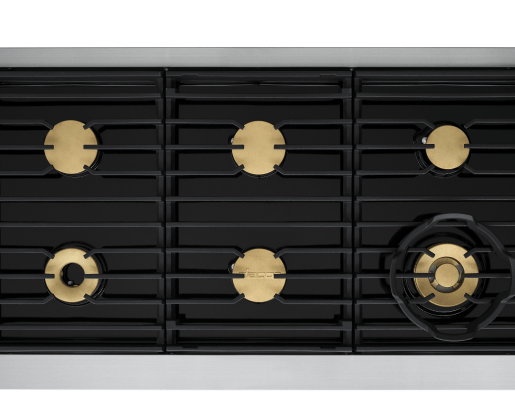

| BURNER CONFIGURATION | Right Front : 22,000 BTU Right Rear : 9,000 BTU Center Front : 16,000 BTU Center Rear : 16,000 BTU Left Front : 18,000 BTU Left Rear : 16,000 BTU |
| INTERIOR CAPACITY | Left Oven : 1.8 ft. Right Oven : 4.8 ft. |
| REQUIREMENTS | Electrical: 240V / 208V, 60Hz, 50A |
| ACCESSORIES | AMG48 : Modernist Griddle, 48" 6-Burner Range |
| CONFIGURATIONS | DOP48M86DPM/DA : 48" Range, Graphite Stainless Steel, Liquid Propane DOP48M86DLS/DA : 48" Range, Stainless Steel, Natural Gas DOP48M86DPS/DA : 48" Range, Stainless Steel, Liquid Propane DOP48M86DLM/DA : 48" Range, Graphite Stainless Steel, Natural Gas |
