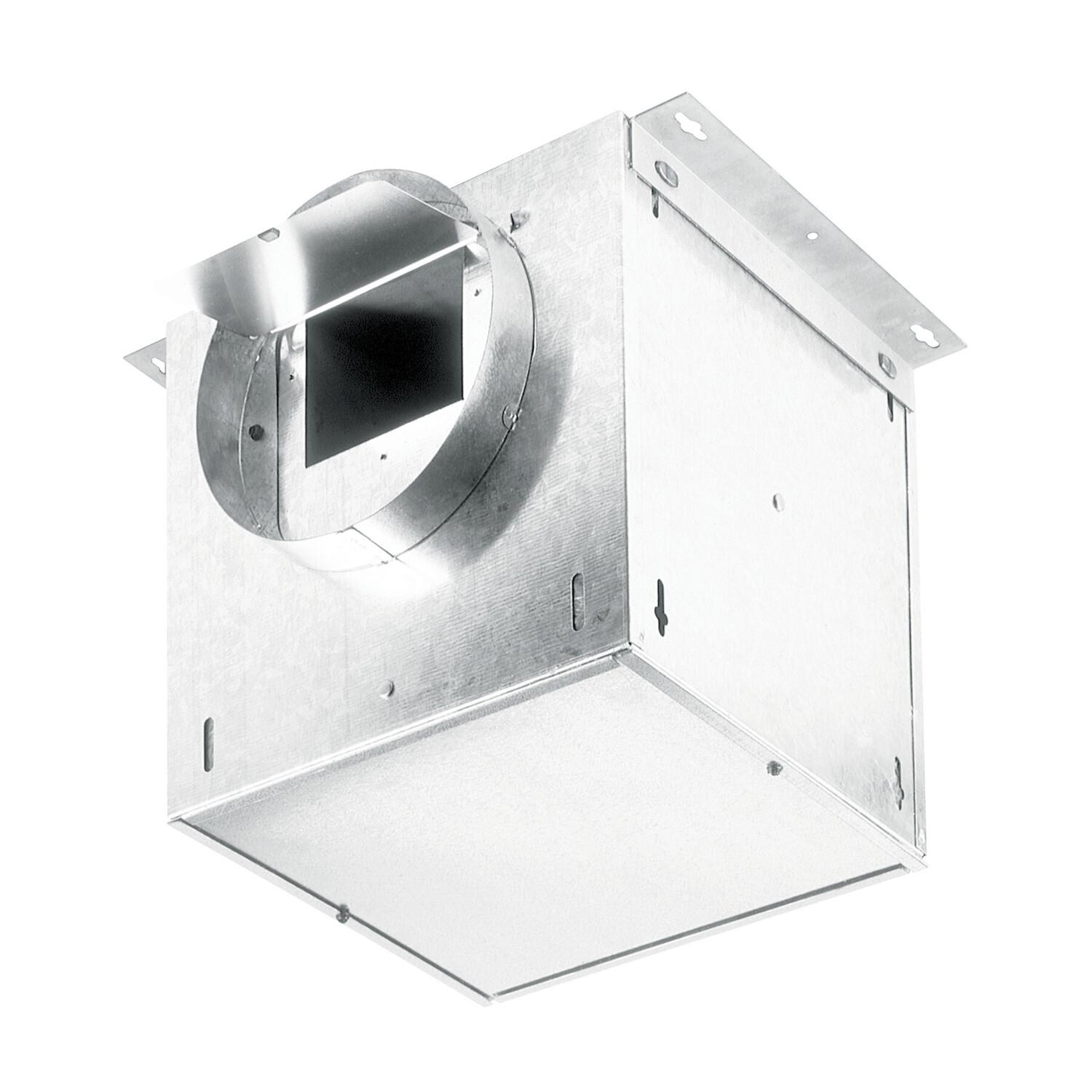

320 Max In-Line Blower CFM for use with Broan® Range Hoods
Model: HLB3
Authorized Dealer
1
of
3
Loading...
Authorized Dealer
320 Max In-Line Blower CFM for use with Broan® Range Hoods
Model: HLB3Quick Specs
Width
2"
Depth
12.25"
Height
8"
Energy
NO
320 Max In-Line Blower CFM for use with Broan® Range Hoods is backordered and will ship as soon as it is back in stock.
Message us for availability
Out of Stock
Regular price
$338.00
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
2"
Depth
12.25"
Height
8"
Energy Star Rated
NO
- 320 Max In-Line Blower CFM for use with Broan Range Hoods
- This quiet performance solution works with all Broan range hoods designed for use with external blowers
- The permanently lubricated, thermall protected plug-in motor is designed for continuous operation
- Specially designed resilient motor mounts and housing isolation mounts prevent vibration noise to ensure quiet operation

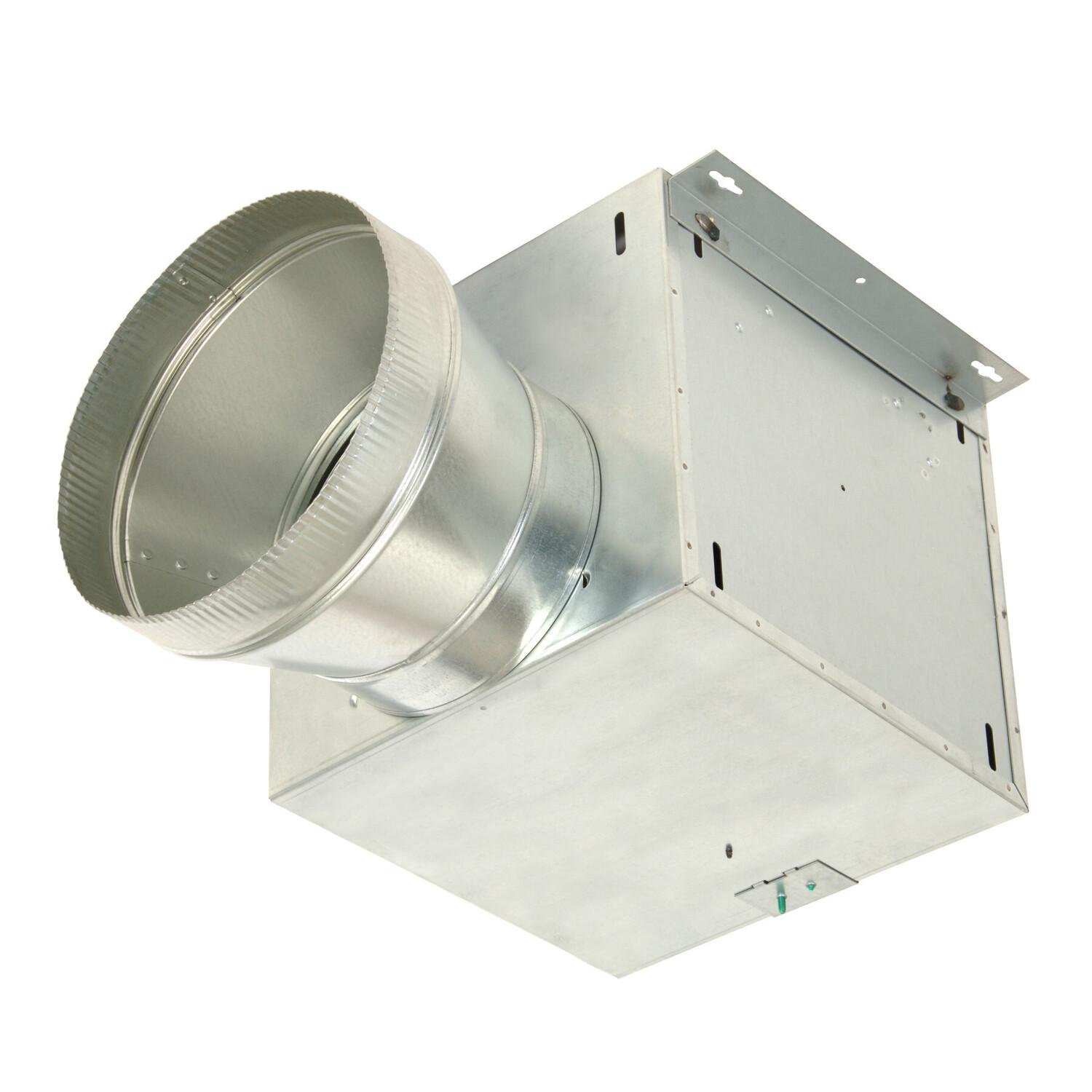

- Flexible duct design allows straight-through or right-angle connections with built-in damper

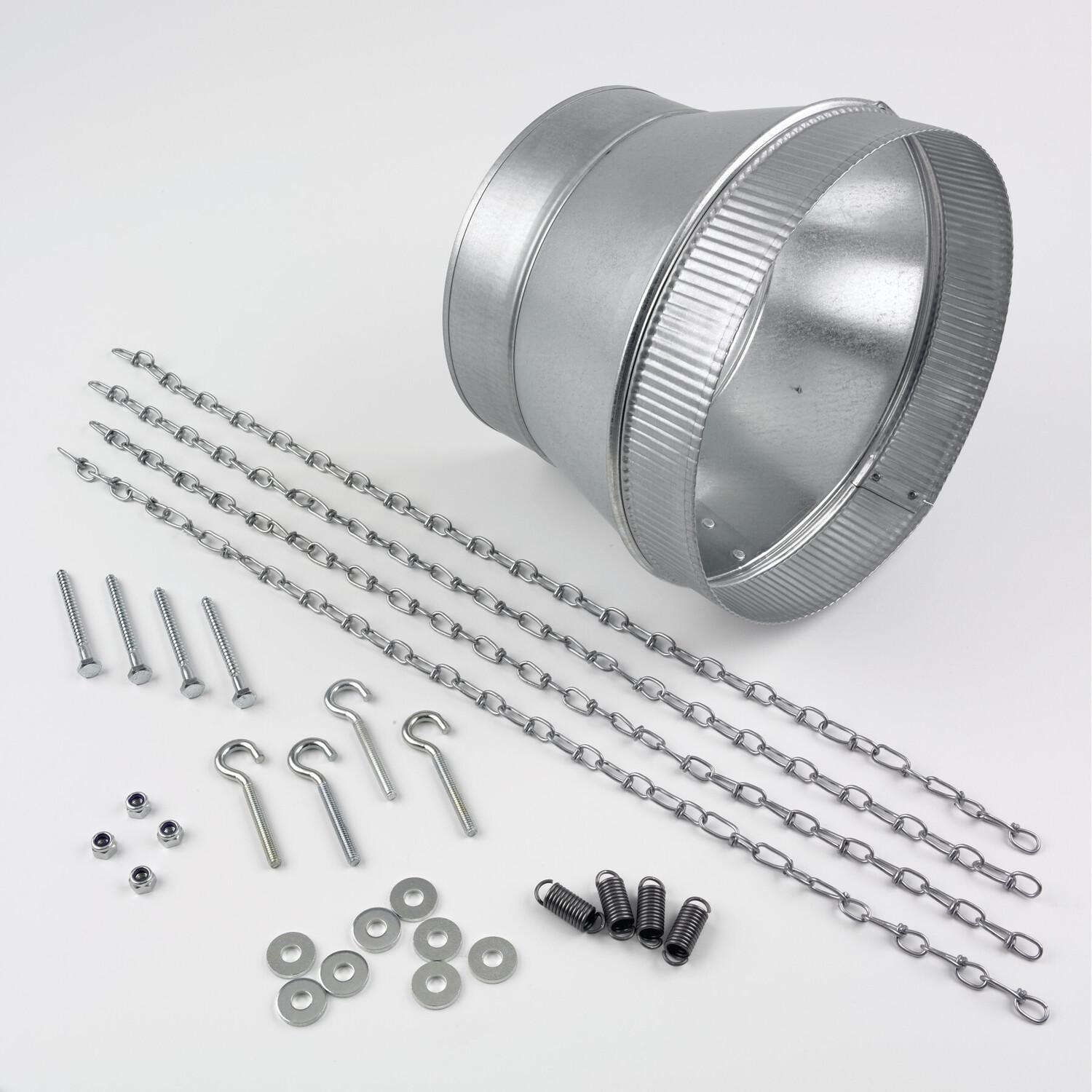

- 8-position mounting brackets or suspends with special suspension chains (hanger kit included) for hassle-free installation
320 Max In-Line Blower CFM for use with Broan® Range Hoods
| CFM | 280 |
| Sones | 2.6 |
| Color Finish | Galvanized Steel |
| Product Depth | 12-1/4" |
| Product Height | 11-3/4" |
| Product Width | 12-1/4" |
| Motor Number Of Speeds | 1 |
| Amperage | 2.6 |
| Rated Voltage | 120 |
| Warranty | 1 Year |
| UL Listed | Yes |
| Duct Connector Size | 8" Round |
| Duct Direction | Horizontal |
| Duct Shape | Round |
| Duct Diameter | 8" |
| HVI Certified | Yes |
| ENERGY STAR® certified product | No |
- 320 Max In-Line Blower CFM for use with Broan Range Hoods
- This quiet performance solution works with all Broan range hoods designed for use with external blowers
- The permanently lubricated, thermall protected plug-in motor is designed for continuous operation
- Specially designed resilient motor mounts and housing isolation mounts prevent vibration noise to ensure quiet operation
- Flexible duct design allows straight-through or right-angle connections with built-in damper
- 8-position mounting brackets or suspends with special suspension chains (hanger kit included) for hassle-free installation
 | |
|---|---|
