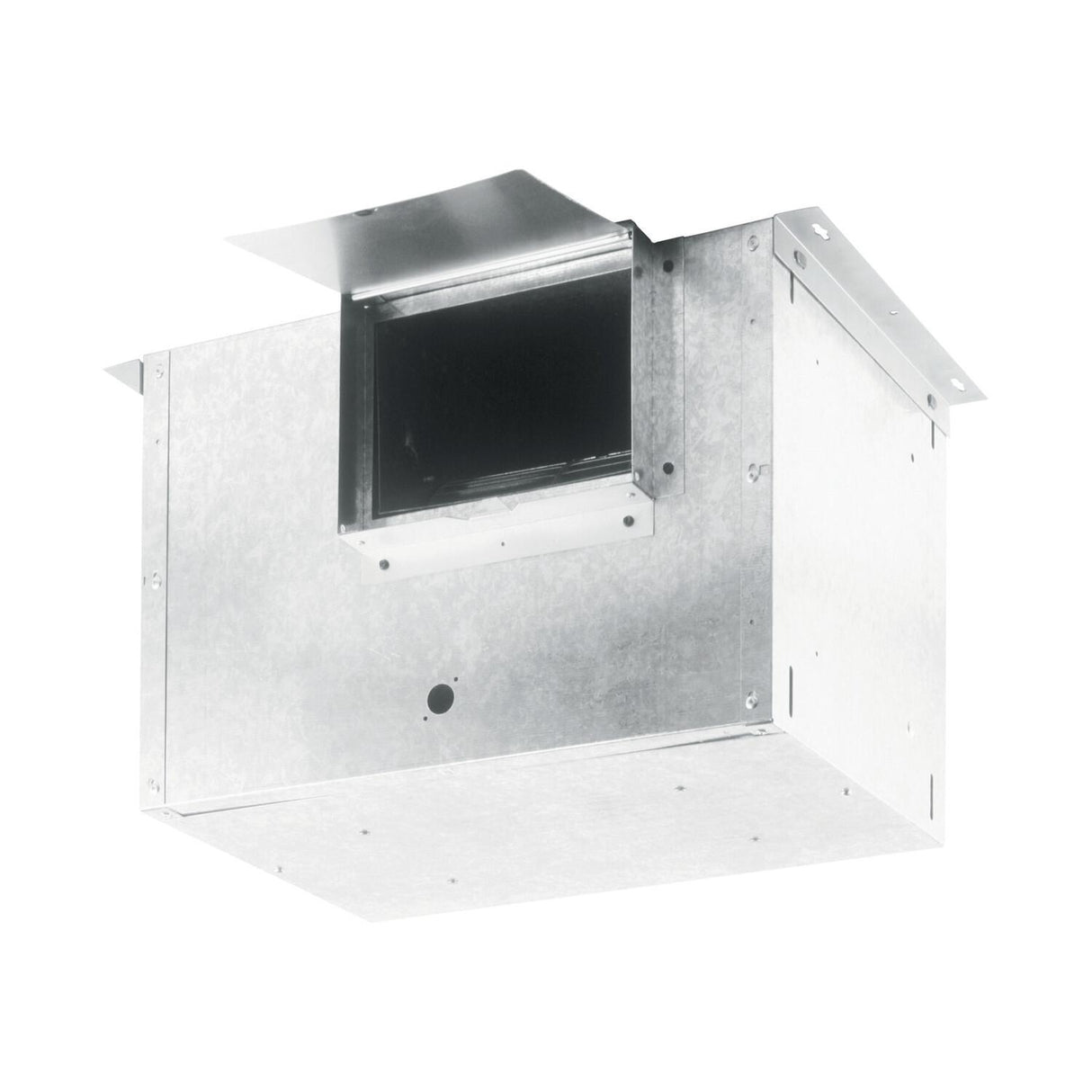

1540 Max In-Line Blower CFM for use with Broan® Range Hoods
Model HLB11
Authorized Dealer
1
of
4
Loading...
Authorized Dealer
1540 Max In-Line Blower CFM for use with Broan® Range Hoods
Model HLB11Quick Specs
Width
2
Height
8
Energy
NO
1540 Max In-Line Blower CFM for use with Broan® Range Hoods is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 07/06/2026
Regular price
$732.79
Unit price
/
Unavailable
Out of stock
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
2
Height
8
Energy Star Rated
NO
- 1540 Max In-Line Blower CFM for use with Broan Range Hoods
- This quiet performance solution works with all Broan range hoods designed for use with external blowers
- The permanently lubricated, thermall protected plug-in motor is designed for continuous operation
- Specially designed resilient motor mounts and housing isolation mounts prevent vibration noise to ensure quiet operation

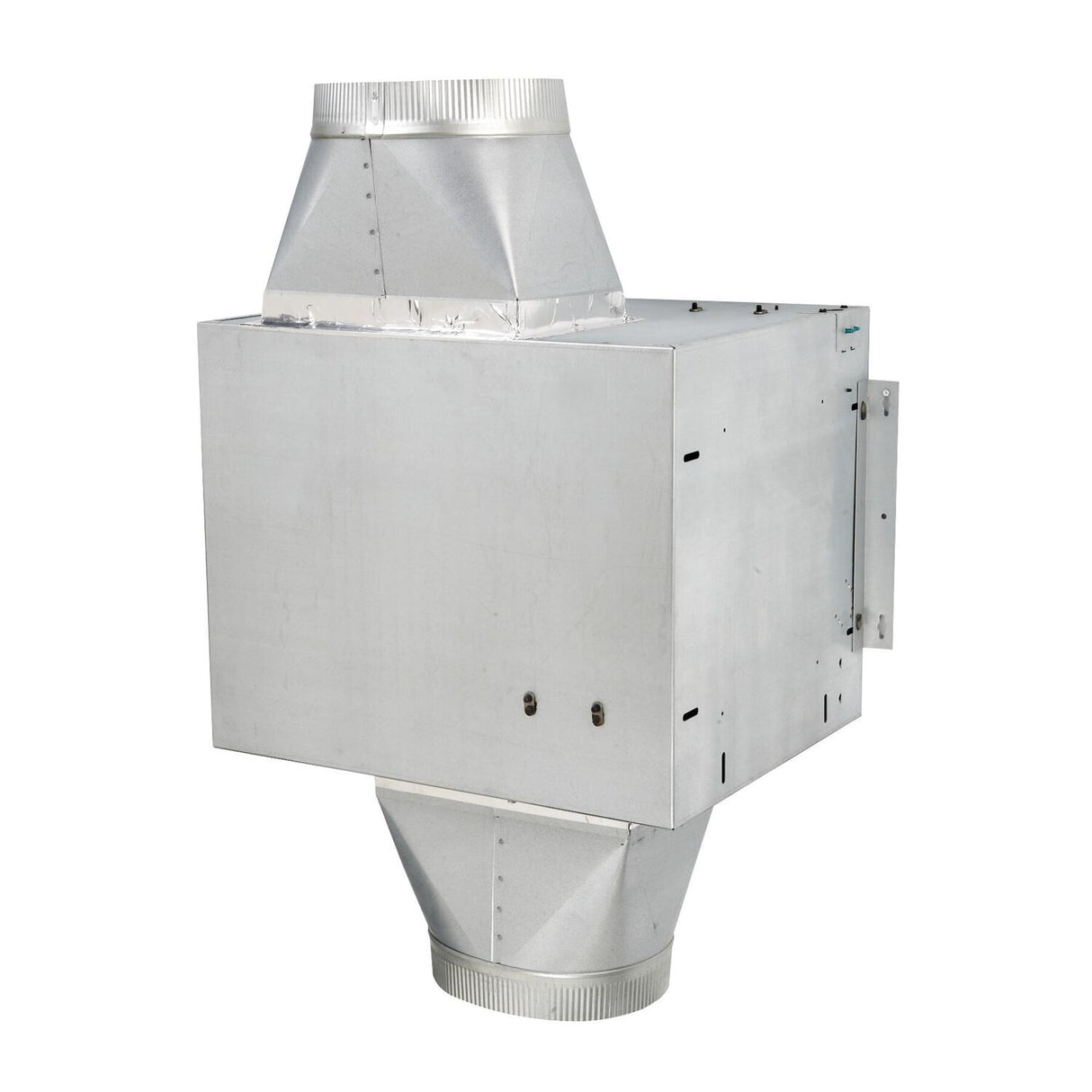

- Flexible duct design allows straight-through or right-angle connections with built-in damper

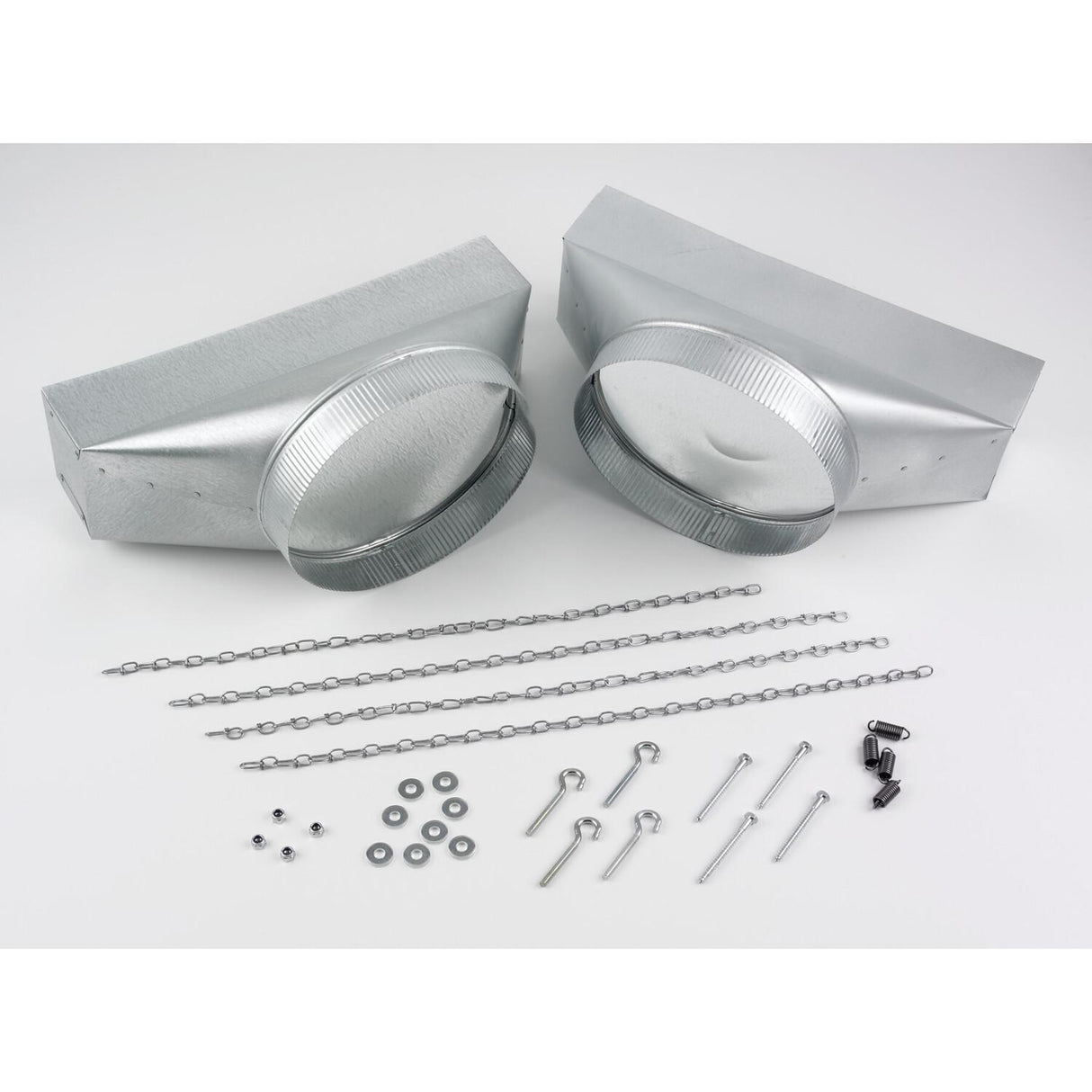

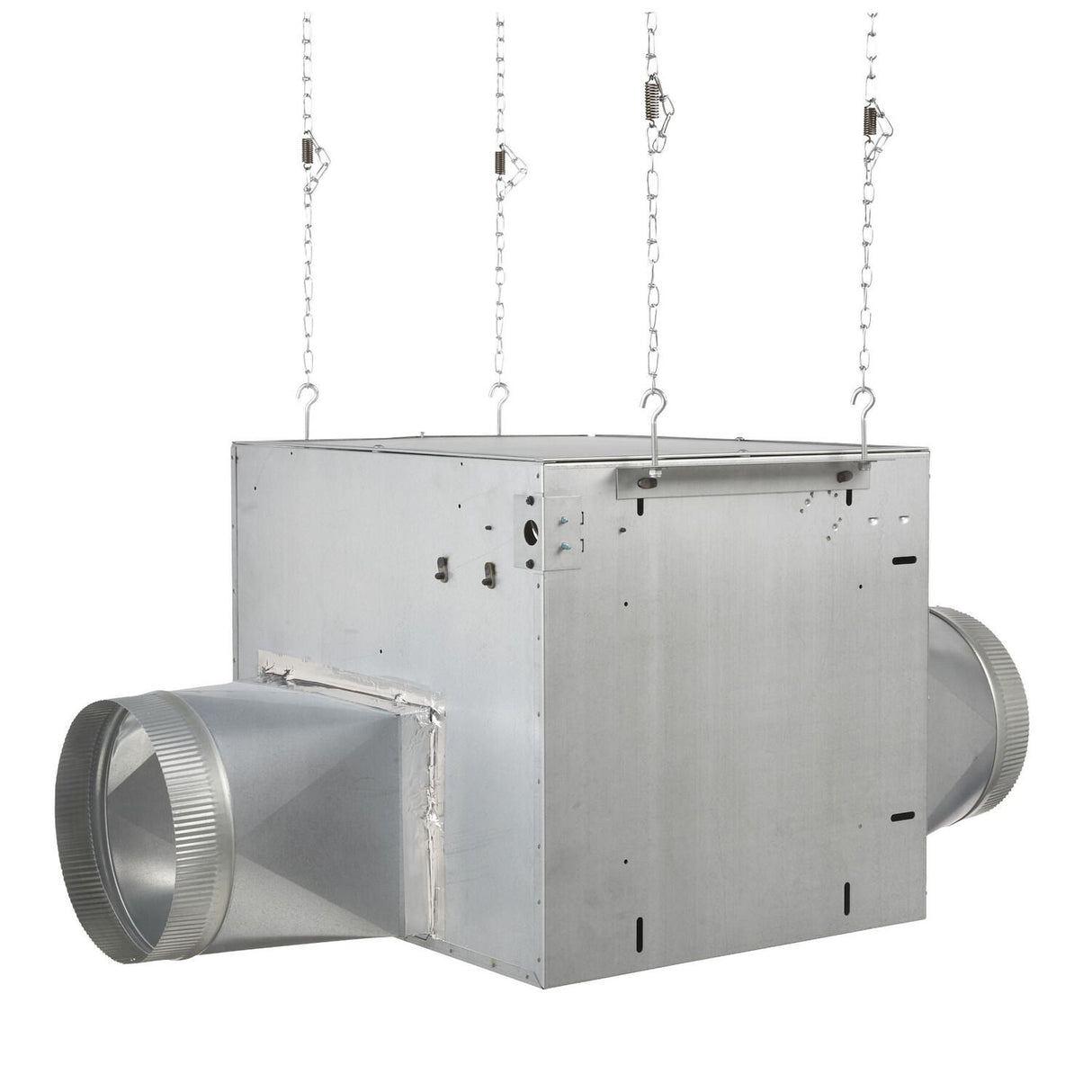

- 8-position mounting brackets or suspends with special suspension chains (hanger kit included) for hassle-free installation
**DISCONTINUED** 1540 Max In-Line Blower CFM for use with Broan® Range Hoods
| CFM | 1100 |
| Sones | 5.9 |
| Color Finish | Galvanized Steel |
| Product Depth | 18" |
| Product Height | 18" |
| Product Width | 22" |
| Motor Number Of Speeds | 1 |
| Amperage | 5.9 |
| Rated Voltage | 120 |
| Warranty | 1 Year |
| UL Listed | Yes |
| Duct Connector Size | 8" x 12" |
| Duct Direction | Horizontal |
| Duct Shape | Rectangular |
| Duct Height Rectangular | 8" |
| Duct Width Rectangular | 12" |
| HVI Certified | Yes |
| ENERGY STAR® certified product | No |
- 1540 Max In-Line Blower CFM for use with Broan Range Hoods
- This quiet performance solution works with all Broan range hoods designed for use with external blowers
- The permanently lubricated, thermall protected plug-in motor is designed for continuous operation
- Specially designed resilient motor mounts and housing isolation mounts prevent vibration noise to ensure quiet operation
- Flexible duct design allows straight-through or right-angle connections with built-in damper
- 8-position mounting brackets or suspends with special suspension chains (hanger kit included) for hassle-free installation
 | |
|---|---|
