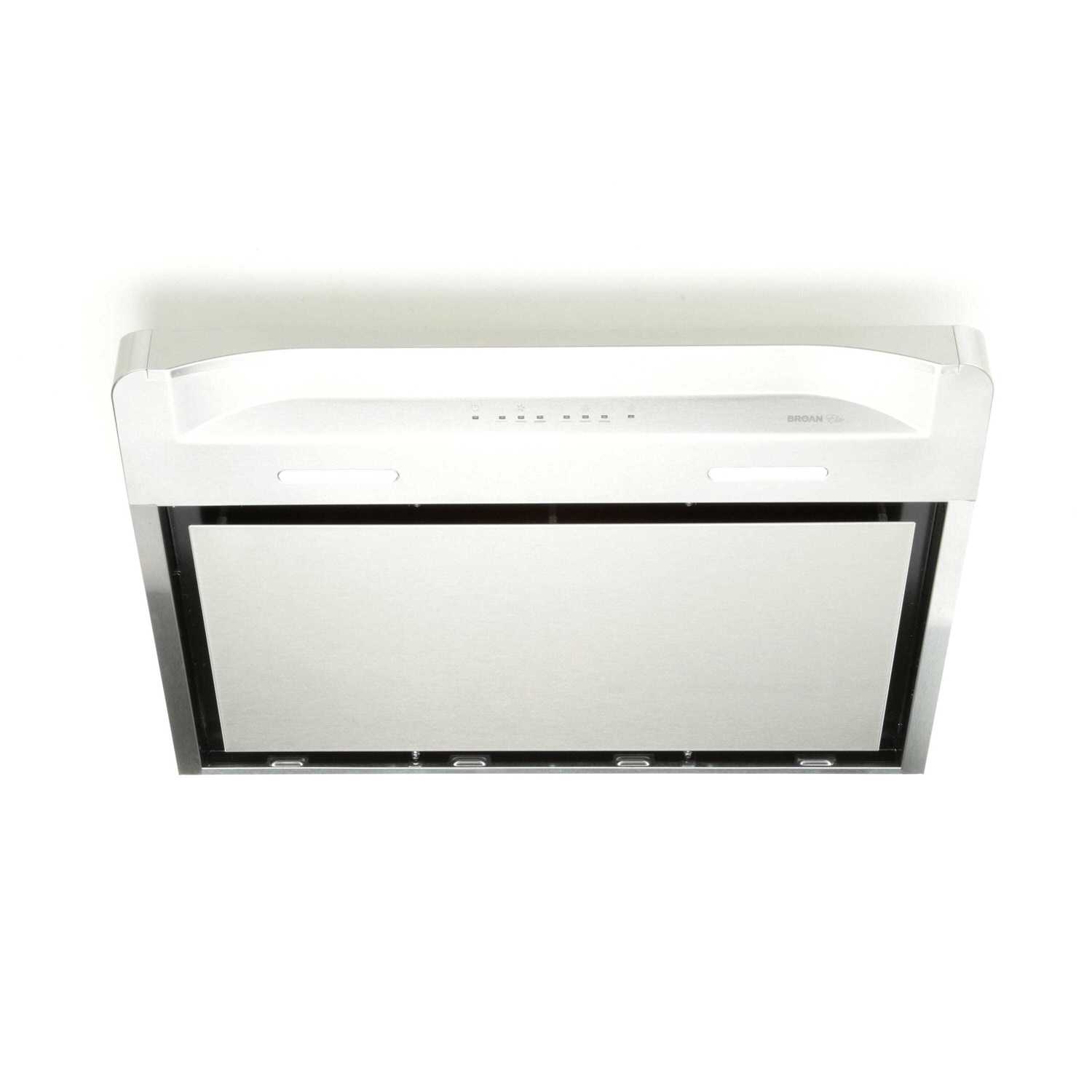

Alta 30-inch 500 CFM Stainless Steel Under-Cabinet Range Hood with LED light
Model: EQLD130SS
Alta 30-inch 500 CFM Stainless Steel Under-Cabinet Range Hood with LED light
Model: EQLD130SSQuick Specs
Warranty
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
Functional Filtration for Your Sense of Style
Dual dishwasher-safe, open-mesh filters provide efficient grease removal and can be installed without tools.
Control. Just the Way You Want it.
Three-speed, whisper touch infrared control is a pleasure to use and admire. Delay off feature runs the blower for 10 minutes after cooking to clear the air
EZ1 Installation System
We watched countless installations as we set out to simplify and accellerate the process. The result is a two-bracket system that holds the hood for you while you make electrical and ducting connections. It's easy and fast - up to 50% less installation time.
Superior Capture Over the Competition
The Broan Captur exhaust ventilation system provides the fastest air flow management and filtration in its class for better performance, quieter operation and less energy use.
Brilliant LED Lighting
Energy-efficient LEDs provide bright, even lighting that will last many years without dimming. These LEDs are specially designed to withstand high heat cooking environments.
- Functional Filtration for Your Sense of Style
- Dual dishwasher-safe, open-mesh filters provide efficient grease removal and can be installed without tools.
- Superior Capture Over the Competition
- The Broan Captur exhaust ventilation system provides the fastest air flow management and filtration in its class for better performance, quieter operation and less energy use.
- EZ1 Installation System
- We watched countless installations as we set out to simplify and accellerate the process. The result is a two-bracket system that holds the hood for you while you make electrical and ducting connections. It's easy and fast - up to 50% less installation time.
- Brilliant LED Lighting
- Energy-efficient LEDs provide bright, even lighting that will last many years without dimming. These LEDs are specially designed to withstand high heat cooking environments.
- Control. Just the Way You Want it.
- Three-speed, whisper touch infrared control is a pleasure to use and admire. Delay off feature runs the blower for 10 minutes after cooking to clear the air
- Functional Filtration for Your Sense of Style
- Dual dishwasher-safe, open-mesh filters provide efficient grease removal and can be installed without tools.
- Superior Capture Over the Competition
- The Broan Captur exhaust ventilation system provides the fastest air flow management and filtration in its class for better performance, quieter operation and less energy use.
| Color Finish | Stainless Steel |
| CFM | 500 Max high - 130 Min normal |
| Sones | 7.5 Max high - <0.3 Min normal |
| Product Depth | 22" |
| Product Height | 5" |
| Product Width | 29-7/8" |
| Light Number Of Levels | 3 |
| Light Color Temp | 3000 K |
| Light Lumens | 450/module |
| Light Type | LED |
| Nightlight Or Nightlight Setting | No |
| Light Bulb Wattage | 4.5/module |
| Light Bulb Recommended Type | Integrated LED Module |
| Light Bulbs Included | Yes |
| Light Bulb Quantity | 2 LED Modules |
| Filter Quantity | 2 |
| Boost Mode | No |
| Heat Sentry® - Temperature Sensor | Yes |
| Filter Type | Peripheral |
| Motor Number Of Speeds | 3 |
| Built In Timer | No |
| Remote Operation Capable | No |
| ADA Compliance | Yes |
| Damper Included | Yes |
| Non-ducted Filter Included | No |
| Amperage | 1.9 |
| Rated Voltage | 120 |
| Wattage | 228 |
| Switch Control Type | Infrared |
| Non-Ducted Recirculation Capable | Convertible built-in |
| Warranty | 1 Year, 3 Year LED module |
| UL Listed | Yes |
| Duct Connector Size | 3-1/4" x 14" or 7" Round |
| Duct Direction | Horizontal/Vertical |
| Duct Shape | Rectangular or Round |
| Duct Diameter | 7" |
| Duct Height Rectangular | 3-1/4" |
| Duct Width Rectangular | 14" |
| HVI Certified | Yes |
| ENERGY STAR® certified product | No |
