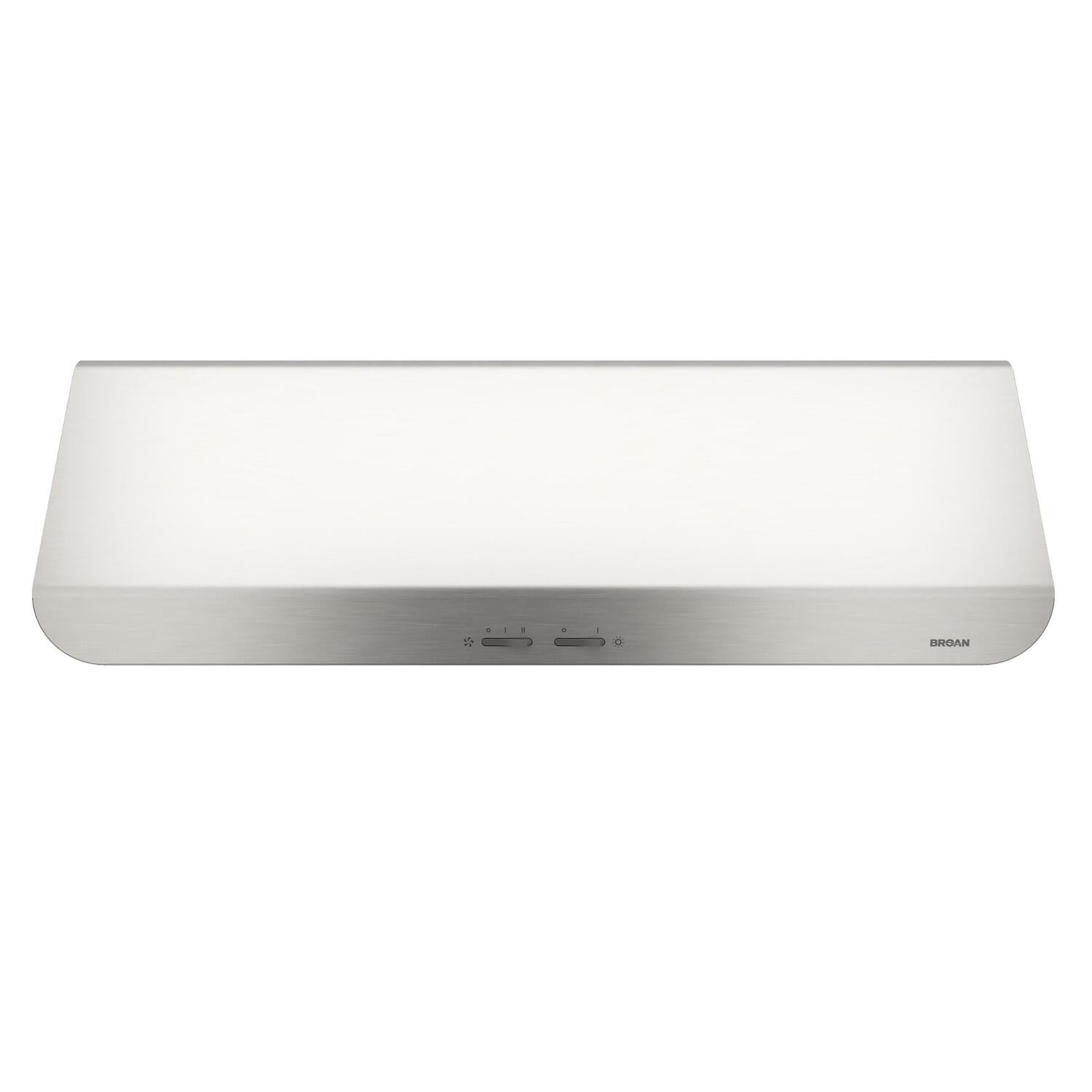

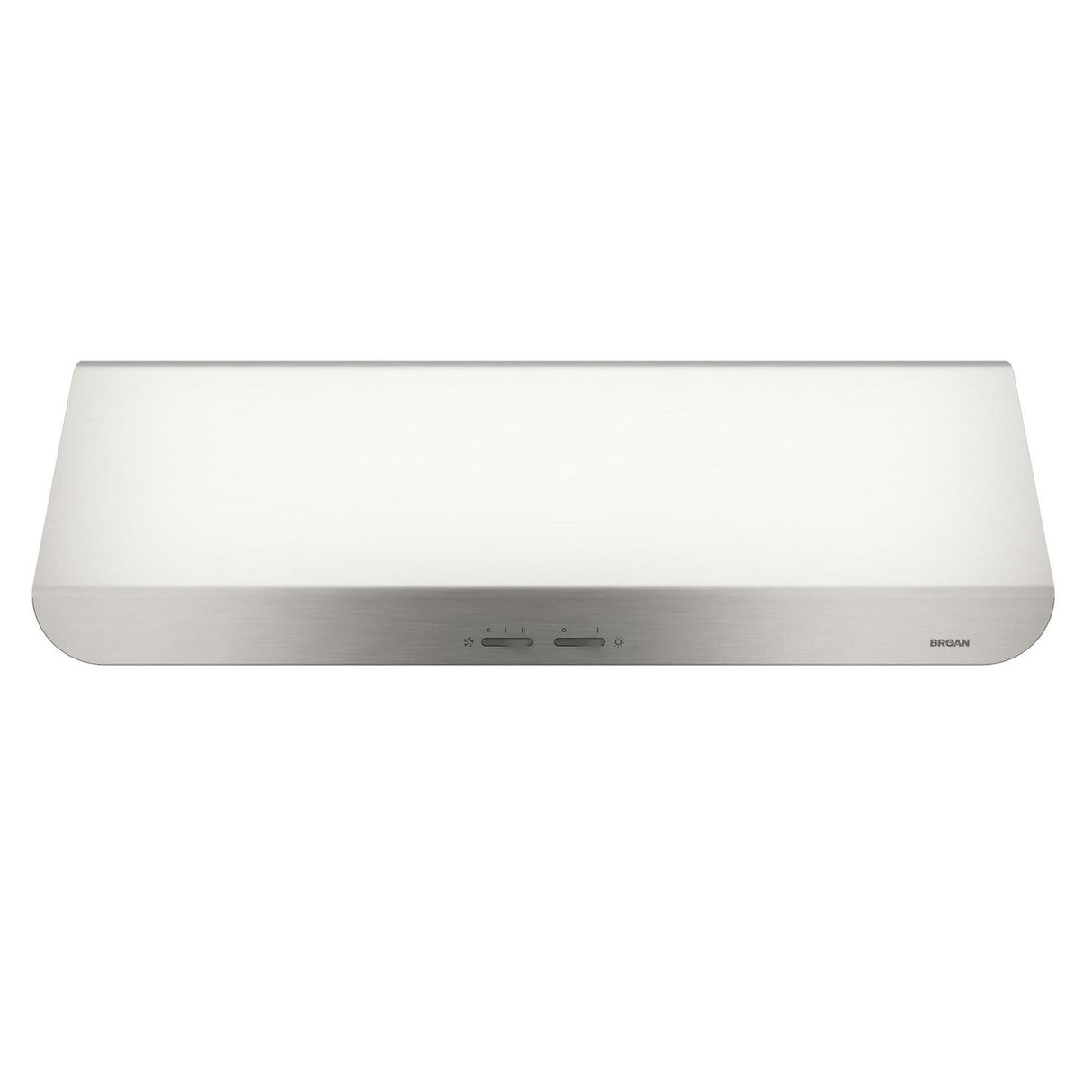

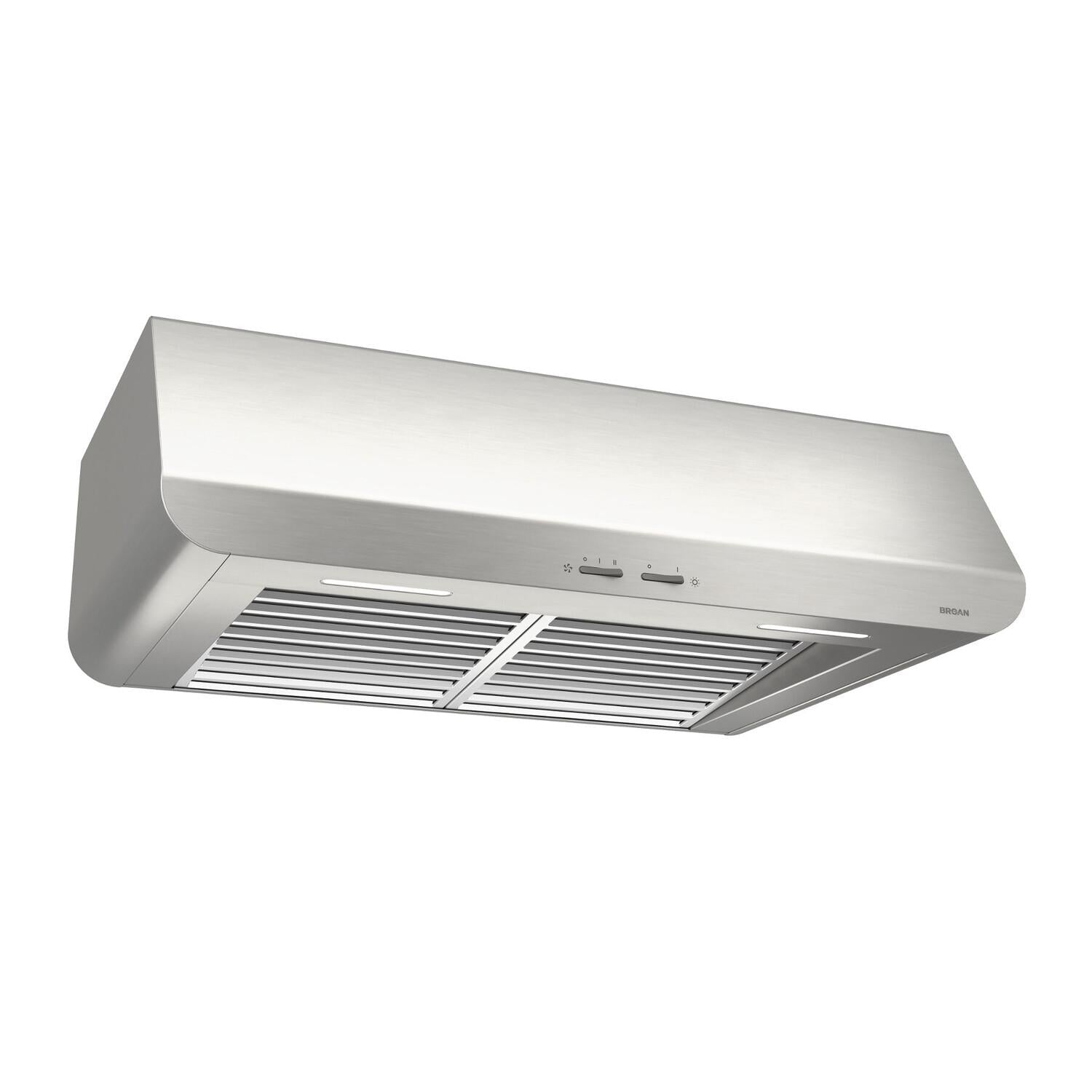

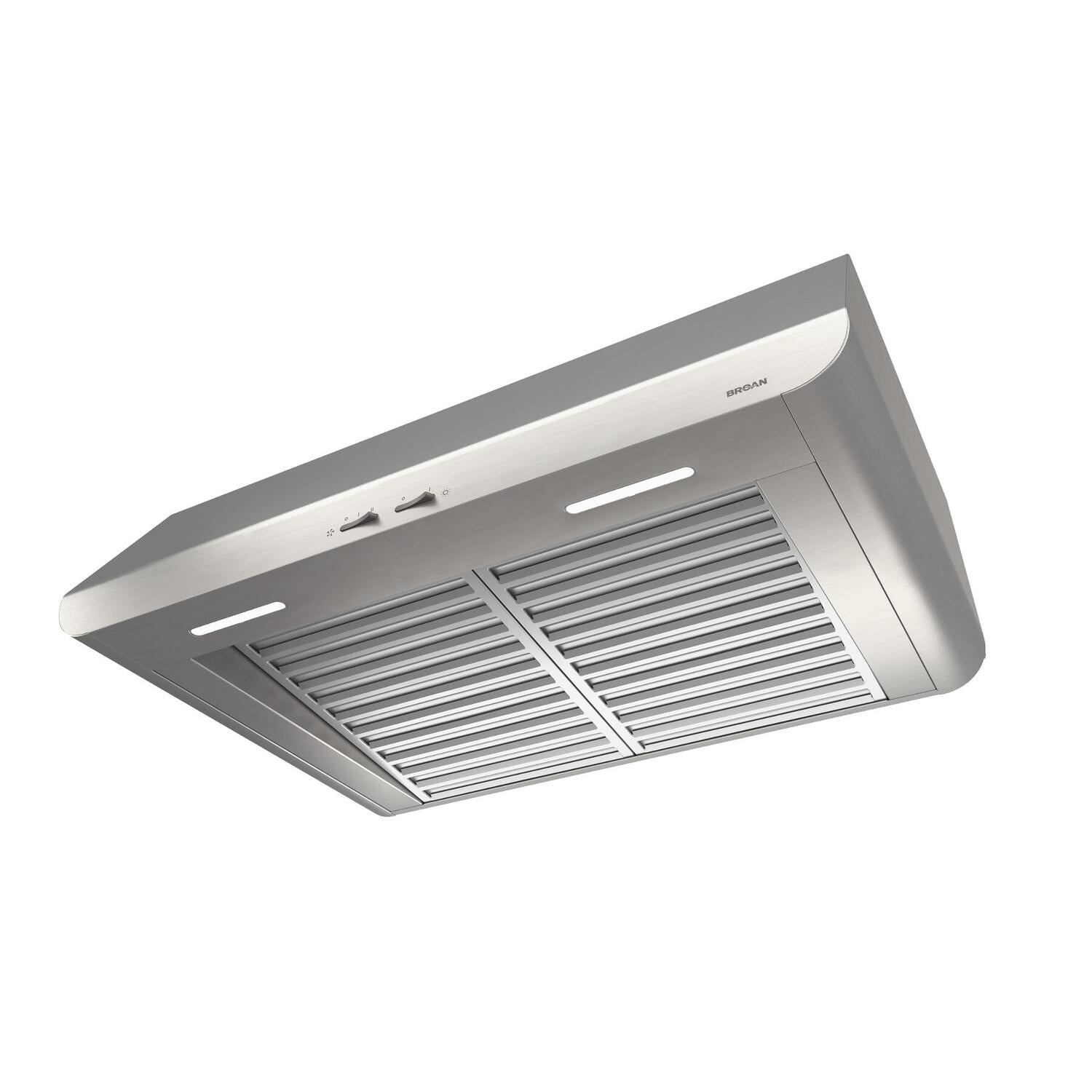

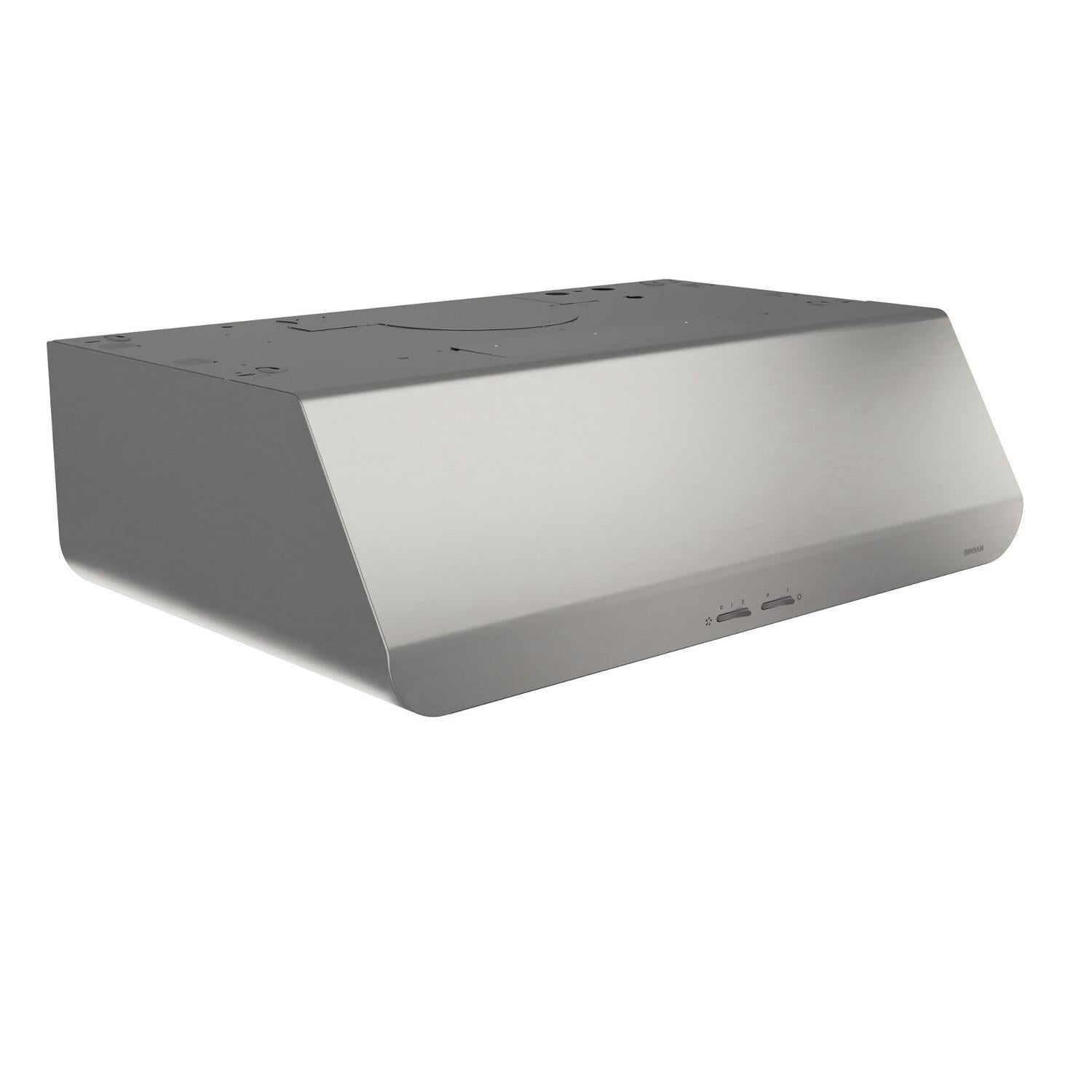

Broan® Spire 48-Inch Convertible Under-Cabinet Range Hood, 450 Max Blower CFM, Stainless Steel
Model: BPDP148SS
Authorized Dealer
1
of
6
Loading...
Authorized Dealer
Broan® Spire 48-Inch Convertible Under-Cabinet Range Hood, 450 Max Blower CFM, Stainless Steel
Model: BPDP148SSQuick Specs
Depth
19 1/4
Height
9
Broan® Spire 48-Inch Convertible Under-Cabinet Range Hood, 450 Max Blower CFM, Stainless Steel is backordered and will ship as soon as it is back in stock.
Discontinued
Regular price
$641.00
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
19 1/4
Height
9
- EZ1 Installation System
- We watched countless installations as we set out to simplify and accellerate the process. The result is a two-bracket system that holds the hood for you while you make electrical and ducting connections. It's easy and fast - up to 50% less installation time.
- Superior Capture Over the Competition
- The Broan Captur exhaust ventilation system provides the fastest air flow management and filtration in its class for better performance, quieter operation and less energy use.
- Brilliant LED Lighting
- Energy-efficient LEDs provide bright, even lighting that will last many years without dimming. These LEDs are specially designed to withstand high heat cooking environments.
- Control. Just the Way You Want it.
- Streamlined, deluxe 2-speed rocker control operates light and fan speeds.
- Functional Filtration for Your Sense of Style
- Pro-style, dishwasher-safe, hybrid baffle filters provide ultra-efficient grease removal with superior air flow.
- EZ1 Installation System
- We watched countless installations as we set out to simplify and accellerate the process. The result is a two-bracket system that holds the hood for you while you make electrical and ducting connections. It's easy and fast - up to 50% less installation time.
- Superior Capture Over the Competition
- The Broan Captur exhaust ventilation system provides the fastest air flow management and filtration in its class for better performance, quieter operation and less energy use.
- The Captur(TM) system advanced blower design features a forward positioned centric inlet to remove smoke and odor faster
- 450 Max blower CFM operates at 1.0 sones at normal speed
- Bright single intensity LED module supported by a 3-year warranty, illuminate evenly and are tested in cooking environments to ensure long life without dimming
- Streamlined, deluxe rocker control operates light and fan speeds
- Pro-style, dishwasher-safe, hybrid baffle filters provide ultra-efficient grease removal with superior air flow
- EZ1 brackets make it easy for single-person installation in less than half the time of traditional methods
- ADA compliant, remote operation is possible using a standard UL approved wall switch
- Compatible with optional Broan Make-up Air Dampers (sold separately) to fit 6", 8" or 10" ducting and help to balance the air pressure when the range hood is in use, keeping your environment comfortable and meeting local codes
- Ductless capable with use of charcoal filters, sold separately
- Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)
Broan® Spire 48-Inch Convertible Under-Cabinet Range Hood, 450 Max Blower CFM, Stainless Steel
| Filter Type | Hybrid Baffle |
| Heat Sentry™ | No |
| HVI Certified | Yes |
| Lighting Type | LED |
| Sound Level (Sones) | 0.4 |
| UL Listed | Yes |
| ADA Compliance | Yes |
| Damper Included | No |
| ENERGY STAR® certified | No |
| Light Bulb Wattage | 4.5 |
| Light Bulbs Included | Yes |
| Light Levels | 1 |
| Material | Steel |
| Nightlight Or Nighlight Setting | No |
| Ductless Recirculation Capable | Yes |
| Ductless Filter Or Kit Included | No |
| Remote Operation Capable | No |
| Speed Levels | 2 |
| Switch Control Type | Deluxe Rocker |
| Rated Voltage | 120 |
| Boost Mode | No |
| Country of Origin | Mexico |
| Rated Amps | 1.4 |

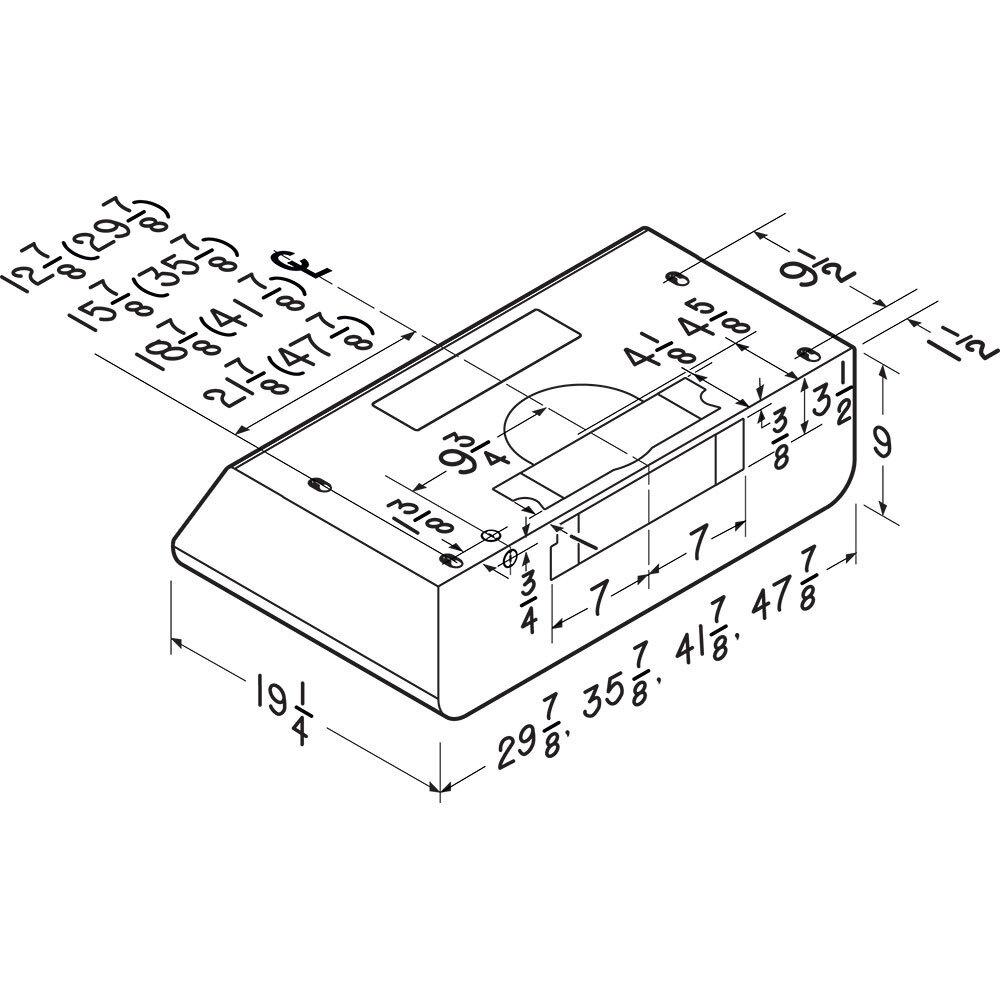

| Product Depth | 19.25" |
| Product Height | 9" |
| Product Width | 48" |
| Built-In Timer | No |
| Capture Efficiency | 98.5 |
| CFM | 450 Max |
| Diameter | 7" Round |
| Vent Type | Convertible Built-In |
| Duct Direction | Horizontal/Vertical |
| Bulb (Recommended Type) | Integrated LED Module |
| Light Color Temp | 3000 |
| Manufacturer Warranty | 1 Year, 3 Year LED module |
| Wattage | 168 |
- The Captur(TM) system advanced blower design features a forward positioned centric inlet to remove smoke and odor faster
- 450 Max blower CFM operates at 1.0 sones at normal speed
- Bright single intensity LED module supported by a 3-year warranty, illuminate evenly and are tested in cooking environments to ensure long life without dimming
- Streamlined, deluxe rocker control operates light and fan speeds
- Pro-style, dishwasher-safe, hybrid baffle filters provide ultra-efficient grease removal with superior air flow
- EZ1 brackets make it easy for single-person installation in less than half the time of traditional methods
- ADA compliant, remote operation is possible using a standard UL approved wall switch
- Compatible with optional Broan Make-up Air Dampers (sold separately) to fit 6", 8" or 10" ducting and help to balance the air pressure when the range hood is in use, keeping your environment comfortable and meeting local codes
- Ductless capable with use of charcoal filters, sold separately
- Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)
