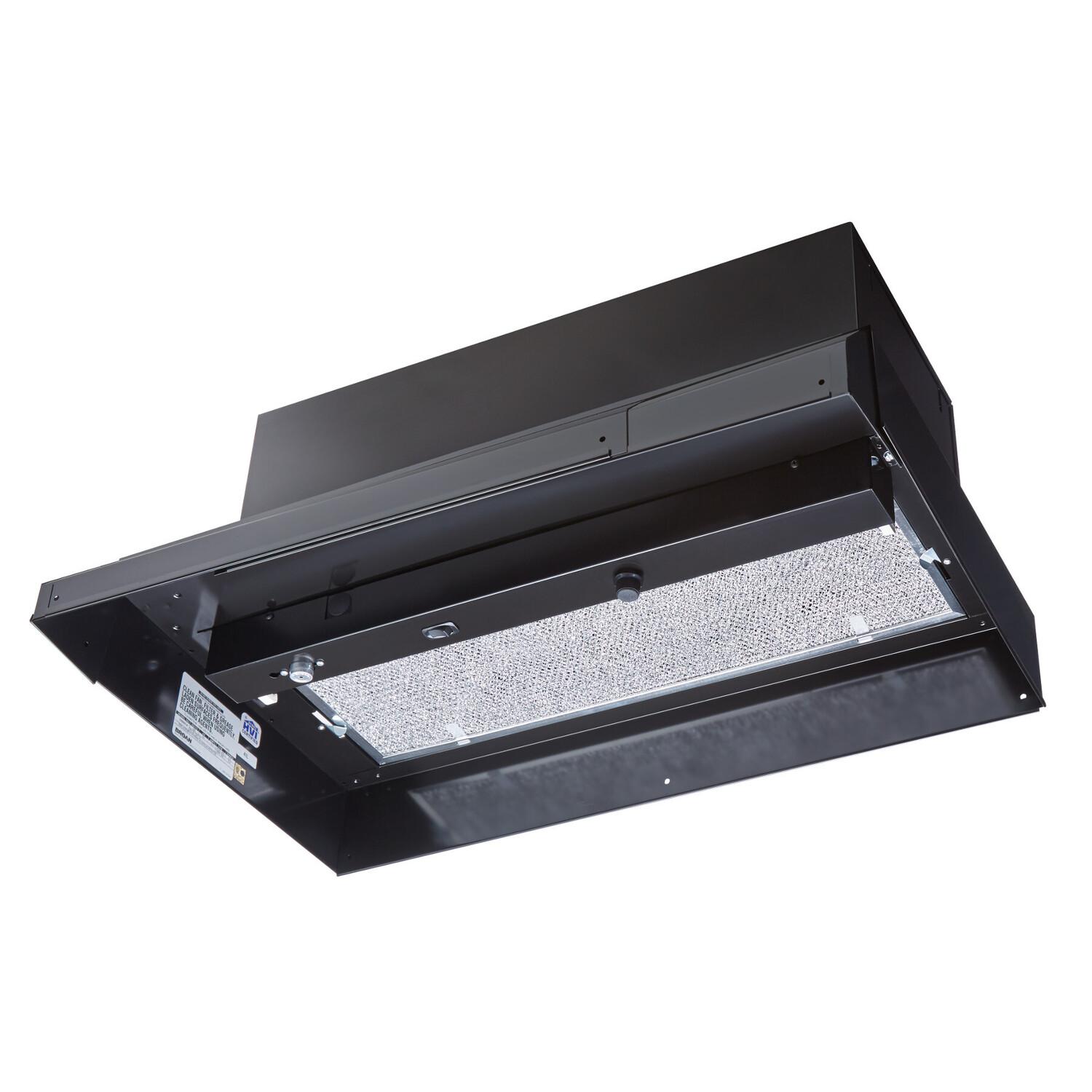

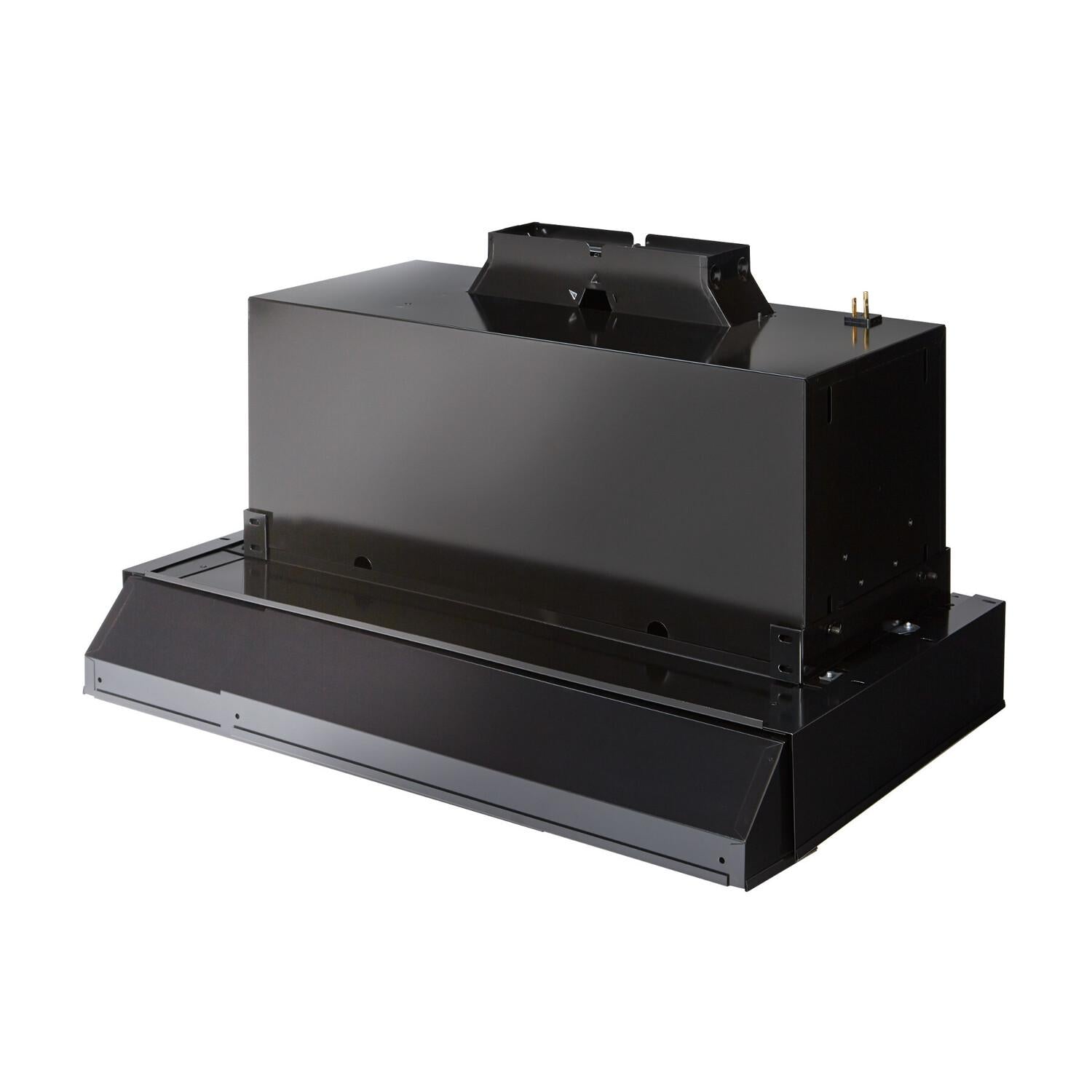

Broan® Custom 29-Inch Insert Range Hood Kit w/ Light, Black
Model 103023
Authorized Dealer
1
of
5
Loading...
Authorized Dealer
Broan® Custom 29-Inch Insert Range Hood Kit w/ Light, Black
Model 103023Quick Specs

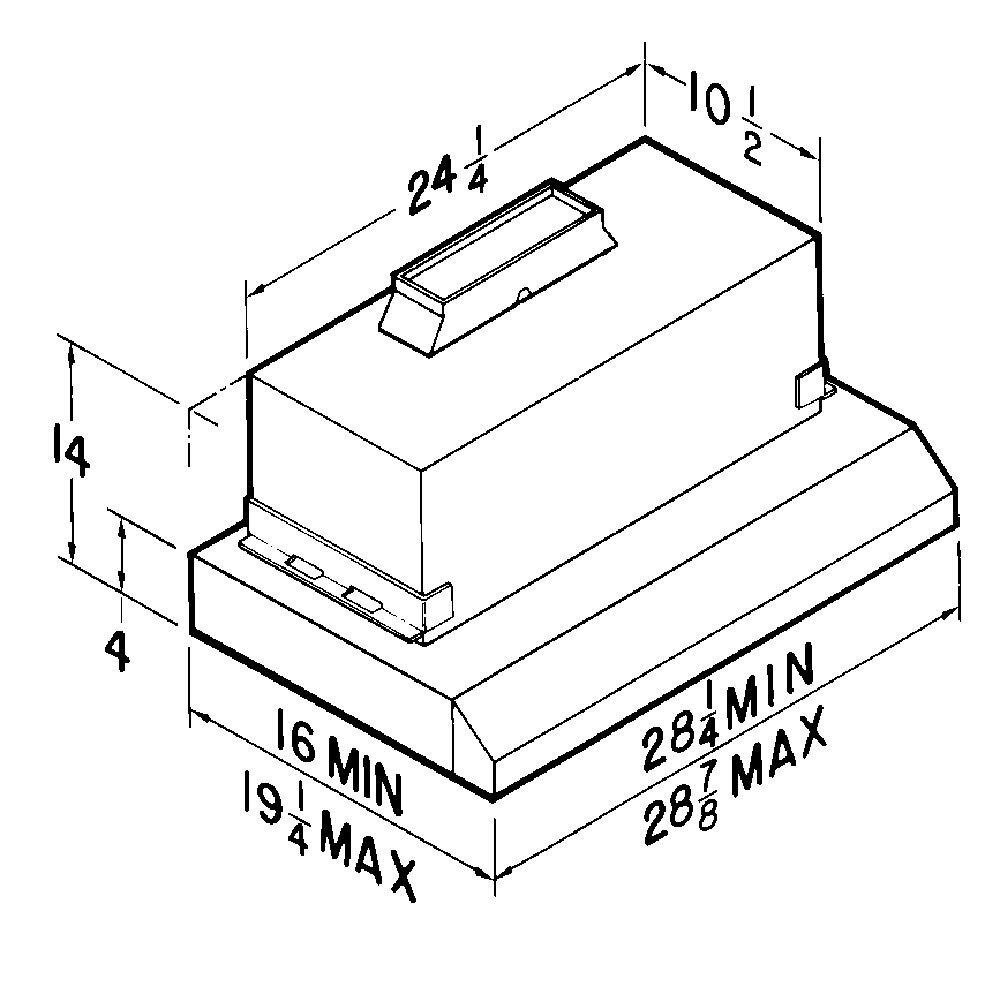

Width
28.25
Depth
19.25
Height
14
Energy
NO
Broan® Custom 29-Inch Insert Range Hood Kit w/ Light, Black is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 07/07/2026
Regular price
$293.42
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
28.25
Depth
19.25
Height
14
Energy Star Rated
NO
- Vertically ducted range hood offers high-performance ventilation
- Rotary dial fan control and rocker light switch for easy use
- 360 CFM blower helps pull smoke and cooking odors from the air
- Aluminum grease filter is removable and washable for easy maintenance
- 24 in. fluorescent tube lighting (bulbs not included) helps illuminate your work space
- Fire retardant construction for safety
- 1 year limited warranty
- UL Listed and HVI-2100 Certified for your safety and protection
- Requires model 103123 rough-in kit (not included)
DISCONTINUED-Broan® Custom 29-Inch Insert Range Hood Kit w/ Light, Black
| Filter Type | MicroFoam |
| Heat Sentry™ | No |
| HVI Certified | Yes |
| Lighting Type | Fluorescent |
| Sound Level (Sones) | 4.5 |
| UL Listed | Yes |
| ADA Compliance | No |
| Damper Included | No |
| ENERGY STAR® certified | No |
| Light Bulbs Included | No |
| Light Levels | 1 |
| Nightlight Or Nighlight Setting | No |
| Ductless Recirculation Capable | No |
| Ductless Filter Or Kit Included | No |
| Remote Operation Capable | No |
| Speed Levels | Variable |
| Switch Control Type | Rotary |
| Rated Voltage | 120 |
| Boost Mode | No |
| Rated Amps | 3.7 |
| Product Height | 14 |
| Product Width | 29" |
| Built-In Timer | No |
| CFM | 300 |
| Vent Type | Ducted Only |
| Duct Direction | Horizontal/Vertical |
| Bulb (Recommended Type) | F20T12 Fluorescent |
| Manufacturer Warranty | 1 Year |
| Wattage | 444 |
- Vertically ducted range hood offers high-performance ventilation
- Rotary dial fan control and rocker light switch for easy use
- 360 CFM blower helps pull smoke and cooking odors from the air
- Aluminum grease filter is removable and washable for easy maintenance
- 24 in. fluorescent tube lighting (bulbs not included) helps illuminate your work space
- Fire retardant construction for safety
- 1 year limited warranty
- UL Listed and HVI-2100 Certified for your safety and protection
- Requires model 103123 rough-in kit (not included)
 | |
|---|---|
