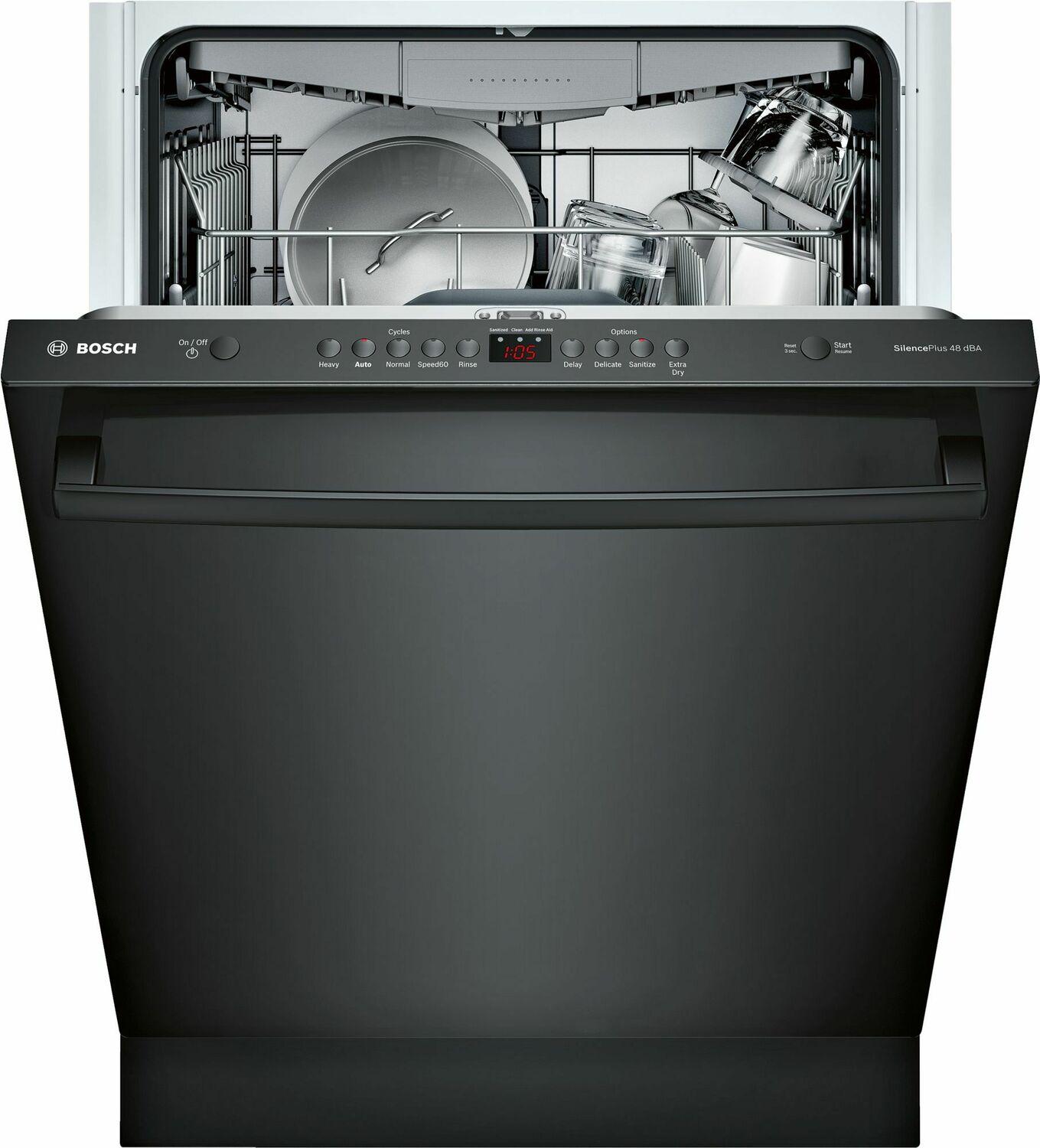

100 Series Dishwasher 24'' Black SHXM4AY56N
Model: SHXM4AY56N
100 Series Dishwasher 24'' Black SHXM4AY56N
Model: SHXM4AY56NQuick Specs
Warranty
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
When your dishes are done, so are you.
(P)With Bosch PrecisionWash(R), intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load.(/P)
RackMatic(TM) Adjustable Upper Rack
(P)The RackMatic middle rack easily adjusts to three different heights and up to 9 separate rack positions, allowing taller items like stemware to fit in the middle rack while leaving room for pots and pans below.(/P)
A 3rd rack to meet your loading needs.
(P)With 30% more loading area*, the 3rd rack provides extra space for flatware, large utensils and measuring cups. Its V shape leaves room below for tall items. *Compared to a Bosch dishwasher with 2 racks(/P)
Quality is in the details.
(P)Bosch dishwashers are engineered to the highest standards. Every Bosch dishwasher undergoes 485 quality checks, so that we can deliver quality that you can count on.(/P)
RackMatic(R)

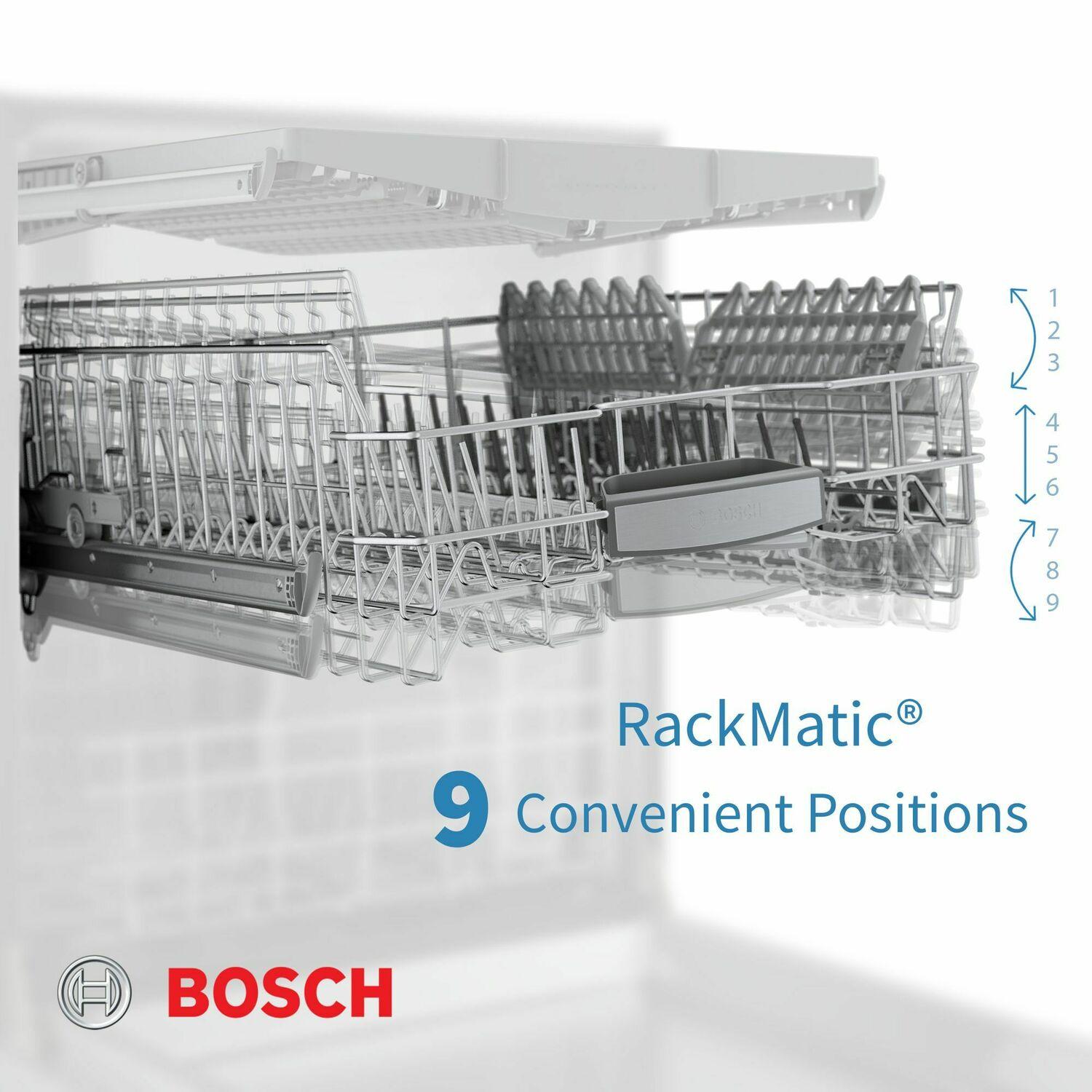

(P)RackMatic(R) adjustable upper rack easily adjusts to 9 different positions to allow taller items like stemware to fit, while leaving room for pots and pans below.(/P)
ENERGY STAR
ENERGY STAR is a U.S. Environmental Protection Agency voluntary program that helps businesses and individuals save money and protect our climate through superior energy efficiency.
- Key Features
- RackMatic® on Upper Rack - 3 Height Adjustments and Up to 9 Possible Rack Positions
- InfoLight® Beams on Floor to Indicate Dishwasher is Running
- 24/7 Overflow Protection System®
- Design
- Stainless Steel Tall Tub with Polypropylene
- 14 Place Setting Capacity
- LED Remaining Time Display
- RackMatic® on Upper Rack - 3 Height Adjustments

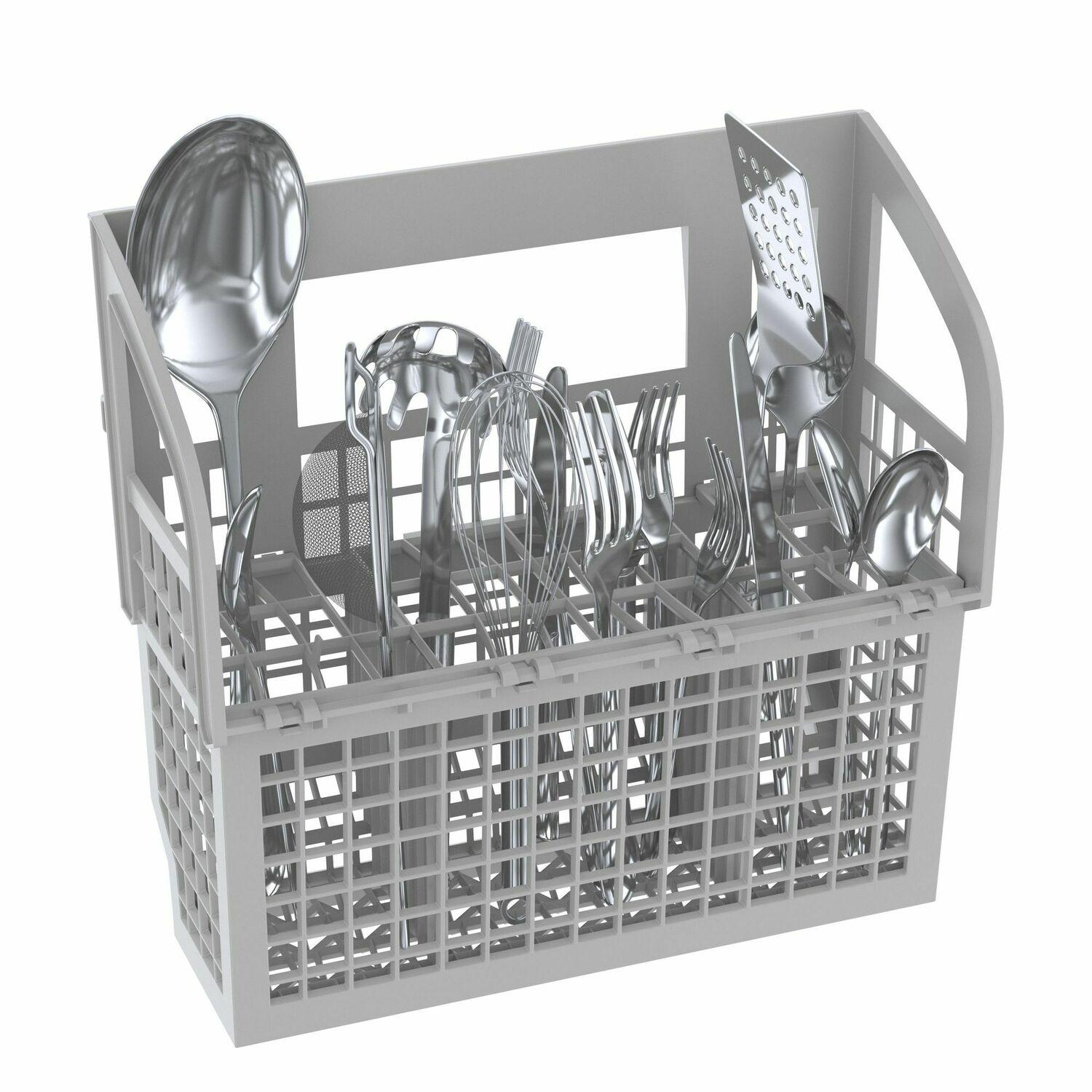

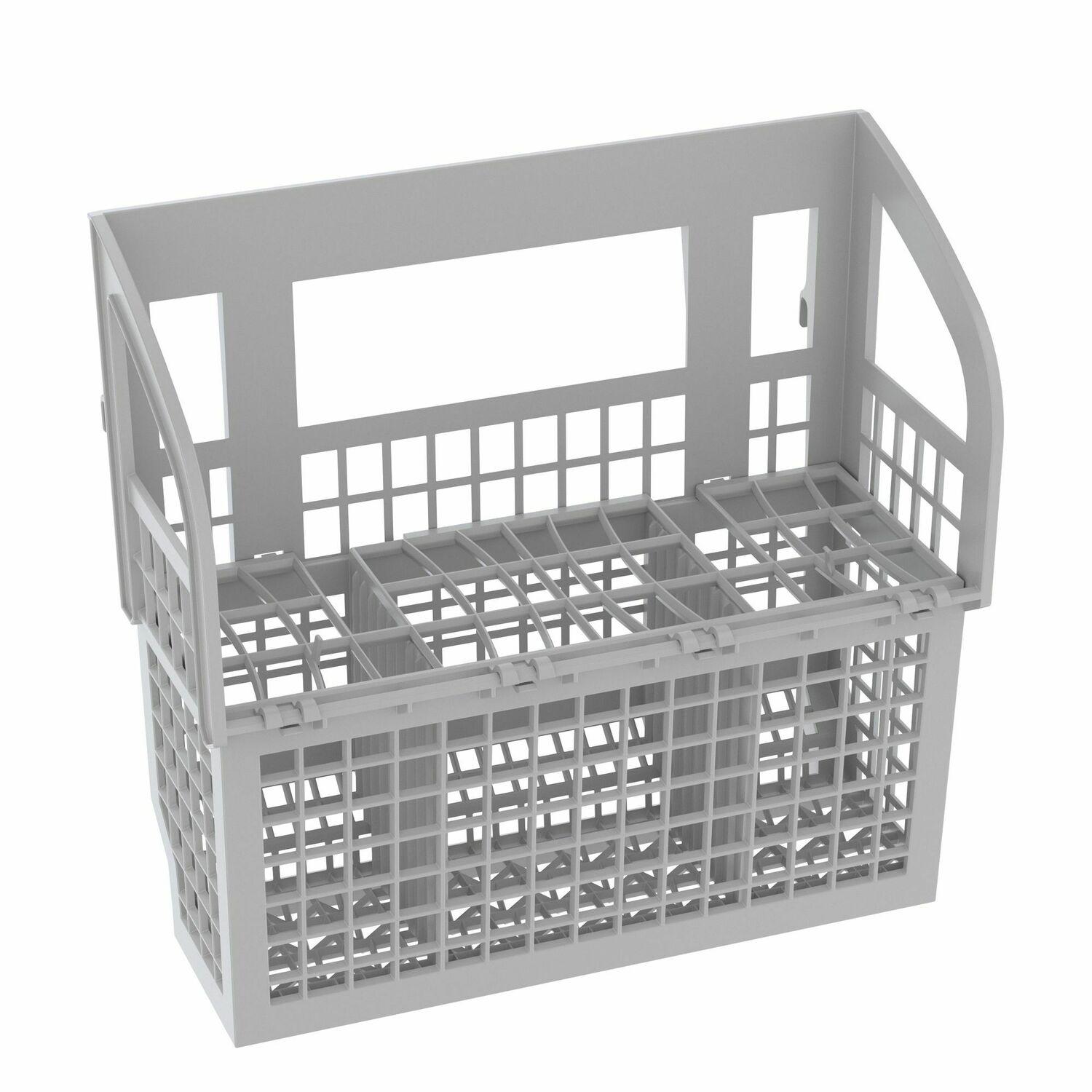

- Silverware Basket Can be Placed Anywhere in the Dishwasher, Adding Space for Other Items
- Performance
- 5 Wash Cycles and 4 Options
- Detergent Tray Optimizes Detergent Dissolving
- Load Size Sensor Automates Wash Temperature
- Sanitize Option Eliminates Bacteria and Enhances Drying Results
- Extra Dry Option for Better Drying Results
- Efficiency
- 269 kWh/yr - Energy Star®
- Half Load Option for Small Loads
- Convenience
- 24 h Delay Start Timer
- Self-Latching Door
- 48 dBA: Quietest Dishwasher Brand.
- With Bosch PrecisionWash(TM), simply start your dishwasher and walk away. Close When your dishes are done, so are you. > With Bosch PrecisionWash(R), intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load.
- A 3rd rack adds versatility and offers 30% more loading capacity*. *Vs. Bosch Dishwashers with 2 racks
- InfoLight(R) shines on the floor so you know the dishwasher's running.
- 24h Delay Start Timer lets you run your dishwasher at off-peak times.
| Technical Specifications | |
| General | |
| Installation Type | Built-under |
| Number of place settings | 15 |
| List of programs | 1 Hour, Auto, Normal, Pots & Pans, Rinse |
| Cycle Options | Delicate, Extra dry, Sanitation |
| Display | |
| Silence level (dBA) | 48 dB |
| Third Rack | Standard Third Rack |
| Interior Light | |
| Removable top | |
| Power Cord Length | 67" |
| Connectivity | |
| Home Connect™ | |
| Connectivity type | Not applicable |
| Size and weight | |

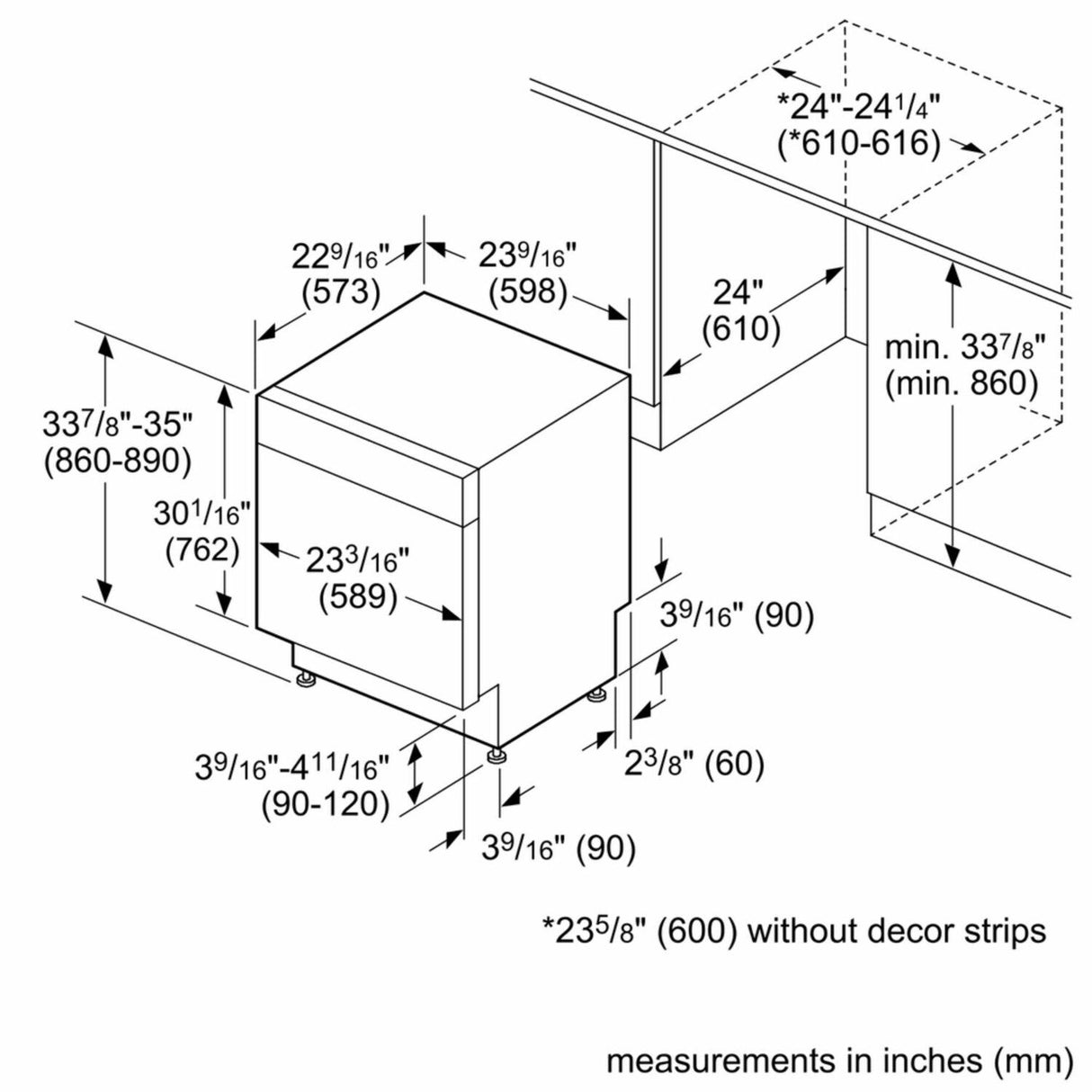

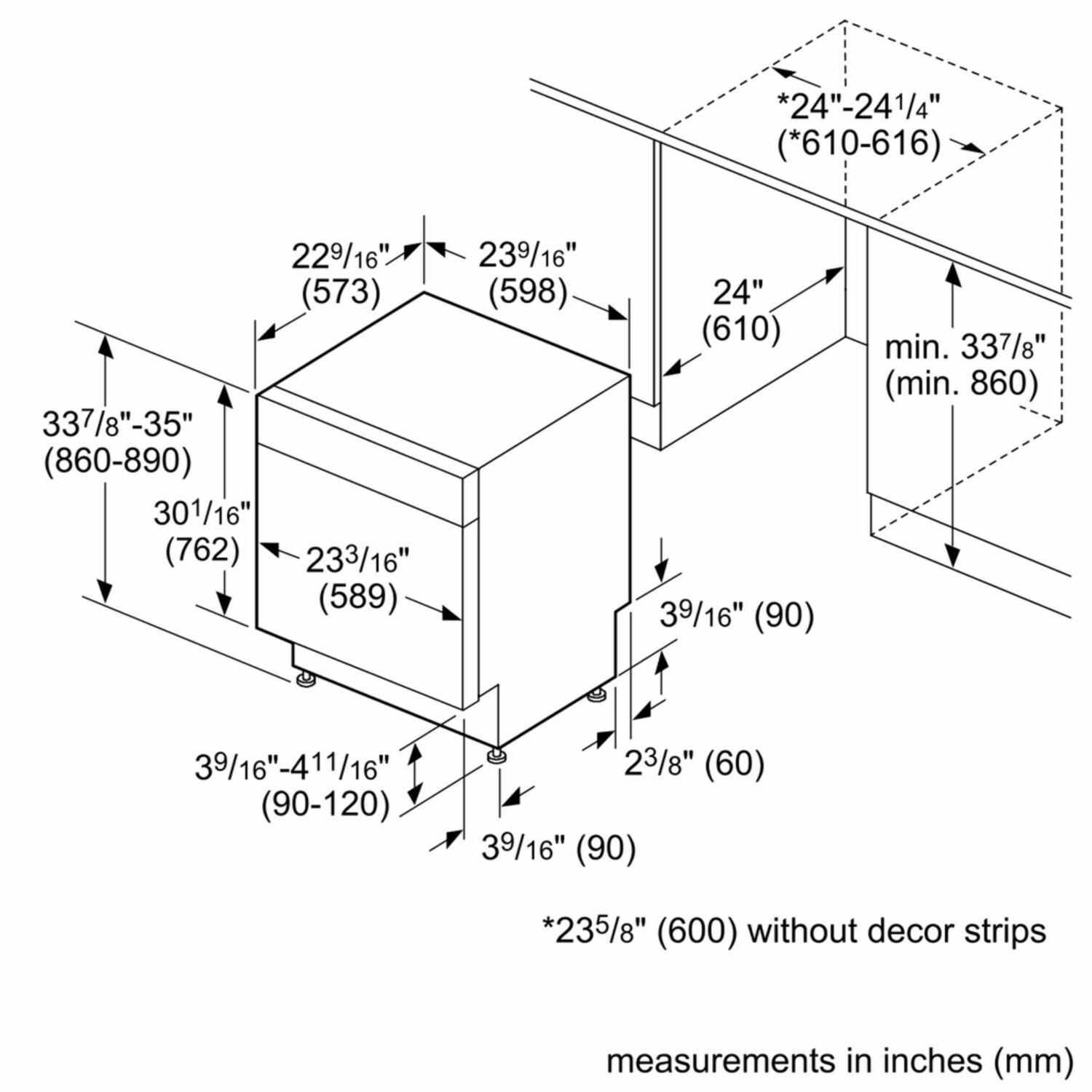

| Overall appliance dimensions (HxWxD) (in) | 33 7/8'' x 23 9/16'' x 22 9/16'' |
| Adjustable plinth | both horizontal and vertical |
| Net weight (lbs) | 77.000 lbs |
| Programmes | |
| Status indicator | End of program audible, InfoLight red, sanitized LED US, Time remaining indic. internal |
| List of programs | 1 Hour, Auto, Normal, Pots & Pans, Rinse |
| Program 1 | Pots & Pans |
| Program 5 | Rinse |
| Programme duration, programme1 (min.) | 110-130 |
| Programme duration, programme2 (min.) | 105-130 |
| Programme duration, programme3 (min.) | 130-135 |
| Programme duration, programme4 (min.) | 60 |
| Programme duration, programme5 (min.) | 9 |
| Reference programme | Regular US |
| Number of different wash temperatures | 5 |
| Temperature program 1 | 151-160 °F |
| Temperature program 2 | 127-131 °F |
| Temperature program 3 | 122-131 °F |
| Temperature program 4 | 122 °F |
| Safety | |
| Glass protection | |
| Surge-back protect. installed | |
| Leak protection system | Aqua Stop |
| Consumption values | |
| Glass protection | |
| Water consumption program 1 | 4.9-7.4 gal |
| Water consumption program 2 | 2.6-5.5 gal |
| Water consumption program 3 | 2.4-5.5 gal |
| Water consumption program 4 | 3.8 gal |
| Water consumption program 5 | 1.1 gal |
| Total annual water consumption (g) | 688 gallons |
| Maximum temperature for water intake (°C) | 50 °C |
| Connection | |
| Watts (W) | 1,440 W |
| Power Cord Length | 67" |
| Fuse protection (A) | 12 A |
| Plug type | Nema5-15P |
| Construction type | |
| Color / Material housing | Tin grey |
| Color / Control Panel | Black |
| Construction type | Built-in |
| Panel ready | Not possible |
| Drying system | Inherent heat |
| Concealed heating element | |
| Installation Type | Built-under |
| Tub material | Plastic |
| Water Softener | |
