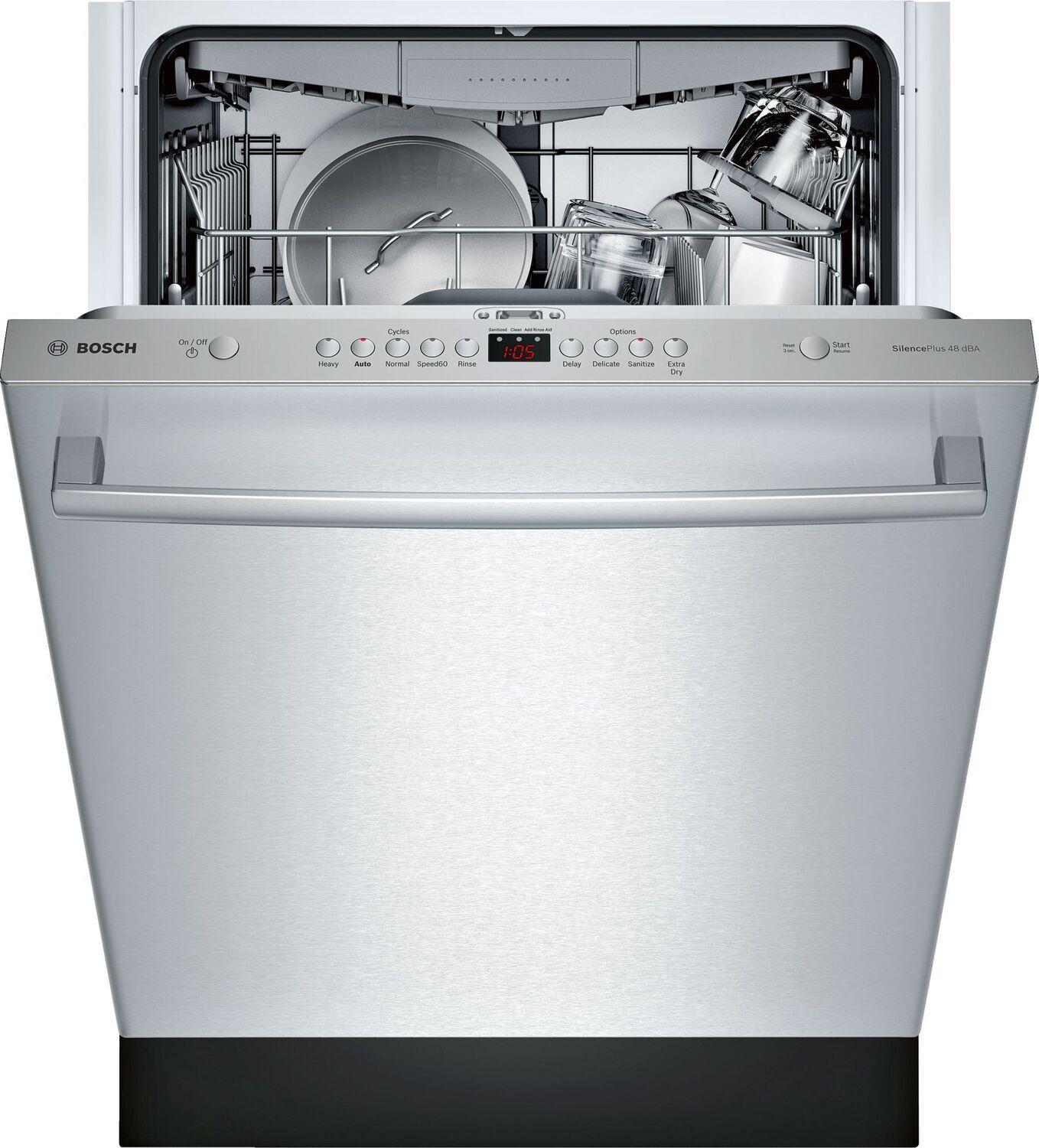

100 Series Dishwasher 24" Stainless steel
Model: SHXM4AY55N
100 Series Dishwasher 24" Stainless steel
Model: SHXM4AY55NQuick Specs
Warranty
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
Not just dry, but PureDry(R)
(P) PureDry(R) is an energy efficient, closed drying system that does not pull in outside air and gently whisks moisture away from dishes as they cool. And with no exposed heating element, you can safely place plastics anywhere.(/P)
24h Delay Start Timer for a later start time
(P) Have your dishwasher start when you want it to. Delay Start delays the dishwasher's start time by up to 24 hours.(/P)
Protect your kitchen with the 24/7 Overflow Protection System(R)
(P) Bosch s exclusive 24/7 Overflow Protection System looks out for you even when the unit is off. If the water level ever gets too high, water is drained and the water inlet is closed.(/P)
48 dBA -- the quietest dishwasher brand in the U.S.*
(P) A range of technologies makes Bosch the quietest dishwasher brand in the U.S.* with impressively low decibel levels. For you, that means never having to wait until going to bed to run the dishwasher. *Based on an average of sound ratings of 24" Full Size Stainless Steel Tub dishwashers contained in major brands websites. Major brands defined as TraQline Top 5 Market Share December 2021.(/P)
A smarter clean with PrecisionWash(R)
(P) With Bosch PrecisionWash(R), simply start your dishwasher and walk away. Intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load. So when your dishes are done, so are you.(/P)

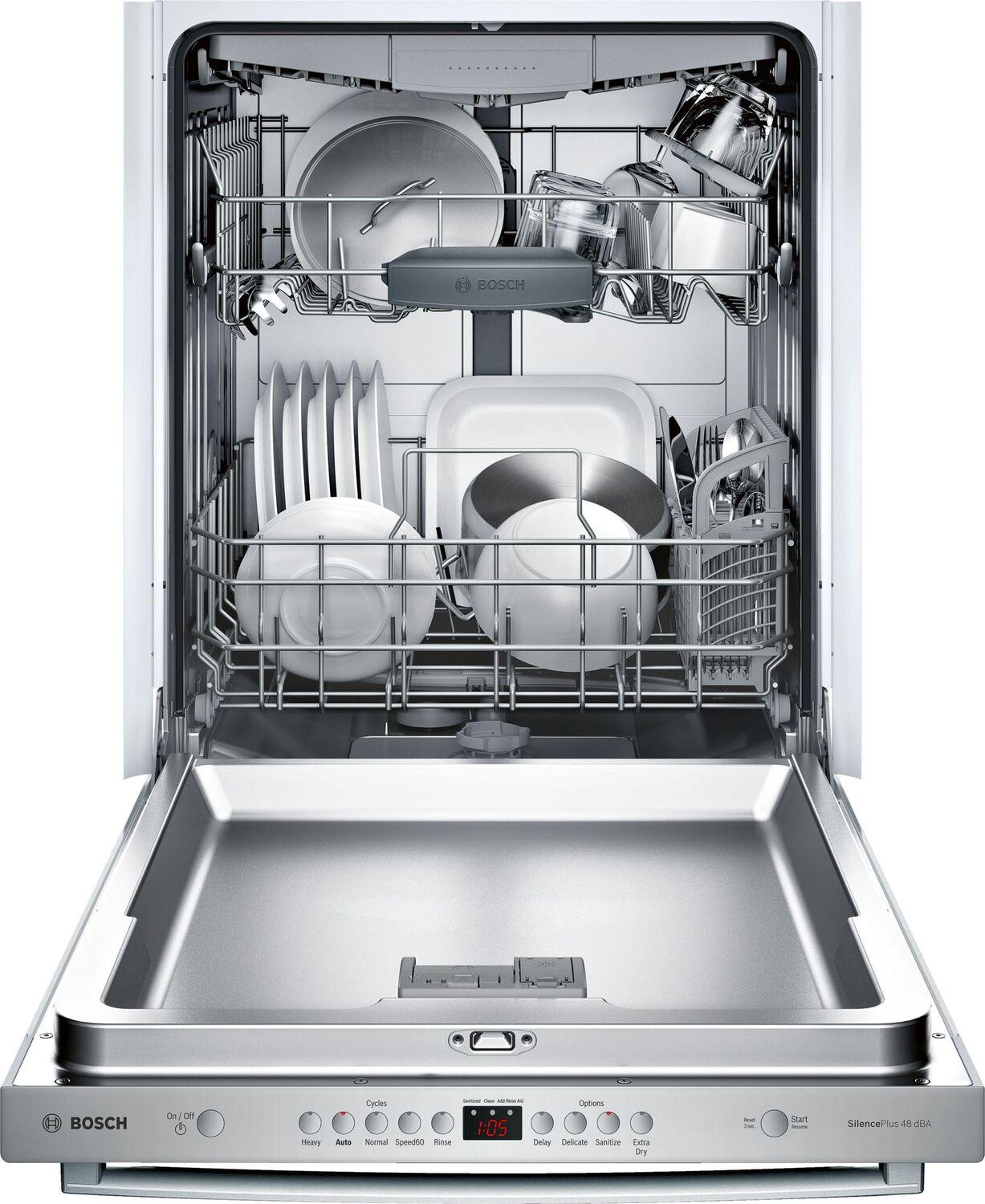

Loading flexibility with a 3rd rack dishwasher
(P) The Standard 3rd Rack provides the perfect space for flatware, large utensils, measuring cups, or nearly anything else that s difficult to fit in a traditional dishwasher, while its V shape leaves room below both sides for taller items like stemware in the middle rack.(/P)

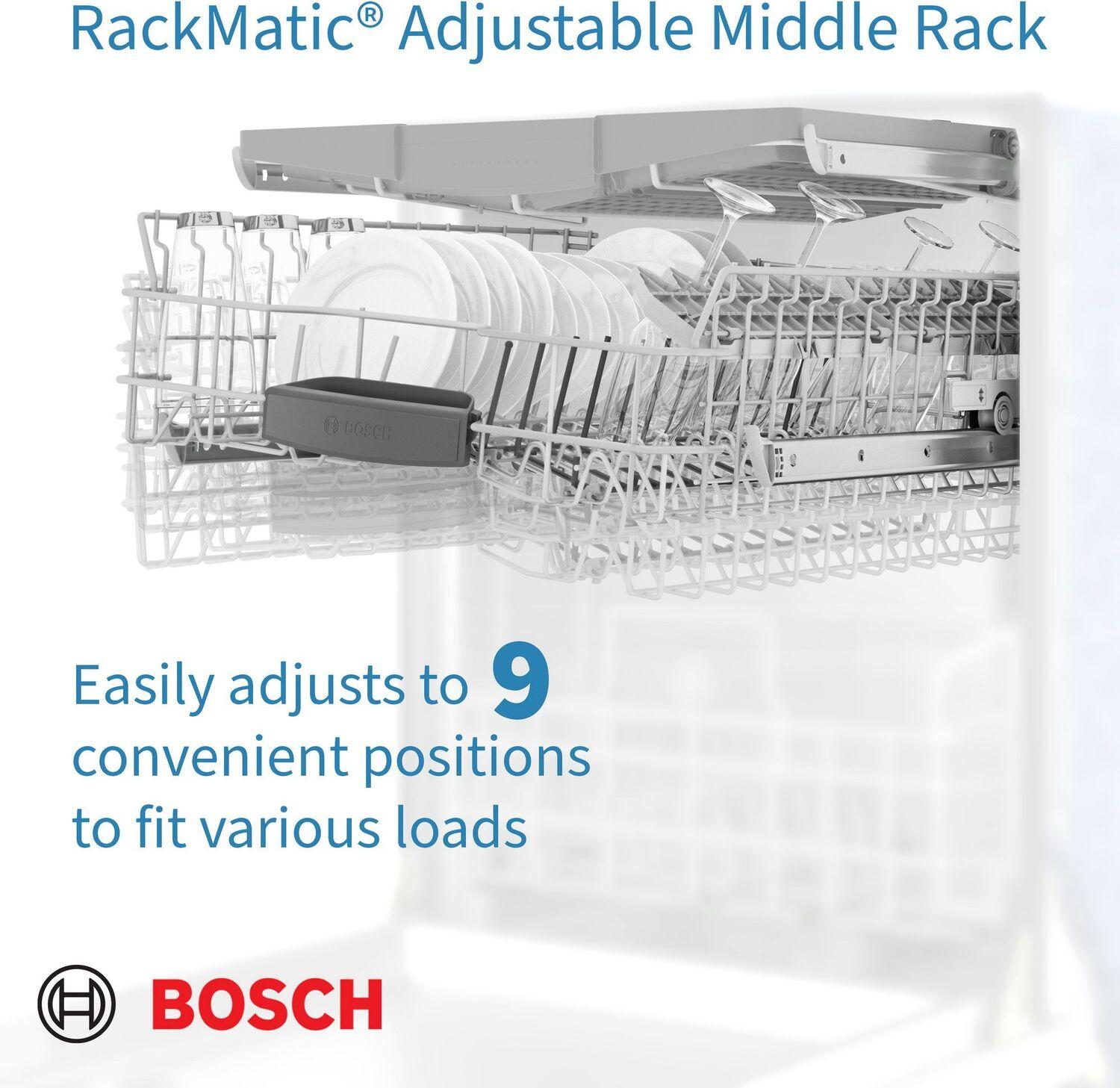

Fit in tall items with RackMatic(R)
(P) RackMatic(R) easily adjusts to three different heights and up to nine separate rack positions, allowing taller items like stemware to fit in the middle rack while leaving room for pots and pans below.(/P)
- Know when your dishwasher is running with InfoLight®
- Protect your kitchen with the 24/7 Overflow Protection System®
- 24h Delay Start Timer for a later start time
- A smarter clean with PrecisionWash®
- Not just dry, but PureDry®
- 48 dBA -- the quietest dishwasher brand in the U.S.*
- Loading flexibility with a 3rd rack dishwasher
- Fit in tall items with RackMatic®
- Know when your dishwasher is running with InfoLight(R)
- Protect your kitchen with the 24/7 Overflow Protection System(R)
- 24h Delay Start Timer for a later start time
- A smarter clean with PrecisionWash(R)
- Not just dry, but PureDry(R)
- 48 dBA -- the quietest dishwasher brand in the U.S.*
- Loading flexibility with a 3rd rack dishwasher
- Fit in tall items with RackMatic(R)
| Features and Specifications | |
| General | |
| Appliance Width (in) | 23 9/16 |
| Height | 33 7/8 |
| Installation Type | Built-under |
| Number of Place Settings | 15 |
| List of Programs | 1 Hour, Auto, Normal, Pots & Pans, Rinse |
| Cycle Options | Delicate, Extra dry, Sanitation |
| Display | Yes |
| Silence Level | 48 dB(A) re 1 pW |
| 3rd rack | Standard 3rd rack |
| Interior Light | No |
| Removable top | No |

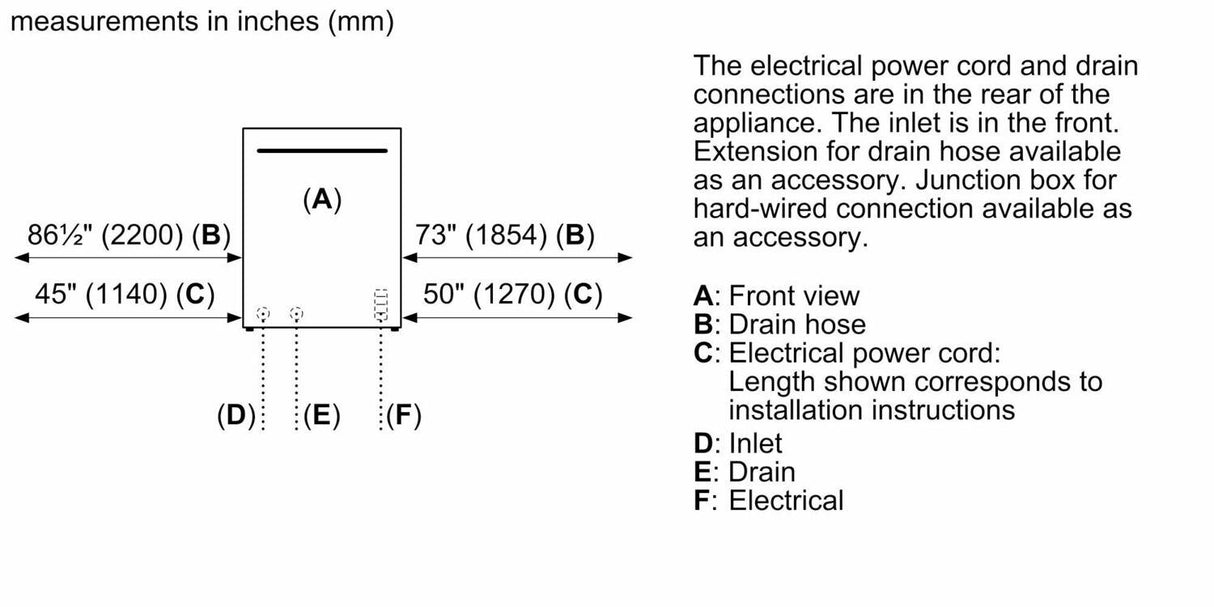

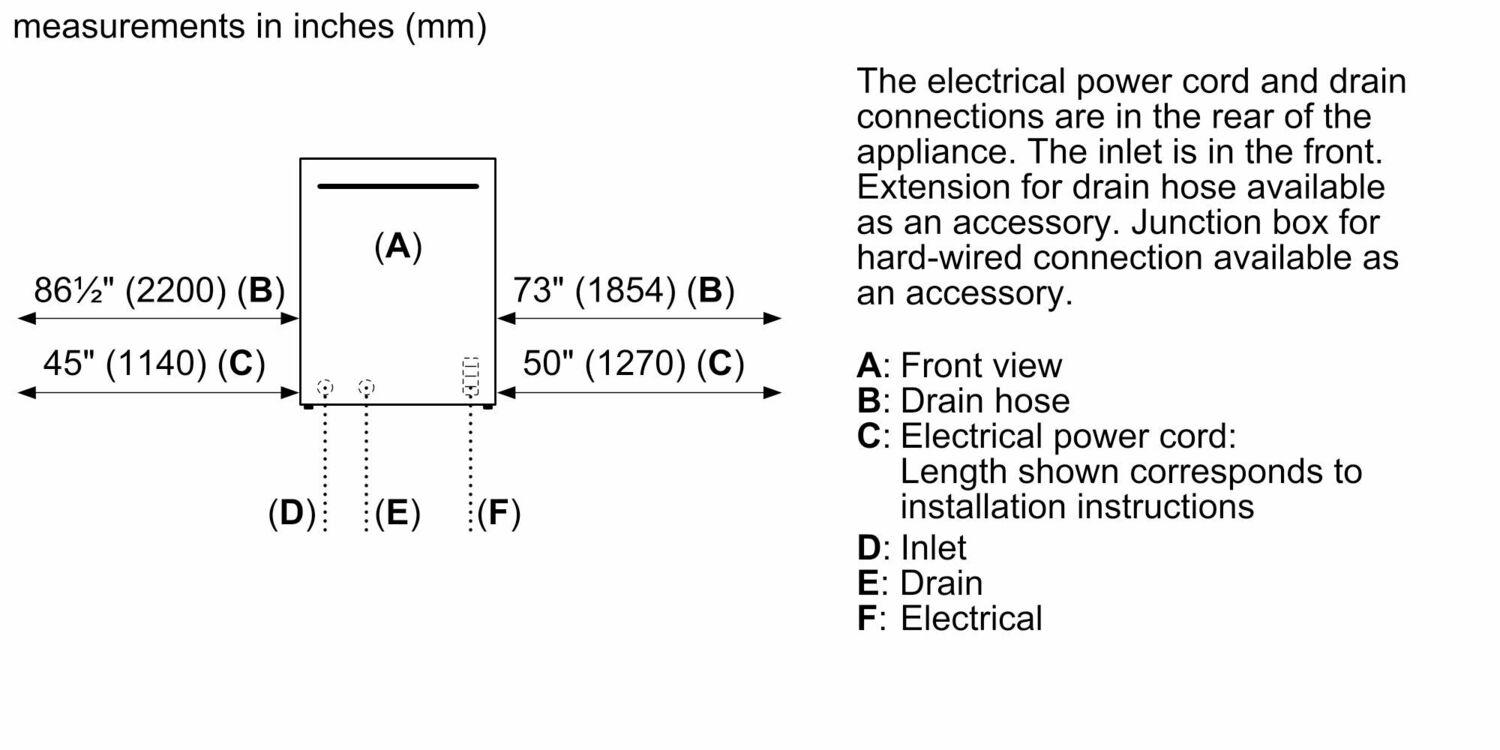

| Power Cord Length | 67" |
| Connectivity | |
| Home Connect™ | No |
| Size and weight | |

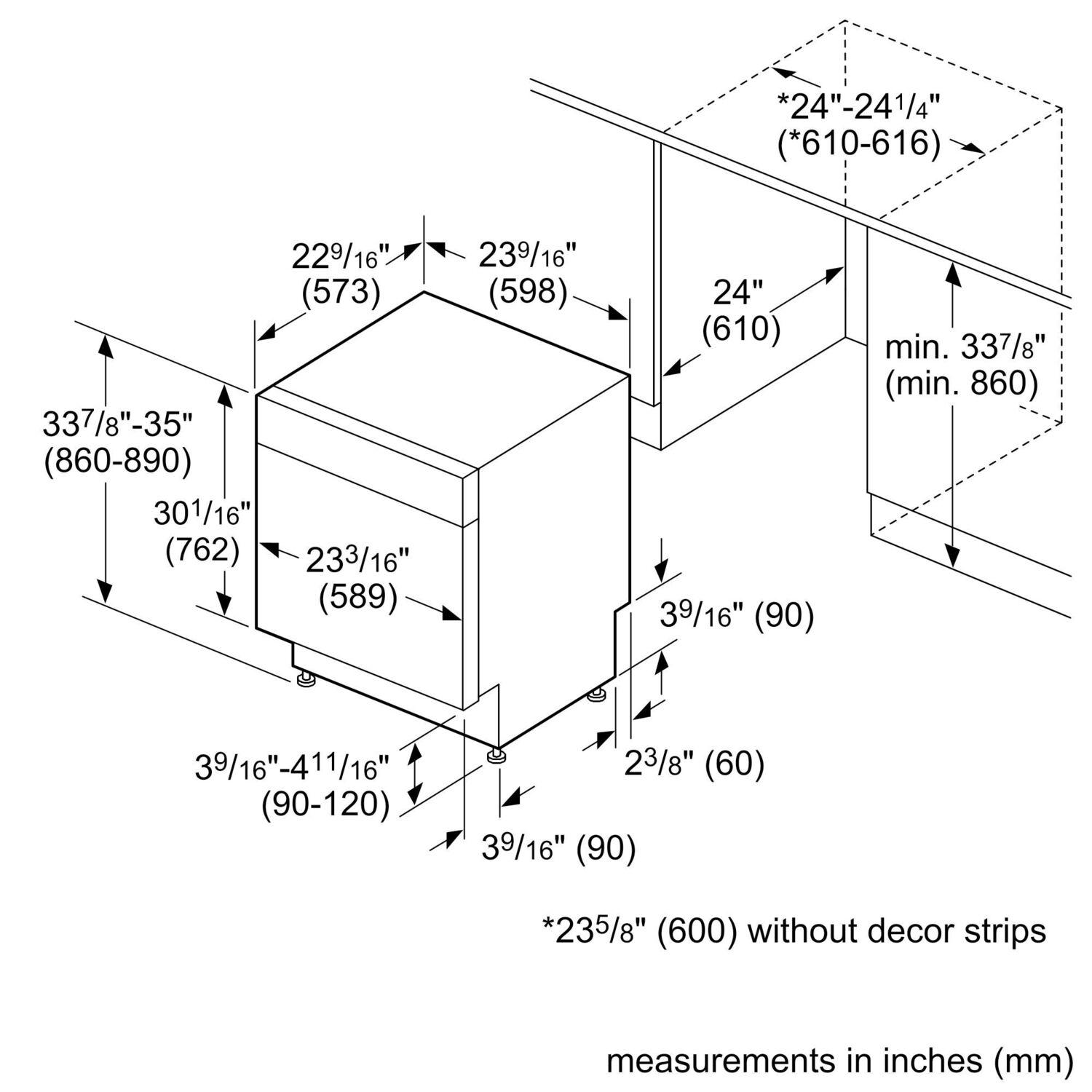

| Overall Appliance Dimensions (HxWxD) (in) | 33 7/8'' x 23 9/16'' x 22 9/16'' |
| Adjustable plinth | both horizontal and vertical |
| Net Weight | 73.000 lbs |
| Programmes | |
| Status indicator | End of program audible, InfoLight red, Sanitized LED US, Time remaining indic. internal |
| List of Programs | 1 Hour, Auto, Normal, Pots & Pans, Rinse |
| Program 1 | Pots & Pans |
| Program 2 | Auto |
| Program 3 | Normal |
| Program 4 | 1 Hour |
| Program 5 | Rinse |
| Programme duration, programme1 (min.) | 110-130 |
| Programme duration, programme2 (min.) | 105-130 |
| Programme duration, programme3 (min.) | 130-135 |
| Programme duration, programme4 (min.) | 60 |
| Programme duration, programme5 (min.) | 9 |
| Reference program | Regular US |
| Number of different wash temperatures | 5 |
| Temperature program 1 | 151-160 °F |
| Temperature program 2 | 127-131 °F |
| Temperature program 3 | 122-131 °F |
| Temperature program 4 | 122 °F |
| Safety | |
| ChildLock | No |
| Consumption values | |
| Glass protection | No |
| Water consumption program 1 | 4.9-7.4 gal |
| Water consumption program 2 | 2.6-5.5 gal |
| Water consumption program 3 | 2.4-5.5 gal |
| Water consumption program 4 | 3.8 gal |
| Water consumption program 5 | 1.1 gal |
| Total Annual Water Consumption | 688 gal |
| Maximum temperature for water intake (°C) | 50 °C |
| Connection | |
| Watts | 1,440 W |
| Power Cord Length | 67" |
| Fuse protection | 12 A |
| Plug type | Nema5-15P |
| Construction type | |
| Color / Material housing | Tin grey |
| Color / Control Panel | Black |
| Construction Type | Built-in |
| Drying System | Inherent heat |
| Height | 33 7/8 |
| Concealed heating element | Yes |
| Installation Type | Built-under |
| Tub material | Plastic |
| Water Softener | No |
| Appliance Width (in) | 23 9/16 |
