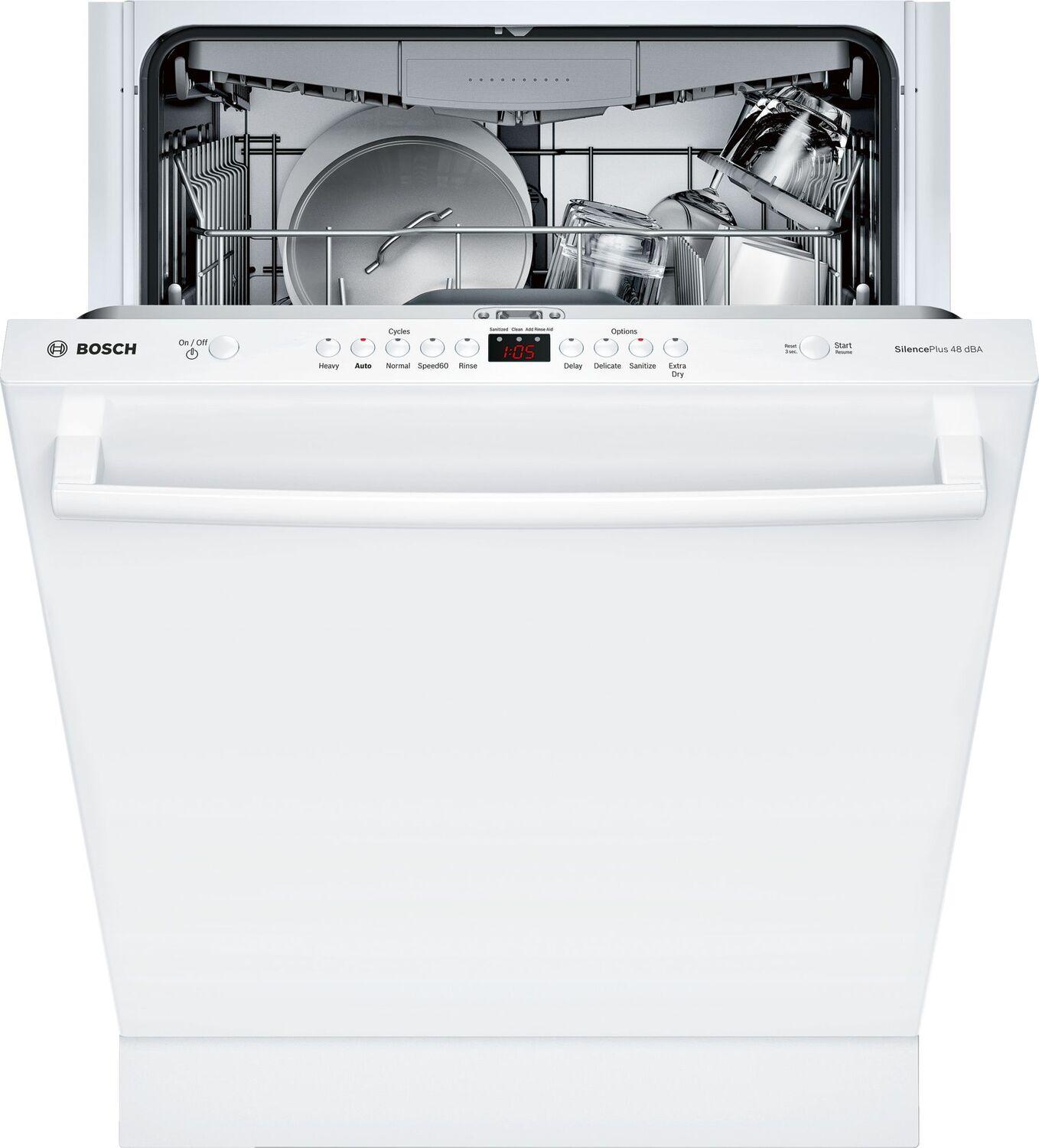

100 Series Dishwasher 24" White
Model: SHXM4AY52N
100 Series Dishwasher 24" White
Model: SHXM4AY52NQuick Specs
100 Series Dishwasher 24" White is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
A smarter clean with PrecisionWash(R)
(P) With Bosch PrecisionWash(R), simply start your dishwasher and walk away. Intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load. So when your dishes are done, so are you.(/P)

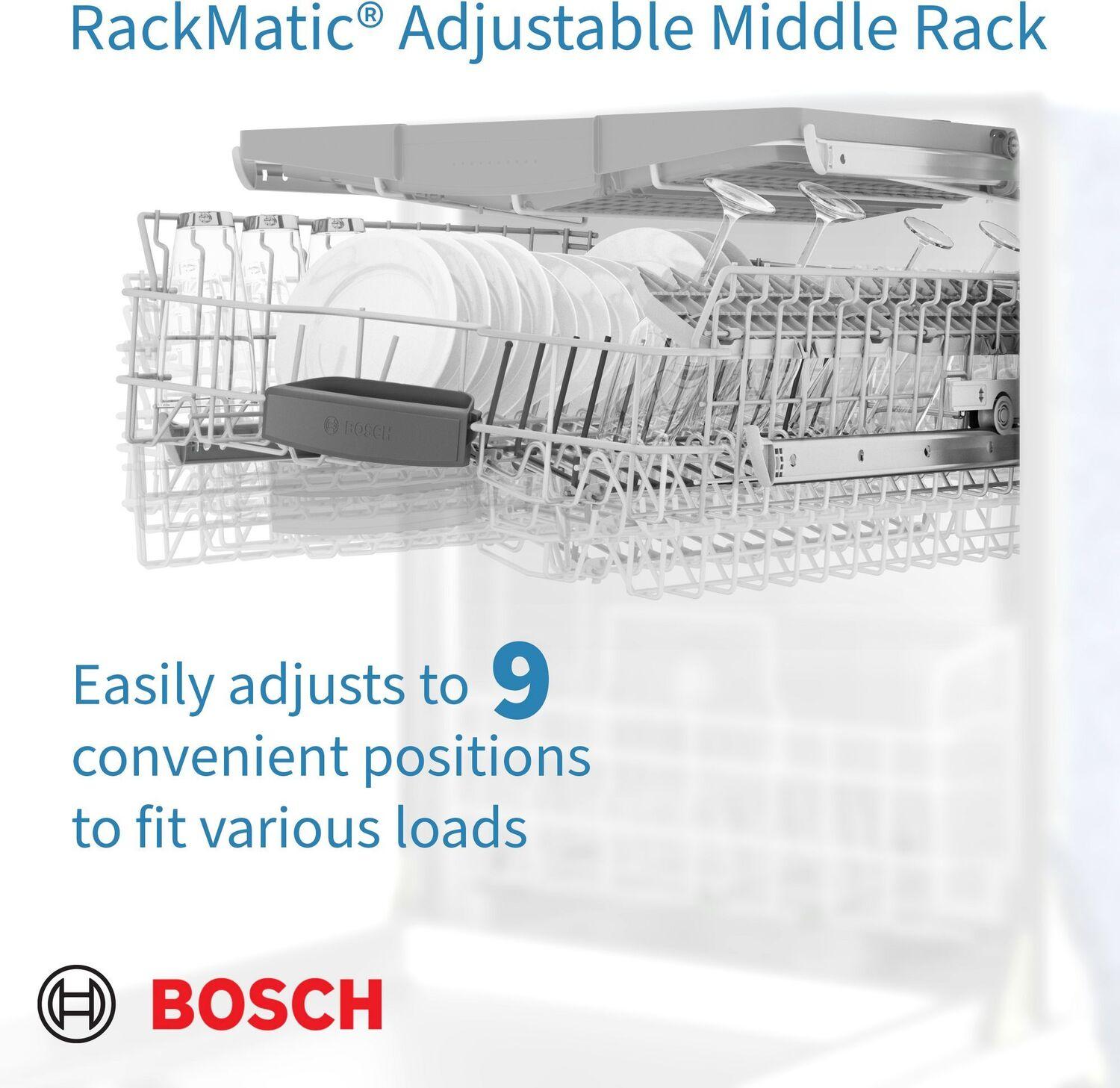

RackMatic(TM) Adjustable Upper Rack
(P) The RackMatic middle rack easily adjusts to three different heights and up to 9 separate rack positions, allowing taller items like stemware to fit in the middle rack while leaving room for pots and pans below.(/P)

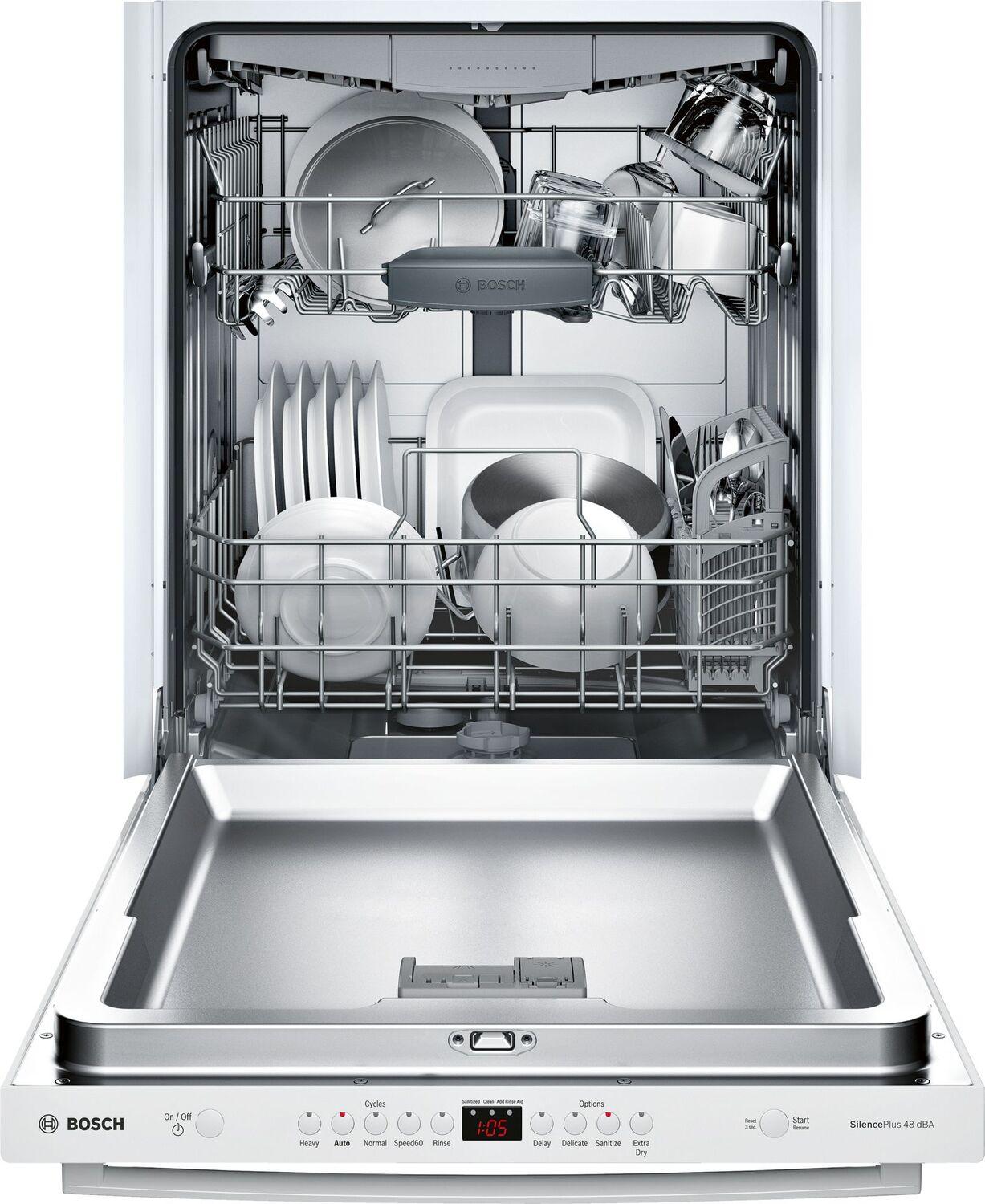

A 3rd rack to meet your loading needs.
(P) With 30% more loading area*, the 3rd rack provides extra space for flatware, large utensils and measuring cups. Its V shape leaves room below for tall items. *Compared to a Bosch dishwasher with 2 racks(/P)
Quality in every detail
(P) Every dishwasher must pass 485 quality checks--including running every single one with water--before leaving the factory. So you can rest assured that your dishwasher is built to withstand whatever life throws your way.(/P)
24h Delay Start Timer for a later start time
(P) Have your dishwasher start when you want it to. Delay Start delays the dishwasher's start time by up to 24 hours.(/P)
48 dBA -- the quietest dishwasher brand in the U.S.*
(P) A range of technologies makes Bosch the quietest dishwasher brand in the U.S.* with impressively low decibel levels. For you, that means never having to wait until going to bed to run the dishwasher. *Based on an average of sound ratings of 24" Full Size Stainless Steel Tub dishwashers contained in major brands websites. Major brands defined as TraQline Top 5 Market Share December 2021.(/P)
- 48 dBA -- the quietest dishwasher brand in the U.S.*
- A 3rd rack to meet your loading needs.
- RackMatic™ Adjustable Upper Rack
- InfoLight® -a light that tells you when your dishwasher is running
- A smarter clean with PrecisionWash®
- Quality in every detail
- 24h Delay Start Timer for a later start time
- Know when your dishwasher is running with InfoLight®
- 48 dBA -- the quietest dishwasher brand in the U.S.*
- A 3rd rack to meet your loading needs.
- RackMatic(TM) Adjustable Upper Rack
- InfoLight(R) -a light that tells you when your dishwasher is running
- A smarter clean with PrecisionWash(R)
- Quality in every detail
- 24h Delay Start Timer for a later start time
- Know when your dishwasher is running with InfoLight(R)
| Features and Specifications | |
| General | |
| Appliance Width (in) | 23 9/16 |
| Height | 33 7/8 |
| Installation Type | Built-under |
| Number of Place Settings | 15 |
| List of Programs | 1 Hour, Auto, Normal, Pots & Pans, Rinse |
| Cycle Options | Delicate, Extra dry, Sanitation |
| Display | Yes |
| Silence Level | 48 dB(A) re 1 pW |
| 3rd rack | Standard 3rd rack |
| Interior Light | No |
| Removable top | No |
| Power Cord Length | 67" |
| Connectivity | |
| Home Connect™ | No |
| Size and weight | |

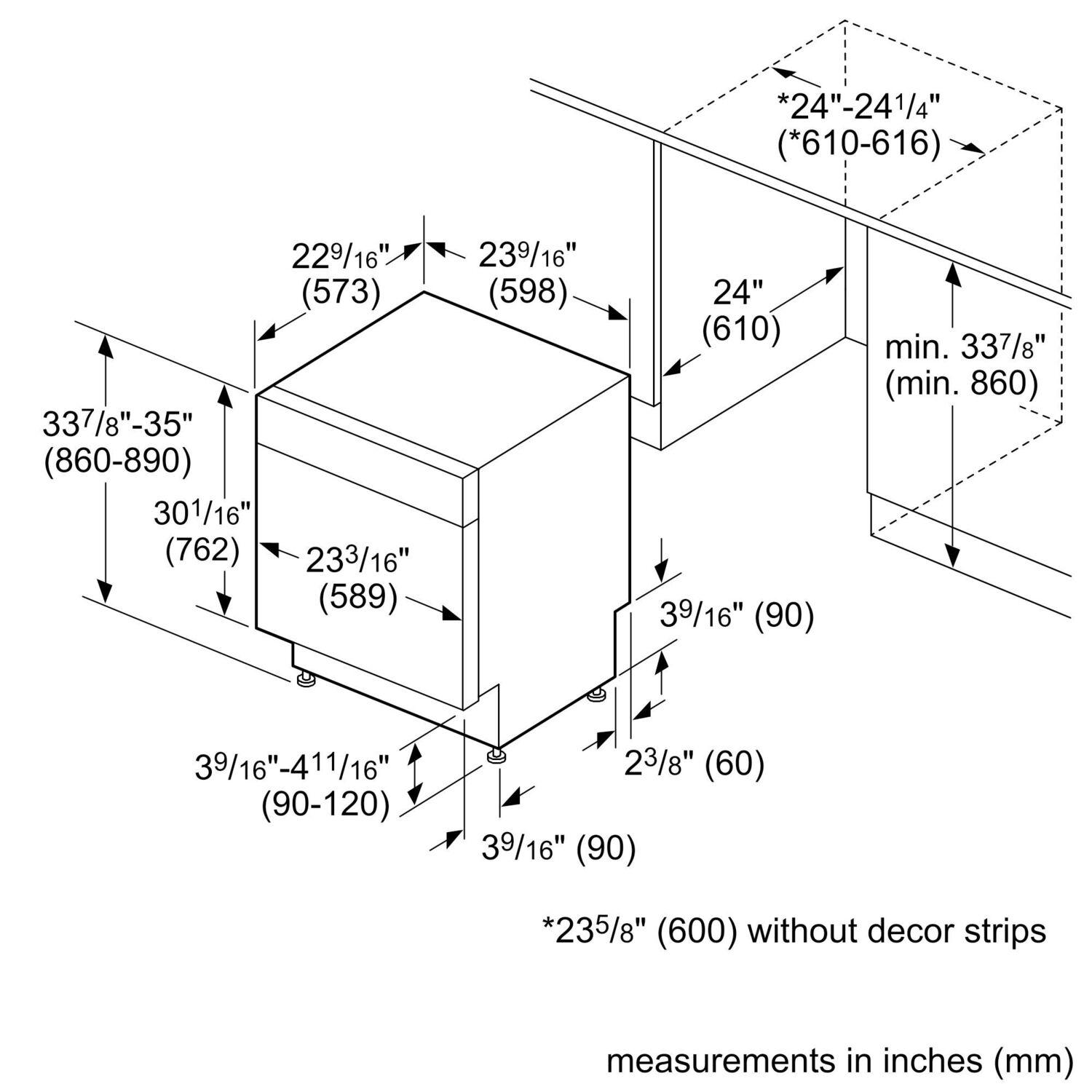

| Overall Appliance Dimensions (HxWxD) (in) | 33 7/8'' x 23 9/16'' x 22 9/16'' |
| Adjustable plinth | both horizontal and vertical |
| Net Weight | 73.000 lbs |
| Programmes | |
| Status indicator | End of program audible, InfoLight red, Sanitized LED US, Time remaining indic. internal |
| List of Programs | 1 Hour, Auto, Normal, Pots & Pans, Rinse |
| Program 1 | Pots & Pans |
| Program 2 | Auto |
| Program 3 | Normal |
| Program 4 | 1 Hour |
| Program 5 | Rinse |
| Programme duration, programme1 (min.) | 110-130 |
| Programme duration, programme2 (min.) | 105-130 |
| Programme duration, programme3 (min.) | 130-135 |
| Programme duration, programme4 (min.) | 60 |
| Programme duration, programme5 (min.) | 9 |
| Reference program | Regular US |
| Number of different wash temperatures | 5 |
| Temperature program 1 | 151-160 °F |
| Temperature program 2 | 127-131 °F |
| Temperature program 3 | 122-131 °F |
| Temperature program 4 | 122 °F |
| Safety | |
| ChildLock | No |
| Consumption values | |
| Glass protection | No |
| Water consumption program 1 | 4.9-7.4 gal |
| Water consumption program 2 | 2.6-5.5 gal |
| Water consumption program 3 | 2.4-5.5 gal |
| Water consumption program 4 | 3.8 gal |
| Water consumption program 5 | 1.1 gal |
| Total Annual Water Consumption | 688 gal |
| Maximum temperature for water intake (°C) | 50 °C |

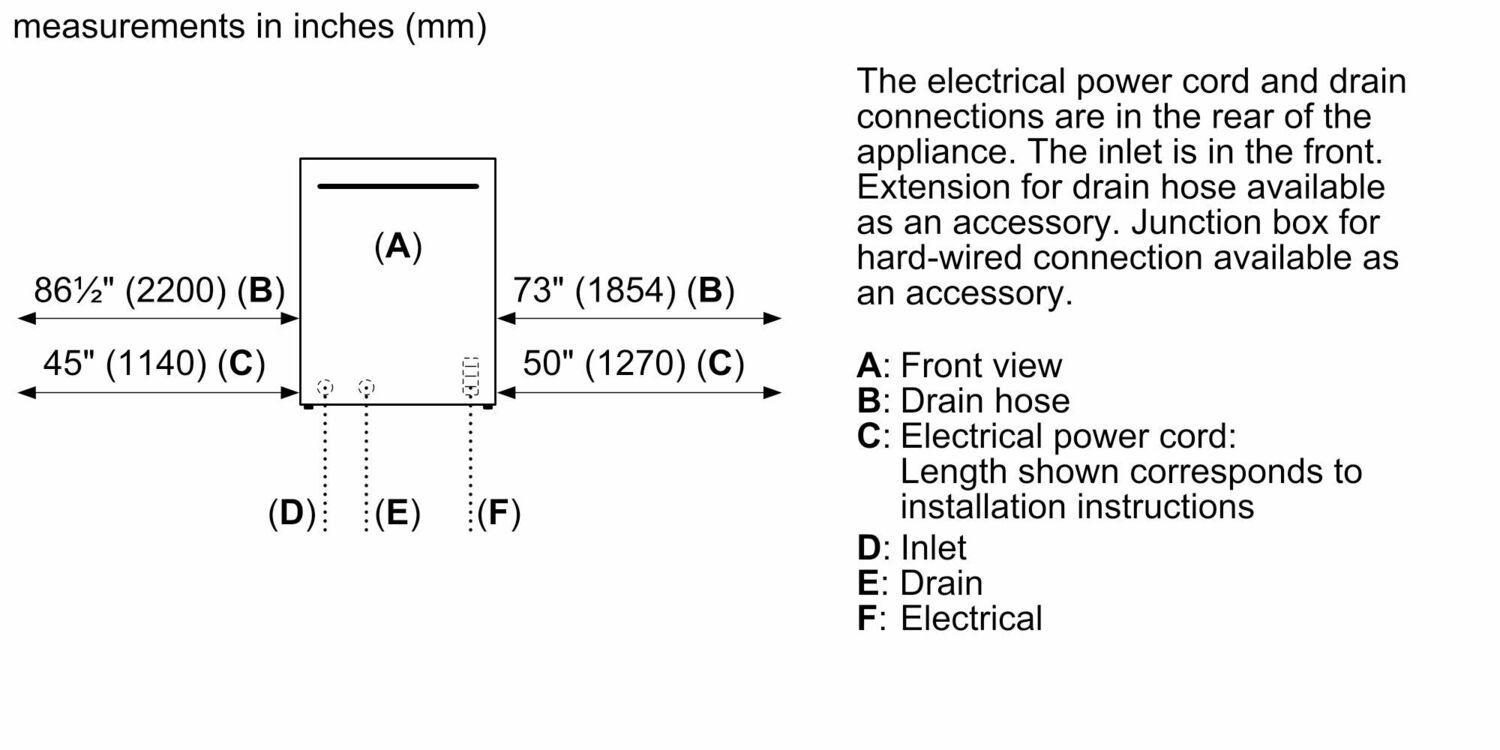

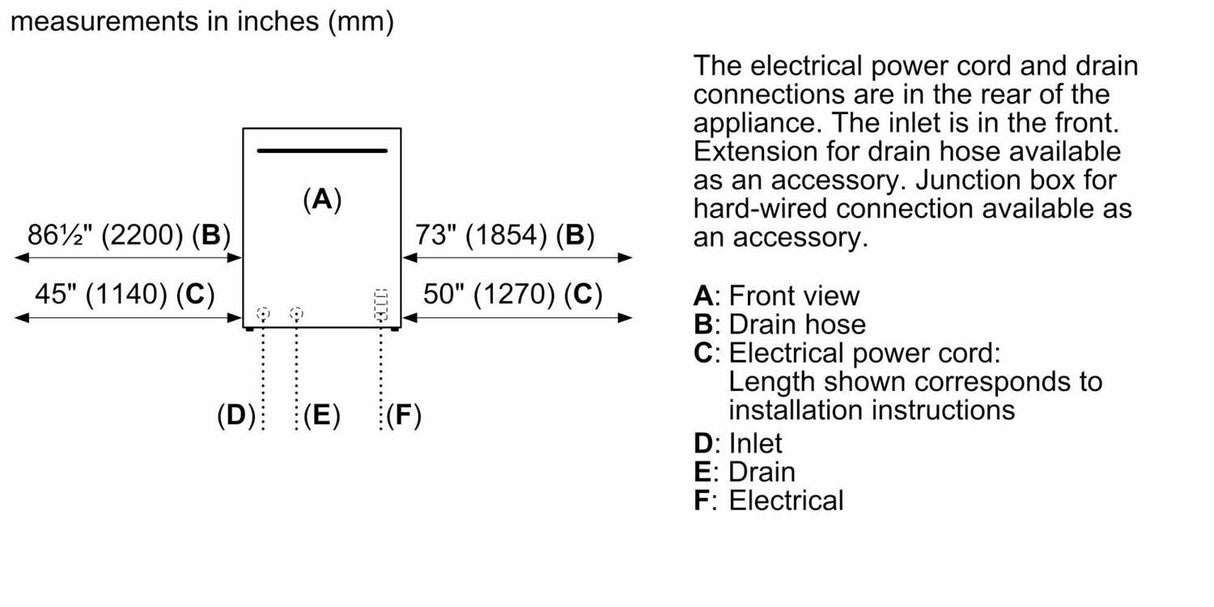

| Connection | |
| Watts | 1,440 W |
| Power Cord Length | 67" |
| Fuse protection | 12 A |
| Plug type | Nema5-15P |
| Construction type | |
| Color / Material housing | Tin grey |
| Color / Control Panel | Black |
| Construction Type | Built-in |
| Drying System | Inherent heat |
| Height | 33 7/8 |
| Concealed heating element | Yes |
| Installation Type | Built-under |
| Tub material | Plastic |
| Water Softener | No |
| Appliance Width (in) | 23 9/16 |
