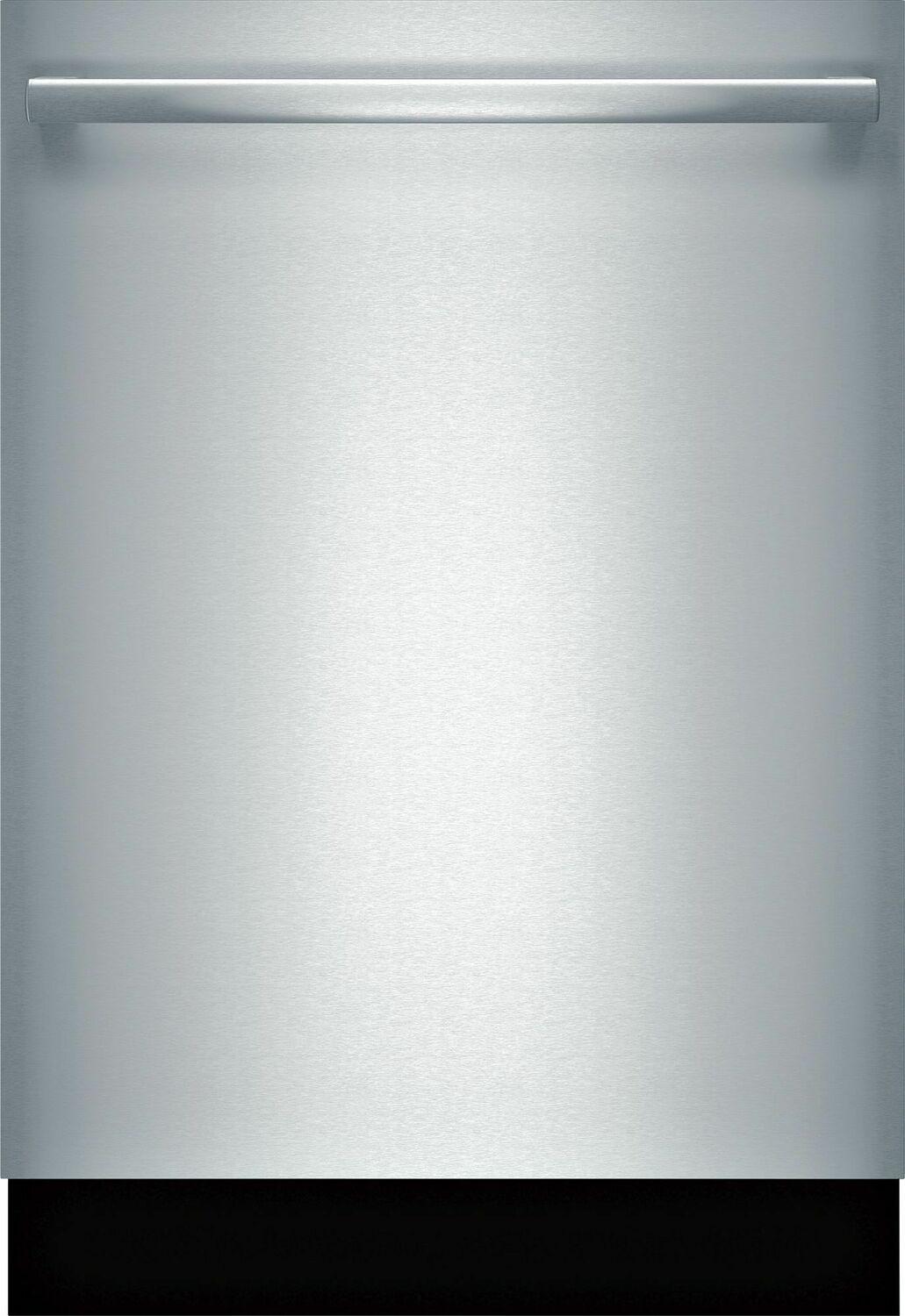

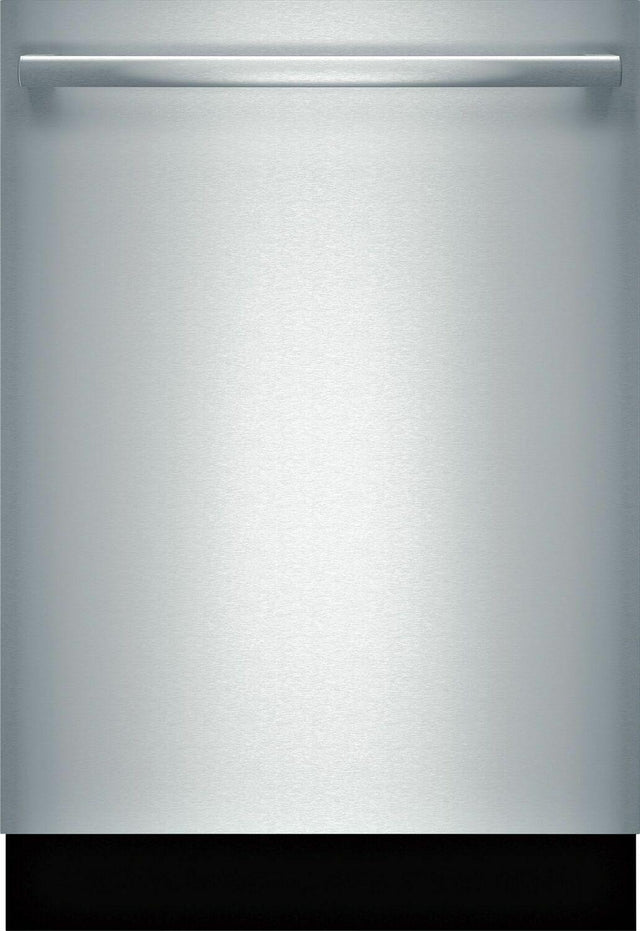

300 DLX Bar Hndl, 5/5 cycles, 44 dBA, 3rd Rck, InfoLight - SS
Model SHX863WD5N
300 DLX Bar Hndl, 5/5 cycles, 44 dBA, 3rd Rck, InfoLight - SS
Model SHX863WD5NQuick Specs
300 DLX Bar Hndl, 5/5 cycles, 44 dBA, 3rd Rck, InfoLight - SS is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
ENERGY STAR
ENERGY STAR is a U.S. Environmental Protection Agency voluntary program that helps businesses and individuals save money and protect our climate through superior energy efficiency.
When your dishes are done, so are you.
(P)With Bosch PrecisionWash(R), intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load.(/P)
RackMatic(TM) Adjustable Upper Rack
(P)The RackMatic middle rack easily adjusts to three different heights and up to 9 separate rack positions, allowing taller items like stemware to fit in the middle rack while leaving room for pots and pans below.(/P)

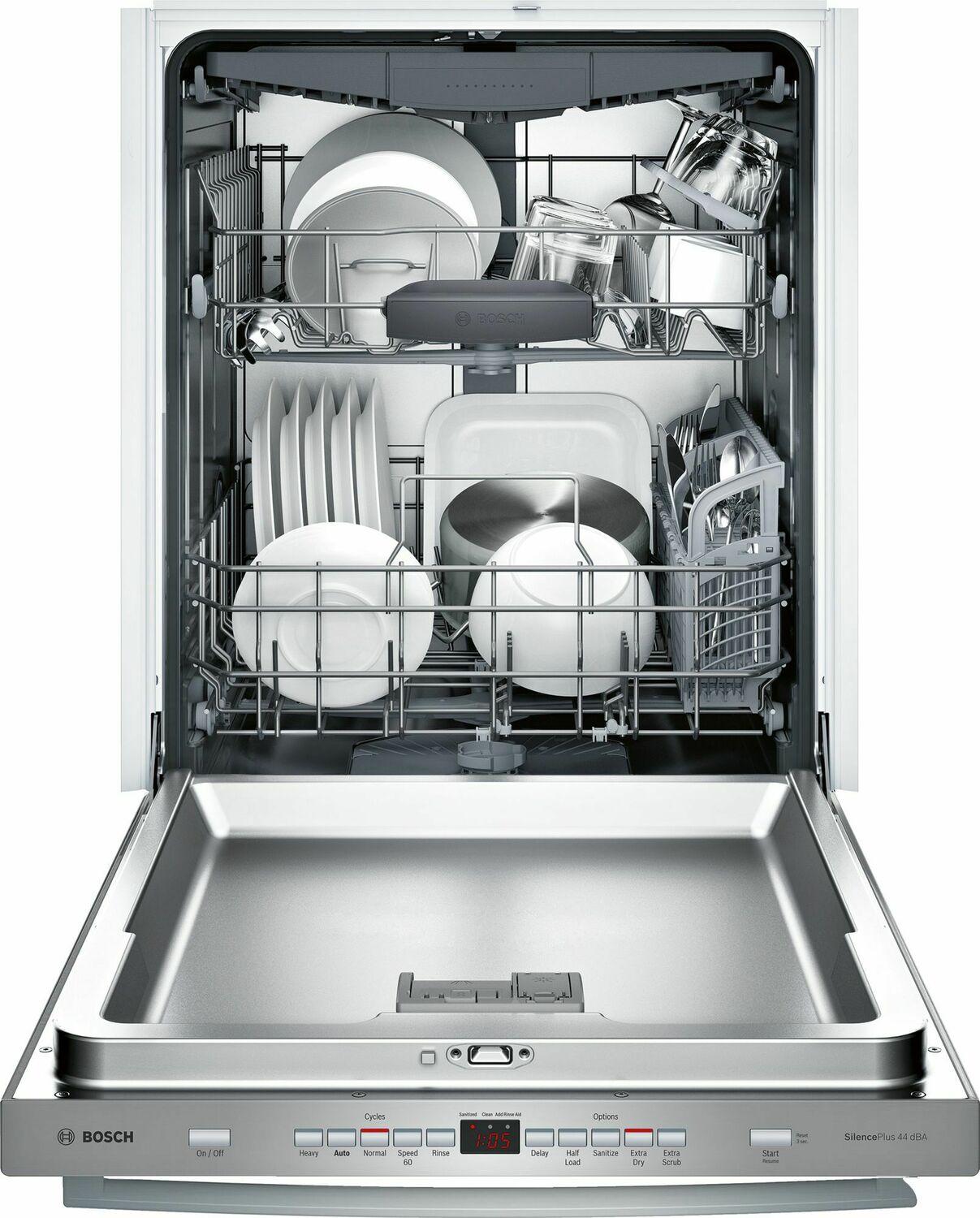

A 3rd rack to meet your loading needs.
(P)With 30% more loading area*, the 3rd rack provides extra space for flatware, large utensils and measuring cups. Its V shape leaves room below for tall items. *Compared to a Bosch dishwasher with 2 racks(/P)
Quality is in the details.
(P)Bosch dishwashers are engineered to the highest standards. Every Bosch dishwasher undergoes 485 quality checks, so that we can deliver quality that you can count on.(/P)
When you don't have a full load of dishes.
(P)The Half Load Option reduces cycle time and water consumption so you conserve water when you only need to wash small, lightly soiled loads that fill half or less of the dishwasher's capacity.(/P)
RackMatic(R)
(P)RackMatic(R) adjustable upper rack easily adjusts to 9 different positions to allow taller items like stemware to fit, while leaving room for pots and pans below.(/P)
The quietest dishwasher brand in the U.S.*
(P)Bosch dishwashers are whisper quiet so you never have to wait until bedtime to run the dishwasher. Some of the 18 ways we approach noise reduction includes: multiple insulation layers, grindless food filtration, our EcoSilence(TM) motor system, and a sound absorbing base. *Based on an average of sound ratings for 24" full-size stainless steel tub dishwashers contained in major brands' websites. Major brands defined as TraQline Top 5 Market Share, December 2019.(/P)
- Key Features
- 3rd Rack for Additional Loading Capacity
- InfoLight® Beams on Floor to Indicate Dishwasher is Running
- RackMatic® on Upper Rack - 3 Height Adjustments and Up to 9 Possible Rack Positions
- AquaStop® Leak Protection Works 24/7
- Design
- Full Size Stainless Steel Tall Tub Installs Perfectly Flush
- 16 Place Setting Capacity

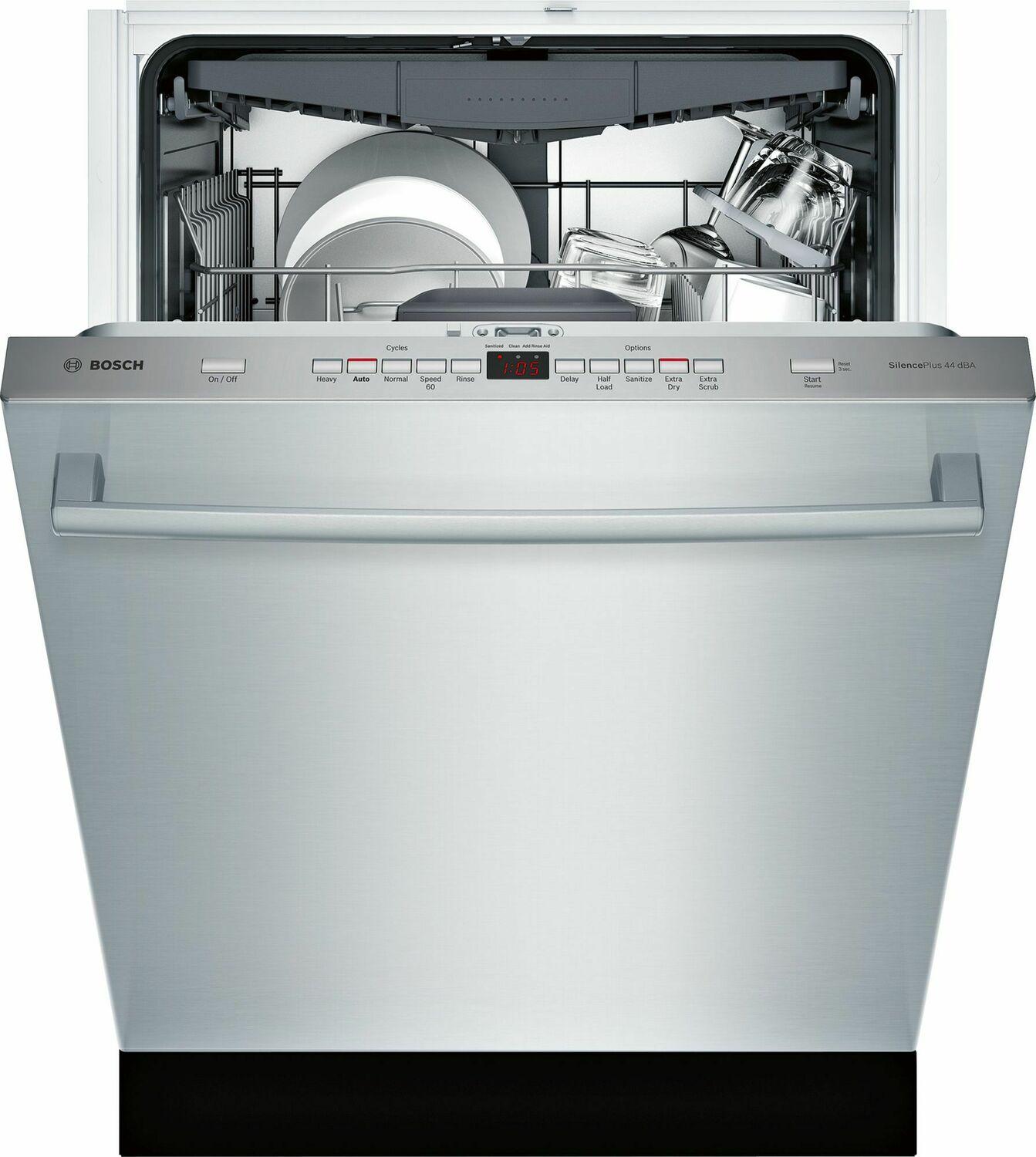

- LED Remaining Time Display
- Flexible Silverware Basket Can be Split into Two Pieces and Placed Anywhere for Added Flexibility
- Performance
- 5 Wash Cycles and 5 Options
- Detergent Tray Optimizes Detergent Dissolving
- Speed60® gets your dishes from dirty to dry in about an hour.
- Extra Dry Option for Better Drying Results
- Load Size Sensor Automates Wash Temperature
- Sanitize Option Eliminates Bacteria and Enhances Drying Results
- ExtraScrub option increases pressure and temperature in the entire lower rack for hard to remove food stains.
- Efficiency
- 269 kWh/yr - Energy Star®
- Convenience
- 24 h Delay Start Timer
- Self-Latching Door
- With Bosch PrecisionWash(TM), simply start your dishwasher and walk away. Close When your dishes are done, so are you. > With Bosch PrecisionWash(R), intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load.
- 44 dBA: Quietest Dishwasher Brand in the U.S.
- A 3rd rack adds versatility and offers 30% more loading capacity*. *Vs. Bosch Dishwashers with 2 racks
- InfoLight(R) shines on the floor so you know the dishwasher's running.
- 24h Delay Start Timer lets you run your dishwasher at off-peak times.
| Technical Specifications | |
| General | |
| Installation Type | Built-under |
| Number of place settings | 16 |
| List of programs | 1 Hour, Auto, Normal, Pots & Pans, Rinse |
| Cycle Options | Extra dry, half load, Intensive Zone, Sanitation |
| Display | |
| Silence level (dBA) | 44 dB |
| Third Rack | Standard Third Rack |
| Interior Light | |
| Removable top | |

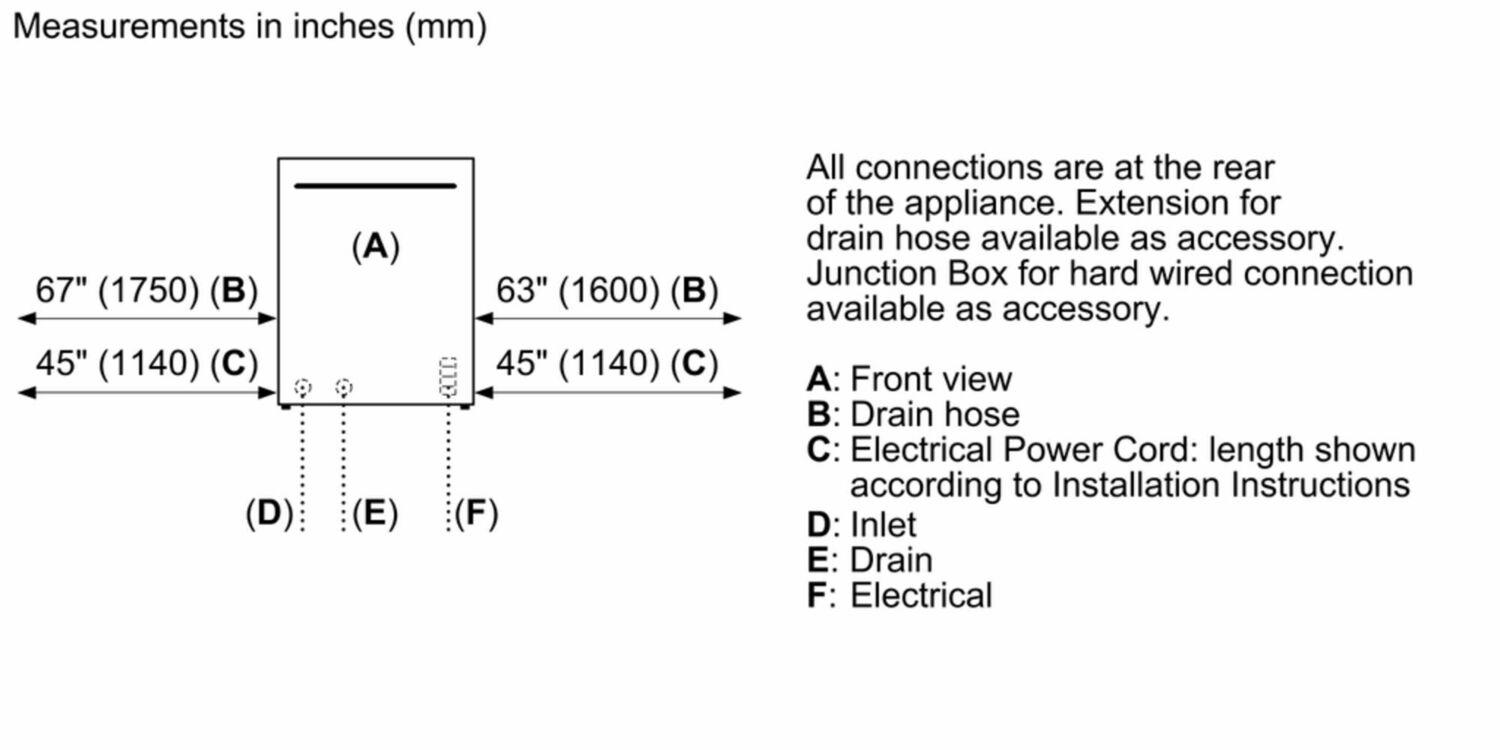

| Power Cord Length | 67'' |
| Connectivity | |
| Home Connect™ | |
| Connectivity type | Not applicable |
| Size and weight | |

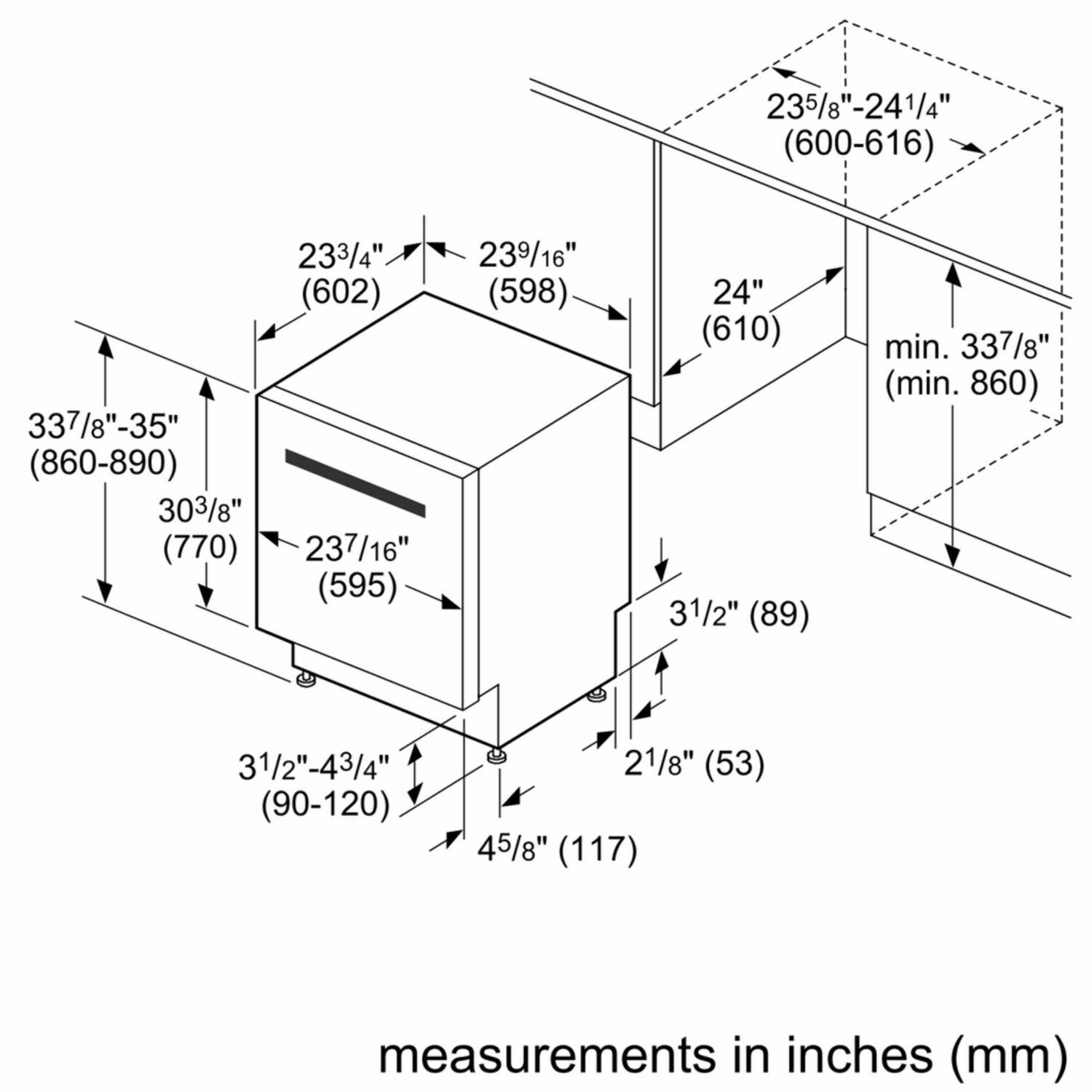

| Overall appliance dimensions (HxWxD) (in) | 33 7/8'' x 23 9/16'' x 23 3/4'' |
| Adjustable plinth | |
| Net weight (lbs) | 97.000 lbs |
| Programmes | |
| Status indicator | End of program audible, InfoLight red, sanitized LED US, Time remaining indic. internal |
| List of programs | 1 Hour, Auto, Normal, Pots & Pans, Rinse |
| Program 1 | Pots & Pans |
| Program 5 | Rinse |
| Programme duration, programme1 (min.) | 110-135 |
| Programme duration, programme2 (min.) | 105-129 |
| Programme duration, programme3 (min.) | 130-135 |
| Programme duration, programme4 (min.) | 60 |
| Programme duration, programme5 (min.) | 9 |
| Reference programme | Regular US |
| Temperature program 1 | 150-160 °F |
| Temperature program 2 | 127-150 °F |
| Temperature program 3 | 113-131 °F |
| Temperature program 4 | 122 °F |
| Safety | |
| Glass protection | |
| Surge-back protect. installed | |
| Leak protection system | Aqua Stop |
| Consumption values | |
| Glass protection | |
| Water consumption program 1 | 4.9-6.4 gal |
| Water consumption program 2 | 3.5-6.5 gal |
| Water consumption program 3 | 2.4-5.5 gal |
| Water consumption program 4 | 3.8 gal |
| Water consumption program 5 | 1.1 gal |
| Total annual water consumption (g) | 624 gallons |
| Maximum temperature for water intake (°C) | 60 °C |
| Connection | |
| Watts (W) | 1,300 W |
| Power Cord Length | 67'' |
| Fuse protection (A) | 12 A |
| Plug type | Nema5-15P |
| Construction type | |
| Color / Material housing | Lacquered |
| Color / Control Panel | Black |
| Construction type | Built-in |
| Panel ready | Not possible |
| Drying system | Inherent heat |
| Concealed heating element | |
| Installation Type | Built-under |
| Tub material | Stainless steel |
| Water Softener | |
