100 Series Dishwasher 24"
Model: SHVM4AYB3N
Authorized Dealer
1
of
5
Loading...
Authorized Dealer
100 Series Dishwasher 24"
Model: SHVM4AYB3NQuick Specs
Depth
21.62"
Height
33.87"
Sabbath
NO
Wifi
NO
SS Tub
YES
Dish Cycles
4
Controls
YES
100 Series Dishwasher 24" is backordered and will ship as soon as it is back in stock.
Available to Order
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
21.62"
Height
33.87"
Sabbath Mode
NO
Wifi Connected
NO
Stainless Steel Tub
YES
Dish Cycle Count
4
Fully Integrated Controls
YES
Not just dry, but PureDry(R)
(P)PureDry(R) is an energy efficient, closed drying system that does not pull in outside air and gently whisks moisture away from dishes as they cool. And with no exposed heating element, you can safely place plastics anywhere.(/P)
24h Delay Start Timer for a later start time
(P)Have your dishwasher start when you want it to. Delay Start delays the dishwasher's start time by up to 24 hours.(/P)
A Standard Silverware Basket to store utensils on the bottom rack
(P)The Standard Silverware Basket provides a convenient place to clean your silverware on the bottom rack.(/P)
Know when your dishwasher is running with InfoLight(R)
(P)Based on our legendary sound reduction technology, our dishwashers are so quiet, we provide an InfoLight(R) that projects a red light onto the floor to signal that a cycle is running. It turns off once the dishes are done.(/P)
A smarter clean with PrecisionWash(R)
(P)With Bosch PrecisionWash(R), simply start your dishwasher and walk away. Intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load. So when your dishes are done, so are you.(/P)
Protect your kitchen with the 24/7 Overflow Protection System(R)
(P)Bosch s exclusive 24/7 Overflow Protection System looks out for you even when the unit is off. If the water level ever gets too high, water is drained and the water inlet is closed.(/P)
- Technical Specification
- 24 Inch Panel Ready Dishwasher
- SHVM4AYB3N
- Custom Panel Ready (Panel Not Included)
- Key Features
- InfoLight® Beams on Floor to Indicate Dishwasher is Running
- RackMatic® on Upper Rack - 3 Height Adjustments and Up to 9 Possible Rack Positions
- 24/7 Overflow Protection System®
- Design
- Stainless Steel Tall Tub with Polypropylene
- 14 Place Setting Capacity
- LED Remaining Time Display
- RackMatic® on Upper Rack - 3 Height Adjustments
- Performance
- 4 Wash Cycles and 4 Options
- Detergent Tray Optimizes Detergent Dissolving
- Extra Dry Option for Better Drying Results
- Sanitize Option Eliminates Bacteria and Enhances Drying Results
- Efficiency
- 269 kWh/yr - Energy Star®
- Convenience
- 24 h Delay Start Timer
- AquaStop® Leak Protection Works 24/7
- Self-Latching Door
- PrecisionWash(R): uses Intelligent sensors to monitor the wash water and automatically adjust the cycle for a smarter clean. Close > A smarter clean with PrecisionWash(R) With Bosch PrecisionWash(R), simply start your dishwasher and walk away. Intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load. So when your dishes are done, so are you.
- PureDry(R): Our energy efficient drying system allows you to safely place plastics anywhere, even on the bottom rack, without fear of melting. Close > Not just dry, but PureDry(R) PureDry(R) is an energy efficient, closed drying system that does not pull in outside air and gently whisks moisture away from dishes as they cool. And with no exposed heating element, you can safely place plastics anywhere.
| Features and Specifications | |
| General | |
| Appliance Width (in) | 23 9/16 |
| Height | 33 7/8 |
| Installation Type | Full-integrated |
| Number of place settings | 14 |
| List of programs | Auto, Normal, Pots & Pans, Rinse |
| Cycle Options | Delicate, Extra dry, Sanitation |
| Display | Yes |
| Silence level | 49 dB(A) re 1 pW |
| 3rd rack | None |
| Interior Light | No |
| Removable top | No |

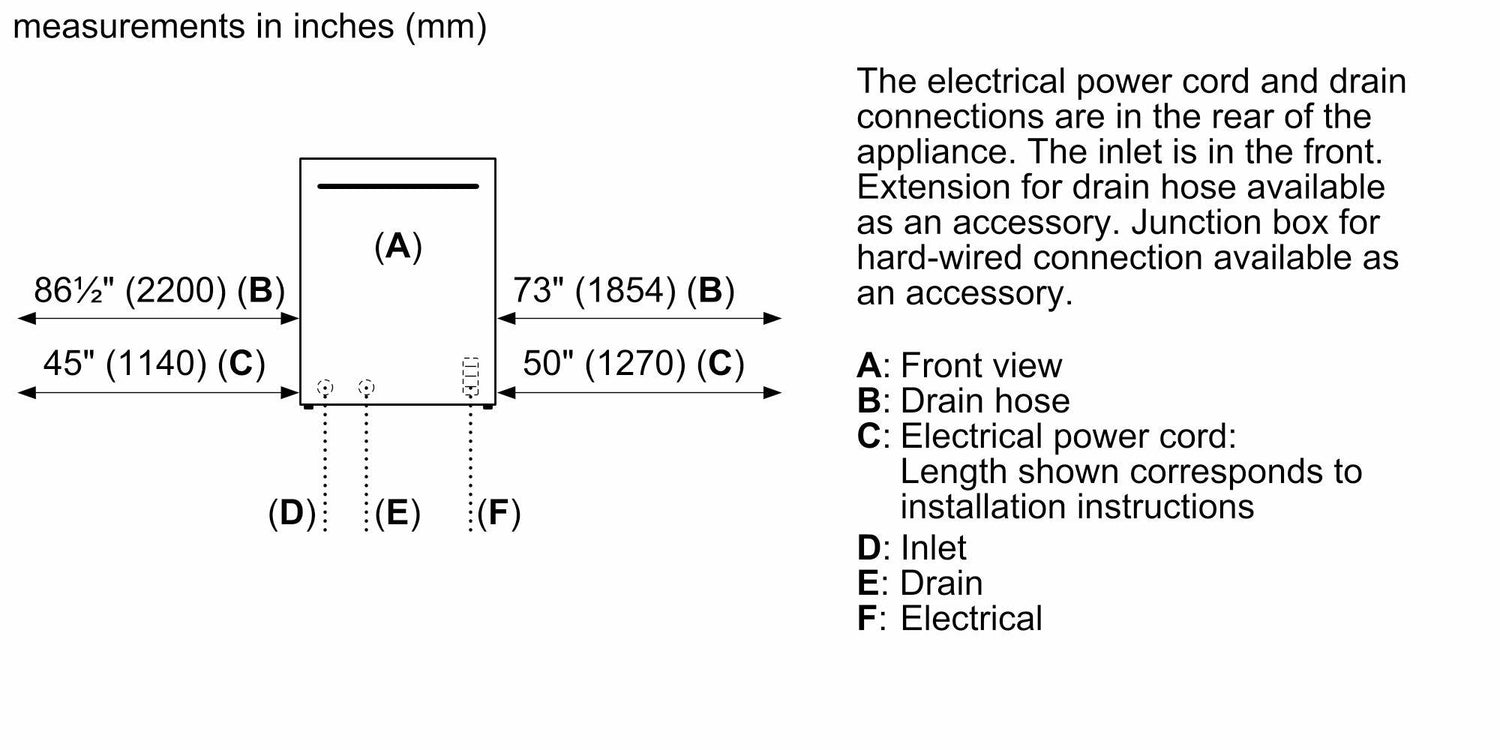

| Power Cord Length | 66 7/8'' |
| Connectivity | |
| Home Connect™ | No |
| Size and weight | |

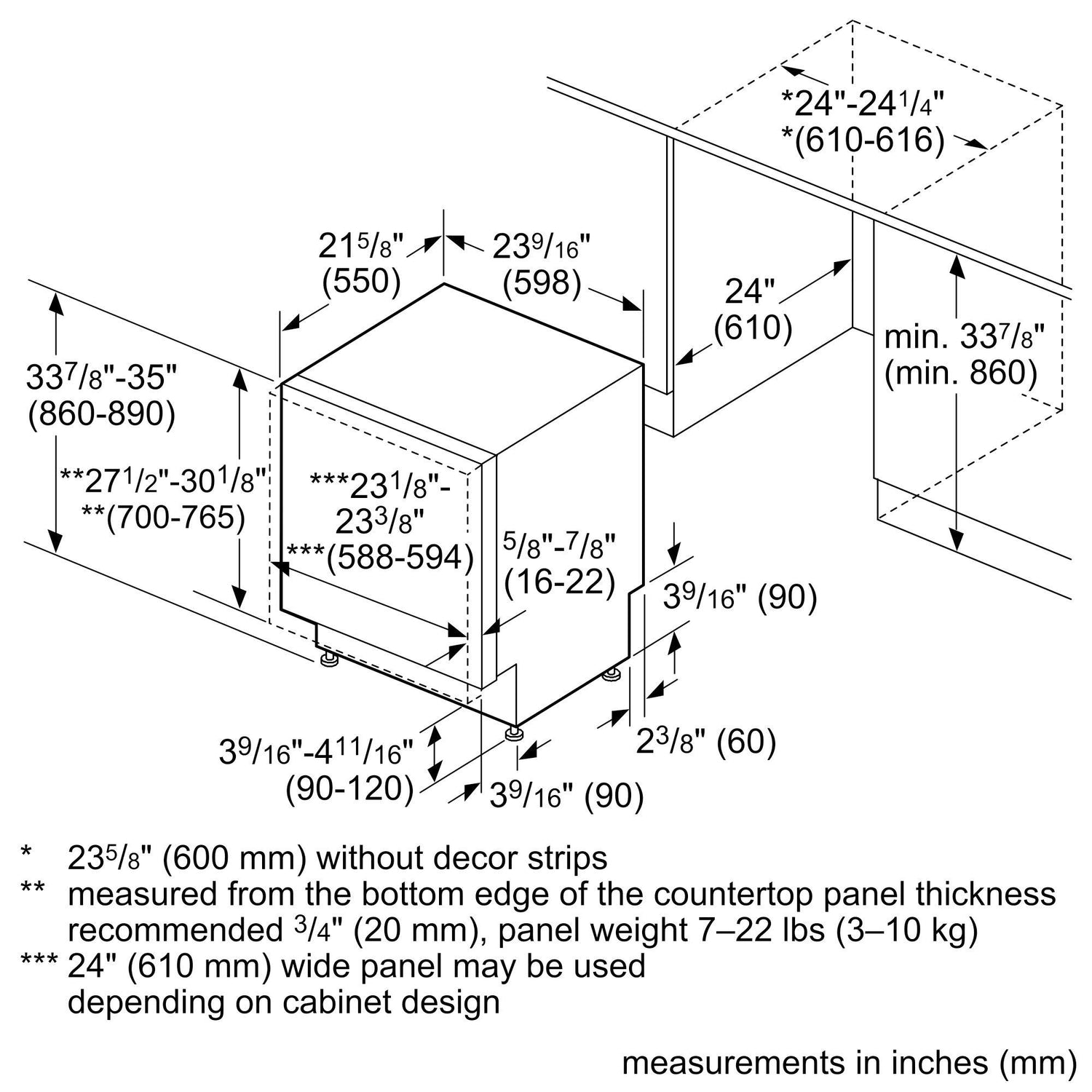

| Overall appliance dimensions (HxWxD) (in) | 33 7/8'' x 23 9/16'' x 21 5/8'' |
| Adjustable plinth | both horizontal and vertical |
| Net weight | 74.000 lbs |
| Programmes | |
| Status indicator | End of program audible, InfoLight red, Sanitized LED US, Time remaining indic. internal |
| List of programs | Auto, Normal, Pots & Pans, Rinse |
| Program 1 | Pots & Pans |
| Program 2 | Auto |
| Program 3 | Normal |
| Program 4 | Rinse |
| Programme duration, programme1 (min.) | 110-130 |
| Programme duration, programme2 (min.) | 115-130 |
| Programme duration, programme3 (min.) | 130-135 |
| Programme duration, programme4 (min.) | 12 |
| Reference program | Regular US |
| Number of different wash temperatures | 5 |
| Temperature program 1 | 150-160 °F |
| Temperature program 2 | 125-130 °F |
| Temperature program 3 | 122-131 °F |
| Consumption values | |
| Glass protection | No |
| Water consumption program 1 | 5.7-7.3 gal |
| Water consumption program 2 | 3.8-6.5 gal |
| Water consumption program 3 | 3-5.7 gal |
| Water consumption program 4 | 1.1 gal |
| Total annual water consumption | 688 gal |
| Maximum temperature for water intake (°C) | 50 °C |
| Connection | |
| Watts | 1,440 W |
| Power Cord Length | 66 7/8'' |
| Fuse protection | 12 A |
| Plug type | fixed connection, Nema5-15P |
| Construction type | |
| Color / Control Panel | Stainless steel color, lacqu. |
| Construction type | Built-in |
| Panel ready | Not possible |
| Drying system | Inherent heat |
| Height | 33 7/8 |
| Concealed heating element | Yes |
| Installation Type | Full-integrated |
| Tub material | Plastic |
| Water Softener | No |
| Appliance Width (in) | 23 9/16 |
- PrecisionWash(R): uses Intelligent sensors to monitor the wash water and automatically adjust the cycle for a smarter clean. Close > A smarter clean with PrecisionWash(R) With Bosch PrecisionWash(R), simply start your dishwasher and walk away. Intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load. So when your dishes are done, so are you.
- PureDry(R): Our energy efficient drying system allows you to safely place plastics anywhere, even on the bottom rack, without fear of melting. Close > Not just dry, but PureDry(R) PureDry(R) is an energy efficient, closed drying system that does not pull in outside air and gently whisks moisture away from dishes as they cool. And with no exposed heating element, you can safely place plastics anywhere.
 | |
|---|---|
