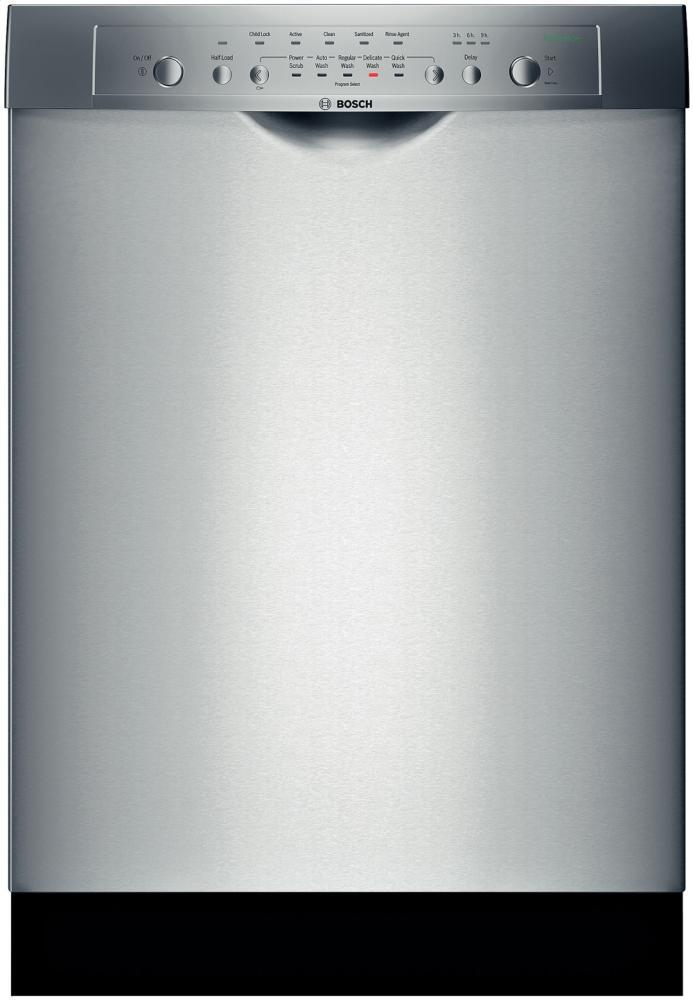

24" Ascenta DLX Dishwasher
Model SHE5AL05UC
Authorized Dealer
Loading...
Authorized Dealer
24" Ascenta DLX Dishwasher
Model SHE5AL05UCQuick Specs
Depth
22.5625
Height
33.875
SS Tub
YES
Dish Cycles
5
Energy
YES
Controls
NO
24" Ascenta DLX Dishwasher is backordered and will ship as soon as it is back in stock.
Available to Order
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
22.5625
Height
33.875
Stainless Steel Tub
YES
Dish Cycle Count
5
Energy Star Rated
YES
Fully Integrated Controls
NO
- Appearance
- Stainless Steel TallTub w/ *PP - Lifetime Warranty on Rust-Through
- 5 Wash Cyles and 2 Options
- Quietness
- Virtually Silent: 53 dBA
- Two Pumps Minimize Noise & Vibration
- Efficiency
- 279 kwh/yr - Energy Star®
- EcoSense™ Reduces Energy Usage by up to 20%
- Half Load Option for Small Loads
- Flow-Through Water Heater™
- Triple Filtration System
- Safety
- Bosch Exclusive 24/7 Overflow Leak Protection
- ChildLock Prevents Unwanted Cycle Changes
- NSF Certified - Eliminates 99.9% of Bacteria
- Concealed Heating Element - No Melting of Plastics
- SaniDry™ Hygienic Condensation Drying
- Capacity
- 14 Place Setting Capacity
- Standard Racks with Standard Silverware Basket
- Convenience
- Quick Wash - In 30 Minutes or Less
- 3 h, 6 h, 9 h Delay Star Timer
- Performance
- OptiDry® for Spotless Drying Results
- Stainless Steel TallTub w/ *PP - Lifetime Warranty on Rust-Through
- 5 Wash Cyles and 2 Options
- ChildLock Prevents Unwanted Cycle Changes
- NSF Certified - Eliminates 99.9% of Bacteria
- Concealed Heating Element - No Melting of Plastics
- SaniDry(TM) Hygienic Condensation Drying
- 14 Place Setting Capacity
- Standard Racks with Standard Silverware Basket
- Quick Wash - In 30 Minutes or Less
- 3 h, 6 h, 9 h Delay Star Timer
- OptiDry(R) for Spotless Drying Results
- Virtually Silent: 53 dBA
- Two Pumps Minimize Noise & Vibration
- 279 kwh/yr - Energy Star(R)
- EcoSense(TM) Reduces Energy Usage by up to 20%
- Half Load Option for Small Loads
- Flow-Through Water Heater(TM)
- Triple Filtration System
- Bosch Exclusive 24/7 Overflow Leak Protection
| Product group | Dishwasher |
| Brand | Bosch |
| SKU | SHE5AL05UC |
| Installation Type | Built-under |
| Panel ready | Not possible |
| Tub material | Plastic |
| Concealed heating element | Yes |
| Watts (W) | 1400 W |
| Current (A) | 12 A |
| Volts (V) | 120 V |
| Frequency (Hz) | 60 Hz |
| Approval certificates | CSA, UL |
| Power cord length (cm) | 0.0 cm |
| Plug type | Fixed connection |
| Length inlet hose (cm) | 0 cm |
| Length outlet hose (cm) | 230 cm |
| Adjustable feet | No |
| Overall appliance dimensions (HxWxD) (mm) | 860 x 598 x 573 mm |
| Product packaging dimensions (HxWxD) (mm) | 930 x 670 x 660 mm |
| Required cutout size (HxWxD) (mm) | 860 x 610 x 610 mm |
| Net weight (kg) | 43.00 kg |
| Gross weight (kg) | 48.00 kg |
| Number of place settings | 14 |
| Total annual water consumption (l) | 0 l |
| Number of wash cycles | 5 |
| Leak Protection System | 24/7 Overflow Protection |
| Water softener | No |
| Start delay time max (h) | 9 h |
| Status indicator | Programme status |
| Display | No |
| ChildLock | Yes |
| INTERIOR_LIGHT_DISH | No |
| Adjustable upper rack | No |
| Glass protection | No |
| Top basket type | low |
| Bottom basket type | low |
| Business field | E35 |
| Program 1 | Power Scrub Plus US |
| Program 2 | Auto US |
| Program 3 | Regular US |
| Program 4 | Delicate/Economy Wash US |
| Program 5 | Quick Wash US |
| Silence level (dBA) | 53 dB |
| Load Sensor | No |
| Variable spray pressure | No |
| Energy Star® qualified | Yes |
| Total annual energy consumption (kWh) | 279 kWh |
| Number of Options | 2 |
| Flip tines in upper rack | 1 |
| Fine Cutlery and Silver Tray | No |
| Mezzanine Rack | No |
| Silverware Basket | Standard |
| Extra-tall item sprinkler | No |
| LED | No |
| Multi-Function LED | Yes |
| Multi-function text LCD | No |
| Sanitized indicator light | Yes |
| Tub type | TallTub |
| Triple Filtration System | Yes |
| Five-Level Wash | Yes |
| NSF Certified | Yes |
| Required cutout size (HxWxD) (in) | 33 15/16'' - 35'' x 24 '' x 24 '' " |
| Overall appliance dimensions (HxWxD) (in) | 33 7/8 '' x 23 9/16 '' x 22 9/16 '' " |
| ADA Compliant | No |
| Product packaging dimensions (HxWxD) (in) | 36 5/8'' x 26 3/8'' x 26'' " |
| Net weight (lbs) | 94 lbs |
| Gross weight (lbs) | 105 lbs |
| Length outlet hose (in) | 90 1/2 " " |
| UPC code | 825,225,875,147 |
| Main color of product | Stainless steel |
| Additional operational options | half load, time delay |
| 3rd Rack | no |
| Bottom basket Inserts | 0 |
| SERIES | Ascenta |
| Interior light | No |
- Stainless Steel TallTub w/ *PP - Lifetime Warranty on Rust-Through
- 5 Wash Cyles and 2 Options
- ChildLock Prevents Unwanted Cycle Changes
- NSF Certified - Eliminates 99.9% of Bacteria
- Concealed Heating Element - No Melting of Plastics
- SaniDry(TM) Hygienic Condensation Drying
- 14 Place Setting Capacity
- Standard Racks with Standard Silverware Basket
- Quick Wash - In 30 Minutes or Less
- 3 h, 6 h, 9 h Delay Star Timer
- OptiDry(R) for Spotless Drying Results
- Virtually Silent: 53 dBA
- Two Pumps Minimize Noise & Vibration
- 279 kwh/yr - Energy Star(R)
- EcoSense(TM) Reduces Energy Usage by up to 20%
- Half Load Option for Small Loads
- Flow-Through Water Heater(TM)
- Triple Filtration System
- Bosch Exclusive 24/7 Overflow Leak Protection
 | |
|---|---|
