800 Series Gas Cooktop 36" Black
Model: NGM8646UC
Authorized Dealer
1
of
6
Loading...
Authorized Dealer
800 Series Gas Cooktop 36" Black
Model: NGM8646UCQuick Specs
Width
37"
Depth
21.25"
Height
3.8"
Sabbath
YES
ADA
NO
Wifi
NO
Burner
Sealed
Storage
NO
Discontinued
Regular price
$1,719.00
Unit price
/
Unavailable
Warranty
Selected warranty added with 'Add to Cart'.
SERVICES AVAILABLE
Selected service(s) added with 'Add to Cart'.
Couldn't load pickup availability
Quick Specs
Width
37"
Depth
21.25"
Height
3.8"
Sabbath Mode
YES
ADA
NO
Wifi Connected
NO
Burner Type
Sealed
Cooking has Storage Drawer
NO
Cooking has Warning Drawer
NO
Cooking oven number of burners
5
Continuous Grate
YES
Convection
NO
Self Clean
NO
Downdraft Ventilation
NO
Nominal Width
36.0
RPM
-1.0
Drawer Proof Mode
NO
Dual Fuel
NO
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC
Automatic re-ignition
The electronic re-ignition feature will automatically re-ignite the burner in case the flame goes out during use.
Simmer delicate sauces with the OptiSim(R) Burner
The OptiSim burner design is wider and thicker which diffuses heat evenly for better flame control when simmering delicate sauces.
- 19,000 BTU Burner: - for boiling, searing, and stir-frying.
- OptiSim® Burner: - the wide & thick burner design diffuses heat evenly and reduces hot spots -- perfect for simmering delicate sauces or melting chocolate.
- Electronic Re-Ignition: - automatically re-ignites the burner in case the flame goes out.
- Continuous Cast Iron Grates: - makes it easy to slide pots & pans from burner to burner.
- 19,000 BTU Burner: - for boiling, searing, and stir-frying.
- OptiSim(R) Burner: - the wide & thick burner design diffuses heat evenly and reduces hot spots -- perfect for simmering delicate sauces or melting chocolate.
- Electronic Re-Ignition: - automatically re-ignites the burner in case the flame goes out.
- Continuous Cast Iron Grates: - makes it easy to slide pots & pans from burner to burner.
| Specifications | |
| General | |
| Total NG BTUs | 52400 |
| Total LP BTUs | 47300 |
| ExtraLow® Burners | No |

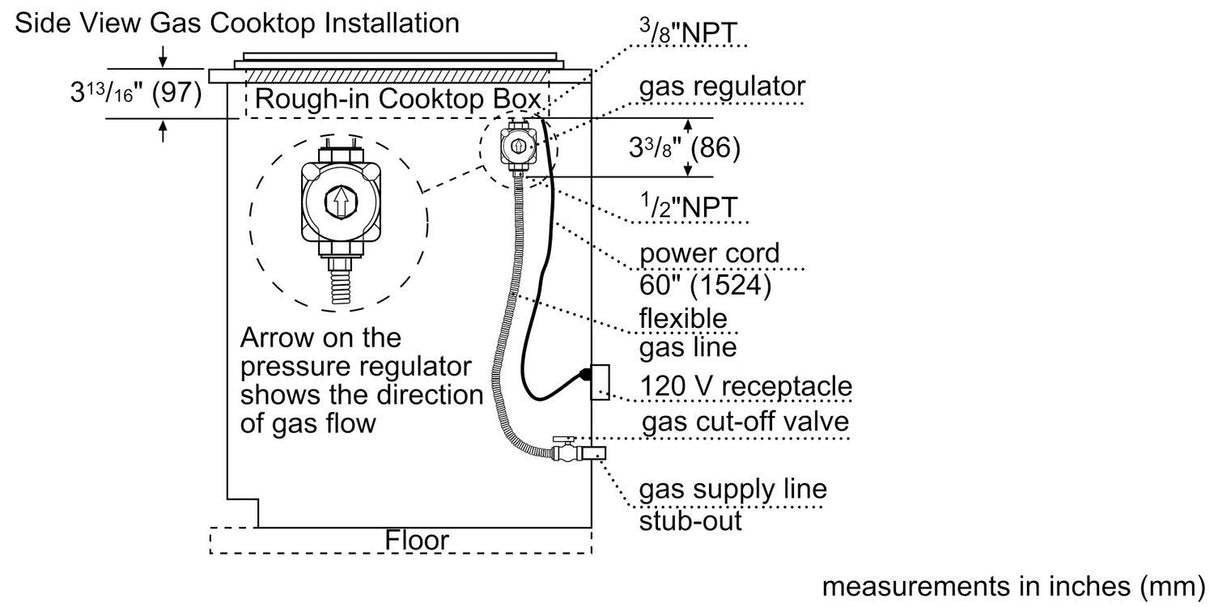

| Installation | |
| Overall Appliance Dimensions (HxWxD) (in) | 3 13/16'' x 37'' x 21 1/4'' |

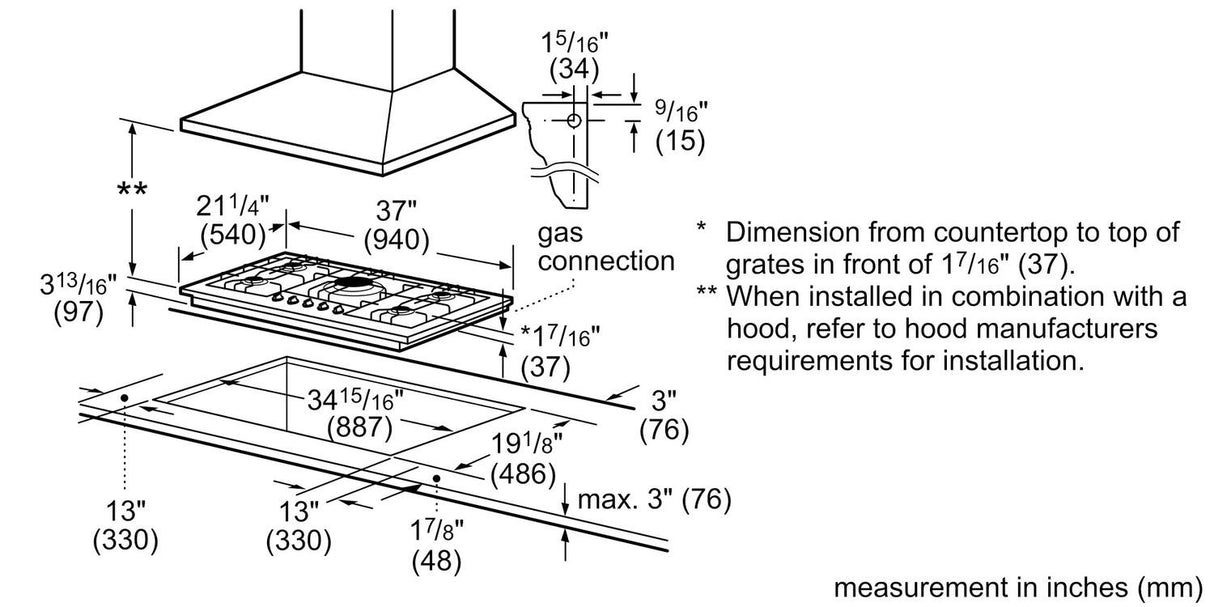

| Required Cutout Size (HxWxD) (in) | 3 13/16'' x 34 15/16'' x 19 1/8'' |
| Gas type | Natural gas 15 mbar (USA) |
| Alternative Gas Type (Nozzle Set Included) | Liquid gas 27,5 mbar (USA) |
| Plug Type | 120V-3 prong |
| Power Cord Length | 60'' |
| Fuse protection | 15 |
| Volts | 120 |
| Product Packaging Dimensions (HxWxD) | 8 3/8'' x 43 1/8'' x 24 3/4'' |
| Design | |
| Surface Materials | Porcelain, Steel |
| Grate Materials | Cast Iron with Rubber Feet |
| Location of Control Panel | Front |
| Comfort and Convenience | |
| Number of Gas Burners | 5 |
| Pedestal Star® Burners | No |
| Sealed Burners | Yes |
| ExtraLow® Burners | No |
| Special Features | Reignition, Simmer Cap |
| Griddle | No |
| ADA Compliant (When Installed to ADA requirements) | No |
| Connectivity | |
| Home Connect™ | No |
| Safety | |
| Safety | Electronic flame failure safety device |
| Accessories | |
| Included Accessories | 1 x nozzle set for liquid gas, 3 x cast iron pan support |
- 19,000 BTU Burner: - for boiling, searing, and stir-frying.
- OptiSim(R) Burner: - the wide & thick burner design diffuses heat evenly and reduces hot spots -- perfect for simmering delicate sauces or melting chocolate.
- Electronic Re-Ignition: - automatically re-ignites the burner in case the flame goes out.
- Continuous Cast Iron Grates: - makes it easy to slide pots & pans from burner to burner.
