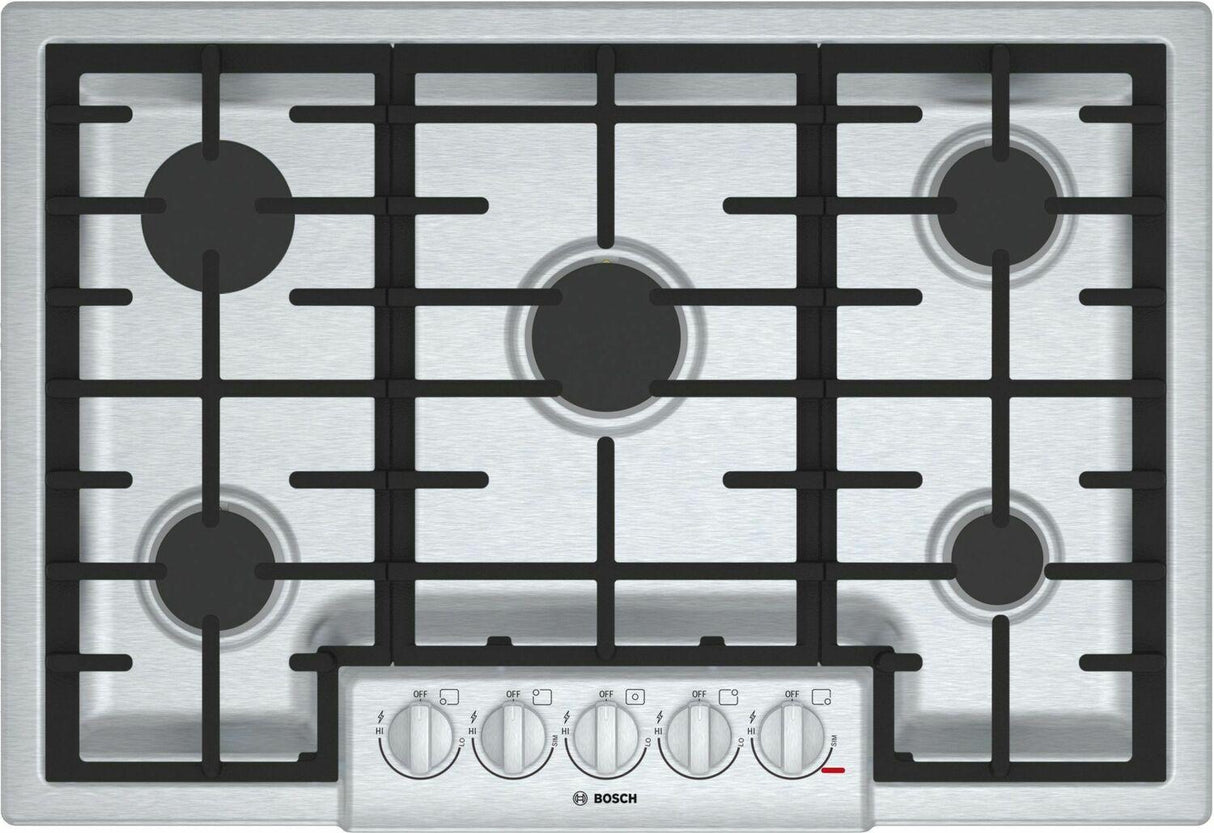

800 Series, 30" Gas Cooktop, 5 Burners, Stainless Steel
Model: NGM8056UC
Authorized Dealer
1
of
5
Loading...
Authorized Dealer
800 Series, 30" Gas Cooktop, 5 Burners, Stainless Steel
Model: NGM8056UCQuick Specs
Depth
21.25
Height
3.813
Sabbath
YES
ADA
YES
Wifi
NO
Burner
Sealed
Burners
5
Grate
YES
Discontinued
Regular price
$1,158.00
Unit price
/
Unavailable
Warranty
Selected warranty added with 'Add to Cart'.
SERVICES AVAILABLE
Selected service(s) added with 'Add to Cart'.
Couldn't load pickup availability
Quick Specs
Depth
21.25
Height
3.813
Sabbath Mode
YES
ADA
YES
Wifi Connected
NO
Burner Type
Sealed
Cooking oven number of burners
5
Continuous Grate
YES
Downdraft Ventilation
NO
Oven Ignition Type
ELECTRONIC
Easier cleanup
(P)The seamless one-piece stainless steel design makes clean-up simple while the low profile design offers an integrated look.(/P)
Automatic re-ignition
(P)The electronic re-ignition feature will automatically re-ignite the burner in case the flame goes out during use.(/P)
LED indicator light safety feature
(P)A burner indicator light on the cooktop illuminates when at least one burner is on.(/P)
- Performance
- Powerful 19,000 BTU Burner for Boiling, Searing and Stir-Frying
- Five Burner 30 Inch Cooktop--Same Versatility of 36 Inch Cooktop in Compact 30 Inch Format. For Kitchens Where Space is Limited
- STAR-K Sabbath compliant
- Convenience
- Sealed Burners Prevent Spills from Entering the Burner Box
- Push-to-Turn Knobs
- Porcelain enamel on cast iron grates
- Automatic Electronic Re-Ignition - In Case Flame Goes Out, the Burner is Automatically Re-Ignited
- Distinctive Single Red LED Light Indicates Burners Are On
- LP Conversion Kit Included for Conversion from Natural Gas to Liquid Propane
- Design
- Heavy-Duty Metal Knobs for a Premium Look and Feel
- Low-Profile Design for an Integrated Appearance
- Perfect Results are Within Reach With Up-Front Centralized Controls
- Cooktop Design Coordinates with Bosch Ovens and Ventilation
- Powerful 19,000 BTU burner for boiling, searing and stir-frying.
- OptiSim(R) burner offers more flame control at the lowest settings for precise simmering and melting.
- Electronic re-ignition will automatically re-ignite the burner in case the flame goes out. Automatic re-ignition The electronic re-ignition feature will automatically re-ignite the burner in case the flame goes out during use.
- Seamless, one-piece stainless steel design makes clean-up simple. Easier cleanup The seamless one-piece stainless steel design makes clean-up simple while the low profile design offers an integrated look.
- Distinctive red LED light indicates burners are on. LED indicator light safety feature A burner indicator light on the cooktop illuminates when at least one burner is on.
| Technical Specifications | |
| General | |
| Cooktop type | Gas cooktop |
| Self-sufficient cooker control | Self-sufficient gas hobs |
| Width | 76 cm |
| Total number of cooktop burners | 5 |
| Power of the heating elements | 1 x 5.57 KW, 2 x 1.61 KW, 2 x 2.93 KW |
| Basic surface material | Stainless steel |
| Color | Stainless steel |
| Included accessories | 1 x nozzle set for liquid gas, 1 x cast iron pan support |
| Construction type | |
| Color of frame | Stainless steel |
| Color of surface | Stainless steel |
| Construction type | Built-in |
| Number of electric elements | 0 |
| Number of electric cooking zones | 0 |
| Number of gas burners | 5 |
| Number of halogen elements | 0 |
| Installation Type | Built-in |
| Type of grate | Cast iron |
| Total number of cooktop burners | 5 |
| Number of radiant elements | 0 |
| Number of electric warming zones | 0 |

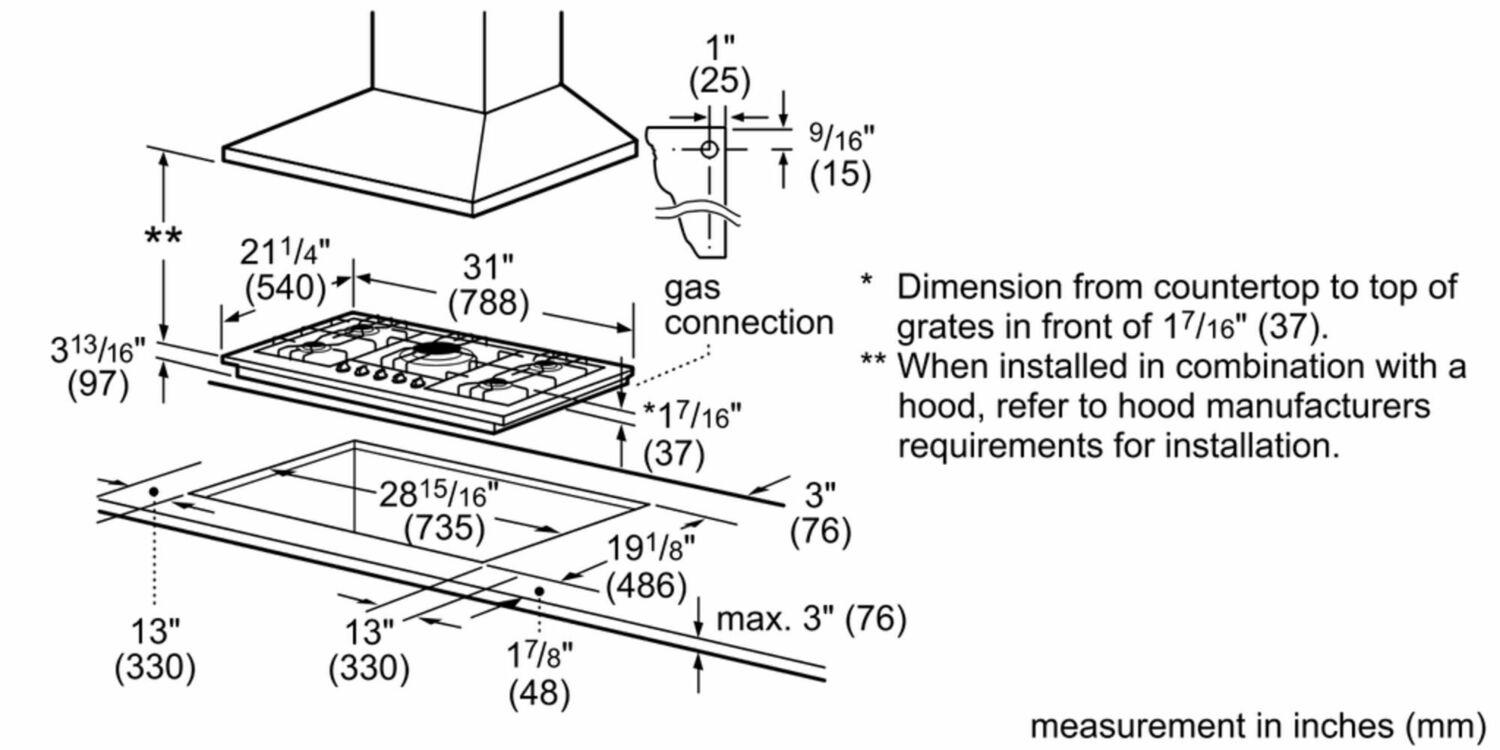

| Size and weight | |
| Overall appliance dimensions (HxWxD) (in) | + 3 13/16'' x 31'' x 21 1/4'' |
| Net weight | 41.000 lbs |
| Minimum distance from counter front (in) | 1 7/8'' |
| Minimum distance from rear wall (in) | 3'' |
| Cooking zone 1 | |
| Location of 1st heating element | front left |
| Type of heating element | Gas |
| Cooking zone 2 | |
| Location of 2nd heating element | center left |
| Cooking zone 3 | |
| Location of 3rd heating element | back left |
| Type of 3rd heating element | Gas |
| Cooking zone 4 | |
| Location of 4th heating element | middle back |
| Cooking zone 5 | |
| Location of 5th heating element | back right |
| Type of 5th heating element | Gas |
| Cooking zone 6 | |
| Location of 6th heating element | center right |
| Cooking zone 7 | |
| Location of 7th heating element | front right |
| Type of 7th heating element | Gas |
| Cooking zone 8 | |
| Location of 8th heating element | front middle / central |
| Cooking zone 9 | |
| Location of 9th heating element | front centre/cent |
| Safety | |
| Residual heat indicator | without |
| Type of safety device for gas | Without |
| Connection | |
| Gas connection rating | 14,650 W |
| Location of gas connection | bottom, rear, right |
| Frequency | 60 Hz |
| Energy source | Gas |
| Power Cord Length | 60'' |
| Watts | 360 W |
| Accessories | |
| Included accessories | 1 x nozzle set for liquid gas, 1 x cast iron pan support |
- Powerful 19,000 BTU burner for boiling, searing and stir-frying.
- OptiSim(R) burner offers more flame control at the lowest settings for precise simmering and melting.
- Electronic re-ignition will automatically re-ignite the burner in case the flame goes out. Automatic re-ignition The electronic re-ignition feature will automatically re-ignite the burner in case the flame goes out during use.
- Seamless, one-piece stainless steel design makes clean-up simple. Easier cleanup The seamless one-piece stainless steel design makes clean-up simple while the low profile design offers an integrated look.
- Distinctive red LED light indicates burners are on. LED indicator light safety feature A burner indicator light on the cooktop illuminates when at least one burner is on.
