500 Series Gas Cooktop 30" Stainless steel NGM5058UC
Model NGM5058UC
Authorized Dealer
1
of
13
Loading...
Authorized Dealer
500 Series Gas Cooktop 30" Stainless steel NGM5058UC
Model NGM5058UCQuick Specs
Width
31"
Depth
21.25"
Height
3.75"
Sabbath
NO
ADA
NO
Wifi
NO
Burner
Sealed
Storage
NO
500 Series Gas Cooktop 30" Stainless steel NGM5058UC is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Regular price
$1,042.99
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Width
31"
Depth
21.25"
Height
3.75"
Sabbath Mode
NO
ADA
NO
Wifi Connected
NO
Burner Type
Sealed
Cooking has Storage Drawer
NO
Cooking has Warning Drawer
NO
Cooking oven number of burners
5
Continuous Grate
YES
Convection
NO
Self Clean
NO
Downdraft Ventilation
NO
Nominal Width
30.0
RPM
-1.0
Drawer Proof Mode
NO
Dual Fuel
NO
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC

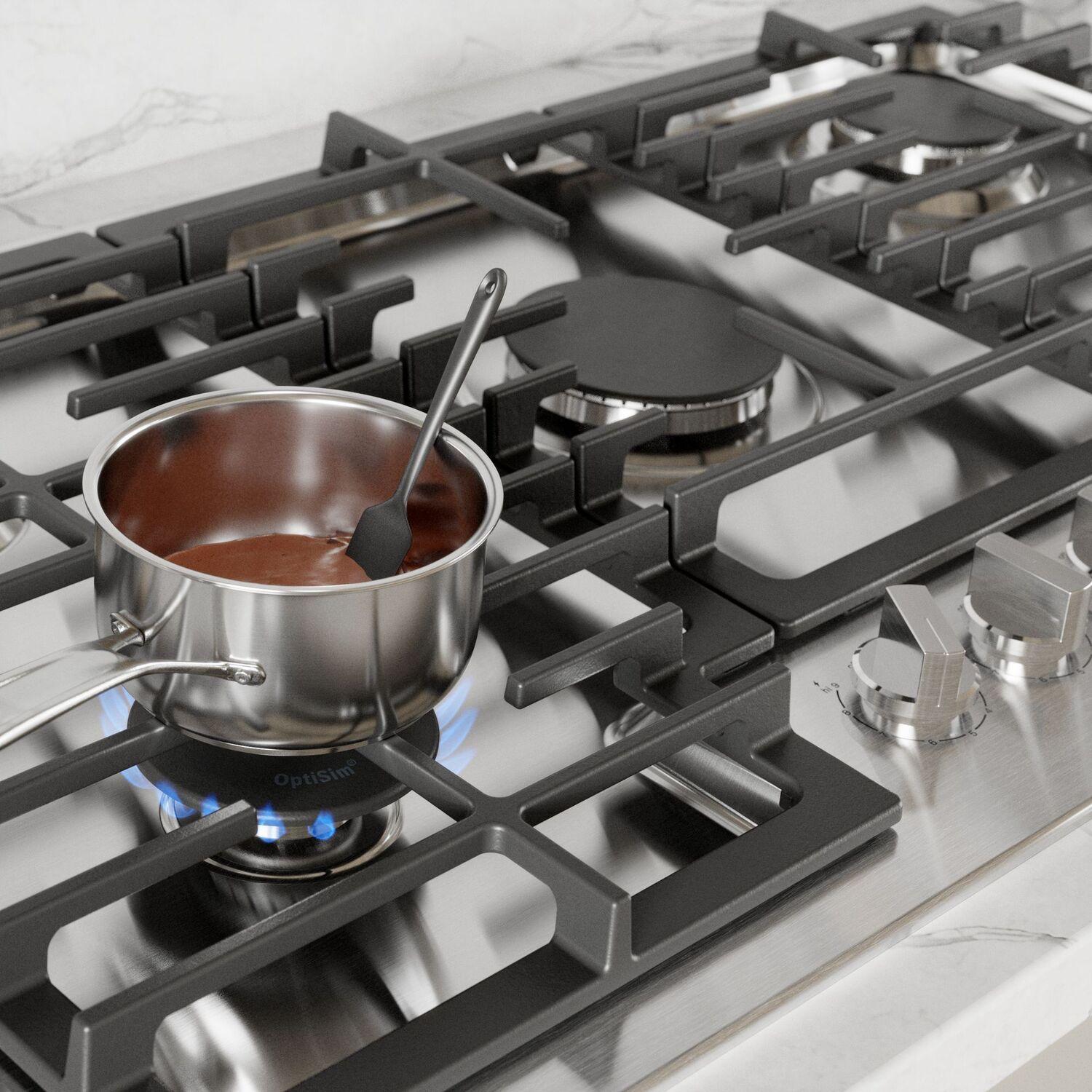

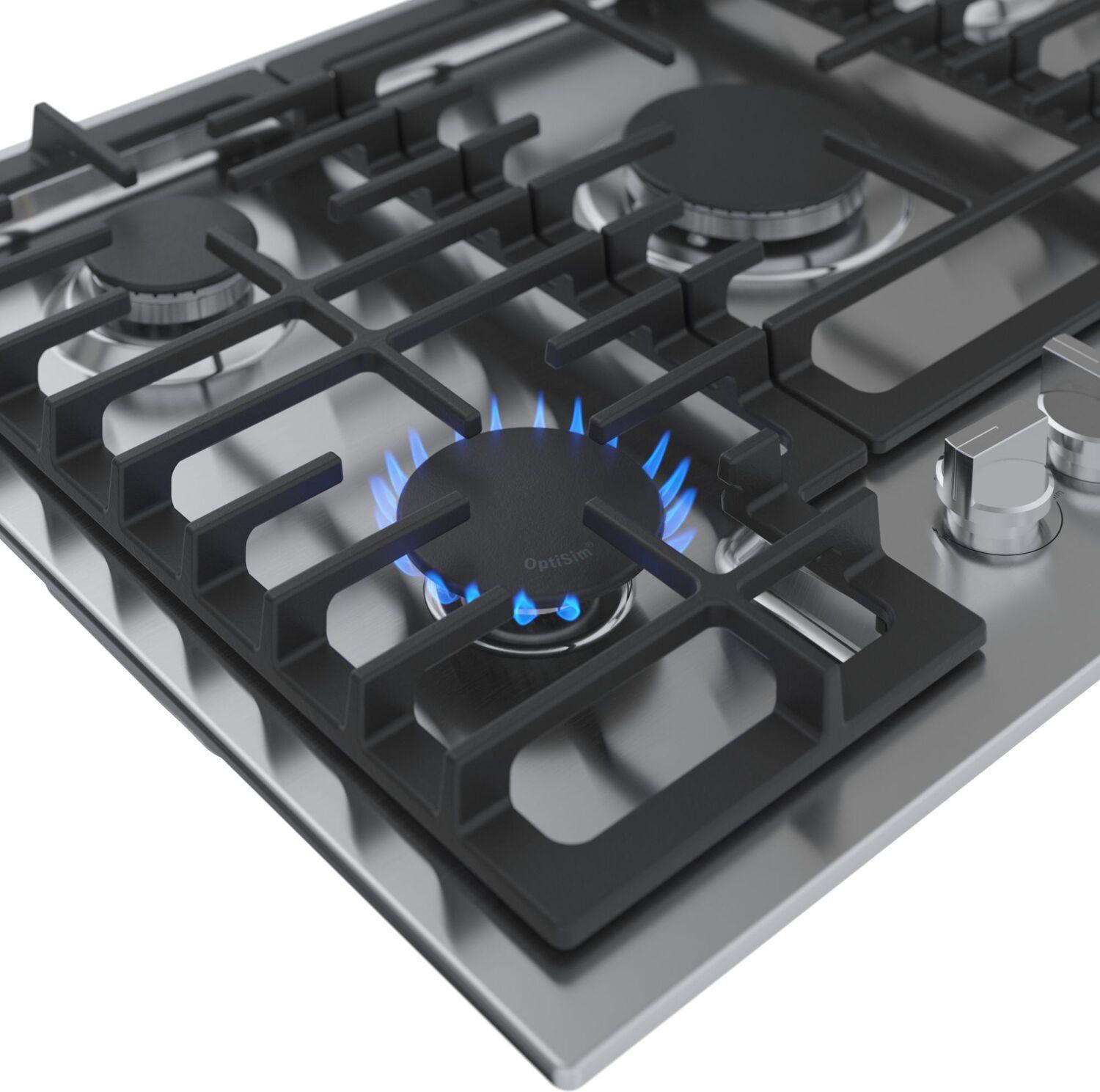

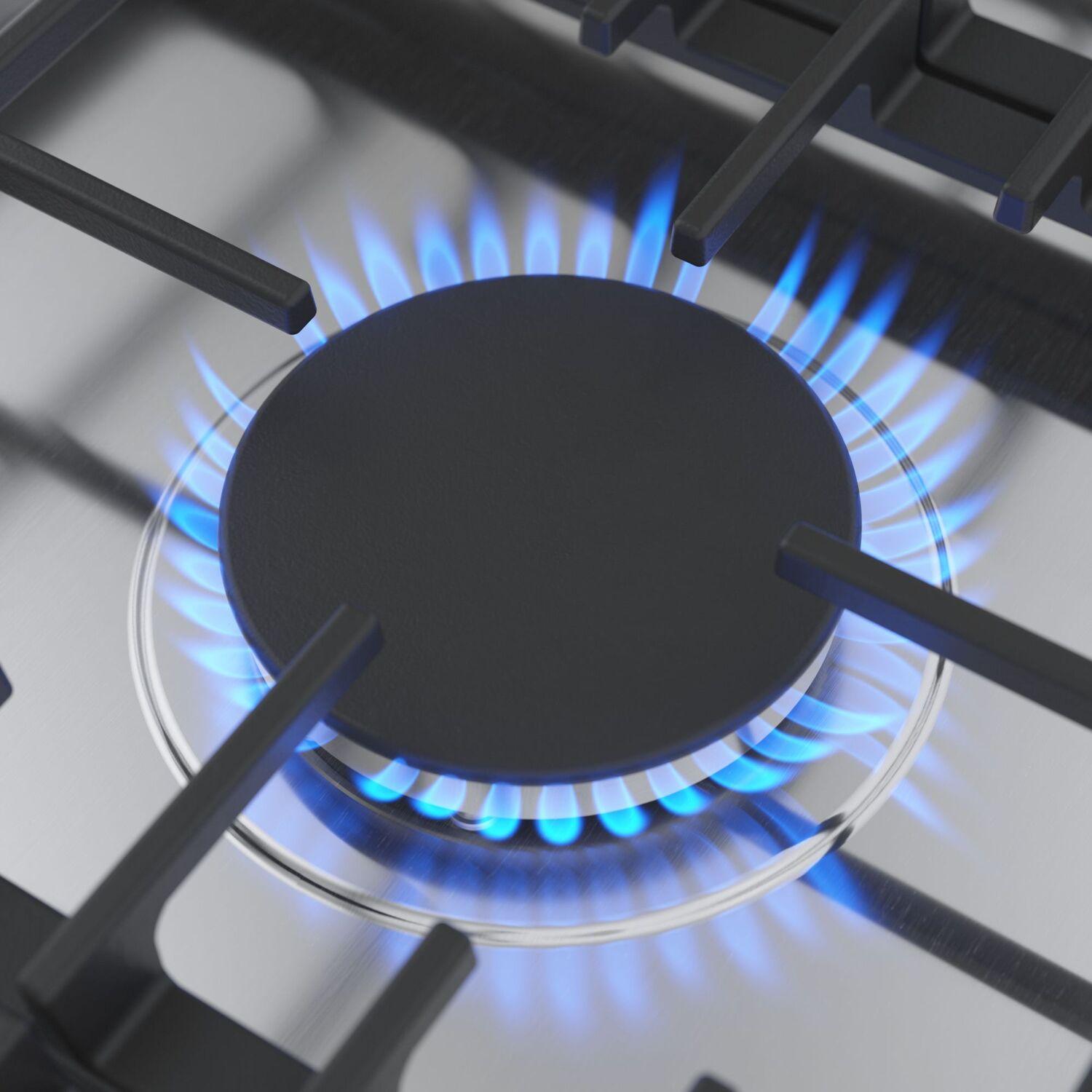

Simmer delicate sauces with the OptiSim(R) Burner
(P) The OptiSim burner design is wider and thicker which diffuses heat evenly for better flame control when simmering delicate sauces.(/P)

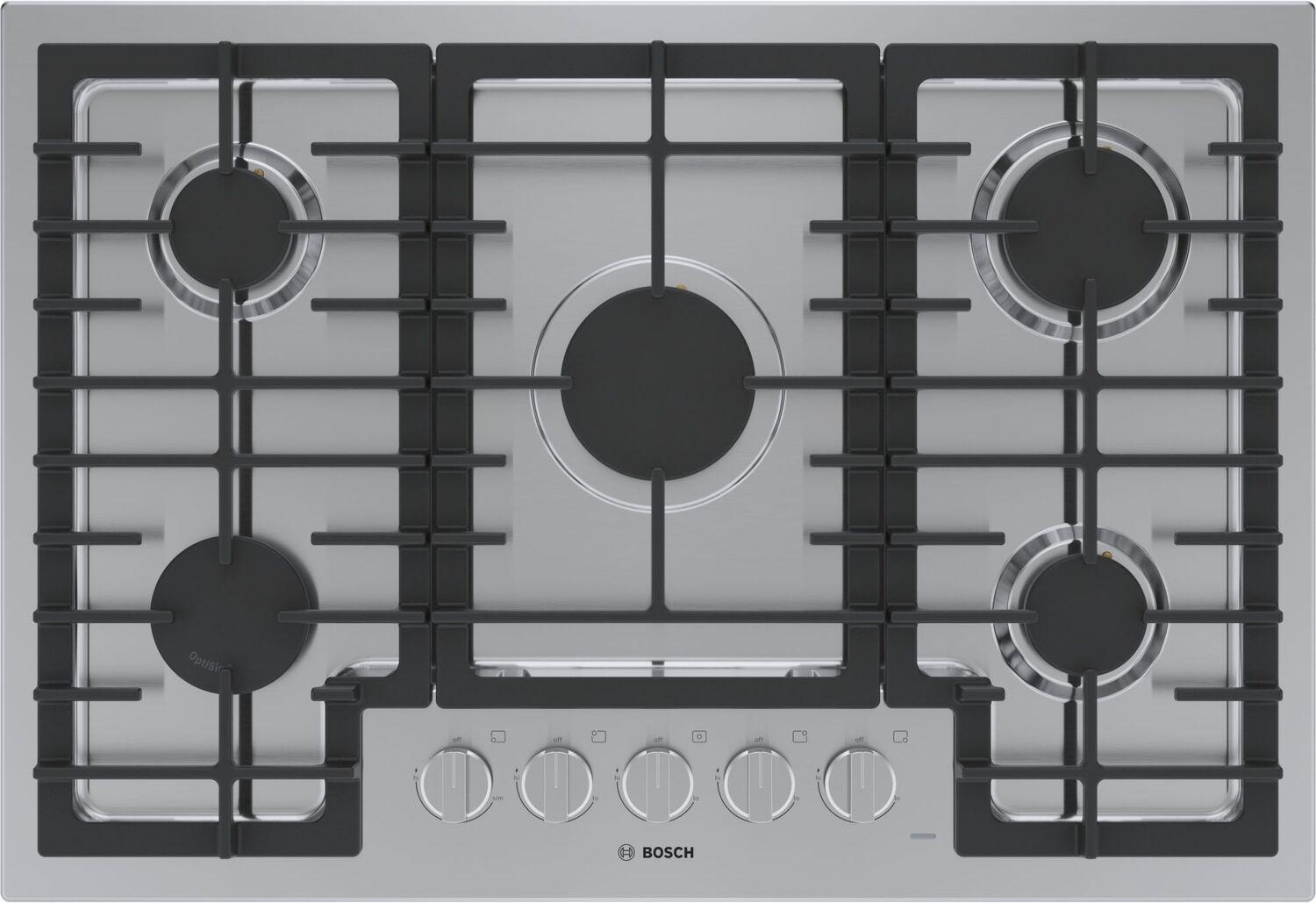

- Fit multiple pans and cook with 5 burners
- Simmer delicate sauces with the OptiSim® Burner
- Easy to clean, low-profile design
- Slide your pans from burner to burner
- Fit multiple pans and cook with 5 burners
- Simmer delicate sauces with the OptiSim(R) Burner
- Easy to clean, low-profile design
- Slide your pans from burner to burner
| Features and Specifications | |
| General | |
| Energy source | Gas |

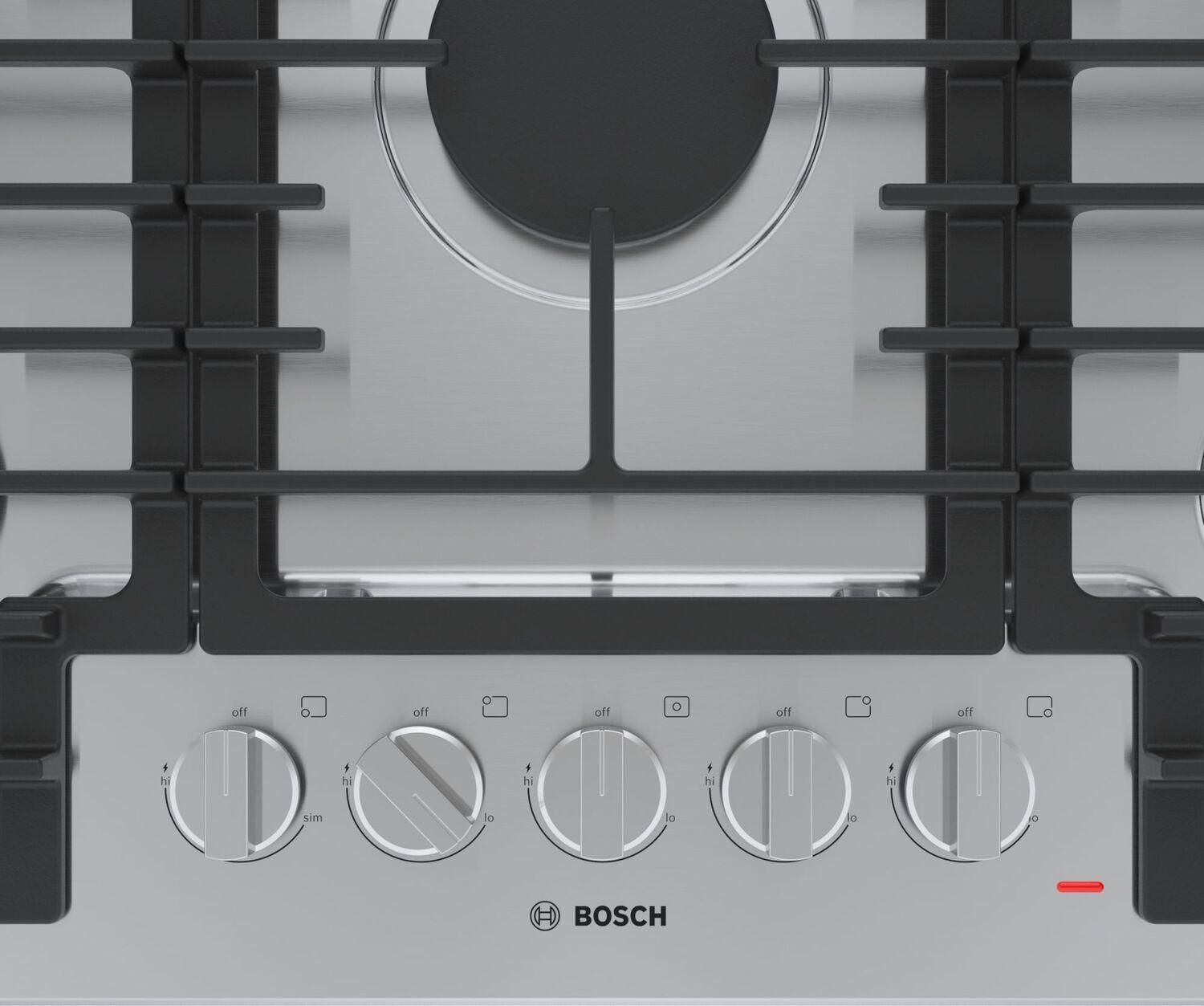

| Type of Control | Front, Illuminated, sword knobs |
| Safety | SMARTFLAME |
| Construction type | |
| Color of frame | Stainless steel |
| Color of Surface | Stainless steel |
| Design | Built-in |
| Number of electric elements | 0 |
| Number of electric cooking zones | 0 |
| Number of gas burners | 5 |
| Number of halogen elements | 0 |
| Installation Type | Built-in |
| Type of grate | Cast iron |
| Total Number of Heating Elements | 5 |
| Number of radiant elements | 0 |
| Number of electric warming zones | 0 |
| Size and weight | |

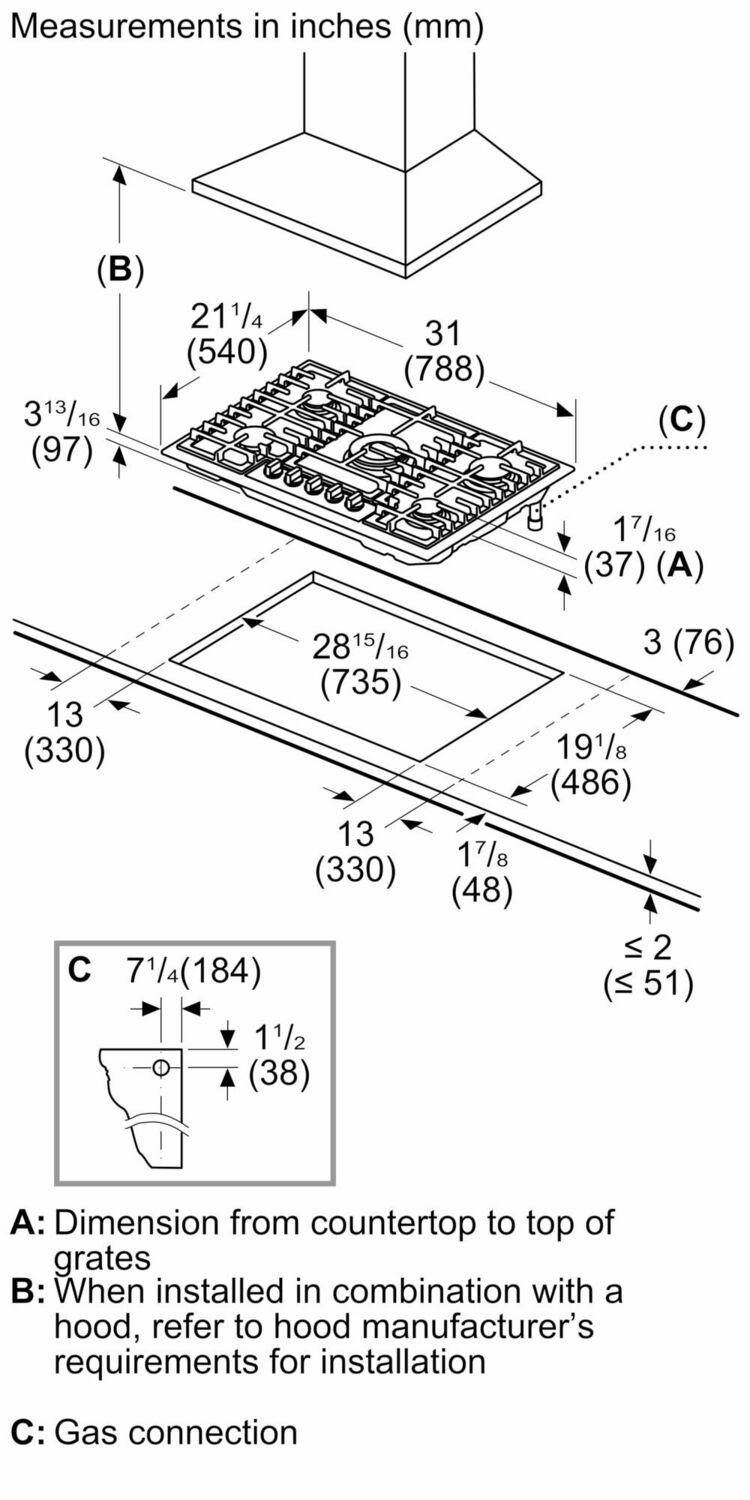

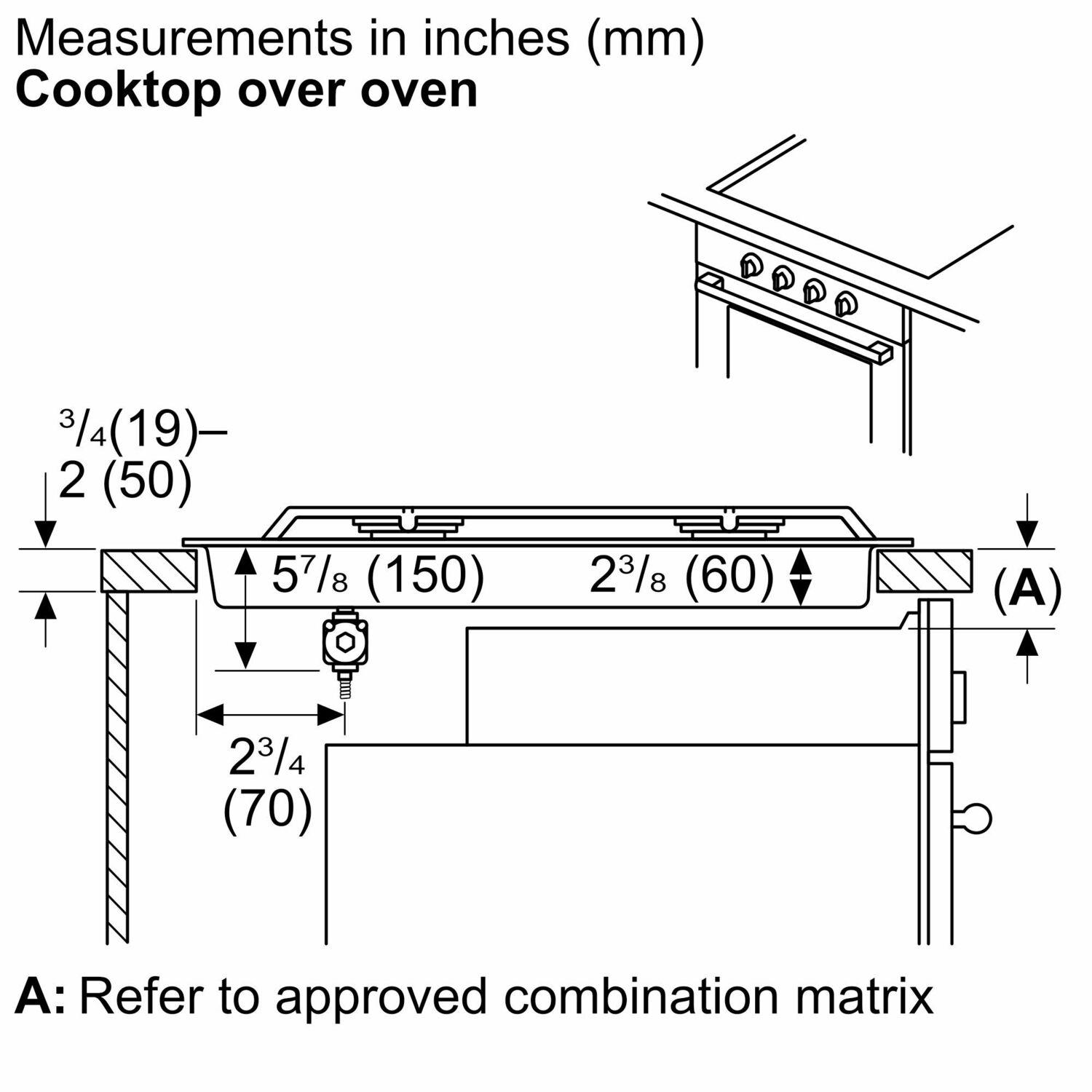

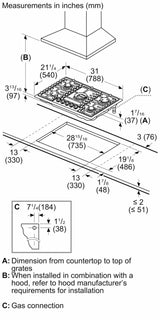

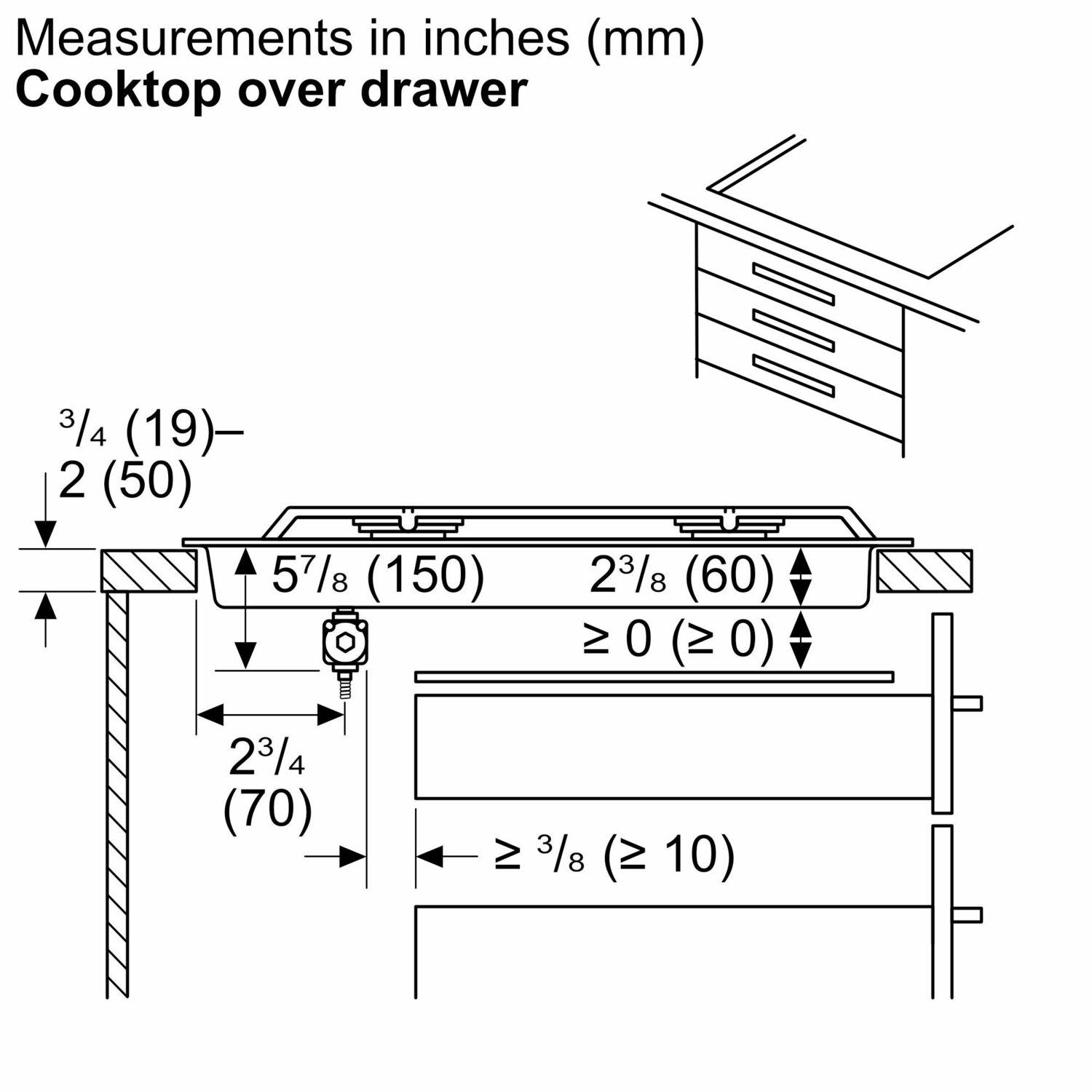

| Overall Appliance Dimensions (HxWxD) (in) | 3 3/4" x 31'' x 21 1/4'' |
| Net Weight | 22.000 lbs |
| Minimum distance from counter front (in) | 1 7/8'' |

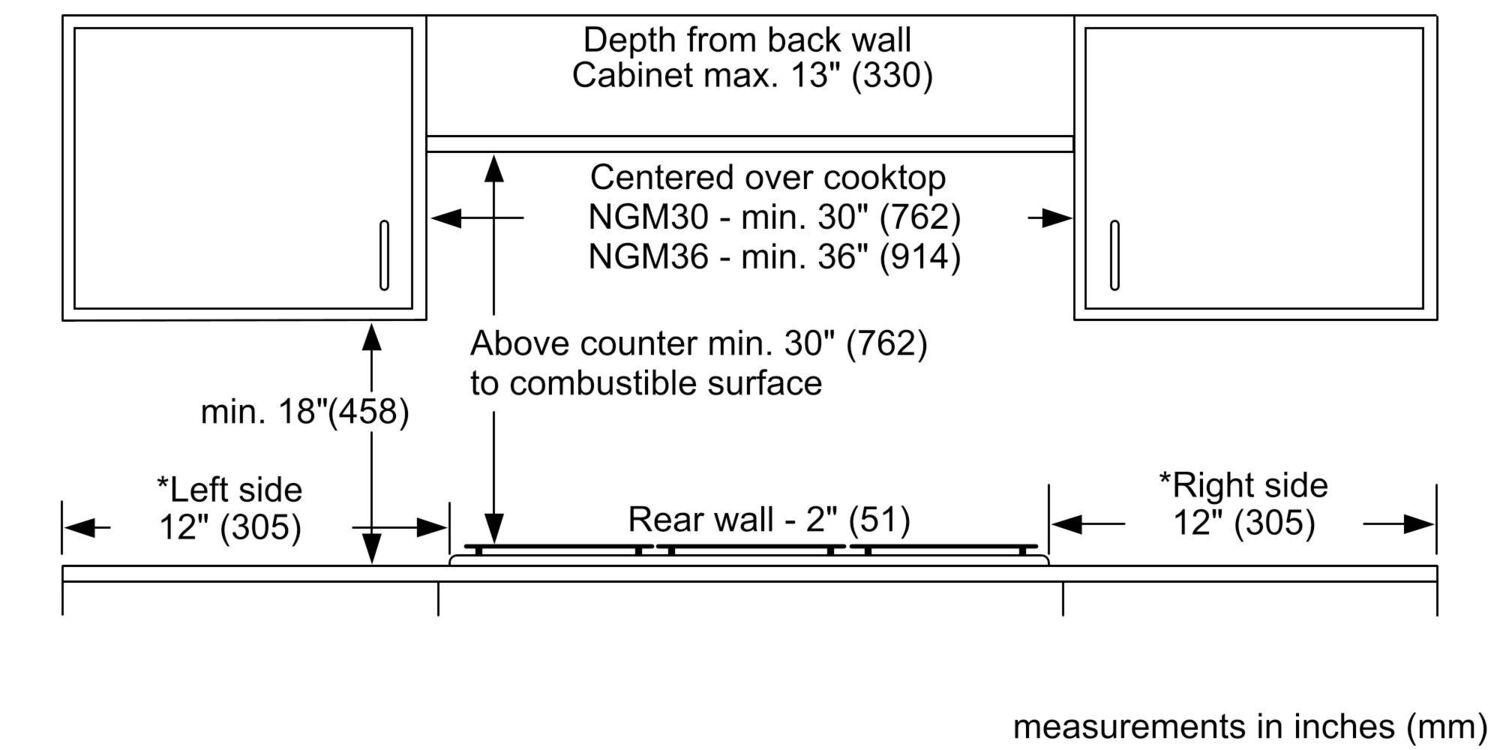

| Minimum distance from rear wall (in) | 3'' |
| Cooking zone 1 | |
| Location of heating element | front left |
| Power of heating element (kW) | 1 kW |
| Type of heating element | Gas |
| Cooking zone 2 | |
| Location of 2nd heating element | center left |
| Cooking zone 3 | |
| Location of 3rd heating element | back left |
| Power of 3rd heating element (kW) | 1.75 kW |
| Type of 3rd heating element | Gas |
| Cooking zone 4 | |
| Location of 4th heating element | middle back |
| Cooking zone 5 | |
| Location of 5th heating element | back right |
| Power of 5th heating element (kW) | 3 kW |
| Type of 5th heating element | Gas |
| Cooking zone 6 | |
| Location of 6th heating element | center right |
| Cooking zone 7 | |
| Location of 7th heating element | front right |
| Power of 7th heating element (kW) | 6 kW |
| Type of 7th heating element | Gas |
| Cooking zone 8 | |
| Location of 8th heating element | front middle / central |
| Cooking zone 9 | |
| Location of 9th heating element | front centre/cent |
| Safety | |
| Residual Heat Indicator | Separate |
| Type of safety device for gas | Electromagnetic for each burner |
| Safety | SMARTFLAME |
| Connection | |
| Total connected gas load | 12,100 W |
| Location of gas connection | Bottom, Rear, Right |
| Frequency | 60 Hz |
| Energy source | Gas |
| Power Cord Length | 40" |
| Watts | 360 W |
| Accessories | |
| Included Accessories | 1 x nozzle set for liquid gas, 3 x cast iron pan support |
- Fit multiple pans and cook with 5 burners
- Simmer delicate sauces with the OptiSim(R) Burner
- Easy to clean, low-profile design
- Slide your pans from burner to burner
