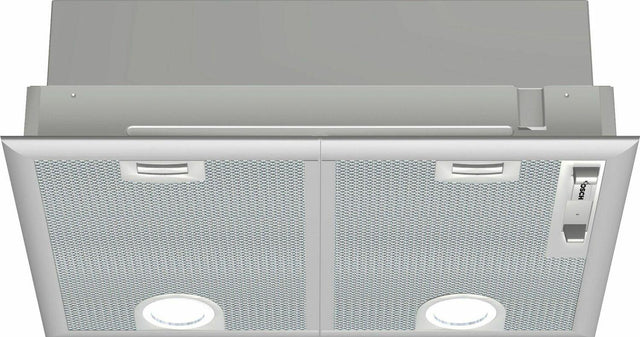

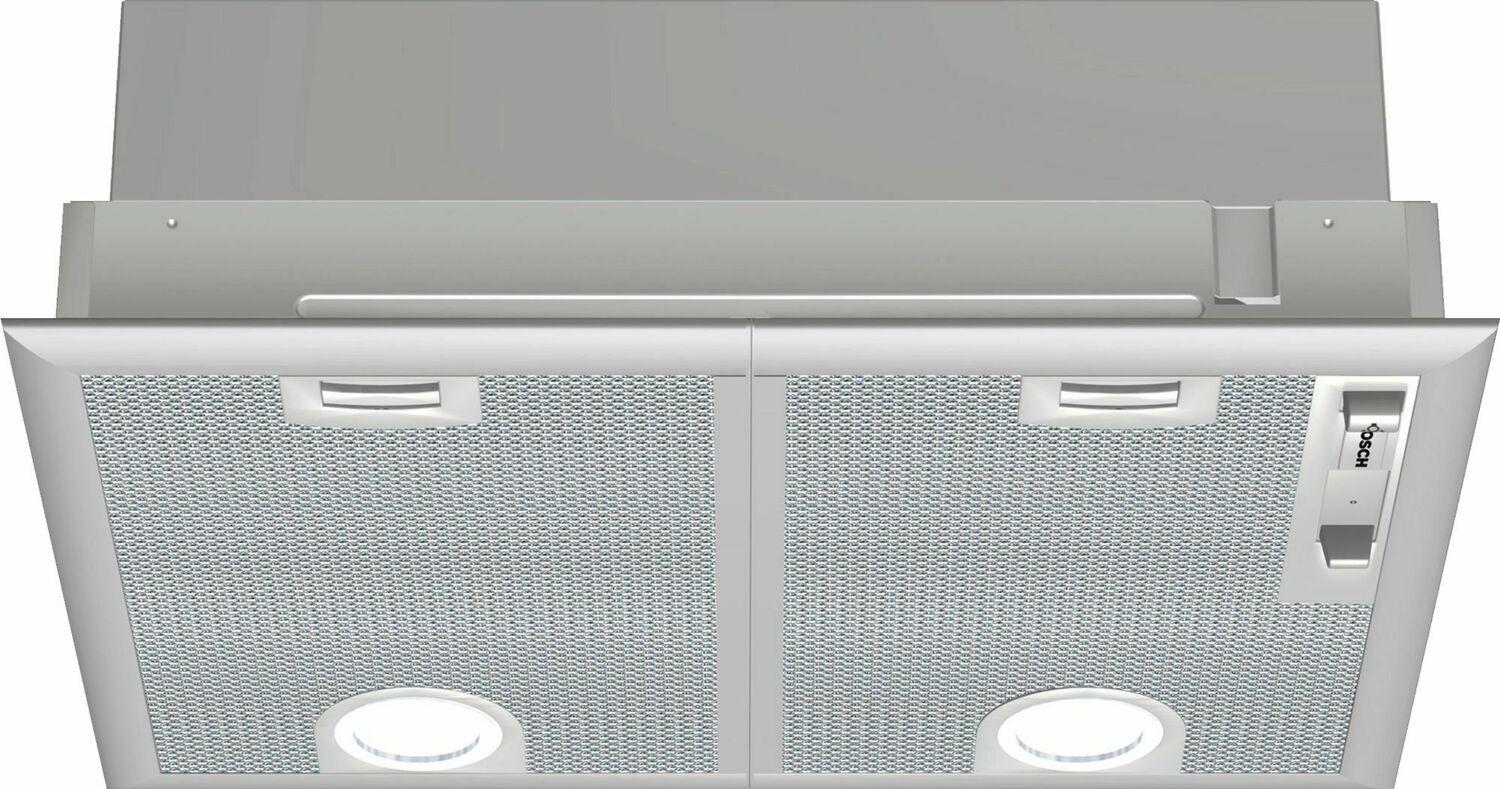

300 Series, 21" Custom Hood Insert
Model: HUI31451UC
Authorized Dealer
1
of
2
Loading...
Authorized Dealer
300 Series, 21" Custom Hood Insert
Model: HUI31451UCQuick Specs
Depth
15
Height
10
300 Series, 21" Custom Hood Insert is backordered and will ship as soon as it is back in stock.
Available to Order
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
15
Height
10
- Technical Specification
- Slide Switch Control
- 400 CFM Integrated Blower Included
- Dishwasher Safe Aluminum Mesh Filters
- 2 Halogen Lights - 12 Volt, 20 Watt Max., G-4 Base
- Performance
- 6 Inch Round Duct at Discharge
- Slide Switch Control
- 400 CFM Integrated Blower Included
- Dishwasher Safe Aluminum Mesh Filters
- 2 Halogen Lights - 12 Volt, 20 Watt Max., G-4 Base
| Technical Specifications | |
| General | |
| Construction type | Built-in |
| Operating Mode | Ducted |
| Maximum CFM | 440 Cu Ft mi |
| Type of control | Slide switch |
| Connectivity | |
| Home Connect™ | |
| Construction type | |
| Color | Stainless Steel |
| Grease filter material | Washable aluminium |
| Grease filter type | Multilayer cassette |
| Installation Type | Built-in |
| Material | Alu |
| Motor location | Integrated motor in hood body |
| Number of motors | 2 |
| Operating Mode | Ducted |
| Typology | Traditional |
| Connection | |
| Watts (W) | 40 W |
| Power Cord Length | 51 '' |
| Frequency (Hz) | 60 Hz |
| Total power of the lamps (W) | 40 W |
| Total output power of the motors | 270 W |
| Volts (V) | 120 V |
- Slide Switch Control
- 400 CFM Integrated Blower Included
- Dishwasher Safe Aluminum Mesh Filters
- 2 Halogen Lights - 12 Volt, 20 Watt Max., G-4 Base
 | |
|---|---|
| Design Features | |
Key Features |
|
Product Type |
|
| Dimensions & Capacity | |
Depth |
|
Height |
|
| Appearance & Specifications | |
Configuration |
|
Color |
|
