300 Series, Pyramid style canopy, 300 CFM
Model: HCP30E51UC
Authorized Dealer
1
of
4
Loading...
Authorized Dealer
300 Series, Pyramid style canopy, 300 CFM
Model: HCP30E51UCQuick Specs
Width
30"
Depth
19.69"
Height
42 9/16"
RPM
-1.0
Energy
YES
Discontinued
Regular price
$1,087.00
Unit price
/
Unavailable
Warranty
Selected warranty added with 'Add to Cart'.
SERVICES AVAILABLE
Selected service(s) added with 'Add to Cart'.
Couldn't load pickup availability
Quick Specs
Width
30"
Depth
19.69"
Height
42 9/16"
RPM
-1.0
Energy Star Rated
YES
- Design
- Duct Extension Accessory Kit Available for 9 to 11.5 Ceilings
- Performance
- 1 Fluorescent Light - 13 Watt
- 8 Inch round duct at discharge.
- Efficiency
- Blower will automatically turn on at high speed if excessive heat is sensed in the control area.
- Absorb odors with charcoal replacement filters.
- Convenience
- Convenient timer built into control from 1-60 minutes.
- Signal on LCD display will illuminate as a reminder to check filters for cleaning.
- Audible tone when select controls are pressed.
- Quiet operation 1.5 Sones / 168 CFM Low to 5.3 Sones / 300 CFM High
- ENERGY STAR(R) Certified, Efficient 300 CFM Chimney Wall Hood

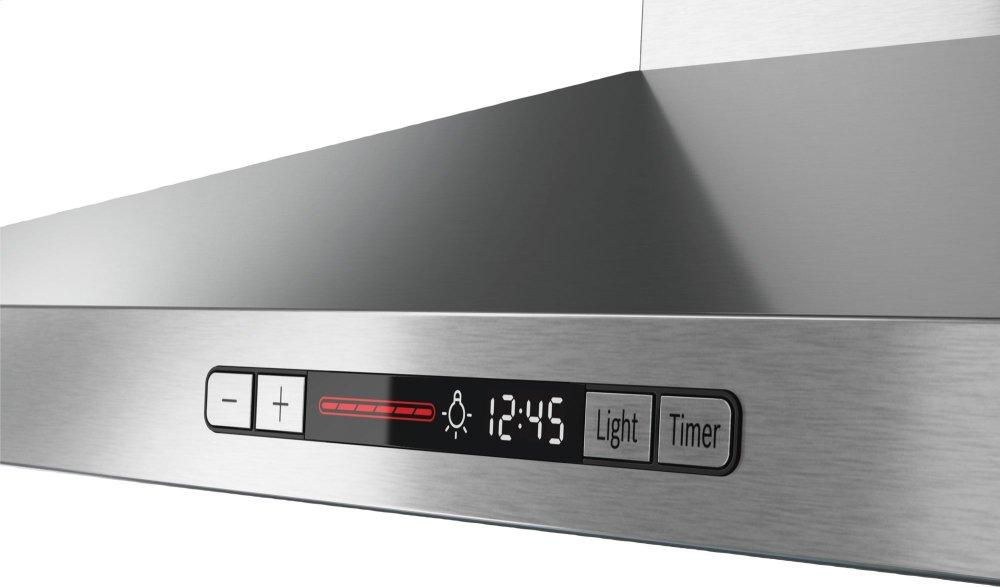

- Three Speed Touch Controls with LCD Display

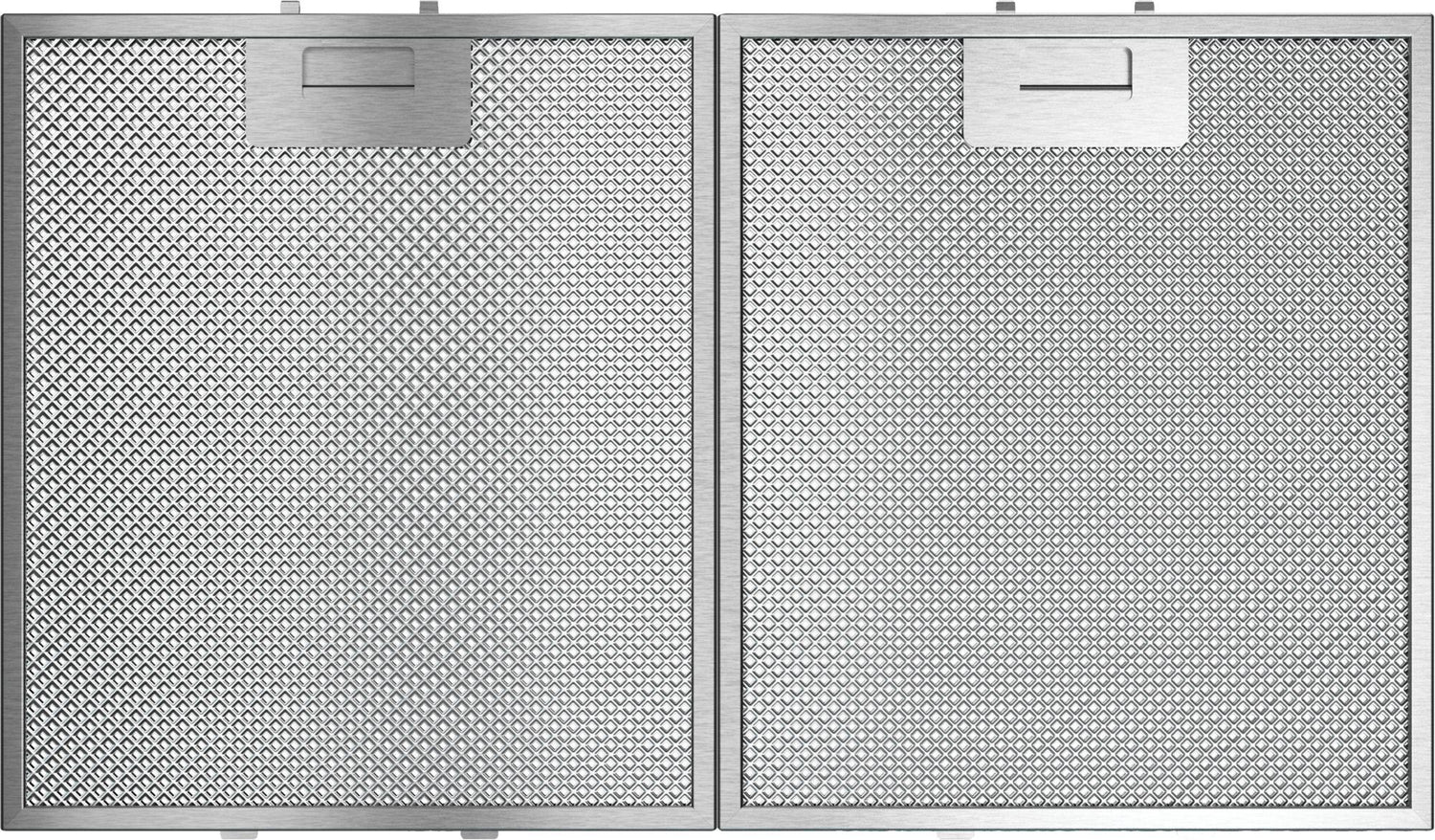

- Dishwasher Safe Aluminum Mesh Filters
- Converts to Recirculation Mode with Accessory Kit (Separate Purchase Required)
ENERGY STAR® Hood is Quiet in Operation Providing Better Efficiency and Comfort with Less Noise (UL)(LI)Quiet operation 1.5 Sones / 168 CFM Low to 5.3 Sones / 300 CFM High(/LI)(LI)ENERGY STAR® Certified, Efficient 300 CFM Chimney Wall Hood(/LI)(LI)Three Speed Touch Controls with LCD Display(/LI)(LI)Dishwasher Safe Aluminum Mesh Filters(/LI)(LI)Converts to Recirculation Mode with Accessory Kit (Separate Purchase Required)(/LI)(/UL)
| Technical Specifications | |
| General | |
| Construction type | Built-in |
| Operating Mode | Convertable: Ducted / Recirculating |
| Type of control | LCD, push-button |
| Connectivity | |
| Home Connect | |
| Construction type | |
| Color | Stainless Steel |
| Color chimney | Stainless steel |
| Grease filter material | Washable aluminium |
| Grease filter type | Multilayer cassette |
| Installation Type | Wall-mounted |
| Material | Stainless steel |
| Material chimney | Stainless steel |
| Motor location | Integrated motor in hood chimney |
| Number of motors | 1 |
| Operating Mode | Convertable: Ducted / Recirculating |
| Typology | Chimney |
| Connection | |
| Watts (W) | 170 W |
| Power Cord Length | 0 |
| Frequency (Hz) | 60 Hz |
| Total power of the lamps (W) | 13; 13 W |
| Total output power of the motors | 155 W |
| Volts (V) | 110 V |
- Quiet operation 1.5 Sones / 168 CFM Low to 5.3 Sones / 300 CFM High
- ENERGY STAR(R) Certified, Efficient 300 CFM Chimney Wall Hood
- Three Speed Touch Controls with LCD Display
- Dishwasher Safe Aluminum Mesh Filters
- Converts to Recirculation Mode with Accessory Kit (Separate Purchase Required)
