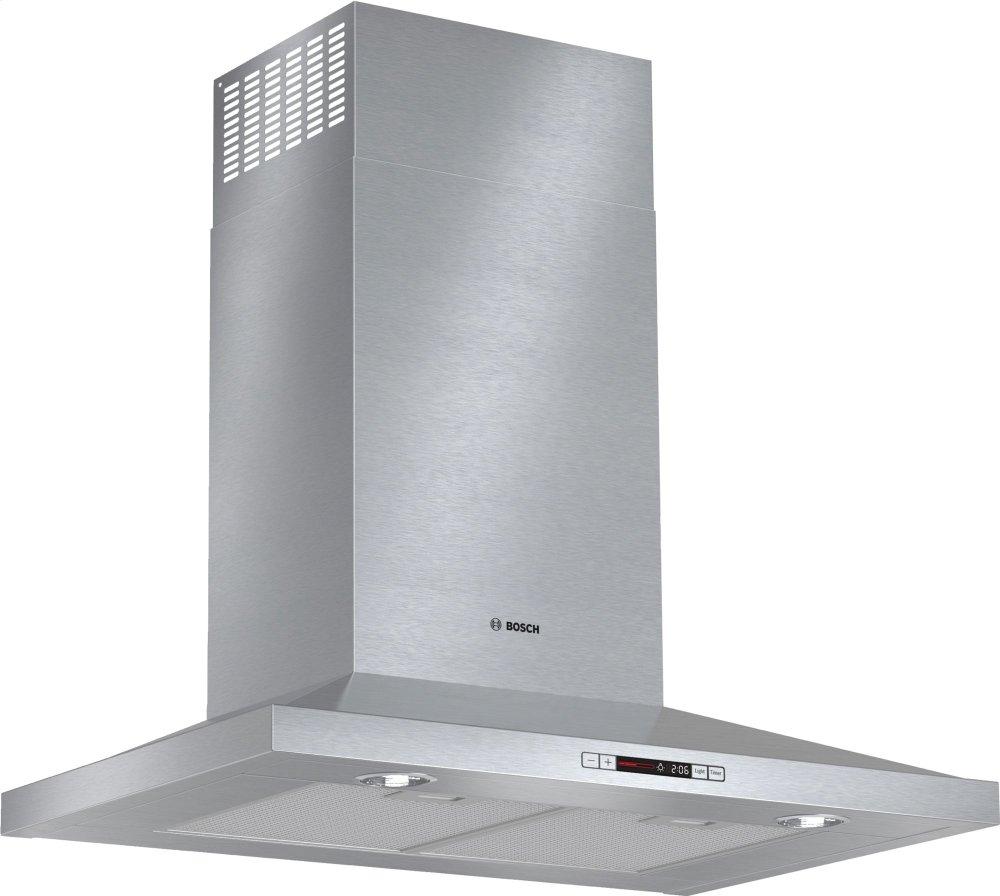

300 Series, Pyramid style canopy, 600 CFM
Model HCP30651UC
Authorized Dealer
1
of
4
Loading...
Authorized Dealer
300 Series, Pyramid style canopy, 600 CFM
Model HCP30651UCQuick Specs
Depth
19.688
Height
42.563
300 Series, Pyramid style canopy, 600 CFM is backordered and will ship as soon as it is back in stock.
Available to Order
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
19.688
Height
42.563
- Design
- Duct Extension Accessory Kit Available for 9 to 11.5 Ceilings
- Performance
- 2 Halogen Lights - 12 Volt, 20 Watt Max., G-4 Base
- 8 Inch round duct at discharge.
- Efficiency
- Blower will automatically turn on at high speed if excessive heat is sensed in the control area.
- Absorb odors with charcoal replacement filters.
- Convenience
- Convenient timer built into control from 1-60 minutes.
- Signal on LCD display will illuminate as a reminder to check filters for cleaning.
- Audible tone when select controls are pressed.
- Quiet blower 4.6 Sones / 178 CFM Low to 9.9 Sones / 600 CFM High
- 600 CFM Centrifugal Integrated Blower Included

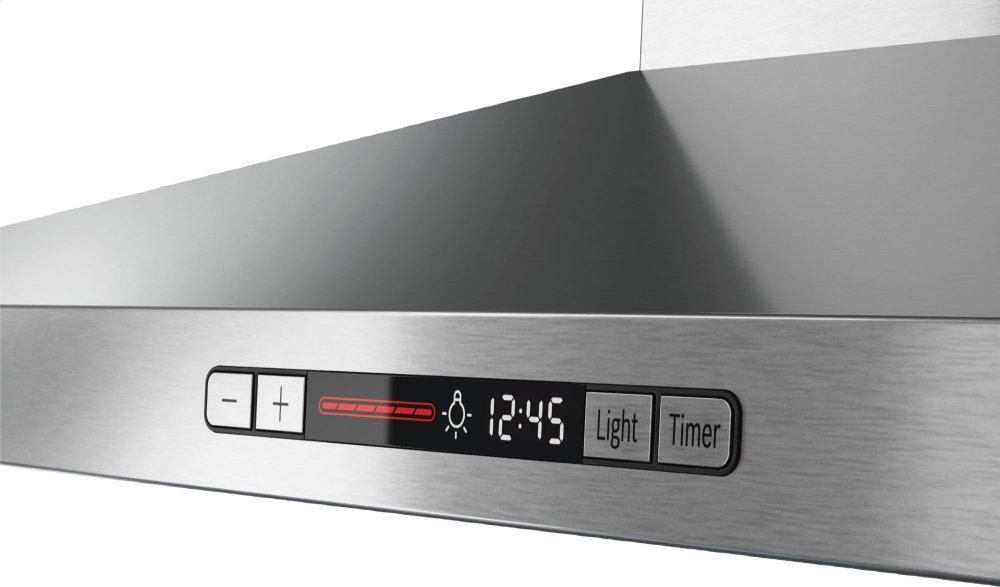

- Four Speed Touch Controls with LCD Display
Wall Mounted Chimney Hoods Add Style and Sophistication to the Kitchen and Gives You Greater Freedom in Your Kitchen Planning (P)(/P) (UL)(LI)Quiet blower 4.6 Sones / 178 CFM Low to 9.9 Sones / 600 CFM High(/LI)(LI)600 CFM Centrifugal Integrated Blower Included(/LI)(LI)Four Speed Touch Controls with LCD Display(/LI)(/UL)
| Technical Specifications | |
| General | |
| Construction type | Built-in |
| Operating Mode | Convertable: Ducted / Recirculating |
| Type of control | LCD, push-button |
| Connectivity | |
| Home Connect | |
| Construction type | |
| Color | Stainless Steel |
| Color chimney | Stainless steel |

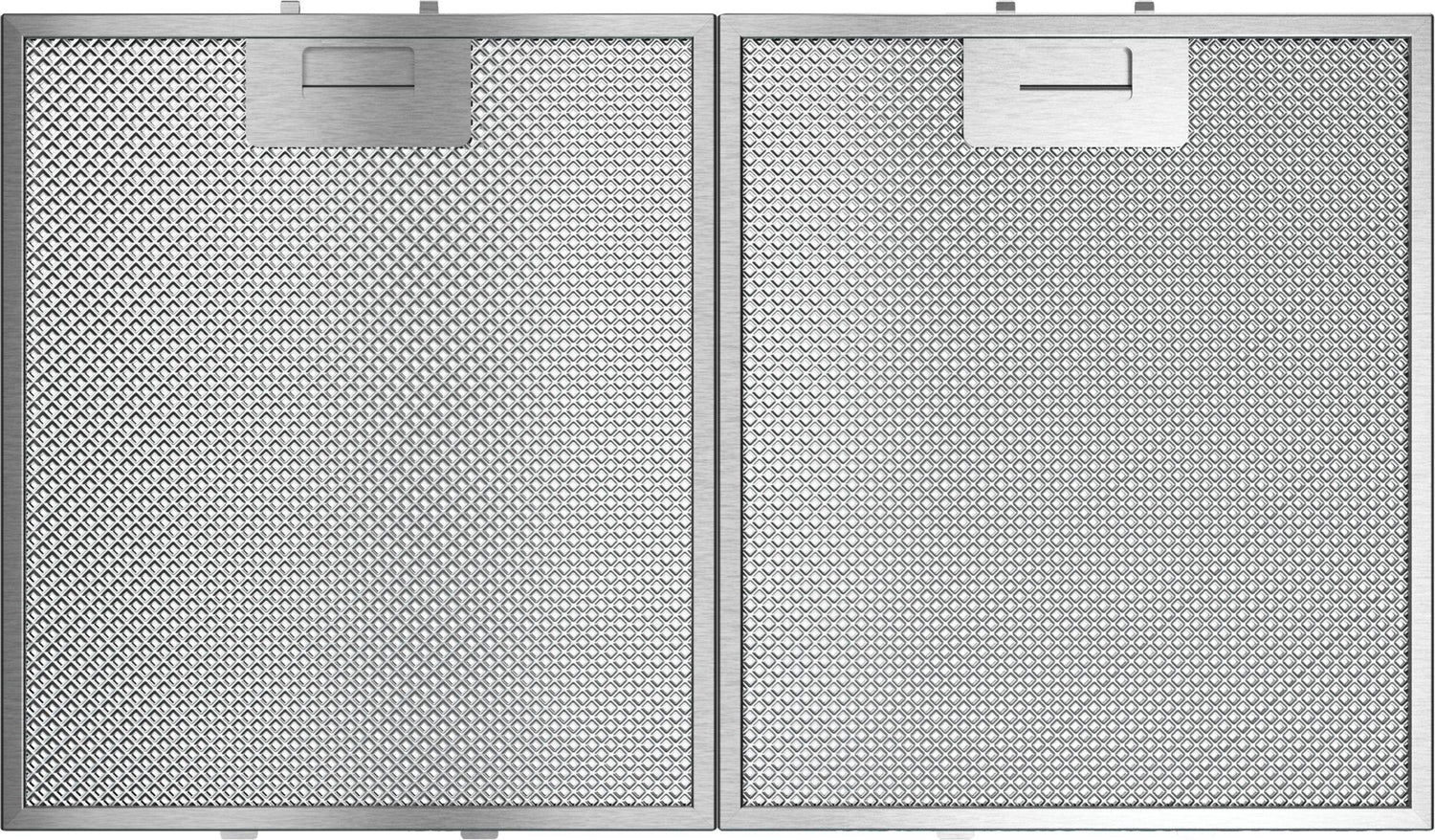

| Grease filter material | Washable aluminium |
| Grease filter type | Multilayer cassette |
| Installation Type | Wall-mounted |
| Material | Stainless steel |
| Material chimney | Stainless steel |
| Motor location | Integrated motor in hood chimney |
| Number of motors | 1 |
| Operating Mode | Convertable: Ducted / Recirculating |
| Typology | Chimney |
| Connection | |
| Watts (W) | 530 W |
| Frequency (Hz) | 60 Hz |
| Total power of the lamps (W) | 40 W |
| Total output power of the motors | 450 W |
| Volts (V) | 110 V |
- Quiet blower 4.6 Sones / 178 CFM Low to 9.9 Sones / 600 CFM High
- 600 CFM Centrifugal Integrated Blower Included
- Four Speed Touch Controls with LCD Display
 | |
|---|---|
| Design Features | |
Key Features |
|
Product Type |
|
| Dimensions & Capacity | |
Depth |
|
Height |
|
| Appearance & Specifications | |
Configuration |
|
Color |
|
