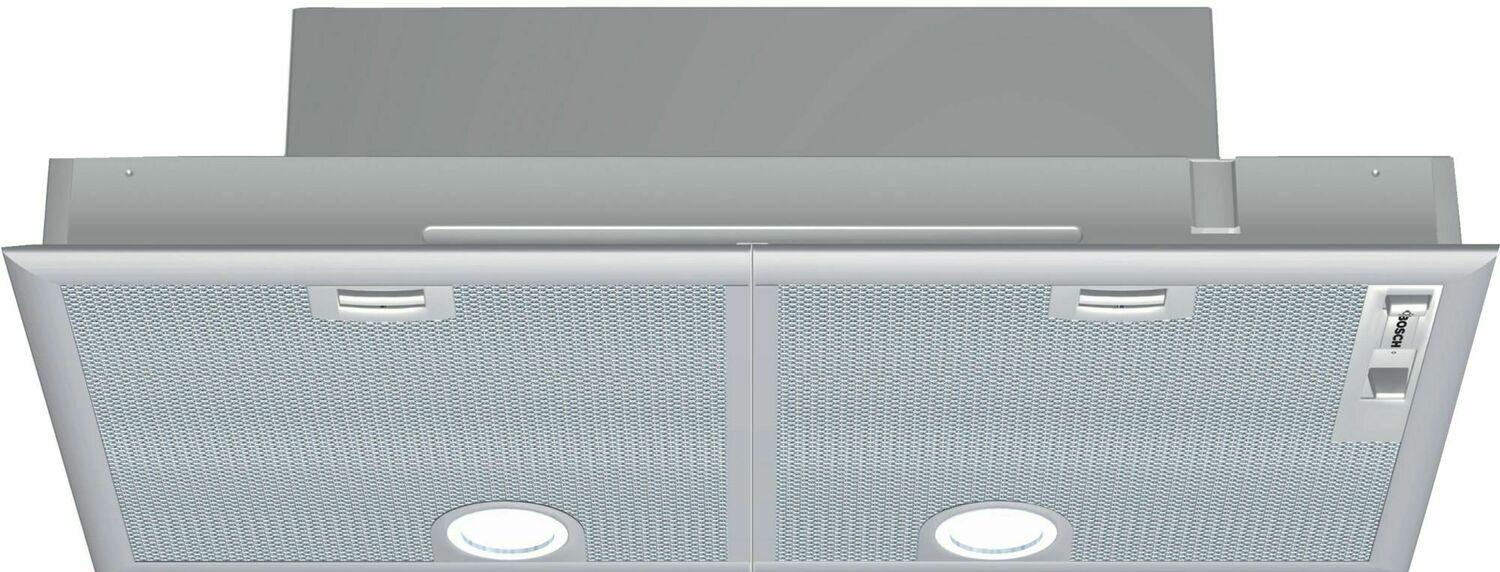

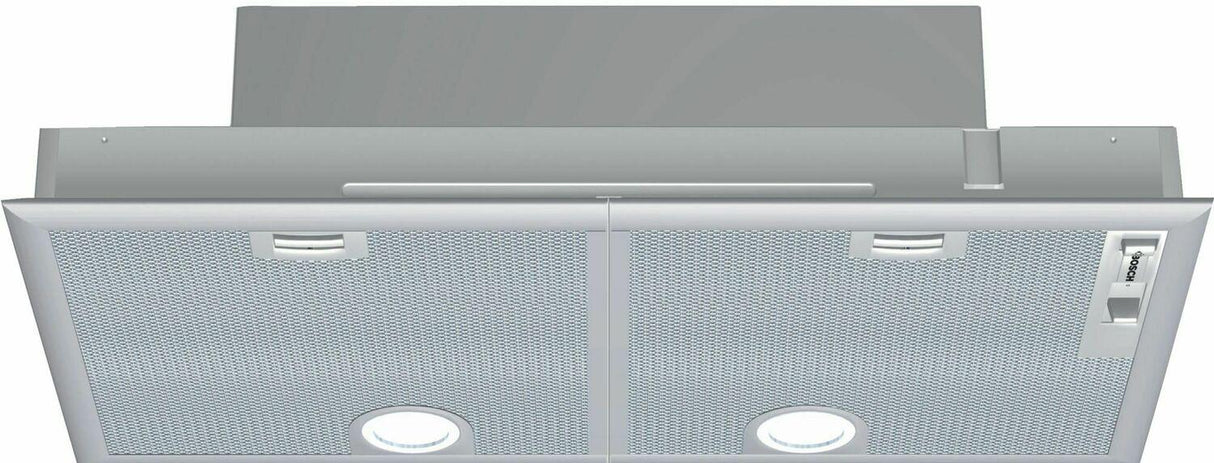

500 Series, 30" Custom Hood Insert, 400CFM Blower
Model: DHL755BUC
Authorized Dealer
1
of
5
Loading...
Authorized Dealer
500 Series, 30" Custom Hood Insert, 400CFM Blower
Model: DHL755BUCQuick Specs
Depth
15
Height
6.25
500 Series, 30" Custom Hood Insert, 400CFM Blower is backordered and will ship as soon as it is back in stock.
Available to Order
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
15
Height
6.25
- Key Features
- Quickly and Quietly Clears the Air of Smoke and Odor
- 400 CFM Integral Blower Included
- Design

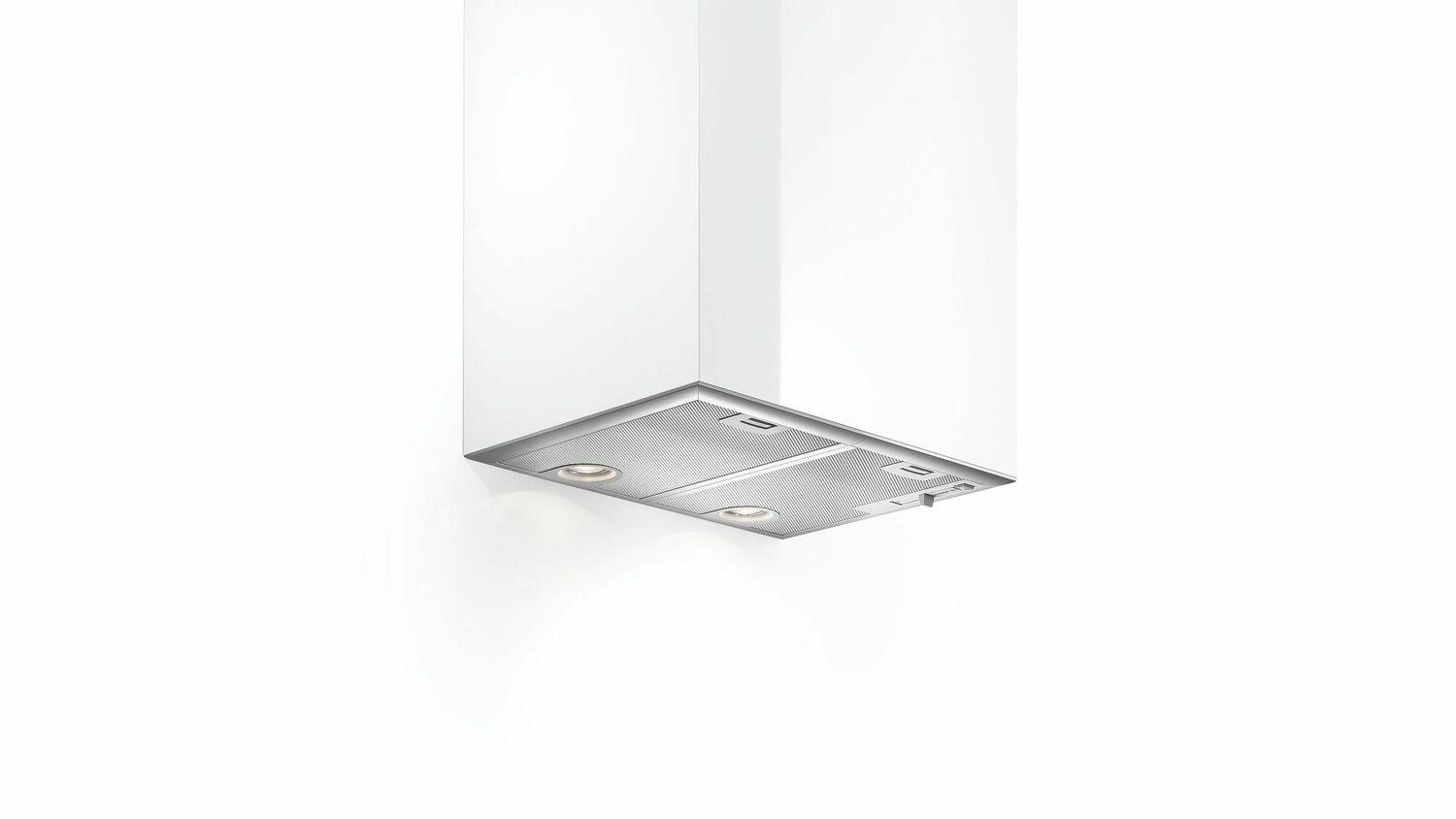

- This Sophisticated Ventilation System Can be Used in Wall Installations
- Performance
- Four Power Levels
- Slide Switch Control

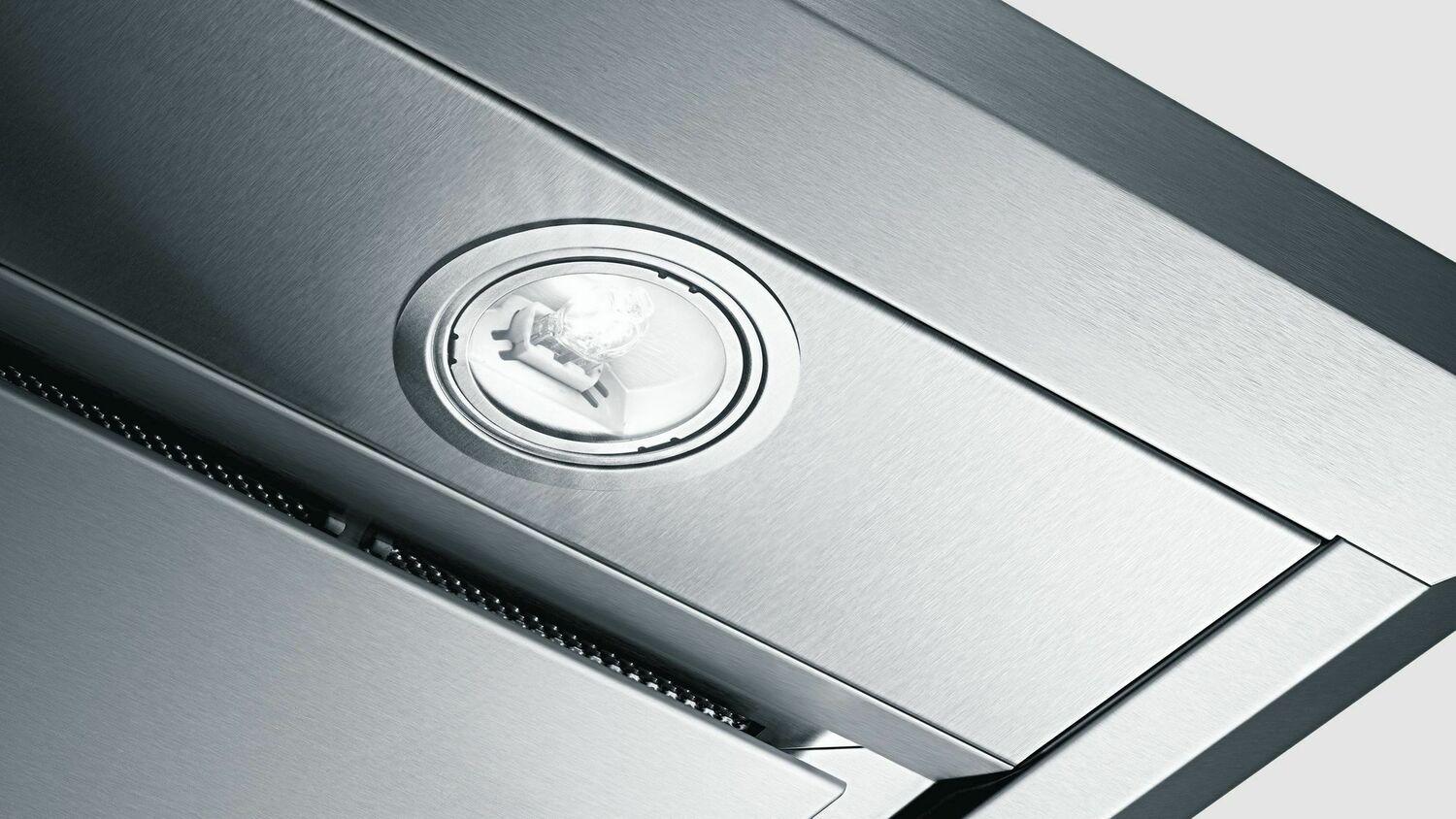

- 2 Halogen Lights - 12 Volt, 20 Watt Max., G-4 Base
- Convenience

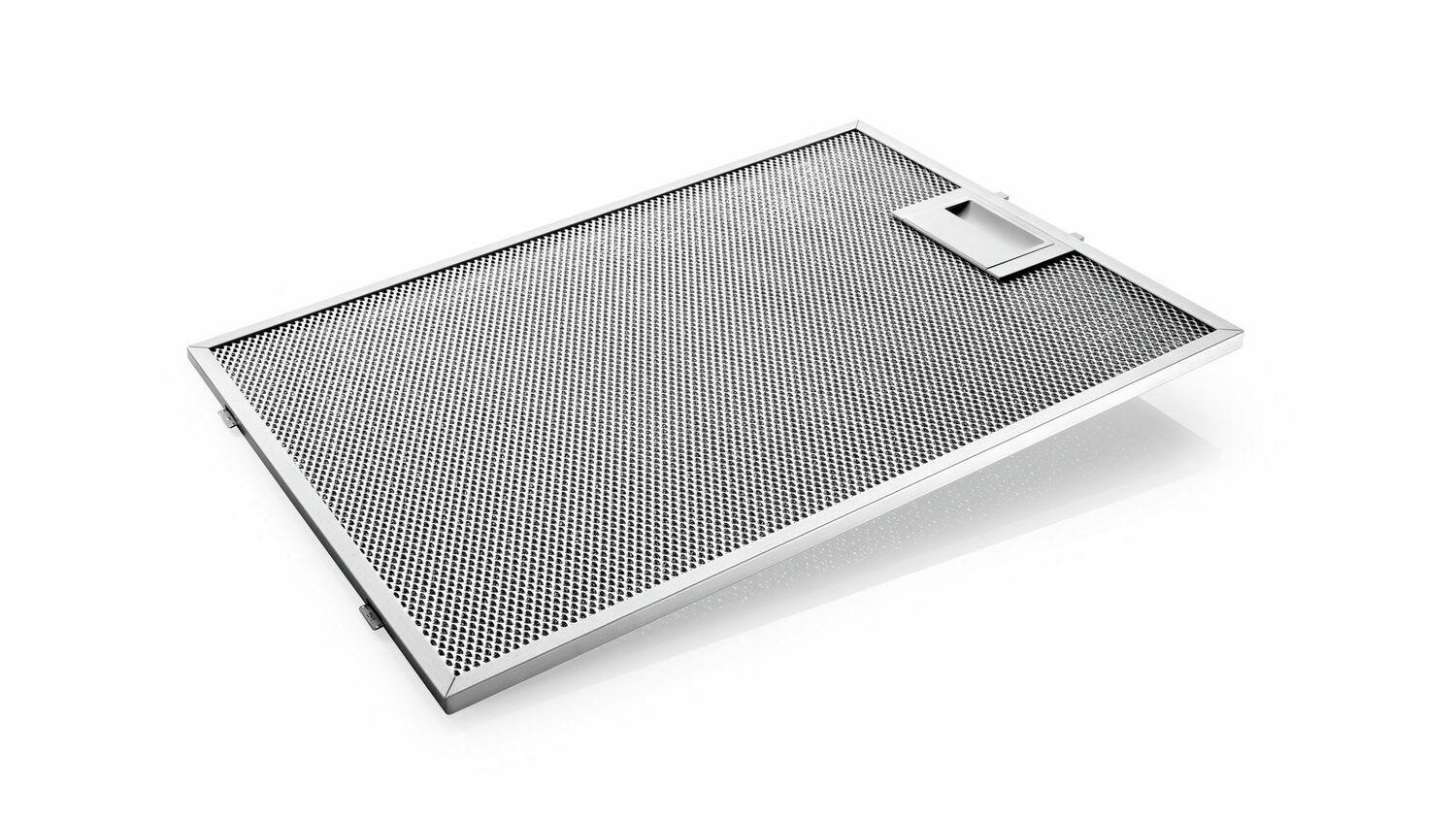

- Dishwasher-safe Mesh Filters
- 6 Inch Round Duct at Discharge
- Slide Switch Control
- 400 CFM integrated blower included
- Dishwasher Safe Aluminum Mesh Filters
- 2 Halogen Lights - 12 Volt, 20 Watt Max., G-4 Base
- 6" Round Duct at Discharge
| Technical Specifications | |
| General | |
| Construction type | Built-in |
| Operating Mode | Ducted |
| Maximum CFM | 400 Cu Ft mi |
| Type of control | Slide switch |
| Connectivity | |
| Home Connect™ | |
| Construction type | |
| Color | Stainless Steel |
| Grease filter material | Washable aluminium |
| Grease filter type | Multilayer cassette |
| Installation Type | Built-in |
| Motor location | Integrated motor in hood body |
| Number of motors | 2 |
| Operating Mode | Ducted |
| Typology | Traditional |
| Connection | |
| Watts (W) | 270 W |
| Frequency (Hz) | 60 Hz |
| Total power of the lamps (W) | 40 W |
| Total output power of the motors | 200 W |
| Volts (V) | 120 V |
- Slide Switch Control
- 400 CFM integrated blower included
- Dishwasher Safe Aluminum Mesh Filters
- 2 Halogen Lights - 12 Volt, 20 Watt Max., G-4 Base
- 6" Round Duct at Discharge
 | |
|---|---|
| Design Features | |
Key Features |
|
Product Type |
|
| Dimensions & Capacity | |
Depth |
|
Height |
|
| Appearance & Specifications | |
Configuration |
|
Color |
|
