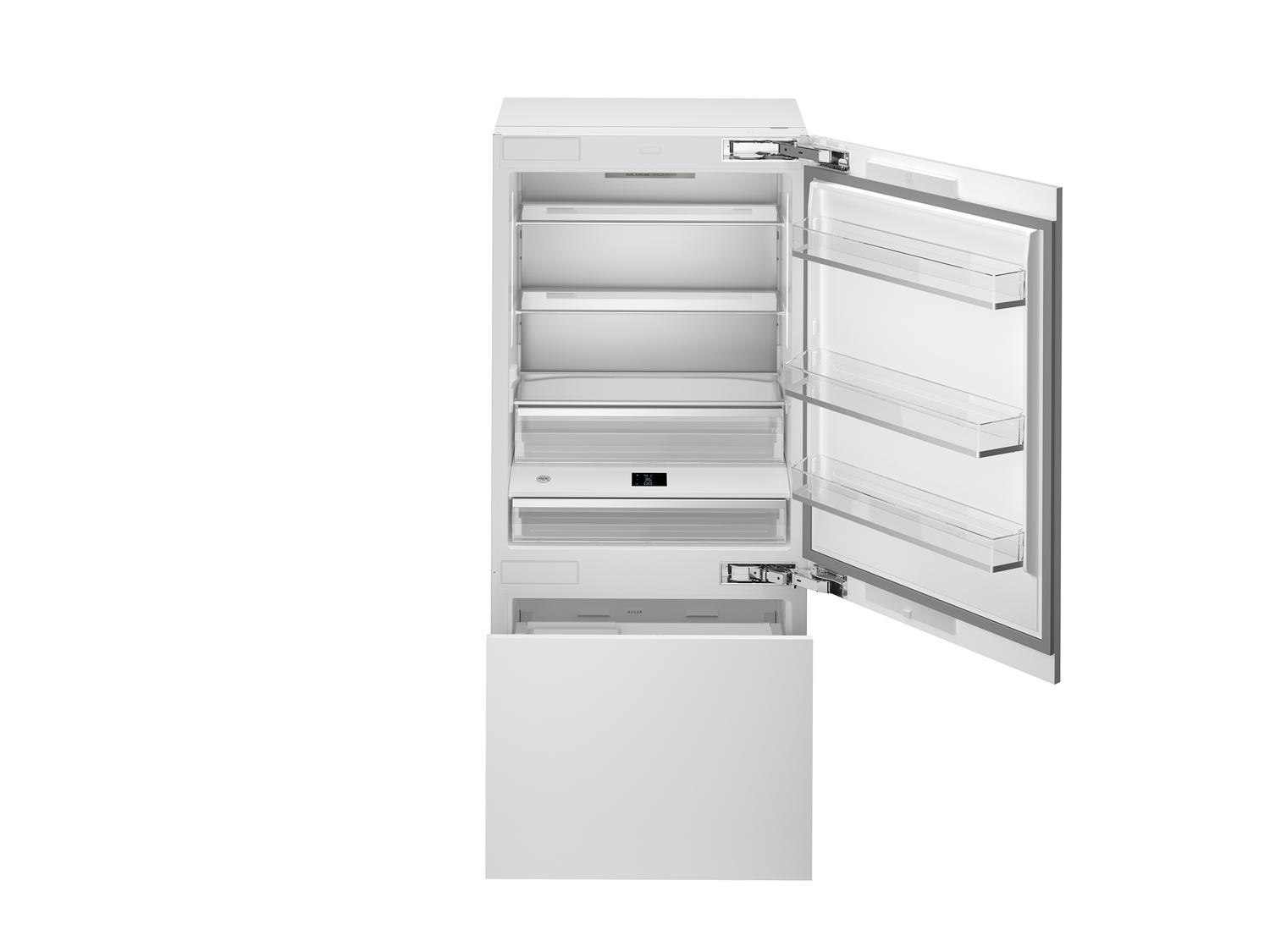

36 inch Bottom Mount Built-in Refrigerator Panel Ready with ice maker & internal water dispenser Panel Ready
Model: REF36BMBZPNV
36 inch Bottom Mount Built-in Refrigerator Panel Ready with ice maker & internal water dispenser Panel Ready
Model: REF36BMBZPNVQuick Specs
36 inch Bottom Mount Built-in Refrigerator Panel Ready with ice maker & internal water dispenser Panel Ready is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- Energy Star rated refrigerator & freezer - 19.8 cu.ft of total storage capacity
- Flush or proud installation in 84" high kitchen cabinets
- Fresco drawer in the refrigerator compartment with independent temperature settings (30(degree)-41(degree)F) allows for optimal storage

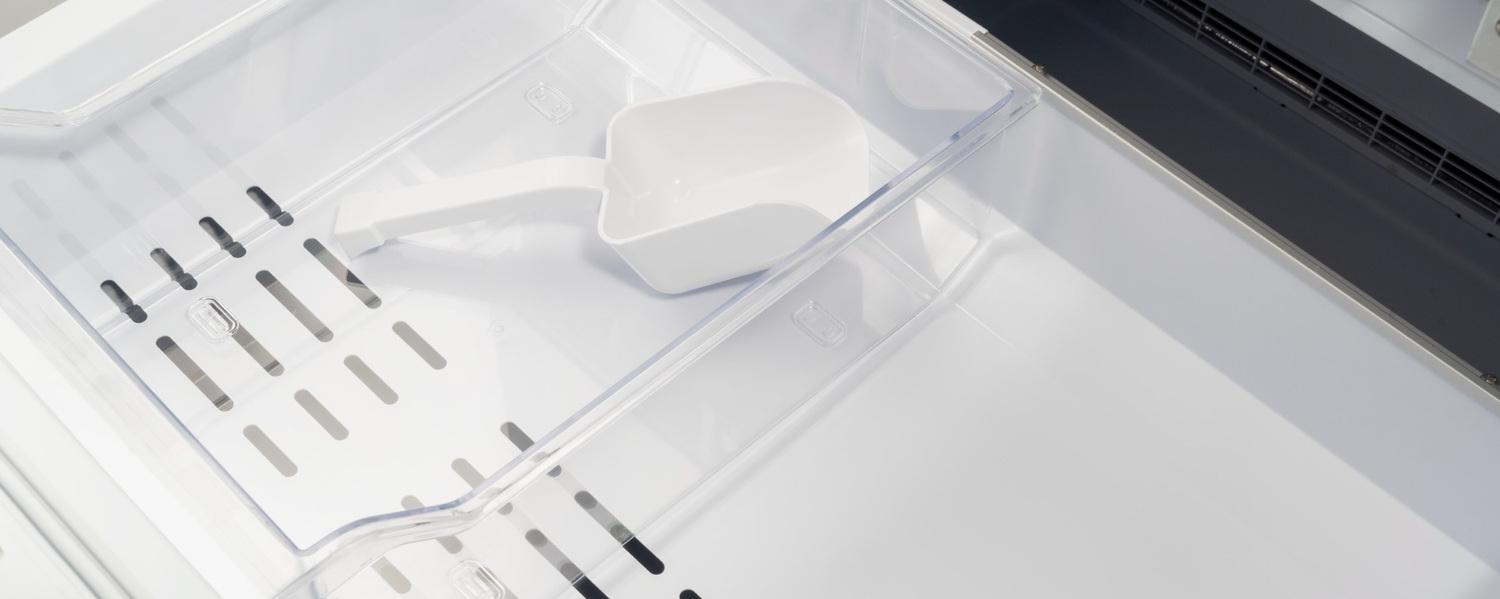

- Automatic ice maker with daily capacity of 3.9 lbs of filtered ice and internal water dispenser

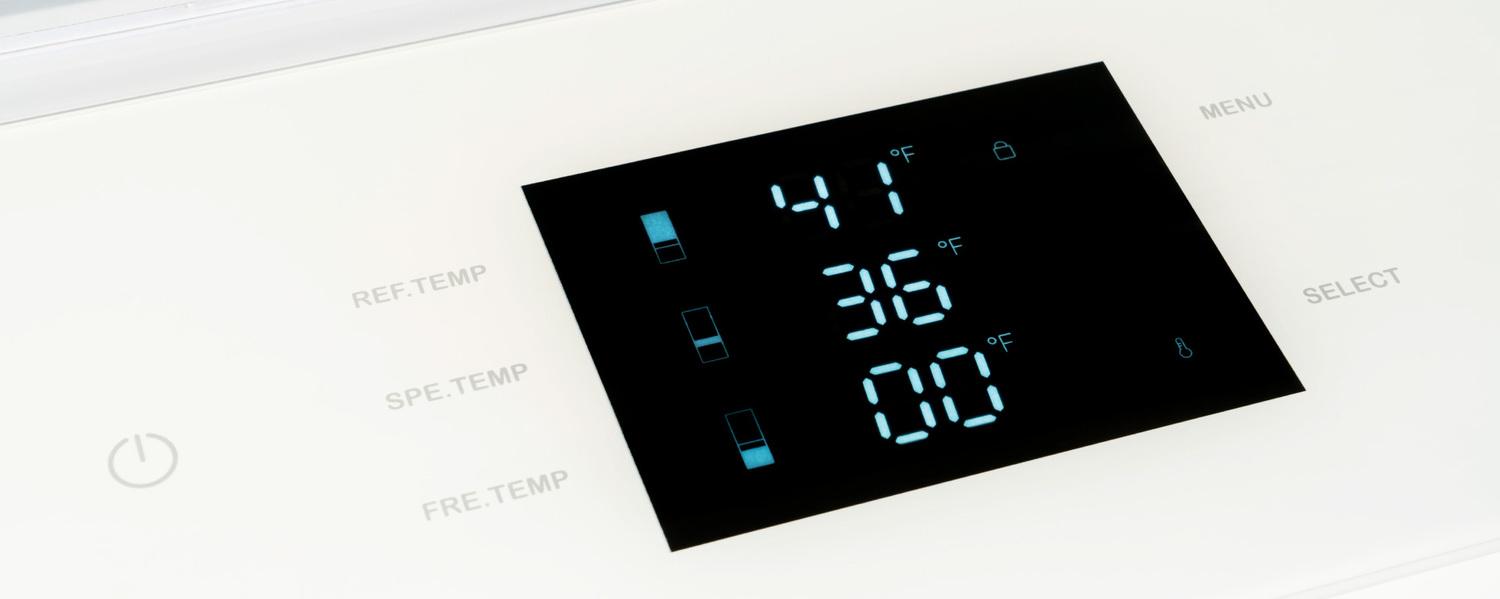

- Digital LED touch interface with user-friendly controls
- Soft close refrigerator crispers and metal freezer bins
- Height-adjustable gallon-size door storage bins
- Stainless steel door panels kit available as optional accessory. Stainless steel toe kick included
- Reversible doors for left or right swing configuration
- ADA compliant

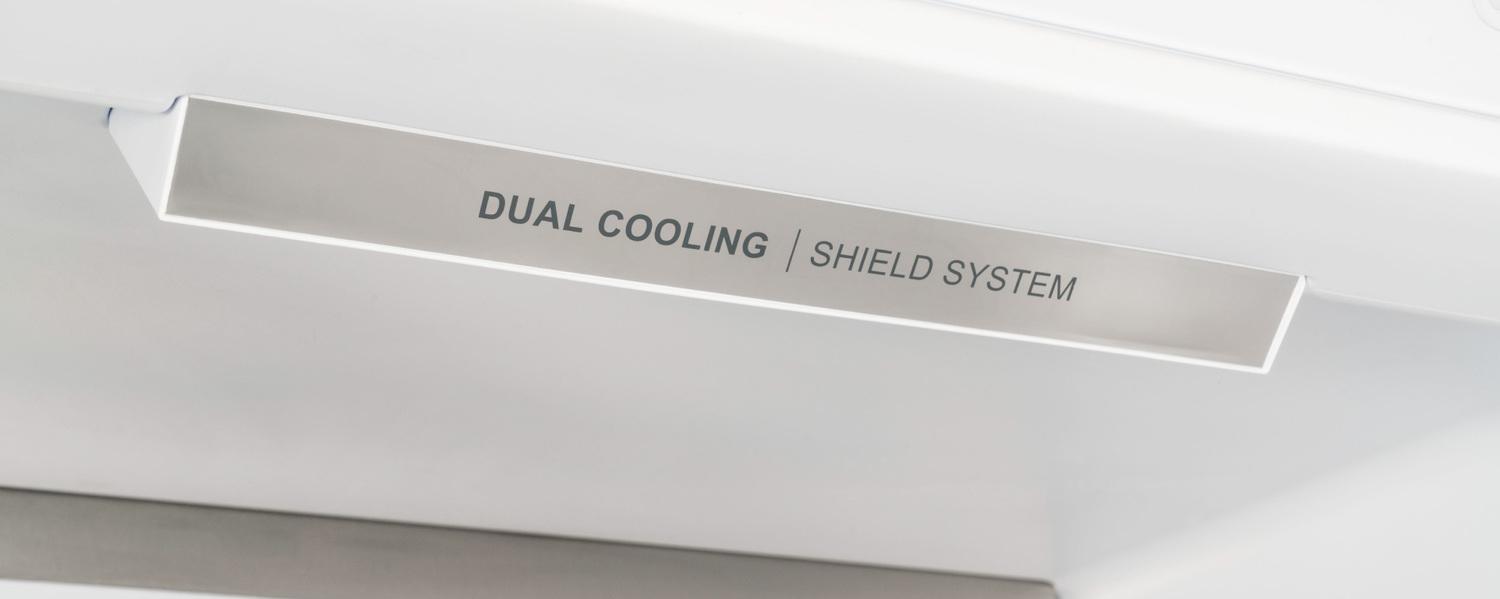

(P)This Bertazzoni 36 built-in refrigerator & freezer is engineered and manufactured to meet the highest grade of quality and performance. Using one of the 3 available handle kits in Professional, Master Series and Heritage Series style, it integrates seamlessly with all other Bertazzoni appliances into style-harmonized suites for a true, high-performing kitchen.(/P) (P)This entire unit has ample storage capacity, with 14.3 cubic feet of refrigerator volume and 5.5 cubic feet of freezer space. The refrigerator compartment has 3 shelves of which 2 are height-adjustable and 2 full extension crispers. Additionally, it features 1 Fresco drawer with separate digital controls. This zone precisely keeps the temperature just above 32 F, preserving fresh food nutrients, flavors, and visual appearance substantially longer. The Dual Cooling Shield System provides an automatic defrosting function for both evaporators to ensure optimized food storage conditions. The freezer compartment has 2 metal drawers and an automatic ice maker.(/P) (P)The electronic touch-control LED interface simplifies setting and monitoring of all vital functions. LED lights on the top and sidewall provide clear illumination of the interior space. The internal water dispenser is equipped with an inline filter for hygienically clean drinking water and ice. .(/P) (P)The EnergyStar qualification of this model ensures a highly reduced energy consumption, while providing optimal performance ratings.(/P) (P)To mount a Bertazzoni handle kit on a custom kitchen cabinet panel, use brass threaded inserts .(/P) (P)Using one of the 3 available handle kits in Professional, Master and Heritage Series style, this refrigerator integrates seamlessly with all other Bertazzoni appliances into style-harmonized suites for a true, high-performing kitchen. (/P) (P) Handle kits are sold separately. (BR) (BR) All Bertazzoni appliances are covered by a 2-year warranty.(/P)
| Size | 36 in |
| User interface | LED touch control interface |
| Refrigerator net capacity | 14.3 cu.ft |
| Freezer net capacity | 5.5 cu.ft |
| General features | |
| Size | 36 in |
| Cooling system | frost free |
| User interface | LED touch control interface |
| Display functions | Super Cool, Super Freeze, Ice maker, Water filter replacement reminder, Internal water dispenser, Eco Mode, Vacation Mode, Sabbath Mode |
| Lighting | LED side & top rail illumination |
| Door ajar alarm | yes |
| Door finishing | panel ready |
| Doors reversibility | field reversible door hinges |
| Cabinet finishing | stainless steel back wall |
| Refrigerator net capacity | 14.3 cu.ft |
| Refrigerator shelves | 2 height-adjustable + 1 stationary |
| Refrigerator drawers | 1 + 1 Fresco drawer with separate temperature control |
| Door storage | 3 bins |
| Freezer net capacity | 5.5 cu.ft |
| Freezer drawers | 2 full extension drawers |
| Automatic ice maker | yes |
| Ice production capacity | 3.9 lbs / 24 hrs |
| Water filter | yes |
| Water supply pressure | 25-80 PSI |
| Sound rating | 43 dbA |
| Certification | ADA Compliant, CEC, ETL, Energy Star |
| DOE compliant | yes |
| Technical specifications | |
| Electrical supply | 115 V - 60 Hz - 2.5 A |
| Power rating | 120 W |
| Power connection | NEMA 5-15P with 90" power cord |
| Energy consumption | 590.0 kwh/yr |
- Energy Star rated refrigerator & freezer - 19.8 cu.ft of total storage capacity
- Flush or proud installation in 84" high kitchen cabinets
- Fresco drawer in the refrigerator compartment with independent temperature settings (30(degree)-41(degree)F) allows for optimal storage
- Automatic ice maker with daily capacity of 3.9 lbs of filtered ice and internal water dispenser
- Digital LED touch interface with user-friendly controls
- Soft close refrigerator crispers and metal freezer bins
- Height-adjustable gallon-size door storage bins
- Stainless steel door panels kit available as optional accessory. Stainless steel toe kick included
- Reversible doors for left or right swing configuration
- ADA compliant
